Furuno Network Sounder DFF3 User manual

NETWORK SOUNDER
DFF3
OPERATOR'S MANUAL
www.furuno.com
MODEL

i
IMPORTANT NOTICES
General
• This manual has been authored with simplified grammar, to meet the needs of international us-
ers.
• The operator of this equipment must read and follow the descriptions in this manual. Wrong op-
eration or maintenance can cancel the warranty or cause injury.
• Do not copy any part of this manual without written permission from FURUNO.
• If this manual is lost or worn, contact your dealer about replacement.
• The contents of this manual and equipment specifications can change without notice.
• The example screens (or illustrations) shown in this manual can be different from the screens
you see on your display. The screens you see depend on your system configuration and equip-
ment settings.
• Save this manual for future reference.
• Any modification of the equipment (including software) by persons not authorized by FURUNO
will cancel the warranty.
• All brand and product names are trademarks, registered trademarks or service marks of their
respective holders.
How to discard this product
Discard this product according to local regulations for the disposal of industrial waste. For disposal
in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the
correct method of disposal.
How to discard a used battery
Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter
on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of
battery before disposal to prevent fire, heat generation caused by short circuit.
In the European Union
The crossed-out trash can symbol indicates that all types of batteries
must not be discarded in standard trash, or at a trash site. Take the
used batteries to a battery collection site according to your national
legislation and the Batteries Directive 2006/66/EU.
In the USA
The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd
and lead-acid rechargeable batteries must be recycled. Take the used
batteries to a battery collection site according to local laws.
In the other countries
There are no international standards for the battery recycle symbol. The number of symbols can
increase when the other countries make their own recycle symbols in the future.
Cd
Ni-Cd Pb

ii
SAFETY INSTRUCTIONS
Do not operate the equipment with
wet hands.
Electrical shock can result.
Do not place liquid-filled containers
on the top of the equipment.
Electrical shock can result.
Do not install the equipment where
it may be subjected to rain or water
splash.
Fire or electrical shock can result if water
gets inside the equipment.
Use the proper fuse.
Use of a wrong fuse can damage the
equipment and may cause fire.
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
Warning, Caution
Mandatory Action
Prohibitive Action
The user and installer must read the appropriate safety instructions before attempting to install
or operate the equipment.
WARNING
WARNING
Do not open the equipment.
Only qualified personnel should work
inside the equipment.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Turn off the power immediately if the
equipment is emitting smoke or fire.
Fire or electrical shock can result if the
power is left on.
Turn off the power immediately if water
leaks into the equipment or an object
is dropped inside the equipment.
Continued use can cause fire or electrical
shock.
Turn off the power immediately if you
feel the equipment is acting abnormally.
If the equipment is hot to the touch or is
emitting strange noises, turn off the power
immediately and contact your dealer for
advice.
WARNING
Safety instructions for the operator
WARNING
To avoid electrical shock,
do not remove cover. No
user-serviceable parts
Name: Warning Label (1)
Type: 86-003-1011-3
Code No.: 100-236-233-10
A warning label is attached to the equipment.
Do not remove this label. If the label is missing
or illegible, contact a FURUNO agent or dealer
about replacement.

SAFETY INSTRUCTIONS
iii
Standard
compass Steering
compass
0.95 m 0.60 m
CAUTION
CAUTION
The transducer cable must be handled
carefully, following the guidelines
below.
• Keep fuels and oils away from the
cable.
• Locate the cable away from chemicals.
• Locate the cable away from locations
where it might be damaged.
Do not apply the power with the
transducer exposed to air.
Damage to the transducer may result.
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
WARNING
WARNING
Do not open the equipment.
Only qualified personnel should work
inside the equipment.
Turn off the power before beginning
the installation.
Fire or electrical shock can result if the
power is left on.
Be sure no water leaks at the transducer
and temperature sensor.
Water leakage can sink the vessel. Also,
confirm that neither the transducer or
sensor will loosen by vibration. The
installer is solely responsible for the
installation.
Confirm that the power supply voltage
is within the rating of this equipment.
Incorrect voltage will damage the equip-
ment and may cause fire.
Safety instructions for the installer

iv
TABLE OF CONTENTS
FOREWORD....................................................................................................................v
SYSTEM CONFIGURATION ..........................................................................................vi
1. MOUNTING...............................................................................................................1
1.1 Equipment Lists.............................................................................................................1
1.2 Network Sounder ..........................................................................................................8
1.3 Transducer....................................................................................................................9
1.4 Optional Speed/Temperature Sensors ST-02MSB, ST-02PSB....................................9
1.4.1 Mounting considerations........................................................................................9
1.4.2 Mounting procedure...............................................................................................9
1.5 Optional Temperature Sensors...................................................................................10

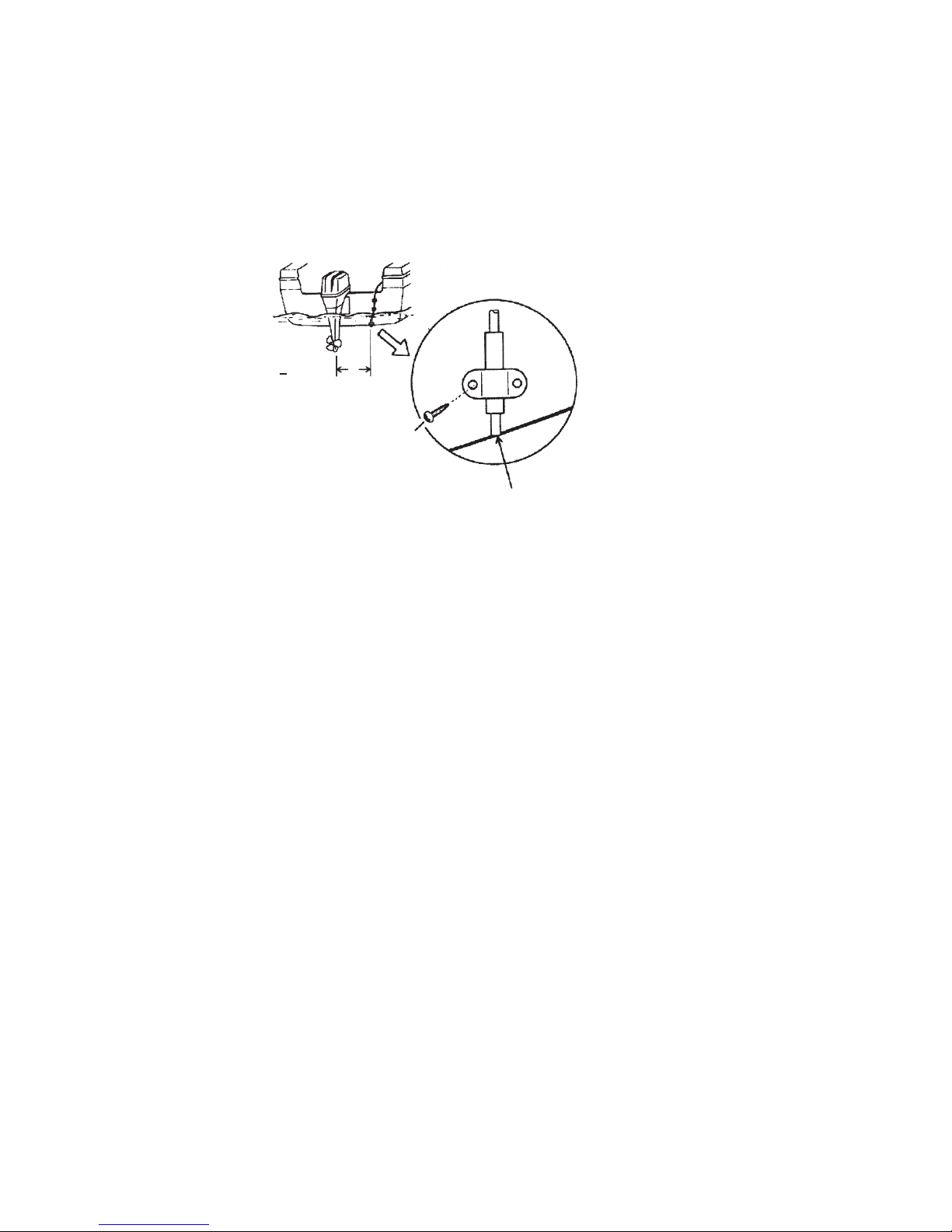

1.5.1 Transom mount temperature sensor T-02MTB ................................................... 10

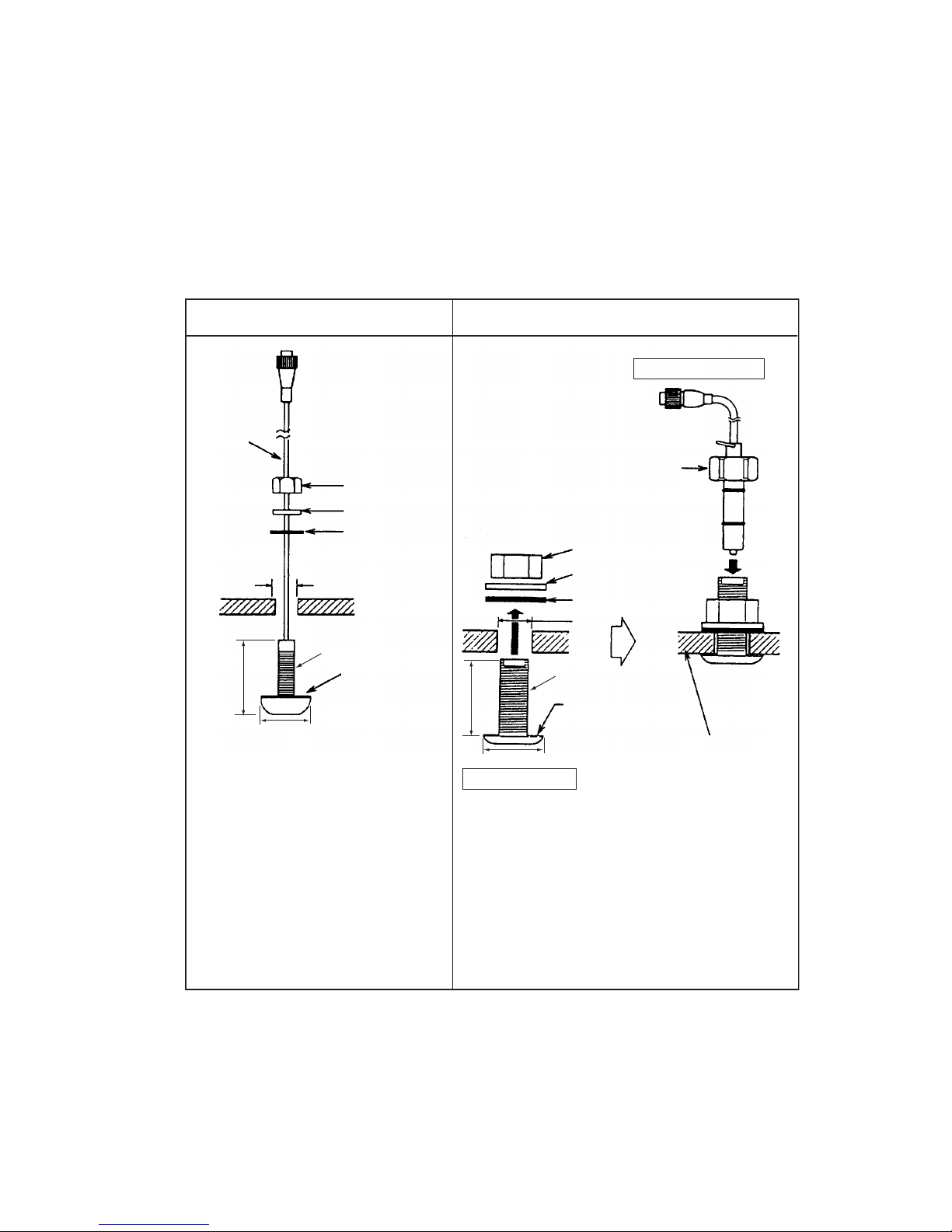

1.5.2 Thru-hull temperature sensor T-02MSB, T-03MSB............................................. 11
2. WIRING ...................................................................................................................12
2.1 Wiring Outline.............................................................................................................. 12
2.2 Transducer Cable........................................................................................................13
3. INITIAL SETTINGS.................................................................................................15
3.1 Tap Setting..................................................................................................................15
3.2 DIP Switch Setting ...................................................................................................... 16
3.3 Operation Check.........................................................................................................18
4. MAINTENANCE......................................................................................................19
4.1 Maintenance................................................................................................................19
4.2 Replacing the Fuse.....................................................................................................20
4.3 Restoring Default Settings ..........................................................................................20

v
FOREWORD
A Word to the Owner of the DFF3
Congratulations on your choice of the FURUNO DFF3 Network Sounder. We are confident you
will see why the FURUNO name has become synonymous with quality and reliability.
Since 1948, FURUNO Electric Company has enjoyed an enviable reputation for quality marine
electronics equipment. This dedication to excellence is furthered by our extensive global network
of agents and dealers.
This equipment is designed and constructed to meet the rigorous demands of the marine environ-
ment. However, no machine can perform its intended function unless operated and maintained
properly. Please carefully read and follow the recommended procedures for operation and main-
tenance.
Thank you for considering and purchasing FURUNO.
Features
The DFF3 network sounder is a dual frequency echo sounder designed for use with the FURUNO
NavNet, NavNet vx2, NavNet 3D and Navnet TZtouch series. The DFF3 feeds data about under-
water conditions via a LAN.
• FURUNO Free Synthesizer (FFS) transceiver design allows use of user-selectable operating
frequencies (28 - 200 kHz).
• Automatic operation selects correct range and gain to show fish echoes and bottom in both
shallow and deep waters.
• Improved discrimination of near-surface fish by eliminating the transmission line.
• Heaving compensation* stabilizes the picture against ship’s pitching and rolling. * Requires
NavNet 3D/TZtouch display device plus Satellite Compass SC-30.
• Approximate fish length calculation available with conenction of transducer 50/200-1T. (NavNet
3D and TZtouch only.)
• 1/2/3 kW output
Note: The terms “NavNet”, NavNet vx2”, “Navnet 3D” and “NavNet TZtouch” refer to the models
listed below.
NavNet/NavNet vx2 Navnet 3D NavNet TZtouch
Model 17x2 Series, Model 17x2C Series, Model 17x4
Series, Model 17x4C Series, GD-1720, GD-1720C,
Model 18x3C(-BB) Series, Model 18x4C(-BB) Series,
Model 19x3C(-BB) Series, Model 19x4C(-BB) Series,
GD-1900C(-BB), GD-1920C(-BB)
MFD8/12/BB TZ9, TZ14

vi
SYSTEM CONFIGURATION
100/110/115/
220/230 VAC
1 φ, 50/60 Hz
Network Sounder
DFF3
12-24 VDC
Low
Freq.
Transducer
High
Freq.
Transducer
Rectifier
PR-62
Speed/Temperature Sensor
ST-02MSB
ST-02PSB
Temperature Sensor
T-02MTB
T-02MSB
T-03MSB
DFF3
NETWORK SOUNDER
ST-BY
* HUB-100 (For NavNet/NavNet vx2)
HUB-101 (For NavNet 3D/TZtouch)
NavNet Series
HUB*

1
1. MOUNTING
1.1 Equipment Lists
Standard supply
Optional supply
Name Type Code No. Qty Remarks
Network Sounder DFF3 — 1
Spare Parts SP02-05601 001-033-740 1 set Fuse
Installation Materials CP02-08500 000-011-917 1 set - Power cable (3.5 m)
- LAN cable (5 m)
- Self-tapping screws
Name Type Code No. Remarks
Transducer 1/2/3kW available. See
next page for choices.
—
Thru-hull pipe —
Tank —
Cable Assembly MJ-A6SPF0017-010C 001-159-704-10 1 m, for NavNet
MJ-A6SPF0017-050C 001-159-705-10 5 m, for NavNet
MJ-A6SPF0017-100C 001-159-706-10 10 m, for NavNet
MJ-A6SPF0017-200C 001-159-707-11 20 m, for NavNet
MJ-A6SPF0017-300C 001-159-708-11 30 m, for NavNet
MOD-Z072-020+ 000-167-175-10 2 m, for HUB-101
MOD-Z072-100+ 001-167-177-10 10 m, for HUB-101
Speed/Temper-
ature Sensor
ST-02MSB 000-137-986 Thru-hull mount, steel hull
ST-02PSB 000-137-987 Thru-hull mount, plastic hull
Temperature
Sensor
T-02MTB 000-040-026 Transom mount
T-02MSB 000-040-040 Thru-hull mount
T-03MSB 000-040-027 Thru-hull mount
Rectifier PR-62 000-013-484 100 VAC
000-013-485 110 VAC
000-013-486 220 VAC
000-013-487 230 VAC

1. MOUNTING
2
Transducer, thru-hull pipe and tank combinations
Output
(W) Frequency (kHz) Ship type Transducer Thru-hull
pipe Tank
1k/1k 28/50 Steel 28F-8
50B-9B TWB-6000(2) T-656
FRP - -
28/88 Steel 28F-8
88B-8 TWB-6000(2) T-657
FRP - -
50/88 Steel 50B-9B
88B-8 TWB-6000(2) T-658
FRP - -
50/200 Steel 50/200-1T or TFB-5000(1) T-603
FRP 50/200-1ST - T-603F
Steel 50/200-12M - -
FRP - -
1k/2k 28/200 Steel 28F-8
200B-8/8B TWB-6000(2) T-657
FRP - -
50/200 Steel 50B-9B
200B-8/8B TWB-6000(2) T-658
FRP - -
88/200 Steel 88B-8
200B-8/8B TWB-6000(2) T-659
FRP - -

1. MOUNTING
3
2k/2k 28/50 Steel 28F-18
50B-12 TFB-7000(2) T-634
FRP TRB-1100(2) T-634-F
28/82 Steel 28F-18
82B-35R TFB-7000(2) T-636
FRP TRB-1100(2) T-636-F
28/88 Steel 28F-18
88B-10 TFB-7000(2) T-636
FRP TRB-1100(2) T-636-F
28/200 Steel 28F-18
200B-8/8B TFB-7000(2) T-638
FRP TRB-1100(2) T-638-F
Steel 28BL-6HR
200B-8/8B TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
38/200 Steel 38BL-9HR
200B-8/8B TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
50/82 Steel 50B-12
82B-35R TFB-7000(2) T-643
FRP TRB-1100(2) T-643-F
50/88 Steel 50B-12
88B-10 TFB-7000(2) T-643
FRP TRB-1100(2) T-643-F
50/200 Steel 50B-12
200B-8/8B TFB-7000(2) T-645
FRP TRB-1100(2) T-645-F
Steel 50BL-12HR
200B-8/8B TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
Steel 50BL-12
200B-8/8B TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
82/200 Steel 82B-35R
200B-8/8B TFB-7000(2) T-649
FRP TRB-1100(2) T-649-F
88/200 Steel 88B-10
200B-8/8B TFB-7000(2) T-649
FRP TRB-1100(2) T-649-F
28/107 Steel 28F-18
100B-10R TFB-7000(2) T-636
FRP TRB-1100(2) T-636-F
Output
(W) Frequency (kHz) Ship type Transducer Thru-hull
pipe Tank

1. MOUNTING
4
2k/3k 28/150 Steel 28F-18
150B-12H TFB-7000(2) T-637
FRP TRB-1100(2) T-637-F
50/107 Steel 50B-12
100B-10R TFB-7000(2) T-643
FRP TRB-1100(2) T-643-F
50/150 Steel 50B-12
150B-12H TFB-7000(2) T-644
FRP TRB-1100(2) T-644-F
3k/2k 68/200 Steel 68F-30H
200B-8/8B TFB-7000(2) T-647
FRP TRB-1100(2) T-647-F
107/200 Steel 100B-10R
200B-8/8B TFB-7000(2) T-649
FRP TRB-1100(2) T-649-F
3k/3k 28/38 Steel 28BL-12HR
38BL-15HR TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
Steel 28F/24H
38BL-15HR TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
28/50 Steel 28BL-12HR
50BL-24HR TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
Steel 28BL-12HR
50F-24H TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
Steel 28F-24H
50BL-24H TFB-7000(2) T-696
FRP TRB-1100(2) T-696-F
Steel 28F-24H
50BL-24HR TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
Steel 28F-24H
50F-24H TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
Output
(W) Frequency (kHz) Ship type Transducer Thru-hull
pipe Tank

1. MOUNTING
5
3k/3k
(con’t) 28/88 Steel 28BL-12HR 88F-126H TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
Steel 28F-24H
88F-126H TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
28/150 Steel 28BL-12HR
150B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
Steel 28F-24H
150B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
28/200 Steel 28BL-12HR
200B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
Steel 28F-24H
200B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
38/50 Steel 38BL-15HR
50BL-24HR TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
Steel 38BL-15HR
50F-24H TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
38/88 Steel 38BL-15HR
88F-126H TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
38/150 Steel 38BL-15HR
150B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
38/200 Steel 38BL-15HR
200B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
50/88 Steel 50BL-24H
88F-126H TFB-7000(2) T-697
FRP TRB-1100(2) T-697-F
Steel 50BL-24HR
88F-126H TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
Steel 50F-24H
88F-126H TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
50/150 Steel 50BL-24HR
150B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
Steel 50F-24H
150B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
Output
(W) Frequency (kHz) Ship type Transducer Thru-hull
pipe Tank

1. MOUNTING
6
3k/3k
(con’t) 50/200 Steel 50BL-24H 200B-12H TFB-7000(2) T-695
FRP TRB-1100(2) T-695-F
Steel 50BL-24HR
200B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
Steel 50F-24H
200B-12H TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
68/150 Steel 68F-30H
150B-12H TFB-7000(2) T-646
FRP TRB-1100(2) T-646-F
68/200 Steel 68F-30H
200B-12H TFB-7000(2) T-646
FRP TRB-1100(2) T-646-F
88/150 Steel 88F-126H
150B-12H TFB-7000(2) T-685
FRP TRB-1100(2) T-685-F
88/200 Steel 88F-126H
200B-12H TFB-7000(2) T-685
FRP TRB-1100(2) T-685-F
1k 28 Steel 28F-8 TFB-5000(1) T-604
FRP TRB-1000(1) T-604-F
50 Steel 50B-6/6B TFB-5000(1) T-605
FRP TRB-1000(1) T-605-F
Steel 50B-9B TFB-5000(1) T-603
FRP TRB-1000(1) T-603-F
68 Steel 68F-8H TFB-5000(1) T-621
FRP TRB-1000(1) T-621-F
88 Steel 88B-8 TFB-5000(1) T-606
FRP TRB-1000(1) T-606-F
200 Steel 200B-5S TFB-5000(1) T-605
FRP TRB-1000(1) T-605-F
2k 28 Steel 28F-18 TFB-5000(1) T-612
FRP TRB-1000(1) T-612-F
Steel 28BL-6HR TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
38 Steel 38BL-9HR TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
Output
(W) Frequency (kHz) Ship type Transducer Thru-hull
pipe Tank

1. MOUNTING
7
2k (con’t) 50 Steel 50B-12 TFB-5000(1) T-611
FRP TRB-1000(1) T-611-F
Steel 50BL-12 TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
Steel 50BL-12HR TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
82 Steel 82B-35R TFB-5000(1) T-609
FRP TRB-1000(1) T-609-F
88 Steel 88B-10 TFB-5000(1) T-609
FRP TRB-1000(1) T-609-F
200 Steel 200B-8/8B TFB-5000(1) T-608
FRP TRB-1000(1) T-608-F
Output
(W) Frequency (kHz) Ship type Transducer Thru-hull
pipe Tank

1. MOUNTING
8
1.2 Network Sounder
The network sounder can be installed on a desktop, deck or on a bulkhead. When selecting a
mounting location for the network sounder, keep the following in mind:
• The temperature and humidity at the mounting site should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equipment such as motors and gen-
erators.
• Leave slack in cables for maintenance and servicing ease.
3k 28 Steel 28F-24H TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
Steel 28BL-12HR TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
38 Steel 38BL-15HR TRB-4000(1) T-616-
FRP TRB-1000(1) T-616-F
50 Steel 50F-24H TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
Steel 50BL-24HR TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
Steel 50BL-24H TFB-4000(1) T-694
FRP TRB-1000(1) T-694-F
68 Steel 68F-30H TFB-5000(1) T-614
FRP TRB-1000(1) T-614-F
88 Steel 88F-126H TFB-4000(1) T-618
FRP TRB-1000(1) T-618-F
107 Steel 100B-10R TFB-5000(1) T-609
FRP TRB-1000(1) T-609-F
150 Steel 150B-12H TFB-5000(1) T-615
FRP TRB-1000(1) T-615-F
200 Steel 200B-12H TFB-5000(1) T-615
FRP TRB-1000(1) T-615-F
Output (W) Frequency
(kHz) Ship type Transducer Thru-hull
pipe Tank

1. MOUNTING
9
• A magnetic compass will be affected if the network sounder is placed too close to it. Observe
the compass safe distances noted in the safety instructions to prevent disturbance to the mag-
netic compass.
Fasten the network sounder to the mounting location with four self-tapping screws (5×20), refer-
ring to the outline drawing at the back of this manual for mounting dimensions.
1.3 Transducer
The performance of the echo sounder largely depends upon the transducer position. Select a
place least affected by air bubbles since turbulence blocks the sounding path. Further, select a
place least influenced by engine noise. It is known that air bubbles are fewest at the place where
the bow first falls and the next wave rises, at usual cruising speed.
Note: The face of the transducer must be facing the sea bottom in normal cruising trim of the boat.
1.4 Optional Speed/Temperature Sensors
ST-02MSB, ST-02PSB
1.4.1 Mounting considerations
Select a suitable mounting location considering the following points:
• Selecta mid-boat flat position. The sensor does nothavetobe installedperfectlyperpendicular.
However, the sensor must not be damaged in dry-docking operation.
• Select a place apart from equipment generating heat.
• Select aplace in the forward direction viewing from the drain hole, toallow for circulation of cool-
ing water.
• Select a place free from vibration.
• Do not install near the transducer of an echo sounder, to prevent interference to the echo
sounder.
1.4.2 Mounting procedure
1. Dry dock the boat.
2. Make a hole of approx. 51 mm in diameter in the
mounting location.
3. Unfasten locknut and remove the sensor section.
4. Apply high-grade sealant to the flange of the sen-
sor.
5. Pass the sensor casing through the hole.
6. Face the notch on the sensor toward boat's bow
and tighten the flange.
7. Set the sensor section to the sensor casing and
tighten the locknut.
8. Launch the boat and check for water leakage
around the sensor.
Locknut
123
Face "notch"
toward bow.
Flange nut
Coat with
silicone sealant.
51
Brim
φ77

1. MOUNTING
10
1.5 Optional Temperature Sensors
1.5.1 Transom mount temperature sensor T-02MTB
• Fix the cable at a convenient location with cable clamp.
• When the cable is led in through the transom board, make a hole of approx. 17 mm in diameter
to pass the connector. After passing the cable, fill the hole with a sealing compound.
5x20
Mount sensor
flush with hull bottom.
D
D>50cm

1. MOUNTING
11
1.5.2 Thru-hull temperature sensor T-02MSB, T-03MSB
Select a suitable mounting location considering the following points:
• Selecta mid-boat flat position. The sensor does nothavetobe installedperfectlyperpendicular.
However, the location should not be such that the transducer may be damaged when the boat
is dry-docked.
• Locate away from equipment which gives off heat.
• Locate away from drain pipes.
• Select a location where vibration is minimal.
Sensor
cable
8 m Locknut
Coat with
sealant.
Plate thick-
ness within
25 mm
Coat with
sealant.
φ21 mm
φ25 mm
Washer
Gasket Locknut
Locknut
Washer
Gasket
Holder Guide
Sensor Holder
T-02MSB T-03MSB
Mounting procedure
1. Drill a hole of 21 mm in diameter in
the mounting location.
2. Pass the sensor cable through the
hole.
3. Pass gasket, washer and locknut
onto cable in that order.
4. Coat the sensor flange with high
quality sealant and then fasten the
sensor with the locknut.
(Torque: max. 59N·m)
5. Launch the boat to check for water
leakage around the sensor.
Mounting procedure
1. Drill a hole of 25 mm in diameter in the mounting
location.
2. Coat holder guide with high quality sealant, and
pass gasket, washer and locknut onto holder
guide in that order and then tighten the locknut.
3. Set the sensor holder to the holder guide from
inside the boat and then tighten the locknut.
4. Launch the boat to check for water leakage
around the sensor.
φ42 mm
70 mm
M20 M24
70 mm
φ50 mm
cable
8 m

12
2. WIRING
2.1 Wiring Outline
Connect the power cable, transducer cables, sensor cable, network cable and ground wire to their
respective locations on the network sounder. See the next page for how to connect the transducer
cables.
Ground
Connect a ground wire (IV-2 sq, local supply) between the
ground terminal and ship’s ground to prevent interference
to the sounder picture. Make the length of the wire as short
as possible. For FRP vessels, install a ground plate that
measures about 20 cm by 30 cm on the outside of the hull
bottom and connect the ground wire there.
GROUND
MOD-Z072-050+, 5 m
(option: 2/10 m)
DFF3
Ground wire
(IV-2 sq)
BATTERY
White
Black
Shield (green)
12 - 24 VDC
MJ-A3SPF0013-035C
(3.5 m)
High Freq.
Transducer
Low Freq.
Transducer
HUB-101
NavNet,
NavNet vx2*
MJ-A6SPF0017
(option: 1/5/10/20/30 m)
Temperature or
Speed/Temperature
Sensor
NETWORK 12-24VDC
2.8-1.4A TEMP
H TRANSDUCER L
MFD8/12/BB,
TZT9/14
MOD-WPAS0001-030+, 3 m
(for MFD8/12/BB /TZT9/14,
standard supply)
Model 17x2 Series, Model 17x2C Series, Model 17x4 Series, Model 17x4C Series,
GD-1720, GD-1720C, Model 18x3C(-BB) Series, Model 18x4C(-BB) Series,
Model 19x3C(-BB) Series, Model 19x4C(-BB) Series,GD-1900C(-BB), GD-1920C(-BB)
Ground the equipment
to prevent mutual
interference.
CAUTION
