Furuno ETR-30N User manual

NETWORK SOUNDER
ETR-30N

i
SAFETY INSTRUCTIONS
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage to the equipment.
Be sure no water leaks in at the trans-
ducer mounting location.
Water leakage can sink the vessel. Also,
confirm that the transducer will not loosen
by ship's vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
Do not diassemble or modify the
equipment.
Electrical shock, damage to the equipment
or injury may result.
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
WARNING
Install the transducer tank according
to the installation instructions.
Failure to install the tank correctly may
result in water leakage and damage to
the ship's hull.

ii
The transducer cable must be handled
carefully, following the guidelines
below.
•Keep fuels and oils away from the
cable.
•Locate the cable where it will not be
damaged.
•The cable sheath is made of chloro-
phrene or polychloride vinyl, which
is easily damaged by plastic solvents
such as toulene. Locate the cable
well away from plastic solvents.
Use the correct fuse.
Use of a wrong fuse can cause serious
damage to the equipment.
Be sure to enter transducer model
correctly.
Incorrect setting may damage the
transducer.
Do not enter transducer type manually
if the transducer type is programmed
into the equipment.
Damage to the transducer may result.
WARNING LABEL
A warning label is attached to the equip-
ment. Do not remove the label. If the
label is missing or illegible, contact
a FURUNO agent or dealer about
replacement.
WARNING
To avoid electrical shock, do not
remove cover. No user-serviceable
parts inside.
Name: Warning Label (1)
Type: 86-003-1011-1
Code No.: 100-236-231
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Ground the equipment to
prevent mutual interference.
Do not allow warm water or any liquid
other than seawater or freshwater to
contact the transducer.
Damage to the transducer may result.
Do not install the transducer where
noise or air bubbles is present.
Performance will be affected.
Standard
compass
Steering
compass
ETR-30N
1.7 m 1.1 m
CAUTION CAUTION

iii
TABLE OF CONTENTS
SYSTEM CONFIGURATION................................................................................ iv
EQUIPMENT LISTS............................................................................................. vi
1. MOUNTING ...................................................................................................... 1
1.1 Network Sounder.............................................................................................................1
1.2 Transducer......................................................................................................................2
2. WIRING, SETUP...............................................................................................3
2.1 Wiring..............................................................................................................................3
2.2 Settings for Single Network Sounder...............................................................................6
2.3 Settings for Two Network Sounders...............................................................................12
2.4 Erasing Transducer Setting...........................................................................................15
3. OPERATION, MAINTENANCE...................................................................... 16
3.1 Controls.........................................................................................................................16
3.2 Additions to NavNet Series Operator’s Manual..............................................................17
3.3 Replacing Fuses ...........................................................................................................18
3.4All Clear.........................................................................................................................19
APPENDIX NEW BLT TRANSDUCERS ........................................................AP-1
SPECIFICATIONS........................................................................................... SP-1
PACKING LIST ................................................................................................. A-1
OUTLINE DRAWINGS...................................................................................... D-1
INTERCONNECTION DIAGRAM ......................................................................S-1

iv

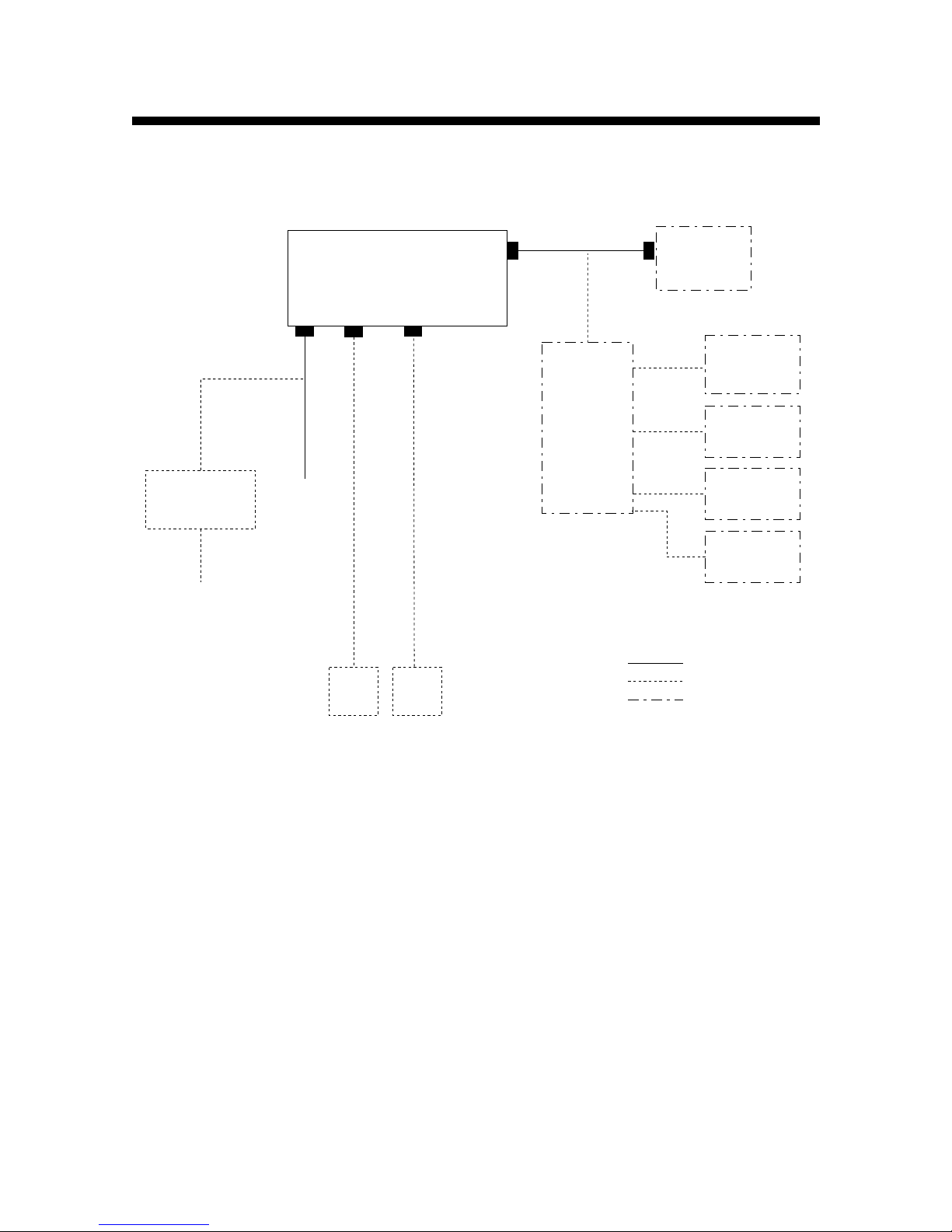

SYSTEM CONFIGURATION
Single network sounder
: Standard
: Option
: Local Supply
Transducer Transducer
High
Freq.
* = By using a hub, one NavNet series radar and three NavNet display units may be connected.
Low
Freq.
Network Sounder
ETR-30N
NavNet
Radar
Display Unit
NavNet
Radar
Display Unit
NavNet
Display Unit
Ship’s Mains
12-24 VDC
Rectifier
PR-62
100/110/115/220/230 VAC,
1
φ, 50/60 Hz
HUB*
NavNet Series
NavNet Series
NavNet
Display Unit
NavNet
Display Unit
System configuration, single network sounder

v
Multiple network sounders
Network Sounder
ETR-30N
NavNet
Radar
Display Unit
NavNet
Display Unit
: Standard
: Optional Supply
: Local Supply
HUB*1
NavNet Series
*1 = By using a hub, one NavNet series radar and two NavNet display units may be connected.
*2 = Maximum two network sounders may be installed.
*3 = Connect to NET KP.
NavNet
Display Unit
Network Sounder
ETR-6/10N*2
*3
System configuration, two ETR-30N
Network Sounder
ETR-30N
NavNet
Radar
Display Unit
NavNet
Display Unit
: Standard
: Optional Supply
: Local Supply
HUB*
NavNet Series
* = By using a hub, one NavNet series radar and two NavNet display units may be connected.
NavNet
Display Unit
Network Sounder
ETR-6/10N
System configuration, ETR-30N + ETR-6/10N

vi
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Network
Sounder ETR-30N —
1
Spare Parts* SP02-04601 002-180-150 1 set
CP02-07100
( w/NavNet
connection
cable)
— • Power Cable
MJ-A3SPF0013-035
• NavNet connection cable
MJ-A6SPF0014-050 (5 m)
• CP02-07101
Installation
Materials*
CP02-07110
(No NavNet
connection
cable)
— 1 set • Power Cable
MJ-A3SPF0013-035
• CP02-07101
* = See packing list at end of manual.
Optional supply
Name Type Code No. Remarks
Piggyback
Mount Kit OP02-84 002-186-170 For mounting two network sounders piggyback style
MJ-A6SPF0014-010 000-144-421 6P-6P, 1 m, For NavNet
MJ-A6SPF0014-050 000-144-422 6P-6P, 5 m, For NavNet
MJ-A6SPF0014-100 000-144-423 6P-6P, 10 m, For NavNet
MJ-A6SPF0014-200 000-144-424 6P-6P, 20 m, For NavNet
MJ-A6SPF0014-300 000-144-425 6P-6P, 30 m, For NavNet
MJ-A6SRMD/TM11AP8-005 000-144-463 For HUB
NCS255AD-254P-L500 000-142-518 For connection of
combination transducers
Cable Assy.
MJ-A7SPF0002-050 000-127-656 For connecting ETRs
000-013-484 100 VAC
000-013-485 110 VAC
000-013-486 220 VAC
Rectifier PR-62
000-013-487 230 VAC
Transducer See the next several pages for transducer and recommended thru-hull pipe
and tank.

vii
Available transducers
1kW transducer
Freq.
(kHz) Ship Transducer Thru-hull pipe Tank
Steel — —
FRP
28F-8 (000-015-003)
50B-6 (000-015-042)
50B-6B (000-015-043, 15M)
(000-015-018, 30M)
(000-015-255, 40M) — —
Steel TWB-6000 (2)
(000-015-207) T-656 (000-015-982)
FRP
28F-8 (000-015-003)
50B-9 (000-138-574)
50B-9B (000-015-065) — —
Steel — —
28/50
FRP 28F-8 (000-015-003)
50F-8G (000-015-066) — —
Steel — —
28/68 FRP 28F-8 (000-015-003)
68F-8H (000-015-067) — —
Steel TWB-6000 (2)
(000-015-207) T-657 (000-015-983)
28/88 FRP
28F-8 (000-015-003)
88B-8 (000-015-024) — —
Steel — —
28/200 FRP 28F-8 (000-015-003)
200B-5S (000-015-029) — —
Steel — —
FRP
50B-6 (000-015-042)
50B-6B (000-015-043, 15M)
(000-015-018, 30M)
(000-015-255, 40M)
88B-8 (000-015-024) — —
Steel TWB-6000 (2)
(000-015-207) T-658 (000-015-984)
FRP
50B-9 (000-138-574)
50B-9B (000-015-065)
88B-8 (000-015-024) — —
Steel — —
50/88
FRP 50F-8G (000-015-066)
88B-8 (000-015-024) — —

viii
1kW transducer (con’t)
Freq.
(kHz) Ship Transducer Thru-hull pipe Tank
Steel — —
FRP
50B-6 (000-015-042)
50B-6B (000-015-043, 15M)
(000-015-018, 30M)
(000-015-255, 40M)
200B-5S
(
000-015-029
)
— —
Steel — —
FRP
50B-9 (000-138-574)
50B-9B (000-015-065)
200B-5S (000-015-029) — —
Steel — —
FRP 50F-8G (000-015-066)
200B-5S (000-015-029) — —
Steel — —
FRP 50/200-1T (000-015-170) — —
Steel — —
50/200
FRP 50/200-1ST (000-015-110) — —
Steel — —
68/200 FRP 68F-8H (000-015-067)
200B-5S (000-015-029) — —
Steel — —
88/200 FRP 88B-8 (000-015-024)
200B-5S (000-015-029) — —

ix
2kW transducer
Freq.
(kHz) Ship Transducer Thru-hull pipe Tank
Steel TFB-7000 (2)
(000-015-209) T-634 (000-015-810)
28/50
FRP
28F-18 (000-015-004, 15M)
(000-138-573, 30M)
50B-12 (000-015-020) — —
Steel — —
28/68 FRP
28F-18 (000-015-004, 15M)
(000-138-573, 30M)
68F-30H (000-015-073) TRB-1100 (2)
(000-015-218) T-634-F (000-015-811)
Steel TFB-7000 (2)
(000-015-209) T-636 (000-015-813)
28/88 FRP
28F-18 (000-015-004, 15M)
(000-138-573, 30M)
88B-10 (000-015-025) TRB-1100 (2)
(000-015-218) T-636-F (000-015-814)
Steel TFB-7000 (2)
(000-015-209) T-638 (000-015-818)
28/200
FRP
28F-18 (000-015-004, 15M)
(000-138-573, 30M)
200B-8 (000-015-030)
200B-8B (000-015-032)
200B-8N (000-015-045) TRB-1100 (2)
(000-015-218) T-638-F (000-015-819)
Steel TFB-7000 (2)
(000-015-209) T-643 (000-015-821)
50/88 FRP
50B-12 (000-015-020)
88B-10 (000-015-025) TRB-1100 (2)
(000-015-218) T-643-F (000-015-822)
Steel TFB-7000 (2)
(000-015-209) T-645 (000-015-826)
FRP
50B-12 (000-015-020)
200B-8 (000-015-030)
200B-8B (000-015-032)
200B-8N (000-015-045) — —
Steel TWB-6000 (2)
(000-015-207) T-693 (000-015-044)
50/200
FRP
50BL-12 (000-015-246)
200B-8B (000-015-032) TRB-1100 (2)
(000-015-218) T-693-F (000-015-241)
Steel TFB-7000 (2)
(000-015-209) T-647 (000-015-831)
68/200
FRP
68F-30H (000-015-073)
200B-8 (000-015-030)
200B-8B (000-015-032)
200B-8N (000-015-045) TRB-1100 (2)
(000-015-218) T-647-F (000-015-832)
Steel TFB-7000 (2)
(000-015-209) T-649 (000-015-833)
88/200
FRP
88B-10 (000-015-025)
200B-8 (000-015-030)
200B-8B (000-015-032)
200B-8N (000-015-045) TRB-1100 (2)
(000-015-218) T-649-F (000-015-834)
