SAFETY INSTRUCTIONS
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer installation site.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship's vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
Do not open the cover unless totally
familiar with electrical circuits and
service manual.
Improper handling can result in electrical
shock.
CAUTION
Observe the following compass safe
distances:
Ground the equipment to
prevent mutual interference.
When handling the transducer cable,
keep in mind the following points.
.Keep the cable away from oil and
fuel.
.Keep the cable away from the
place where it may be damaged
during the installation.
.Do not paint the cable.
The sheath of the transducer cable is
made of chlorophrene rubber (or vinyl
chloride). Therefore, do not paint the
sheath with organic liquid (such as
toluene) since it may harm the sheath.
dradnatSgnireetS
yalpsiD
tinU
m8.0m6.0

ii
TABLE OF CONTENTS
EQUIPMENT LISTS.............................................................................................iii
SYSTEM CONFIGURATION................................................................................ iv
MOUNTING
1.1 Display Unit.....................................................................................................................1
1.2 Thru-hull Mount Transducer 520-5PSD, 520-5MSD.........................................................3
1.3 Transom Mount Transducer 520-5PWD,
Optional Transom Mount Triducer 520ST-PWD...........................................................6
1.4 Inside-hull Mount Transducer 520-5PSD, 520-5MSD.......................................................8
1.5 Optional Water Temperature/Speed Sensors.................................................................11
1.6 Optional Water Temperature Sensors............................................................................12
1.7 Optional Triducer 524ST-MSD, 525ST-MSD..................................................................14
WIRING
2.1 Wiring............................................................................................................................15
2.2 Connection of Optional Sensors....................................................................................17
EXTERNAL EQUIPMENT SETUP
3.1 External Equipment Setup.............................................................................................19
APPENDIX TRIDUCER 525ST-PWC/PWD ....................................................AP-1
PACKING LIST.................................................................................................. A-1
OUTLINE DRAWING......................................................................................... D-1
INTERCONNECTION DIAGRAM ......................................................................S-1

iii
EQUIPMENT LISTS
Standard Supply
.oNemaNepyT.oNedoCytQskrameR
1tinUyalpsiDL006-VC1
2noitallatsnI slairetaM PC-200 00060-000893-51tes1elbacrewopsedulcnI
3straPerapSPS200-0083011-993-400tes1
4recudsnarT
DSP5-025521-510-000 tceleS eno lluh-edisnI
DSM5-025721-510-000elbacm8/w,lluh-edisnI
DWP5-025621-510-000elbacm8/w,tnuommosnarT
Optional Supply
.oNemaNepyT.oNedoCskrameR
1reifitceR26-RP
2.yssAelbaC 050-2100FPS6A-JM424-431-000m5,P6-P6
001-2100FPS6A-JM718-331-000m01,P6-P6
3.yssAelbaC 050-1100FPS6A-JM442-231-000m5,P4-P6
001-1100FPS6A-JM633-231-000m01,P4-P6
4recudirT
DSM-TS425422-510-000
DSM-TS525362-510-000
DWP-TS025821-510-000
DWP-TS525162-510-000
5erutarepmeT rosneS
BTM20-T620-040-000tnuommosnart,elbacm8htiW
BSM20-T040-040-000epytlluh-urhT
BSM30-T720-040-000epytlluh-urht,elbacm8htiW
6rosneSTS BSM20-TS689-731-000epytlluh-urhT
BSP20-TS789-731-000epytlluh-urht,elbacm8htiW
7lluHedisnI StiK 0-1910S22895-208-000
8retrevnoC rotcennoC 3904S20109-431-000 RAMRIAforecudsnarT .PROC
9retrevnoC rotcennoC 7414S20280-141-000 deeps/erutarepmetretaW rosnes
01 retrevnoC rotcennoC 7614S20305-241-000 recudsnartdradnatssdnetxE .m01elbac

iv

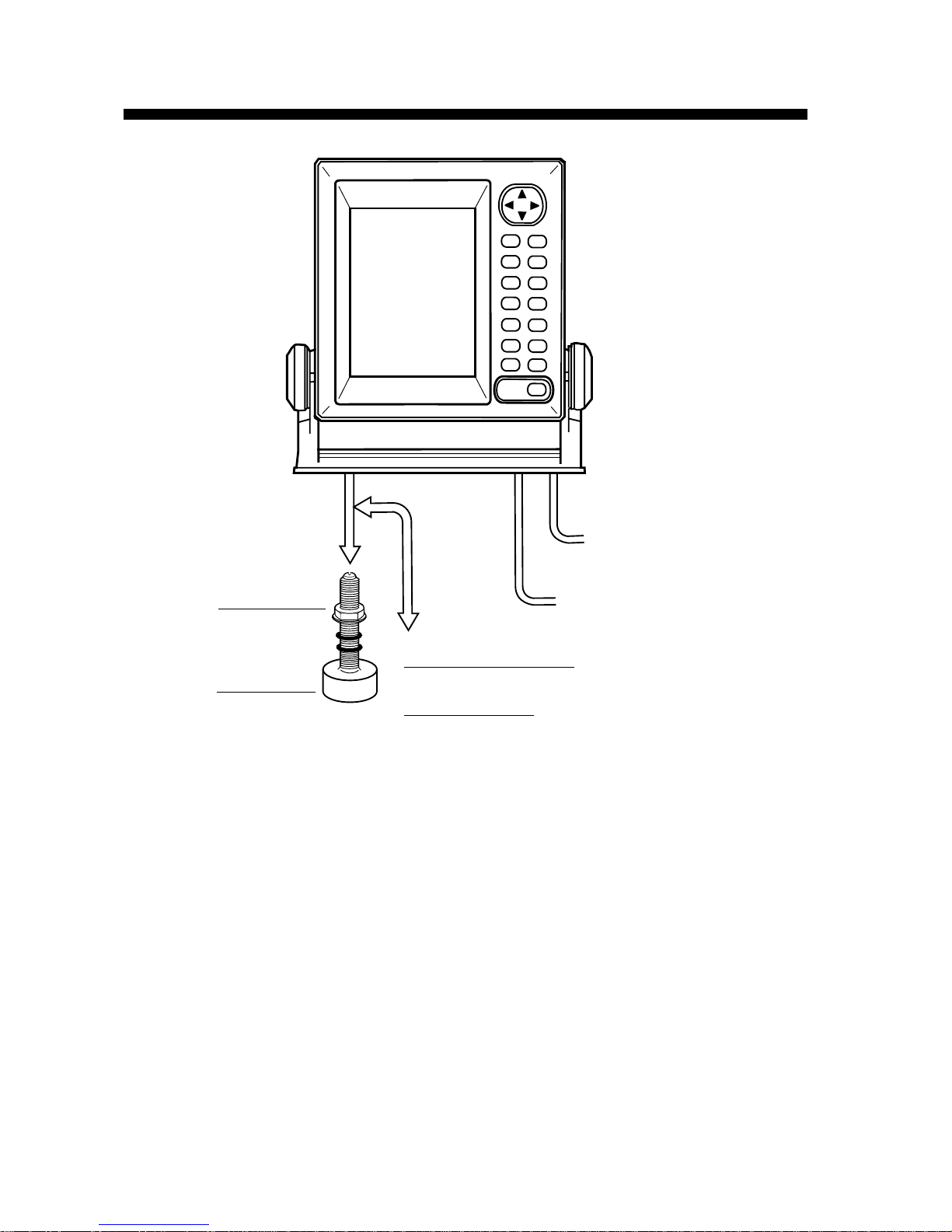

SYSTEM CONFIGURATION
Standard supply
520-5PSD
520-5MSD
520-5PWD
Optional supply
(triducer)
524ST-MSD
520ST-PWD
12-24 VDC
External equipment
(GPS navigator, etc.)
DISPLAY UNIT
CV-600L
TRANSDUCER
SPEED, TEMPERATURE SENSOR (option)
Speed/temperature sensor
ST-02MSB
ST-02PSB
Temperature sensor
T-02MTB
T-02MSB
T-03MSB

1
MOUNTING
1.1 Display Unit
Mounting considerations
The display unit can be installed on a tabletop or on the overhead.
When selecting a mounting location for the display unit keep the
following in mind:
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keepthe unit away from electromagneticfield-generating equip-
ment such as motors and generators.
• For maintenance and checking purposes, leave sufficient space
at the sides and rear of the unit and leave slack in cables.
• A magnetcompass will be affected if placed too close to the
display unit. Observe the following compass safe distances to
prevent disturbance to the magnetcompass:
Standard compass: 0.8 meters
Steering compass: 0.6 meters
Cover
Tabletop Overhead

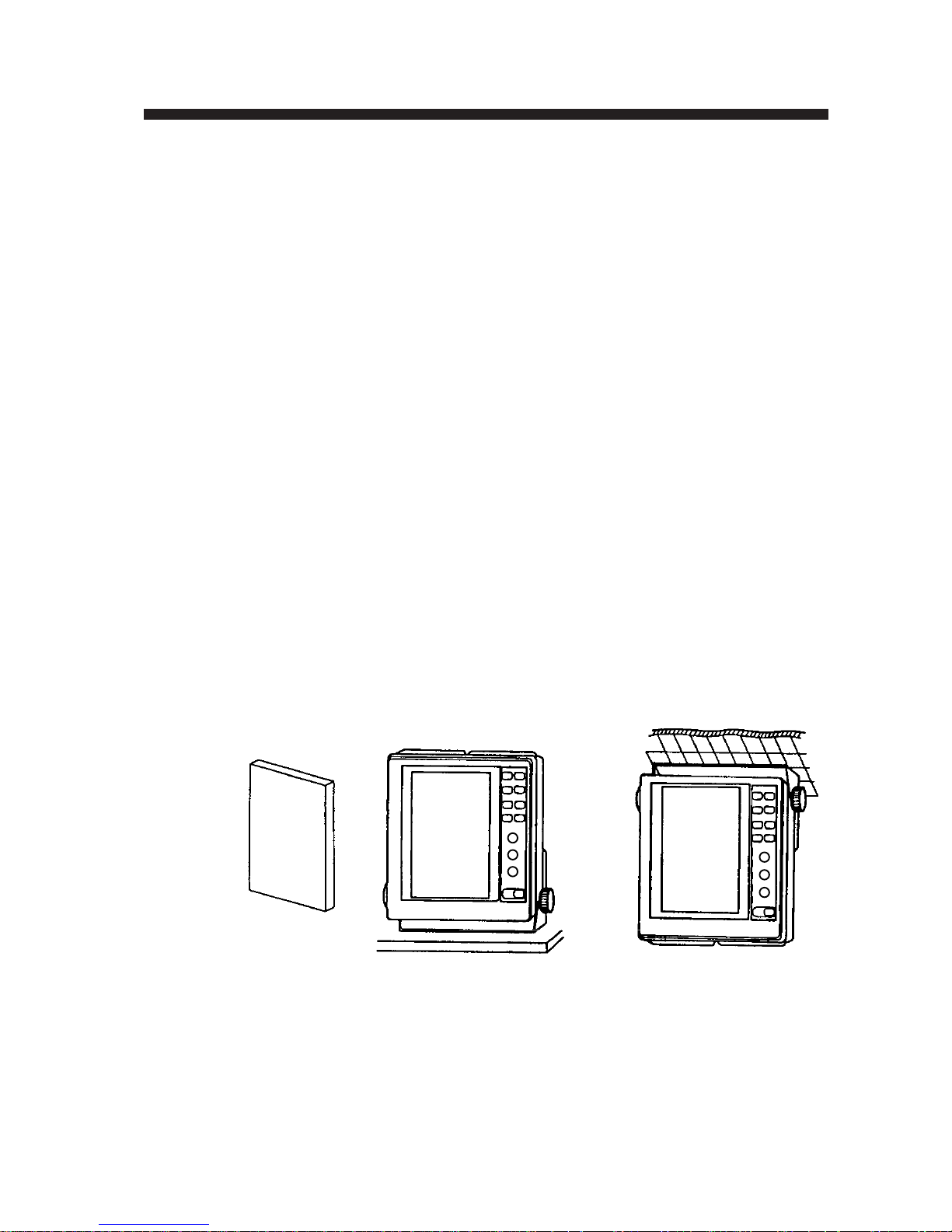

Figure 1-1 Display unit mounting methods

2
Removing cover
While pressing the center of the cover with your thumbs as illus-
trated, pull the cover towards you to remove it.
Mounting procedure

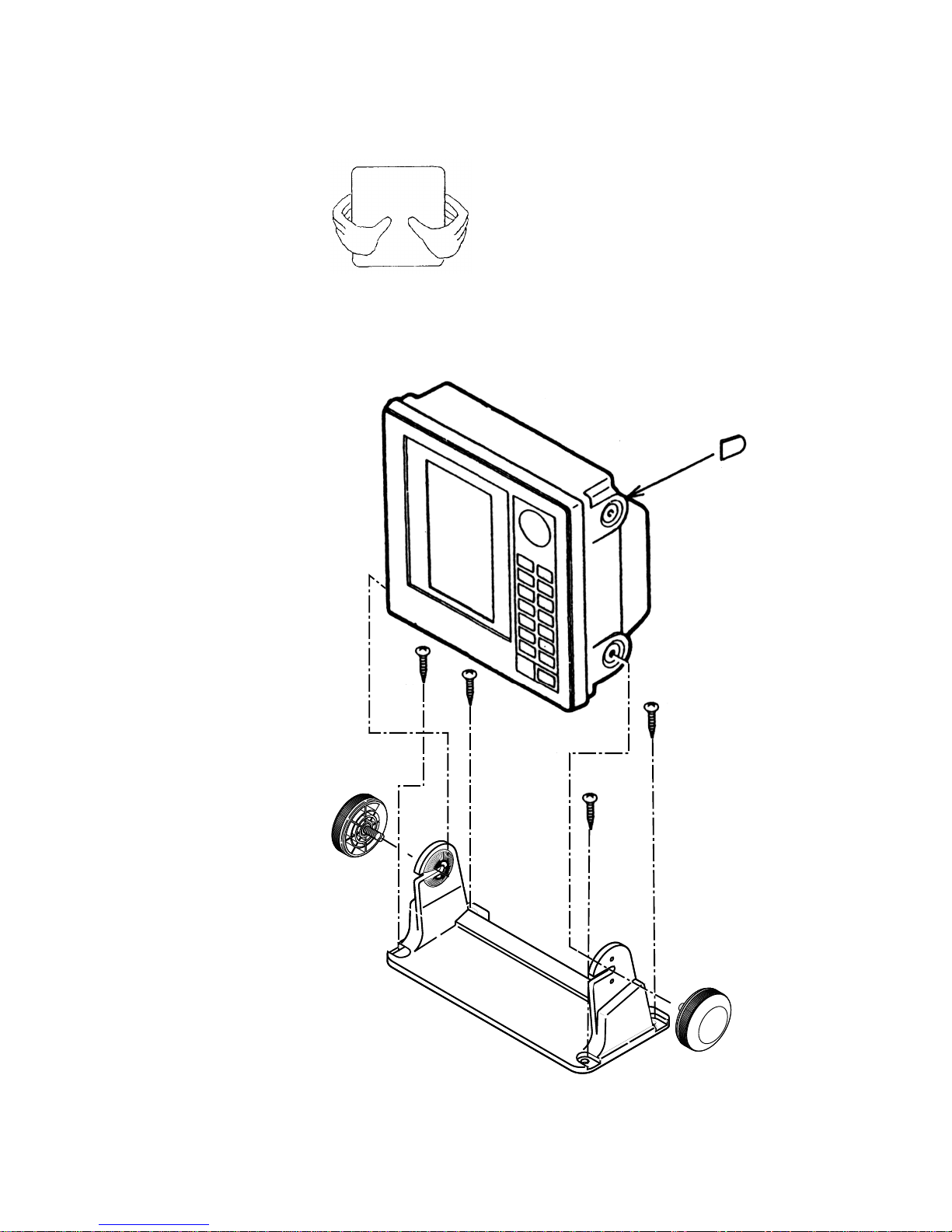

Figure 1-2 How to set the display unit to the hanger

3
1.2 Thru-hull Mount Transducer 520-5PSD, 520-5MSD
Transducer mounting location
This type of mounting provides the best performance of all, since
the transducer protrudes from the hull and the effect of air bubbles
and turbulence near the hull skin is reduced. When the boat has a
keel, the transducer should be at least 30 cm away from it. Typical
thru-hull mountings are shown in the figure on the next page.
The performance of this sounder is directly related to the mount-
ing location of the transducer, especially for high-speed cruising.
The installation should be planned in advance, keeping the stan-
dard cable length (8 m) and the following factors in mind:
• Air bubbles and turbulence caused by movement of the boat
seriously degrade the sounding capability of the transducer. The
transducer should, therefore, be located in a position where wa-
ter flow is the smoothest. Noise from the propellers also ad-
versely affects performance and the transducer should not be
mounted nearby. The lifting strakes are notorious for creating
acoustic noise, and these must be avoided by keeping the trans-
ducer inboard of them.
• The transducer must always remain submerged, even when the
boat is rolling, pitching or up on a plane at high speed.
• A practical choice would be somewhere between 1/3 and 1/2 of
the boat’s length from the stern. For planing hulls, a practical
location is generally rather far astern, so that the transducer is
always in water regardless of the planing attitude.
Transducer outline drawings
22
120
30
68 87
68
120
28
24
520-5PSD 520-5MSD
Ship's
bow
All dimensions
in millimeters

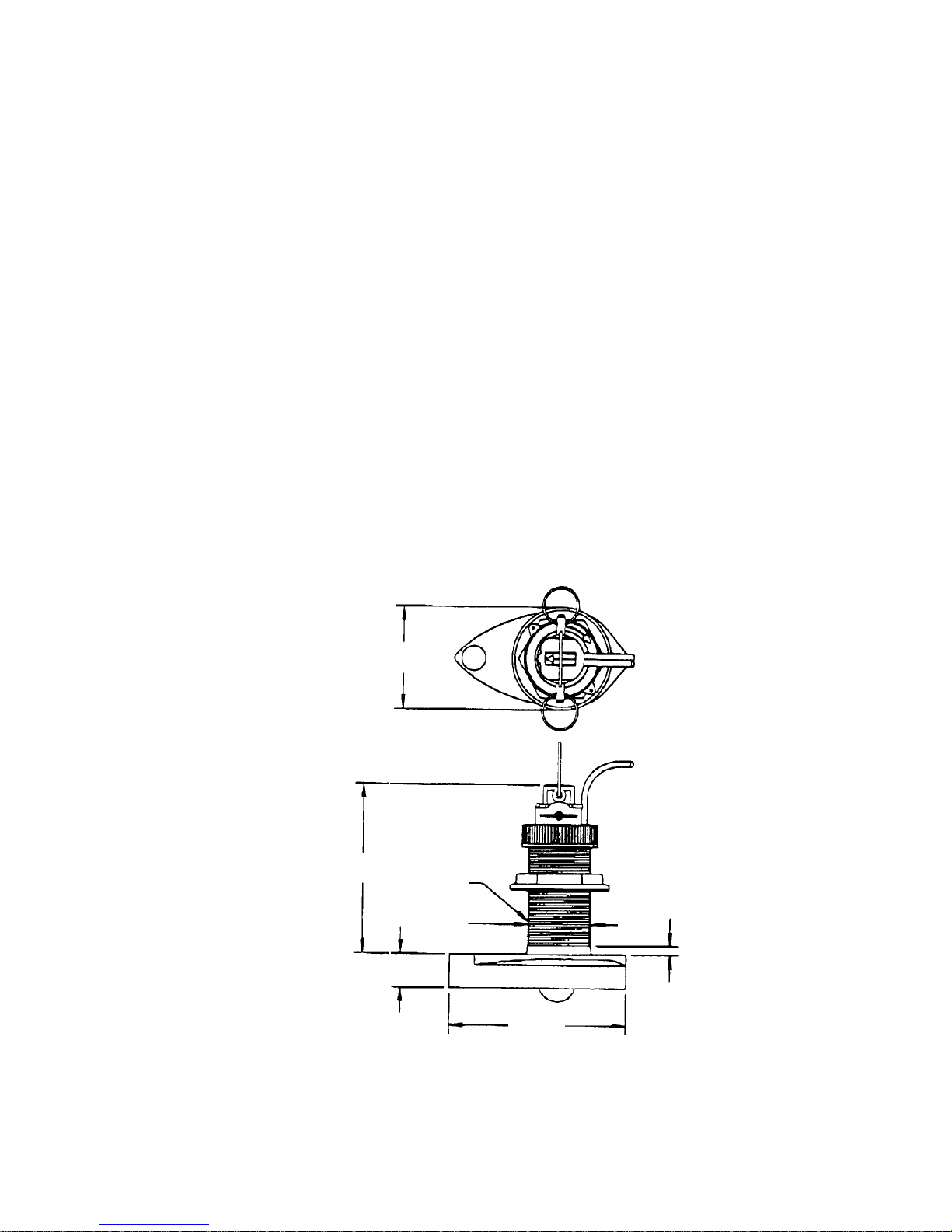

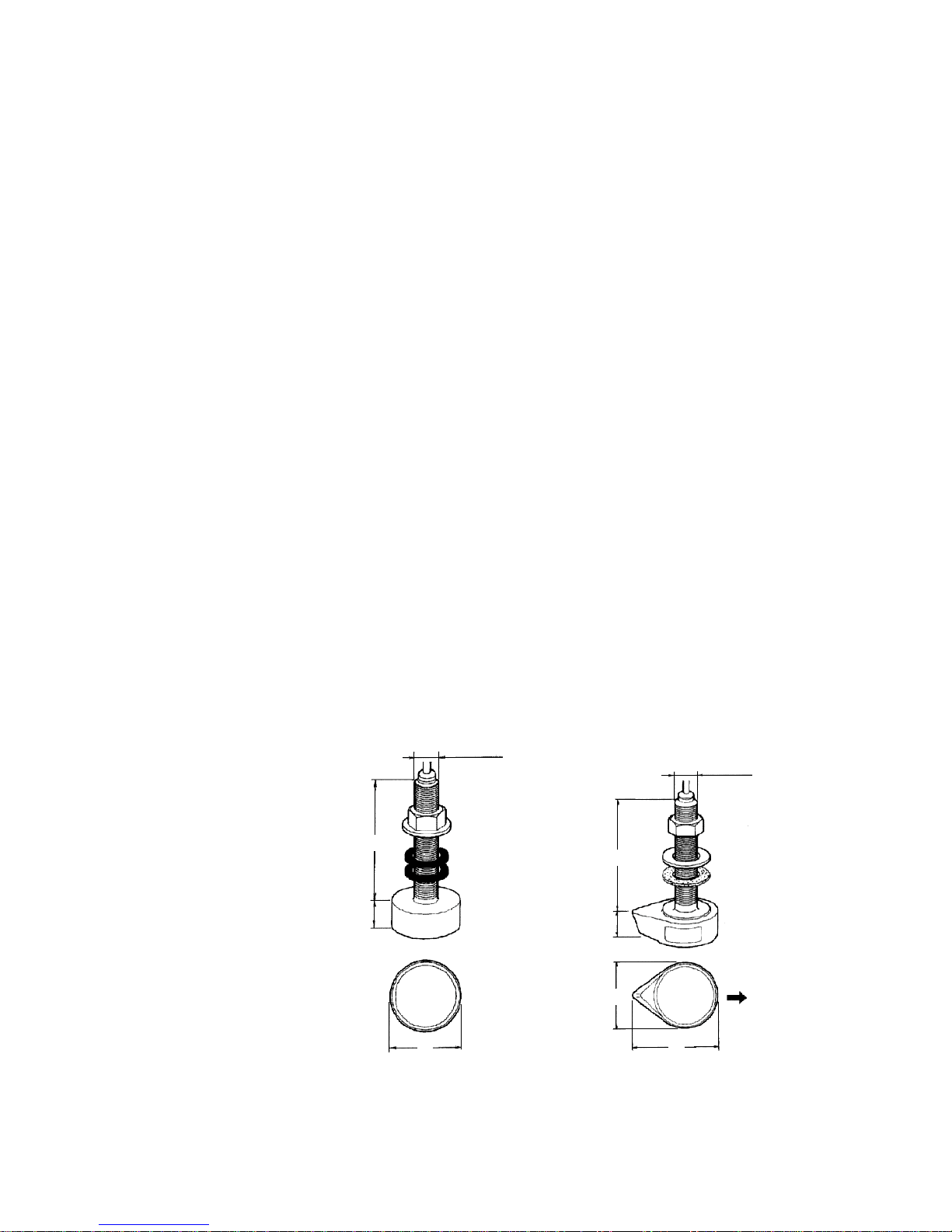

Figure 1-3 Dimensions of transducers 520-5PSD, 520-5MSD

4
Acceptable transducer mounting locations
Deep-V hull
• Position 1/2 to 1/3 length of the hull from stern
• 15 to 30 cm off center line (inside first lifting strakes).

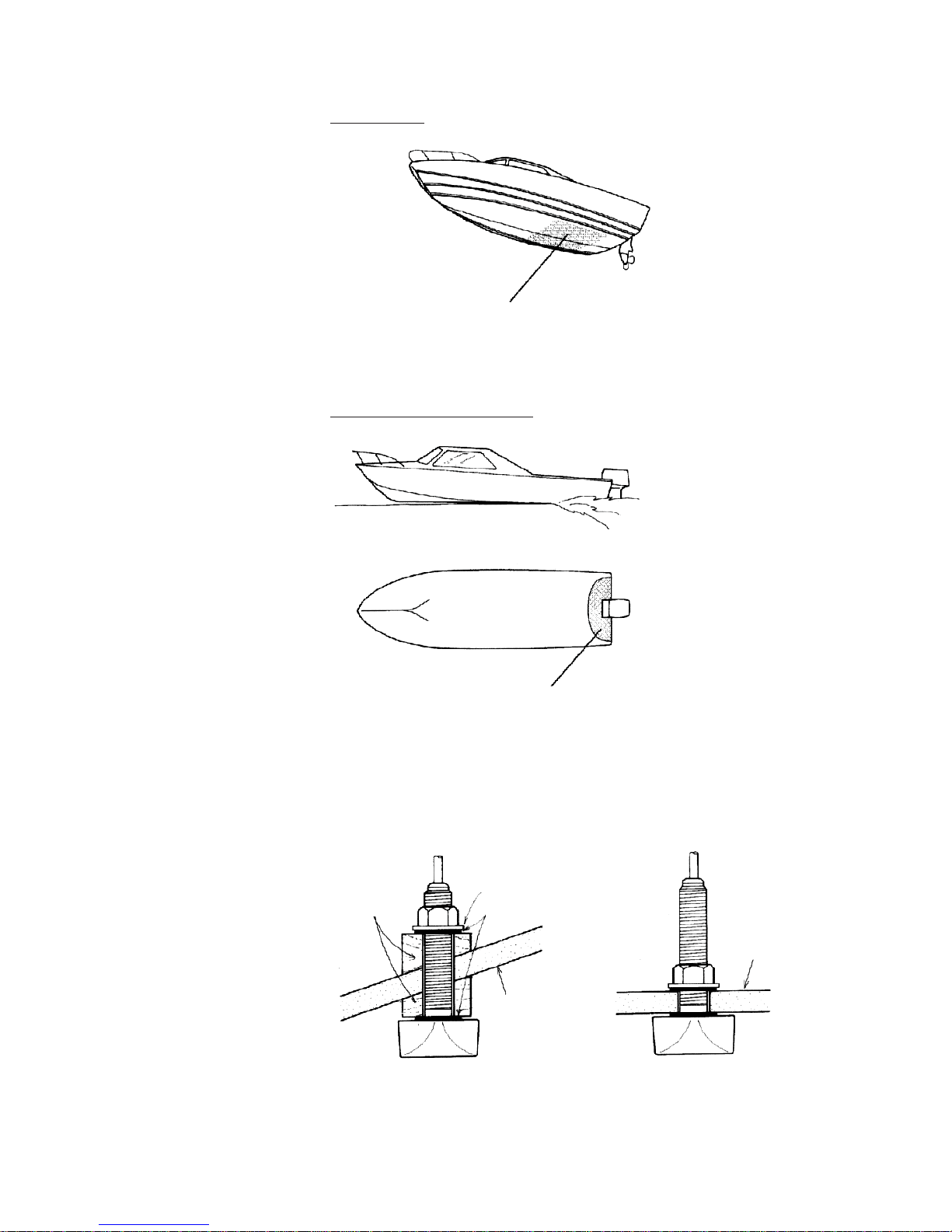

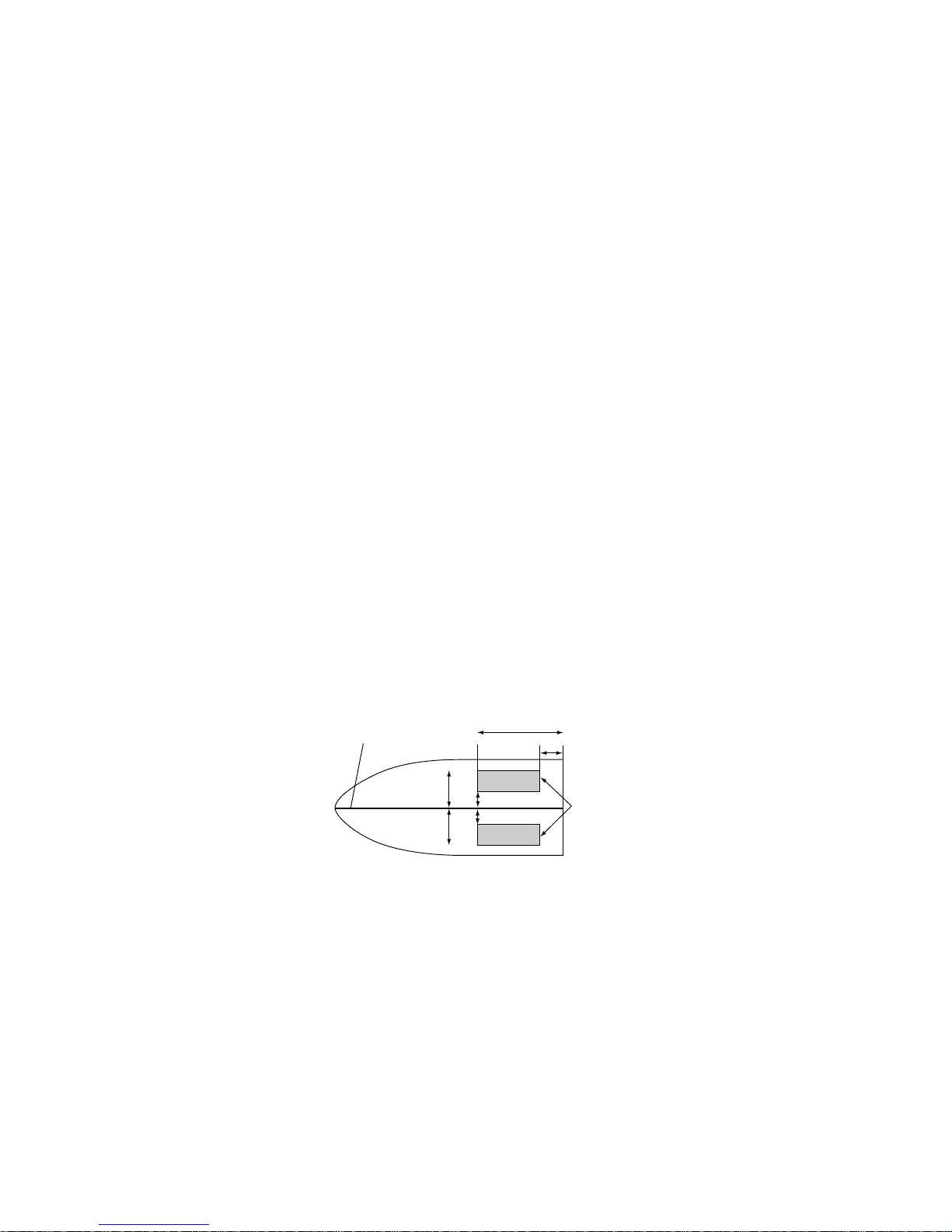

Figure 1-4 Transducer mounting location on deep-V hull
High speed V-planing hull
• Within the wetted bottom area
• Deadrise angle within 15°
Figure 1-5 Transducer mounting location on high speed
V-planing hull
Typical thru-hull mount transducer installations
Flat washer
Rubber washer
Fairing block
Hull
bottom
Hull
bottom
Deep-V Hull Flat Hull

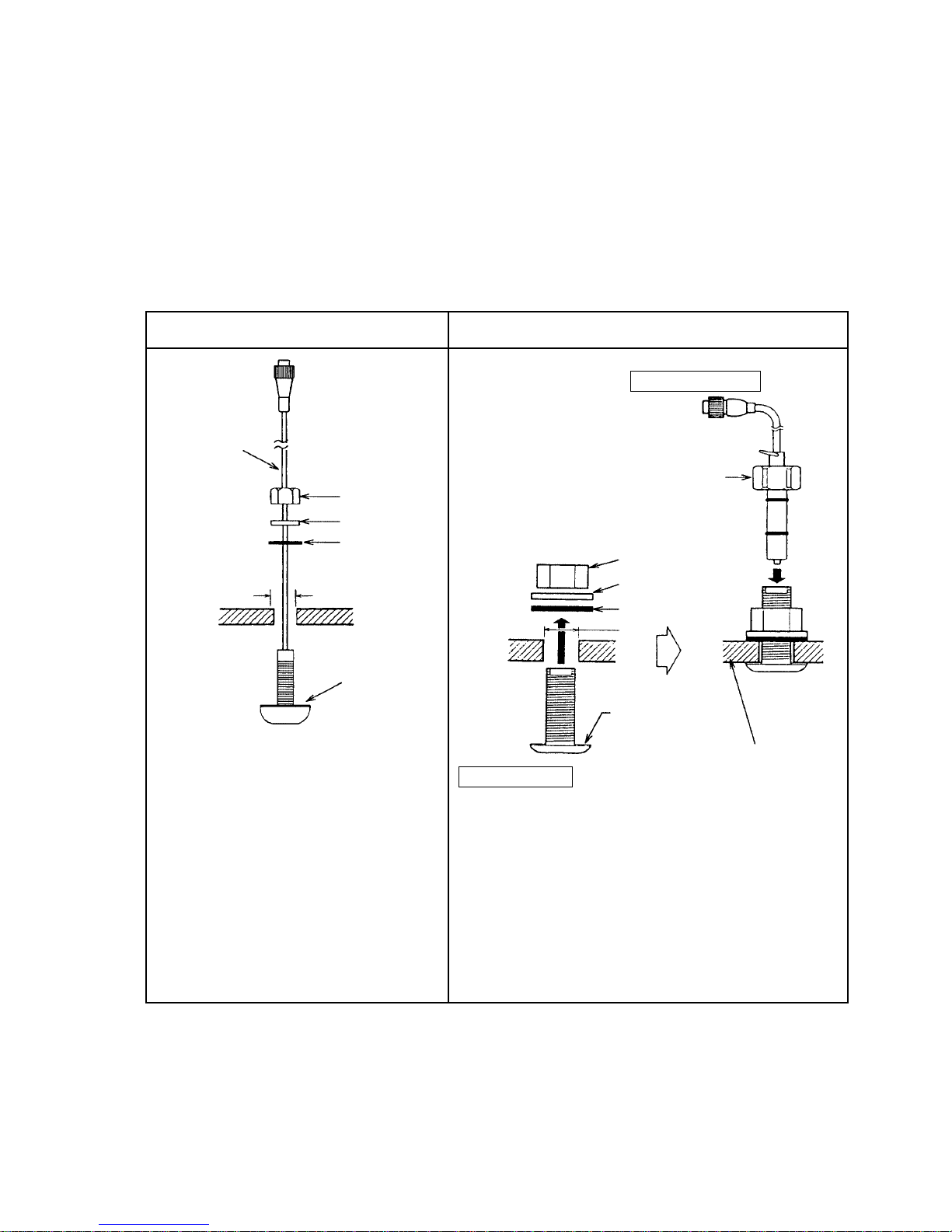

Figure 1-6 Typical thru-hull mount transducer installations

5
Procedure for installing the thru-hull mount
transducer
1. With the boat hauled out of the water, mark the location se-
lected for mounting the transducer on the bottom of the hull.
2. If the hull is not level within 15°in any direction, fairing blocks
made out of teak should be used between the transducer and
hull, both inside and outside, to keep the transducer face paral-
lel with the water line. Fabricate the fairing block as shown
below and make the entire surface as smooth as possible to
provide an undisturbed flow of water around the transducer.
The fairing block should be smaller than the transducer itself
to provide a channel to divert turbulent water around the sides
of the transducer rather than over its face.
Upper
half
Lower
half
Hole for
stuffing tube
BOW
Saw along slope of hull.

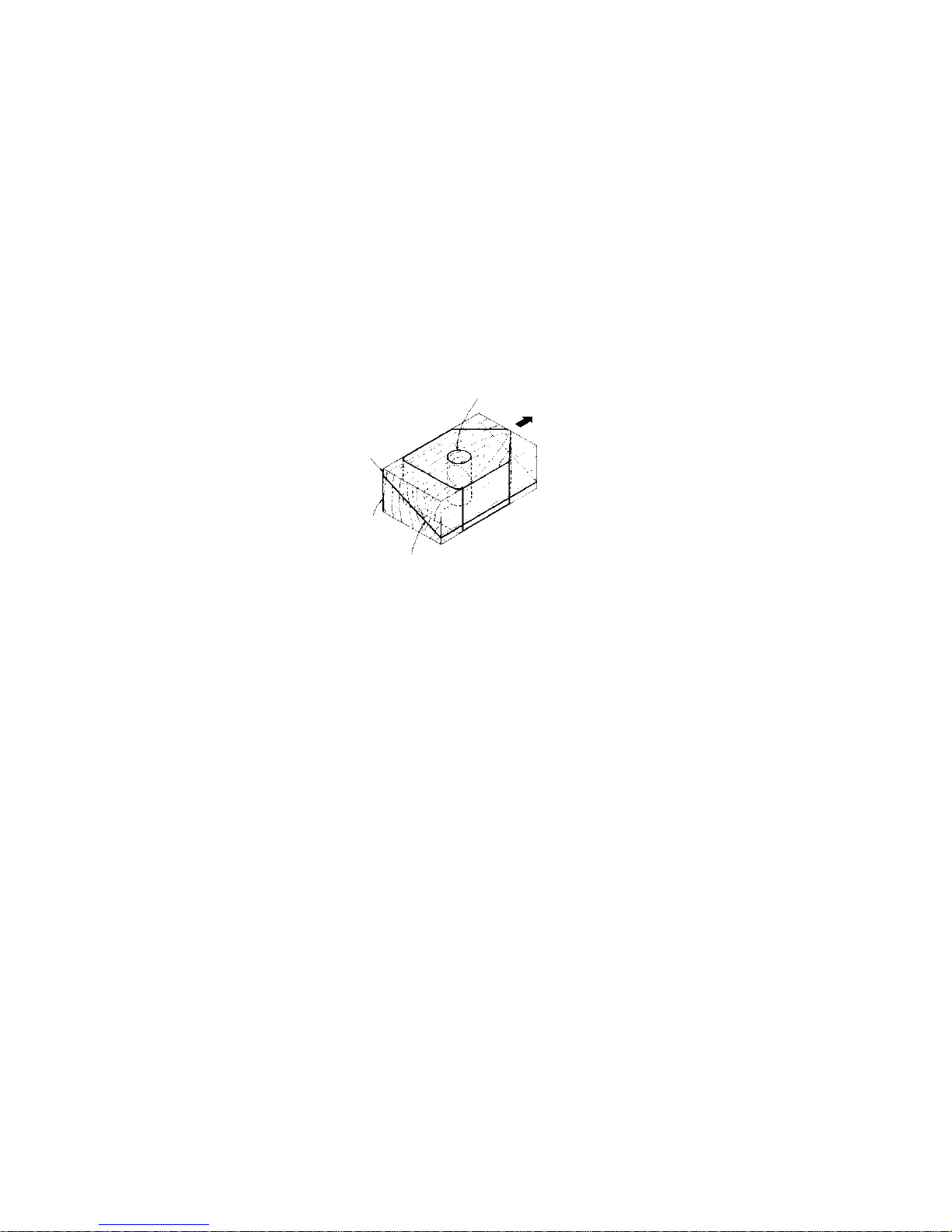

Figure 1-7 Construction of fairing block
3. Drill a hole just large enough to pass the threaded stuffing tube
of the transducer through the hull, making sure it is drilled ver-
tically.
4. Apply a sufficient amount of high quality caulking compound
to the top surface of the transducer, around the threads of the
stuffing tube and inside the mounting hole (and fairing blocks
if used) to ensure watertight mounting.
5. Mount the transducer and fairing blocks and tighten the lock-
ing nuts. Be sure that the transducer is properly oriented and its
working face is parallel to the waterline.
Note:Do not over-stress the stuffing tube and locking nuts through
excessive tightening, since the wood block will swell when the
boat is placed in the water. It is suggested that the nut be tightened
lightly at installation and retightened several days after the boat
has been launched.

6
1.3 Transom Mount Transducer 520-5PWD,
Optional Transom Mount Triducer 520ST-PWD
This type of mounting is very commonly employed, usually on
relatively small I/O or outboard boats. Do not use this method on
an inboard motor boat because turbulence is created by the propel-
ler ahead of the transducer.
Thereare two methodsofinstallation: flush withhull(for flat hulls)
and projecting from hull (for deep V-hulls).
Flat Hull Deep V-hull
D
D>50 cm

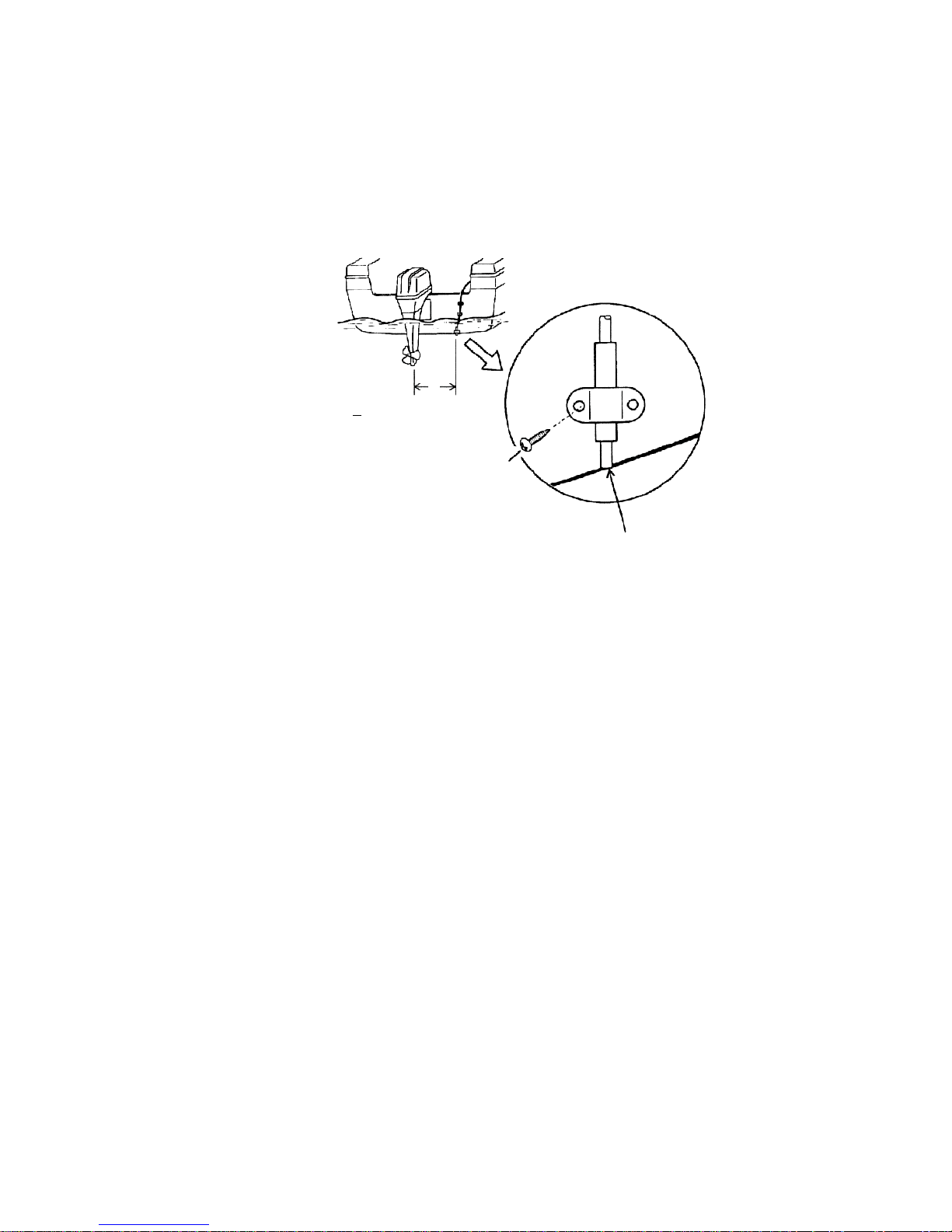

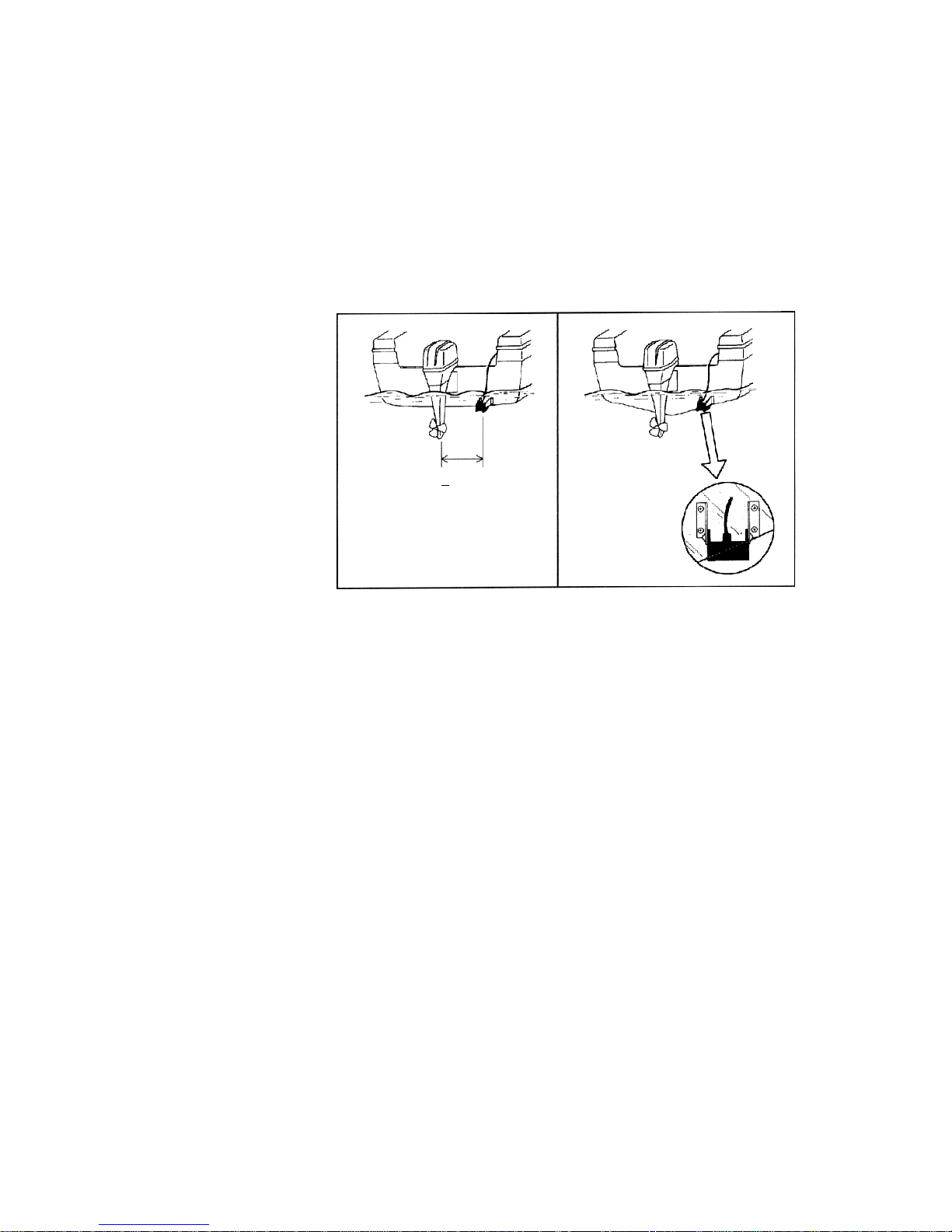

Figure 1-8 Transom mount transducer mounting locations
Installing the transom mount transducer flush with
hull (for flat hulls)
A suitable mounting location is at least 50 cm away from the en-
gine and where the water flow is smooth.
1. Drill four pilot holes in the mounting location.
2. Attach the transducer to the bracket with tapping screws (sup-
plied).
3. Adjust the transducer position so the transducer faces right to
the seabed.
Note: If necessary, to improve water flow and minimize air
bubbles staying on the transducer face, incline the transducer
about 5°at the rear. This may require a certain amount of
experimentation for fine tuning at high cruising speeds.
4. Fill the gap between the wedge front of the transducer and tran-
som with epoxy material to eliminate any air spaces.

7
M5 x 20
No. 1 M5 x 14
5°
Tape
M5 x 20

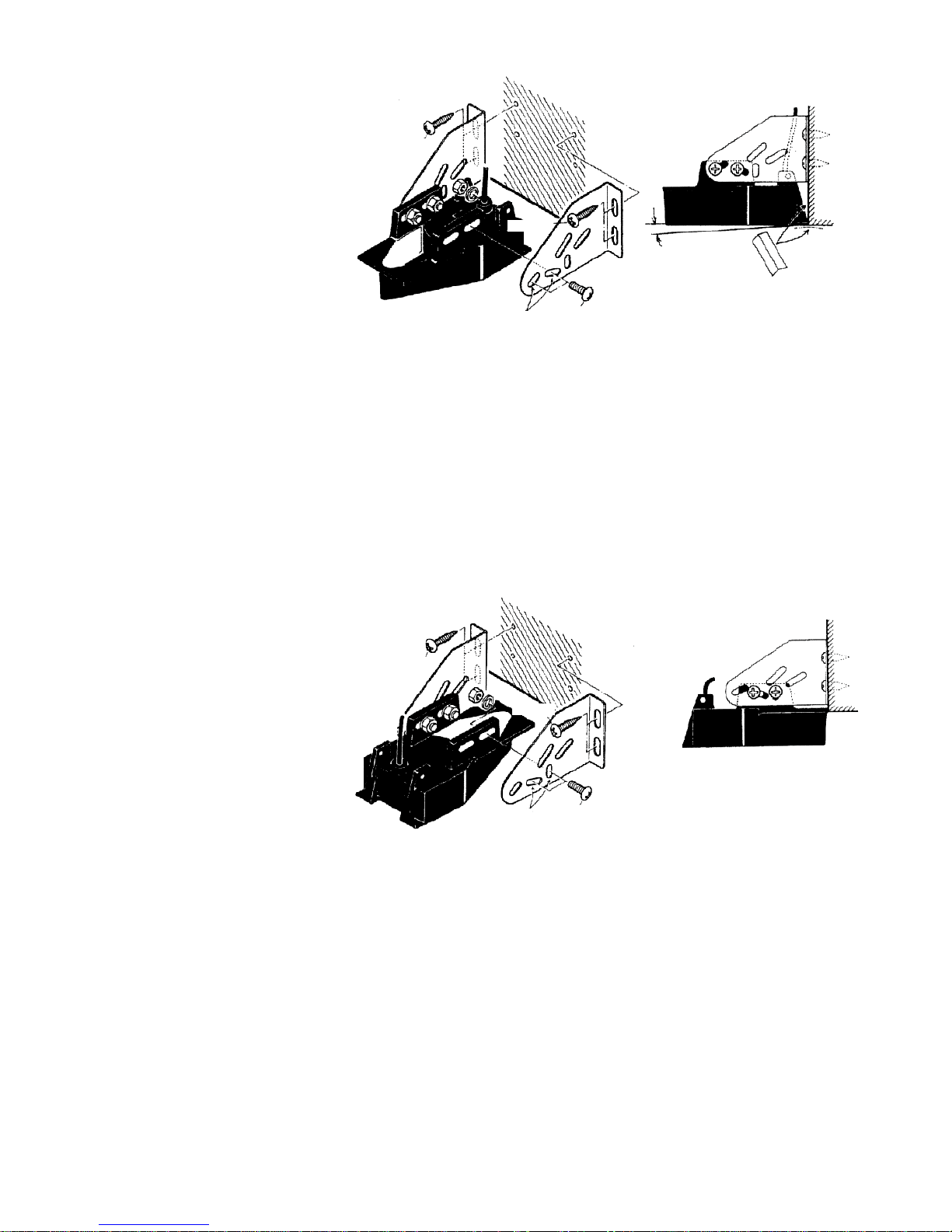

Figure 1-9 Transom mount transducer, mounting flush with hull
Installing the transom mount transducer projecting
from hull (for deep-V hulls)
This method is employed on deep-V hulls and provides good per-
formance because the effects of air bubbles are minimal. Install
the transducer parallel with water surface; not flush with hull. If
the boat is placed on a trailer care must be taken not to damage the
transducer when the boat is hauled out of the water and put on the
trailer.
M5 x 20
M5 x 20
M5 x 14
No. 2
Figure 1-10 Transom mount transducer, projecting from hull
Transducer preparation
Before putting the boat in water, wipe the face of the transducer
thoroughly with a detergent liquid soap. This will lessen the time
necessary for the transducer to have good contact with the water.
Otherwise the time required for complete “saturation” will be
lengthened and performance will be reduced.
Do not paint the transducer. Performance will be affected.

8
1.4 Inside-hull Mount Transducer 520-5PSD, 520-5MSD
Necessary tools
You will need the following tools:
• Sandpaper (#100)
• Silicone sealant
• Silicone grease
Remarks on installation
• Turnoff the engine and anchor theboat while installing the equip-
ment.
• Install the transducer in the engine room.
Selecting the mounting location
Keep the following points in mind when selecting a mounting lo-
cation:
• The mounting location should be where the hull is of single-
hull thickness and is void of air or flotation materials other than
solid fiberglass between the transducer face and the water.
• Do not place the transducer over hull struts or ribs which run
under the hull.
• Avoid a location where the rising angle of the hull exceeds 15°,
to minimize the effect of the boat’s rolling.
• You will finalize the mounting location through some trial and
error. The procedure for this is shown later.
50cm
50cm
15cm
15cm
1/3
1/2
Mounting location
for transducer
Center line
Figure 1-11 Inside-hull transducer mounting location

9
Attaching the transducer
1. Clean the transducer face to remove any foreign material.
Lightly roughen the transducer face with #100 sandpaper.Also,
roughen the inside of the hull where the transducer is to be
mounted.
2. Warm the silicone sealant to 40°C before usage to soften it.
Coat the transducer face and mounting location with silicone
sealant.
Transducer face
Silicone sealant

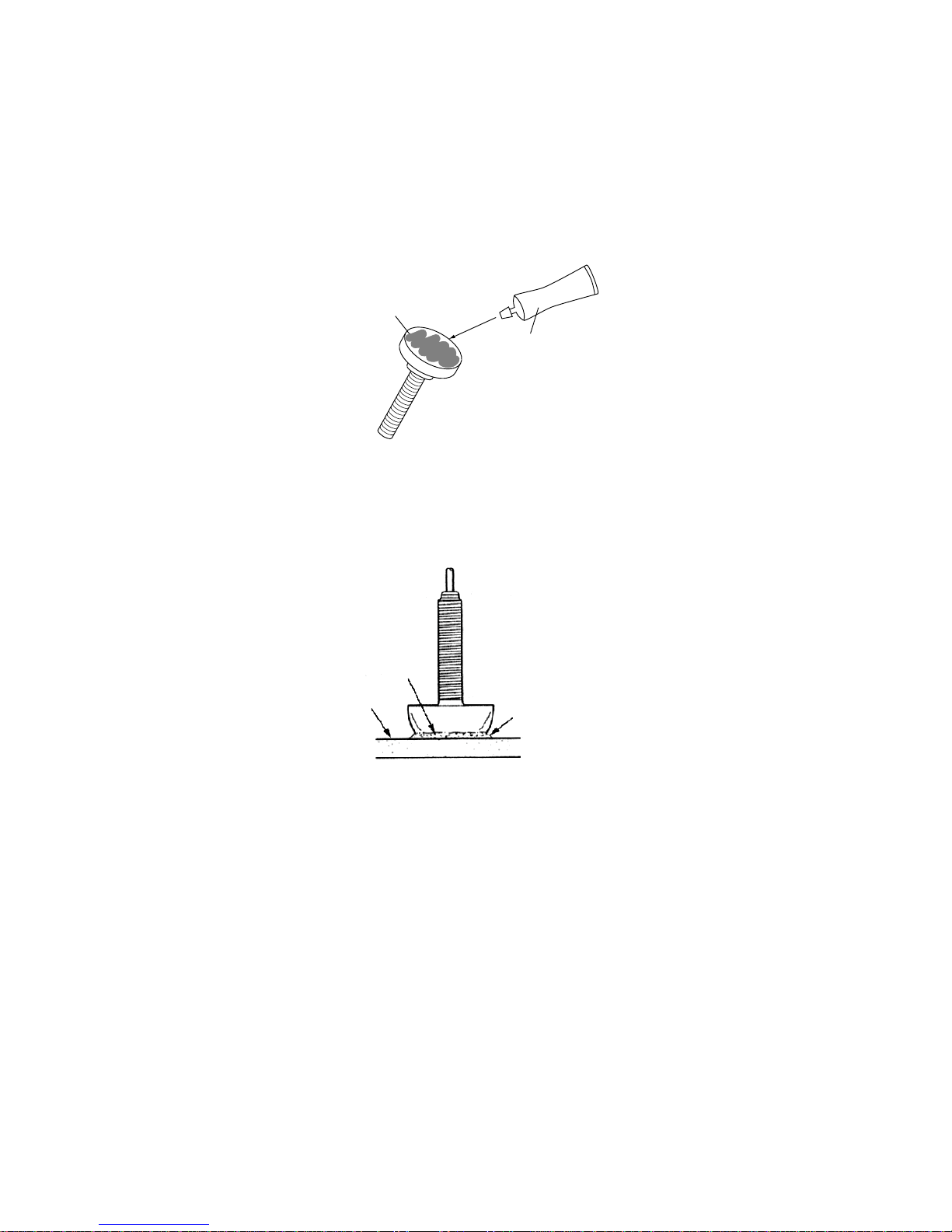

Figure 1-12 Coating the transducer face with silicone sealant
3. Press the transducer firmly down on the hull and gently twist it
back and forth to remove any air which may be trapped in the
silicone sealant.
Hull Silicone
sealant
Squeeze out
air bubbles.
Figure 1-13 Attaching transducer to hull with silicone sealant

10
Checking the installation
1. Connect the battery to the display unit as shown on page 15.
2. Turn on the display unit.
3. Press the MODE key to select NORMAL (if it is not already
selected) and press the MENU ESC key.
4. Press theAUTO key to select OFF (if it is not already selected)
and press the MENU ESC key.
5. Pressthe GAIN+ key toset thegain to“5”andpress the MENU
ESC key.
6. Press the RANGE+ key to set the range to 30 feet and press the
MENU ESC key.
7. If the bottom is displayed in red and the depth indication ap-
pears the mounting location is suitable.You can leave the trans-
ducer in position.
Reddish-
brown
Bottom
--.-°C ---kt 50k 0
2
4
8
10
6.5
0.0
6
Depth
Transmission
line
Figure 1-14 Sounder display
8. If the bottom is not displayed in red, the mounting location is
unsuitable. Do the following:
1) Press the POWER key to turn off the power.
2) Gently dismount the transducer with a piece of wood.
3) Reattach the transducer elsewhere as shown in “Attaching
the transducer.”
4) Check the installation again.
Final preparation
Support the transducer with a piece of wood to keep it in place
while it is drying. Let the transducer dry 24–72 hours.

11
1.5 Optional Water Temperature/Speed Sensors
Through-hull mount water temperature/speed sensor
ST-02MSB, ST-02PSB
Select a suitable mounting location considering the following:
• Select a mid-boat flat position. The sensor does not have to be
installed perfectly perpendicular. The sensor must not be dam-
aged in dry-docking operation.
• Select a place apart from equipment generating heat.
• Select a place in the forward direction viewing from the drain
hole, to allow for circulation of cooling water.
• Select a place free from vibration.
1. Dry-dock the boat.
2. Make a hole of approx. 51 mm diameter.
3. Unfasten locknut and remove the sensor section.
4. Apply high-grade sealant to the flange of the sensor.
5. Pass the sensor casing through the hole.
6. Face the notch on the sensor toward boat’s bow and tighten the
flange.
7. Set the sensor section to the sensor casing and tighten the lock-
nut.
8. Launch the boat and check for water leakage around the sen-
sor.
Locknut
Flange nut
Coat with
silicone sealant. Brim
Face "notch"
toward bow.
51 123
ø77
Figure 1-15 Water temperature/speed sensor ST-02MSB,
ST-02PSB

12
1.6 Optional Water Temperature Sensors
Transom mount water temperature sensor T-02MTB
• Fix the cable at a convenient location with cable clamp.
• When the cable is led in through the transom board, make a
hole of approx. 17 mm diameter to pass the connector. After
passing the cable, fill the hole with a sealing compound.
D>50 cm D
M5 x 20
Mount sensor
flush with hull bottom.
Figure 1-16 How to install transom mount water temperature
sensor T-02MTB

13
Thru-hull mount water temperature sensor
T-02MSB, T-03MSB
• Select a mid-boat flat position. The sensor does not have to be
installed perfectly perpendicular. The sensor must not be dam-
aged in dry-docking operation.
• Select a place apart from equipment generating heat.
• Select a place in the forward direction viewing from the drain
hole, to allow for circulation of cooling water.
• Select a place free from vibration.
Sensor
cable
Locknut
Coat with
sealant.
Plate thickness
within 25 mm
Coat with
sealant.
φ21 mm φ25 mm
Washer
Gasket Locknut
Locknut
Washer
Gasket
Holder Guide
Sensor Holder
T-02MSB T-03MSB
Mounting procedure
1. Drill a hole of 21 mm in diameter in
the mounting location.
2. Pass the sensor cable through the
hole.
3. Pass gasket, washer and locknut
onto cable in that order.
4. Coat the sensor flange with high
quality sealant and then fasten the
sensor with the locknut.
(Torque: max. 59N·m)
5. Launch the boat to check for water
leakage around the sensor.
Mounting procedure
1. Drill a hole of 25 mm in diameter in the mounting
location.
2. Coat holder guide with high quality sealant, and
pass gasket, washer and locknut onto holder
guide in that order and then tighten the locknut.
3. Set the sensor holder to the holder guide from
inside the boat and then tighten the locknut.
4. Launch the boat to check for water leakage
around the sensor.
Figure 1-17 Thru-hull mount water temperature sensors
T-02MSB, T-03MSB

14
1.7 Optional Triducer 524ST-MSD, 525ST-MSD
The triducer is designed for thru-hull mounting.
Mounting considerations
When selecting a mounting location keep the following points in
mind:
• Air bubbles and turbulence caused by movement of the boat
seriously degrade the sounding capability of the transducer. The
transducer should, therefore, be located in a position where wa-
ter flow is the smoothest. Noise from the propellers also ad-
versely affects performance and the transducer should not be
mounted nearby. The lifting strakes are notorious for creating
acoustic noise, and these must be avoided by keeping the trans-
ducer inboard of them.
• The transducer must always remain submerged, even when the
boat is rolling, pitching or up on a plane at high speed.
• A practical choice would be somewhere between 1/3 and 1/2 of
the boat’s length from the stern. For planing hulls, a practical
location is generally rather far astern, so that the transducer is
always in water regardless of the planing attitude.
∅79 mm
133 mm 2.00"-12 UN
threads
∅51 mm
140 mm
27 mm
7 mm
Figure 1-18 Dimensions of triducer 524ST-MSD
