GDS 630 CH Manual

1
Installation and Maintenance
Manual
Chain Slider Gate Operators
Inbuilt Models: GDS 630 CH & GDS 630 CH HD
Made in Australia from Australian & quality imported components
A.B.N. 62 059 806 405
July 2014

2
CONTENTS
Section No: Page No:
Quick start instructions 3-7
1Safety Precautions 8
2Wiring Requirements 9
3Installation 9-13
Electrical Cabling
Mechanical Installation
Electrical Connections
Plan view layout/ conduit positions
CB6 Control Board layout
CB-6 Control inputs / mode settings
4 Variable Speed Drive (VSD) 14
5Commissioning 15
6 Control diagrams 16
7Manual Release Instructions 17
8Maintenance Details 18
9 Warranty 19

3
N14870
Quick start instructions
(For those who don't have time!)
Chain Slider Gate Operators
GDS 630 CH & GDS 630 CH HD
Made in Australia from Australian & quality imported components
•Place chain slider on a secure concrete pad with the operator face set back from the gate
approximately 40mm
•Move the gate through the full travel to check the gate is not bent to the extent that the gate
hits the operator and has ample clearance through it’s full travel
•Check the height of the operator compared to the bottom gate rail to ensure the chain support
tubes when fixed to the bottom gate rail will clear the bottom of the idler sprockets on the
chain drive operator by at least 25mm. If not, the operator will have to be raised to suit
•Chemical anchor or bolt down the operator using a minimum of 12mm fixings

4
•Securely bolt the 2 chain adjuster brackets to the front and back of the gate on the bottom
rail and at a height where the chain adjuster rods are level with the bottom teeth of the idler
sprockets
•Fit the spacer support tubes for the chain to rest on along the length of the gate at
approximately 1m spacing’s and at a height where they are approximately 25mm lower than
the bottom of the idler sprockets on the chain drive operator

5
•Manually release the drive (via the knurled knob at the back of the gearbox), the chain can
now sit on the spacer support tubes and be ran under the idler sprocket, over the drive
sprocket and under the other idler sprocket on the chain drive operator
•The chain can then be connected to each of the chain adjuster connector rods, this is done
by using the 4mm high tensile bolts which go through the chain and clamp the chain together
with the clamping plates
•Tension the chain so the slackness is taken out, but do not over tighten

6
Ensure stops are installed on the gate for the fully closed
and fully open positions.
Connect required P.E Beams. Adjust Limits to actuate
prior to gate end positions. Connect power supply.
Turn on Power. Observe that the M1 op and cl limit
indicator led`s turn off when the corresponding limit
switch is activated. If they are the wrong way around,
swap the op and cl limit wires around.
To commission the gate, move the gate to
approximately the half way position, tighten the
knurled wheel (Clockwise) engaging the clutch just
enough to drive but will still slip if the gate hits
something while travelling at high speed.
The clutch must be tightened up fully after
commissioning.

7
Press the opn button located under the dip switches
to begin opening cycle.
Ensure the direction the gate travels is in accordance
with the opening and closing status LED’s, if not
reverse two of the motor wires at the inverter
terminals.

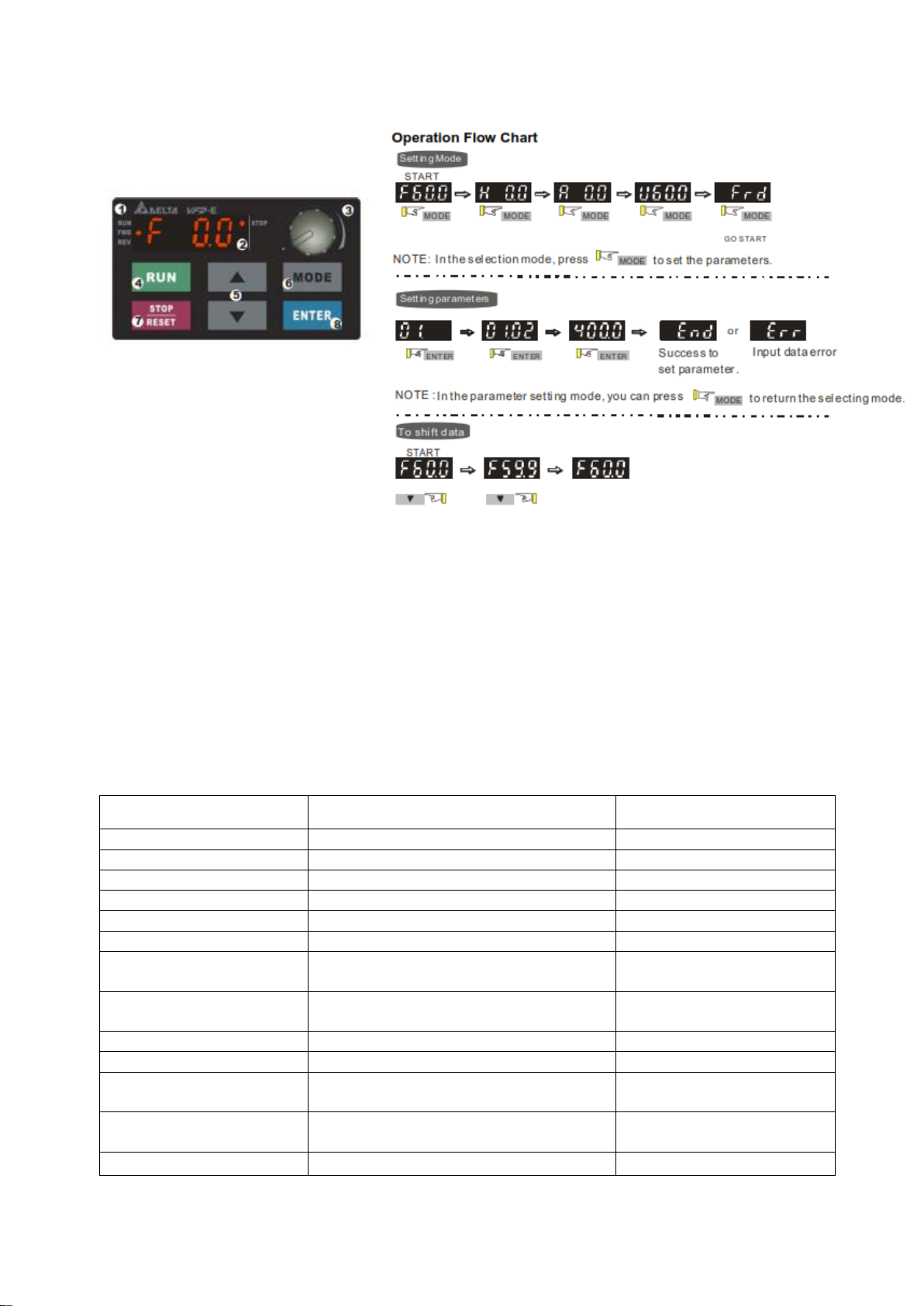

Inverter settings can be adjusted via the keypad i.e.
Opening speed, closing speed and ramp times.
Automation settings operating modes can be adjusted
via the CB6 board, refer to manual for further
instructions.
Once Inverter settings are appropriately set proceed
to make final adjustments to the limits. They need to
be set so that they switch prior to the gate reaching its
full open and close positions, initiating
the ramp down period so the gate will slow down to a
complete stop at its final position.
Once set, proceed with the gate travel timing via the
run/set switch, then firmly tighten the clutch.

8
1. SAFETY PRECAUTIONS
WARNING! FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTALLATION
INSTRUCTIONS COULD RESULT IN INJURY OR DEATH AND/OR DAMAGE TO PROPERTY
AND EQUIPMENT.
•Appropriately licensed and competent personnel only should install the automation equipment.
•The operators are designed specifically to open and close sliding gates or doors and should not be used
for any other purpose.
•Before commencing installation, read through this installation manual.
•Check that the operator and controls are in new condition and have not been damaged in transit.
•Check the gate or door and it’s associated support posts and walls to protect against shearing,
compression and other various traps which could cause serious injury or death. Take into consideration
the general installation and surrounding environment.
•Check the gateposts or mounting structure has the necessary strength and rigidity to support the
operator and the load of the opening and closing gate motion.
CAUTION!
Always incorporate the appropriate Photo Electric Cells, Induction Loops and any other safety
devices to protect both equipment and personnel. Extra caution should be employed when using
operator in auto close mode.
•Display any necessary signs to indicate any danger areas and automatic operation of the gate or door.
•The operators are not designed to be used in any hazardous areas or areas subject to flooding etc.
•All electrical connections and wiring must be performed with AS/NZS 3000-2007 as the guidelines.
(Or its counterpart for other countries outside of Australia and New Zealand)
WARNING! ELECTRICITY CAN KILL
•The manufacturer of the automation equipment is not responsible for the damage which may be caused
to either the operator, gate or door and any other person or equipment when: -
oWrong or poor installation practices were performed.
oNo or inadequate safety devices were used.
oEither the surrounding structure or the gate or door strength and rigidity was not sufficient for
the task in hand.
oInefficient locking devices were employed.
oPoor maintenance on the equipment.
oAny other circumstances beyond the manufacturers control.
•Isolate power before attempting any maintenance, qualified personnel only to carry out maintenance
•Only original spare parts are to be used should there be a requirement for them.

9
•Keep loose clothing and hands clear of the gate whilst in operation or potentially able to be operated.
•The installer should provide all information concerning the use of the automation equipment as well as
instructions regarding the manual override and maintenance procedures to the users of the system.
2. WIRING REQUIREMENTS
•Single phase 240v 10A non-earth leakage protected power supply to where operator is mounted.
*This is required because inverter VSD drive units inherently allow an earth leakage current to
flow. This current is minimal but a non RCD protected circuit must be installed and the method
of installation done so in accordance AS/NZS 3000:2007 to comply.
A connection made to an earth leakage protected circuit may cause nuisance tripping.
•Extra Low Voltage cables from operator for access control. (Shielded cable if over 8m runs).
3. INSTALLATION DETAILS
After reading the previous sections in this manual, and having checked for suitable installation, proceed as
follows:-
Electrical Cabling
•A suitably rated Isolator and 240v power supply should be available near to where the gate operator is to
be mounted. The following diagrams will provide measurements for the positioning of conduits and the
appropriate position for mounting the operator.
•When bringing power and control cables into the control enclosure inside the operator,
please leave enough slack in the cables, in this way, the enclosure can still be lifted up in
order to see and work on the controls easier. To lift up control enclosure, undo wing nut
on right hand side, once lifted up, re tighten the nut to keep enclosure in upwards position,
once finished, undo nut, drop enclosure back down, then re tighten wing nut.
Mechanical Installation
•Ensure gate rolls easily and has been installed in a manner where there is no excessive friction or binding
occurring.
•A concrete base approximately 600mm long x 300 wide x 300mm deep should be laid where the gate
operator is to be located.
•IMPORTANT ensure there are gate stops firmly installed in the fully open and closed positions. These
stops need to be engineered and installed such that they will be strong enough to stop the gate should the
limits fail at any time.
•Remove the gate operator cover and position mounting plate and operator in approximate mounting
location.
•Dynabolt or chemical anchor the bottom mounting plate to the concrete mounting pad using 12 x 100mm
fixings.
•Unscrew anticlockwise the manual disconnect knurled knob so the drive gear free wheels.
Electrical Connections
•Connect a non earth leakage protected 10A 240v supply to Din Rail terminals labelled A & N, Connect
earth to the earth Din Rail terminal.
•Conduits for power & control need to preferably come up through 3x25mm holes.

10
PLAN VIEW LAYOUT /CONDUIT POSITION
FRONT VIEW R.H.S VIEW
TOP VIEW OF BASE CHASSIS

11
CB-6 BOARD LAYOUT FOR INVERTER CONTROLS
1.
Mode Selection and Adjustment
17. Electric Lock Control Terminals
2.
Protection Fuse
18. Terminals for 24vAC Supply for
3.
Inverter Input Terminals
Control Logic
4.
Motor 1 Drive Output Terminals for Inverter
19. Plug In Receiver Antenna Terminals
5.
Motor 2 Drive Output Terminals for Inverter
With Optional Shield
6.
Motor 1 Limit Switch Inputs
20. Connector for Plug-In Receiver
7.
Motor 2 Limit Switch Inputs
(not shown)
8.
Terminals for Isolated 24vAC Supply
21. Firmware Version Label
for Limit Switch and Control Inputs
22. Light Control Relay Interface
9.
Pedestrian Access Control Input
Connector
10.
Open/Stop/Close Control Input
23. Input Status L.E.Ds.
11.
Close Control Input
24. Stop Input Jumper
12.
Stop Control Input
25. Open Input Jumper
13.
Open Control Input
26. PE Beam Input Jumper
14.
Photoelectric Safety Beam Input
27. M2 Close Limit Jumper
15.
Common Terminal for Inputs [9]
28. M2 Open Limit Jumper
Thru [14].
29. M1 Close Limit Jumper
16.
Control Input Harness Connector
30. M1 Open Limit Jumper

12
Control Inputs / Mode Settings
Control Inputs
The P.E, OPN and STP inputs require a normally closed switch contact and therefore should be shorted to
the COM terminal if not used. This is done via bridginglinks already on the circuit board (bottom left corner)
The CLS, OSC and PED inputs require a normally open switch contact and therefore should be left
unconnected if not used. All the switch inputs of this control board including the limit switch inputs require
a switch contact only. Do not connect any switches which provide a voltage to the control board as this will
damage the control board. If the desired inputs are 12/24v or has long wiring associated with it use an IM-1
module to isolate it from the control board’s input. The IM-1 is available from the manufacturer.
Powering Accessories
Accessories which require a 24v AC supply can be powered from the transformer output used to power the
control board via the isolated 24v AC supply which is connected to the DIN rail terminals as labelled.
However, the transformer’s current capacity must be checked to allow for the extra power required by the
accessories. Never use the supply connected to the 24v AC supply control board terminals to power any
accessory as this can interfere with the control boards operation. (Blue Wires)
Locks & Lights
Use the lock output terminals on the din rail to switch the 12 volts to an electric lock (if fitted). The load
switched by the lock output terminals must not exceed 30V A.C / D.C @ 5Amps. If an electromagnetic lock
is used, change one wire on the control board lock output to the normally closed output. Use the light relay
module (if fitted) to switch the applied voltage to a light. The load switched by the light relay module must
not exceed 240V A.C / 30V D.C @ 10 Amps.
Mode Selection
Using the mode selection dip-switches select the desired operating modes. Note the times associated with the
parameters marked with an * can be changed. The auto-close times can be changed using the procedure in
the following section. See the instruction manual for details on how to change the other parameters.
See the detailed instruction manual for details on how to change the other parameters.
Position 1 SYNCHRONISING DELAY
OFF - No delay
ON - Motor 1 starts to open 2 seconds* before Motor 2 and Motor 2 starts to close 2 seconds* before
Motor 1.
Position 2 PULSE LOCK OUTPUT
OFF - Lock output is activated for the entire motor drive cycle.
ON - Lock output pulses for 0.3 seconds* at the start of each drive cycle.
Position 3 LIGHT OUTPUTS WARNING
OFF - Optional light module controls a light with timer which turns light off after 60seconds*.
ON - Optional light module controls a warning light which activates whenever motors are on.
Position 4 SWIPE MODE (OSC INPUT)
OFF - OSC input terminal has standard Open, Close, Stop action.
ON - OSC input terminal will only open the door/gate. The input also resets the P.E triggered
auto-close mode so that the P.E input will need to be triggered again before a P.E auto-
close cycle will be initiated.
Position 5 M 2 OUTPUTS STATUS
OFF - The M2 output controls second motor
ON - The M2 output controls status lights

13
Position 6 P.E STOPS CLOSE CYCLE
OFF - Activating the P.E input while motors are closing causes the motors to reverse.
ON - Activating the P.E input while motors are closing causes the motors to stop but not reverse.
Position 7 P.E STOPS OPEN CYCLE
OFF - Activating the P.E input while motors are opening is ignored by the controller.
ON - Activating the P.E input while motors are opening causes the motors to stop.
Position 8 P.E TRIGGERED AUTO-CLS
OFF - Not selected
ON - Selects the P.E triggered auto-close mode which causes the motors to auto-close if
the P.E input is activated then released. (Auto-close delay time is 0 seconds*)
Position 9 PEDESTRIAN AUTO-CLS
OFF - No pedestrian access auto-close
ON - Selects auto-close in the pedestrian access mode. (Auto-close delay time is 15
seconds*)
Position 10 STANDARD AUTO-CLS
OFF - Not selected
ON - Selects standard auto-close mode which will close the motors after fully opening.
(Auto-close delay time is 30 seconds*)
Setting Cycle Timers & Auto Close Times
The control board has pre-set cycle times which are used to set the maximum time the controller will drive
the motors in the open and closed directions. The pre-programmed time for the open and close cycle timer’s
is 60 seconds. The control board also has a pre-set pedestrian access time of 5 seconds which is intended to
open the motor connected to M1 output only part way. If these default times do not suit your needs simply
use the procedure below to adjust them. Note the same procedure can be used to adjust the auto-close times.
1. Place the slide switch into the “set” position
2. Adjust the timer’s value by pressing and holding the required push button for the desired time.
3. Repeat step 2 for the next timer (if desired).
4. Place the slide switch back into the “RUN” position.
5. Test operation.
Make sure that the slide switch is placed back into the “RUN” position before testing the new timer value.
As you can see the procedure used to set each timer’s value is the same only the push button used changes.
Each push button is clearly labelled underneath as to which timer’s value it sets. Note when setting the OPEN,
CLOSE and PEDESTRIAN cycle times the controller will drive the motors as if a “real” cycle is being
executed. The difference being that the motors will stop as soon as the button is released, or the limit switches
are reached. The OPN status LED on the control board will flash at 1 second intervals to assist setting times.
Note when setting the OPEN and CLOSE cycle times when limit switches are used, release the push button
a few seconds after the limit switch cuts motor power. This allows for the motors to slow down over the life
of the operators without the need to adjust again.

14
4. VARIABLE SPEED DRIVE UNIT (VSD)
DELTA PARAMETER SET-UP FOR 3 WIRE CONTROL (V1.00 14.6.19)
Press mode button to get to setting mode, so go to “U”.
Press enter to get into parameters, scroll to select parameter group required, press enter to select,
then scroll up to get to required parameter number. Press enter to select.
Scroll up or down to select new value, then press enter to enter new value.
Once finished, press mode to get back to main frequency screen.
Terminal MI1 Forward (open) command input
Terminal MI2 Reverse (close) command input *linked to MI3 for speed setting
Terminal MI3 Closing Speed (Multi Step speed) command input
Terminal DCM command output terminal used for common
PARAMETER NUMBER
PARAMETER DESCRIPTION
SETTING VALUE
01.00
MAX upper Frequency Hz
70.00
01.01
Supply Frequency Hz
50.00
01.02
Max output voltage
240
01.07
Output Limit %
100
01.09
Accel time
5.0
01.10
Decel time
2.5
02.00
Source of first master frequency
command (0 to +10v)
0
02.01
Source of first operation command
(Terminals)
1
03.08
Fan Control (only when running)
2
04.05
Multi step speed command (MI3)
1
05.00
Closing speed (Multi step)
GDS450 =40hz -
GDS630=30Hz
Main running
frequency screen
Open speed Hz
Swing=50 - Slide=60Hz

15
5. COMMISSIONING
•Check that the limit switches are the correct way around by observing that the M1 op and cl
indicator led`s go out when the corresponding limit switch is activated. If they are the wrong
way around, swap over the M1 op and cl limit wires. They can be roughly set so they activate
approx 500 to 800mm before the gate reaches its end stops. Final adjustments can be made
later.
•Position the gate halfway and turn the knurled knob clockwise until the clutch is firm enough that the
gate will drive, but the clutch will slip if it hits something at high speed.
•Power up board and with gate in the half way position, press the opn or cls buttons to drive the gate
•The corresponding ( green for open and red for close) led should start to flash, if they are the wrong way
around, turn power off to the operator, wait until the inverter powers down, then swap over any 2 of the
motor phase wire at the inverter. Turn power back on and test.
•Run the gate again fully in each direction checking the limit switch positions.
•Limit switches initiate the ramp down time so should not switch off the gates too soon (before reaching
conversely not too late, so the torque limiter is operating. Any speed or ramp time adjustments made
from now on will affect the final stop position of gate.
•Tighten clutch (torque limiter) knurled knob.
•Set open & closed travel time as detailed in Setting Cycle Timers & Auto Close Times section.
•Check that all safety devices work as designed.
•Install cover using screws provided in the front and sides to hold cover firm.
•Provide full details to the owner concerning the operation and relevant maintenance and disconnect
details.

16
6. CONTROL DIAGRAMS

17
7. MANUAL RELEASE INSTRUCTIONS
Place key in door lock, turn clockwise till released and pull door open.
Turn knurled knob anticlockwise approx. ½ a turn to release
Gate can now be opened by hand.
To re-engage the clutch, move the gate by hand
Into approx. The half way position and turn the
Knurled knob clockwise until it is very tight.
If, when turning the knurled knob clockwise and
It just spins, either, try spinning it clockwise with
more force to release it off of the hexagonal retaining
nut or hold the nut with one hand and turn the knurled
knob clockwise.

18
5. MAINTENANCE DETAILS
WARNING!
Failure to maintain equipment may result in injury or death and/or damage to property and equipment
Recommended maintenance to be performed on the operator and gate are as follows:-
Operator performs over 150 cycles a day each month
Operator performs between 100-150 cycles a day every 2 month
Operator performs between 50-99 cycles a day every 4 months
Operator performs between 20-49 cycles a day every 6 months
Operator performs under 20 cycles a day every 12 months
Date: ..........................................................................................
Site Name: .....................................................................................................................................................
Site Address:..................................................................................................................................................
Before commencing maintenance on the operator, isolate the electrical supply to ensure operator will not run
inadvertently.
Gate rolls freely when in manual ....................................................................................
Gate wheels and guide rollers in good condition............................................................
Gate stops are installed and in good condition, not loose...............................................
Gate chain is tight ...........................................................................................................
Gate chain is not damaged ..............................................................................................
Gate operator mounting bolts tight..................................................................................
No oil leaks from gearboxes............................................................................................
Gearbox mounting bolts/nuts tight..................................................................................
Inside operator and control box clean .............................................................................
‘Baygon’ Surface Spray around operator and control box (not on electronics)..............
All electrical connections tight........................................................................................
Limit Switches operate in appropriate positions / chain oiled ........................................
External safety devices work effectively / cleaned.........................................................
Electromagnetic lock, if fitted, operates correctly and is clean ......................................
Wash down of control box and cover (particularly near corrosive/sea environments)...
General operation i.e. speed, auto close etc normal........................................................
Comments............................ ...........................................................................................................
.........................................................................................................................................................
...........................................................................................................................................................
Service performed by :......................................................................................................................

19
6.WARRANTY
a. Gate Drive Systems Australia warrants that the goods manufactured by it shall be free from defect in
manufacture for a period of 12 months from the date of invoice. Should any fault occur within that period as
a result of faulty workmanship or materials, Gate Drive Systems Australia at its discretion, replace the
product at no charge to the Customer except for removal, installation & freight. The appropriate Serial
Number must be quoted for all warranty claims.
b. For the goods not manufactured by Gate Drive Systems Australia, we shall pass on the manufacturer’s
warranty to the Customer from the date of invoice. It is the manufacturer’s discretion to repair or replace
goods deemed to be defective as a result of faulty workmanship or materials.
c. All goods must be returned to Gate Drive Systems Australia or its representative for inspection or testing to
assess if a claim is justified. It is the responsibility and at the cost of the Customer, to remove & return the
goods for inspection and freight costs are the responsibility of the Customer.
d. The warranty is negated and will not apply in the following circumstances:-
i. If no proof of date of purchase can be produced.
ii. If the product has been used in a manner beyond its design parameters.
iii. If the product is tampered with or repaired by personnel not authorised to do so.
iv. In respect of loss or damage caused by rough treatment.
v. If the product is not used and maintained in accordance with instructions or recommendations listed in
this Installation and Maintenance Manual.
vi. In respect of loss or damage caused by an Act of God or any other cause not within the manufacturers
control.
e. Goods returned under warranty for repair or testing will incur a charge to be fixed by the manufacturer if no
fault is found.
f. The Customer shall bear freight charges for removing & returning the goods for inspection and for the
delivery & installation of any replacement or repaired product from a justified warranty claim.
g. Save for the express conditions and warranties herein contained all other conditions or warranties (whether
as the quality, fitness for purpose or any other matter) expressed or implied by statute, common law, equity,
trade custom, usage or otherwise are hereby expressly excluded provided that nothing in these terms and
conditions shall exclude or limit any breach or condition implied by law, the exclusion or limitation of which
is not permitted by law.
