Arize Element®L1000 Gen2
Horticulture LED Lighting System
HORT162 | DOC-xxxxxxx
WARNING
RISK OF ELECTRIC SHOCK
• Turn power o before inspection, installation or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all IEC and local building codes.
• Use only IEC approved wire for input/output connections.
Minimum size 3G 0.75mm2.
• Minimum 300mm distance from light module & driver to any
combustible material.
• Minimum 150mm clearance between light module & driver, light
module & light module, driver & driver.
• The light module shall be installed lens down with a minimum of
130mm to anything below.
CAUTION
• Do not operate the product with damaged parts.
• Turn o power before inspection, installation or removal.
• Luminaire may fall down if not installed properly.
• Wear work gloves to prevent dirt and oil from being transferred to
the luminaire.
• Not for direct exposure to the weather.
• To ensure the product warranty is valid, please ensure all installation
instructions and environmental conditions for storage and operation
are complied with.
• The light source of this luminaire is not replaceable; when the light
source reaches its end of life the whole luminaire shall be replaced.
• Use only in the manner intended by the manufacturer. If you have
any questions, contact the manufacturer.
• For safe operation, and to maximize the longevity of the luminaire;
ensure that the light module and driver are clean and free of dirt,
dust, oil, or any other debris.
• Do not apply any kind of lm on the lens or otherwise cover the
driver or light engine in any way.
• The external exible cable or cord of this luminaire cannot be
replaced; if the cord is damaged, the luminaire shall be destroyed.
Part Number
220–240 VAC
Power (W)
380–415 VAC
Power (W)
Risk
Group
Min. Viewing
Distance (m)
GEHE-HPPRB2A 585 589 25.2
GEHE-HPPBB2A 622 626 2 5.2
GEHE-HPKTB2A 606 610 25.2
GEHE-HPKRB2A 623 628 25.2
GEHE-HPKBB2A 639 643 25.2
GEHE-HPKFB2A 643 647 25.2
GEHE-HBRIB2A 656 660 25.2
GEHE-HBRVB2A 681 684 25.2
GEHE-VPPRB2A 530 533 25.2
GEHE-VPPBB2A 575 580 25.2
GEHE-VPKTB2A 538 542 25.2
GEHE-VPKRB2A 569 573 25.2
GEHE-VPKBB2A 590 594 25.2
GEHE-VPKFB2A 570 575 25.2
0°C
40°C
Suitable for operation in an ambient temperature
between 0°C and 40°C.
A mechanical ventilation or cooling system is
required to maintain the temperature within the
growing space below 40°C when the light module
is in operation.
IEC/TR 62778 Risk Group 2 (RG2)
DA Installationsvejledning
DE Einbauanleitung
ES Guía de instalación
FI Asennusohje
FR Guide d’installation
HU Felszerelési útmutató
IT Guida all’installazione
LT Sumontavimo vadovas
NL Installatiehandleiding
NO Monteringsanvisning
PL Instrukcja instalacji
PT Guia de Instalação
SE Installationsguide
220-240V
50-60Hz
380-415V
50-60Hz IP66
The LED luminaire must be connected to
the mains supply according to its ratings on
the product label.

2
Arize Element®L1000 Gen2 Installation Guide
12
3
4
6
5
System Component Parts
Please refer to order logic to determine included or accessory
Driver Specications
Light Module Specications
Description Weight Input Voltage
GEPSC240-680D-BDGGL-D1 3.2 kg 220-240 VAC
GEPSC240-680D-BGJGL-D1 3.2 kg 380-415 VAC
Product Code Detailed Description Weight
System Input Current [A]
Low Voltage Driver
@ 220–240 VAC
System Input Current [A]
High Voltage Driver
@ 380–415 VAC Power Factor
GEHE-HPPRB2A Arize Element, L1000, PPR, XW Optic 4.5 kg 2.56 2.57 > 0.9
GEHE-HPPBB2A Arize Element, L1000, PPB, XW Optic 4.5 kg 2.73 2.74 > 0.9
GEHE-HPKTB2A Arize Element, L1000, PKT, XW Optic 4.5 kg 2.66 2.67 > 0.9
GEHE-HPKRB2A Arize Element, L1000, PKR, XW Optic 4.5 kg 2.73 2.74 > 0.9
GEHE-HPKBB2A Arize Element, L1000, PKB, XW Optic 4.5 kg 2.80 2.81 > 0.9
GEHE-HPKFB2A Arize Element, L1000, PKF, XW Optic 4.5 kg 2.82 2.83 > 0.9
GEHE-HBRIB2A Arize Element, L1000, BRI, XW Optic 4.5 kg 2.88 2.88 > 0.9
GEHE-HBRVB2A Arize Element, L1000, BRV, XW Optic 4.5 kg 2.99 2.99 > 0.9
GEHE-VPPRB2A Arize Element, L1000 HE, PPR, XW Optic 4.5 kg 2.32 2.33 > 0.9
GEHE-VPPBB2A Arize Element, L1000 HE, PPB, XW Optic 4.5 kg 2.52 2.53 > 0.9
GEHE-VPKTB2A Arize Element, L1000 HE, PKT, XW Optic 4.5 kg 2.36 2.37 > 0.9
GEHE-VPKRB2A Arize Element, L1000 HE, PKR, XW Optic 4.5 kg 2.49 2.50 > 0.9
GEHE-VPKBB2A Arize Element, L1000 HE, PKB, XW Optic 4.5 kg 2.59 2.60 > 0.9
GEHE-VPKFB2A Arize Element, L1000 HE, PKF, XW Optic 4.5 kg 2.50 2.51 > 0.9
AC cable
Driver
Driver Bracket
Hanger (2x)
Light Module Brackets (2x)
Light Module
1
2
3
4
5
6

3
Arize Element®L1000 Gen2 Installation Guide
Mounting Accessories Specications
Description Detailed Description Weight
GEMB-WAS1 Wire bracket mounting kit, square 41 mm 0.4 kg
GEMB-WAA1 Wire bracket oset mounting kit, square 41 mm 0.6 kg
GEMB-WAS2 Wire bracket mounting kit, square 70 mm 0.4 kg
GEMB-CBH1 457 mm, cable universal mounting kit 0.1 kg
GEMB-CBH2 1524 mm, cable universal mounting kit 0.1 kg
GEMB-PAU1 Perpendicular (90°) universal mounting kit 0.5 kg
Description Detailed Description
GECA60D16-OL04B AC Leader Cable, 1219 mm, CE
GECA60FNA-NL00B AC Field Installable Connector, UL and CE (Wieland P.N. 96.031.4155.7)
GECA30G14-EN03B DC Inter-Connection Cable, 914 mm, UL and CE
GECA30G14-EN06B DC Inter-Connection Cable, 1828 mm, UL and CE
GECA30H20-OO03B Dimming cable, 914 mm, UL and CE
Interconnection Cable Specications

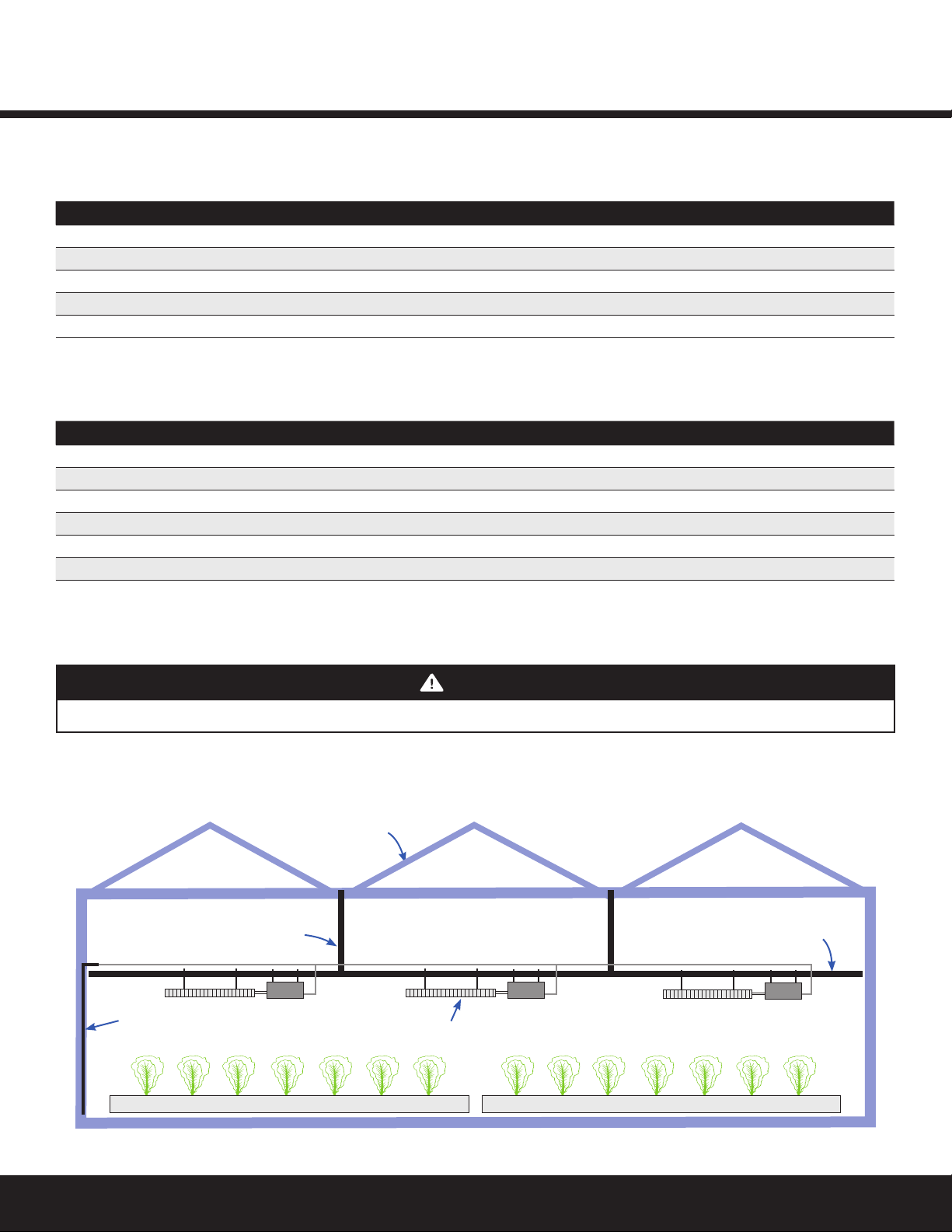

Sample Base Installation Diagram
Unistrut
Structural member
AC line
Plants Plants
Top Light Module
Structure
DRIVER
DRIVER
DRIVER
CAUTION
Installation instructions and specications for accessories can be found in the accessory package.

4
Arize Element®L1000 Gen2 Installation Guide
1 Installation of the Light Module
Install brackets at location A.
Press down on bracket until hooks snap into
place. Ensure bracket hooks catch bottom
edge of heatsink.
Slide down bracket along channels.
SNAP! SNAP!
If not preassembled, install light module brackets on light module.
1.1 Installation of Module Brackets
1
3
2
A
A

5
Arize Element®L1000 Gen2 Installation Guide
Place light module hanger
over structural member and
snap hanger in place.
Hang one xture bracket on one hook, hang opposite xture
bracket onto other hook by pressing hanger arms together.

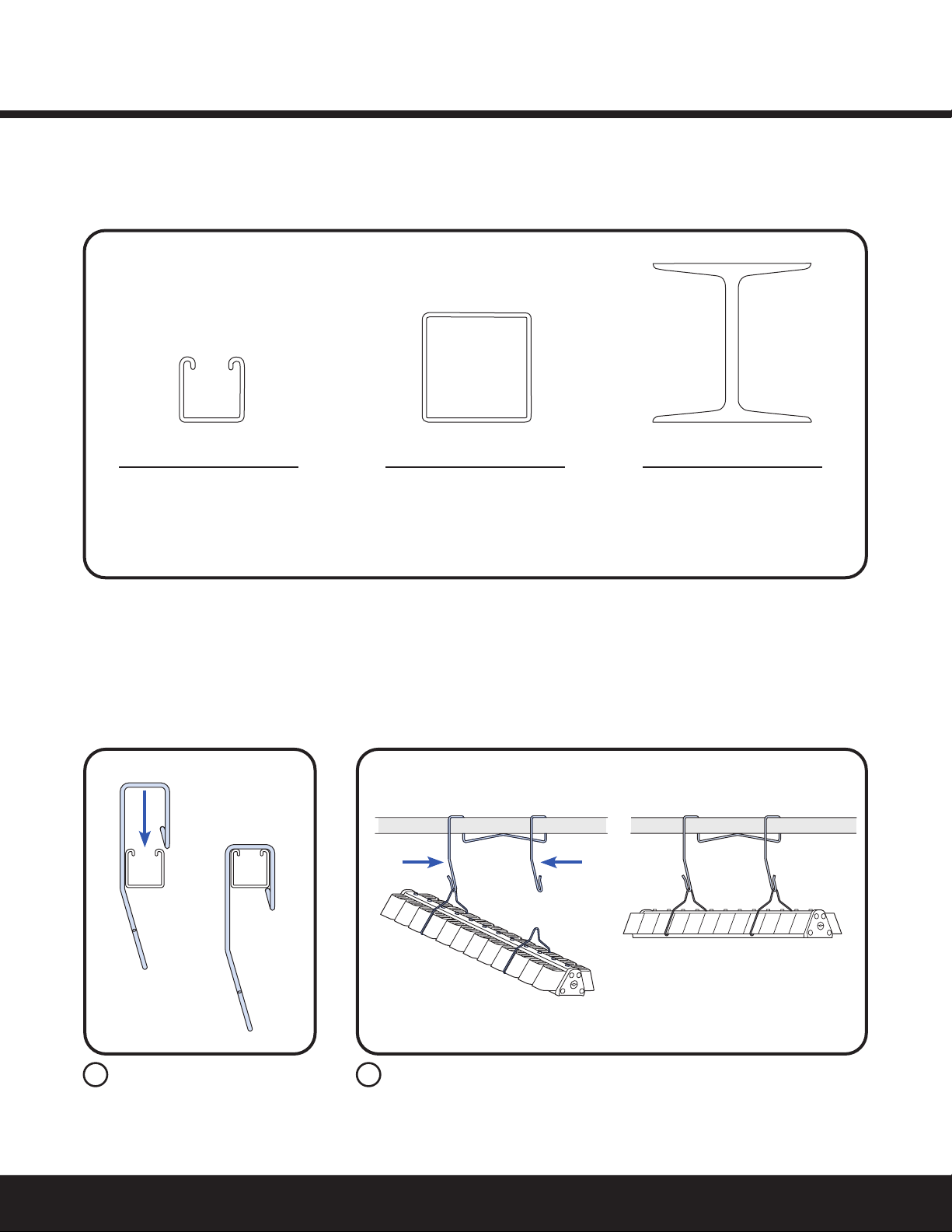

Based on the cross section of the structural member select the correct hanger or mounting cable.
1.2 Selection of Mounting Hardware
1.3 Installation with Standard and Oset Hangers
SNAP!
Use standard hanger 41 mm
OR
Oset hanger 41 mm
to clear the bottom of the Unistrut
Use standard hanger 70 mm Use 0.5 m or 1.5 m universal cable
OR
Perpendicular (90°)
universal mounting kit
Unistrut 41 mm Square 70 mm Other Structural Members
1 2

6
Arize Element®L1000 Gen2 Installation Guide
1.4 Installation with Universal Cables
Wrap loop end of cable over structural member.
Insert hook through loop end.
Attach hooks to light module brackets. Ensure
hook gate is closed.
Loop Hook
1.5 Installation with Perpendicular 90° Universal Mounting Kit
Kits Contents (SKU: 93139057)
Tools Required
1x Worm Drive Clamp
1x Metal Bracket
2x Carabiners
5/16” hex socket or
at-blade screwdriver
1828 mm Inter-connection
4x 457 mm Universal Cables
1 2
123
4
1
2
3
4
5
5

7
Arize Element®L1000 Gen2 Installation Guide
Installation Steps for Perpendicular 90° Universal Mounting Kit
First determine which 2 slots on
the metal bracket most closely
correspond to the structural
member width. Insert strap of
the worm drive clamp through
the rst slot of the metal
bracket from the top.
Place the metal bracket on
top of the structural member
and wrap the strap around
the bottom of the structural
member and back up through
the second slot.
Secure the metal bracket on
to the top of the structural
member by inserting the
strap into the open end of the
clamp and tightening down
the screw.
Attach a carabiner to each
side of the metal bracket.
Attach a support cable to each
carabiner and ensure the gates
are closed.
Attach other end of cables
to light module. Ensure hook
gates are closed.
1.6 Installation with Custom Brackets
If you choose to use your own
custom mounting method, attach
to points A.
1 2 3
4 5 6
A
A

8
Arize Element®L1000 Gen2 Installation Guide

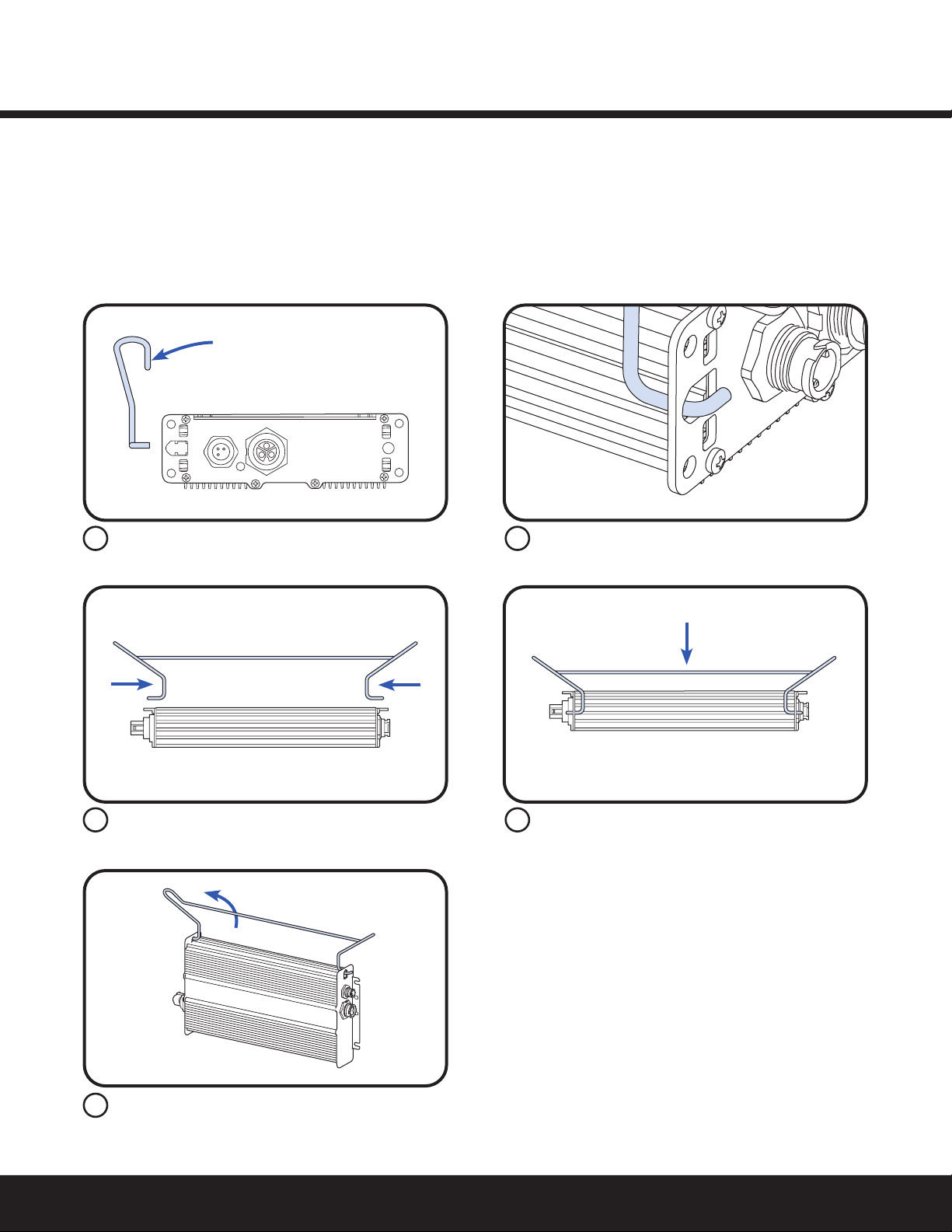

2 Installation of the Driver
Orient driver perpendicular to the bracket.
Bracket
Squeeze bracket arms together & slide
hook into rst driver mounting hole.
Let driver swing free upright & ensure
hooks on both sides are correctly engaged.
Ensure rst end of bracket hook is lined up with
oval mounting hole of driver.
Repeat on opposite driver mounting hole.
If not preassembled, install driver bracket onto driver.
2.1 Installation of Driver Bracket
1
3
5
2
4

9
Arize Element®L1000 Gen2 Installation Guide

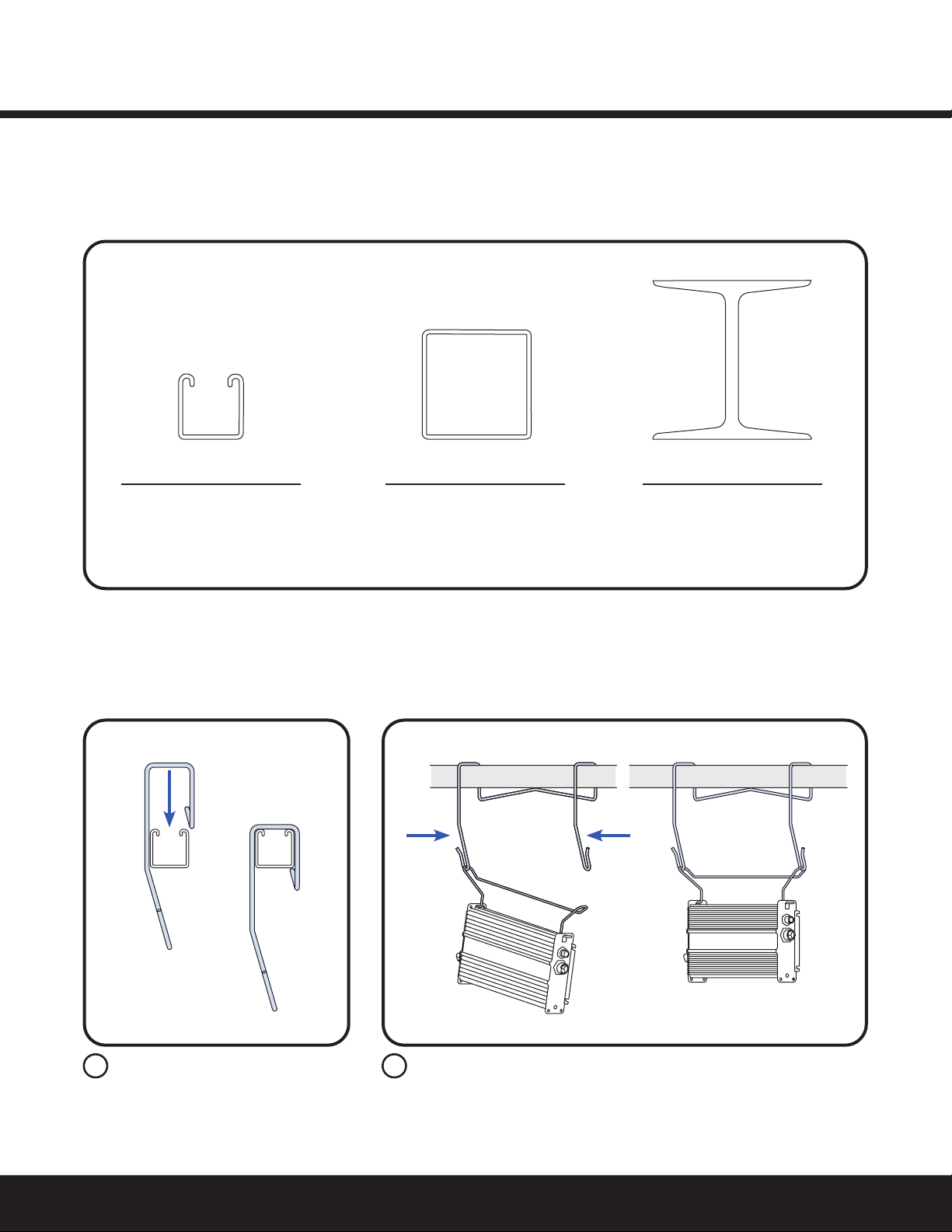

2.2 Selection of Mounting Hardware
Based on the cross section of the structural member select the correct hanger or mounting cable.
Hang brackets of driver module
onto hanger and push down until
brackets snap into place.
Hang driver bracket from one hook, then hang other driver
bracket end by pressing hanger arms together.
2.3 Installation with Hangers
SNAP!
Use standard hanger 41 mm
OR
Oset hanger 41 mm
to clear the bottom of the Unistrut
Use standard hanger 70 mm Use 0.5 m universal cable
Unistrut 41 mm Square 70 mm Other Structural Members
1 2

10
Arize Element®L1000 Gen2 Installation Guide

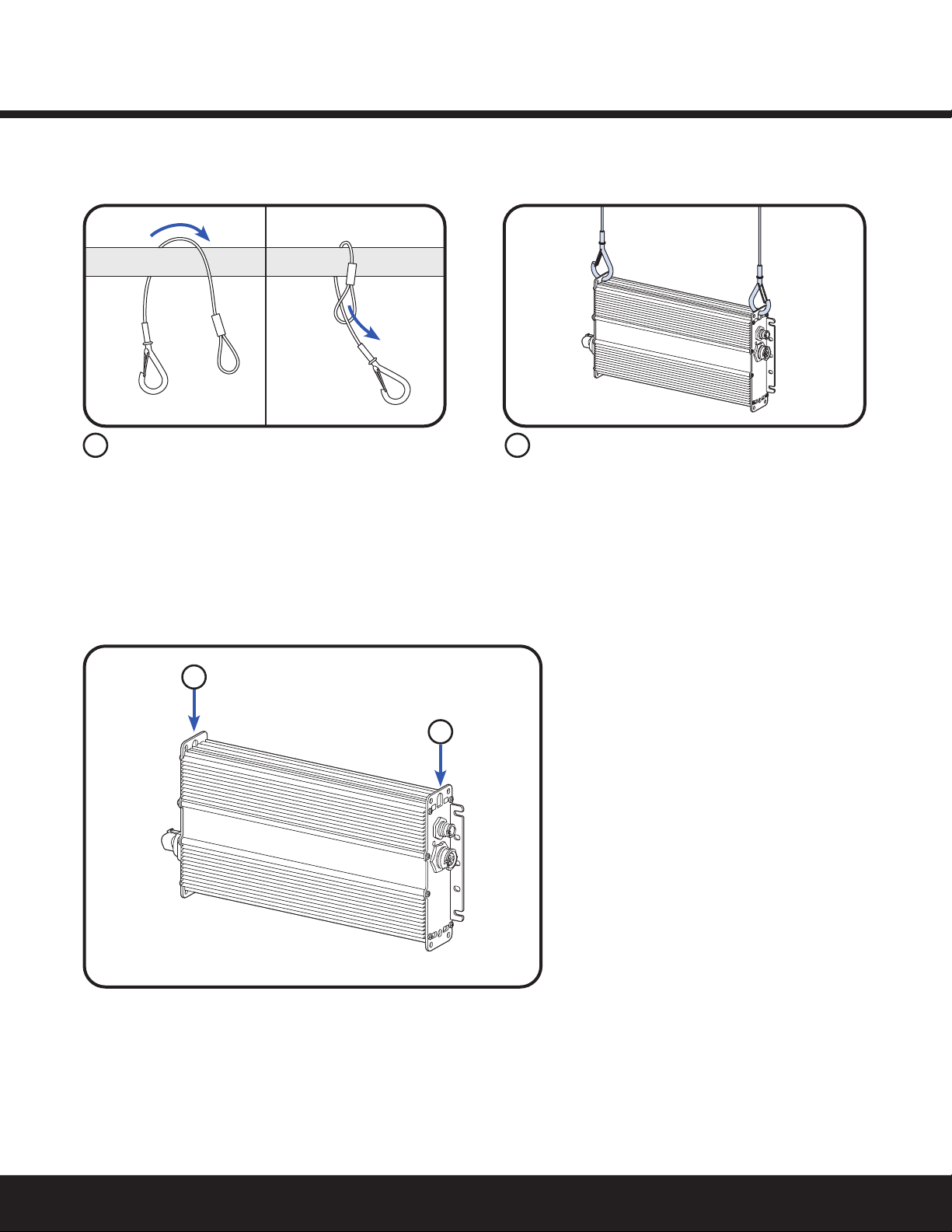

2.4 Installation with Universal Cables
2.5 Installation with Custom Brackets
Wrap loop end of cable over structural member.
Insert hook through loop end.
Attach hooks to oval driver mounting holes.
Ensure hook gate is closed.
If you choose to use your own
custom mounting method,
attach to oval driver mounting
holes A and B for hanging.
No side forces should be
applied to mounting holes
A and B.
Loop Hook
1 2
B
A
