Table of Contents
1. Purpose......................................................................................................................................................7
2. Contents..................................................................................................................................................... 7
3. Tools.......................................................................................................................................................... 7
4. Assembling of the mechanical parts..........................................................................................................7
5. Mounting the monitor on the system.......................................................................................................11
6. Mounting the front label.......................................................................................................................... 14
10 December 2002 FC209267 rev. 02 Page 6 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
1. Introduction
1. Purpose
This document describes how to replace the monitor for System FiVe / Vivid FiVe.
2. Contents
The “Monitor Replacement Complete, System FiVe / Vivid FiVe” FC200267 consists of the
following parts:
FA200507 Cable, Monitor GND
FC307118 EIZO cable lock
FC307103 Adapter plate f. EIZO
FA307626 Lock for EIZO
066E0076 Monitor 17” EIZO
080A359B Plate screw 3.5x9.5
080B9040 Lock-nut M4 Hexagon
080B1060 Nut lock M6 Durlok
080C2066 Washer, flat (4 ea.)
080X3147 Plug, Skiffy (4 ea.)
FA314396 Label, System FiVe
FB314558 Label, Vivid FiVe
3. Tools
Tools needed for assembling:
Philips Screw driver
7mm and 10mm wrenches
Hammer
4. Assembling of the mechanical parts
CAUTION!
Please be aware of that the monitor weight is approx. 19 kg.
Two persons are needed when lifting the monitor.
10 December 2002 FC209267 rev. 02 Page 7 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
Pedestal
Remove screw
Remove screw
Remove screw
Remove screw
Figure 1
Carefully lift the monitor up on a table or similar, with the screen facing down.
Unscrew the 4 screws holding the original monitor pedestal in position as shown in figure 1. Remove the
pedestal; keep the 4 screws near by for mounting the adapter plate.
10 December 2002 FC209267 rev. 02 Page 8 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
Adapter plate
FC307103
X X
Pull
Pull
Figure 2
Pull the monitor cover upwards 1-2 cm. as shown in figure 2. Mount the adapter plate FC307103 as shown
by using the 2 screws in position marked X.
Figure 3
Mount the 4 washers 080C2066 4 onto the 4 plugs 080X3147 as shown in figure 3.
10 December 2002 FC209267 rev. 02 Page 9 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
Plug
Plug
Plug
Plug
Screw
Screw
Press downwards

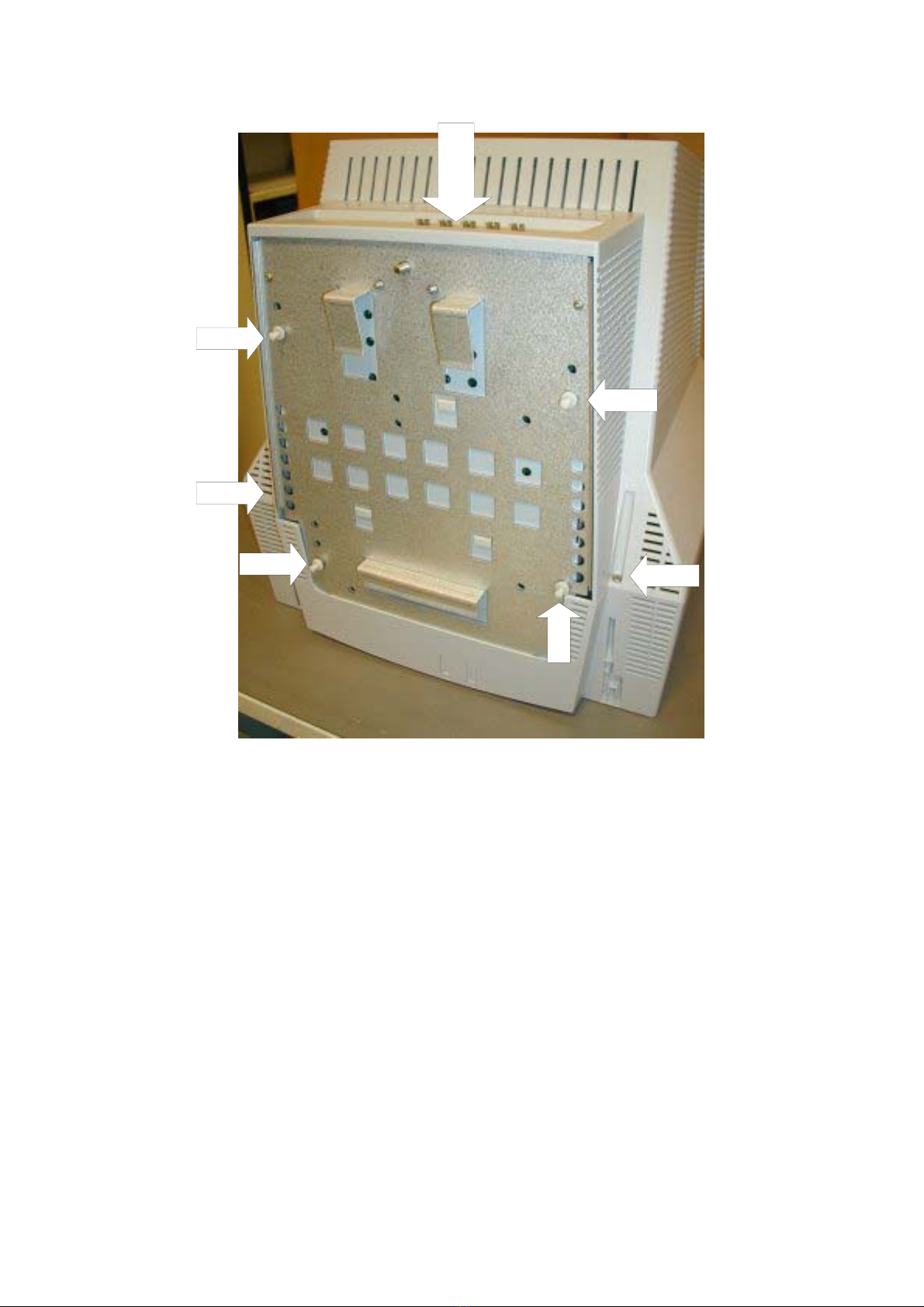

Figure 4
Press the monitor cover back in place and fasten it with the remaining 2 screws as shown in figure 4.
Fasten the 4 plugs in the holes as shown. Use a hammer to knock the plugs into the holes. Then the
monitor is ready to be mounted on the system.
10 December 2002 FC209267 rev. 02 Page 10 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
5. Mounting the monitor on the system
FA200507, Cable, Monitor GND
Figure 5
Before installing the new monitor be sure that the monitor security ground wire is fixed to the main frame
as shown in figure 5. If not, attach the security ground wire (FA200507; Cable, Monitor GND) to the
frame.
Angle plate
, adapter
Pedestal
Figure 6
Carefully lift the monitor onto the system pedestal, and push the monitor forwards. Make sure that the
angle in front of the adapter plate interferes with the pedestal as shown in figure 6.
10 December 2002 FC209267 rev. 02 Page 11 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
080B9040 Lock-nut M4 080B1060 Nut lock M6
Wrenches
FA307626 Lock f. Eizo

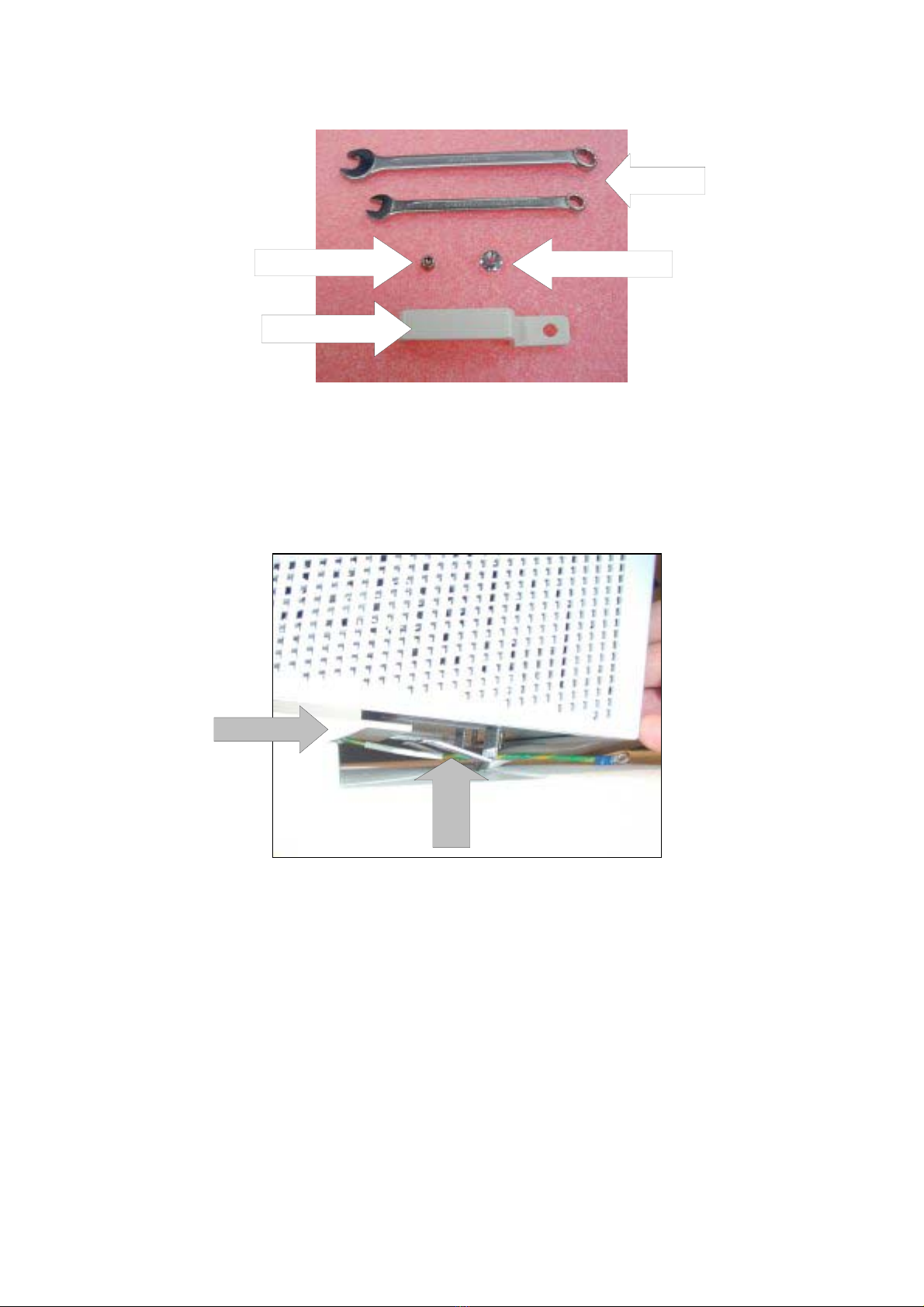

Figure 7
Figure 7 showing the Lock for Eizo and the nut locks.
Angles, adapter plate
Pedestal
Figure 8
Figure 8 showing the rear right side of the monitor. Make sure the two angles at the rear of the adapter
plate interferes with the pedestal.
10 December 2002 FC209267 rev. 02 Page 12 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
Monitor cables
Lock f. Eizo and nut lock
Pedestal
Ground connection Angles, Adapter plate

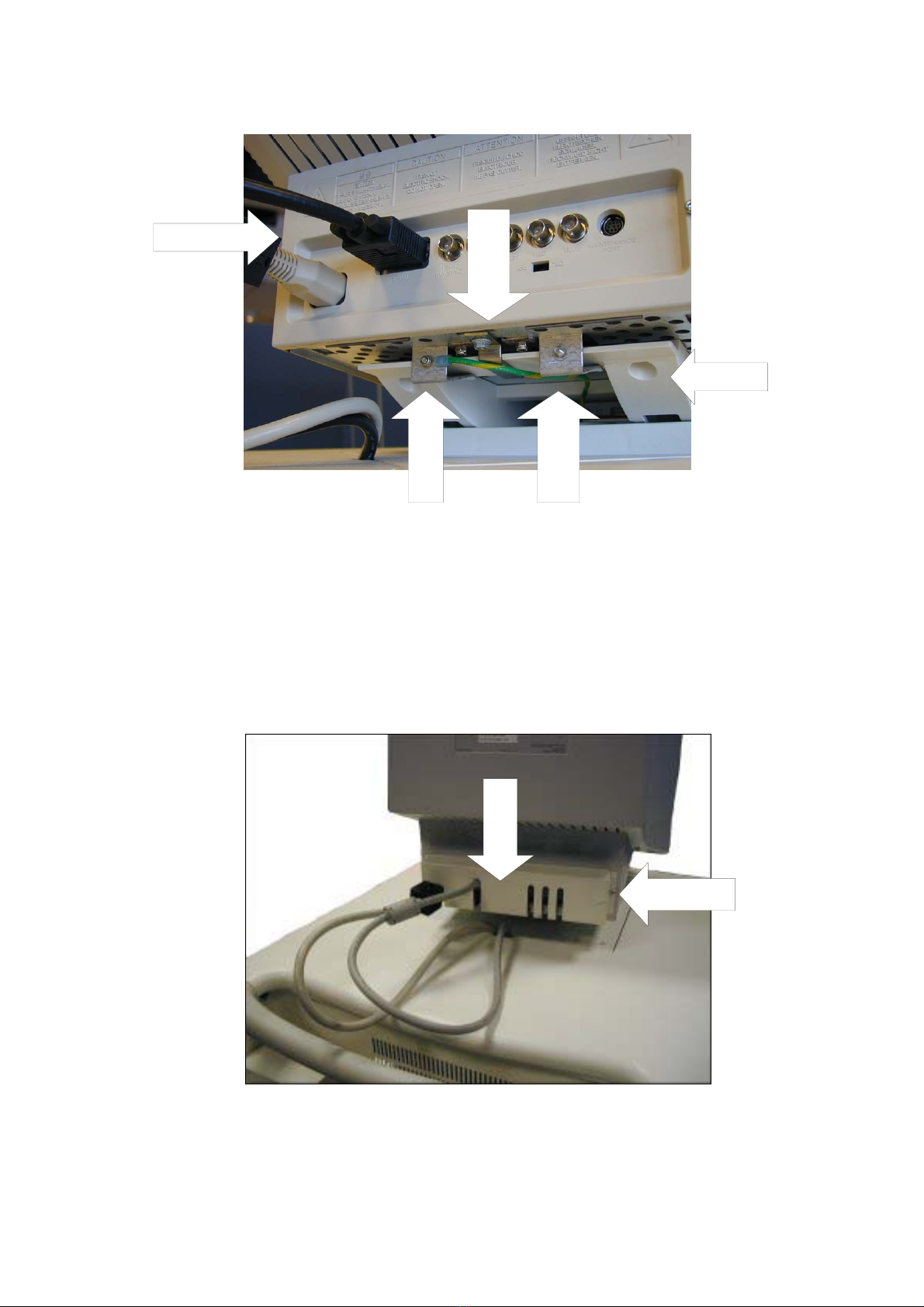

Figure 9
Figure 9 showing the rear end of the monitor. Secure the monitor to the pedestal by using FA307626 Lock
for Eizo and 0801060 Nut lock as shown in figure 8. Mount the ground connection between the monitor
and the system. The ground connection is located under the monitor, at the rear end. Then mount the
cables from the system on to the monitor.
Plate screw
080A359B
Cable lock FC307118
Figure 10
Place the FC307118 EIZO cable lock at the monitor rear end as shown in figure 10. Use 2 self-tapping
plate screws 080A359B to fasten the cable lock.
10 December 2002 FC209267 rev. 02 Page 13 of 14

gGE Vingmed Ultrasound Monitor Replacement Complete, S5 / V5
6. Mounting the front label
Monitor front label:
FA314396 System FiVe
FB314558 Vivid FiVe
