GE LOGIQ e User manual

RikshospitaletHF Hurtigveiledning Ultralydskanner 6
Kom igang
Figure 1.Steg 1
Steg 1 SKRU PÅ MASKINEN.

LOGIQ e Quick Guide
Control Panel Tour
LOGIQ e Knotologi
1. TGC. Juster venstre/høyre for justernig TGC.
2. Ny pasient. Trykk for aktivering.
3. Additional Feature Keys: Steer, Harmonics,
PDI.
4. Mode/Gain/Auto Keys: M Mode, Pulsed Wave
Doppler (PW) Modes, Color Flow (CF) Mode
and B Mode. Press these key to activate the
mode; rotate the key to adjust the Gain; Press
Auto to activate/deactivate auto optimization.
5. Imaging/Measurement Key: Cursor, Clear,
Body Mark Measure, M/D Cursor, Scan Area,
Set / B. Press or rotate these keys, as
necessary.
6. Depth/Zoom/Ellipse. Adjust these keys, as
necessary.
7. Start/Stop.
8. Print Keys: Press the P1, P2, P3 keys to
archive, print, or send the image.
9. Freeze. Press Freeze to freeze the image or
return to scanning.
10. Keyboard. Use the keyboard to enter patient
information and annotations. Press F1, F2, F3,
F4 and F5 keys to activate Online help/User
Manual, Arrow, Eject, Spooler and Reverse
functions. The User can define functions for the
F6-F12 keys. The following functions are
available for F6-F12 Keys: CWD, 3D, LOGIQ
View, Compound, ECG On/Off, Set Home, Text
Overlay, WorkSheet, Grab Last and Word
Delete. Press [Utility] to enter the Utility
function and configure the system. Press
[Preset] to preset the system. Press [Report] to
Enter the worksheet page.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 8
Control Panel Tour
LOGIQ e Keys

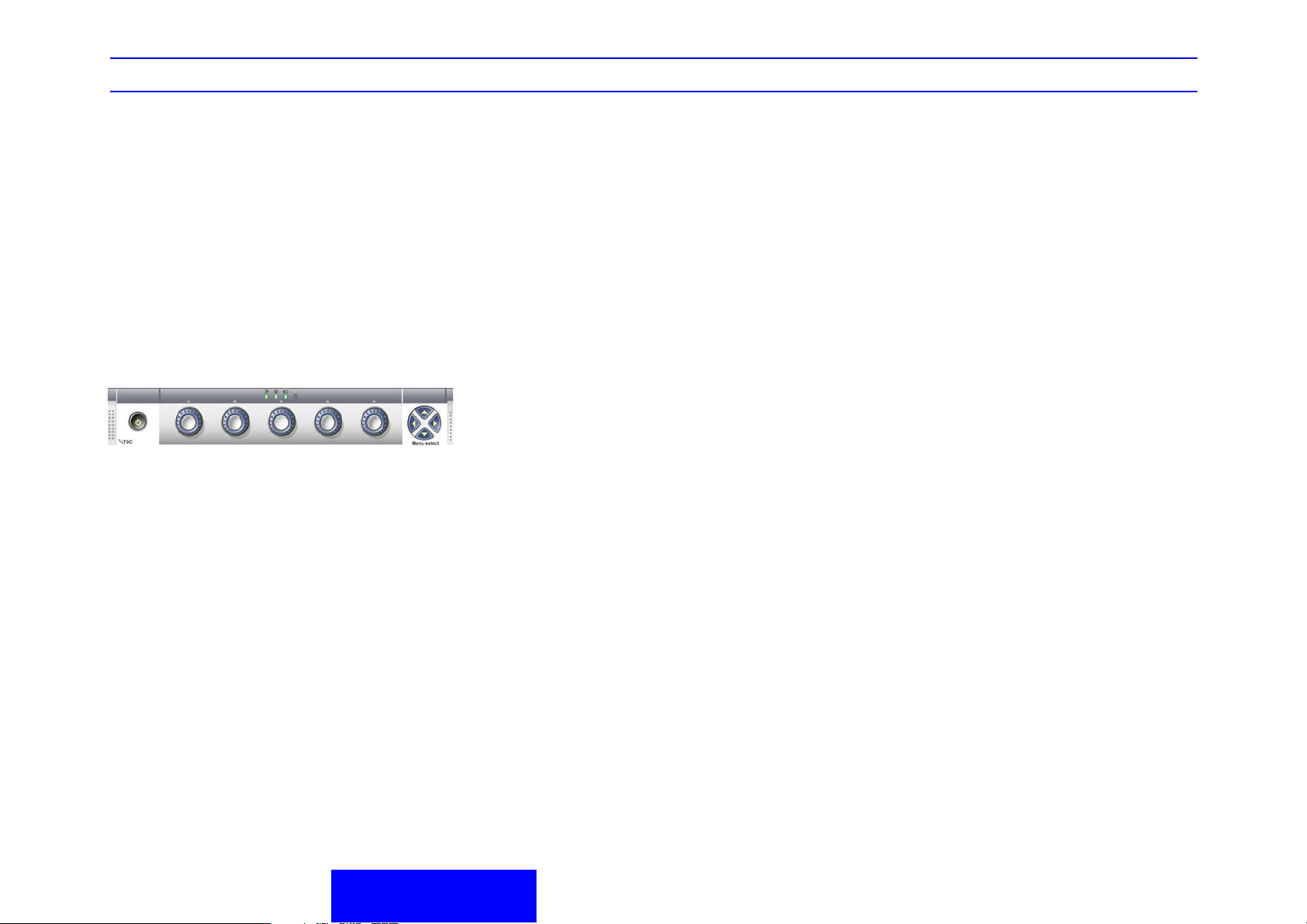

SoftMenu Key Tour
In general, there are two types of softMenu keys:
Paddle Switch and adjustable knobs.
1. The Paddle Switch is used to access and adjust
the Sub SoftMenu.
2. Press the adjustable knobs to toggle option
menu between line one and line two.
3. Rotate the adjustable knobs to adjust the
corresponding parameters.
Function Keys - Programmable Keys
• F1 = Help (Enter Online Help / User Manual)
• F2 = Arrow (Annotation Arrow)
• F3 = Eject (Eject media)
• F4 = Spooler (Activates DICOM Job Spooler
screen)
• F5 = Reverse
• F6 -F12 Programmable
How to Program your programmable
keys
<Utility> - <Admin> - <Function Key>, then use the
drop down menu.
Choices for program Keys
• WorkSheet
•CWD
•3D
• LOGIQ View
• Compound
• ECG On/Off
•SetHome
• Text Overlay
• Grab Last
• Word Delete
Shortcut keys
• Ctrl + Alt + R: Restart the system
• Ctrl + E: Eject

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 9
Control Panel Tour

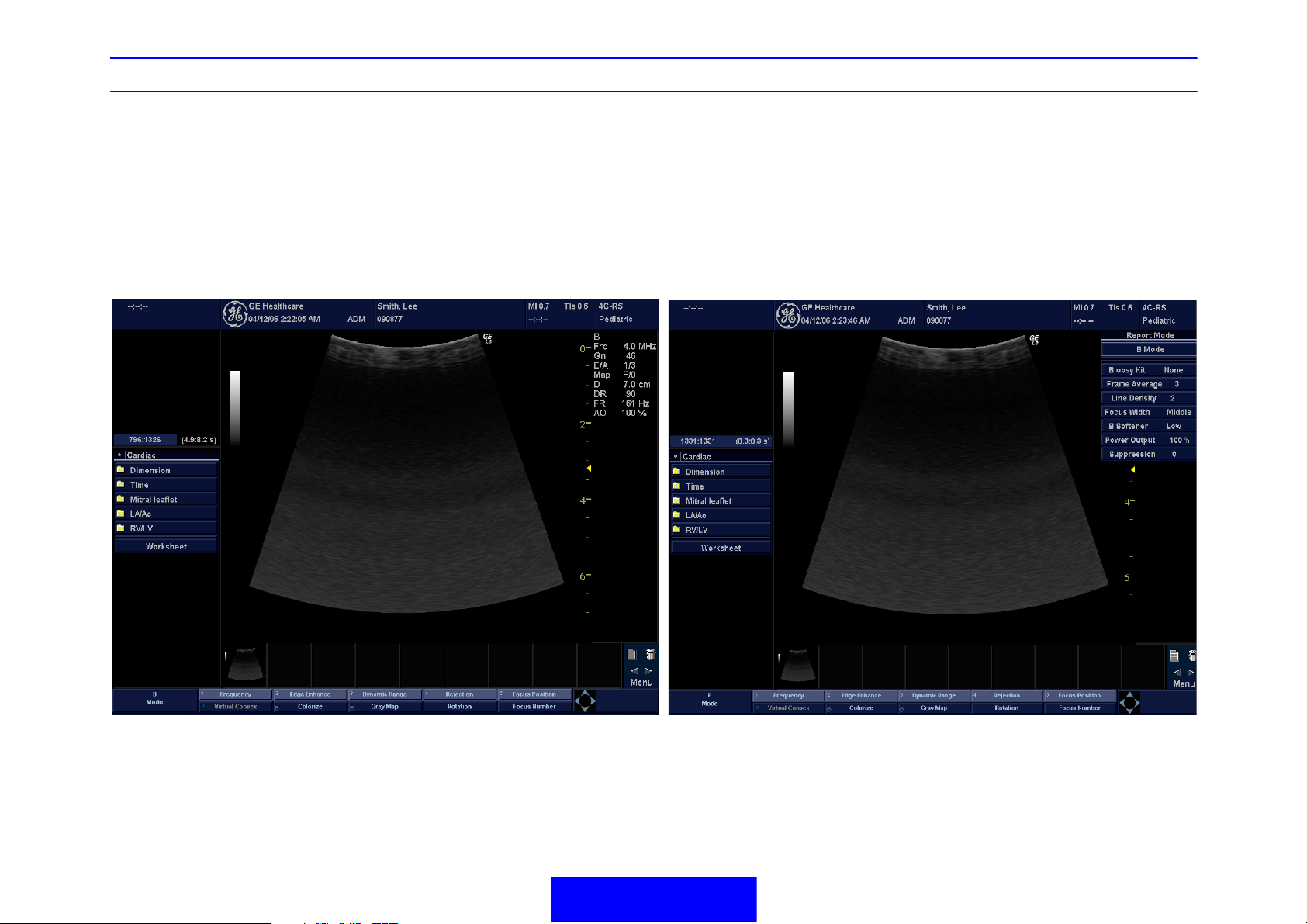

LOGIQ e Monitor Display Tour
1. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of
frozen).
2. Patient Name, Patient Identification.
3. Acoustic Output Readout.
4. GE Symbol: Probe Orientation Marker.
Coincides with the probe orientation marking on
the probe.
5. Image Preview.
6. Gray/Color Bar.
7. Cine Gauge.
8. Measurement Summary Window.
9. Image.
10. Measurement (not shown).
11. Results Window.
12. Probe Identifier. Exam Study.
13. Imaging Parameters by Mode (current mode
highlighted).
14. Focal Zone.
15. TGC (not shown on the image).
16. Body Pattern.
17. Depth Scale.
18. Soft Menu.
19. Caps Lock: On or Off.
20. Start Menu Icon.
21. Battery icon.
22. Card icon.
23. Trackball Functionality Status: Scroll,
M&A (Measurement and Analysis), Position,
Size, Scan Area Width and Tilt.
132
5
4
8
11
12
14
15
13
18
6
7
17
16
23
10
9
19
202122

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 10
Prepare Exam
System Power
Power On
To connect the system to the electrical supply:
1. Ensure that the wall outlet is of the appropriate
type.
2. Ensure that the protective earth (ground)
connection is reliable.
Table 1: Example Plug and Outlet Configurations
3. Unwrap the power cable. Make sure to allow
sufficient slack in the cable so that the plug is
not pulled out of the wall if the system is moved
slightly.
Use caution to ensure that the power cable does
not disconnect during system use. If the system is
accidentally unplugged, data may be lost.
Press the Power On/Off switch to turn the power
on.
Figure 8. Power On/Off Switch Location
1. a. Power Switch Location
LEDs
Figure 9. LED indicators
1. Indicates hard disk working status. When the
LED is flashing, the system is writing or reading
from the hard disk. Color: Green.
2. Indicates power status. After pressing the
Power On/Off switch, the system power is on
and this LED is lit. Color: Green.
3. Indicates battery status. When the battery is
charged, the LED is green. When battery power
is low, the LED is orange. Colors: Green and
orange.
4. The fourth LED does not work on the LOGIQ e.
ACDC Type Specificatio
nACDC Type Specification
220-240VAC
2.5A
(China)
220-240VAC
2.5A
(Switzerland)
220-240VAC
2.5A
(India)
220-240VAC
2.5A
(U.K.)
220-240VAC
2.5A
(Argentina)
100-120 VAC
2.5A
(USA)
220-240 VAC
2.5A
(Europe)
220-240 VAC
2.5A
(Israel)
100-120 VAC
2.5A
(Japan)
220-240 VAC
2.5A
(Australia)
a

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 11
Prepare Exam
Power Off
To power down the system:
1. Press the Power On/Off switch at the front of
the system once.
2. The System-Exit window is displayed.
3. Using the Trackball or Select key, select
Shutdown.
The shutdown process takes a few seconds
and is complete when the power status LED
(Figure 9. on page 10) is turned off.
4. Disconnect the probes.
Clean or disinfect all probes as necessary.
Store them in their shipping cases to avoid
damage.
5. Close LCD cover.
Full Maintenance Reboot
You can select Full Maintenance Reboot to fully
restart the system. It is used when installing new
software or you feel the system response is getting
slower.
1. Press the Power On/Off switch at the front of
the system once. Using the Trackball and
Select key, select Full Maintenance Reboot.
2. The reminder window is displayed.
3. Click OK to continue the process. The full
maintenance reboot process takes about 2
minutes and is completed when the application
is restarted.
NOTE: For the purpose of performance
improvement, system may require you to perform
an auto full maintenance reboot even you are
selecting Shutdown. The reminder window will be
displayed:
Click OK to continue the process. The auto full
maintenance reboot process takes about 2 minutes,
and is completed when the system is shut down
automatically.
Starting an Exam
You need to select a pre-configured dataflow that
sets up the ultrasound system to work according to
the services associated to the dataflow.

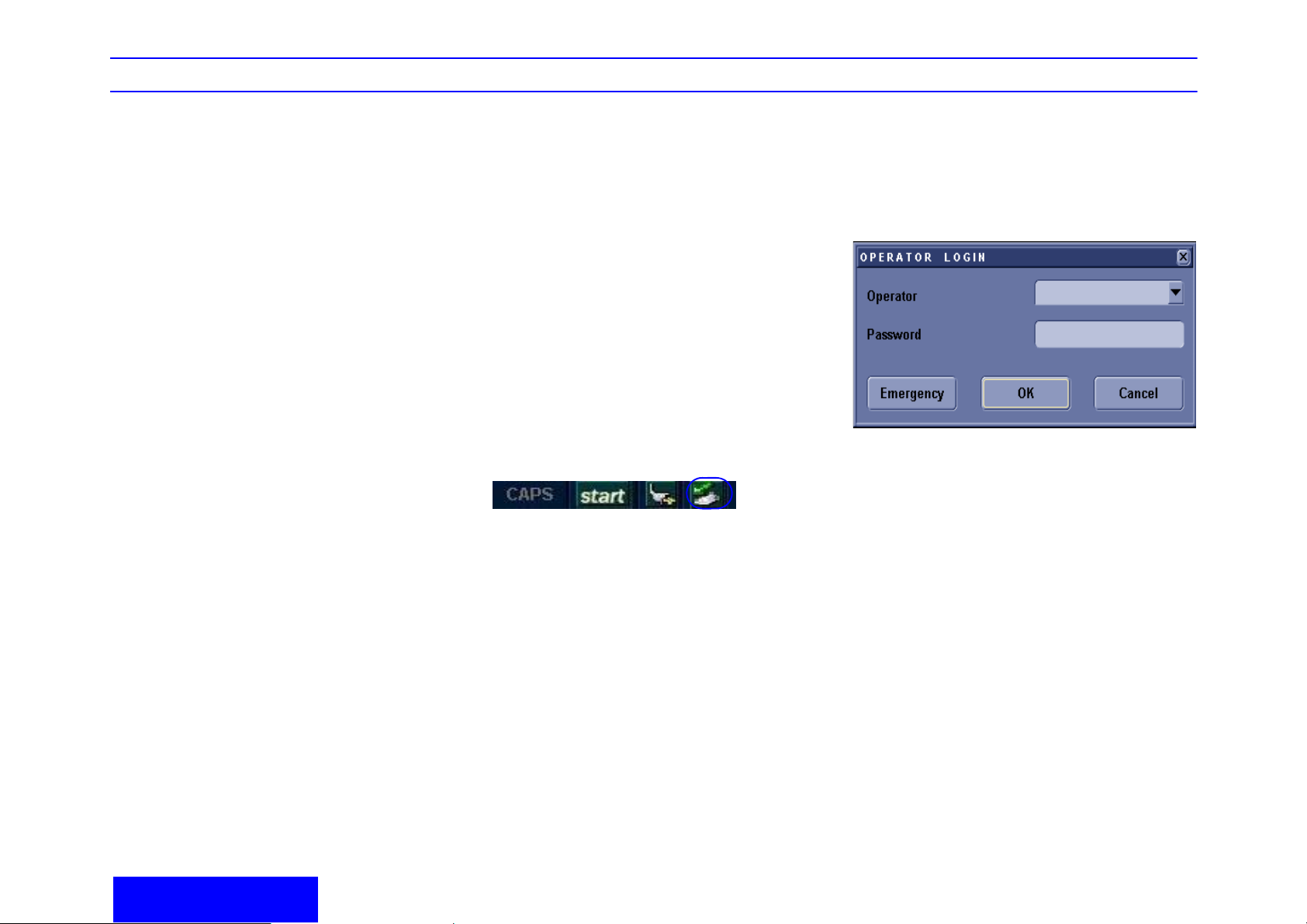

1. Select your Operator Login and type in your
Password:
2. Press OK.
3. Fill in the New Patient menu as described on
Page 9.
OR,
If the patient name is on the patient record list,
Trackball to the patient’s name to highlight the
name, (or perform a search to locate the patient).

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 12
Prepare Exam
Starting an Exam
New Patient
To start a new patient’s exam,
1. Press Patient. Press the New Patient button on
the Patient menu.
2. Select the Exam Category.
3. Type the Patient ID, Patient Name, Birthdate,
etc.
4. Press the Register button on the Patient menu
(DO NOT press Register if you are
automatically generating a patient ID).
5. Press B,Esc, or Exit. Select the probe from the
Touch Panel.
Probe Selection
Select a probe from the Touch Panel (the system
automatically selects the last-used application for
this probe).
Patient Entry Menu
Image Management Window [1]
Access to this patient’s exam history and image
management features.
Function Selection Window [2]
New Patient is used to clear the patient entry
screen to input a new patient’s data into the
database. Register is used to enter new patient
information into the database prior to the actual
exam being performed. Details displays exam
details and additional patient information.
EZBackup/Move [3]
One-step method to backup (move and delete
patient images) to an external media.
Dataflow [4]
Selects this exam’s dataflow preference.
Exit [5]
Exits the Patient Menu and returns to scanning.
Patient Information [6]
Patient ID, Name, Birthdate, Age and Sex.
Category Selection and Exam Information [7&8]
Select the appropriate category and enter the exam
information.
Patient View and Exam View [9]
Patient View lists the patients in the database.
“Search key” enables searching list by Patient ID,
Last Name, First Name, Birthdate, Sex, Exam
today, Exam between, Exam date before,
Examdate, Examdate after, Accession Number and
Exam Description. “string” field helps define the
search parameters, and “Clear“ clears the
searching condition.
Exam View lists the exams of the selected patient.
Select the patient or the exam in Patient View and
press “Exam View”.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 13
B/M Mode
Image Optimize
B/M Mode Image Optimize
Power Output
Optimizes image quality and allows user to reduce
beam intensity. 2% increments between 0-100%.
Values greater than 0.1 are displayed.
Dynamic Range
Dynamic Range controls how echo intensities are
converted to shades of gray, thereby increasing the
adjustable range of contrast.
Focus Number and Position
Increases the number of transmit focal zones or
moves the focal zone(s) so that you can tighten up
the beam for a specific area. A graphic caret
corresponding to the focal zone position(s) appears
on the right edge of the image.
NOTE: Push key to toggle between Focus Number
and Focus Position.
Rejection
Selects a level below which echoes will not be
amplified (an echo must have a certain minimum
amplitude before it will be processed).
Edge Enhance
Edge Enhance brings out subtle tissue differences
and boundaries by enhancing the gray scale
differences corresponding to the edges of
structures. Adjustments to M Mode's edge
enhancement affects the M Mode only.
Frame Average
Temporal filter that averages frames together. This
has the effect of presenting a smoother, softer
image.
Colorize
Enables gray scale image colorization. To
deactivate, reselect a Gray Map.
Gray Map
Determines how the echo intensity levels received
are presented as shades of gray.
Rotation (Up/Down)
Rotates the image by selecting the value from the
Softkey.
Frequency
Multi Frequency mode lets you downshift to the
probe's next lower frequency or shift up to a higher
frequency.
Line density
Optimizes B Mode frame rate or spatial resolution
for the best possible image.
Sweep Speed
Changes the speed at which the time line is swept.
The following speed values are available, 1, 2, 3, 4,
6, 8, 12, 16.
B Mode Control Panel Controls
Auto Optimize
Automatic Tissue Optimization optimizes the image
based upon a specified Region of Interest (ROI) or
anatomy within the display.
Zoom
Magnifies a zoom region of interest, which is
magnified to approximately the size of a full-sized
image. An un-zoomed reference image is displayed
adjacent to the zoom window. The system adjusts
all imaging parameters accordingly. Press Depth/
Zoom/Ellipse key to activate Zoom. Adjust the key
to increase or decrease the zoom size. Use the
Trackball to position the Zoom ROI. Only when the
zoom size reaches the max or press the Depth/
Zoom/Ellipse key again would deactivate the
Zoom, and activate Depth.
Reverse
Flips the image left/right.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 14
B/M Mode
Image Optimize
B/M Mode Image Optimize (continued)
B/M Mode Scanning Hints
Auto Optimize. Improves imaging performance
while reducing optimization time.
Frequency. Changes system parameters to best
optimize for a particular patient type.
Maps. There is an inter-dependency between gray
maps, gain, and dynamic range. If you change a
map, revisit gain and dynamic range settings.
Dynamic Range. Affects the amount of gray scale
information displayed. If you increase the gain, you
may want to decrease the dynamic range.
Edge Enhance. Better delineates the amount of
border crispness.
Frame Average. Smooths the image by averaging
frames. Affects the amount of speckle reduction.
B-Mode Primary Controls B-Mode Secondary Controls

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 15
Color Flow/Doppler
Image Optimize
Color Flow/Doppler Image Optimize
Baseline
Adjusts the baseline to accommodate faster or
slower blood flows to eliminate aliasing.
PRF/Wall Filter
Velocity scale determines pulse repetition
frequency. If the sample volume gate range
exceeds single gate PRF capability, the system
automatically switches to high PRF mode. Multiple
gates appear, and HPRF is indicated on the display.
Wall Filter insulates the Doppler signal from
excessive noise caused from vessel movement.
NOTE: Push button to toggle between PRF and
Wall Filter.
Angle Correct
Estimates the flow velocity in a direction at an angle
to the Doppler vector by computing the angle
between the Doppler vector and the flow to be
measured.
Quick Angle
Quickly adjust the angle by 60 degrees.
Threshold
Threshold assigns the gray scale level at which
color information stops.
Doppler Display Formats
Display layout can be preset to have B-Mode and
Time-motion side-by-side or over-under.
Sample Volume Gate Length
Sizes the sample volume gate.
Map
Allows a specific color map to be selected. After a
selection has been made, the color bar displays the
resultant map.
Packet Size
Controls the number of samples gathered for a
single color flow vector.
Controls in Common with B Mode
For more information on Focal Zone, Power Output,
Frequency, Frame Average, Dynamic Range, Gray
Map, and Colorize, refer to the B/M Mode Image
Optimize section in this Quick Guide.
Scanning Hints
Line Density. Trades frame rate for sensitivity and
spatial resolution. If the frame rate is too slow,
reduce the size of the region of interest, select a
different line density setting, or reduce the packet
size.
Wall Filter. Affects low flow sensitivity versus
motion artifact.
To improve sensitivity.
1. Increase the Gain.
2. Decrease the PRF.
3. Increase the Power Output.
4. Adjust the Line Density.
5. Decrease the Wall Filter.
6. Increase Frame Average.
7. Increase the Packet Size.
8. Reduce the ROI to the smallest reasonable
size.
9. Position the Focal Zones properly.
To decrease motion artifact,
1. Increase the PRF.
2. Increase the Wall Filter.
To eliminate aliasing,
1. Increase the PRF.
2. Lower the Baseline.
For venous imaging,
1. Ensure that you have selected the vascular
exam category.
2. Select a venous application.
3. Select the appropriate probe for very superficial
structure.
4. Select two focal zones.
5. Adjust the depth to the anatomy to be imaged.
6. Maintain a low gain setting for gray scale.
7. Activate Color Flow.
8. Maintain the PRF at a lower setting.
9. Increase Frame Averaging for more
persistence.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 16
Color Flow/Doppler
Image Optimize
Color Flow/Doppler Image Optimize (continued)

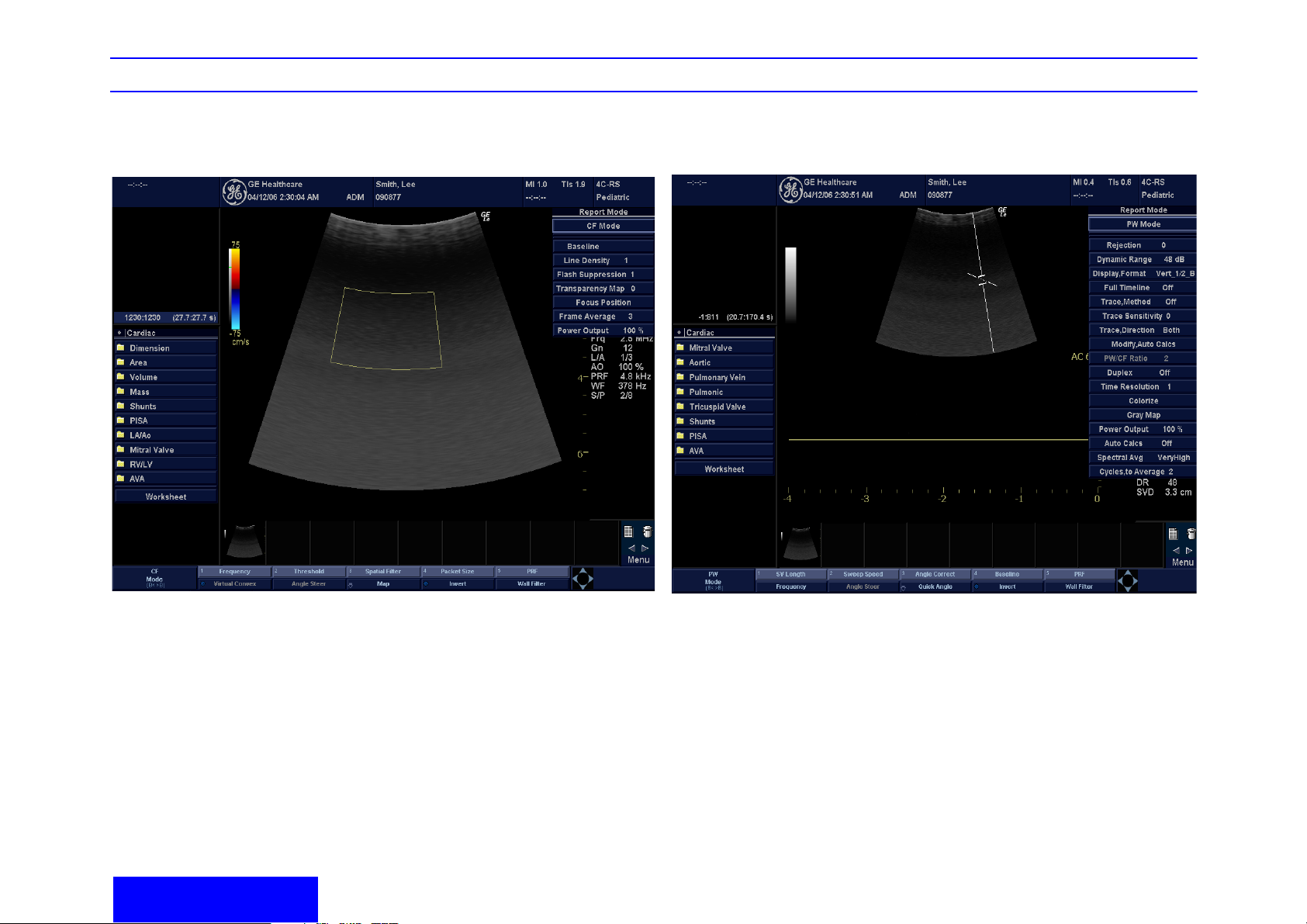

CFM Menu with Primary and Secondary Controls PWM Menu with Primary and Secondary Controls

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 17
Basic Measurements/
Calculations
Basic Measurements
NOTE: The following instructions assume that you
first scan the patient and then press Freeze.
B Mode
Distance and Tissue Depth Measurements
1. Press Measure once; an active caliper
displays.
2. To position the active caliper at the start point
(distance) or the most anterior point (tissue
depth), move the Trackball.
3. To fix the start point, press Set. The system
fixes the first caliper and displays a second
active caliper.
4. To position the second active caliper at the end
point (distance) or the most posterior point
(tissue depth), move the Trackball.
5. To complete the measurement, press Set. The
system displays the distance or tissue depth
value in the measurement results window.
NOTE: Before you complete a measurement:
To toggle between active calipers, press
Measure.
To erase the second caliper and the current
data measured and start the measurement
again, press Clear once.
NOTE: After you complete the measurement, to
erase all data that has been measured to this point,
but not data entered onto worksheets, press Clear.
Circumference/Area (Ellipse) Measurement
1. Press Measure once; an active caliper
displays.
2. To position the active caliper, move the
Trackball.
3. To fix the start point, press Set. The system
fixes the first caliper and displays a second
active caliper.
4. To position the second caliper, move the
Trackball.
5. Adjust the Ellipse control; an ellipse with an
initial circle shape appears.
6. To position the ellipse and to size the measured
axes (move the calipers), move the Trackball.
7. To increase the size, adjust the Ellipse control
in a clockwise direction. To decrease the size,
adjust the Ellipse control in a counterclockwise
direction.
8. To toggle between active calipers, press
Measure.
9. To complete the measurement, press Set. The
system displays the circumference and area in
the measurement results window.
NOTE: Before you complete a measurement:
To erase the ellipse and the current data
measured, press Clear once. The original
caliper is displayed to restart the
measurement.
To exit the measurement function without
completing the measurement, press Clear
a second time.
Circumference/Area (Trace) Measurement
1. Press Measure twice; a trace caliper displays.
2. To position the trace caliper at the start point,
move the Trackball.
3. To fix the trace start point, press Set. The trace
caliper changes to an active caliper.
4. To trace the measurement area, move the
Trackball around the anatomy. A dotted line
shows the traced area.
NOTE: To erase the dotted line but not the trace
caliper, press Clear once. To clear the trace caliper
and the current data measured, press Clear twice.
NOTE: To erase the line (bit by bit) back from its
current point, move the Trackball or adjust the
Ellipse control.
5. To complete the measurement, press Set. The
system displays the circumference and the area
in the measurement results window.
NOTE: Before you complete a measurement:
To erase the line (bit by bit) back from its
current point, move the Trackball or adjust
the Ellipse control counterclockwise.
To erase the dotted line but not the trace
caliper, press Clear once.
To clear the trace caliper and the current
data measured, press Clear twice.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 18
Basic Measurements/
Calculations
Volume
1. To make a volume calculation, do one of the
following:
• Make one distance measurement.
• Make two distance measurements.
• Make three distance measurements.
NOTE: The three distance measurements
should be done in the dual format mode (side
by side images). One measurement is usually
made in the sagittal plane and two
measurements in the axial plane. To use the
dual format mode, press the Lor Rkey on front
panel.
• Make one distance and one ellipse
measurement.
• Make one ellipse measurement.
2. Select Volume.
M/PWD
Time Interval Measurement
1. Press Measure twice; an active caliper with a
vertical dotted line displays.
2. To position the active caliper at the start point,
move the Trackball.
3. To fix the start point, press Set. The system
fixes the first caliper and displays a second
active caliper.
4. To position the second caliper at the end point,
move the Trackball.
5. To complete the measurement, press Set. The
system displays the time interval between the
two calipers in the measurement results
window.
Velocity Measurement
1. Press Measure; an active caliper with a vertical
dotted line displays.
2. To position the caliper at the desired
measurement point, move the Trackball.
3. To complete the measurement, press Set. The
system displays the velocity measurement in
the measurement results window.
PI, RI, S/D Ratio, D/S Ratio or A/B Ratio
Select PI,RI,S/D Ratio,A/B Ratio or D/S Ratio
from the Doppler Primary and secondary menu.
Perform velocity measurements.
1. The first caliper is the start point on the Doppler
waveform. This would be VMAX for PI, peak
velocity for RI, systole for S/D ratio, "A" velocity
for A/B ratio or diastole for D/S ratio.
2. The second caliper is the end-point caliper to
the end point of the Doppler waveform. This
would be Vdfor PI, minimum velocity for RI,
diastole for S/D ratio, "B" velocity for A/B ratio
or systole for D/S ratio.
NOTE: For the PI calculation, if Auto Trace is not
selected, manually trace the waveform between
VMAX and Vd.
NOTE: For the PI calculation, if Auto Trace is on,
the system automatically traces the waveform when
Set is pressed to fix Vd.
Worksheets
Measurement/Calculation worksheets are available
to display and edit measurements and calculations.
There are generic worksheets as well as
Application specific worksheets. The worksheets
are selected from the Measurement menu or by
pressing [Report] key on keyboard.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 19
Using Probes
Using Probes
Connecting a probe
1. Place the probe's carrying case on a stable
surface and open the case.
2. Carefully remove the probe and unwrap the
probe cable.
3. DO NOT allow the probe head to hang free.
Impact to the probe head could result in
irreparable damage.
Inspect the probe before and after each use for
damage or degradation to the housing, strain
relief, lens, seal and connector. DO NOT use a
transducer which appears damaged until
functional and safe performance is verified. A
thorough inspection should be conducted
during the cleaning process.
4. Align the connector with the probe port and
carefully push into place with the cable facing
the front of the system.
5. Turn the connector locking lever up.
6. Carefully position the probe cord so it is free to
move, but not resting on the floor.
Activating the probe
The probe activates automatically in the currently-
selected operating mode when it is connected. The
probe's default settings for the mode and selected
exam are used automatically.
Deactivating the probe
When deactivating the probe, the probe is
automatically placed in standby mode.
1. Ensure the LOGIQ e is in freeze mode. If
necessary, press the Freeze key.
2. Gently wipe the excess gel from the face of the
probe.
3. Carefully slide the probe around the right side
of the keyboard, toward the probe holder.
Ensure that the probe is placed gently in the
probe holder.
Disconnecting the probe
Probes can be disconnected at any time. However,
the probe should not be active when disconnecting
the probe.
1. Press the connector locking lever down.
2. Pull the probe and connector straight out of the
probe port.
3. Carefully slide the probe and connector away
from the probe port and around the right side of
the keyboard.
4. Ensure the cable is free.
5. Be sure that the probe head is clean before
placing the probe in its storage box or a wall
hanging unit.
Fault conditions can result in electric shock hazard.
Do not touch the surface of probe connectors which
are exposed when the probe is removed. Do not
touch the patient when connecting or disconnecting
a probe.
CAUTION

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 20
Probe Application
Table 2: Probe Indications for Use
Probe Application 4C-RS E8C-RS 8L-RS 8C-RS i12L-RS 3S-RS 12L-RS
Abdomen
Small Parts
Obstetrics
Gynecology
Pediatrics
Neonatal
Urology
Cardiac
Endocavity
Transcranial
Intraoperative
Vascular
Biopsy
Main Application Accessory Application

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 21
Using Probes
Probe Features
Specifications
Table 3: Probe Features
Probe Feature 4C-RS E8C-RS 8L-RS 8C-RS i12L-RS 3S-RS 12L-RS
LOGIQ View
Virtual Convex
Easy 3D
M Color Flow
Tru Access
Non-Imaging CW
Compounding
ACO
Table 4: System Probe Definitions
Probe Designation
Center Image
Frequency (MHz)
Doppler Frequency (MHz)
Normal Penetration
4C-RS 3.2 + 10% 3.3 2.5
E8C-RS 6.5 + 20% 5.0 4.0
8L-RS 6.2 + 20% 4.4 4.0
8C-RS 6.5 + 20% 5.0 4.0
i12L-RS 5.8 + 10% 4.4 4.0
3S-RS 2.0 + 20% 2.2 1.8
12L-RS 7.5 + 20% 4.4 4.0

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 22
Probe Cleaning and Disinfection Instructions
Probe Safety
WARNING Ultrasound probes are highly sensitive medical instruments that can easily be damaged by improper handling. Use care when handling and protect from damage when not
in use. DO NOT use a damaged or defective probe. Failure to follow these precautions can result in serious injury and equipment damage.
Ultrasound transducers can easily be damaged by improper handling and by contact with certain chemicals. Failure to follow these precautions can result in serious injury
and equipment damage.
• Do not immerse the probe into any liquid beyond the level specified for that probe. Never immerse the transducer connector or probe adapters into any liquid.
• Avoid mechanical shock or impact to the transducer and do not apply excessive bending or pulling force to the cable.
• Transducer damage can result from contact with inappropriate coupling or cleaning agents:
• Do not soak or saturate transducers with solutions containing alcohol, bleach, ammonium chloride compounds or hydrogen peroxide
• Avoid contact with solutions or coupling gels containing mineral oil or lanolin
• Avoid temperatures above 60°C.
• Inspect the probe prior to use for damage or degeneration to the housing, strain relief, lens and seal. Do not use a damaged or defective probe.
CAUTION Adequate cleaning and disinfection are necessary to prevent disease transmission. It is the responsibility of the equipment user to verify and maintain the effectiveness of the
infection control procedures in use. Always use sterile, legally marketed probe sheaths for intra-cavitary and intra-operative procedures.
For neurological intra-operative procedures, use of a legally marketed, sterile, pyrogen free probe sheath is REQUIRED. Probes for neuro surgical use must not be sterilized
with liquid chemical sterilants because of the possibility of neuro toxic residues remaining on the probe.
Bi
o
l
og
i
ca
l
Hazard A defective probe or excessive force can cause patient injury or probe damage:
• Observe depth markings and do not apply excessive force when inserting or manipulating intercavity probes.
• Inspect probes for sharp edges or rough surfaces that could injure sensitive tissue.
•DO NOT apply excessive force to the probe connector when inserting into the probe port. The pin of a probe connector may bend.
In order for liquid chemical germicides to be effective, all visible residue must be removed during the cleaning process. Thoroughly clean the probe, as described on the
following page before attempting disinfection.
CREUTZFIELD-JACOB DISEASE
Neurological use on patients with this disease must be avoided. If a probe becomes contaminated, there is no adequate disinfecting means.
Electrical
Hazard
The probe is driven with electrical energy that can injure the patient or user if live internal parts are contacted by conductive solution:
•DO NOT immerse the probe into any liquid beyond the level indicated by the immersion level diagram. Never immerse the probe connector or probe adaptors into any liquid.
•DO NOT drop the probes or subject them to other types of mechanical shock or impact. Degraded performance or damage such as cracks or chips in the housing may
result.
• Inspect the probe before and after each use for damage or degradation to the housing, strain relief, lens, and seal. A thorough inspection should be conducted during the
cleaning process.
•DO NOT kink, tightly coil, or apply excessive force on the probe cable. Insulation failure may result.
• Electrical leakage checks should be performed on a routine basis by GE Service or qualified hospital personnel. Refer to the service manual for leakage check procedures.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 23
Using Probes
Probe Cleaning, After Each Use
1. Disconnect probe from ultrasound console and
remove all coupling gel from probe by wiping
with a soft cloth and rinsing with flowing water.
2. Wash the probe with mild soap in lukewarm
water. Scrub the probe as needed using a soft
sponge, gauze, or cloth to remove all visible
residue from the probe surface. Prolonged
soaking or scrubbing with a soft bristle brush
(such as a toothbrush) may be necessary if
material has dried onto the probe surface.
3. Rinse the probe with enough clean potable
water to remove all visible soap residue.
4. Air dry or dry with a soft cloth.
Probe Disinfection, After Each Use
1. Prepare the germicide solution according to the
manufacturer's instructions. Be sure to follow all
precautions for storage, use and disposal.
2. Place the cleaned and dried probe in contact
with the germicide for the time specified by the
germicide manufacturer. High-level disinfection
is recommended for surface probes and is
required for endocavitary and intraoperative
probes (follow the germicide manufacturer's
recommended time).
Probes for neuro surgical intra-operative use
must NOT be sterilized with liquid chemical
sterilants because of the possibility of neuro
toxic residues remaining on the probe.
Neurological procedures must be done with the
use of legally marketed, sterile, pyrogen free
probe sheaths.
3. After removing from the germicide, rinse the
probe following the germicide manufacturer's
rinsing instructions. Flush all visible germicide
residue from the probe and allow to air dry.
Probe Immersion Levels
1. Fluid Level
2. Aperture
3. Contact face within patient environment
In order for liquid chemical germicides to be effec-
tive, all visible residue must be removed during the
cleaning process. Thoroughly clean the probe, as
described earlier before attempting disinfection.
You MUST disconnect the probe from the LOGIQ e
prior to cleaning/ disinfecting the probe. Failure to
do so could damage the system.
Probe Disinfection Agents
Ultrasound probes can be disinfected using liquid
chemical germicides. The level of disinfection is
directly related to the duration of contact with the
germicide. Increased contact time produces a
higher level of disinfection.
Review the probe care card that is packed with
each probe. The following website contains the
most current and up-to-date recommendations:
http://www.gehealthcare.com/usen/ultrasound/
products/probe_case.html
Cidex Plus has been approved for the all probes
available on LOGIQ e.
Pera Safe high level disinfectant has been
approved for the E8C-RS, 8C-RS and 12L-RS
probes.
T-Spray low level disinfectant has been approved
for the E8C-RS, 8C-RS, 12L-RS, 3S-RS, 8L-RS
probes. And T-Spray II has been approved for all
the probes available on LOGIQ e.
CAUTION
E8C-RS
312
8C-RS
i12L-RS
8L-RS
3S-RS
4C-RS 12L-RS

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 24
Image Management/
Dataflow
Image Management
Clipboard
As images are saved by pressing any of the print
keys (P1, P2, or P3), the images appear at the
bottom of the display on the clipboard as
thumbnails of the images saved during the exam.
These images remain on the clipboard until the end
of the exam.
Printing Images
Press the appropriate print key (P1, P2, P3).
Browsing an Exam’s Stored Images
From the New Patient menu, open Image History.
View the thumbnail images for the past exam or
group images.
Managing an Exam’s Stored Images
From the New Patient menu, open Active Images.
View active exam images.
Deleting an Image
Select the image on the clipboard, then press the
onscreen Delete shortcut or From the New Patient
menu, select the image from the Review Screen of
Image Management, then press Delete.
Save Image to USB Memory Stick
The brand we validated is:
1. Kingston 512MB USB
To use them the user needs to do the following:
• Insert them into a free USB port.
• Click on the Menu option from the right side of
the screen.
• Click Save As.
• Select the Removable disk drive.
• Select File Type (DICOM, JPG or AVI).
• Provide File-Name and press Save.
Before pulling out the memory stick, the device
should be stopped, by clicking on the Eject-
Hardware Icon (see following figure), selecting the
device, and pressing Stop.
Connectivity
Connectivity on the LOGIQ e is based on the
Dataflow concept.
Dataflow Concept
A dataflow is a set of pre-configured services. For
example, DICOM services may be for storage,
worklist, verify, etc. In addition, there are other
service types like video print, standard color print,
storage to local hard drive, select patient from local
database, etc.
Starting an Exam
You need to select a pre-configured dataflow that
sets up the ultrasound system to work according to
the services associated to the dataflow.
1. Select your Operator Login and type in your
Password:
2. Press Log on.
3. Fill in the New Patient menu as previously
described,
OR,
If the patient name is on the patient record list,
1. Trackball to the patient’s name to highlight the
name, (or perform a search to locate the
patient) then press Select Patient.

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 25
Image Management/
Dataflow

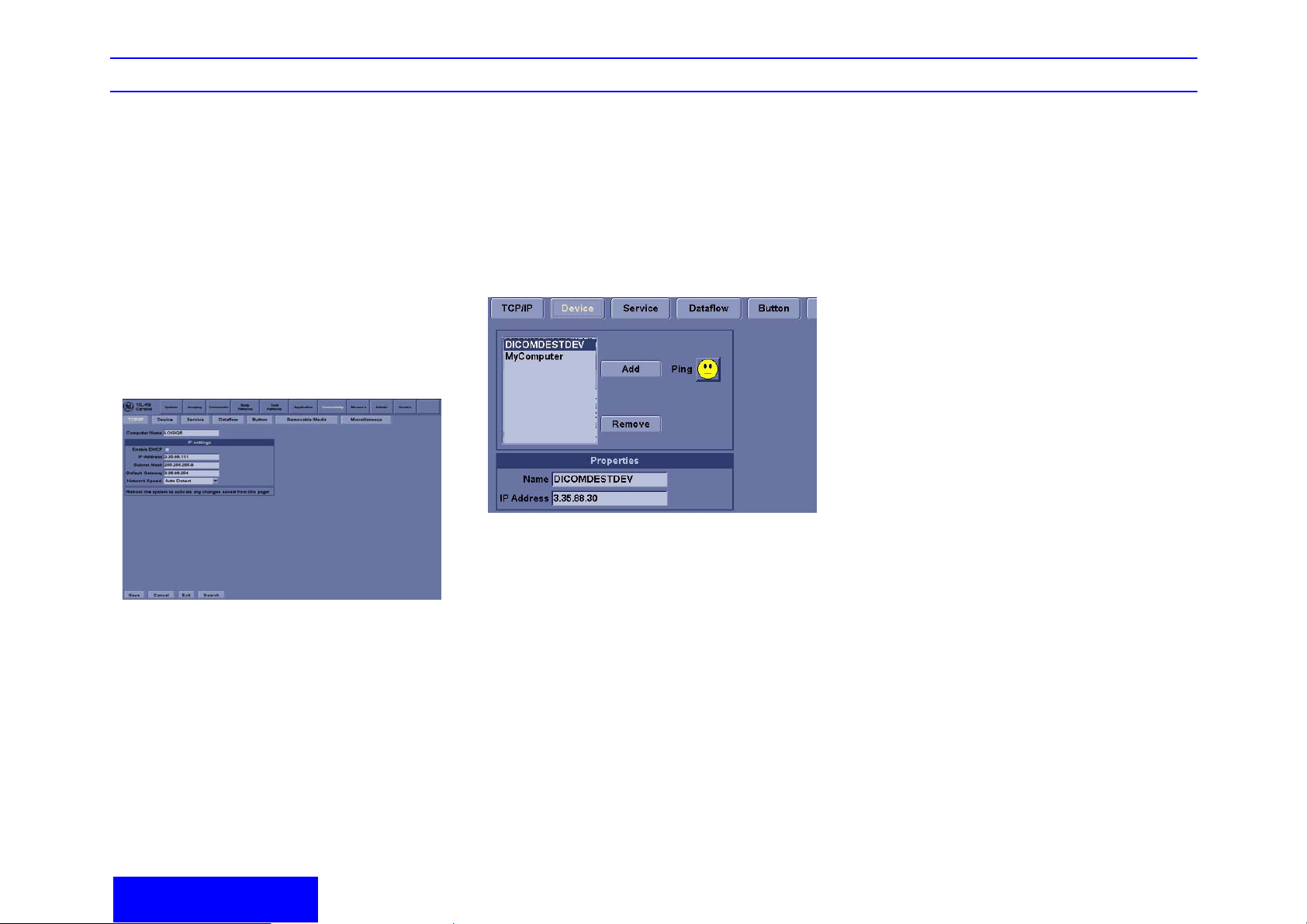

Configuring Connectivity
Login as Administrator. Press the right Utility tab.
Select the Connectivity tab. Configure the menus
from left to right, starting with TCP/IP first.
TCP/IP
Type in the Computer’s Name (better known as the
AE Title). Identify the Ultrasound system to the rest
of the network by filling in its IP Address, Subnet
Mask, and Gateway (if applicable). Select the
network speed (Auto Detect, 10Mbps/Half/Full
Duplex, or 100Mbps/Half/Full Duplex). Press Save.
Device
1. Press Add to create a new device.
2. Enter device name and IP address of serve.
Ping a Device:
• Select the device, press ping button
Services (better known as Destinations)
1. Select the Server from the pull-down menu.
2. Press Add.
3. Select all the services for this device from the
pull-down menu to the right.
4. Press Add.
5. At the bottom of the menu, fill in the appropriate
criteria for this service. Repeat this step for
each selected service for this device.
For example:
a. In the Services drop-down menu, select
"Dicom Image Storage" and press [Add].
For AE Title enter "Jdicom_Server" and for
port number enter 5104.
b. Change its name to "Jdicom Image
Storage". Enter AE title and port number.
c. In the Services drop-down menu, select
"Dicom Storage Commitment" and press
[Add]. Change its name to "Jdicom Store
Commit". For AE Title enter
"Jdicom_Server" and for port number enter
5104.
d. In the Services drop-down menu, select
"Dicom Worklist" and press [Add]. Change
its name to "Jdicom Worklist". For AE Title
enter "Jdicom_Worklist" and for port
number enter 6104
