GE LOGIQ 200 PRO Series User manual

GE Medical Systems
Training In Partnership
TiPTM
LOGIQ200 PRO Series
A Training in Partnership Program
Quick Start
2234974–100

Copyright
E
1999 By General Electric Co.
GE Medical Systems

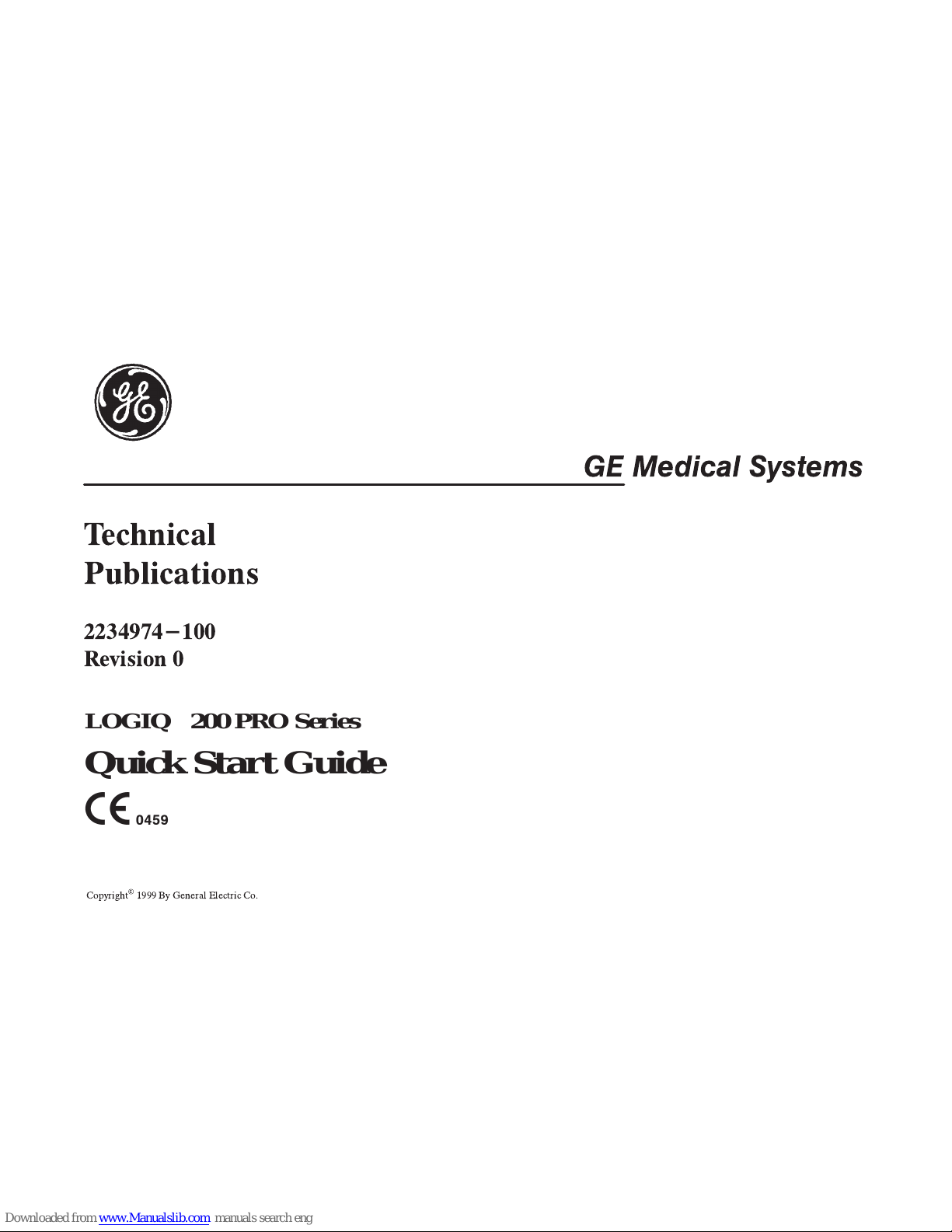

Technical
Publications
2234974-100
Revision 0
LOGIQ200 PRO Series
Quick Start Guide

GE Medical Systems
GE Medical Systems: Telex 3797371
P.O. Box 414, Milwaukee, Wisconsin 53201 U.S.A.
(Asia, Pacific, Latin America, North America)
GE Medical Systems–Europe
Beethovenstraβe .239Postfach110560D–42655Sol-
Solingen GERMANY
Regulatory Requirement
This product complies with regulatory requirements of the following European Directive
93/42/EEC concerning medical devices
This Quick Start Guide is a reference for the LOGIQ t 200 PRO Series. It applies to all
version of the 0.0 software for the LOGIQ t 200 PRO Series.

Revision History A
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
REV DATE REASON FOR CHANGE
0AUG, 8 1999 Initial release
LIST OF EFFECTIVE PAGES
PAGE REVISION PAGE REVISION
NUMBER NUMBER NUMBER NUMBER
TiP Cover Page N/A
Title Page 0 Revision History A and B 0 Quick Start 1 thru Quick Start 30 0

Revision History B
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Please verify that you are using the latest revision of this document. Information
pertaining to this document is maintained on GPC (GE Medical Systems Global
Product Configuration). If you need to know the latest revision, contact your
distributor, local GE Sales Representative or in the USA call the GE Ultrasound
Clinical Answer Center at 1-800-682-5327 or 414-524-5698.

Quick Start 1
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Introduction
The Quick Start Guide (TRANSLATED) provides a step-by-step description of the basic features and
operation of the LOGIQ t 200 PRO Series. It is intended to be used in conjunction with the User Manual in
order to provide the information necessary to operate the system safely.
The Quick Start Guide takes the user from system familiarization through power on, patient data entry, exam
category/preset selection, scan modes/adjustments, basic measurements, report pages, recording images
and power off.
The LOGIQ t 200 PRO Series manuals are written for users who are familiar with basic ultrasound principals and
techniques. They do not include sonography training or clinical procedures.
Prescription Device (for USA only)
CAUTION: United States law restricts this device to sale or use by or on the order of a physician.

Quick Start 2
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Front View
The following are major features of the LOGIQ t 200 PRO Series system console. Most features come with the standard
configuration, while other features are options to the standard console.
8. Black & White Monitor
9. Release Button to raise and lower the monitor
10. B/W Video Page Printer (Optional)
11. Power Switch
12. Keyboard
13. Probe Connector
14. Probe Holder
15. MOD Driver (Optional)
1
2
7
4
5
6
38

Quick Start 3
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Back View
1. Rear Handle
2. Peripheral/Accesory Connector Panel
3. Black & White Monitor
4. Release Button to raise and lower the monitor
Optional Freeze Foot Switch
1
2
3
4
ÍÍÍ
ÍÍÍ
ÍÍÍ
ÍÍÍ
FREEZE

Quick Start 4
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Power On
To connect the system to the electrical supply:
S Ensure that the wall outlet is a minimum 20 amp dedicated circuit for 120 VAC (USA) or 7.5
amp dedicated circuit for 220–240 VAC (Europe).
S Make sure that the power switch is turned off.
S Unwrap the power cable. Make sure to allow sufficient slack in the cable so that the plug is
not pulled out of the wall if the system is moved slightly.
S Push the power plug securely into the wall outlet.
To power on the system press the Power switch, located to the left of the probe connectors, to
the on(I) position.
I
O

Quick Start 5
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Control Panel Layout
Keyboard
Keyboard controls have been arranged according to
function and usage.This helps minimize operator movement while scanning.
12 345
6
7
8
9
1 : Patient Entry Keys
2 : Alphanumeric Keys
3 : Special Keys
4 : Preset Keys
5 : Probe Select Keys
6 : User Define Keys
7 : Mode, Display/Record Keys
8 : Mesurement/Annotation Keys
9 : TGC Keys

Quick Start 6
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Probe Controls
A probe is activated by pressing the Probe Select key.
Probe Ports
All imaging probes can be plugged into either of the two probe ports.
NOTE: Ensure that the probe port is deactivated before disconnecting the probe.
Probe Select1
1
Probe Select2
2
LOCK
UNLOCK

Quick Start 7
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Starting an Exam
Patient Entry Menu
Press New Patient key at the beginning of each patient study to reset the system and enter new
patient data. When the New Patient key is pressed, the Patient Entry menu appears.
Use the Trackball to move the highlight cursor to the Exam
Category Selection line. Enter the desired exam number and fill in
the appropriate patient data.
Highlight EXIT and press Return or press New Patient again when
the patient entry menu data has been completed.
The system takes a few seconds to load new exam category
parameters and calibrate the attached transducers before entering
the scan mode.
New Patient
[ PATIENT ENTRY MENU ]
EXAM CATEGORY SELECTION : 1
1: RAD/ABDOMEN 2: OBSTETRICS 3: GYNECOLOGY
4: CARDIOLOGY 5: UROLOGY 6: SMALL PARTS
7: USER DEFINE1 8: USER DEFINE2
PT NAME :
PT ID :
NOTE :
Oper ID :
EXAM INFORMATION
AGE: yrs
Ref MD:
COMMENT :
EXIT

Quick Start 8
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Scan Mode Controls
Select the desired display mode or combination of display modes (B-Mode or M-Mode).
If the dual display mode (split screen) is desired, the Land Rkeys activate the Left or Right
displayed image.
Scan the desired anatomy. Change modes as desired. Use the mode controls to adjust the image
as necessary.
B Mode
M Mode
R

Quick Start 9
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
B-Mode Controls
The keyboard controls that effect B-Mode are as follows:
1. TGC—Controls the gain of the received echoes at a specific depth.
2. Dynamic Range—Controls how echo intensities are converted to
shades of gray scale that can be adjusted.
3. Map—Determines how the echo intensity levels received are
presented as shades of gray.
4. Frame Average—Averages previous frames of image data with the
current frame.
5. Edge Enhance—Brings out subtle tissue differences and boundaries
by enhancing the gray scale differences corresponding to the edges of
structures.
6. Multi Freq—Controls the penetration.
7. Scan Width—Used to widen or narrow the scan width to maximize the
image’s field of view.
8. Scroll—Used to scroll the image presentation up or down in order to
display deeper parts of the body.
1 8
7
2 3 4 5 6

Quick Start 10
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
B-Mode Controls (cont’d)
The keyboard controls that effect B-Mode are as follows:
9. Combi Focus—Controls the Focus Combination Value.
10. ATO—Used to optimize the image based upon a specified region of
interest or anatomy within the image.
11. Rotation—Changes the depth at which the selected number of focal
zones are optimized.
12. Reverse—The GE logo at the top of the sector wedge corresponds
to the orientation mark on the probe body. When Reverse is active, the
image flips and the GE logo switches to correspond to the probe mark.
13. Depth—Controls the distance over which the B–Mode images
anatomy.
14. B/M Gain—Controls the amount of echo information displayed in an
image.
15. Biopsy—Enables the electronic biopsy zone(s) available for the
active probe.
15 9
10 11 12 13 14

Quick Start 11
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
B-Mode Controls (cont’d)
B-Mode Optimization
Adjustments for... Do the Following... Adjustments for... Do the Following...
Image too grainy 1. Increase Dynamic Range.
2. Increase Frame Average.
3. Decrease Edge Enhance.
4. Change Map.
Image too soft 1. Decrease Dynamic Range.
2. Increase Edge Enhance.
3. Decrease Frame Average.
4. Change Map.
Image too noisy 1. Decrease B/M GAIN.
2. Decrease Dynamic Range.
3. Increase Frame Average.
4. Increase Edge Enhance.
Improve Uniformity 1. Increase the number of focal zones.
2. Decrease Scan Width.
3. Adjust TGC to compensate for
attenuation.
Cystic Imaging 1. Decrease the B/M GAIN.
2. Decrease Dynamic Range.
3. Use Scan Width to reduce image
width.
4. Change Combi Focus to increase
number of focal zones.
5. Optimize focal zone placement.
Technically Difficult
Patients 1. Select the proper probe.
2. Maintain a lower Dynamic Range.
3. Decrease Scan Width for faster
frame rates.

Quick Start 12
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
M-Mode Controls
Since M-Mode is basically a single B-Mode scan vector displayed over time, basic controls that affect the B-Mode display
also affect the M-Mode display. See
Quick Start 9 for comments on these controls.
TGC and Depth affect both the M-Mode and B-Mode displays.
If the scan area size is reduced and the position changed, the M-Mode cursor will follow the position change to stay within
the displayed scan area.
The Dual Format keys work the same as in dual B-Mode, but both B-Mode and M-Mode are displayed on the left and right
sides of the screen.
The keyboard controls that effect M-Mode are as follows:
M-Mode Optimization
Adjustments for... Do the Following... Adjustments for... Do the Following...
Improve M-Mode 1. Increase/decrease B/M GAIN.
2. Increase Dynamic Range.Increase Size of Area
of Interest 1. Use M-Mode ZOOM.

Quick Start 13
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
M-Mode Controls (cont’d)
The keyboard controls that effect B-Mode are as follows:
1. Zoom—Enables zoom function.
2. B/M Gain—Controls the gain of the displayed timeline echoes. To
increase/decrease, turn the control clockwise/ counterclockwise.
3. Sweep Speed—Controls the speed at which the timeline updates
across the speed.
3
1 2

Quick Start 14
LOGIQ t 200PRO Series Quick Start
2234974–100 Rev. 0
Reviewing Cine Images
To display cine images:
Press the Freeze key to stop image acquisition.
When Freeze is activated, rotate the cine Scroll control to display individual image frames which
were stored by the system.
NOTE: Cine frame number is the most current image. The lower the cine frame number, the
older the image. The dynamic range and gain parameters displayed on the screen are valid for
cine frame number zero only.
NOTE: One click of the Cine Scroll knob erases displayed measurements.
Cine Scroll
B.M.Gain
FWBW
