GE Responder AED User manual

Service Manual
2022100-201rC

i
REVISION HISTORY
Part number Date Comment
2022100-201 Rev A August 2006 Initial Release
2022100-201 Rev B November 2007 Revised for misc. minor updates and new symbols
Corrected shock criteria in Defib testing section
2022100-201 Rev C February 2010 Revised testing energy tables
Revised biphasic waveform section and table values
Added cautions for electrode pads, p. 19
IMPORTANT
Read this carefully. It contains information about your safety and the safety of others. Become familiar with
the controls and how to use the AED properly before operating the product.
TRADEMARK INFORMATION
ServiceLink, Saving Minutes Saving Lives, SmartGauge, STAR, IntelliSense, RescueReady, RescueLink,
RHYTHMx and Survivalink are trademarks and registered trademarks of Cardiac Science Corp. Responder
is a registered trademark of General Electric. Microsoft and Windows are registered trademarks of Microsoft
Corporation. All other trademarks are the property of their respective owners.
PATENTS
This device is covered by the following U.S. and foreign patents:
5,792,190, 5,999,493, 5,402,884, 5,579,919, 5,749,902, 5,645,571, 6,029,085, 5,984,102, 5,919,212,
5,891,172, 5,674,266, 5,700,281, 5,891,173, 5,968,080, 6,263,239, 5,797,969, D402,758, D405,754,
5,909,138, 6,173,203, 6,088,616, 5,897,576, 5,955,956, 6,083,246, 6,064,909, 6,038,473, 5,868,794,
6,115,638, 6,366,809, 5,474,574, 6,246,907, 6,289,243, 6,411,846, 6,480,734, EP00756878
Other U.S. and foreign patents pending.

ii
LIMITED WARRANTY
The Responder AED Manual and any and all information contained herein do not constitute any warranty as
to the Responder AED or any related products in any manner whatsoever. The “Limited Warranty” is
shipped with the AED and serves as the sole and exclusive warranty provided by Cardiac Science regarding
Responder AED products.
HOW TO REACH US
To order supplies or accessories, contact your representative or distributor. For technical support, contact your local GE
customer service.
Please have the serial and model numbers available. The serial and model numbers are located on the back of the
Responder AED.
Responder AED is manufactured for:
GE Medical Systems Information Technologies, Inc.
8200 West Tower Avenue, Milwaukee, WI 53223 USA
Tel.: [phone] (USA only)
Fax: [phone]
Canada Tel: [phone]
GE Medical Systems Information Technologies GmbH
Munzinger Str. 5, D-79111 Freiburg, Germany
Tel.: [phone]
Fax: [phone]
Responder AED is manufactured by:
Cardiac Science Corporation
Bothell, WA 98021, USA
MDSS GmbH
Schiffgraben 41
D-30175 Hannover
Germany
Tel: [phone]
Fax: [phone]

iii
NOTICE OF RIGHTS
All rights reserved. No part of this documentation may be reproduced or transmitted in any form by any
means without the express written permission of General Electric Company. Information in this
documentation is subject to change without notice. Names and data used in the examples are fictitious
unless otherwise noted.

iv
THIS PAGE INTENTIONALLY LEFT BLANK
FOR YOUR NOTES:

v
TABLE OF CONTENTS
SECTION 1 - SAFETY...................................................................................................... 7
OVERVIEW ...................................................................................................... 7
SAFETY ALERT DEFINITIONS........................................................................ 7
SAFETY ALERT DESCRIPTIONS ................................................................... 8
SYMBOL DESCRIPTIONS............................................................................. 10
SECTION 2 - INTRODUCTION ...................................................................................... 13
OVERVIEW .................................................................................................... 13
AED DESCRIPTION....................................................................................... 13
INDICATIONS FOR USE................................................................................ 13
RHYTHMX® AED ECG ANALYSIS ALGORHITHM....................................... 14
RESCUE PROTOCOL.................................................................................... 16
OPERATOR TRAINING REQUIREMENTS.................................................... 16

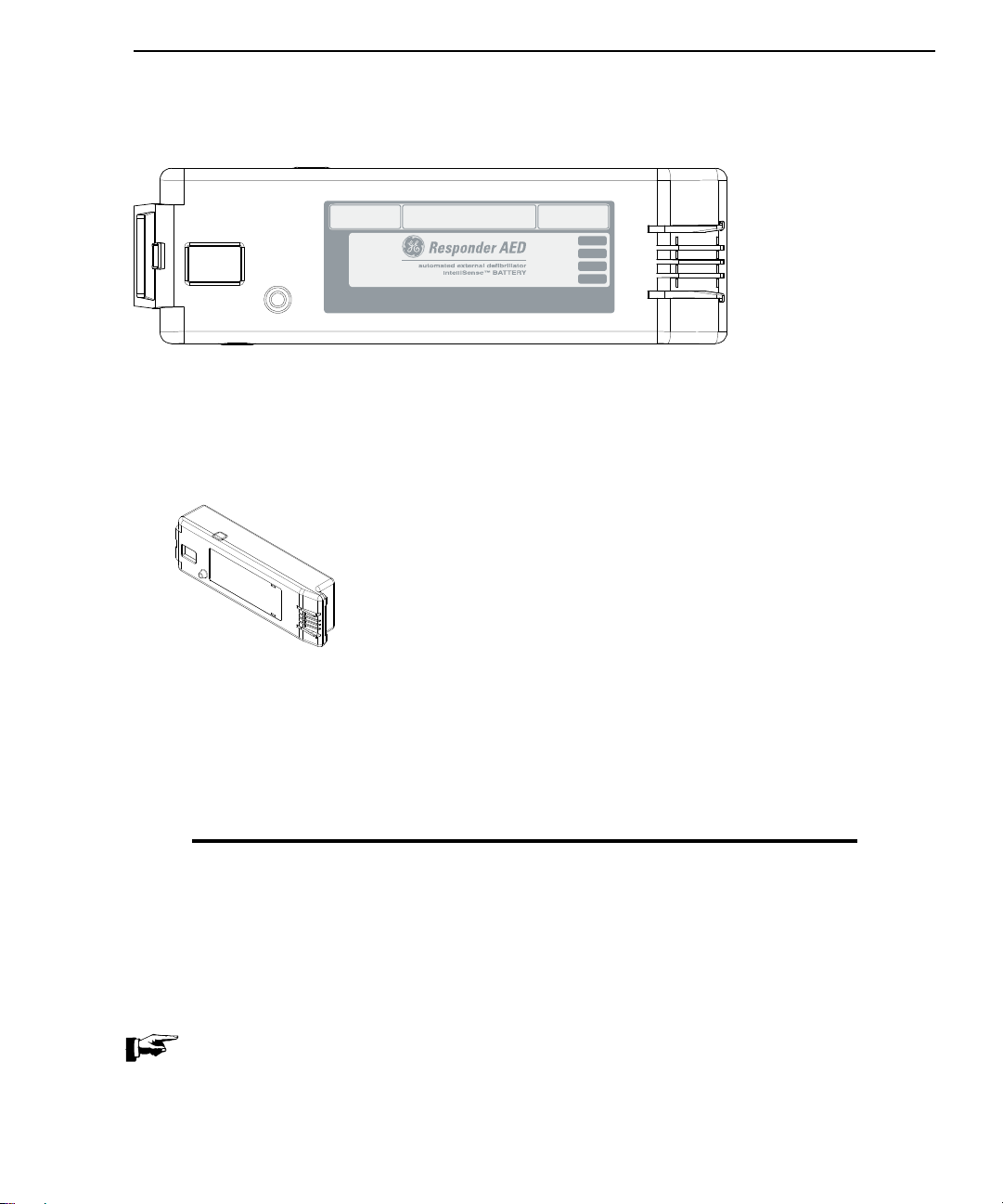

INTELLISENSE® Battery ............................................................................... 17
PADS.............................................................................................................. 19
AED INDICATORS ......................................................................................... 20
SETTING THE AED INTERNAL CLOCK........................................................ 22
SECTION 3: MAINTENANCE & TROUBLESHOOTING ............................................... 23
OVERVIEW .................................................................................................... 23
SELF-TESTS.................................................................................................. 23
INDICATOR TROUBLESHOOTING TABLE................................................... 24
SCHEDULED MAINTENANCE ...................................................................... 24
AUTHORIZED REPAIR SERVICE ................................................................. 26
DEFIB TESTING............................................................................................. 26
SECTION 4: TECHINCAL DATA ................................................................................... 27
OVERVIEW .................................................................................................... 27
PARAMETERS............................................................................................... 27
SAFETY AND PERFORMANCE STANDARDS ............................................. 29
STAR BIPHASIC WAVEFORM ...................................................................... 31
STAR BIPHASIC ENERGY PROTOCOLS FOR RESPONDER AED ............ 33
RHYTHMX ECG ANALYSIS PERFORMANCE.............................................. 35

vi
THIS PAGE INTENTIONALLY LEFT BLANK
FOR YOUR NOTES:

SECTION 1 - SAFETY
2022100-201 Rev C © 2010 General Electric Company Page 7 of 35
SECTION 1 - SAFETY
OVERVIEW
This section presents safety information to guard against injury to persons and damage to the Responder
AED.
Topic Page #
Safety Alert Definitions 7
Safety Alert Descriptions 8
Symbols Descriptions 10
SAFETY ALERT DEFINITIONS
BEFORE OPERATING THE RESPONDER AED
Become familiar with the various safety alerts in this section.
Safety alerts identify potential hazards using symbols and words to explain what could potentially harm you,
the patient, or the Responder AED.
SAFETY TERMS AND DEFINITIONS
The triangle attention symbol shown below, left, identifies the potential hazard categories. The definition of
each category is as follows:
DANGER: This alert identifies hazards that will cause serious personal injury or death.
WARNING: This alert identifies hazards that may cause serious personal injury or death.
CAUTION: This alert identifies hazards that may cause minor personal injury, product damage, or
property damage.
PRODUCT REFERENCES
For purposes of retaining simple, clear instructions in this manual, note the product references used.
Features, specifications, operating instructions and maintenance common to the Responder AED will be
referred to as “AED.”
Features and specifications vary, so please read this manual carefully.

SECTION 1 – SAFETY
Page 8 of 35 © 2010 General Electric Company 2022100-201 Rev C
SAFETY ALERT DESCRIPTIONS
The following is a list of Responder AED safety alerts that appear in this section and throughout this manual.
You must read, understand, and heed these safety alerts before attempting to operate the AED.
DANGER: Fire and Explosion Hazard
Do not use the AED in the presence of flammable gases (including concentrated oxygen) to avoid
possible explosion or fire hazard.
WARNING: Shock Hazard
Defibrillation shock current flowing through unwanted pathways is potentially a serious electrical
shock hazard. To avoid this hazard during defibrillation abide by all of the following:
• Do not touch the patient, unless performance of CPR is indicated
• Do not touch metal objects in contact with the patient
• Keep defibrillation pads clear of other pads or metal parts in contact with patient
• Disconnect all non-defibrillator proof equipment from the patient before defibrillation
WARNING: Shock and Possible Equipment Damage
Disconnect all non-defibrillator proof equipment from the patient before defibrillation to prevent
electrical shock and potential damage to the equipment.
WARNING: Electric Shock and Fire Hazard
Do not connect any telephones or unauthorized connectors to the socket on this equipment.
WARNING: Battery is Not Rechargeable
Do not attempt to recharge the battery. Any attempt to recharge the battery may result in an explosion
or fire hazard.
WARNING: Shock Hazard
Do not disassemble the AED! Failure to observe this warning can result in personal injury or death.
Refer maintenance issues to GEMS IT authorized service personnel.
CAUTION: Temperature/Humidity/Pressure Extremes
Exposing the AED to extreme environmental conditions outside of its operating parameters may
compromise the ability of the AED to function properly. The RescueReady® daily self test verifies the
impact of extreme environmental conditions on the AED by checking temperature, humidity and
pressure; if the daily self test determines environmental conditions outside of the AED’s operating
parameters for 5 consecutive days, a "SERVICE REQUIRED" alert will be issued to prompt the user
to move the AED to environmental conditions within the acceptable operating parameters at once.
See Section 4 – Technical Data, Parameters, Operation and Standby Conditions.
CAUTION: Lithium Sulfur Dioxide Battery
Pressurized contents: Never recharge, short circuit, puncture, deform, or expose to temperatures
above 65°C (149°F). Remove the battery when discharged.
CAUTION: Battery Disposal
Recycle or dispose of the lithium battery in accordance with all federal, state and local laws. To avoid
fire and explosion hazard, do not burn or incinerate the battery.
CAUTION: Use only Approved Equipment
Using batteries, pads, cables, or optional equipment other than those approved by GE may cause the
AED to function improperly during a rescue.

SECTION 1 - SAFETY
2022100-201 Rev C © 2010 General Electric Company Page 9 of 35
CAUTION: Possible Improper AED Performance
Using pads that are damaged or expired may result in improper AED performance.
CAUTION: Serial Communication Cable
The AED will not function during a rescue when the serial communication cable is connected to its
serial port. When the serial communication cable is connected to the AED during a rescue, the prompt
“Remove Cable to Continue Rescue” will be heard until you remove the serial communication cable.
CAUTION: Possible Radio Frequency (RF) Susceptibility
RF susceptibility from cellular phones, CB radios and FM 2-way radio may cause incorrect rhythm
recognition and subsequent shock advisory. When attempting a rescue using the AED, do not operate
wireless radiotelephones within 1 meter of the AED – turn power OFF to the radiotelephone and other
like equipment near the incident.
CAUTION: Possible Interference with Implanted Pacemaker
Therapy should not be delayed for patients with implanted pacemakers and a defibrillation attempt
should be made if the patient is unconscious and not breathing. The AED has pacemaker detection
and rejection, however with some pacemakers the AED may not advise a defibrillation shock.1
Placing Pads:
• Do not place the pads directly over an implanted device.
• Place the electrode pad at least one inch from any implanted device.
CAUTION: Moving the Patient During a Rescue
During a rescue attempt, excessive jostling or moving of the patient may cause AEDs to improperly
analyze the patient’s cardiac rhythm. Stop all motion or vibration before attempting a rescue.
CAUTION: Serial Communication Cable
The serial communication cable is only for use with the AED; it is not to be used with a telephone.
CAUTION: Systems Statement
Equipment connected to the analog and digital interfaces must be certified to the respective IEC
standards (i.e. IEC 60950 for data processing equipment and IEC 60601-1 for medical equipment).
Furthermore, all configurations shall comply with the system standard IEC 60601-1-1. Anybody who
connects additional equipment to the signal input part or signal output part configures a medical
system, and is therefore, responsible that the system complies with the requirements of the system
standard IEC 60601-1-1.
CAUTION: Case Cleaning Solutions
When disinfecting the case, use a non-oxidizing disinfectant, such as ammonium salts or a
glutaraldehyde based cleaning solution, to avoid damage to the metal connectors.
CAUTION: The AED is programmed with software that has been tested to work with versions of
ServiceLink and RescueLink that are included with the AED. When using older version of ServiceLink
and RescueLink are used to communicate with this AED, there may be features described in this
manual that are not available to be used. Also, when communicating with an older AED with the
version of ServiceLink and RescueLink included with this new AED there may be features described
in this manual that cannot be edited. The software in most cases will give an error message when
incompatibilities occur.
1Cummins, R., ed., Advanced Cardiac Life Support; AHA (1994): Ch. 4.

SECTION 1 – SAFETY
Page 10 of 35 © 2010 General Electric Company 2022100-201 Rev C

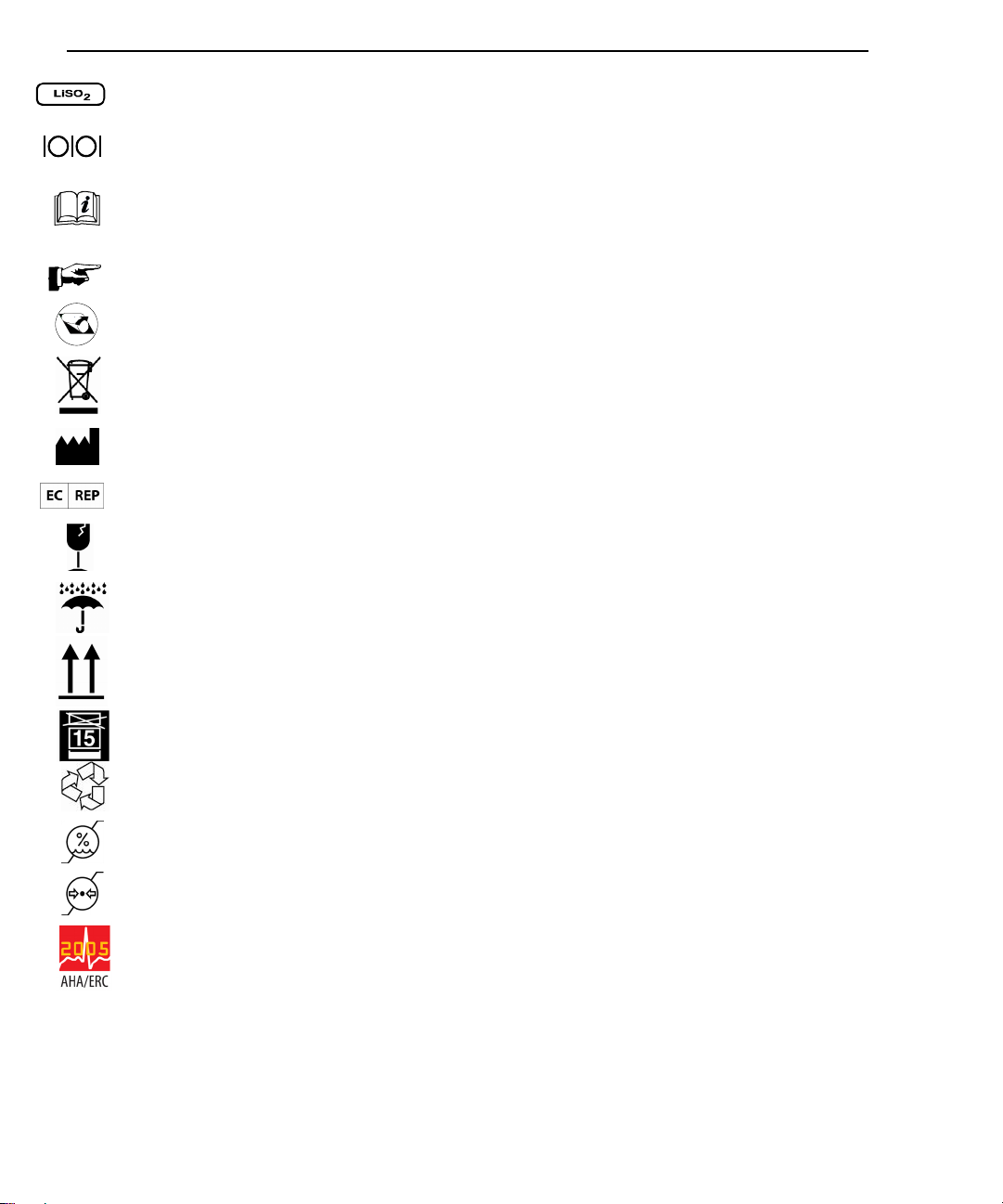

SYMBOL DESCRIPTIONS
The following symbols may appear in this manual, on the AED, or on its optional components. Some of the
symbols represent standards and compliances associated with the AED and its use.
Dangerous Voltage: The defibrillator output has high voltage and can present a shock hazard.
Please read and understand all safety alerts in this manual before attempting to operate the AED.
Attention!: Identifies important information in this manual, on the AED, or on its component parts
regarding the safe and proper use of the AED.
Defibrillator Proof Type BF Equipment: The AED, when connected to the patient’s chest by the
pads, can withstand the effects of an externally applied defibrillation shock.
CE Mark: This equipment conforms to essential requirements of the Medical Device Directive
93/42/EEC.
The AED is protected against the effects of splashing water in accordance with IEC 60529.
Classified by ETL Semko with respect to electric shock, fire and mechanical hazards only in
accordance with UL 60601-1, CAN/CSA C22.2 No.601.1-M90, EN60601-1 and EN60601-2-4.
Conforms to UL Standard UL60601-1. Certified to CAN/CSA Standard C22.2 No. 601.1-M90.
International symbol for ON. Open the lid to turn on the AED.
Open the lid to turn ON the AED.
Indicates the AED battery status. The illuminated areas indicate the remaining battery capacity.
Check pads. The pads are missing, not connected or have compromised functionality.
Indicates AED requires maintenance by authorized service personnel.
When the SHOCK indicator is lit, push this button to deliver a defibrillation shock.
When the CONTINUE indicator is lit, push this button to clear the internal memory to allow storage
of new rescue data in the AED. Note: Only for AEDs not equipped with Multiple Rescue Software
A red indicator with a BLACK X means the Responder AED requires operator attention or
maintenance, and is not RescueReady. This symbol will be referred to as RED in the remainder of
this manual.
A green indicator without a BLACK X means the Responder AED is RescueReady. This symbol will
be referred to as GREEN in the remainder of this manual.
IP24
0% 100%

SECTION 1 - SAFETY
2022100-201 Rev C © 2010 General Electric Company Page 11 of 35
Use pads by this date; install battery by this date.
Expiration Date. Replace by this date.
Date of manufacture.
Date of factory recertification (R)
Latex Free.
Disposable. Single patient use only.
Tear here to open.
Do not recharge battery.
Position of pads on the chest of patient.
Dispose of properly in accordance with all state, province, and country regulations.
Do not incinerate or expose to open flame.
Explosion Hazard: Do not use in the presence of a flammable gas, including concentrated oxygen.
Upper and lower temperature limits.
Device Model Number
Serial Number
Lot Number
Rev Revision

SECTION 1 – SAFETY
Page 12 of 35 © 2010 General Electric Company 2022100-201 Rev C
Lithium Sulfur Dioxide
Serial Communication Port
Additional information is provided in the AED Operator’s Manual.
Points to important information regarding the use of the AED.
Lift Here
Symbol for the marking of electrical and electronic equipment that must be recycled.
Manufacturer
Authorized European Representative
Fragile; handle with care
Keep away from rain. (Keep dry)
This way up
Stacking limit by number
General symbol for recovery/recyclable
Humidity Limitations
Atmospheric Pressure Limitations
In November 2005, the American Heart Association (AHA) and European Resuscitation Council (ERC) released
new guidelines for CPR and defibrillation. This symbol indicates that the AED contains the new AHA/ERC
guidelines for CPR and defibrillation.

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
2022100-201 Rev C © 2010 General Electric Company Page 13 of 35
SECTION 2 - INTRODUCTION
OVERVIEW
This section presents information about the AED, its use, and the training requirements for operation.
Topic Page #
AEDDescription 13
Indications for Use / Intended Use 13
RHYTHMx AED ECG Analysis Algorithm 14
Rescue Protocol 16
Operator Training Requirements 16
Intellisense Battery 17
Pads 19
AED Indicators 20
Setting the AED Internal Clock 22
AED DESCRIPTION
The AED is a self-testing, battery-operated automated external defibrillator (AED). After applying the AED’s
pads to the patient’s chest, the AED automatically analyzes the patient’s electrocardiogram (ECG) and
advises the operator to push the button and deliver a shock if needed. The AED uses one button and guides
the operator through the rescue using a combination of voice prompts, audible alerts, and visible indicators.
INDICATIONS FOR USE / INTENDED USE
The AED with STAR Biphasic Waveform is intended to be used by personnel who have been trained in its
operation. The operator should be qualified by training in basic life support, CPR/AED or other physician-
authorized emergency medical response. The device is indicated for emergency treatment of victims
exhibiting symptoms of sudden cardiac arrest who are unresponsive and not breathing. If the victim is
breathing post-resuscitation, the AED should be left attached to allow for acquisition and detection of the
ECG rhythm. If a shockable ventricular tachyarrythmia recurs, the device will charge automatically and
advise the operator to deliver therapy.
When the patient is a child under 8 years of age or weighs less than 55 lbs (25kg), the AED should be used
with the Model 9730 Pediatric Attenuated Defibrillation Electrodes. Therapy should not be delayed to
determine the patient’s exact age or weight.

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
Page 14 of 35 © 2010 General Electric Company 2022100-201 Rev C
RHYTHMX® AED ECG ANALYSIS ALGORHITHM
The RhythmX AED ECG analysis algorithm provides superior ECG detection capabilities, allowing it to be
placed on patients at risk for sudden cardiac arrest. The features available with the AED include the
following:
• Detection Rate
• Asystole Threshold
• Noise Detection
• Non-Committed Shock
• Synchronized Shock
• Pacemaker Pulse Rejection
• SVT Discriminators
• Supraventricular Tachycardia (SVT) Rate
• Continuous Monitoring
DETECTION RATE
All ventricular fibrillation (VF) and ventricular tachycardia (VT) rhythms at or above this rate will be classified
as shockable. All rhythms below this rate will be classified as non-shockable. This rate is programmable
between 120 bpm (beats per minute) and 240 bpm via ServiceLink Software by the Medical Director. The
default Detection Rate is 160 bpm. The Responder AED detection rate is 160 bpm.
ASYSTOLE THRESHOLD
The asystole baseline-to-peak threshold is set at 0.08 mV. ECG rhythms at or below 0.08 mV will be
classified as Asystole and will not be shockable.
NOISE DETECTION
The AED will detect noise artifact in the ECG. Noise could be introduced by excessive moving of the patient
or electronic noise from external sources like cellular and radiotelephones. When noise is detected, the AED
will issue the prompt “ANALYSIS INTERRUPTED. STOP PATIENT MOTION” to warn the operator. The
AED will then proceed to reanalyze the rhythm and continue with the rescue.
NON-COMMITTED SHOCK
After the AED advises a shock, it continues to monitor the patient ECG rhythm. If the patient’s rhythm
changes to a non-shockable rhythm before the actual shock is delivered, the AED will advise that the rhythm
has changed and issue the prompt “RHYTHM CHANGED. SHOCK CANCELLED.” The AED will override
the charge and continue ECG analysis.
SYNCHRONIZED SHOCK
The AED is designed to synchronize shock delivery on the R-wave. The AED will automatically attempt to
synchronize to the R-wave. If delivery cannot be synchronized within one second, a non-synchronized shock
will be delivered.

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
2022100-201 Rev C © 2010 General Electric Company Page 15 of 35
PACEMAKER PULSE DETECTION
The AED contains pacemaker pulse detection circuitry to detect pulses from an implanted pacemaker.
Supraventricular Tachycardia (SVT) DISCRIMINATORS
The Responder AED is supplied with the SVT Discriminator enabled and with the default setting "NO
THERAPY FOR SVT". With the factory default setting of "NO THERAPY FOR SVT", the Responder AED
will not shock an SVT rhythm.
SVT Discriminators are sophisticated filters that analyze the morphology of the ECG waveforms and
distinguish VF/VT from SVT and Normal Sinus Rhythms (NSR). The SVT Discriminator will only be applied
to rhythms that fall between the Detection Rate and the SVT Rate. The factory default setting for this feature
is "NO THERAPY FOR SVT", however the Medical Director can enable this feature using ServiceLink on the
Responder AED.
SVT RATE
All rhythms with rates between the Detection Rate and SVT Rate will be screened through a number of SVT
Discriminators to classify them into VF/VT or SVT. Rhythms classified as SVT between the two set rates are
not shockable. All SVT rhythms above the rates will be classified as shockable. The SVT Rate must be
greater than the Detection Rate and is selectable by Service between 160 and 300 bpm or, “NO THERAPY
FOR SVT” can be selected via ServiceLink Software by the Medical Director on the Responder AED only.

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
Page 16 of 35 © 2010 General Electric Company 2022100-201 Rev C
RESCUE PROTOCOL
The AED Rescue protocol is consistent with the guidelines recommended by the American
Heart Association (AHA)2, European Resuscitation Council (ERC), and the International
Liaison Committee on Resuscitation (ILCOR).
Upon detecting a shockable cardiac rhythm, the AED advises the operator to press the SHOCK button to
deliver a shock and then advises the operator to start CPR.
Note: The standard CPR protocol of 120 seconds can be modified from 60 – 180 seconds in
ServiceLink.
OPERATOR TRAINING REQUIREMENTS
Persons authorized to operate the AED must have all of the following minimum training.
•Defibrillation training and other training as required by state, province, or country
regulations.
•Training on operation and use of the AED.
•Additional training as required by the physician or Medical Director.
•A thorough understanding of the procedures in this manual.
Note: Keep valid certificates of training and certification as required by state, province, or
country regulations.
2“Guidelines 2005 for Cardiopulmonary Resuscitation and Emergency Cardiovascular Care” American Heart Association;
Circulation Vol 112, Issue 24 Suppl. Dec 13, 2005

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
2022100-201 Rev C © 2010 General Electric Company Page 17 of 35
INTELLISENSE® Battery
The Responder AED IntelliSense battery technology offers you the most advanced battery capabilities
available for defibrillators. Responder AED IntelliSense batteries contain an integrated memory chip that
automatically stores important usage information, enabling the battery to maintain a complete history of its
operating life. The actual battery history can be reviewed using the RescueLink software.
This history includes:
•BatteryIdentification
•BatteryType
• Original Date of Installation in an AED
• Number of Charges completed
• Time in Operation (hours: minutes)
• Days of Standby Operation
• Battery Capacity Remaining
BATTERY OPERATING LIFE
The battery operating life depends on the type of battery,actual usage and environmental factors.
The following table represents the expected life of the Responder AED when used in Standby Mode.
Model
Estimated Shelf
Life Warranty Typical Shocks
2019437 (9142)
Lithium 5 Years 4 Years Up to 290 shocks
BATTERY SHELF LIFE
The Responder AED batteries have a shelf-life of five years. Shelf-life is defined as the length of time a
battery can be stored, prior to installation into AED, without degrading its performance.
Note: Storing the battery outside its specific range (0-50°C) will decrease battery life.

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
Page 18 of 35 © 2010 General Electric Company 2022100-201 Rev C
BATTERY INSTALLATION
1. With the label on the battery facing the AED battery compartment, insert the
battery as shown in the drawing.
2. Push the latched end of the battery firmly into the AED, as shown in the
drawing, until the battery snaps into place. The exposed side of the battery
should be flush with the outside of the AED case.
3. For the Responder AED, open the lid for 5 seconds to initiate self-test. If the
battery is installed properly, the STATUS INDICATOR will turn GREEN. Close
the lid.
WARNING: Battery is Not Rechargeable
Do not attempt to recharge the battery. Any attempt to recharge the battery may result in an
explosion or fire hazard.
CAUTION: Lithium Sulfur Dioxide Battery
Pressurized contents: Never recharge, short circuit, puncture, deform, or expose to temperatures
above 65°C (149°F). Remove the battery when discharged.
CAUTION: Battery Disposal
Recycle or dispose of the lithium battery in accordance with all federal, state and local laws. To avoid
fire and explosion hazard, do not burn or incinerate the battery.
CAUTION: Use only General Electric Approved Equipment
Using batteries, pads, cables, or optional equipment other than those approved by General Electric
may cause the Responder AED to function improperly during a rescue.
CAUTION: Possible Improper AED Performance
Using pads that are damaged or expired may result in improper AED performance.

SECTION 3 – MAINTENANCE AND TROUBLESHOOTING
2022100-201 Rev C © 2010 General Electric Company Page 19 of 35
PADS
The defibrillation pads come in a ready-to-use, sealed package containing one pair of
self-adhesive pads with an attached cable and connector. The pads are disposable
and should be discarded after each rescue. The pads have a limited shelf life and
shall not be used beyond the expiration date. Keep a fresh, unopened pair of pads
plugged into the AED at all times. Refer to the electrode package label for operation
temperatures.
On the Responder AED, an audible and visual alert will indicate after the self-test if the pads are missing, unplugged or
damaged.
CAUTION: Possible Improper AED Performance
Using pads that are damaged or expired may result in improper AED performance. Reuse of pads may result in improper
AED performance.
CAUTION: Do not reuse pads – Used pads may not adhere properly to patient.
Improper pad adhesion may result in skin burns.
Improper pad adhesion may result in improper AED performance.
Used pads may cause patient to patient contamination.
ELECTRODE INSTALLATION
1. Open the lid of the AED.
2. Place the package into the lid so that the expiration label is visible
through the clear window on the lid. The expiration date of the pads will
then be readable without opening the lid of the AED.
3. Match the color of the connectors (red to red), then plug the electrode
connector into the AED case as shown in the drawing.
4. Tuck the excess cable length in the bottom holder as shown in the
drawing. With the package completely secured to the AED lid, close the
lid.
5. Make sure the expiration date is visible through the clear window of the
lid. Make sure that the STATUS INDICATOR is GREEN.
CAUTION: Use only Approved Equipment
Using batteries, pads, cables, or optional equipment other than those approved by
General Electric may cause the AED to function improperly during a rescue.
CAUTION: Possible Improper AED Performance
Using pads that are damaged or expired may result in improper AED performance.
DIRECTIONS FOR USE:
1. Do NOT open until ready to use, short term use only.
2. Ensure the skin site is clean and dry.
3. Separate one pad from liner.
4. Place one pad on skin in either location.
5. Peel and place remaining pad.
