Geberit Selva 116.075.00.1 User manual







 
  


English............................................................................................................................

EN
Safety
About this document
This document is intended for operators of Geberit Selva, Preda and
Tamina urinals with integrated urinal flush control, battery or mains
operation.
Intended use
Urinals allow for urinating while standing up. These urinals are
designed to be operated using a flush. Use for any other purpose is
deemed improper.
Alert levels and symbols in this manual
Alert levels and symbols
ATTENTION
Indicates a hazard which, if not avoided, can lead to material
damage.
Refers to important information.
Safety notes
• Operation, care and maintenance may only be performed by the
operator as described in this operation manual.
• Repairs, conversions and additional installations may only be
carried out by trained experts in sanitation applications.
• Only trained experts in sanitation applications may replace current-
carrying parts.
• Only Geberit spare parts may be used.
7021420811-1 © 01-2020
969.653.00.0(00)
3

EN Product description
Structure


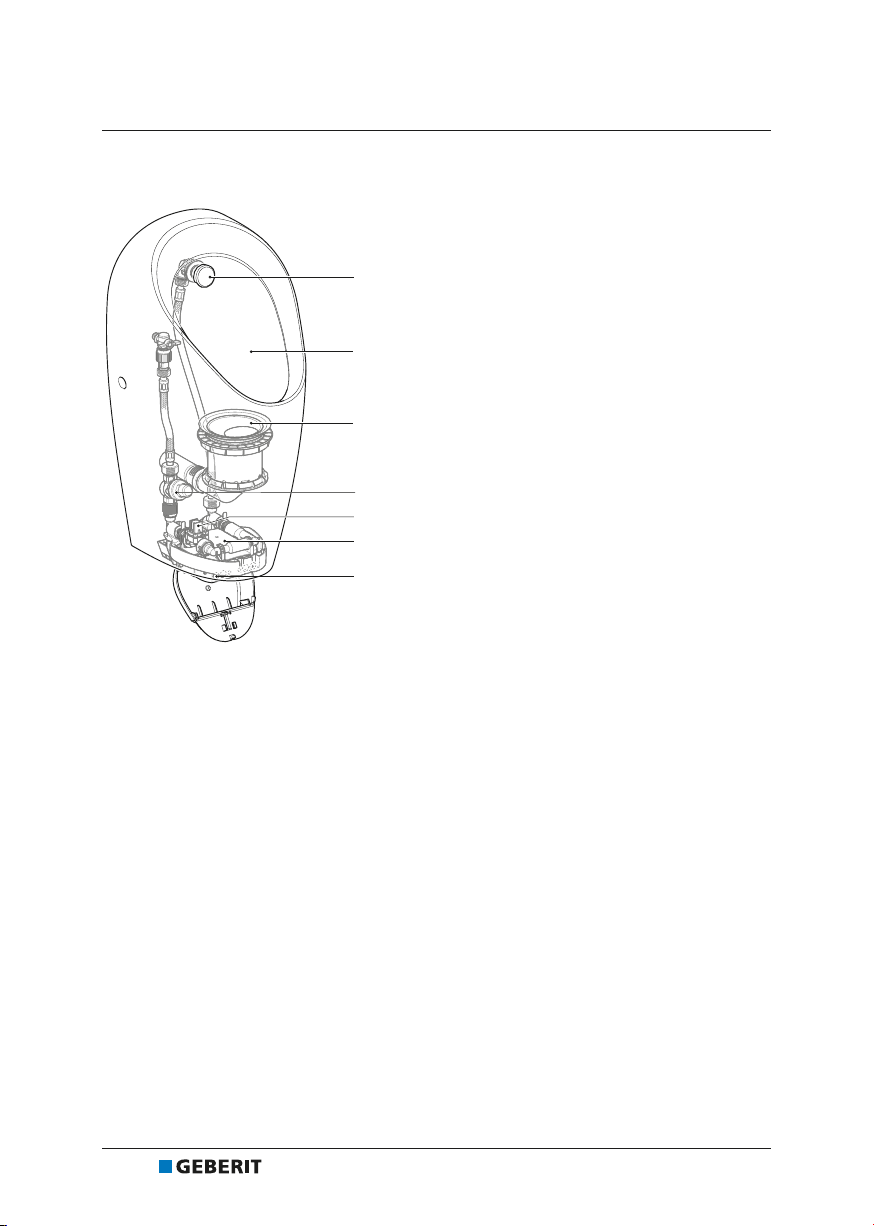

Figure1: Geberit Preda, Selva and Tamina
urinals with integrated urinal flush control
1 Spray head
2 Urinal ceramic
3 Urinal trap
4 Water pressure reducing valve
5 Solenoid valve with basket filter
6 Urinal flush control with control
electronics and a power supply unit or
battery compartment
7 IR sensor
Retrofitting to flush operation
Geberit Selva, Preda and Tamina urinals
for integrated flush control (art. no.
116.075.00.1, 116.085.00.1 and
116.142.00.1) are supplied without a urinal
flush control. It is possible to retrofit the
urinals to flush operation by installing a
urinal flush control. Installation of the urinal
flush control is described in the following
documents:
• installation manual for Geberit Selva
urinals (art. no. 966.932.00.0)
• installation manual for Geberit Preda
urinals (art. no. 966.930.00.0)
• installation manual for Geberit Tamina
urinals (art. no. 968.121.00.0)
47021420811-1 © 01-2020
969.653.00.0(00)

EN
Technical data
Battery operation1) Mains operation
Nominal voltage – 110–240VAC
Mains frequency – 50–60Hz
Mains connection – Direct connection via
system plug
Operating voltage 3 V DC 4.5V DC
Battery type Alkaline battery (1.5 V
AA) –
Power consumption < 0.5 W <0.5W
Power consumption standby < 0.1 W <0.1W
Flow pressure range 100-800kPa 100–800kPa
1-8bar 1–8bar
Ambient temperature 5–40°C 5–40°C
Storage temperature -20–+70°C -20–+70°C
Flow rate at 1 bar with flow limiter 0.18 l/s 0.18l/s
Flush time, factory setting 1s 1s
Flush time, adjustment range 1-15 s 1–15s
1) Battery service life: approx. 2 years
7021420811-1 © 01-2020
969.653.00.0(00)
5

EN Operation

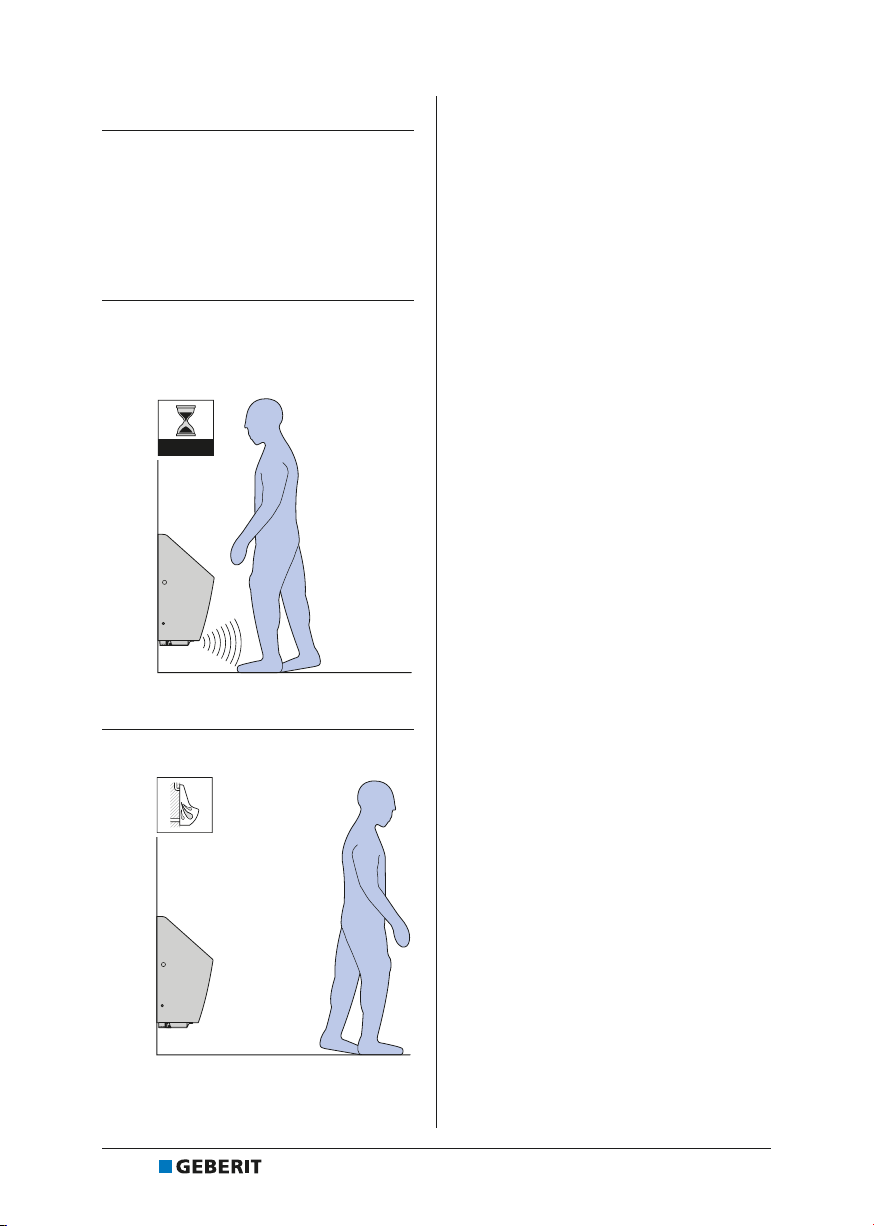

Actuating the flush
The electronic flush actuation has infrared
leg detection. The leg detection range starts
approx. 50cm in front of the urinal.
1Enter the detection range and
remain there for at least 10seconds.
T
2Leave the detection range.
✓ The flush will actuate.
67021420811-1 © 01-2020
969.653.00.0(00)

EN
Troubleshooting
Malfunction Cause Action
Incorrect flushes (too soon, too late,
unwanted)
Detection distance
not set correctly
▶ Optimise the detection
distance.
IR window is dirty or
wet ▶ Clean or dry the IR window.
IR window scratched ▶ Contact a skilled person.
Water is running continuously into
the urinal ceramic.
Software fault ▶ Restart the urinal flush
control.
Technical fault ▶ Contact a skilled person.
Flushing out of the urinal ceramic is
inadequate.
Flush time set incor-
rectly ▶ Set flush time.
Flush volume is inadequate.
Basket filter in
solenoid valve
blocked
▶ Clean the basket filter.
Battery warning level 1
(4 short signal tones upon entering
the detection range)
Batteries dead ▶ Replace the batteries.
Battery warning level 2
(no flush actuation, 2 short signal
tones every 30 seconds)
Battery warning level 3
(no flush actuation, no signal tone)
No flush actuation Network failure ▶ Check the power supply.
7021420811-1 © 01-2020
969.653.00.0(00)
7

EN Maintenance
Structure of Maintenance
chapter
The accompanying illustration sequences
must be followed while carrying out the
instructions provided in this chapter. Each
set of instructions refers to the accom-
panying illustration sequence.
Caring for and cleaning
smooth surfaces
All smooth surfaces can be cleaned hygien-
ically with water and a mild, liquid cleaning
agent that is kind to the skin.
ATTENTION
Surface damage caused by
aggressive and scouring
cleaning agents
▶ Never use cleaning agents
that contain chlorine or which
are acidic, abrasive or
corrosive.
87021420811-1 © 01-2020
969.653.00.0(00)

EN
Activating cleaning mode
• In cleaning mode, the flush actuation is
suppressed for 10minutes. During this
time, you can clean the urinal or replace
the urinal trap.
• You can only activate cleaning mode
30minutes after activating the power
supply or setting the flush time.
• You can also activate cleaning mode with
Geberit Clean Handy.
Prerequisite
– Refer to illustration sequence 1,
page38 while carrying out the
instructions.
1Hold a white sheet of paper in front
of the IR sensor on the bottom edge
of the urinal ceramic appliance for at
least 2seconds.
2Remove the white sheet of paper
after 2 short signal tones.
✓ The flush actuation is
deactivated and suppressed for
10minutes. During this time,
you will hear a signal tone every
4seconds.
3Clean the urinal ceramic appliance
and replace the urinal trap.
Result
✓ Once 10minutes have elapsed, a flush
is actuated.
Cleaning or replacing the
spray head
• Clean the cover for the spray head and
the nozzle with a mild, liquid cleaning
agent at least once a year.
• Descale the nozzle with a commercially
available descaling agent if necessary.
• Replace the nozzle if it can no longer be
completely cleaned and descaled.
Prerequisite
– Refer to illustration sequence 4,
page41 while carrying out the
instructions.
1Demount the urinal flush control to
disconnect the water supply. → See
illustration sequence 2 , page39.
2Demount the cover for the spray
head.
3Demount the nozzle.
4Clean the nozzle and rinse with
water, or replace the nozzle (art. no.
243.333.00.1).
5Mount the nozzle.
6Mount the cover for the spray head.
7Mount the urinal flush control. →
See illustration sequence 3 ,
page40.
Result
✓ The urinal is ready for operation.
7021420811-1 © 01-2020
969.653.00.0(00)
9

EN Replacing the urinal trap
For hygiene reasons, replace the urinal trap
at least once a year.
Prerequisite
– Cleaning mode is activated.
– Refer to illustration sequence 5 ,
page42 while carrying out the
instructions.
1Demount the cover for the urinal
trap.
2Demount the urinal trap.
3Replace the urinal trap (art. no.
243.312.00.1) and the cover for the
urinal trap (art. no. 243.314.00.1).
4Mount the urinal trap.
5Mount the cover for the urinal trap.
Cleaning or replacing the
basket filter
• Clean the basket filter in the solenoid
valve at least every 2years or if the flush
volume decreases.
• Descale the basket filter with a commer-
cially available descaling agent if
necessary.
• Replace the basket filter if it can no
longer be completely cleaned and
descaled.
Prerequisite
– Refer to illustration sequence 6,
page43 while carrying out the
instructions.
1Demount the urinal flush control. →
See illustration sequence 2 ,
page39.
2Disconnect the cable for the battery
or rechargeable battery
compartment. → See illustration
sequence 9 , page46.
3Demount the locking bracket.
4Disconnect the solenoid valve and
demount the coupling.
5Remove the basket filter.
6Clean, descale or replace the basket
filter.
7Install the basket filter.
8Mount the coupling and snap in the
solenoid valve.
9Mount the locking bracket.
10 7021420811-1 © 01-2020
969.653.00.0(00)

EN
10 Plug in the cable for the battery or
rechargeable battery compartment.
→ See illustration sequence 10 ,
page46.
11 Mount the urinal flush control. →
See illustration sequence 3 ,
page40.
Result
✓ The urinal is ready for operation.
Setting the flush time
You must set the flush time within the first
30minutes after activating the power
supply.
Prerequisite
– Refer to illustration sequence 7,
page44 while carrying out the
instructions.
1Restart the urinal flush control. →
See Restarting the urinal flush
control.
✓ The urinal flush control restarts.
2Hold a white sheet of paper in front
of the IR sensor on the bottom edge
of the urinal ceramic appliance for at
least 2seconds.
✓ 2 short signal tones will sound
after 2seconds.
3Remove the white sheet of paper.
4Hold your hand in front of the IR
sensor within 10 seconds.
5Remove your hand after the
required number of signal tones.
✓ As soon as you place your hand
in front of the sensor, the flush is
actuated. 1 signal tone
corresponds to a flush volume of
approx. 0.2 l. Example: 12 signal
tones = approx. 2.4l.
✓ 2 short signal tones confirming
the setting will sound 2seconds
after you have taken your hand
away.
Result
✓ The flush time is set. The urinal is ready
for operation.
7021420811-1 © 01-2020
969.653.00.0(00)
11

EN Optimising the detection
distance
• If flushes are actuated too soon, too late
or unintentionally, you can optimise the
detection distance of the IR sensor. For
this, you must remeasure the detection
range.
• You must optimise the detection distance
within the first 30minutes after activating
the power supply.
Prerequisite
– Refer to illustration sequence 8,
page45 while carrying out the
instructions.
1Restart the urinal flush control. →
See "Restarting the urinal flush
control", page13.
✓ The urinal flush control restarts.
2Hold a white sheet of paper in front
of the IR sensor on the bottom edge
of the urinal ceramic appliance.
✓ 2 short signal tones will sound
after 2seconds.
3Keep the white sheet of paper in
front of the IR sensor for a further
15seconds.
4Remove the white sheet as soon as
a signal tone sounds every second.
5Step away from the urinal for at least
10 seconds so that the detection
range can be remeasured.
Result
✓ Once the procedure has been
completed, the flush will be actuated
and the detection distance will be set.
The urinal is ready for operation.
Replacing the batteries
Prerequisite
– Refer to illustration sequence 11 ,
page47 while carrying out the
instructions.
– 2 replacement batteries (alkaline
batteries, 1.5V, AA) are available.
1Demount the urinal flush control. →
See illustration sequence 2 ,
page39.
2Disconnect the battery compartment
cable. → See illustration sequence
9 , page46.
3Remove the battery compartment.
4Open the cover, remove the
batteries and dispose of them.
5Insert the replacement batteries.
6Insert the battery compartment.
7Plug in the battery compartment
cable. → See illustration sequence
10 , page46.
8Mount the urinal flush control. →
See illustration sequence 3 ,
page40.
Result
✓ The urinal is ready for operation.
12 7021420811-1 © 01-2020
969.653.00.0(00)

EN
Restarting the urinal flush
control
Battery operation:
1Demount the urinal flush control. →
See illustration sequence 2 ,
page39.
2Disconnect the battery compartment
cable. → See illustration sequence
9 , page46.
3Plug in the battery compartment
cable. → See illustration sequence
10 , page46.
4Mount the urinal flush control. →
See illustration sequence 3 ,
page40.
Result
✓ The urinal flush control restarts.
Mains operation:
Disconnect the mains voltage for approx-
imately 30seconds. If necessary, switch
the fuse in the electrical distributor off and
on again.
7021420811-1 © 01-2020
969.653.00.0(00)
13

EN Disposal
Constituents
This product meets the requirements of
Directive 2011/65/EU (RoHS) (restriction of
the use of certain hazardous substances in
electrical and electronic equipment).
Disposal of old electrical and
electronic equipment
In accordance with Directive 2012/19/
EU(WEEE-Waste Electrical and
Electronic Equipment) manufacturers of
electrical equipment are obliged to take
back old equipment and to dispose of it
appropriately. The symbol indicates that the
product cannot be disposed of with non-
recyclable waste. Old equipment should be
returned directly to Geberit where it will be
disposed of appropriately. Addresses to
which equipment can be returned can be
requested from the relevant Geberit sales
company.
14 7021420811-1 © 01-2020
969.653.00.0(00)


















 


 


 


 

 

 




 
 
 
 
 
 


 











 

 

 

 




 

  
  
  

  
  
  
  
  
 
  
  
  
  
  
 

 

 









T

 
 




  



   

   

   


  

  


    
 

  




  









   


 

 

















 



 

