Gecko in.yj-3 Technical manual

Quick Start Card
in.yj-3™North American version
2- Connect the main power
1- Connect all outputs & keypads
3- Select spa configuration (if prompt on startup)
3
At first startup the keypad display
will show Lx or LLx, where « x »
representing the config. number. Some
spa packs come with a pre-selected
config. and you may skip this step if
your system automatically starts up1.
1 Note: To re-enter the low level
selection menu, hold the Pump 1
key for 30 seconds.
Note: For the Color keypad series,
select Settings menu, go into
Electrical config and choose the
appropriate Low level.
2Note: If the keypad does not have a
Program or Filter key, use the Light
key instead.
Use the Up/Down key to choose the
new Low level configuration number.
Press the Program2key to confirm
the selection.
21
Heater connections
(P3 & P4 Element, P5 Ground)
CO - Communication links
in.touch, in.stik, Aux keypad in.k120
P33 - Light outputs
(12 V DC, 500 mA Max.)
Main power
entry connection
Aperture Ø 2.54 cm (1'')
Ground:
connect all Green wires: P27, P28, P29 or P30
C1 - Main keypad
connector
P1 - Heater communication cable
Bonding lugs:
connect redundant
ground cable to
heater, pumps, etc.
75 L/min (20 GPM) minimum water flow required.
This side up
Outputs:
in.yj-3 pack has 3 relay controlled outputs
Out 1: K7-P
Out 2: K6-P
Out 3: K5-P
Direct: P25
240 V (4 wires)
Remove and discard brown wire and
insert each wire into the appropriate
socket of the main terminal block ac-
cording to the color code indicated on
the sticker. Use a flat screwdriver to
tighten the screws on the terminal.
Look at the pump and accessory voltage requirement and make sure to connect
each WHITE common wire to the correct tab on the board: Use any neutral tab for
120 V or use any LINE2 tab for 240 V
WARNING! All connections must be made by a qualified electrician in
accordance with the national electrical code and any state, provincial or local
electrical code in effect at the time of the installation. This product must always be
connected to circuit protected by a Ground Fault Circuit Interrupter (GFCI).
2.a- Electrical wiring 2.b- Pump & accessory voltage
Press and hold the Program key for
20 seconds until you access the
breaker setting menu.
Note: For the Color keypad series,
select Settings menu, go into Electri-
cal config and choose Input current.
4- Select breaker current
Breaker setting for GFCI used.
GFCI b
50 A 40 A
40 A 32 A
30 A 24 A
20 A 16 A
15 A 12 A Use the Up/Down key to select the
desired value. Then press the Program
key to confirm the selection.
Note: If the keypad does not have the
Program or Filter key, use the Light key
instead.
The values displayed by the system
correspond to 80% of the maximum
amperage capacity of the GFCI.
98
For more information, see our
website: www.geckoalliance.com
For more information, see our
website: www.geckoalliance.com
321
(10 to 20A is only to be use with
120V input)
Neutral: connect White wires from 120V pump
/ acc : P18, P19, P20 or P35
Line 2: connect White wires from 240V
pump / acc : P14, P15, P16 or P37
120 V (3 wires)
DO NOT REMOVE THE BROWN WIRE.
Insert each wire into the appropriate
socket of the main terminal block
according to the color code indicated
on the sticker. Use a flat screwdriver to
tighten the screws on the terminal.
Configuration selection chart
Standard
config. # Pump 1 Pump 2 Blower DIRECT 1 Circ. Pump (CP)
configuration
Ozone (O3)
configuration1
Filter cycle
daily Heater
1
2SP
(K7-P, K6-P)
10A-3A
_ _ _ _ (K5-P)
2 * 1 hour
with P1L
with P1
17A
2
1SP
(K7-P)
4A
_ _ _ _ (K6-P)
2 * 1 hour
with P1L
with P1
17A
3
1SP
(K7-P)
4A
_ _ _ _ (K5-P)
2 * 1 hour
with P1L
with P1
17A
4
2SP
(K7-P, K6-P)
10A-3A
1SP
(K5-P)
8A
_ _ _ _
2 * 1 hour
with P1L
with P1
17A
5
2SP
(K7-P, K6-P)
10A-3A
_(K5-P)
4A
_ _ _
2 * 1 hour
with P1L
with P1
17A
Software #286, rev. 001
1When the Ozonator is not controlled by a relay, it can be tied to Pump 1 Low speed or Circ. Pump, by using a cable splitter AMP PN: 9920-401369.
Glossary
P1 Pump 1
P1L Pump 1 low speed
1SP Pump one speed (High speed only)
2SP Pump two speed (High and Low)
For complete TechBook or more information, see our website: www.geckoalliance.com
9919-101308-C Rev. 06-2016 www.geckoalliance.com
© Groupe Gecko Alliance Inc., 2016
All trademarks or registered trademarks are the property of their respective owners.

This manual suits for next models

2

Other Gecko Spa Accessories manuals

Gecko in.k506 User manual

Gecko

Gecko in.k506 User manual

Gecko BAHAMA SPAS Reference guide

Gecko

Gecko BAHAMA SPAS Reference guide

Gecko Aeware 3 in.ye User manual

Gecko

Gecko Aeware 3 in.ye User manual

Gecko in.mix 300 Series User manual

Gecko

Gecko in.mix 300 Series User manual

Gecko Aeware3 in.touch User manual

Gecko

Gecko Aeware3 in.touch User manual

Gecko in.ye-V3 User manual

Gecko

Gecko in.ye-V3 User manual

Gecko Y Series User manual

Gecko

Gecko Y Series User manual

Gecko in.ye-5 Technical manual

Gecko

Gecko in.ye-5 Technical manual

Gecko M-CLASS MC-MP-SBD User manual

Gecko

Gecko M-CLASS MC-MP-SBD User manual

Gecko Y Series User manual

Gecko

Gecko Y Series User manual

Gecko Aeware3 in.ye User manual

Gecko

Gecko Aeware3 in.ye User manual

Gecko in.k300 User manual

Gecko

Gecko in.k300 User manual

Gecko in.k330 User manual

Gecko

Gecko in.k330 User manual

Gecko S-CLASS 0202-205162 Technical manual

Gecko

Gecko S-CLASS 0202-205162 Technical manual

Gecko Aeware In.Xe User manual

Gecko

Gecko Aeware In.Xe User manual

Gecko in.k1000 User manual

Gecko

Gecko in.k1000 User manual

Gecko MSPA-1-AS User manual

Gecko

Gecko MSPA-1-AS User manual

Gecko DJS-1 User manual

Gecko

Gecko DJS-1 User manual

Gecko in.touch 2 User manual

Gecko

Gecko in.touch 2 User manual

Popular Spa Accessories manuals by other brands

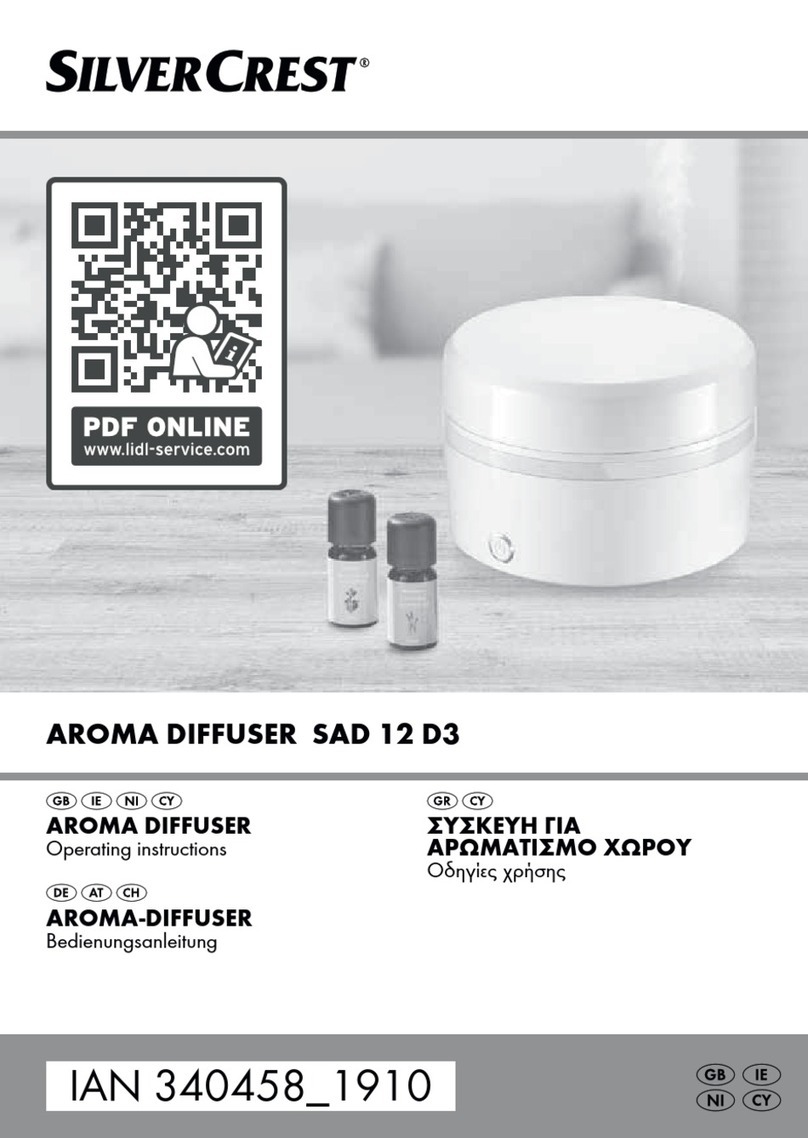

Silvercrest 340458 1910 operating instructions

Silvercrest

Silvercrest 340458 1910 operating instructions

Freeflow Spas Cover Lifter Low Mount Installation sheet

Freeflow Spas

Freeflow Spas Cover Lifter Low Mount Installation sheet

Aroma Retail Smart 101 user guide

Aroma Retail

Aroma Retail Smart 101 user guide

Spa Natural SN14 SAFETY PRECAUTIONS AND USER MANUAL

Spa Natural

Spa Natural SN14 SAFETY PRECAUTIONS AND USER MANUAL

mychway S-shape MS-45T2 instructions

mychway

mychway S-shape MS-45T2 instructions

ACC WF-100 Smartouch Wifi Installation and operational guide

ACC

ACC WF-100 Smartouch Wifi Installation and operational guide

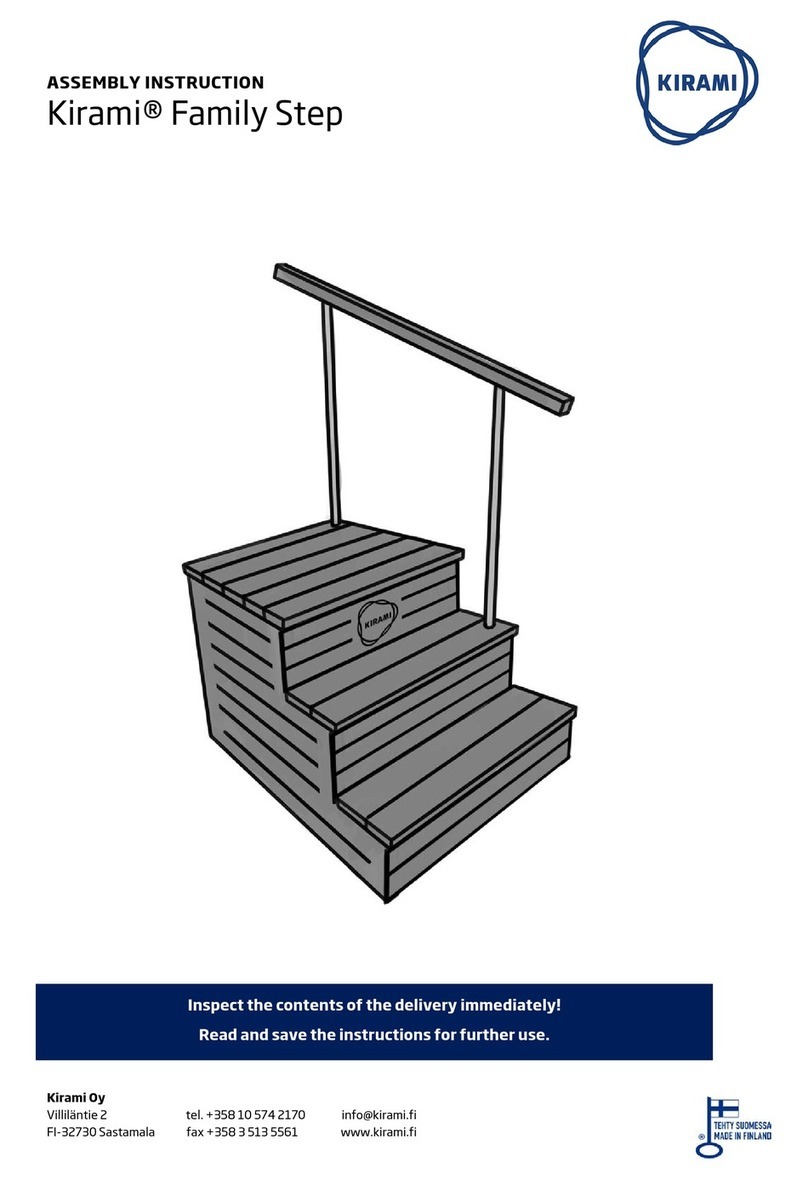

KIRAMI Family Step Assembly instruction
