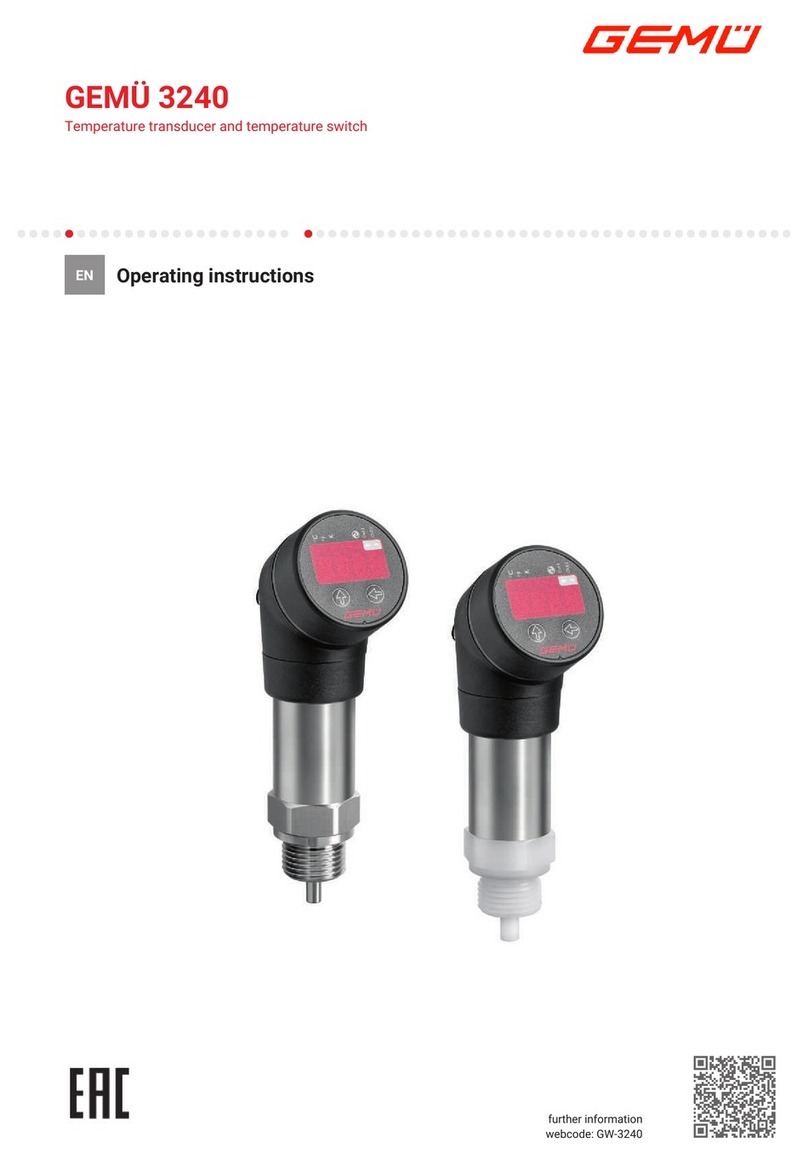

GEM 3240 User manual

GEMÜ 3240
Temperature transducer and temperature switch
Operating instructions
EN
further information
webcode: GW-3240

All rights including copyrights or industrial property rights are expressly reserved.
Keep the document for future reference.
© GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG
07.06.2019
www.gemu-group.com2 / 28GEMÜ 3240

Contents
1 General information ................................................... 4
1.1 Information ......................................................... 4
1.2 Symbols used ..................................................... 4
1.3 Warning notes .................................................... 4
2 Safety information .................................................... 4
3 Product description ................................................... 5
3.1 Construction ....................................................... 5
3.2 Description ......................................................... 5
3.3 Function .............................................................. 5
3.4 Product label ...................................................... 5
4 Correct use ................................................................ 5
5 Order data ................................................................. 6
5.1 Order codes ........................................................ 6
5.2 Order example .................................................... 6
6 Technical data ........................................................... 7
6.1 Temperature ....................................................... 7
6.2 Pressure .............................................................. 7
6.3 Product compliance ........................................... 7
6.4 Mechanical data ................................................. 7
6.5 Electrical data ..................................................... 8
7 Specific data relating to IO-Link ................................ 9
8 Dimensions ............................................................... 10
8.1 Device with pressure connection 1.4404 (code
7) ......................................................................... 10
8.2 Device with pressure connection PVDF (code
20) ....................................................................... 10
9 Manufacturer's information ....................................... 11
9.1 Delivery ............................................................... 11
9.2 Transport ............................................................ 11
9.3 Storage ............................................................... 11
10 Installation in piping .................................................. 11
10.1 Installation and safety information ................... 11
10.2 Installing outdoors and in damp conditions ..... 12
10.3 Installation steps for connections in accord-
ance with DIN 3852 ............................................ 12
10.4 Installation steps for connections in accord-
ance with EN 837 ................................................ 12
11 Electrical connection ................................................. 13
11.1 Connection and safety information ................... 13
11.2 3-wire system (output code PNAV) .................. 13
12 Commissioning ......................................................... 13
13 Operation .................................................................. 13
13.1 Operating and display elements ........................ 13
13.2 Switching and switch-back characteristics ..... 14
13.3 Structure of the menu system ........................... 15
13.4 Menu list ............................................................. 17
14 IO-Link Interface ....................................................... 19
14.1 General device information ................................ 19
14.2 SIO mode (standard IO mode) ........................... 19
14.3 IO-Link mode (communication mode) .............. 19
14.4 Process data ....................................................... 19
14.5 Error Codes ......................................................... 19
14.6 Event Codes ........................................................ 19
14.7 Parameter data ................................................... 20
14.8 Setting of offset and end value ......................... 21
15 Error clearance .......................................................... 22
16 Inspection/servicing .................................................. 23
17 Disposal .................................................................... 23
18 Returns ..................................................................... 23
19 Declaration of conformity according to 2014/30/EU
(EMC Directive) ......................................................... 24
GEMÜ 3240www.gemu-group.com 3 / 28

www.gemu-group.com4 / 28GEMÜ 3240
1 General information
1 General information
1.1 Information
– The descriptions and instructions apply to the stand-
ard versions. For special versions not described in this
document the basic information contained herein ap-
plies in combination with any additional special docu-
mentation.
– Correct installation, operation, maintenance and repair
work ensure faultless operation of the product.
– Should there be any doubts or misunderstandings, the
German version is the authoritative document.
– Contact us at the address on the last page for staff
training information.
1.2 Symbols used
The following symbols are used in this document:
Symbol Meaning
Tasks to be performed
Response(s) to tasks
– Lists
1.3 Warning notes
Wherever possible, warning notes are organised according to
the following scheme:
SIGNAL WORD
Type and source of the danger
Possible
symbol for
the specific
danger
Possible consequences of non-observance.
Measures for avoiding danger.
Warning notes are always marked with a signal word and
sometimes also with a symbol for the specific danger.
The following signal words and danger levels are used:
DANGER
Imminent danger!
▶Non-observance can cause death or
severe injury.
WARNING
Potentially dangerous situation!
▶Non-observance can cause death or
severe injury.
CAUTION
Potentially dangerous situation!
▶Non-observance can cause moderate
to light injury.
NOTICE
Potentially dangerous situation!
▶Non-observance can cause damage to
property.
The following symbols for the specific dangers can be used
within a warning note:
Symbol Meaning
Danger – high voltage
2 Safety information
The safety information in this document refers only to an in-
dividual product. Potentially dangerous conditions can arise
in combination with other plant components, which need to
be considered on the basis of a risk analysis. The operator is
responsible for the production of the risk analysis and for
compliance with the resulting precautionary measures and
regional safety regulations.
The document contains fundamental safety information that
must be observed during commissioning, operation and
maintenance. Non-compliance with these instructions may
cause:
– Personal hazard due to electrical, mechanical and
chemical effects.
– Hazard to nearby equipment.
– Failure of important functions.
– Hazard to the environment due to the leakage of dan-
gerous materials.
The safety information does not take into account:
– Unexpected incidents and events, which may occur
during installation, operation and maintenance.
– Local safety regulations which must be adhered to by
the operator and by any additional installation person-
nel.
Prior to commissioning:
1. Transport and store the product correctly.
2. Do not paint the bolts and plastic parts of the product.
3. Carry out installation and commissioning using trained
personnel.
4. Provide adequate training for installation and operating
personnel.
5. Ensure that the contents of the document have been fully
understood by the responsible personnel.
6. Define the areas of responsibility.
7. Observe the safety data sheets.
8. Observe the safety regulations for the media used.

www.gemu-group.com 5 / 28 GEMÜ 3240
During operation:
9. Keep this document available at the place of use.
10. Observe the safety information.
11. Operate the product in accordance with this document.
12. Operate the product in accordance with the specifica-
tions.
13. Maintain the product correctly.
14. Do not carry out any maintenance work and repairs not
described in this document without consulting the manu-
facturer first.
In cases of uncertainty:
15. Consult the nearest GEMÜ sales office.
3 Product description
3.1 Construction
Temperature transducer/switch
2
1
3
Item Name Materials
1* Pressure connection 1.4404 stainless steel or
PVDF
2 Housing 1.4404 stainless steel
3 Display housing PA 6.6
Seals* FPM or EPDM
* Media wetted
3.2 Description
The GEMÜ 3240 temperature transducer/switch is ideal for
precise measurements in a wide temperature range. The
sensor is suitable for both highly viscous, as well as contam-
inated media. It is also suitable for corrosive media thanks to
the high-quality material selection. Furthermore, it stands out
thanks to its extremely short installation length. The elec-
trical output signals can optionally be changed over between
power, current or switching outputs.
3.3 Function
The GEMÜ 3240 temperature transducer converts the phys-
ical variable of temperature into an electrical signal.
3.4 Product label
GEMÜ Gebr. Müller Apparatebau GmbH& Co. KG
Fritz-Müller-Straße 6-8
74653 Ingelfingen-Criesbach
SN: 23456789
3240G12T 714 MC1DPNAVGEMÜ 3240
PIN-Belegung:
Ub+: 1 Ausgang1: 4
Ub -: 3 Ausgang2: 2
Schirm: Stecker 2019
Eingang: -40 ... 150 °C
Ausgang1: IO-Link / PNP / NPN
Ausgang2: PNP / NPN / mA / V
Versorgung: 24 V DC
Order code
Serial
number
Product
type
Connection assignment
Signal
4 Correct use
DANGER
Danger of explosion
▶Risk of death or severe injury.
●Do not use the product in potentially
explosive zones.
WARNING
Improper use of the product!
▶Risk of severe injury or death.
▶Manufacturer liability and guarantee will be void.
●Only use the product in accordance with the operating
conditions specified in the contract documentation and
this document.
The product is not intended for use in potentially explosive
areas.
4 Correct use

5 Order data
The order data provide an overview of standard configurations.
Please check the availability before ordering. Other configurations available on request.
Order codes
1 Type Code
Temperature transducer, temperature switch 3240
2 Connection size Code
G 1/2 G12
3 Type of measurement Code
Temperature T
4 Material Code
1.4404 7
PVDF 20
5 Seal material Code
FPM 4
EPDM 14
6 Electrical connection Code
M12 x 1 plug, 4-pin M
7 Voltage/Frequency Code
24 V DC C1
8 Display Code
With display D
9 Output Code
PNP, NPN, 4-20mA, 0-10V, IO-Link switchable PNAV
Order example
Order option Code Description
1 Type 3240 Temperature transducer, temperature switch
2 Connection size G12 G 1/2
3 Type of measurement T Temperature
4 Material 7 1.4404
5 Seal material 4 FPM
6 Electrical connection M M12 x 1 plug, 4-pin
7 Voltage/Frequency C1 24 V DC
8 Display D With display
9 Output PNAV PNP, NPN, 4-20mA, 0-10V, IO-Link switchable
5 Order data
www.gemu-group.com
6 / 28
GEMÜ 3240

6 Technical data
6.1 Temperature
Media temperature: Stainless steel (code
7):
-40 to 150 °C
PVDF (code 20): -30 to 125 °C
Ambient temperature: Stainless steel (code
7):
-40 to 85 °C
PVDF (code 20): -30 to 85 °C
Storage temperature: Stainless steel (code
7):
-40 to 85 °C
PVDF (code 20): -30 to 85 °C
6.2 Pressure
Operating pressure: Stainless steel (code
7):
max. 160 bar
PVDF (code 20): max. 60 bar
6.3 Product compliance
EMC Directive: 2014/30/EU
6.4 Mechanical data
Installation position: Optional
Protection class: IP 67 acc. to EN 60529
Measuring range: Stainless steel (code
7):
-40 to 150 °C
PVDF (code 20): -30 to 125 °C
Weight: 220 g
Switch-on time: 110 ms
Strength: 10 g / 25 Hz to 2 kHz to DIN EN 60068-2-6
500 g / 1 ms to DIN EN 60068-2-27
GEMÜ 3240www.gemu-group.com 7 / 28
6 Technical data

6.5 Electrical data
6.5.1 Power supply standard
Supply voltage: 24 V DC (-5/+10%)
Current consumption: ≤ 40 mA
Reverse battery
protection:
Yes
Short-circuit proof: Yes
Duty cycle: Continuous duty
Electrical connection
type:
M12 connector, 4-pin
6.5.2 Electrical output
Supply voltage: 18 - 30 V DC
Output signal: Output 1: Switchable between NPN, PNP switching outputs, IO-Link
output 2: Switchable between NPN, PNP switching outputs, 4 to 20 mA, 0 to 10 V
Load resistor: Rmin ≥ 10 kΩ
Rmax ≤ 330 Ω
Max. switching current: 200 mA
Accuracy: ≤ ± 0.35% FSO
Switching output
Switch point: ≤ ± 0.5% FSO
Characteristic deviation in accordance with IEC 60770 – limiting value adjustment (non-linearity,
hysteresis, reproducibility)
Repetition: ≤ ± 0.2% FSO
Temperature drift: ≤ ± 0.3 °C + 0.005 + T
Switching frequency: Max. 170 Hz
Switching cycles: > 100 x 106
www.gemu-group.com
8 / 28
GEMÜ 3240
6 Technical data

7 Specific data relating to IO-Link
Transmission rate: 38,400 baud, COM2
IO-Link specification: V1.1, slave
SIO operation: Yes
IEC Guideline: 61131-9
GEMÜ 3240www.gemu-group.com 9 / 28
7 Specific data relating to IO-Link

8 Dimensions
8.1 Device with pressure connection 1.4404 (code 7)
G 1/2
Ø26,5
SW27
85,5
27
24
133
-210° / +100°
11
32,5
60°
Ø40
97,5
71,5
M12x1
-110° / +220°
10
Ø5
3.37 / 85.5
5.24 /133
Ø 0.2 / 5
1.06 / 27
0.39 / 10
0.95 / 24
Ø 1.04 /
26.5
0.43 / 11
3.84 / 97.5
2.81 / 71.5
1.28 / 32.5
Ø 1.56 / 40
Dimensions in inch / mm
8.2 Device with pressure connection PVDF (code 20)
G 1/2
Ø26,5
SW27
84
27
24
132
-210° / +100°
10
32,5
60°
Ø40
96
70
M12x1
-110° / +220°
10
Ø6
3.31 / 84
5.18 /132
Ø 0.24 / 6
1.06 / 27
0.39 / 10
0.95 / 24
Ø 1.04 /
26.5
0.39 / 10
3.78 / 96
2.76 / 70
1.28 / 32.5
Ø 1.56 / 40
Dimensions in inch / mm
www.gemu-group.com
10 / 28
GEMÜ 3240
8 Dimensions

www.gemu-group.com 11 / 28 GEMÜ 3240
9 Manufacturer's information
9.1 Delivery
●Check that all parts are present and check for any dam-
age immediately upon receipt.
The product's performance is tested at the factory. The
scope of delivery is apparent from the dispatch documents
and the design from the order number.
9.2 Transport
1. Only transport the product by suitable means. Do not
drop. Handle carefully.
2. After the installation dispose of transport packing mater-
ial according to relevant local or national disposal regula-
tions / environmental protection laws.
9.3 Storage
1. Store the product free from dust and moisture in its ori-
ginal packaging.
2. Avoid UV rays and direct sunlight.
3. Do not exceed the maximum storage temperature (see
chapter "Technical data").
4. Do not store solvents, chemicals, acids, fuels or similar
fluids in the same room as GEMÜ products and their
spare parts.
10 Installation in piping
10.1 Installation and safety information
DANGER
Risk of lightning strike!
▶If there is an elevated risk of the
device being damaged by lightning or
overvoltage, an effective lightning pro-
tection system must additionally be
put in place.
DANGER
Use of the product as a stepladder
▶The housings are not designed to be used as a steplad-
der for climbing in the plant. They can be damaged if
used in this way and their function impaired. If the hous-
ing is damaged, water, dirt and combustible material can
accumulate in the housing interior. This can cause a
short-circuit. Furthermore, the deposits can cause the
device to overheat and may result in an explosion.
NOTICE
▶Handle the unprotected diaphragm with extreme care, as
it is very easily damaged.
NOTICE
▶For use in steam pipes, provide a cooling zone.
NOTICE
▶During installation, avoid high mechanical stresses on
the pressure connection. This can result in the charac-
teristic shifting or in damage, particularly for very narrow
pressure ranges and for devices with a plastic pressure
connection.
NOTICE
▶With hydraulic systems, orientate the device such that
the pressure connection is facing upwards. (Vent hole)
NOTICE
▶If the device is to be installed with the pressure connec-
tion at the top, make sure that no liquid flows away along
the housing as this could result in moisture and dirt
blocking the gauge reference in the housing and, in turn,
to the equipment malfunctioning. Where necessary, re-
move dust and dirt from the edge of the electrical con-
nection's union.
NOTICE
▶Make sure that you do not remove the packaging and
protection caps from the device until you are just about
to install it, so that you do not damage the diaphragm or
the threads.
▶Keep the protection caps. Dispose of packaging properly.
10 Installation in piping

www.gemu-group.com12 / 28GEMÜ 3240
10 Installation in piping
10.2 Installing outdoors and in damp conditions
1. Electrically connect the device as soon as it is installed, or
take measures to prevent the ingress of moisture, e.g. us-
ing a suitable protection cap. (The stated protection class
applies to the device once it is connected.)
2. When installing the device, position it such that splashed
water and condensation can drain away. Liquid must not
be allowed to accumulate on sealing surfaces.
3. For devices with a cable outlet, the outgoing cable must
be routed downwards. If the cable has to be routed up-
wards, this must be implemented in an elbow that is dir-
ected downwards.
4. Install the device such that it is protected from direct
sunlight. In the worst case scenario, exposure to direct
sunlight can result in the permissible operating temperat-
ure being exceeded. This must be completely avoided
when using the device in Ex areas.
5. Install devices with a gauge reference in the housing
(small hole next to the electrical connection) such that
the gauge reference needed for the measurement is pro-
tected from dirt and moisture. If the measuring trans-
ducer is exposed to liquid, the gauge reference will be-
come blocked, preventing the air pressure from equaliz-
ing. It is not possible to measure accurately in this situ-
ation, and the measuring transducer may be damaged as
a result.
10.3 Installation steps for connections in accordance
with DIN 3852
NOTICE
▶Do not use any additional sealing material such as
oakum, hemp or Teflon tape.
The O-ring must sit in the groove provided.
The O-ring is not damaged.
The sealing surface of the part that accommodates it must
be free of defects. (RZ 3.2)
1. Screw the device onto the mounting thread by hand.
2. Devices with a knurled collar must be screwed on tightly
by hand
3. Devices with a wrench surface must be tightened with a
suitable open-end wrench.
Steel wrench surface:
G1/4": Approx. 5 Nm
G1/2": Approx. 10 Nm
Plastic wrench surface:
Max. 3 Nm
10.4 Installation steps for connections in accordance
with EN 837
A suitable seal that is compatible with the measurement me-
dium and the temperature that is to be measured must be
provided (e.g. a copper gasket).
The sealing surface of the part that accommodates it must
be flawless (RZ 6.3).
1. Screw the device onto the mounting thread by hand.
2. Then tighten it with the open-end wrench:
G1/4": Approx. 20 Nm
G1/2": Approx. 50 Nm
NOTICE
▶Observe the permissible pressures in accordance with
EN 837
G1/4" EN 837 PN ≤ 600 bar The counterpart
must be made from
steel in accordance
with DIN 17440
with a strength of
Rp0.2 ≥ 190 N/mm2.
G1/2" EN 837 PN ≤ 1000 bar
G1/4" EN 837 PN > 600 bar,
PN ≤ 1000 bar
The counterpart
must be made from
steel in accordance
with DIN 17440
with a strength of
Rp0.2 ≥ 260 N/mm2.
G1/2" EN 837 PN > 1000 bar,
PN ≤ 1600 bar

www.gemu-group.com 13 / 28 GEMÜ 3240
11 Electrical connection
Connect the product in accordance with the pin assignment.
11.1 Connection and safety information
Devices with cable glands and cable sockets
1. Ensure that the outside diameter of the cable used is
within the permissible clamping range (cable gland M12 x
1.5 cable dia. 3–6.5 mm, cable socket ISO 4400 cable dia.
4.5–10 mm). In addition, make sure that the cable is
seated securely in the cable gland, without any gaps.
2. Use a shielded, twisted multicore cable for the electrical
connection.
Devices with a cable outlet
Comply with the following minimum bend radii when laying
the cable:
– Cable without air hose:
Fixed in place: 5 x cable diameter
Flexible use: 10 x cable diameter
– Cable with air hose:
Fixed in place: 10 x cable diameter
Flexible use: 20 x cable diameter
On devices with a cable outlet and integrated vent tube, the
PTFE filter on the cable end on the gauge tube must not be
damaged or removed.
NOTICE
▶Cables used for gauge devices have a vent tube for
equalizing the pressure. Route the cable end into an area
or suitable terminal box that is as free from moisture and
corrosive gases as possible in order to prevent damage.
11.2 3-wire system (output code PNAV)
1
4
3
2
Pin Description
1 Supply +
2 Switching output / Signal
3 Supply -
4 Switching output / Communication
P
I/U
UB
R L
A/V
R L
Switching output/
communication
Supply +
Supply -
IO-Link master
Switching output/signal
12 Commissioning
1. The device must be properly installed
2. The device must not exhibit any visible defects
13 Operation
13.1 Operating and display elements
°C
°F
K
134
5
6
7
2
Fig.1: Operating screen for device with two switching out-
puts
1 = Three LEDs for displaying units
2 = LED IO-Link red: Status indication IO-Link
3 = LED Out 1 yellow: Switching output 1 status indication
4 = LED Out 2 green: Switching output 2 status indication
5 = Seven-segment display for measured value and paramet-
ers
6 = Key for moving within a menu
7 = Key for moving from menu to menu
LED status in normal mode
Red LED On IO-Link active (master slave
operation)
Off IO-Link inactive (no master slave
operation)
Yellow LED On Switch point 1 reached, switching
output active
Off Switch point not reached
Green LED On Switch point 2 reached, switching
output active
Off Switch point not reached
Tastenfunktion
Press briefly Scroll from menu 1 to menu 5, then
return to the display
Press and
hold
Increase parameter values quickly
Press briefly Select a menu item in a menu
Press and
hold
Apply the set parameter and return to
the current menu item
Press both
keys at the
same time
Return to the display
The device is configured in accordance with VDMA 24574-1.
13 Operation

www.gemu-group.com14 / 28GEMÜ 3240
13 Operation
13.2 Switching and switch-back characteristics
Temperature T
Time t
SP Hyste-
resis
(SP-rP)
rP
Time t
Time t
Ou make contact
Hno
1
1
0
0
Ou make contact
Hnc
Fig.2: Switching and switch-back characteristics for the hys-
teresis function in the temperature-time diagram
Temperature T
SP
rP
Hysteresis
(SP-rP)
Time t
Time t
Time t
Ou make contact
Hno 1
0
1
0
Ou break contact
Hnc
dS dS dR
Fig.3: Switching and switch-back delay for the hysteresis
function in the temperature-time diagram
Temperature T
Temperature
window
Time t
Time t
FH
FL
1
0
1
0
Ou make contact
Fno
Ou break contact
Fnc
Fig.4: Switching and switch-back characteristics for the win-
dow function in the temperature-time diagram

13.3 Structure of the menu system
Display mode
PW = 0000
Password prompt
¹
PW 0000 XXXX
Programming
mode
Menu 1
SP1/FH1
Switch point 1
Value
e.g. 80 °C
Menu 2
RP1/FL1
Switch-back point 1
Value
e.g. 70 °C
Menu 3
SP2/FH2
Switch point 2
Value
e.g. 55 °C
Menu 4
RP2/FL2
Switch-back point 2
Value
e.g. 50 °C
Menu 5
EF
Extended functions
Reset
Menu 5.1 YES/NO
Switch-on delay 1
Menu 5.2 Value
e.g. 0 to 50 s
Switch-back delay 1
Menu 5.3 Value
e.g. 0 to 50 s
Switch-on delay 2
Menu 5.4 Value
e.g. 0 to 50 s
Switch-back delay 2
Menu 5.5 Value
e.g. 0 to 50 s
Menu 5.6
Output 2
Menu 5.7 Parameter
Hno, Hnc, Fno, Fnc
Output 1
Parameter
Hno, Hnc, Fno, Fnc
Switching units
Menu 5.8 Parameter
°C, °F, K
Additional menu
ASt2/AEn2
If output signal 2
is active (5/17)
analogue output 2
(change option
± 5 % for initial value and
90–100% for end value of
the measuring range),
see 14.8 Setting the
offset and end value.
FLIP
Menu 5.9 Rotate display
indication by 180°
13 Operation
www.gemu-group.com 15 / 28 GEMÜ 3240

Min. value
Menu 5.10 Display
Max. value
Menu 5.11 Display
Delete min./max. value
Menu 5.12 Display
Delete min./max. value Perform
Zero point adjustment
Menu 5.13
YES/NO
Measured value damping
Menu 5.14
Value
10–1000 ms
Access protection
Menu 5.15
Value
e.g. 0000–9999
(0000 = no password)
Output signal 1
Menu 5.16 Switchover option
between
PNP and NPN function
Output signal 2
Menu 5.17
Switchover option
between
PNP, NPN function,
4–20 mA and 0–10 V
Menu 5.18 Display
Operating time
Using the menu
Left key Right key
1. Call up menu 1 with the left key.
2. Display the values for switch point 1 using the right key. The selected value flashes.
3. Select a value with the left key. Confirm the selected value with the right key and return to menu 1.
4. Call up the next menu with the left key and set the value as described in points 2 and 3.
5. Call up menu 5 with the left key.
6. Call up the first submenu 5.1 with the right key and set the value as described in points 2 and 3.
Note:
If no key is pressed for 60 seconds, the program returns to the display without saving the changed value.
The menus with dotted edges are not included on sensors with analogue output.
13 Operation
www.gemu-group.com
16 / 28
GEMÜ 3240

13.4 Menu list
First menu level
SP 1 / SP2
FH 1 / FH2
Menu: 1 and 3
Setting the switch on points
Setting the respective value from which the switch point 1 or 2 should be activated. If the window
function in the menu 5/6 or 5/7 is activated, the value of the switch point is the upper temperature limit
of the window (WindowHigh).
rP 1* / rP 2*
FL 1 / FL2
Menu: 2 and 4
Setting the switch-back points
Setting the respective value from which the switch-back point 1 and 2 should be activated. If the
window function in the menu 5/6 or 5/7 is activated, the value of the switch-back point is the lower
temperature limit of the window (WindowLow).
ASt2 / AEn2
* Additional menu
If output signal 2 is active (5/17)
Analogue output 2 (change option ± 5% for initial value and 90–100% for end value of the measuring
range), see 14.8 Setting the offset and end value.
EF
Menu: 5
Extended functions
(Transition to menu level two)
Second menu level
rES
Menu: 5/1
Reset
Restore all adjustable parameters to the as-delivered state and delete the min. and max. values
dS 1 / ds 2
Menu: 5/2 and 5/4
Setting the switch-on delay
Setting the value for the switch-on delay after reaching switch-on point 1 or 2 (adjustable 0.0 to 50.0 s)
dr 1 / dr 2
Menu: 5/3 and 5/5
Setting the switch-off delay
Setting the value for the switch-off delay after reaching switch-off point 1 or 2 (adjustable 0.0 to 50.0
s)
ou1 / ou2
Menu: 5/6 and 5/7
Setting the switching outputs 1 and 2
Switching function of the switching outputs:
Hno = Hysteresis function, make contact
Hnc = Hysteresis function, break contact
Fno = Window function, make contact
Fnc = Window function, break contact
Uni
Menu: 5/8
Switching units
Select the physical unit of measure
for the displayed and set pressure values:
C = °C F = °F
K = K
FLIP
Menu: 5/9 Rotate display indication by 180°
Lo
Menu: 5/10
Min. value (display only)
Display of the minimum temperature that was present during measurement (the value is lost if the
power supply is interrupted)
Hi
Menu: 5/11
Max. value (display only)
Display of the maximum temperature that was present during measurement (the value is lost if the
power supply is interrupted)
----
Menu: 5/12
Delete the min. and max. values
The display confirms that the values have been deleted
Set0
Menu: 5/13
Zero point adjustment
Setting/correction of the zero point of the display indication and the analogue output signal by up to ±
3% of the measuring range
dAP
Menu: 5/14
Measured value damping
Setting the value for damping (0 to 1000 ms in 10 ms steps)
codE
Menu: 5/15
Access protection
Setting the password for access protection of the menu
0000 = no password (deactivated);
1000–9999 adjustable (activated)
To reset the password, please contact GEMÜ.
o1
Menu: 5/16
Output signal 1
Switchover option between PNP and NPN function
13 Operation
www.gemu-group.com 17 / 28 GEMÜ 3240

Second menu level
o2
Menu: 5/17
Output signal 2
Switchover option between PNP, NPN function, 4 to 20 mA and 0 to 10 V
Hcnt
Menu: 5/18
Display of the operating time in [h]
Display
Menu item Designation Default setting Own setting
Menu 1 SP1/FH1 Switch point 1 / WindowHigh 1 75% of the nominal
temperature
Menu 2 rP1/FL1 Switch-back point 1 / WindowLow 1 74% of the nominal
temperature
Menu 3 SP2/FH2 Switch point 2 / WindowHigh 2 85% of the nominal
temperature
Menu 4 rP2/FL2 Switch-back point 2 / WindowLow 2 84% of the nominal
temperature
Menu 5:2 dS1 Delay switching time 1 0 sec
Menu 5:3 dr1 Delay back switching time 1 0 sec
Menu 5:4 dS2 Delay switching time 2 0 sec
Menu 5:5 dr2 Delay back switching time 2 0 sec
Menu 5:6 ou1 Switching function of output 1 Hno
Menu 5:7 ou2 Switching function of output 2 Hno
Menu 5:8 uni Units °C
Menu 5:14 dAP Measured value damping 0 ms
Menu 5:15 code Password 0000
Menu 5:16 01 Output signal 1 PNP
Menu 5:17 02 Output signal 2 PNP
13 Operation
www.gemu-group.com
18 / 28
GEMÜ 3240

www.gemu-group.com 19 / 28 GEMÜ 3240
14 IO-Link Interface
14.1 General device information
Baud rate COM 2 (38.4 kBaud)
Process data length input 2 bytes
Minimum cycle time 5 ms
IO-Link version V1.1
SIO mode Yes
14.2 SIO mode (standard IO mode)
In this mode, the sensor operates in the same way as a nor-
mal temperature sensor with standard output signals. The
digital output is always at pin 4 (output 1) of the M12 plug.
Pin 2 (output 2) can be an analogue or additional digital out-
put, depending on the version.
14.3 IO-Link mode (communication mode)
The temperature sensor switches to the IO-Link communica-
tion mode when it is operating under an IO-Link master. IO-
Link communication is only possible via pin 4 of the M12
plug.
14.4 Process data
The process data length of the sensor is 16 bits. Both the
switching states (BCD1 and BCD2) and the current measured
values are transferred. The 14 bits of the measured value are
scaled according to the sensor's measuring range.
15 bits 14–2 1 0
Signed
Bit
Measured
value
BDC2 / output 2 BDC1 / output 1
14.5 Error Codes
Error Code Description
0x8011 Index not available
0x8012 Subindex not available
0x8023 Access Denied
0x8030 Parameter value out of range
0x8033 Parameter length overrun
0x8034 Parameter length underrun
14.6 Event Codes
IO-Link
1.1
Event
Codes
IO-Link
1.0 Event
Codes
Device
status
Type
No
malfunction
0x0000 0x0000 0 Notification
General
malfunction
. Unknown
error
0x1000 0x1000 4 Error
Process
variable
range over-
run.
Process
Data
uncertain
0x8C10 0x8C10 2 Warning
Process
variable
range
under-run.
Process
Data
uncertain
0x8C30 0x8C10 2 Warning
14 IO-Link Interface

14.7 Parameter data
The parameter data of the temperature sensor complies with the smart sensor profile (V1.0).
Index
hex
Subindex
hex
Object name Single Value Default Comment
0x02 0x00 System
Commands
0x81 = Delete min./max. value
0x82 = res
0xA0 = Set0
The action is
performed by
writing to the
subindex
0x03 0x00 Data Storage
Index
0x01: Upload Start
0x02: Upload End
0x03: Download Start
0x04: Download End
0x05: Datastorage Break
0x0C 0x00 Device Access
Lock
0x00: Unlocked
0x01: Parameter access - Lock
0x02: Data storage - Lock
0x04: Local parameterization - Lock
0x08: Local user interface - Lock
0x03: Parameter access & Data Storage - Lock
0x05: Parameter access & Local parameterization -
Lock
0x09: Parameter access & Local user interface -
Lock
0x06: Data Storage & Local parameterization - Lock
0x0A: Data Storage & Local user interface - Lock
0x07: Data Storage & Parameter access & Local
parameterization - Lock
0x0B: Data Storage & Parameter access & Local
user interface - Lock
0x00:
Unlocked
0x24 0x00 Device Status 0x00 Device is operating properly
0x02 Out-of-Specification
0x04 Failure
0x3D 0x01 SetPoint Logic 1 0x00: Value as specified
0x3D 0x02 SetPoint Mode 1 0x80: Hysteresis NO 0x82: Window NO 0x80: HNo
0x81: Hysteresis NC 0x83: Window NC
0x3D 0x03 SetPoint
Hysteresis 1
0x0000: No Hysteresis
0x3F 0x01 SetPoint Logic 2 0x00: Value as specified
0x3F 0x02 SetPoint Mode 2 0x80: Hysteresis NO 0x82: Window NO 0x80: HNo
0x81: Hysteresis NC 0x83: Window NC
0x3F 0x03 SetPoint
Hysteresis 2
0x0000: No Hysteresis
0x93 0x00 SetPoint type 1 0x01 – NPN Output
0x00 – PNP Output
0x97 0x00 SetPoint type 2 0x01 – NPN Output 0x02 – 0 to 10 V
Output
0x00 – PNP Output 0x03 – 4 to 20 mA
0xD4 0x00 Unit 0x00 °C
0x01 °F
0x02 K
0x00: °C
temperatu
re unit
Temperature
unit for the
display is
changed, the IO-
Link process
data is not
changed
14 IO-Link Interface
www.gemu-group.com
20 / 28
GEMÜ 3240
