Genano 360 User manual

G360-UserManual-EN-revA-ver1
1(10)
For product support contact: [e-mail]
Genano 360
Air Decontamination Unit
User Manual

G360-UserManual-EN-revA-ver1
2(10)
For product support contact: [e-mail]
1.Genano® 360 air decontamination unit
Congratulations for purchasing a high-quality product!
Genano 360 is an air decontamination unit based on Genano Technology®. The unique
technology removes even the smallest impurities from indoor air. These impurities can consist
of particles, viruses, bacteria, mould spores as well as traffic originated soot. The product
outlet provides you clean indoor air without particles or gaseous contaminants.
Genano 360 is designed especially for the air purification needs of office, various types of
laboratories and cleanrooms.
If you start the product for the first time, it is recommended to use the highest fan speed for a
short period, then lower the speed for continuous use. Lower fan speed drops the noise to
comfortable level. The room indoor air is kept clean by continuous circulation through Genano
360 product.
Genano 360 requires yearly maintenance and service for removing the collected air
contaminants and replacing the air collector with a fresh component.
Genano Oy
Metsänneidonkuja 6
02130 ESPOO
Finland
[e-mail]
See our website for contact information:
www.genano.com

G360-UserManual-EN-revA-ver1
3(10)
For product support contact: [e-mail]
2. Delivery contents
Product package contains the Genano 360 product with power cord suitable for local AC grid
supply socket. You may have optioned a wall bracket or insect screen. Their installation is
instructed in separate documents.
3. Disposal of delivery package
Consumer package of this product is made of recyclable carton and cellulose materials.
Dismantle the package before disposal. Follow the local advisory for recycling materials.
4. Technical specification
Air flow adjustable 80…300 m3/h
Mechanical dimensions (w x h x d): 30 cm x 90 cm x 37 cm
Weight: approximately 19 kg
Class I electrical installation with Protective Earth (PE) in use
Rated input voltage: 100-110 Vac ± 10 % fluctuations of mains voltage
Protected against occasional low energy over voltage spikes in the mains voltage
Rated input voltage frequency: 50/60 Hz
Power consumption: Max 175 W
Operational temperature range: +5°C…+40°C
Operational humidity 50 % RH up to +30°C, decreasing to 40 % RH at 40°C
Max operational altitude 2000 m
Operational environment pollution degree 2
This appliance is designed to be used indoors and commercial areas
Vertically standing assembly

G360-UserManual-EN-revA-ver1
4(10)
For product support contact: [e-mail]
4.1 Precautions
See precautions on the following page!
ǃ
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
ǃ
The product shall be used only in dry indoor environment.
ǃ
The product shall be used only with connections providing Protective Earth (PE).
ǃ
The product has serviceable parts inside. Only Service Personnel authorized by
the manufacturer shall open the chassis mechanics for maintenance and service.
ǃ
The product has maintainable parts inside. For maintenance operations obey
carefully the maintenance instructions given in this user manual.
ǃ
For ensuring product’s performance and safety, use only original materials and
components validated and provided by the manufacturer, Genano Oy, Finland.
ǃ
The product shall be used only as the User Manual instructs. Improper use of the
product may impair the protection provided by the product design.
Caution! Risk of electric shock.

G360-UserManual-EN-revA-ver1
5(10)
For product support contact: [e-mail]
5.Lifting and carrying
The product weights approximately 19 kg. Handle for carrying the product is on the back
cover.
6.Installation
ǃ
The product shall be used and stored indoors.
ǃ
Do not use the product in vicinity of concentrated flammable gases, liquids, or
large amounts of dust. The product’s internal operation may ignite the
concentrated gases or dust.
ǃ
Do not use the product in rooms without fresh air ventilation.
ǃ
Connect the product with the AC power cord delivered with the product package.
ǃ
Use only AC power cord rated 220-240 Vac and with ground (PE) connection.
Wire diameter >1.5 mm2.
ǃ
Do not position the product so that it is difficult to operate if disconnection is
necessary.

G360-UserManual-EN-revA-ver1
6(10)
For product support contact: [e-mail]
6.1 Free standing floor installation
Position the product vertically on an even base in close vicinity of the room fresh air
ventilation. Ensure that the air inlets in the bottom sides or the clean air outlet on top of the
product are not covered by other objects. Connect the power supply cord to a wall socket with
Protective Earth (PE) connection.
For safety of use ensure in all installations that the AC power cable can be detached easily.
Do not install the product in wet locations, outdoors, or sheltered outdoor areas without
temperature control.
7.Operational use
7.1 Control panel
The control panel is on the left side of the product. For control operations the membrane
buttons shall be pushed. In order to prevent damage press membrane buttons with fingers.
Figure 2. Genano 360 control panel buttons and indication LEDs.
ǃ
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
Panel lock ”on”
Function ”ok”
Alarm
Power on/off
Fan speed down
Fan speed up
Five (5) indication LEDs for ten (10) speed levels

G360-UserManual-EN-revA-ver1
7(10)
For product support contact: [e-mail]
1) Turn on the product by pressing sharply the “Power On” button.
2) Adjust the air volume by pressing repeatedly the fan speed arrows. If you start the product
for the first time in a room, it is recommended to use the highest fan speed for a short
period, then lower the speed for continuous use. Lower fan speed drops the noise to
comfortable level. The room indoor air is cleaned and kept clean by continuous circulation
through Genano 360 product.
7.2 Power off
Switch the product operation off by pressing the “Power off” button.
7.3 Panel lock
Enable panel lock
Press the “Fan speed up” button and keep it pressed for four (4) seconds (1-2-3-4).
On the fourth (4.) second press sharply the “Fan speed down” and release both buttons
simultaneously. The “Panel lock on” indication LED lights up.
Panel lock release
Repeat the above procedure as the panel lock is “on”. The “Panel lock on” indication LED
shuts down.
Total panel lock
As the panel lock is “on”, press any button more than four (4) seconds. The panel lock stays
on and does not release by panel lock release. The total panel lock can be released by
disconnecting the power cord from the mains wall socket and waiting for at least two (2)
minutes. As the power cord is re-connected, the Genano 360 is returned to power off
status. The product operation can be re-started by pressing the “Power on” button.

G360-UserManual-EN-revA-ver1
8(10)
For product support contact: [e-mail]
8.Maintenance
Only Genano company authorized personnel may perform the maintenance operations. For
maintenance contact the local Genano representative.
8.1 Cleaning
De-energize the product by disconnecting AC power cord from 100-110 Vac 50/60Hz.
Wipe the product clean with slightly wet cloth. To avoid any damage on surface of the
control keyboard do not use strong detergents.
8.2 Air collector replacement
Only Genano company authorized personnel may perform the maintenance operations.
For maintenance contact the local Genano representative.
The air collector absorbs gaseous particles and Volatile Organic Compounds (VOC). The air
collector is in the upper chamber of the product. The air collector typically wears out in
one (1) year cycle and shall be replaced with a fresh one.
ǃ
The product has high voltage parts inside.
Only Service Personnel authorized by the manufacturer may perform tasks
that require opening the product.
ǃ
The product has high voltage parts inside.
Do not let liquids enter product chassis!
Disconnect the power supply before any maintenance operation!
ǃ
In order to ensure continuous air cleaning process it is essential to perform
regular maintenance by replacing the collector package with a fresh one.
Caution! Risk of electric shock.

G360-UserManual-EN-revA-ver1
9(10)
For product support contact: [e-mail]
As a service operation the Genano 360 air decontamination unit requires cleaning of the
collector tube at least once a year. For cleaning the collector tube the product shall be
dismantled for the cleaning. Only Genano company authorized personnel may perform the
maintenance operations. For maintenance contact the local Genano representative.
9.Product storage
If not used the product shall be stored indoors at dry environment. It is recommended to cover
the fresh air outlet on top side of the product. This prevents cumulating of dust that would be
spread around as the device is taken into use and started.
10. Troubleshooting
1) If the product does not start operation
Check that product gets AC mains supply voltage with Protective Earth (PE) connection.
2) Red alarm led is lit on
Any failure of the product operation is indicated by the red “Alarm” led on the control panel.
Request service from the local Genano representative.
3) The product does not remove odours
The air collector has saturated and is no longer able to absorb gaseous particles. Replace the
air collector with a fresh one. See Maintenance operations above.
ǃ
The product has high voltage parts inside.
Only Service Personnel authorized by the manufacturer may perform tasks
instructed here
Caution! Risk of electric shock.

G360-UserManual-EN-revA-ver1
10(10)
For product support contact: [e-mail]
11. End-of-Life instructions for disposal
Genano 360 product shall be recycled by dismantling the product and sorting the components into
following categories (refer to figure 6 below):
1) Product chassis and electronics base plate shall be recycled as aluminium (Al) parts.
2) Collector tube shall be recycled as ferrous steel (Fe).
3) Electronic components and cables shall be recycled as electronic waste. The base plate of
the electronics is aluminium (Al).
4) Product fan unit (highlighted in figure 6) made of reinforced polypropylene (PP) with
brominated flame retardants shall be arranged according to instructions given by the local
authorities. The fan unit can be disposed as whole.
5) Membrane control panel (highlighted in figure 6) made of flame retardant clear
polycarbonate (PC) film and polyethylene terephthalate (PET) plastic shall be recycled
according to instructions given by the local authorities.

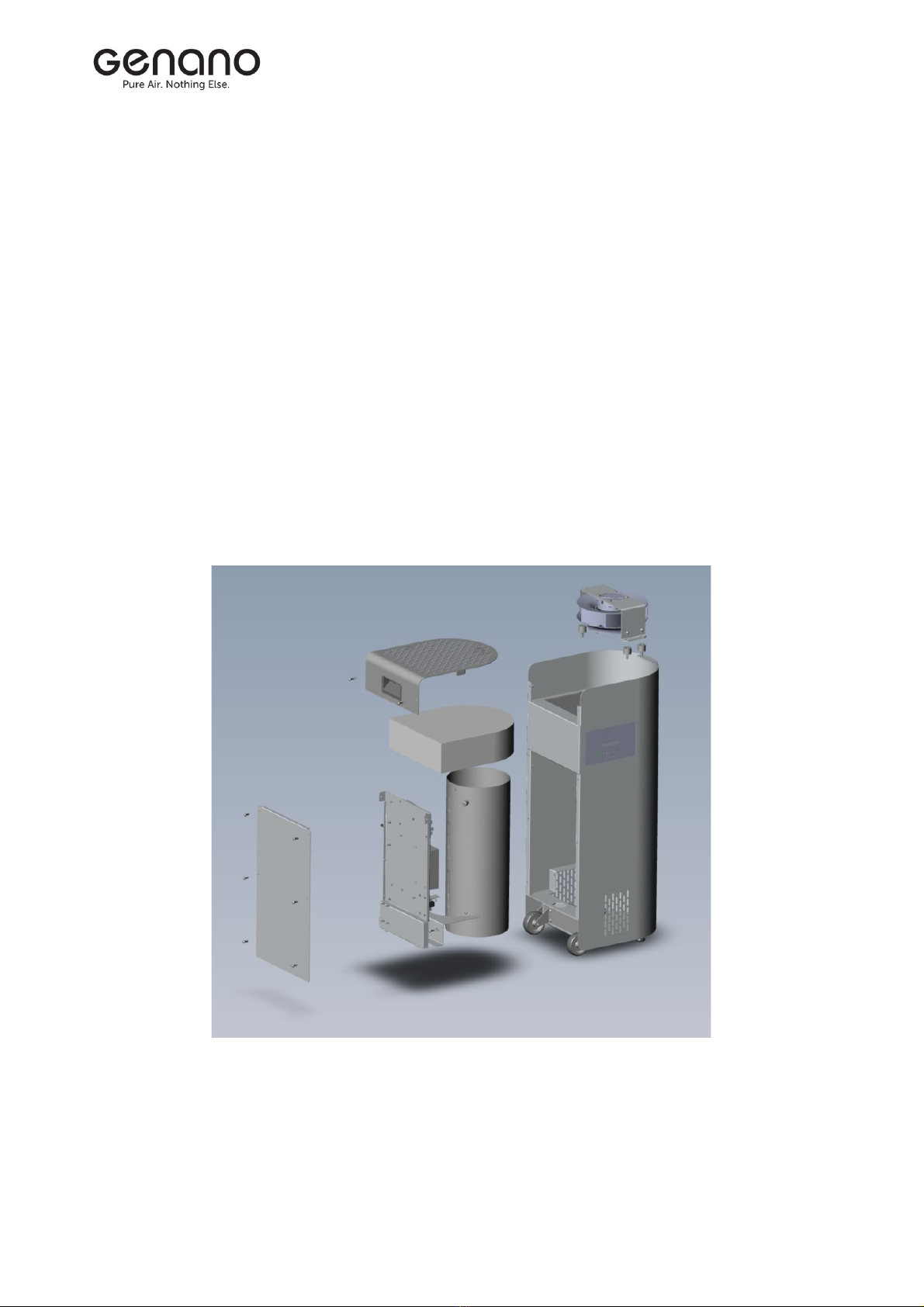

Figure 6. Genano 360 main components for recycling: 1. Chassis materials, electronics base
plate and collector tube, 2. Collector tube, 3. Electronic components and cables, 4. Fan
unit.
