The Genie WNVR416P5AI is a 16 channel high definition 8MP network video recorder with
4HDD bays. The WNVR416P5AI also supports face recognition when used in conjunction
with any “Xpert” range of face recognition IP cameras. The WNVR416P5AI features up to
16 channel simultaneous playback as well as 16 PoE network ports which supports direct
connection from the IP camera to the NVR. The NVR can support the latest H.265 and H.264
encoding streams. The WNVR416P5AI NVR has a dedicated iPhone and Android app (Super
Live Plus) and are supplied with free Windows / MAC CMS software.
1.1 Product Features
• Supports 16 channel 8MP, 5MP, 4MP, 3MP, 1080p, 960p and 720p IP input
• H.265 high profile compression format for high quality video at much lower bit rate
• Intuitive and user friendly Graphic User Interface (GUI), Windows style operation by
mouse
• Multi-mode recording: Manual, Timer, Motion, Sensor
• Playback : 16 channel simultaneous playback
• Search : Time slice, Time, Event (Manual, sensor, motion), Tag search
• Multi-user online simultaneously
• Pentaplex : Preview, Record, Playback, Backup and Remote access
• DHCP, DDNS, PPPoE network protocol and CMS supported
• Remote control via IE or CMS : Preview, Playback, Backup, PTZ and Configuration
• Express and flexible backup via USB, network and so on
• 16 PoE network ports, support IPC direct connection to NVR, support PoE power
supply
• Dual stream technology for local storage with high definition, remote network
transmission and remote surveillance with mobile device
• Authorisation management, log view and device statusview
• 4K output, high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QR Code scanning by mobile phone and iPad
• Powerful smart phone & iPad surveillance with iOS and Android OS
• Facial recognition
• HTML5 compatible browser support with firmware version 1.4.5 and above
1.2 Product Dimensions
1.0 Introduction
440mm
390mm
70mm

Quick Start Guide PoE 16 Channel H.265 8MP NVR with 4HDD Bays, Facial Recognition and LPR
5
1.3 Specification
Model WNVR416P5AI
System OS Embedded Linux
Mobile OS iOS, Android
Video
IP Video Input 16 channel IPC input
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 160Mbps
IP Video Input
Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 1280×1024 / 960p / 720p / 960H / D1 / CIF
Output
HDMI × 1 : 3840×2160 @ 60fps / 3840×2160 @ 30fps / 1920×1080 / 1280×1024 /
1024×768
VGA × 1 : 1920×1080 / 1280×1024 / 1024×768
Compression H.265S/H.265+/H.265/H.264
Audio
Network Input 16 CH IPC audio input
Two-Way Audio RCA × 1
Local Output RCA × 1
Compression G.711 (A/U)
Record
Record Stream Dual stream recording
Resolution 8MP / 6MP /5MP / 4MP / 3MP / 1080p / 1280×1024 / 960p/ 720p / 960H / D1 / CIF
Frame Rate NTSC: 30fps, PAL: 25fps
Mode Manual / Timed / Motion / Sensor /POS / AI recording
Face
Recognition
Channel 16 CH
Face Picture Database 32 libraries, 5000 face pictures
Computing Capability 180 pictures / minute
Face Picture Search Search by picture is supported
Database Management Add, modify, delete and search face pictures
Face Picture Adding Add face pictures through App, Web and external import
External Face
Picture Enrolment
Resolution: 128×128~920×1080
Size: ≤ 70KB
Format: jpg & jpeg
Face Picture Comparison Supports allow list and block list alarm
Face Track Yes
Map of
Face Track
Resolution: 2560×1920
Size: ≤ 512KB
Format: jpg & jpeg
Statistic Graph of Face
Information Bar graph
Statistic Mode of Face
Information Statistics by day, week, month, quarter as well as customised time period
Playback
Simultaneous Playback Max 16 CH
Search Time slice / Time / Event / Tag / Smart search
Smart Search Highlighted colour to display the camera record in a certain period of time, different
colours refers to different record events.
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability Live View / Playback: 1CH 8MP / 4CH 1080p
Alarm
Mode Manual, Sensor, Motion, Exception, Smart events
Input 8 CH local alarm input, supports IPC alarm input
Output 4 CH
Triggering Record, Snap, Preset, E-mail, etc.

Quick Start Guide PoE 16 Channel H.265 8MP NVR with 4HDD Bays, Facial Recognition and LPR
6
1.3 Specification
Model WNVR416P5AI
Network
Interface RJ45 1000 Mbps × 1
PoE Port RJ45 × 16 (IEEE802.3af, output power: ≤ 150W)
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, Onvif, etc.
Web Client Max. 10 users access
Remote
Monitoring
Immix Compatible with Immix via RTSP only (2-way audio not supported)
Sentinel Yes, Firmware 1.2.0 or later
Remote Access Internet Explorer (ActiveX), HTML5 compatible browser support with firmware version
1.4.5 and above
Backup &
Storage
Local Backup USB stick, USB mobile HDD
Storage HDD: SATA x 4, Max. 10TB per HDD
Network Backup Yes
Port
RS485 Yes (Full-duplex), Connect to PTZ or keyboard
USB USB 2.0 × 1 , USB 3.0 × 1 (One in the front panel and the other in the rear panel)
Remote Controller Optional
Video
Structure
Analysis
Human/Vehicle
Classification Yes
Others
Other Fucntions Fisheye: Supports fisheye dewarping via Web Client and mobile App,
Plate Recognition: Yes
Power Supply ATX, 300W
Consumption ≤ 30W (Without HDD and PoE power supply)
Working Environment -10~50°C, 10%~90% (Humidity)
Dimensions 440 × 390 × 70 mm

7
This series of the product supports 4 SATA hard drives. Please make sure that the device is
powered off before the installation. The pictures of the installation are for reference only.
1. Loosen the screws to open the cover.
2. Screw the screws into the HDD but do not tighten them.
3. Turn over the machine and place the HDD with two screws onto the bottom of the
case. Then lock the screws according to the order of the marks.
4. Install the other three HDDs according to above-mentioned method.
5. Connect the power and data cables.
6. Install back the cover and secure it with the screws.
Note: Please check the inside structure of the device and make sure that the cables are
connected well before installing the cover back. Please format the HDD before using.
2.0 HDD Installation

8
The interfaces of the rear panel are for reference only.
3.0 Rear Panel Instruction
Name Description
PoE Ports PoE network ports, connect to PoE IP camera
LAN Network port
VGA Connect to monitor
HDMI Connect to high definition display device
USB Connect to USB storage device or USB mouse
AUDIO OUT Audio output
AUDIO IN Audio input
P/Z P/Z; Connector for PTZ
K/B K/B; Connector for keyboard
ALARM IN Alarm input, connectors for sensors
ALARM OUT Alarm inutput
GND Ground

9
Startup
1. Connect the monitor and the power.
2. The device will boot and the power indicator will display blue.
3. A wizard window will pop up.
Shutdown
Click “Start” and then select “Shutdown” icon. This will bring up a shutdown window. The
device will shut down by clicking “OK” button. Then disconnect the power.
4.0 Start Up and Shut Down

10
The default username is admin and the default password is 123456. You must configure the
wizard if you start the NVR for the first time and you may change the password when you
configure the wizard for the first time. You can skip the settings wizard next time.

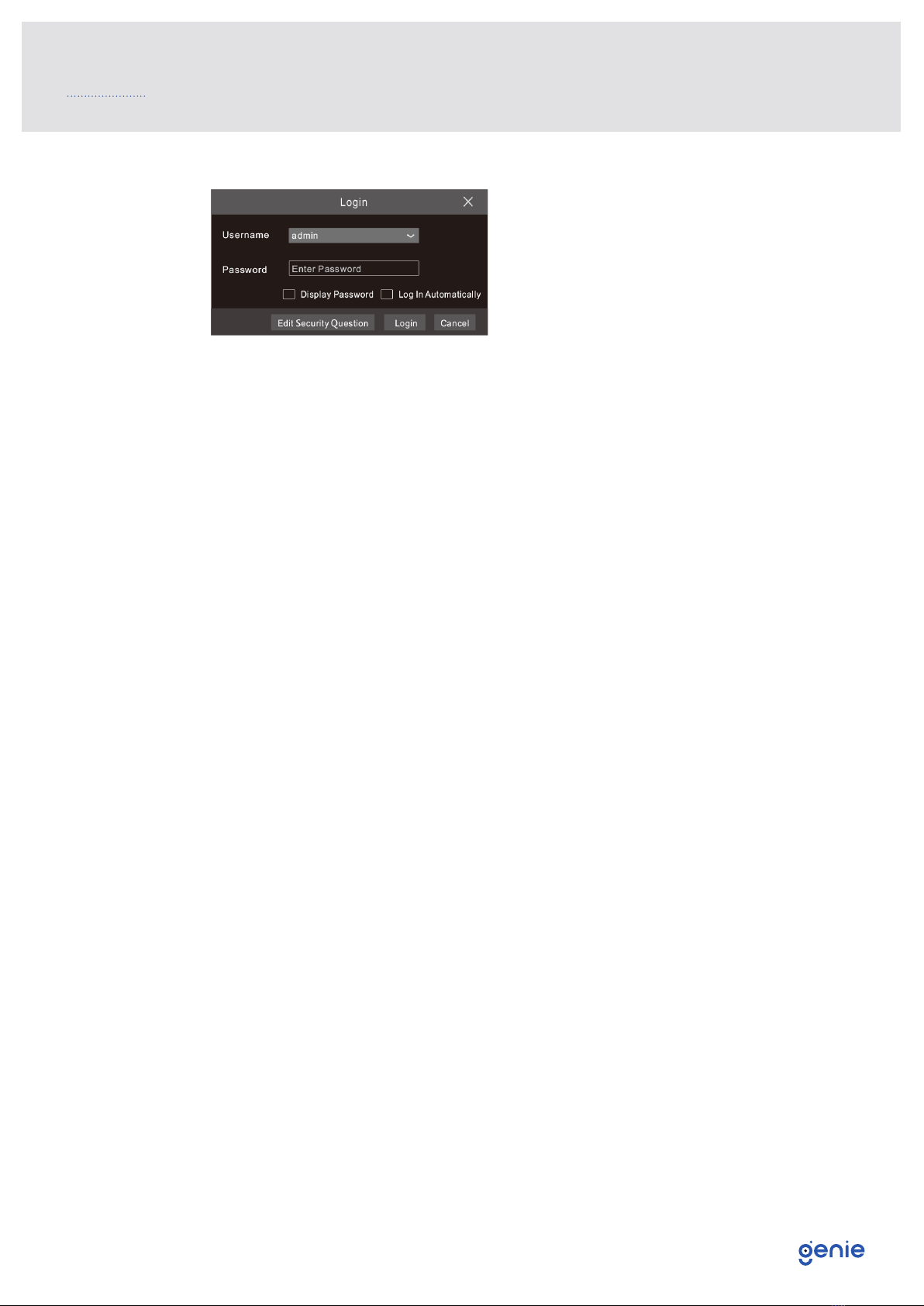

Click “Start” and select “Login”. This will take you to see a login box. Enter the default
username and password you set. Then you will see the live image.
5.0 Login

11
6.1 Network Configuration & Adding IP Camera
After you finish adding IP cameras, you can see the live images through the monitor of the
NVR. The following will mainly introduce how to add the IP cameras via LAN/WAN.
LAN
1. Set the network of the NVR. Go to Start → Settings → Network → TCP/IP. Enter IP
address, subnet mask, gateway, etc. If using DHCP, please enable DHCP in both the
NVR and the router.
2. Go to Start → Settings → Network → Port. Enter HTTP port (the default value is 80),
server port (the default port is 6036).
3. The internal ethernet port is the port which connects all the PoE ports with the NVR
system. The PoE ports are available if the internal ethernet port is online. If it is offline,
all the PoE ports will be unavailable. The IP address and subnet mask of the internal
ethernet port can be changed to make the port in the same network segment with the
IP cameras which directly connect to the PoE ports of the NVR.
4. Go to Start → Settings → Camera → Add Camera. The NVR will automatically refresh the
cameras searched. The IPC which supports the Onvif protocol may be added manually.
If the IPC searched is not in the same local network as the NVR, you should select the
device and click to modify the IP address.
6.0 Configurations and Connections

Quick Start Guide PoE 16 Channel H.265 8MP NVR with 4HDD Bays, Facial Recognition and LPR
12
5. Checkmark the device you want to add and then click “Add” button.The NVR will
automatically refresh the cameras and return to “Edit Camera” interface. “Online” status
means connecting the device successfully and you will see the live image. You may
select the added device and click button to modify channel, IP address, etc.
WAN
1. Set the network of the NVR. Go to Start → Settings → Network → PPPoE. Enter static IP
address or enable PPPoE and then enter the user name and password received from
your ISP.
2. Go to Start → Settings → Camera. Click “Add Camera” or behind the column of the
search camera and select “Manually Add” to add the IP cameras. Enter IP address,
server port, username and password of the IP camera. The IP camera must be
connected over WAN. And here the IP address of the IP camera must be a WAN IP
address.

13
You can use the UPnP function to enable the fast connection of the device to WAN via a
router without port mapping.

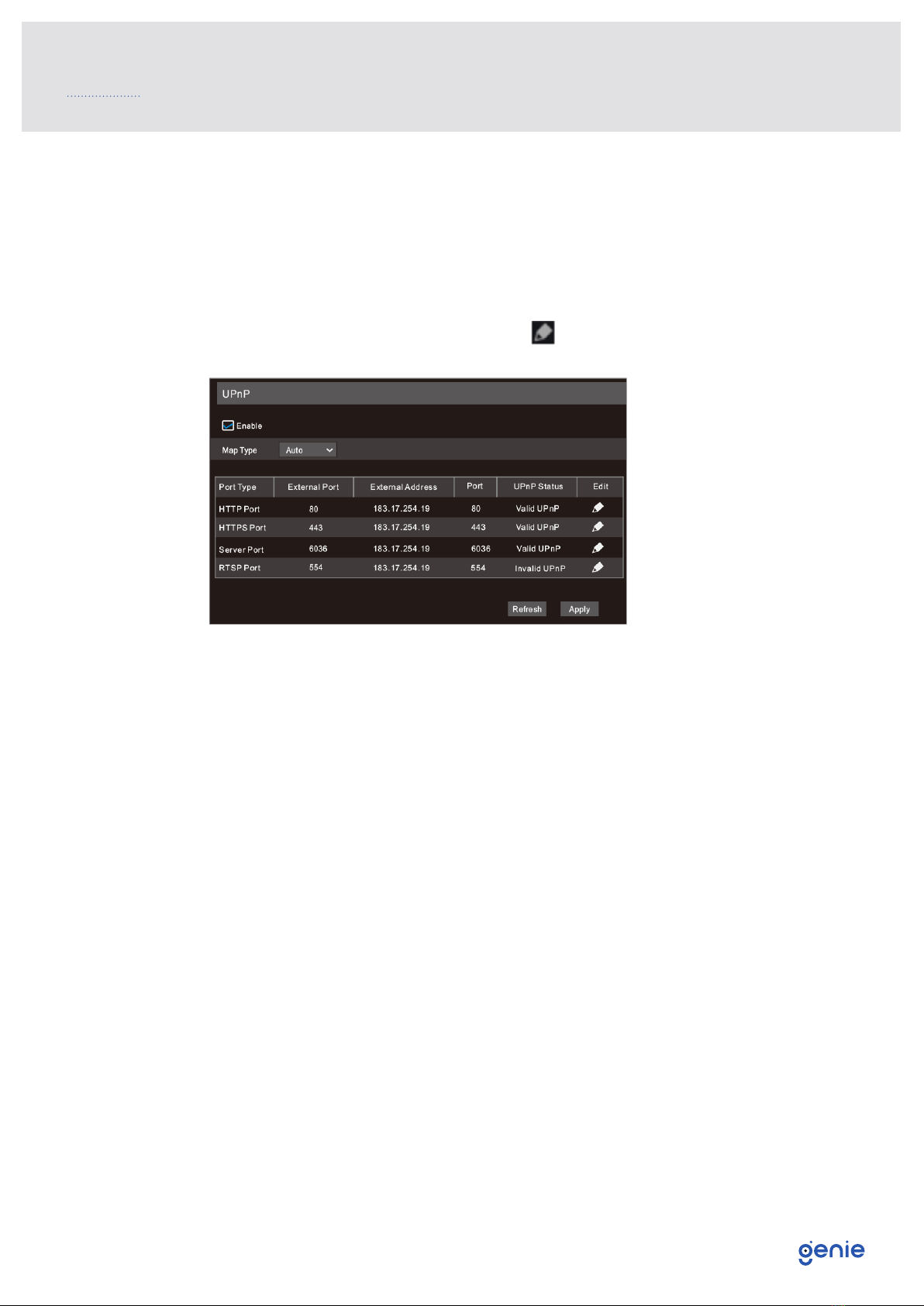

1. Go to Start → Settings → Network → UPnP, and enable UPnP and then click “Apply”
button to save.
2. Enable the UPnP function in the router.
3. Click “Refresh” button to refresh the UPnP status. If the UPnP status were still “Invalid
UPnP” after refreshing it for several times, the port would be wrong. Please change the
mapping type to “Manual” and then click to modify the port until the UPnP status
turns to “valid UPnP”.
7.0 UPnP

14
NAT Settings
1. The NVR shall be powered on and connected to the network.
2. Go to Start → Settings → Network → TCP/IP. You can obtain the IP address, subnet mask
and gateway automatically. You can also manually enter them according to the actual
network situation. Please make sure the network segment is the same as that of the
network which is used.
3. Set the preferred or alternative DNS Server. Click “Apply” to save the parameters.
4. Go to Start → Settings → Network → NAT tab. Enable NAT and select the NAT Server
Address (The default NAT Server Address is nat.autonat.com). Click “Apply” to save the
parameters.
NAT Access
After finishing the NAT settings, you can enter www.autonat.com in the address bar of
your browser and then press enter to go to the following interface. If you are the first time
to access the NAT, you shall download and install the plug-in according to the tips. After
installing the plug-in successfully, it will pop up the login box.
Device Serial Number:
Click on the menu bar at the bottom of the live interface to check the serial number or
go to Start → Settings → Network → Network Status to check the serial number of the NVR).
Username:
The username of the NVR. The default username is admin.
Password:
The password of the NVR. The password is set by yourself when you configure the wizard
for the first time.
8.0 NAT

15
9.1 Manual Recording
Before recording, please install and format a HDD. In the live interface you can see the
menu toolbar. Click button to start recording. Click it again to stop recording. You can
also click to check the status of the recording.
9.2 Playback
Instant Playback
Click “Instant Playback” in the right-click menu of the camera’s preview window to select
or drag the playback progress bar to change the playback time to play back the record.
General Playback
Click on the tool bar at the bottom of the live preview interface or click
Start → Playback to go to the playback interface as shown below. You can also
add the playback cameras manually. Click in the playback window to pop up the “Add
Camera” window. Check the cameras in the window and then click “Add” to add playback
camera. The record files of the added playback camera
will be played in the playback interface.
9.0 Manual Recording and Playback

Sales [phone]
Enquiries [email protected]o.uk
Website www.genieproducts.co.uk
