Genie WIP1VD User manual

Notes on Safety
Please use the specified power supply to connect.
Do not attempt to disassemble the camera; in order to prevent electric shock, do not
remove screws or covers.
There are no user-serviceable parts inside. Please contact the nearest service center as
soon as possible if there is any failure.
Avoid from incorrect operation, shock vibration, heavy pressing which can cause
damage to product.
Do not use corrosive detergent to clean main body of the camera. If necessary, please
use soft dry cloth to wipe dirt; for hard contamination, use neutral detergent. Any
cleanser for high grade furniture is applicable.
Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this
may damage the image sensor.
Please follow the instructions to install the camera. Do not reverse the camera, or the
reversing image will be received.
Do not operate it incase temperature, humidity and power supply are beyond the limited
stipulations.
Keep away from heat sources such as radiators, heat registers, stove, etc.
Do not expose the product to the direct airflow from an air conditioner.
This is product instructions not quality warranty. We may reserve the rights of amending
the typographical errors, inconsistencies with the latest version, software upgrades and
product improvements, interpretation and modification. These changes will be published
in the latest version without special notification.
When this product is in use, the relevant contents of Microsoft, Apple and Google will
be involved in. The pictures and screenshots in this manual are only used to explain the
usage of our product. The ownerships of trademarks, logos and other intellectual
properties related to Microsoft, Apple and Google belong to the above-mentioned
companies.
This manual is suitable for network camera. All pictures and examples used in the
manual are for reference only.

Table of Contents
1Introduction ...................................................................................................................1
2IE Remote Access...........................................................................................................2
2.1 LAN................................................................................................................................................ 2
2.1.1 Access through IP-Tool .................................................................................................. 2
2.1.2 Directly Access through IE............................................................................................. 3
2.2 WAN............................................................................................................................................... 5
3Remote Preview .............................................................................................................7
3.1 The Remote Preview Interface........................................................................................................ 7
3.2 Playback.......................................................................................................................................... 8
3.3 Snap Pictures................................................................................................................................... 8
4Remote Live Surveillance............................................................................................10
4.1 System Configuration.................................................................................................................... 10
4.1.1 Basic Information......................................................................................................... 10
4.1.2 Date & Time................................................................................................................. 10
4.2 Video Configuration...................................................................................................................... 11
4.2.1 Camera ......................................................................................................................... 11
4.2.2 Video Stream................................................................................................................ 12
4.2.3 OSD Configuration....................................................................................................... 13
4.2.4 Video Mask .................................................................................................................. 13
4.2.5 ROI Configuration........................................................................................................ 14
4.3 Alarm Configuration..................................................................................................................... 15
4.3.1 Motion Detection Area................................................................................................. 15
4.3.2 Motion Detection Trigger............................................................................................. 15
4.3.3 Motion Detection Schedule........................................................................................... 16
4.3.4 Alarm Server ................................................................................................................ 16
4.4 Network Configuration ................................................................................................................. 17
4.4.1 Port............................................................................................................................... 17
4.4.2 IP Address..................................................................................................................... 17
4.4.3 Server Configuration .................................................................................................... 18
4.4.4 IP Notify....................................................................................................................... 18
4.4.5 DDNS Configuration.................................................................................................... 19
4.4.6 RTSP ............................................................................................................................ 20
4.4.7 UPNP ........................................................................................................................... 20
4.4.8 Mail configuration........................................................................................................ 20
4.4.9 FTP Setting................................................................................................................... 21
4.5 Advanced Configuration............................................................................................................... 22
4.5.1 User Configuration....................................................................................................... 22
4.5.2 Security Configuration.................................................................................................. 23
4.5.3 Configure Backup & Restore........................................................................................ 24
4.5.4 Reboot.......................................................................................................................... 24
4.5.5 Upgrade........................................................................................................................ 25
Appendix................................................................................................................................26

Network Camera User Manual
Appendix 1 Q & A ................................................................................................................................... 26
Appendix 2 Specifications........................................................................................................................ 27

1
Network Camera User Manual
1Introduction
This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state of the art video processing chips. It utilizes most advanced technologies, such as
video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to
ensure this system more stable and reliable.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks.
Main Features
720P（1280 ×720）full real time coding
ICR auto switch, true day/night
3D DNR, digital WDR
ROI coding
Support smart phone, iPad, remote monitoring
Surveillance Application

2
Network Camera User Manual
2IE Remote Access
You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example.
The details are as follows:
2.1 LAN
In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access
through IE browser.
2.1.1 Access through IP-Tool
Network connection:
①Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the
PC from the CD.
②Double click the IP-Tool icon on the desktop to run this software as shown below:
③Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information on the
right hand. Modify the IP address and gateway of the camera and make sure its network
address is in the same local network segment as the computer’s. Please modify the IP address
of your device according to the practical situation.

3
Network Camera User Manual
For example, the IP address of your computer is 192.168.13.4. So the IP address of the camera
shall be changed to 192.168.13.X. After modification, please input the password of the
administrator and click “Modify” button to modify the setting.

④Double click the IP address and then the system will pop up the IE browser to connect
IP-CAM. IE browser will auto download the Active X control. After downloading, a login
window will pop up as shown below.
Input the username and password to log in.

2.1.2 DirectlyAccess through IE
The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
You may use the above default settings when you log in the camera for the first time. You may
directly connect the camera to the computer through network cable.
The default password of the administrator is “123456”.
The default username is “admin”; the default password is “123456”.

4
Network Camera User Manual
①Manually set the IP address of the PC and the network segment should be as the same as
the default settings of the IP camera. Open the network and share center. Click “Local Area
Connection” to pop up the following window.
Select “Property” and then select internet protocol according to the actual situation (for
example: IPV4). Next, click “Property” button to set the network of the PC.

5
Network Camera User Manual
②Open the IE browser and input the default address of IP-CAM and confirm. The IE
browser will download Active X control automatically.
③After downloading Active X control, the login dialog box will pop up.
④Input the default username and password and then enter to view.
2.2 WAN
Access through the router or virtual server
①Make sure the camera is well connected via LAN and then log in the camera via LAN and
go to ConfigNetwork ConfigPort menu to set the port number.
②Go to Config Network ConfigIPAddress menu to modify the IP address.
Port Setup IP Setup
③Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.
Router Setup
④Open the IE browser and input its WAN IP and http port to access.

6
Network Camera User Manual
Access through PPPoE dial-up
Network connection
You may access the camera through PPPoE auto dial-up. The setting steps are as follow:
①Go to ConfigNetwork ConfigPort menu to set the port number.
②Go to Config Network ConfigIP Address menu. Check “PPPoE” and then input the
user name and password which you can get from your internet service provider.
③Go to Config Network ConfigDDNS Config menu. Before you configure the DDNS,
please apply for a domain name first. Please refer to 4.4.5 DDNS Configuration for detail
information.
④Open the IE browser and input the domain name and http port to access.
Access through static IP
Network connection
The setting steps are as follow:
①Go to ConfigNetwork ConfigPort menu to set the port number.
②Go to Config Network ConfigIP Address menu to set the IP address. Check “Use the
following IP address” and then input the static IP address and other parameters.
③Open the IE browser and input its WAN IP and http port to access.

7
Network Camera User Manual
3Remote Preview
3.1 The Remote Preview Interface
When motion detection alarm is triggered, the people icon will turn red.
Right click to pop up a pull-down list as shown below:
Stream: Three streams are optional.
Turn off the live: Click this item to close present live preview.
Full screen: The live preview picture will be full-screen display. Double click or click right
mouse to return to the previous interface.
1
People icon
4
Zoom in
7
Start recording
2
Fix size
5
Zoom out
8
Playback
3
Actual size
6
Full screen
9
Snap

8
Network Camera User Manual
Online user: Display the current user connecting to the device.
System information: Display the device information: device name, firmware version,
software build date, kernel version and hardware version.
3.2 Playback
Before you play the record files, please make sure you have recorded. You can click
button to record. Then click button to pop up a video player. Double click the record
file to play the video as shown below.
1
Play
5
Next frame
9
Zoom out
2
Pause
6
The previous file
10
Full screen
3
Stop
7
The next file
11
Path
4
Forward
8
Zoom in
12
Volume
3.3 Snap Pictures
Select the picture number, and then click “Snap” icon as shown below:

9
Network Camera User Manual

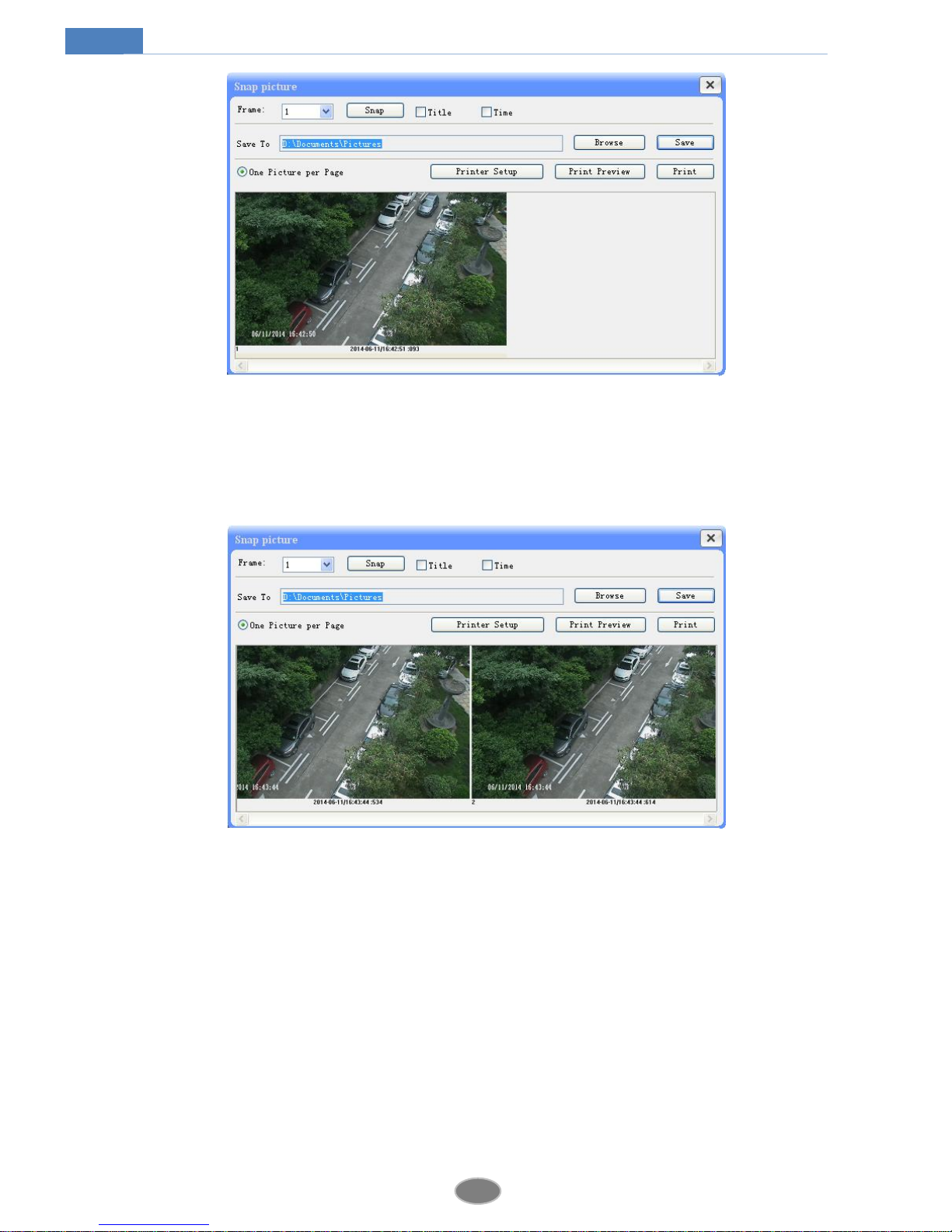

Single Snap
Snap multiple pictures:
Select the picture number from Frame pull down list box, such as 2, and check “Title” and
“Time” to show capture title and time on the snap pictures simultaneously.
Multi-picture Snap

10
Network Camera User Manual
4Remote Live Surveillance
Functions of remote configurations include: System Configuration, Video Configuration,
Alarm Configuration, Network Configuration and Advanced Configuration. You should
select the menu on the left, and then set up the relative parameters.
4.1 System Configuration
The “System configuration” includes two submenus: Basic Information and Date & Time.
4.1.1 Basic Information
In the “Basic Information”interface, you can set up the device name and can also check the
relative information of the server.
Setting steps:
1. Clicking the “Config”icon will appear the menu list.
2. Clicking the “Basic Information” will pop up a window as shown below:
3. Input the name of the device in the “Device name”text box.
4. Press the “Save”button to save the settings.
Please refer to the following table for parameters and instructions of server basic
configuration.
Parameter
Meaning
Software version
The software of the device
Software build date
The software build date of the device
Kernel version
The kernel version of the device
Hardware version
The hardware version of the device
Mac Address
MAC address of device
Maximum number of user
Support max 4 users to access
Device name
Name of the device.
4.1.2 Date & Time
Setting steps:

11
Network Camera User Manual
1. Go to System ConfigDate & Time menu as shown below.
2. Set time zone.
3. Enable DST mode as required.
4. Set time. You may set time manually or enable NTP.
4.2 Video Configuration
Camera Configuration includes five submenus: Camera, Video Stream, OSD Config, Video
Mask and ROI Config.
4.2.1 Camera
Setting steps:
1.Go to “Video Configuration”“Camera”interface as shown below.
2. You may adjust frequency, brightness, contrast, hue and saturation of the picture.
3. Select white balance mode.

12
Network Camera User Manual
4. Wide dynamic, sharpen, denoise and distortion correction are adjustable.
5. Set day-night mode, sensitivity, infrared mode and exposure type.
6. You may enable the image mirror and image overturn function.
7. Press the “Save”button to save the settings.
Before distortion correction After distortion correction
4.2.2 Video Stream
Go to “Video configuration”“Video Stream”to see an interface as shown below.
Three video streams can be adjustable.
Resolution: The higher the resolution is, the clearer the image is.
Frame rate: The higher the frame rate is, the more fluency the video is. However, more
storage room will be taken up.
Bitrate type: Including CBR and VBR. CBR means that no matter how changeable the video
resources are, the compression bitrate keeps constant. This will not only facilitate the image
quality better in a constant bitrate but also help to calculate the capacity of the recording.
VBR means that the compression bitrate can be adjustable according to the change of the
video resources. This will help to optimize the network bandwidth.
Video Quality: When VBR is selected, you need to choose image quality. The higher the
image quality you choose, the more bitrate will be required.
Bitrate: Please choose it according to the actual network situation.
I Frame interval: It is recommended to use the default value. If the value is over high, the
read speed of the group of pictures will be slow resulting in the quality loss of the video.
Video encoding profile: Baseline and main profile are optional. Baseline profile is mainly
used in interactive application with low complexity and delay. Main profile is mainly used for
higher coding requirement.
Alarm picture size: Please select it according to the actual situation.
Video encode slice split: If enabled, you may get more fluency image even though using the
low-performance PC.

13
Network Camera User Manual
4.2.3 OSD Configuration
Go to “Video Config” “OSD Config” menu to display the interface as shown below.
You may set time stamp, device name and custom OSD here. Drag the time stamp and custom
OSD to set their position. Then press the “Save”button to save the settings.
4.2.4 Video Mask
Go to “Video Config” “Video Mask” menu to display the interface. You can set 4 mask
areas at most.
To set up video mask
1. Enable video mask.
2. Click “Draw” button and then drag the mouse to draw the video mask area.

14
Network Camera User Manual
3. Click “Save” button to save the settings.
4. Return to the live to see the following picture.
Clear the video mask:
Go to video mask menu and then click “Clear” button to delete the current video mask area.
4.2.5 ROI Configuration
To set up ROI
1. Go to Video ConfigROI Config menu.
2. Check “Enable” and then click “Draw” button.
3. Drag the mouse to set the ROI area.
4. Set the level.
5. Click “Save” button to save the settings.
Now, you will see the selected ROI area is clearer than other areas especially in low bitrate
condition.

15
Network Camera User Manual
4.3 Alarm Configuration
Alarm configuration includes four submenus: Motion Detection Area, Motion Detection
Trigger, Motion Detection Schedule and Alarm Server.
4.3.1 Motion Detection Area
1. Go to “Alarm configuration”“Motion Detection Area”to see an interface as below.
2. Move the “Sensitivity”scroll bar to set up the motion trace sensitivity.
3. Check the “Add”, press the “Ctrl”button and move mouse to select the motion detection
area. Select “Erase” and move the mouse to clear all motion detection area.
4. Press the “Save”button to save the settings.
4.3.2 Motion Detection Trigger
1. Go to “Alarm Configuration” “Motion Detection Trigger”to display an interface as
shown below.
2. Check “Enable alarm”check box. Then all functions under this interface will be activated.
3. Trigger Email: Check “Attach picture” and the triggered snap pictures will be sent into the
address.
4. Trigger FTP: Check “Uploading picture”. Then the triggered snap pictures will be sent into
FTP server address. Please refer to FTP configuration chapter for more details.
5. Press the “Save”button to save the settings.

16
Network Camera User Manual
4.3.3 Motion Detection Schedule
Go to “Alarm configuration”“Motion Detection schedule”interface as shown below.
Week schedule
You can set the alarm time from Monday to Sunday for alarm everyday in one week.
Add: Add the schedule for a special day.
Erase: Delete holiday schedule.
Day schedule
You can set alarm time for alarm in some time of special day, such as holiday.
1. Select a date at the “Date”pull down list, press “Add”button to add that date to the list box
on the right side and then move the scroll bar to set the schedule of that day.
2. Select a date in the list box on the right side, and press “Erase”to remove the schedule on
that day.
Press the “Save”button to save the settings.
Note: Holiday schedule is prior to Week schedule.
4.3.4 Alarm Server
Go to “Alarm configuration”“Alarm Server” interface as shown below.
You may input the alarm server address and port for auto report the alarm information to the
alarm server. When the alarm happens, the camera will automatically transfer the alarm event
