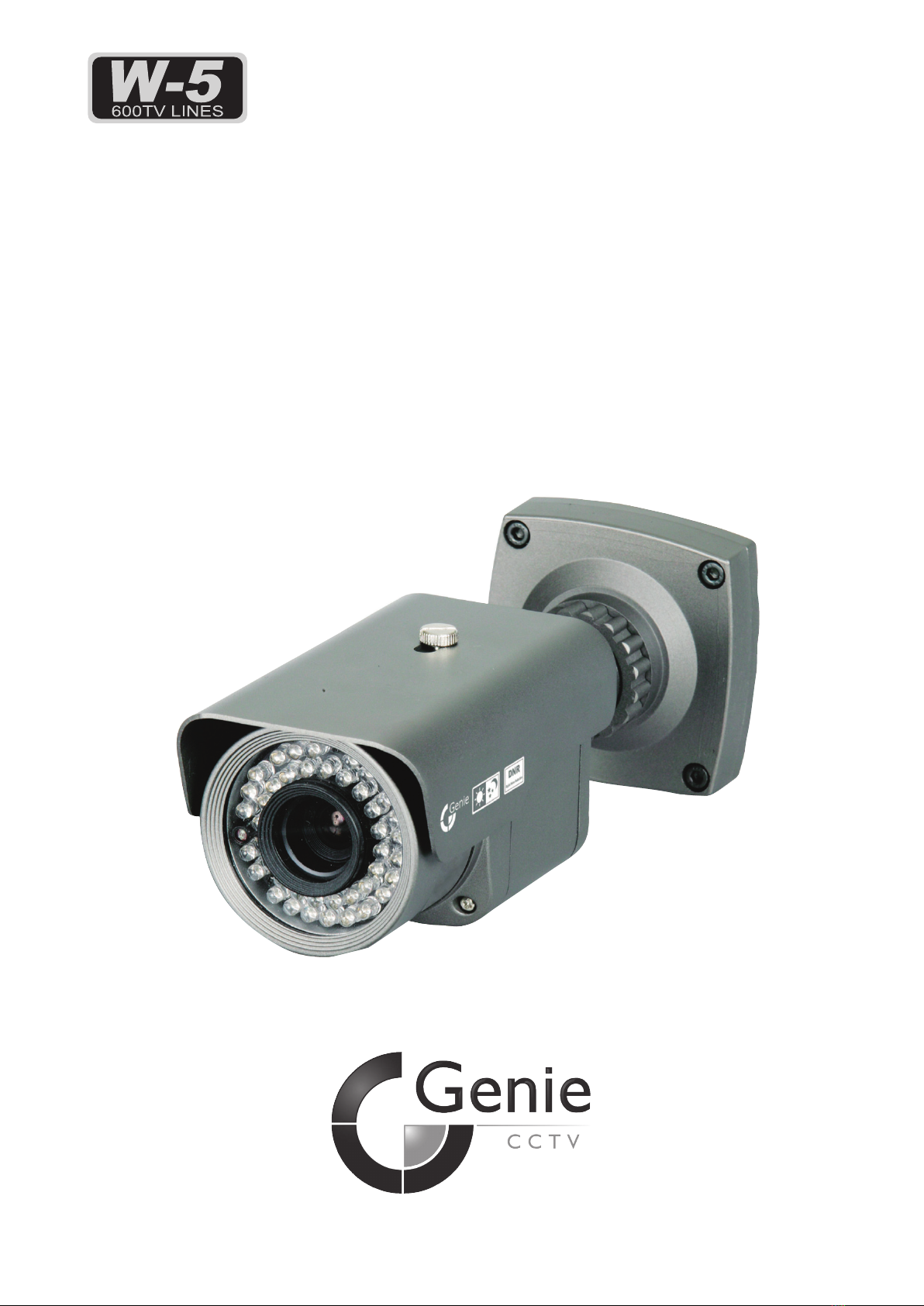

Genie ZD2812IR User manual

ULTRA HIGH RESOLUTION NIGHTVISION CAMERA
with 3D DNR
ZD2812IR
USER MANUAL

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
This installation should be made by a qualified service person and
should conform to all local codes.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.

Precautions
Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Do not install or use the camera in an
environment where the humidity is high.
Do not drop the camera or subject
it to physical shocks.
Do not expose the camera to
radioactivity.
Do not install the camera under
unstable lighting conditions.
Never keep the camera pointed
directly at strong light.
Only use the camera in conditions
where temperatures are between
-20°C and +50°C. Be especially careful
to provide ventilation when operating
under high temperatures.
This is one of the most important parts
of the camera. Be careful not to leave
fingerprints on the lens cover.
Do not install or use the camera in an
environment where the humidity is
high.
It can cause malfunctions to occur.
If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Severe lighting change or flicker can
cause the camera to work improperly.
NOTE
* If the camera is exposed to
spotlight or an object reflecting strong light, smear or blooming may
occur.
* please check that the power satisfies the normal specification before
connecting the camera.

SPECIFICATIONS
MODEL
1/3” Sony Super HAD CCD ll
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
600TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Colour / BW / AUTO / EXT
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off / V-Rev / H-Rev
DC 12V / AC 24V-Dual Voltage
CDS ON:1A Max
DC Auto Iris Varifocal Lens(2.8mm-12mm)
~20 ~ +50 Deg C. RH95% MAX.
~20 ~ +60 Deg C. RH95% MAX.
88mm(W) * 115mm(H) * 245mm(D)
1600g
ZD2812IR
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronisation
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
SSDR
BLC
Day & Night
Gain Control
White Balance
SENS-UP
Motion Detection
Privacy Masking
SSNR III (Digital Noise Reduction)
Digital Zoom
DIS (Digital Image Stabilizadion)
Sharpness
Filp / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
600TV Lines
DC Auto Iris Varifocal
Lens (2.8mm-12mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
IP 66
Temperature Sensor/Heater
Ultra High Resolution Nightvision Camera with 3D DNR
Built-in 42-power infrared LEDs with CDS Sensor
Camera OSD Control
Anti Vandal
Hood Camera
IP66
Registant
Weather
Function
DC 12V / AC 24V
LENS
DC VARIFOCAL
Shutter
High Speed
Resolution
Horizontal
Backlight
Compensation
600
BLC
Auto White
Balance
DAY & NIGHT
CCD
1/3"
0.00002Lux
Minimum
Illumination
Auto
Gain
Control
FILTER CHANGE
NIGHT DAY
OSD
Motion
Detection
2x ~ 512x

HOW To Install
Camera Adjustment
General Features
Dimensions
SETTING
* 1/3" SONY Super HAD CCD
* Ultra High Resolution : Colour - 600TV Lines / B/W - 700 TV Lines
* Max. Sens-Up (×512), 0.00002 Lux of Min. lllumination
* Convenient OSD Control Function
* ×16 Digital Zoom
* Free Area Selectable Function of BLC and MD
* Privacy Colour Masking for 12 Area Selection
* ICR-IR Cut Filter Removable
* Max 70% of Disk Saving Effect with Super DNR
* DC 12V / AC24V(Dual Voltage)
①Connect Video & Power Line (12V DC/24V AC Regulated Power).
② Position the camera for the correct angle of view.
③ Loosen the locking screws and focus the camera.
④ Re-tighten the locking screws.
Settings can be made using the OSD button located in the
body housing.
OSD Control Board
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
MAIN SETUP
DC
ATW
OFF
OFF
ON
AUTO
SAVE
1.BRIGHTNESS
2.SHUTTER
3.AGC
4.SENS-UP
5.RETURN
EXPOSURE SETUP
25
- - -
HIGH
OFF
1.IMAGE ADJ
2.MONITOR
3.CAM TITLE
4.SYNC
5.MOTION DET
6.PRIVACY
7.COMM ADJ
8.LANGUAGE
9.RETRUN
SPECIAL
LCD
OFF
INT
OFF
OFF
OFF
ENGLISH

1
Contents
◑Contents
◑Safety Instructions
◑General Features
◑OSD Control Button
◑Camera Menu Set Up
1. Menu Set Up
2. Lens Setting
3. Exposure Setting
4. White Balance Setting
5. SSNR Setting
6. Backlight Setting
7. DNR3 Setting
8. Day/Night Setting
9. Special Setting
10. Exit Setting
◑Trouble Shooting
1
2
3
4
5
5
5
6
7
8
9
10
11
12
17
18

2
Precautions for use
Please read this manual thoroughly before using the camera to become familiar with the
correct operational procedures.
Cautions When Using
Do not open the camera body and touch any electrical parts to avoid possible electric shocks.
Do not insert objects into the camera body to prevent fire hazards and electric shock.
Do not touch the camera with wet hands - to avoid an electric shock.
Do not disconnect the power cord from a power plug when still connected to the outlet.
Always disconnect the power by removing the plug from the power socket.
lf the camera emits a burning smell, immediately disconnect it from the power source and
report the problem to your distributor.
Cautions When Install
Only apply power after installation of the product.
Do not install the camera in a position facing directly at a strong light source.
Do not install or use the camera in areas of high humidity.
Do not install near any cooling or heating equipment.
Do not install the camera in dusty environments.
Do not install the camera in places where the camera is subjected to physical shocks.
This products must be used with a regulated DC12V or AC24V adaptor for power.
☞
☞
☞
☞
☞
☞
☞
☞
☞
☞
☞
☞
☞
☞
Safety Instructions

3
General Features
◑ Ultra High Sensitivity
- The built-in high sensitivity COLOUR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower
illumination.
◑ 600TV Lines
- By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera
produces clear picture quality with a horizontal resolution of 600 TV lines for colour and a horizontal
resolution of 700TV lines for BW mode.
◑ DNR3
- The high-performance W-V DSP chip effectively removes low-light gain noise and ghosting to provide
clear images even in dark environments.
◑ Day & Night
- This camera has a function that automatically selects the mode that is appropriate for daytime or night-time
conditions.
The COLOUR mode operates in daytime conditions to provide optimum colours, and BW mode operates in
night-time conditions to enhance the definition of the image.
◑ SSNR
- For images with high contrast between bright and dark Areas from difficult lighting conditions such as
backlighting, this camera selectively illuminates darker Areas while retaining the same light level for
brighter Areas to even out the overall brightness.
◑Miscellaneous Functions
- HLC(High Light Compensation), SENS-UP, FLIP(H/V-REV), D-ZOOM, SHARPNESS, MOTION DETECTION and PRIVACY
functions are provided.
◑ Disk Saving Effects
- Up-most and advanced DNR technology camera picture quality has a disk saving effects due to Image sizes
are smaller than standard CCTV camera image.
◑ Controlled by OSD Menu
- The camera can be controlled by selecting the menu text displayed on the monitor screen.

4
OSD Control Button
1. Type A, Type B, Type C of OSD button could be used when it needs to
OSD control.
2. Type D is extra Option (wired Remote controller)
▲Up button: Moves the cursor upwards. Use this button to select an item
or adjust the parameters.
▼Down button: Moves the cursor downwards. Use this button to select an
item or adjust the parameters.
◀Left button: Moves the cursor to the left. Use this button to select or
adjust the parameters of the selected item. The parameter changes
each time this button is pressed.
▶Right button: Moves the cursor to the right. Use this button to select or
adjust the parameters of the selected item. The parameter changes each
time this button is pressed.
◎Set button: Executes selections and displays a submenu for an item with
the mark.

5
●
Menu Setup
●
Lens Setting

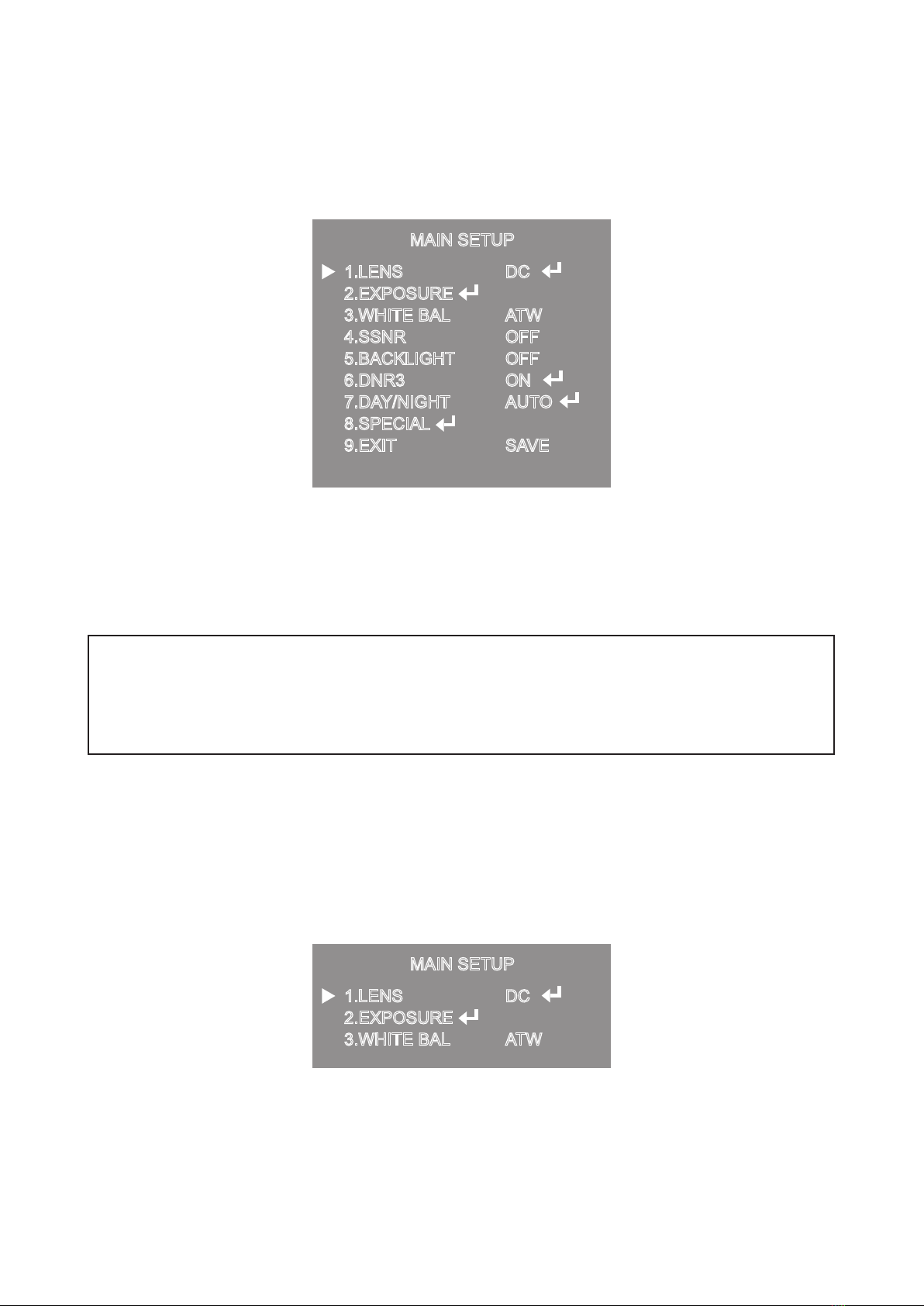

1. Press the Function Setup switch.
- Main setup menu is displayed on the monitor screen.
3. THE Lens mode has sub menu items as listed below.
- BRIGHTNESS : Adjusts the video brightness.
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select 'LENS' by using
the Function Setup switch so that the arrow indicates 'LENS'.
2. DC : You can adjust the minimum shutter and maximum value of ESC
shutter mode.
2. Select a desired function using the Function Setup switch.
- Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select 'EXIT' and press the Function Setup switch.
MAIN SETUP
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
1.LENS
2.EXPOSURE
3.WHITE BAL
DC
ATW
OFF
OFF
ON
AUTO
SAVE
DC
ATW
☞ NOTE
■ An item with the
◀
icon also has sub menus. To select a sub menu, select an item
with the icon and press the Function Setup switch.
■ An item with the - - - icon is unavailable due to function settings.

6
- FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the
Focus Settings mode under each lens menu. Activate the Focus Settings
mode, adjust the lens focus, and then deactivate the settings mode.
☞ NOTE
■ If colour rolling occurs when using a DC lens, set Shutter to Fixed (---).
☞ NOTE
■ When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
●
Exposure Setting
1. When the SETUP menu screen is displayed, select 'EXPOSURE' by
using the Function Setup Switch.
2. Select a desired mode using the Function Setup switch.
◆ SHUTTER : You can select either auto or manual shutter.
* --- : Shutter speed is fixed at 1/60sec(1/50sec)
* ESC : Select this to control the shutter speed automatically. If ESC is
selected, the shutter speed is automatically controlled depending
on the ambient illumination of the subject.
* MANUAL : You can control shutter speed manually.
(NTSC MODEL : 1/60~1/120,000, PAL MODEL : 1/50~1/120,000)
* A.FLK : Select this when you see picture flicker, this can happen when the
frequency of the local lighting clashes with the camera.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
DC
ATW
EXPOSURE SETUP
1.BRIGHTNESS
2.SHUTTER
3.AGC
4.SENS-UP
5.RETURN
25
- - -
HIGH
OFF

7
◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen
- but the higher the noise.
* OFF : Deactivates the AGC function.
* LOW : Allows automatic gain control from 5.3dB to 32dB.
* HIGH : Allows automatic gain control from 5.3dB to 37dB.
◆ SENS-UP : When it is night or dark, the camera automatically detects the light
level and maintains a clear picture if this mode is activated.
* OFF : Deactivates the SENS-UP function.
* AUTO : Activates the SENS-UP function.
◆ RETURN : Select this to save the changes in the EXPOSURE menu and return
to the SETUP menu.
☞ NOTE
■ If you press the Function Setup switch to ‘AUTO’ mode, you can adjust brightness by
increasing or decreasing the shutter speed. (x2 ~ x512)
■ Note that the higher the zoom level, the brighter the screen, but the more likely there
will be a ghosting effect.
■ It is normal for Noise, Spots and Whitish symptoms to appear in SENS-UP mode when
the D-ZOOM level is increased.
●
White Balance (White Bal) Setting
Use the White Balance function to adjust the screen colour.

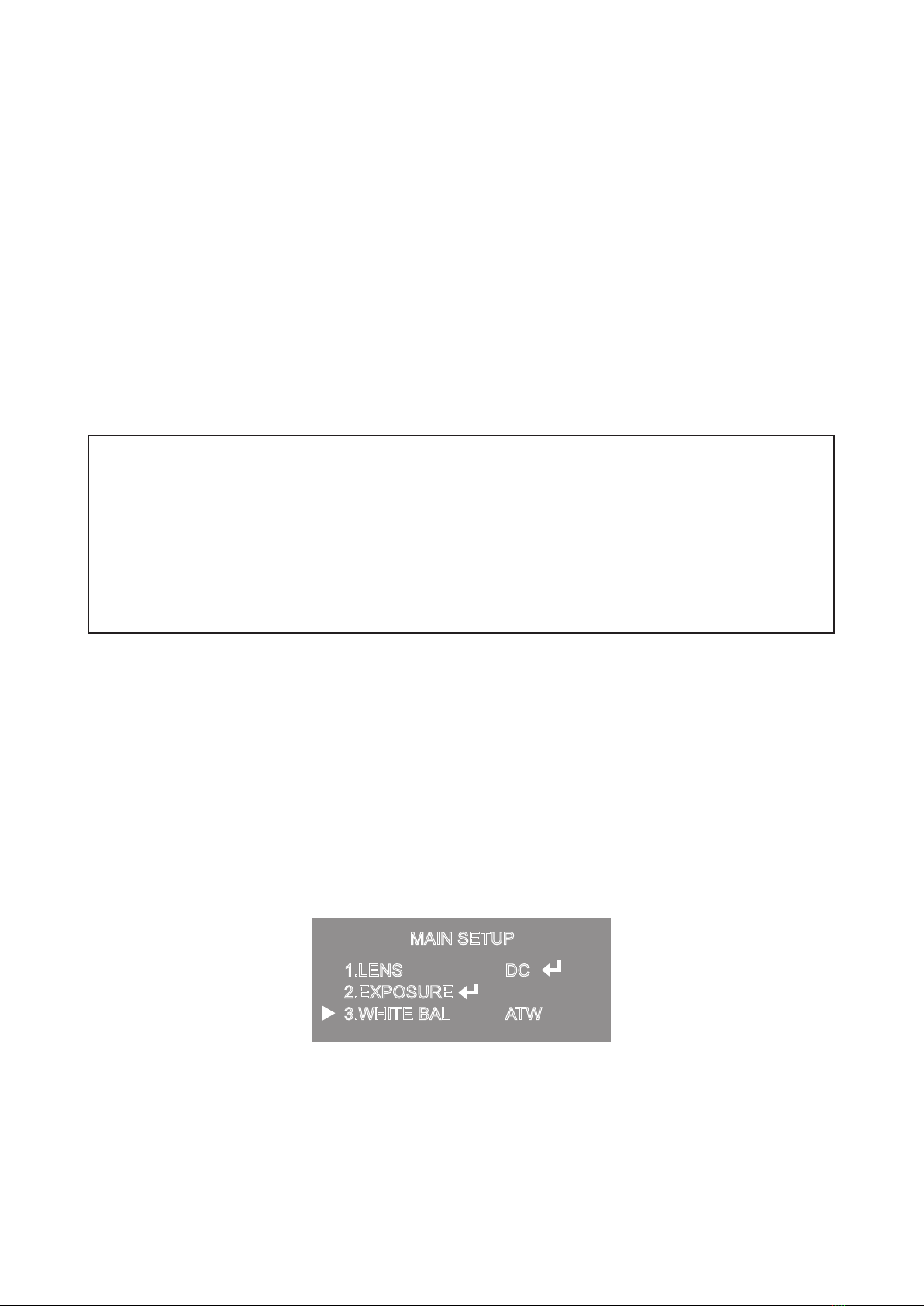

1. When the SETUP menu screen is displayed, select 'White Bal' by using the
Function Setup switch so that the arrow indicates 'White Bal'.
2. Select a desired mode using the Function Setup switch.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
DC
ATW

8
※ Select one of the following 5 modes, as appropriate for your purpose.
◆ ATW : Select this when the colour temperature is between 1,700˚K and 11,000˚K.
◆ OUTDOOR : Select this when the colour temperature is between 1,700˚K and 11,000˚K.
(sodium light inclusion)
◆ INDOOR : Select this when the colour temperature is between 4,500˚K and 8,500˚K.
◆ MANUAL : Select this to fine-tune White Balance manually. Set White Balance first
by using the ATW or AWC mode. After that switch to MANUAL mode,
fine-tune the White Balance and then press the Function Setup switch.
◆ AWC→SET : To find the optimal luminance level for the current environment, point
the camera towards a sheet of white paper and press the Function
Setup switch. If the environment changes, readjust it.
☞ NOTE
■ White Balance may not work properly under the following conditions. In this case
select the AWC mode.
① When the colour temperature of the environment surrounding the subject is out of
the control range (e.g. clear sky or sunset).
② When the ambient illumination of the subject is dim.
③ If the camera is directed towards a uorescent light or is installed in a place where
illumination changes dramatically, the White Balance operation may become unstable.
●
SSNR Setting
SSNR illuminates darker spots of an image while retaining the same light
level for brighter spots to even out the overall brightness of images with
high contrast between bright and dark spots.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
DC
ATW
OFF
1. When the SETUP menu screen is displayed, select 'SSNR' by using
the switch so that the arrow indicates 'SSNR'.
2. Use the switch to change the SSNR level according to the contrast
between bright and dark areas.


●

 
 




◆ 

◆ 


 
 
 

 
◆ 
 
◆ 

◆ 

MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
DC
ATW
OFF
OFF
ON
AUTO
SAVE

10
BLC SETUP HLC SETUP
Press Set to Return
Press Set to Return
LEVEL
TOP
BOTTOM
LEFT
RIGHT
LEVEL
LIMITS
MASK COLOR
MASK TONE
TOP
BOTTOM
LEFT
RIGHT
LOW
38
109
54
121
MIDDLE
NIGHT ONLY
BLACK
1
5
120
5
172
☞ NOTE
■ Because there can be a difference in the effectiveness of HLC according to the amount
of light area in the screen, optimize the installation angle for the best HLC performance.
■ When dark, the HLC is only activated when a bright light exceeding a specic size in
NIGHT ONLY mode.
■ The HLC is not activated in day light or when bright light is not present at night in NIGHT
ONLY mode.
■ BLC Function doesn't work in the B/W mode of the DAY/NIGHT menu.
●
DNR3 Setting
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select 'DNR3' by using the
Function Setup switch so that the arrow indicates 'DNR3'.
2. Select a desired mode using the Function Setup switch.
◆ OFF : Deactivates DNR3. Noise is not reduced.
◆ ON : Activates DNR3 so that noise is reduced.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
DC
ATW
OFF
OFF
ON
AUTO
SAVE

11
3. Set the DNR3 mode to 'ON' and press the Function Setup switch. Then you
can adjust the noise reduction level.
☞ NOTE
■ You cannot set the DNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’.
■ When adjusting the noise reduction level in the DNR3 mode, remember that the higher the
level set, the more the noise level will be reduced, as will the brightness of the image.
●
Day/Night Setting
You can display pictures in colour or black and white.
1. When the SETUP menu screen is displayed, select 'DAY/NIGHT'by using the
Function Setup switch so that the arrow indicates 'DAY/NIGHT'.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
DC
ATW
OFF
OFF
ON
AUTO
SAVE
2. Select a desired mode using the Function Setup Switch according to the
picture display you want.
◆ COLOR : The picture is always displayed in colour.
◆ B/W : The picture is always displayed in black and white.
- BURST MODE : You can turn on or off the burst signal on B/W mode.
B/W MODE SETUP
1.BURST MODE
2.RETURN
ON

12
◆ AUTO : The mode is switched to 'Colour' in a normal environment, but switches to
'B/W' mode when ambient illumination is low. To set up the switching time for AUTO
mode, press the Function Setup switch. You can turn on or off the burst signal on B/W
mode.
- BURST MODE : You can turn on or off the burst signal
on B/W mode.
- DURATION : You can select brightness of illumination
about changing the day/night mode.
- DWELLTIME : You can select the duration time about
changing the day/night mode.
→3s, 5s, 7s, 10s, 15s, 20s, 30s, 40, 60s
* The day/night switching point of the
camera can be adjusted.
FAST
SLOW
COLOR→B/W
2.5 lux
1 lux
B/W→COLOR
5 lux
10 lux
AUTO SETUP
1.BURST MODE
2.COLOR→B/W
DURATION
DWELL TIME
3.B/W→COLOR
DURATION
DWELL TIME
4.RETURN
ON
FAST
3SEC
FAST
10SEC
☞ NOTE
■ When AGC in the EXPOSURE menu is set to OFF AUTO mode cannot be selected.
●
Special Setting
1. When the SETUP menu screen is displayed, select 'SPECIAL' by using the
Function Setup switch so that the arrow indicates 'SPECIAL'.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
DC
ATW
OFF
OFF
ON
AUTO
SAVE
◆ EXTERN : This mode allows the application of a filter to external signals.

13
2. Select a desired mode using the Function Setup switch.
◆ IMAGE ADJ. :
1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by
using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
2) Select a desired mode using the Function Setup switch.
* V-REV : You can flip the picture vertically on the screen.
* H-REV : You can flip the picture horizontally on the screen.
* D-ZOOM : You can use a digital zoom of x1 ~ x16.
* DIS : This function mitigates any picture movement due to external factors
such as wind.
* FONT COLOR : You can change the OSD font colour. (White, Yellow, Green, Red, Blue)
* SHARPNESS : As you increase this value, the picture outline becomes stronger and clearer.
Adjust this value appropriately depending on the sharpness of the picture.
* MONITOR : Please change the settings value of video appropriate to your monitor.
- LCD : Please select this menu item when using a LCD monitor.
- CRT : Please select this menu item when using a CRT monitor.
- USER : Please use this menu item when using a monitor other than standard ones. You can
change the gamma, PED level, and color gain in the sub menus.
* RETURN : Select this to save the settings for the IMAGE ADJ menu and to return to the SETUP menu.
SPECIAL

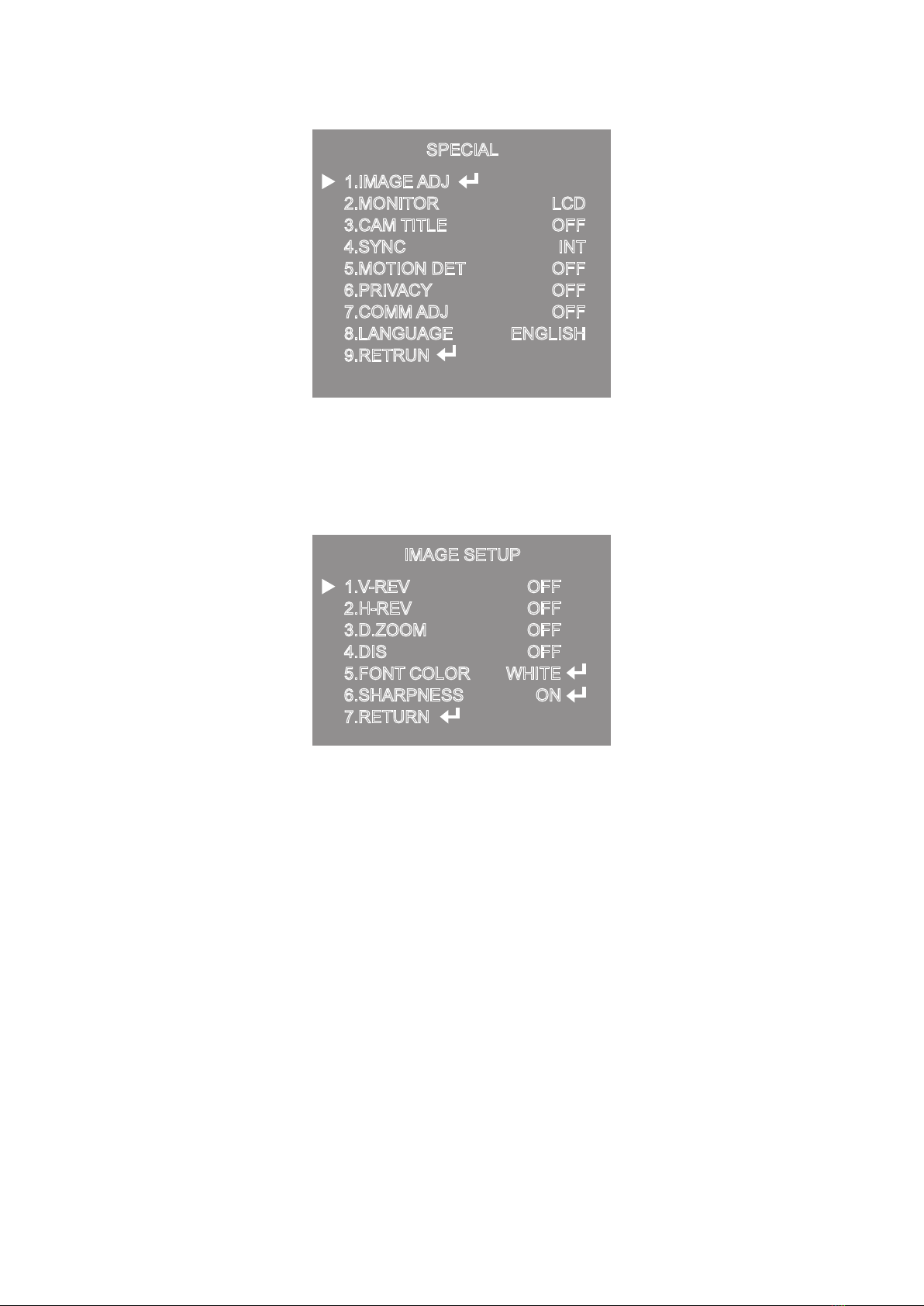

IMAGE SETUP
1.IMAGE ADJ
2.MONITOR
3.CAM TITLE
4.SYNC
5.MOTION DET
6.PRIVACY
7.COMM ADJ
8.LANGUAGE
9.RETRUN
1.V-REV
2.H-REV
3.D.ZOOM
4.DIS
5.FONT COLOR
6.SHARPNESS
7.RETURN
LCD
OFF
INT
OFF
OFF
OFF
ENGLISH
OFF
OFF
OFF
OFF
WHITE
ON

14
☞ NOTE
■ When the V-REV or H-REV mode is enabled, the text on the screen does not ip.
■ If you increase the SHARPNESS level too high, the picture may become distorted or noise
may appear.
☞ NOTE
■ When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if
you enter one.
■ Only English is available in this mode.
■ If you move the cursor to CLR and press the Function Setup switch, all the letters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the Function
Setup switch. Move the cursor over the letter to be edited, move the cursor to the letter to be
inserted and then press the Function Setup switch.

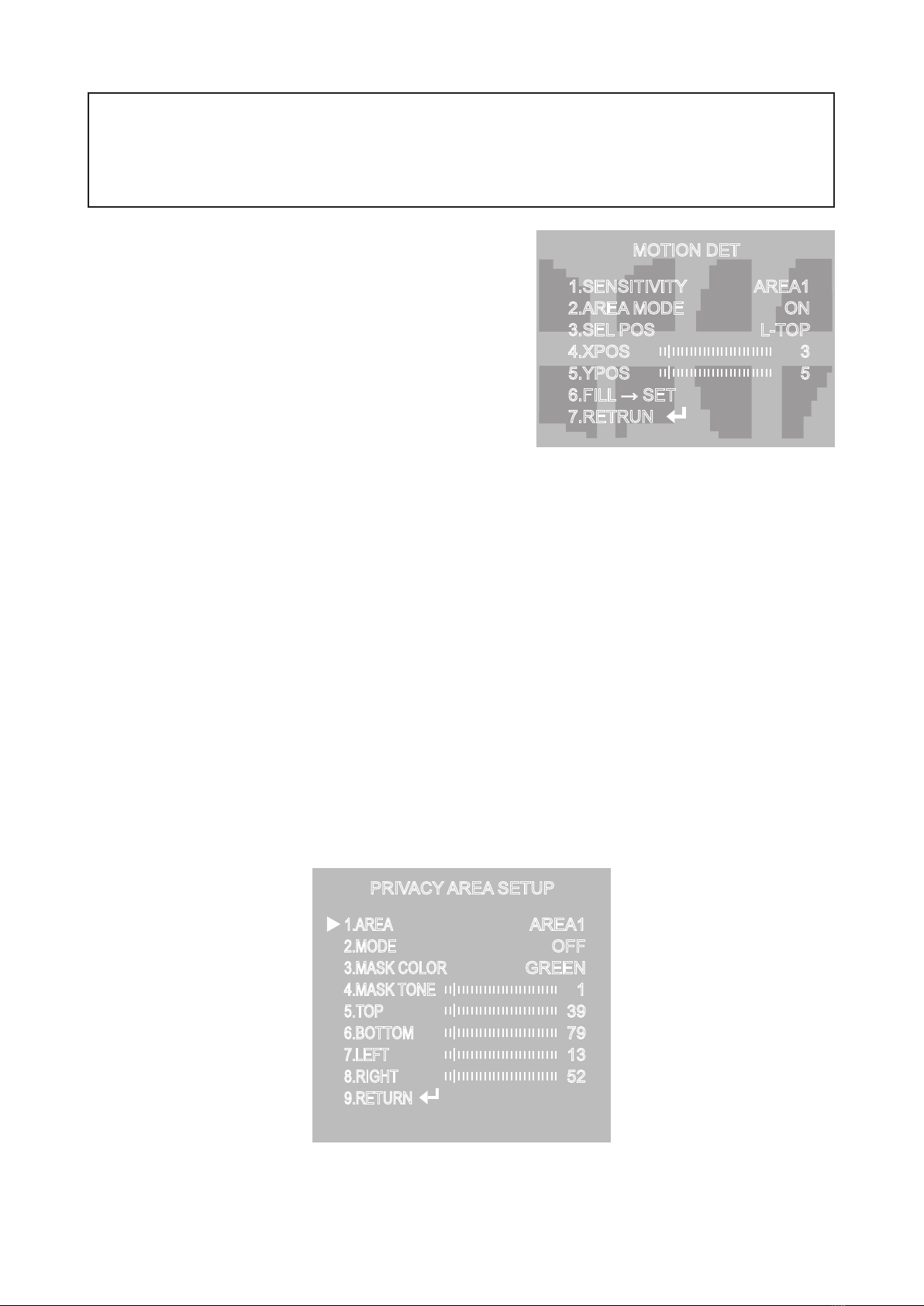

◆ CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the
arrow indicates 'CAM TITLE'.
2) Set it to 'ON' by using the Function Setup switch.
3) Press the Function Setup switch.
4) Use the Function Setup switch to move to a
desired letter and select the letter by pressing
the Function Setup switch. Repeat this to enter
multiple letters. You can enter up to 15 letters.
5) Enter a title, move the cursor to 'POS' and
press the Function Setup switch. The entered
title appears on the screen. Select the position
to display the title on the screen by using the
Function Setup switch and press the Function
Setup switch. When the position is determined,
select 'END' and press the Function Setup switch
to return to the SPECIAL menu.
◆ SYNC
INT : Internal Synchronisation Type
CAMERA TITLE SETUP
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
-.0123456789
←→CLR POS END
SHOP

15
☞ NOTE
■ When the power is DC 12V, the SYNC menu is xed to the ‘INT’ mode.
◆ MOTION DET :This product has a feature
that allows you to observe movement of
objects in 8 different areas on the screen,
and the words 'MOTION DETECTED' appear
on the screen when movement is detected.
Activity can be monitor more efficiently.
1) When the SPECIAL menu screen is displayed,
press the Function Setup switch so that the arrow
indicates‘MOTION DET’.
2) Set up the mode using the Function Setup switch.
- SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is high, motion
detection sensitivity is increased to recognize even small movement.
- AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.
- SEL POS : Determines which of the 4 vertices of each MD area is to be used.
- XPOS : Determines the coordinate of the horizontal axis for SEL POS.
- YPOS : Determines the coordinate of the vertical axis for SEL POS.
- FILL→SET : Fills in a selected MD area. The colour of the area can be selected from brown,
orange, blue, cyan, green, yellow, magenta and red.
- RETURN : Select this to save the MOTION DET menu settings and return to the SPECIAL menu.
◆ PRIVACY : Mask an area you want to hide on the screen.
MOTION DET
PRIVACY AREA SETUP
1.SENSITIVITY
2.AREA MODE
3.SEL POS
4.XPOS
5.YPOS
6.FILL → SET
7.RETRUN
1.AREA
2.MODE
3.MASK COLOR
4.MASK TONE
5.TOP
6.BOTTOM
7.LEFT
8.RIGHT
9.RETURN
AREA1
ON
L-TOP
3
5
AREA1
OFF
GREEN
1
39
79
13
52
