Gfp 455 TH User manual
1
SERVICE MANUAL Gfp 455 TH
Gfp 463 TH
2
Table of Contents
age
1. arts list ……………………………………………………….. 3-7
2. Exploded Drawings
View 1 - Frame and Stand………………………………. 8
View 2 - Rewind and Shafts…………………………….. 9
View 3 - Right side frame……………………………….. 10
View 4 - Left side frame…………………………………. 11
View 5 - Electronics………………………..…………..... 12
View 6 - Front In feed table……………………………… 13
View 7 - Rewind motor assembly………………………. 14
View 8 - Rewind tube assembly…………………………. 15
View 9 - Stand assembly………………………………… 16
3. Wiring Diagram…….. ……………………………………………. 17
CORRES ONDENCE: SHI ING: Service arts Service arts Warehouse
Graphic Finishing artners LLC analpina, Inc Smooth Finish LLC Smooth Finish LLC
O Box 441 800 E. Devon Ave O Box 1268 C/O Automatic Graphic Finishing
Green Lake, WI. 54941 Elk Grove Village, IL 60007 Hartwell, GA.30643 689-A 11th Street NW
877-277-5089 847-545-1500 770-235-9374 Atlanta, GA. 30318
EMAIL: [email protected]om [email protected]
WEBSITE: www.gfpartnersllc.com
3
PART PART VIEW STOCK RETAIL DEALER
PREFIX UMBER UMBER ITEM PART DESCRIPTIO QUATITY PRICE PRICE
TH 1 2 Upper Supply Mandrel Bracket 2 22.38 15.67
55 2 2 YES 55" Supply Mandrel 2 384.79 269.35
63 2 2 YES 63" Supply Mandrel 2 414.58 290.20
TH 3 2 YES Film Core Adaptor/ brake 4 38.64 27.05
TH 4 3 Stopper 5 0.89 0.62
TH 5 3 Adjust pad of bevel gear 15 1.37 0.96
TH 6 2, 4 Rewind Tube Sprocket 1 33.89 23.72
TH 7 2, 3, 4 Rewind Tube Bearing 3 34.62 24.23
TH 8 2 Drive sleeve of Rewind tube 1 96.60 67.62
55 9 2, 5 YES 55" Rewind Tube 2 150.00 105.00
63 9 2, 5 YES 63"Rewind Tube 2 150.00 105.00
TH 10 2, 5 YES Core Stop Clip 4 4.43 3.10
TH 11 2, 5 Locating shaft of Rewind tube 2 43.79 30.65
TH 12 2, 5 Locating sleeve of Rwind tube (1)＊ 2 45.89 32.12
TH 13 2, 5 Rewind tube gasket 2 33.97 23.78
TH 14 2, 5 Rewind tube spring 2 10.47 7.33
TH 15 2, 5 ressure adjustment nut 2 61.74 43.22
TH 16 3 Angle gear 4 87.99 61.59
55 17 2 55" ressure-regulating linkage shaft 1 432.29 302.60
63 17 2 63" ressure-regulating linkage shaft 1 432.29 302.60
TH 18 1 YES Bearing sleeve ＊ 4 53.53 37.47
55 19 1 YES 55"Heat roller 1 1557.68 1246.14
63 19 1 YES 63" Heat roller 1 2101.05 1680.84
55 20 3 YES 55" Heat tube 1 138.34 116.83
63 20 3 YES 63" Heat tube 1 179.39 145.57
TH 21 2 Right exit table bracket 1 23.75 16.62
55 22 2 55" Exit table 1 284.08 198.86
63 22 2 63" Exit table 1 320.47 224.33
TH 23 2 Left exit table bracket 1 23.75 16.62
TH 24 1 Hand protection rubber ring 2 1.05 0.73
55 25 1 55" Rear supporting beam 1 271.29 189.90
63 25 1 63" Rear supporting beam 1 290.28 203.20
TH 26 4 Nip roller sprocket 1 52.33 36.63
TH 27 4 Nip Roller block 2 0.89 0.62
55 28 1 YES 55" Nip roller 1 1557.68 1246.14
Gfp ARTS LIST 400 SERIES LAMINATORS
4
PART PART VIEW STOCK RETAIL DEALER
PREFIX UMBER UMBER ITEM PART DESCRIPTIO QUATITY PRICE PRICE
63 28 1 YES 63" Nip roller 1 2071.67 1657.33
TH 29 4 Motor sprocket 1 50.63 35.44
TH 30 4 Motor gasket 4 1.21 0.85
TH 31
TH 32 6 ositioning pin of front protective plate 2 2.98 2.08
TH 33 6 Left mounting block of front protective plate 1 8.05 5.64
TH 34 6 Locating shaft of front protective plate 2 2.98 2.08
55 35 6 55" front protective plate 1 155.12 108.59
63 35 6 63" front protective plate 1 224.19 156.93
TH 36 6 Right mounting block front protective plate 1 8.05 5.64
TH 37 5 Left cabinet 1 319.91 223.93
TH 38
TH 39 3 ressure-regulating supporting seat 2 87.66 61.37
TH 40 3 ressure-regulating locating shaft 2 37.27 26.09
TH 41 3 ressure-regulating bearing seat＊ 2 130.57 91.40
TH 42 3 Cushion of quartz tube 2 5.96 4.17
TH 43 3 Support of quartz tube 2 5.96 4.17
TH 44 3 Adjust piece of base 3 2.82 1.97
TH 45 1 Support bracket insert 2 15.30 10.71
TH 46 4 Heat roller cover plate 1 40.09 28.06
TH 47 1 Stand locking screw 4 13.12 9.19
TH 48 1, 4 Left supporting plate 1 427.86 299.50
TH 49 1 In feed table stop 2 4.51 3.16
TH 50 1 ositioning pin of rear panel 2 8.94 6.25
55 51 6 YES 55" ress roller 1 173.16 121.21
63 51 6 YES 63" ress roller 1 179.03 125.32
55 52 1 55"Upper supporting beam 1 178.95 125.27
63 52 1 63" Upper supporting beam 1 181.13 126.79
TH 53 1 Sensor support plug 1 5.07 3.55
TH 54 1 Supporting frame of sensor 1 54.74 38.32
TH 55 1 Mounting bracket of sensor supporting beam 1 1.69 1.18
STD 55 OLD 55" STAD UMBER 0.00 0.00
5
PART PART VIEW STOCK RETAIL DEALER
PREFIX UMBER UMBER ITEM PART DESCRIPTIO QUATITY PRICE PRICE
TH 56 1 YES Heat Sensor 1 75.11 52.57
55 57 1, 3 55" Right supporting plate 1 428.10 299.67
63 57 1, 3 63" Right supporting plate 1 451.69 316.18
TH 58 5 Right cabinet 1 319.91 223.93
TH 59 5 Surface protection film 1 32.76 22.93
55 60 2 55" Media mounting plate 1 222.10 155.47
63 60 2 63" Media mounting plate 1 222.10 155.47
TH 61 2 Media support bracket 3 23.83 16.68
TH 62 6 Feed table washer 2 5.96 4.17
TH 63 6 Left feed table bracket 1 116.73 81.71
STD 63 OLD 63" STAD UMBER 0.00 0.00
TH 64 6 ositioning pin of feed table 2 4.51 3.16
55 65 6 55" Back feed table 1 311.13 217.79
63 65 6 63" Back feed table 1 349.13 244.39
55 66 6 55" Front feed table 1 326.83 228.78
63 66 6 63" Front feed table 1 364.67 255.27
TH 67 6 Right feed table bracket 1 131.62 92.13
TH 68 6 Side guide knob 4 3.22 2.25
TH 69 6 Side guide 2 2.09 1.47
TH 70 6 Side guide screw 4 1.05 0.73
55 71 1 55" Idler roller 1 700.67 490.47
63 71 1 63" Idler roller 1 747.12 522.98
TH 72 2 Lower supply mandrel bracket 2 22.38 15.67
TH 73 1 Left stand leg 1 710.82 497.57
55 74 1 55" Lower supporting beam of frame 2 184.26 128.99
63 74 1 63" Lower supporting beam of frame 2 184.26 128.99
55 75 1 55" Middle supporting beam of frame 1 192.31 134.62
63 75 1 63" Middle supporting beam of frame 1 205.11 143.58
TH 76 1 Right stand leg 1 710.82 497.57
TH 77 4 Rewind drive chain 1 24.63 17.24
TH 78 4 Drive motor chain 1 50.72 35.50
55 79 1 YES 55" Motor 1 676.20 473.34
63 79 1 YES 63" Motor 1 1078.70 755.09
TH 80 3, 4 ress wire clip 8 0.24 0.17
TH 81 5 Hand wheel 1 74.54 52.18
6
PART PART VIEW STOCK RETAIL DEALER
PREFIX UMBER UMBER ITEM PART DESCRIPTIO QUATITY PRICE PRICE
TH 82 1 Caster with brake 2 64.08 44.85
TH 83 1 Caster without brake 2 64.08 44.85
TH 84 5 Emergency stop switch 2 47.33 33.13
TH 85 5 Wiring terminal 1 3.54 2.48
TH 86 5 Motor capacitor (part in motor) 1 0.00 0.00
TH 87 5 YES Speed board 1 155.37 108.76
TH 88 5 Fixed leg of wiring board 8 0.48 0.34
TH 89 5 Heat sink 1 5.80 4.06
TH 90 5 YES Solid-state relay 1 133.63 93.54
TH 91 3 Temperature controller 1 5.80 4.06
TH 92 5 YES Temperature control board 1 86.14 60.29
TH 93 5 YES ower transformer 1 26.65 18.65
TH 94 5 Fuse 2 14.89 10.42
TH 95 5 ower cord 1 42.50 29.75
TH 96 5 Tightener 1 11.35 7.95
TH 97 5 Aviation plug 1 35.74 25.02
TH 98 5 ower switch 1 5.96 4.17
TH 99 5 otentiometer 2 7.25 5.07
TH 100
TH 101 5 Cold indicator lamp 1 0.40 0.28
TH 102 5 Hot indicator lamp 1 0.40 0.28
TH 103 5 Ready light lamp 1 0.40 0.28
TH 104 5 YES LCD 1 162.77 113.94
TH 105 5 Knob 2 3.54 2.48
TH 106 5 Switch MR-3 2 8.61 6.03
TH 107
TH 108
TH 109 5 Diode 1 0.32 0.23
TH 110 5 Iron film resistance 1 0.16 0.11
TH 111 5 YES edal switch 1 82.92 58.04
TH 112 YES Old Speed Board number 155.37 108.76
TH 113 5 Rewind motor connector 2 56.67 39.67
TH 114
TH 115 3, 4 YES hotocell eye 1 14.81 10.37
7
PART PART VIEW STOCK RETAIL DEALER
PREFIX UMBER UMBER ITEM PART DESCRIPTIO QUATITY PRICE PRICE
TH 116 3 YES Control plate of photocell eye 1 41.14 28.79
TH 117 5 YES Wave filter 1 296.00 207.20
TH 118
TH 119
TH 120 7 YES Rewind motor Assembly＊ 400.00 285.00
55 121 8 YES 55" Rewind tube Assembly＊ 150.00 105.00
63 121 8 YES 63" Rewind tube Assembly＊ 150.00 105.00
55 122 9 55" Stand assembly＊ 0.00 0.00
63 122 9 63" Stand assembly＊ 0.00 0.00
TH 123
TH 124
TH 125
TH 126
TH 127
TH 128
TH 129
TH 130 5 Guide rail 1 0.00 0.00
TH 131 6 Handle 2 4.19 2.93
TH 132 5 Left side cover 1 248.99 174.29
TH 133 5 Right side cover 1 248.99 174.29
TH 134 5 Leakage protector 1 375.69 262.99
TH 135 5 Upper cover 1 4.83 3.38
TH 136 5 Drive sleeve of rewind tube 1 78.97 55.28
TH 137 5 Coupler of wind-up motor 1 14.89 10.42
TH 138 5 Wind-up motor cover 1 64.08 44.85
TH 139 5 Rewind bearing 1 46.53 32.57
TH 140
TH 141 5 Left rewind bracket 1 124.86 87.40
TH 142 5 Right rewind bracket 1 139.75 97.82
TH 143 5 Left supporting case 1 48.06 33.64
TH 144 5 Spacer plate 1 7.49 5.24
TH 145 5 Wind-up motor 1 357.74 250.42
TH 146 5 Wind-up motor capacitor (part of motor) 1 0.00 0.00
TH 147 5 ower lead 1 57.07 39.95
TH 148 5 Wind-up wiring board 1 19.72 13.81
TH 149 5 otentiometer 1 7.16 5.02
TH 150 1 Leveling feet 4 15.05 10.54
8

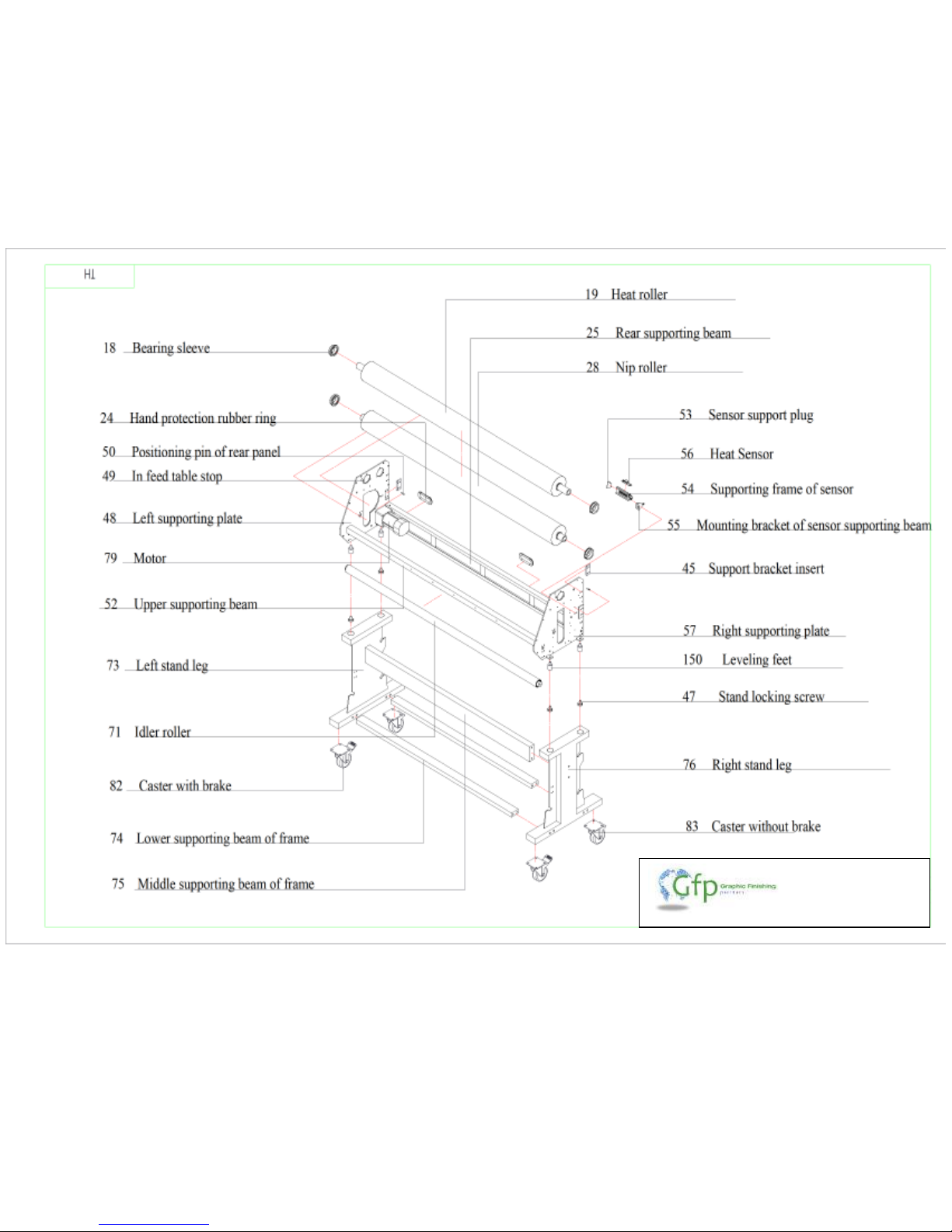

View 1- Frame
9
View 2 - Mandrels
10

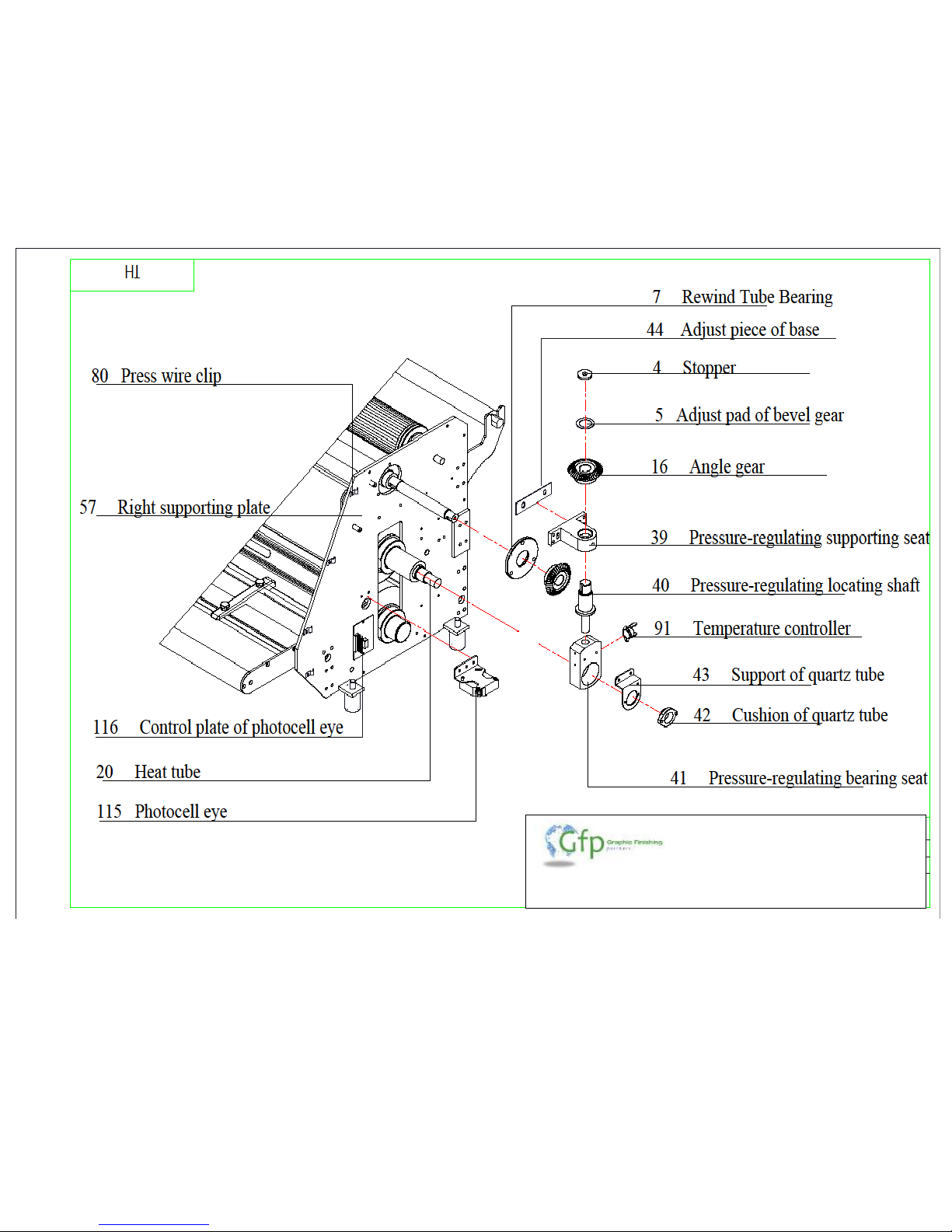

View 3 – Right side frame
11

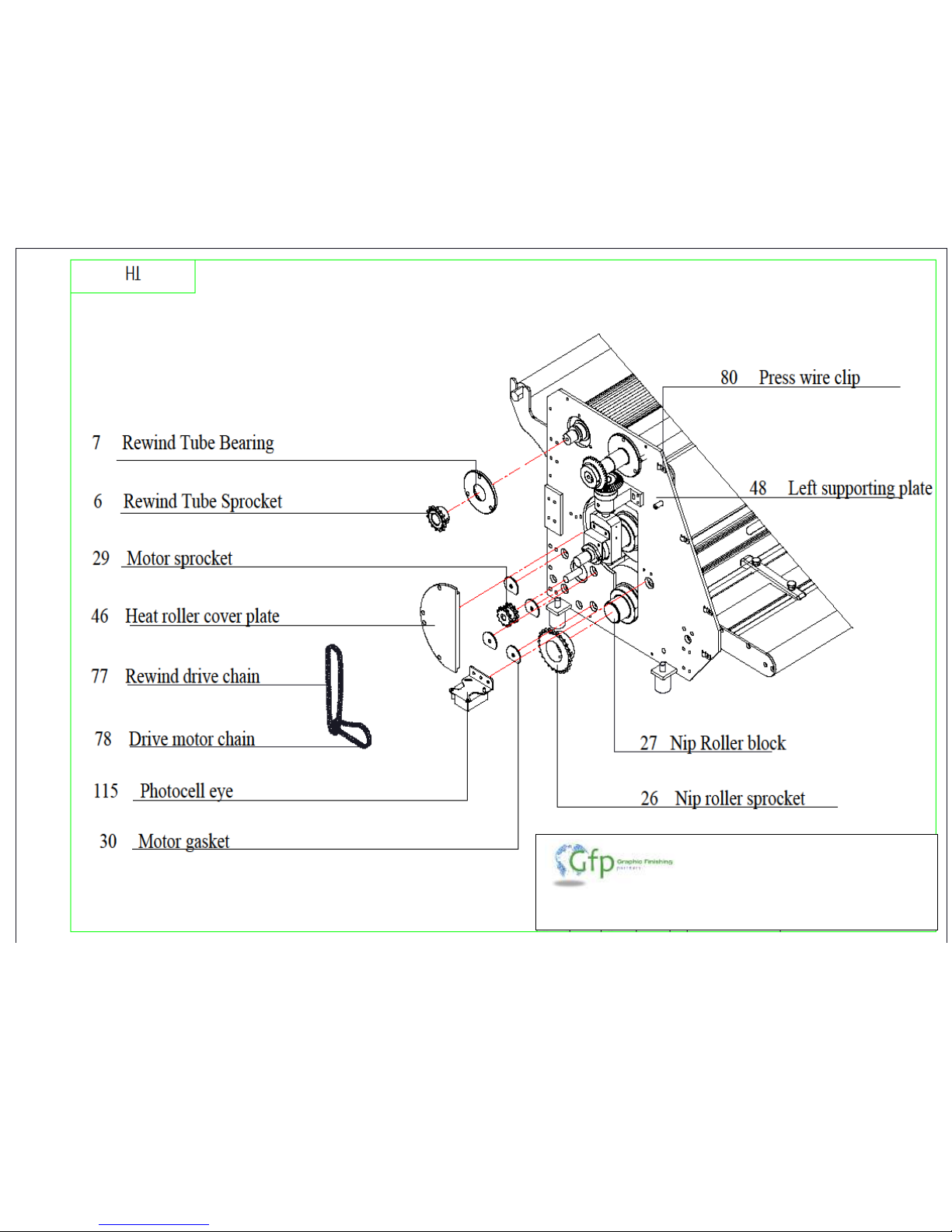

View 4- Left side frame
12
View 5- Electronics
13
View 6 – Front in feed table
14
View 7
120 Rewind Motor Assembly
15
View 8

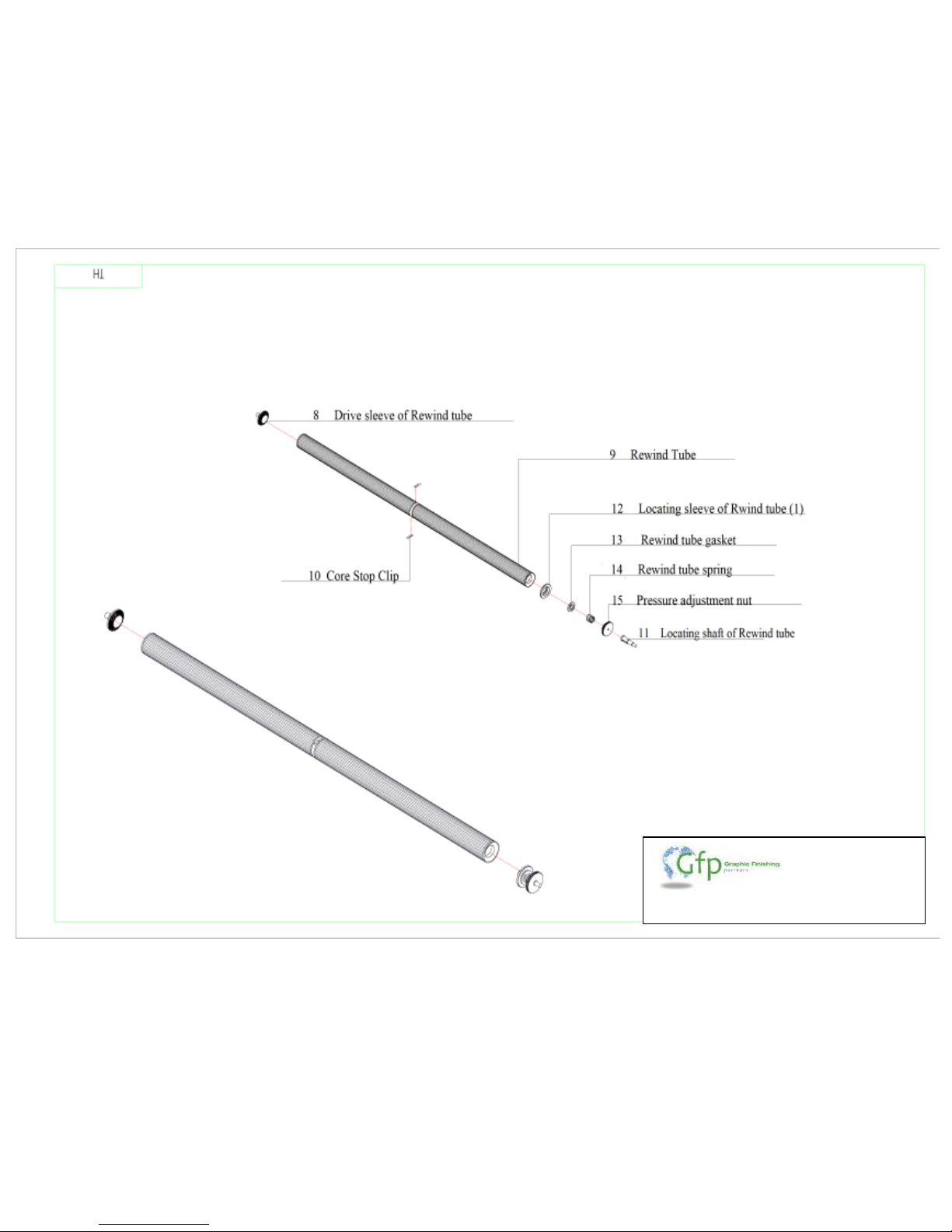

121 Rewind Tube Assembly
16
View 9
122 Stand Assembly
17
400 Series
Wiring Diagram
18
