GHARiENi Lounger RLX ELECTRIC User manual

INSTRUCTION MANUAL
Lounger RLX ELECTRIC
Lounger RLX/RLX LIGHT
Gharieni Group GmbH
Gutenbergstraße 40
D –47443 Moers
Phone:
+49 (0)2841/88300-0
Fax:
+49 (0)2841/88300-999
E-mail:
[e-mail]
Web:
www.gharieni.de
Service Hotline:
+49 (0)2841/88300-40

2
Index
1. Safety information ......................................................................................................... 3
1.1 Signal words.............................................................................................................. 3
1.2 Safety instructions/RLX and RLX ELECTRIC.................................................. 4
1.3 Safety instructions/RLX LIGHT .......................................................................... 5
1.4 Safety instructions Smart Thermo II ..................................................................... 6
2. General information...................................................................................................... 6
2.1 Model variants .......................................................................................................... 7
2.2 View/RLX ELECTRIC.......................................................................................... 7
3. Preliminary remarks....................................................................................................... 8
4. Intended use ................................................................................................................... 8
5. Installation/Transport................................................................................................... 8
5.1 Unpacking................................................................................................................. 8
5.2 Installation................................................................................................................. 8
5.3 Transport................................................................................................................... 8
6. Rating plate..................................................................................................................... 9
7. Adjustment of the lying position ................................................................................. 9
7.1 RLX and RLX LIGHT ........................................................................................... 9
7.2 RLX ELECTRIC..................................................................................................... 9
7.2.1 Dimensions of highest/lowest inclination....................................................... 10
8. Options ......................................................................................................................... 11
8.1 Electric foot switch................................................................................................ 11
8.2 Heater Smart Thermo II ....................................................................................... 11
8.2.1 Heater control panel (HCP)........................................................................... 11
8.2.2 Heating.............................................................................................................. 11
8.2.3 Manufacturers setting...................................................................................... 12
8.2.4 Programming.................................................................................................... 12
8.3 Audio-Relax headrest............................................................................................. 13
8.4 Additional accessories............................................................................................ 13
9. Repair, maintenance and cleaning ............................................................................. 14

3
9.1 Trouble shooting.................................................................................................... 15
10. Guarantee ................................................................................................................... 15
11. Waste management.................................................................................................... 16
12. Technical data ............................................................................................................ 16
13. EC-Declaration Of Conformity............................................................................... 18
14. Status of edition......................................................................................................... 18
1. Safety information
READ THE FOLLOWING SAFETY INSTRUCTIONS AS WELL AS THE
SAFETY INSTRUCTIONS OF THE OPTIONS CAREFULLY BEFORE
YOU OPERATE THE APPLIANCE FOR THE FIRST TIME. All
information included in those pages serve for the protection of the operator. If
you ignore the safety instructions, you will endanger both your health and life
and the health and life of your customers.
Ensure that all persons operating the RLX have read the complete instruction
manual and have understood the complete information contained therein.
This instruction manual is an integral part of the product and must be carefully
kept in a safe place in order to consult it throughout the equipment service life.
Copies of this instruction manual are available upon request.
The Gharieni Group GmbH shall not be held responsible for any damages,
direct or indirect, caused to people, animals or objects resulting from negligence
or non-compliance with the instructions contained herein.
1.1 Signal words
DANGER! indicates a hazardous
situation which, if ignored, will result in
death or serious injury.
WARNING! indicates a hazardous
situation which, if ignored, could result
in death or serious injury.
CAUTION! indicates a hazardous
situation which, if not avoided, may
result in minor or moderate injury.
NOTICE! indicates possible damage to
the appliance.

4
1.2 Safety instructions/RLX and RLX ELECTRIC
DANGER!
1. Non-observance of the instructions of this instruction manual can endanger the
life and health of the operator and/or can damage the appliance.
2. All electrical work to connect the RLX to the mains must be carried out by a
qualified professional. Do not modify the energy supply. The connection must
be carried out in accordance with the current local and legal regulations.
3. Do not connect the RLX to the mains if the RLX itself or the power cable or
the plug are visibly damaged.
4. The power cord must not be placed near the motor during connection or
repositioning as it can be damaged while operating the motor. RISK OF
ELECTRIC SHOCK!
5. Never try to repair the RLX yourself. If the RLX does not operate properly,
please contact the manufacturer or the shop you purchased the appliance at.
Original spare parts should be used only.
6. When the power cable is damaged, it must be replaced by the manufacturer or
an authorized aftersales service or a qualified professional only.
WARNING!
1. Use a properly-grounded socket with proper voltage only. The electric
components must not come in contact with water. Check all cables regularly
and call the aftersales service if any cable is in improper condition. RISK OF
ELECTRIC SHOCK!
2. Do not open the housings of the electric control panels!* RISK OF
ELECTRIC SHOCK!
3. Liquids must not get into the electric control panels*. RISK OF ELECTRIC
SHOCK!
4. Do not use water or any other liquids while carrying out an application. Do not
pour water or any other liquids on the RLX. RISK OF ELECTRIC SHOCK!
5. Disconnect the RLX from the mains before cleaning and/or maintenance.
6. For model variants with Smart Thermo II and/or audio-components: There are
cables between the upholstery and other components of the RLX. All repairs or
maintenance work must be carried out by persons who are authorized by the
Gharieni Group GmbH.
7. Do not make the rating plate illegible! Do not remove the rating plate!
8. Persons who are suffering from acute pain, venous disorders, low blood
pressure, inflammatory processes or other pathologies, which make heat
applications and the positioning of the customer resulting thereof questionable,
must always consult their doctor before treatment.
9. Never use the RLX when your patient is under the influence of alcohol or
drugs.

5
10. Never sit or stand on any part of the lying surface. Do not exert strong physical
forces on these components; otherwise you can damage the supporting
structure permanently. RISK OF TIPPING! RISK OF BREAKAGE! RISK
OF INJURY!
11. Do not use the base as a foot rest. RISK OF CRUSHING!
12. Persons/animals or body parts of persons/animals must not be positioned
between the base and the upper structure. RISK OF CRUSHING!
13. While unpacking, the packaging materials (polythene bags, polystyrene pieces,
etc.) should be kept away from children. CHOKING HAZARD!
14. Always keep children away from the RLX.
15. Children must not play with the RLX or its single components.
16. This appliance is not intended to be operated by persons with reduced physical,
sensory and mental capabilities or lack of experience or knowledge, unless they
are supervised or instructed concerning the use of the appliance and do
understand the danger resulting thereof.
*: Equipment depending on model variant (see chapter 2.1).
1.3 Safety instructions/RLX LIGHT
DANGER!
1. Non-observance of the instructions of this instruction manual can endanger the
life and health of the operator and/or can damage the appliance.
2. Never try to repair the RLX yourself. If the RLX does not operate properly,
please contact the manufacturer or the shop you purchased the appliance at.
Original spare parts should be used only.
WARNING!
1. Do not make the rating plate illegible! Do not remove the rating plate!
2. Never use the RLX when your patient is under the influence of alcohol or
drugs.
3. Never sit or stand on any part of the lying surface. Do not exert strong physical
forces on these components; otherwise you can damage the supporting
structure permanently. RISK OF TIPPING! RISK OF BREAKAGE! RISK
OF INJURY!
4. Do not use the base as a foot rest. RISK OF CRUSHING!
5. While unpacking, the packaging materials (polythene bags, polystyrene pieces,
etc.) should be kept away from children. CHOKING HAZARD!
6. Always keep children away from the RLX.
7. Children must not play with the RLX or its single components.
8. This appliance is not intended to be operated by persons with reduced physical,
sensory and mental capabilities or lack of experience or knowledge, unless they

6
are supervised or instructed concerning the use of the appliance and do
understand the danger resulting thereof.
1.4 Safety instructions Smart Thermo II
WARNING!
1. Do not use the option Smart-Thermo when your customer
has got a pacemaker.
is pregnant.
is affected by thrombosis.
suffers from pain due to unknown reasons.
2. Do not exceed the default values set by the manufacturer (pre-heating period
approx. 6 minutes; treatment heating-level approx 30%, 3 LEDs) when
programming the heater yourself.
3. When the treatment is stopped prematurely, cancel the Smart-Thermo function
by pressing the OFF-button on the HCP to avoid heat accumulation.
4. Disconnect the RLX from the mains when it is not used for a longer period of
time, e.g. during the night.
5. Apply to healthy people only
2. General information.
Dear customer!
We would like to thank you for purchasing this quality-product as well as for your
confidence. Read the complete instruction manual before you use the RLX for the
first time. Reading the complete IM is essential for its proper and confident use and
will help you to operate the RLX to your entire satisfaction .Our RLX is very
robust and has a long operating life if it is operated properly.
Read the instructions very carefully and only operate the appliance in its intended
use as described to protect you and your customers from danger. Keep the
instruction manual handy and near of the RLX.

7
2.1 Model variants
The available electric functions are depending from model. The available
variants are:
RLX
ELECTRIC
Length
190 cm
Width
70 cm
Electric adjustment of inclination
RLX
Length
190 cm
Width
70 cm
Fixed position
RLX
LIGHT
Length
174 cm
Width
66 cm
Fixed position

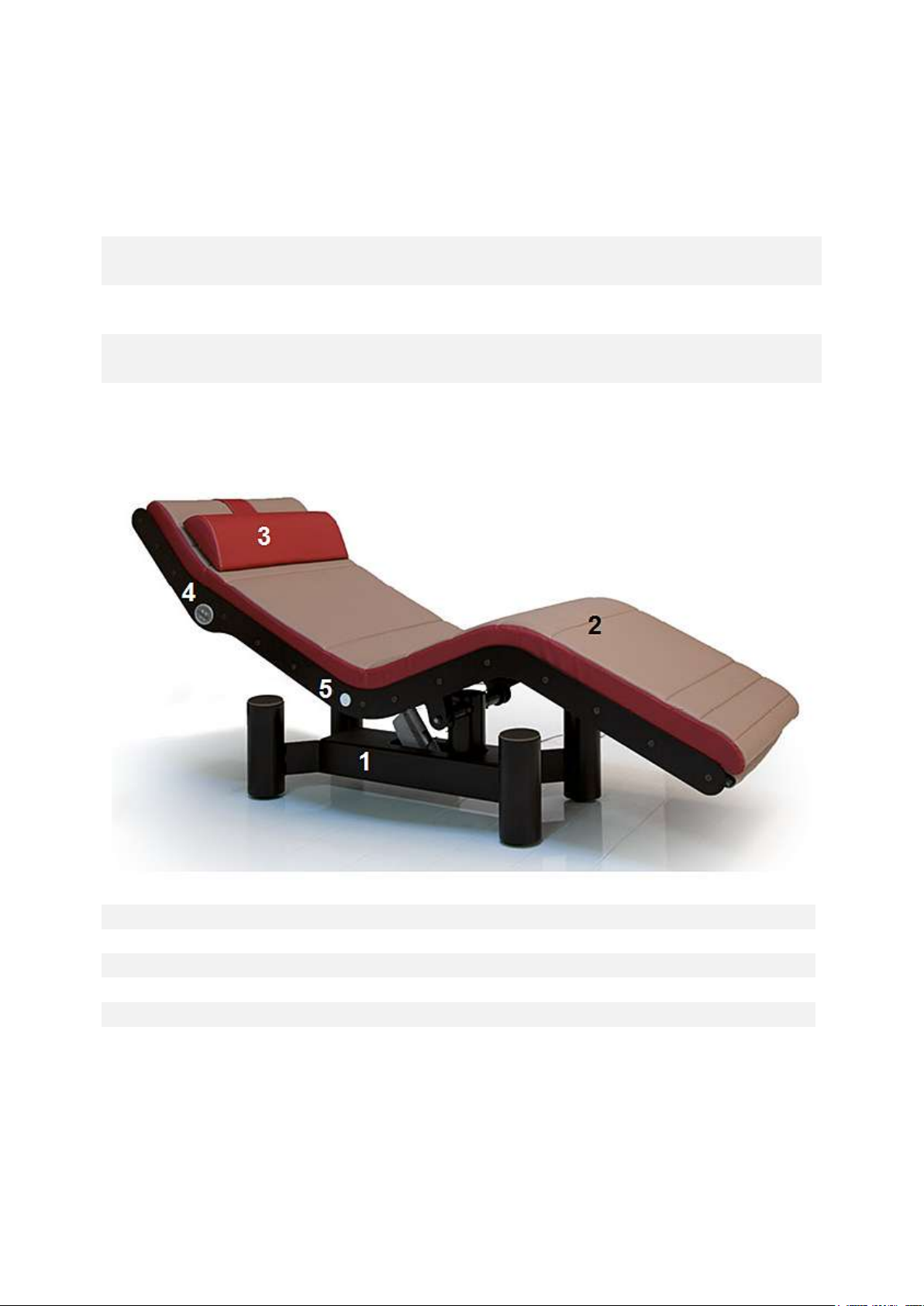

2.2 View/RLX ELECTRIC
1
Supporting structure
2
Lying surface
3
Neck support (optional available)
4
Control panel for Smart-Thermo II (optional available/see chapter 8.2)
5
Control panel for adjustment of inclination (see chapter 7.2)

8
3. Preliminary remarks
1. The RLX is subject to high standards of safety and quality.
2. Check before initial operation that all parts are complete and not visibly
damaged.
3. Ensure that the socket is grounded properly and meets the required voltage.
4. The loading capacity of the lying surface is 160 kg.
4. Intended use
1. Only operate the RLX in accordance with its intended use.
2. The RLX is a wellness lounger. The RLX is not a medical product in
accordance with the German Medical Products Law (MPG).
3. The RLX is intended for indoor use only.
5. Installation/Transport
5.1 Unpacking
Open the top of the packaging carefully. Do not use any sharp-edged items
which can damage the upholstery.
Do not lift the RLX but remove the top packaging first. Then you can lift and
remove the outer packaging
5.2 Installation
The RLX is generally delivered as a completely assembled unit so that no further
installation works are required. Exceptionally, required installation works are
carried out by the deliverer on site.
5.3 Transport
1. Carry the RLX by its supporting structure during transport.
2. Never carry the RLX by its lying surface during transport; otherwise you can
damage the RLX seriously.
3. Always consider the total weight of the RLX. The total weight can be more than
70 kg; so you may need the help of several persons.

9
4. Always consider the dimensions of the RLX. Narrow hallways, doors or
staircases can make the transport difficult or impossible. Depending on model,
the length of the RLX is up to 190 cm and the total width up to 70 cm.
6. Rating plate
1. The rating plate is on the supporting structure at the top end.
2. The first specification on the rating plate is the serial number.
7. Adjustment of the lying position
7.1 RLX and RLX LIGHT
1. The lying surface has a fixed position which cannot be adjusted.
2. The lying position of the head can be varied when using the optional available
neck support.
7.2 RLX ELECTRIC

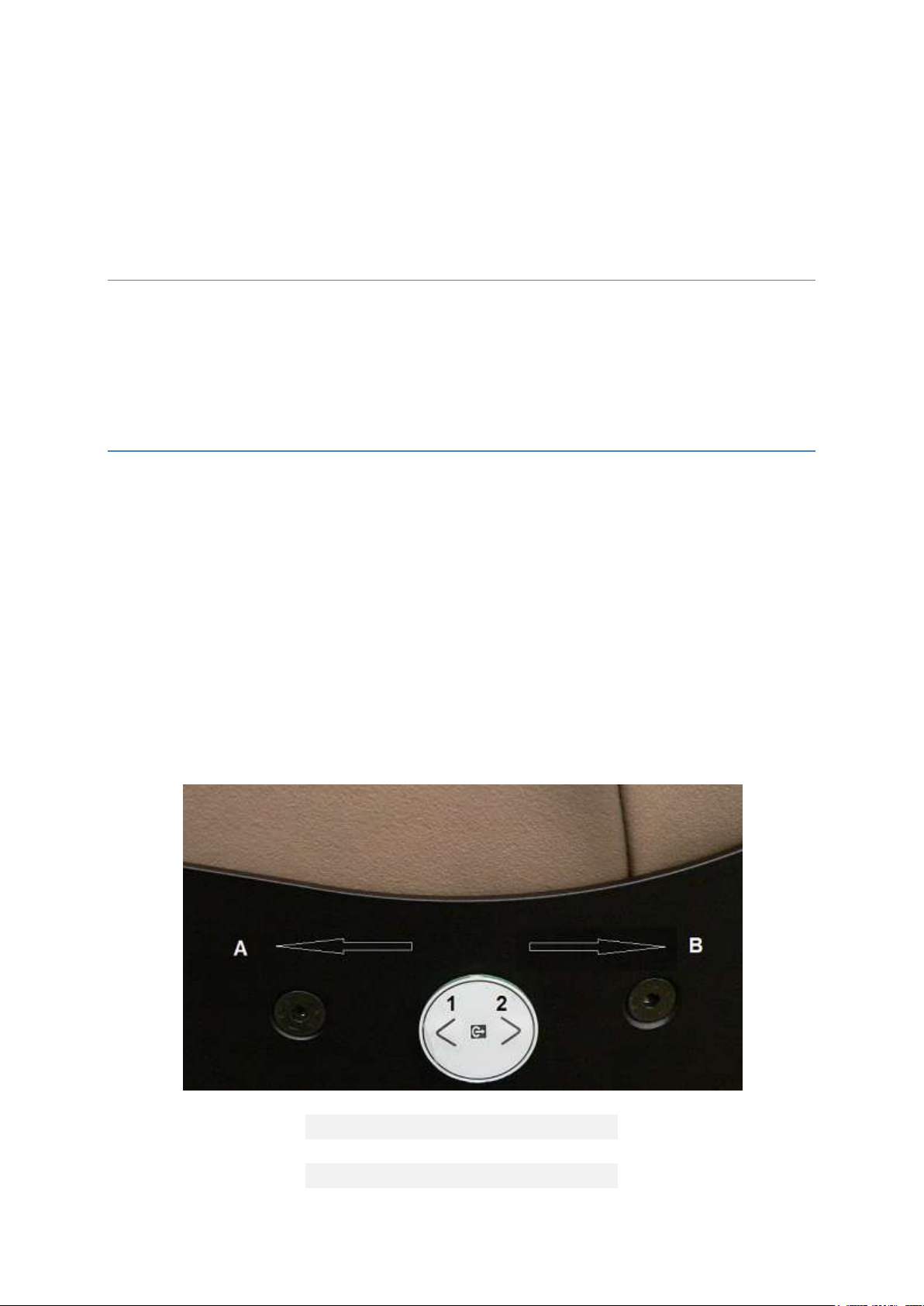

1. You can adjust the inclination of the lying surface using the control panel.
2. The control panel is at the lower back section (see chapter 2.2).
1
Back section down
2
Back section up
A
Back section
B
Leg section

10
3. Button 1 moves the back section (A) downwards and, consequently, the leg
section (B) upwards.
4. Button 2 moves the back section (A) upwards and, consequently, the leg section
(B) downwards.

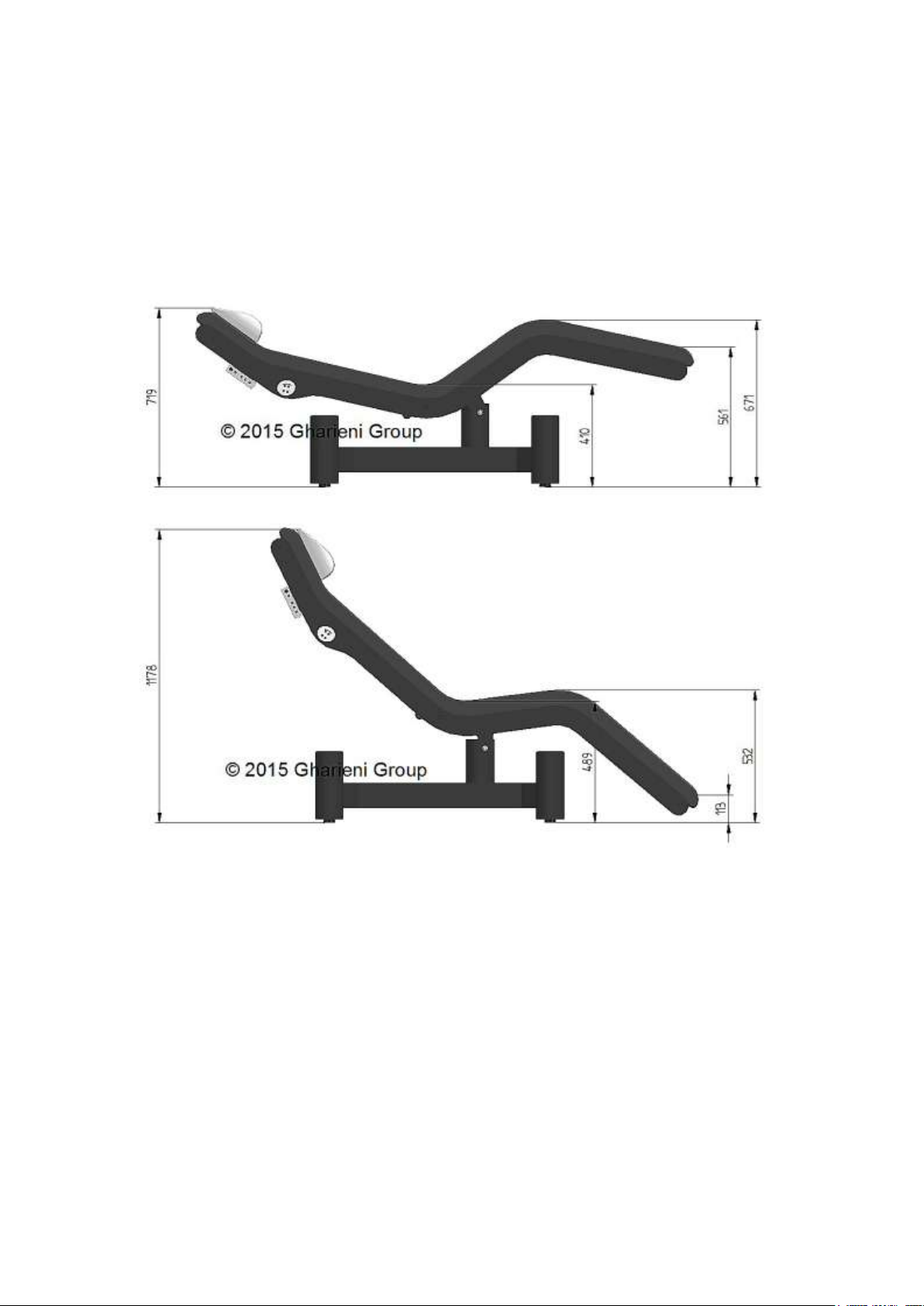

7.2.1 Dimensions of highest/lowest inclination

11
8. Options
8.1 Electric foot switch
An additional foot switch to adjust the inclination is optional available (RLX
ELECTRIC only). Use the relevant switch to adjust the inclination of the lying
surface.
8.2 Heater Smart Thermo II
The lying surface of RLX can be heated to maximize the treatment comfort. You
can set 10 heating levels using the HCP. For quick heating of a cold lying surface,
after starting the heater will operate with max. power during the pre-heating period.
The parameters of the heater can be programmed and saved if desired. Check the
current temperature before using the RLX. Disconnect RLX from the mains when
it is not used for a longer period of time, e.g. during the night.
HCP
8.2.1 Heater control panel (HCP)
You can operate the heater using the 4 buttons ON/OFF/+/-.The setting of the
heating power is indicated by a 10-level LED bar-diagram. The green LEDs 1-4
indicate low power/low temperatures. The yellow LEDs 5-7 indicate medium
power/medium temperatures. The red LEDs 8-10 indicate high power/high
temperatures.
8.2.2 Heating
Switch on the heater using the ON-button on the control panel. The preheating
period starts on highest setting. After the pre-heating time has elapsed, the normal
treatment setting will start. You can stop the pre-heating period using the + and -

12
buttons and set the temperature to one of the 10 levels. Switch off the heater using
the OFF-button on the HCP.
8.2.3 Manufacturers setting
Default operating parameters of the heater when delivered:
Total heating time
60 minutes
LED 6
Pre-heating period
6 minutes
LED 1+2
Power/total operation
30%
LED 1+2+3
8.2.4 Programming
The values of uninterrupted operation, the pre-heating period and the heating
power are programmable.
Use the following combination to enter the programming mode:
1. Press and hold the OFF-button.
2. Press and release the ON-button.
3. Release the OFF-button and enter the
Setting of the total operation period
You can set 10 levels from 10 to 100 minutes. The position of the single and
illuminated LED - from the left to the right - indicates the level. The
manufacturer´s setting is 60 minutes.
Example for level 6 = 60 minutes total operation:
Level 6 = 60 minutes.

13
Press the ON-button to save your setting, then you enter the
Setting of the pre-heating period
Each illuminated LED indicates a pre-heating period of 3 minutes. The
manufacturer´s setting is 6 minutes. The max. pre-heating period available is 30
minutes. Do not exceed the default values set by the manufacturer.
While the heater is still warm, the pre-heating period may be shorter when the
heater is switched on again.
Press the ON-button to save your setting, then you enter the
Setting of the power during treatment
The currently-saved value is indicated by one LED bar. The number of illuminated
LEDs indicates the set heating power in 10% steps. Manufacturer`s setting is 30%.
Set the desired value by pressing the +and -buttons. Save your setting by pressing
the ON-button.
The programming of the heater is complete.

You can finish the programming of the heater by pressing the OFF-
button at any point of time.
8.3 Audio-Relax headrest
The Audio-Relax headrest is equipped with two laterally-installed speakers. The
desired music is played by an MP3 player. Your customer can hear the music but
the room is not filled with sound; so your customers can provide the music they
would like to listen to.
8.4 Additional accessories
You can equip the RLX with the following accessories to optimise the lying
comfort:
1. Neck support/white
2. Neck support/colour
3. Reading lamp/with LED

14
9. Repair, maintenance and cleaning
We are responsible for safety and reliability of the RLX under the following
conditions only:
1. Repairs and modifications must be carried out by Gharieni Group GmbH or a
person authorized by Gharieni Group GmbH.
2. The electrical installation of the room the RLX is installed in must meet the
current legal regulations at the site where the RLX is operated.
3. The RLX is operated as described in the instruction manual.
4. Unauthorized modifications or manipulating the RLX will void the liability of
the manufacturer.
5. All electric components are designed for continuous operation. Leave the RLX
connected when it is used every day.
6. Check the power cord regularly for signs of damage.
7. When the power cable is damaged, it must be replaced by the manufacturer or
an authorized aftersales service or a qualified professional only.
The coating of the upholstery is made of synthetic leather.
Only use detergents which are suitable for the material they are applied on.
Strictly observe the information given by the manufacturer of the relevant
detergent.
The use of unsuitable detergents can seriously damage the material the
unsuitable detergent is applied on.
Clean the synthetic leather using the special detergent for synthetic leather
(optional available from Gharieni).
Clean the housing and the fittings using a damp cloth and a small amount of
soap.
If your upholstery is customised, please contact the Gharieni service department
for further information.
Contact the Gharieni service department for information on suitable
disinfectants.

15
9.1 Trouble shooting
Malfunction
Possible cause(s)
Measures
Motor does not work.
1. No mains connection.
2. Defective power cord.
3. Controls or motor plug are not
connected properly.
4. Defective control element.
5. Defective fuse in transformer.
6. Control box/total failure.
1. Check status of connection.
2. Power cord has to be replaced.
3. Check connections.
4. Defective control element has to be
replaced.
5. Fuse has to be replaced.
6. Control box has to be replaced.
10. Guarantee
The Gharieni Group GmbH gives a 2-year guarantee on all new wellness loungers.
Wearing parts (such as e.g. incandescent lamps, UV lamps, glass panels,
consumables etc.) are not covered by this guarantee. Damage or loss due to
unprofessional or improper use, non-compliance with the provisions of the
instructions for use and/or gross negligence is not covered by guarantee either. In
addition, the guarantee is invalidated if any stickers (such as e.g. the type plate,
instruction notices etc.) are removed or if appliances or parts of appliances are
opened without this being explicitly allowed in the operating instructions (e.g. for
cleaning).
Guarantee exclusion:
Upon delivery, it is necessary to check that the equipment has not been damaged
during transportation and that the set of accessories is complete and in good
condition. Claims must be filed within 8 days after the delivery of the product.
Apart from the cases specified in the supply agreement, the guarantee is void
when:
 The malfunctioning is attributable to the operator.
 The instructions in this instruction manual are not observed.
 The Gharieni product has suffered changes after repair operations performed
by a third party which has not been authorized by the Gharieni Group GmbH.

16
11. Waste management
Do not dispose of this product together with your domestic waste.
Old and unused appliances must be send for disposal to the
responsible recycling centre for electric appliances. Do not remove
the relevant symbol from the product.
This product is made of metal and plastic components, electronic
components, electric cables. Dispose of the separate components in
accordance with the current local disposal regulations. For further
information, please contact your municipal disposal authorities, your
retailer or
Gharieni GmbH
Phone
02841/88300-0
Fax
02841/88300-999
[email protected]
Service-Hotline
02841/88300-40
12. Technical data
Total length RLX/RLX ELECTRIC
Total length RLX LIGHT
190 cm
174 cm
Width/lying surface RLX/RLX ELECTRIC
Width/lying surface RLX LIGHT
70 cm
66 cm
Dimensions/base
100 cm*54 cm
Inclination of lying surface
approx. 280(RLX ELECTRIC)
Lifting capacity/lying surface
(safe max. load capacity)
180 kg
Lifting capacity/backrest
(safe max. load capacity)
75 kg
Total weight without options
RLX ELECTRIC: 70 kg
RLX: 65 kg
RLX LIGHT: 65 kg
Adjusting drive incl. control (RLX ELECTRIC only)
Transformer voltage/primary
230V AC/50Hz/200 VA max.
Transformer voltage/secondary
24 V DC
Protection
3 Ampere AT
Duty cycle (drive)
10 % max. 2 min. permanent
operation/18 min. pause
Power cord
3 m, straight, grey
Device protection class
I with heater, otherwise II
Overvoltage category
Type B

17
Protection against solid and liquid materials
IP X4
Smart Thermo II (RLX and RLX ELECTRIC only)
Transformer voltage/primary
230V AC/50Hz/120 VA max.
Transformer voltage/secondary
12 V DC/8.75 A
Protection/primary
2 A
Ambient conditions for storing and transportation
Climate
Value
Temperature
-10 0C to +50 0C ambient temperature
Atmospheric pressure
700 to 1060 hPa
Relative humidity
20% to 90% at 30 0C non-condensing
Ambient conditions for operation
Climate
Value
Temperature
+5 0C to +40 0C ambient temperature
Atmospheric pressure
700 to 1060 hPa
Relative humidity
30% to 75% at 30 0C non-condensing

18
13. EC-Declaration Of Conformity
EC DECLARATION OF CONFORMITY
We
Gharieni Group GmbH
(Manufacturer)
Gutenbergstraße 40; D-47443 Moers; Germany
declare that the product
RLX/ELECTRIC
Spa Table
(Type or model; name)
is produced in accordance with the requirements specified in
Low Voltage Directive (LVD) 2006/95/EG,
Electromagnetic Compatibility 2004/108/EG,
Safety of Machinery 2006/42/EG.
Moers
03/01/2011
(Place and date of issue)
S. Gharieni (CEO)
14. Status of edition
Edition
Alterations (pages)
Date
First edition
-
10/20/2016

19
NOTES
THE PROPERTY RIGHTS OF THIS INSTRUCTION MANUAL ARE
RESERVED. ITS REPRODUCTION OR TRANSMISSION TO THIRD
PARTIES IS FORBIDDEN WITHOUT THE AUTHORISATION OF THE
OWNING COMPANY. THE POWER TO PROTECT ITS RIGHTS IS
RESERVED AND OFFENDERS SHALL BE PROSECUTED.
Gharieni Group GmbH
Gutenbergstraße 40
D –47443 Moers
