GHARiENi MLL User manual

Instruction manual
Electric Spa Table
MLL / MLK
Gharieni Group GmbH
Gutenbergstraße 40
D –47443 Moers
Phone:
+49 (0)2841/88300-0
Fax:
+49 (0)2841/88300-999
E-Mail:
[e-mail]
Web:
www.gharieni.de
Service Hotline:
+49 (0)2841/88300-40

2
Index
1. Safety information...................................................................................................... 3
2. General information .................................................................................................. 4
3. Before initial use/space requirement ....................................................................... 5
4. Intended use................................................................................................................ 5
5. Unpacking ................................................................................................................... 6
6. Height .......................................................................................................................... 6
7. Head rest ..................................................................................................................... 6
8. Manual control panel ................................................................................................. 6
9. Optional equipment ................................................................................................... 7
9.1 Foot switch............................................................................................................ 7
9.2 Smart-Thermo heater........................................................................................... 7
10. Technical data......................................................................................................... 10
11. Cleaning and maintenance .................................................................................... 11
12. Guarantee provisions............................................................................................. 11
13. Waste management ................................................................................................ 12
14. EC-Declaration Of Conformity........................................................................... 13
15. Status of edition...................................................................................................... 13
Do not dispose of this appliance together with your domestic waste.
The appliance must be disposed of at a collecting centre for recyclable
electric and electronic appliances. Do not remove the symbol from the
appliance.

3
1. Safety information
READ THE COMPLETE SAFETY INSTRUCTIONS CAREFULLY BEFORE
YOU OPERATE THE APPLIANCE FOR THE FIRST TIME. All information
included in those pages serve for the protection of the operator. If you ignore the
safety instructions, you will endanger your health and life.
This instruction manual is an integral part of the product and must
be carefully kept in a safe place in order to consult it throughout
the equipment service life. Copies of this instruction manual are
available upon request.
The Gharieni Group GmbH shall not be held responsible for any
damages, direct or indirect, caused to people, animals or objects
resulting from negligence or non-compliance with the instructions
contained herein.
DANGER! indicates a hazardous
situation which, if ignored, will result in
death or serious injury.
WARNING! indicates a hazardous
situation which, if ignored, could result
in death or serious injury.
CAUTION! indicates a hazardous
situation which, if not avoided, may
result in minor or moderate injury.
NOTICE! indicates possible damage to
the appliance.
DANGER!
1. All electrical work to connect the MLL/MLK to the mains must be
carried out by a qualified professional. Do not modify the energy
supply. The connection must be carried out in accordance with the
current local and legal regulations.
2. Do not connect the MLL/MLK to the mains if the MLL/MLK itself or
the power cable or the plug are visibly damaged.
3. Never try to repair the MLL/MLK yourself. If the MLL/MLK does not
operate properly, please contact the manufacturer or the shop you
purchased the appliance at. Original spare parts should be used only.
4. When the power cable is damaged, it must be replaced by the
manufacturer or an authorized aftersales service or a qualified
professional only.
WARNING!
1. Use a properly-grounded safety socket with proper voltage only. The
electrical components must never come into contact with water.

4
Check all cables regularly and call the aftersales service when any
cable is in improper condition. RISK OF ELECTRIC SHOCK!
2. Disconnect the MLL/MLK from the mains before cleaning and
maintenance. RISK OF ELECTRIC SHOCK!
3. The housing must never be penetrated by water or any other liquid.
OF ELECTRIC SHOCK!
4. Always provide a minimum safety distance of at least 50 cm between
the MLL/MLK and any wall, otherwise there is RISK OF CRUSHING!
5. Always ensure that there are no persons or objects below the lying
surface while adjusting the height.
6. Always ensure that there are no fingers or other parts of the body
between the moving parts while adjusting the height or head rest.
RISK OF CRUSHING!
7. Persons who are treated on the MLL/MLK must not be under the
influence of intoxicating substances (e.g. alcohol, drugs or medicine).
8. Always keep children away from the LR4. Children must not play with
the PS or its single components.
9. Keep the manual control panel/foot switch out of the reach of
children.
10. This device is not intended to be operated by persons with
reduced physical, sensory and mental capabilities or lack of
experience or knowledge, unless they are supervised or instructed
concerning the use of the device and do understand the danger
resulting thereof..
NOTICE!
1. For safety reasons, the MLL/MLK moves only while pressing a key of
the MCP. When you stop pressing, all moving-operation will stop
immediately.
2. General information
Dear Customer,
we would like to thank you for purchasing this quality-product as well as for your
confidence. Read the complete instruction manual before you use the MLL/MLK
for the first time. Reading the complete IM is essential for its proper and confident
use and will help you to operate the appliance to your entire satisfaction .Our
MLL/MLK is very robust and has a long operating life if it is operated properly.
Read the instructions very carefully and operate the appliance in its intended use as
described only to protect you and your customers from danger.. Keep the
instruction manual handy and near of the MLL/MLK.

5
WARNING! Failure to follow these instructions endangers the
operator`s health and life and/or can damage the appliance.

Ensure that there is sufficient free space for the MLL/MLK relevant to
its total dimensions.
3. Before initial use/space requirement
1. The MLL/MLK is subject to the highest safety and quality standards.
2. Before initial operation, please check that all components are present and that
they are not visible damaged.
3. The dedicated safety socket must be grounded properly and must meet the
proper voltage (230 V AC).
4. Ensure sufficient free space. Dimensions of the MLL/MLK in lowest position
(L*W*H): 195*70*62 cm. You can adjust the height up to 92 cm using the
lifting motor. A lateral shift (14 cm) occurs when adjusting the height
(parallelogram principle). Always provide a minimum distance of 50 cm to any

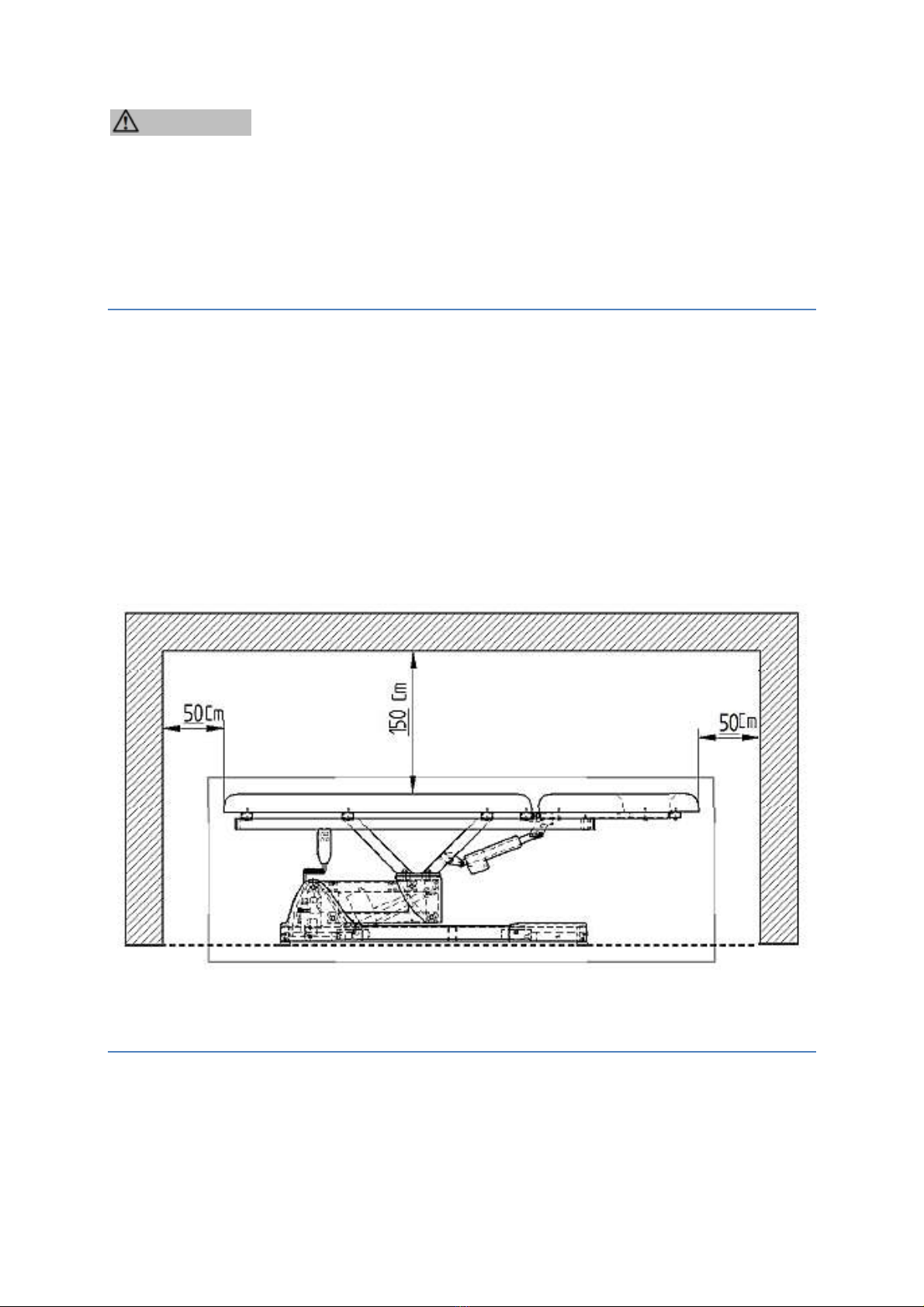

wall. Look at the figure below:
4. Intended use
Read the instructions very carefully and only operate the device in its intended use
as described to protect you and your customers from danger. The MLL/MLK is a
Spa Table which is suitable for many different kinds of massages. The max. lifting
capacity is 160 kg.
The MLL/MLK is intended for indoor use only.

6
5. Unpacking
Please observe the following when the MLL/MLK is delivered in a cardboard:
Open the top of the packaging carefully. Do not use any sharp-edged items
which can damage the upholstery.
Do not lift the MLL/MLK but remove the top packaging first. Then you can
lift and remove the outer packaging
NOTICE! If the floor is not level, you must ensure proper stability using
the adjusting screw.
6. Height
The entering height is 62 cm when the MLL/MLK is in lowest position. The
maximum height is 82 cm, so your customer can be placed in optimum work
height.
7. Head rest
You can adjust the head rest using the electric low voltage motor or the gas
pressure spring.
MLK-version: You can tilt the head rest by +/- 300.
MLL-version: You can tilt the head rest from 00to 740.
You can always offer your customer optimum position during treatment.
8. Manual control panel
The electric manual control panel is supplied with low voltage (24 V DC) and
operates the electrically-adjustable functions. Depending on model, you can
activate the relevant functions using the dedicated pair of push buttons.

7
9. Optional equipment
9.1 Foot switch
The MLL/MLK is optional available including a foot switch for 2 electric motors.
The advantage of this option is that you have both hands free during treatment.
9.2 Smart-Thermo heater
WARNING
1. Do not use the option Smart-Thermo when your customer
has got a pacemaker.
is pregnant.
is affected by thrombosis.
suffers from pain due to unknown reasons.
Apply to healthy people only.
2. Do not cover the MLL/MLK with blankets, towels, clothes etc. while
the heater is running; otherwise heat accumulation can occur. RISK
OF FIRE!
3. Do not exceed the default values set by the manufacturer (pre-
heating period approx. 6 minutes; treatment heating-level approx
30%, 3 LEDs) when programming the heater yourself.
4. When the treatment is stopped prematurely, cancel the Smart-
Thermo function by pressing the OFF-button on the HCP* to avoid
heat accumulation.
5. Disconnect the unit from the mains when it is not used for a longer
period of time.
*HCP = Heater Control Panel
Heater
The lying surface can be heated to maximize the treatment comfort. You can set 10
heating levels using the HCP. For quick heating of a cold lying surface, after
starting the heater will operate with max. power during the pre-heating period. The
parameters of the heater can be programmed and saved if desired. Check the
current temperature before using the MLL/MLK. Disconnect the unit from the
mains when it is not used for a longer period of time, e.g. during the night.

8

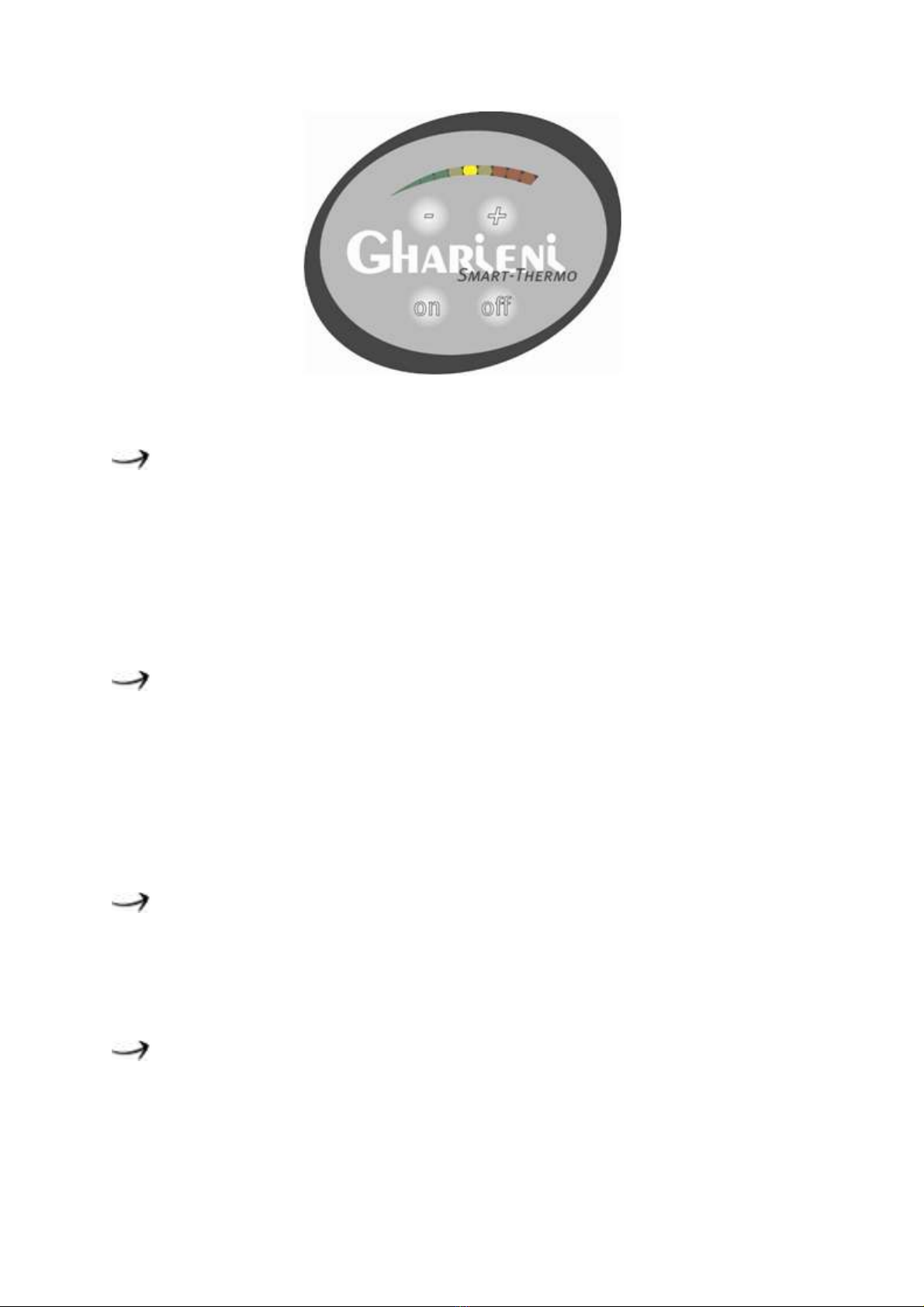

HCP
Operation
You can operate the heater using the 4 buttons ON/OFF/+/-.The setting of the
heating power is indicated by a 10-level LED bar-diagram.
The green LEDs 1-4 indicate low power/low temperatures.
The yellow LEDs 5-7 indicate medium power/medium temperatures.
The red LEDs 8-10 indicate high power/high temperatures.
Heating
Switch on the heater using the ON-button on the HCP. The preheating period (6
minutes-default setting) starts on highest setting. All LEDs are on. When the pre-
heating time has elapsed, the normal treatment setting will start (60 minutes-default
setting). You can stop the pre-heating period using the + and - buttons and set the
temperature to one of the 10 levels. Switch off the heater using the OFF-button on
the HCP.
Default settings
Total heating time
60 minutes
LED 6
Pre-heating period
6 minutes
LED 1+2
Power/total operation
30%
LED 1+2+3
Programming
The values of uninterrupted operation, the pre-heating period and the heating
power are programmable.
Use the following combination to enter the programming mode:

9
1. Press and hold the OFF-button.
2. Press and release the ON-button.
3. Release the OFF-button and enter the
Setting of the total operation period
You can set 10 levels from 10 to 100 minutes. The position of the single and
illuminated LED - from the left to the right - indicates the level. The
manufacturer´s setting is 60 minutes.
Example for level 6 = 60 minutes total operation
Press the ON-button to save your setting.
Setting of the pre-heating period
Each illuminated LED indicates a pre-heating period of 3 minutes. The
manufacturer´s setting is 6 minutes. The max. pre-heating period available is 30
minutes. Do not exceed the default values set by the manufacturer.
While the heater is still warm, the pre-heating period may be shorter when the
heater is switched on again.
Press the ON-button to save your setting, then you enter the
Setting of the power during treatment
The currently-saved value is indicated by one LED bar. The number of illuminated
LEDs indicates the set heating power in 10% steps. Manufacturer`s setting is 30%.
Set the desired value by pressing the +and -buttons. Save your setting by pressing
the ON-button.
The programming of the heater is complete

10

You can finish the programming of the heater by pressing the OFF-
button at any point of time.
10. Technical data
Total length
approx. 195 cm
Width
approx. 70 cm
Height/lying surface
62-92 cm
Inclination headrest
MLL: 00to 740
MLK: +/- 300
Weight
approx. 77 kg
Lying surface lifting capacity
(max. safe operational load
160 kg
Power of transformer (primary)
230V AC/50Hz/70 VA max.
Power of transformer (secondary)
24 V DC
Protection
1.5 ampere AT
Duty cycle
approx. 10 %
Power cord
3.2 m, straight, grey
Manual control panel/cord
Coiled cable, black
Device protection class
II
Smart Thermo
Power of transformer (primary)
230V AC/50Hz/120 VA max.
Power of transformer (secondary)
12 V DC/8.75 A
Protection primary
2 A
Ambient conditions for storing and transportation
Temperature
from -10 0C to +50 0C
ambient temperature
Relative humidity
from 20% to 90%
at +30 0C non-condensing
Ambient conditions for operation
Temperature
from +5 0C to +40 0C
ambient temperature
Relative humidity
from 35% to 65%
at +30 0C non-condensing

11
11. Cleaning and maintenance
We are responsible for safety and reliability of the MLL/MLK under the following
conditions only:
1. Repairs and modifications must be carried out by Gharieni Group GmbH or a
person authorized by Gharieni Group GmbH.
2. The electrical installation of the room the MLL/MLK is installed in must meet
the current legal regulations at the site where the MLL/MLK is operated.
3. The LR4 is operated as described in the instruction manual.
4. Unauthorized modifications or manipulating the MLL/MLK will void the
liability of the manufacturer.
5. All electric components are designed for continuous operation. Leave the
MLL/MLK connected when it is used every day.
6. Check the power cord regularly for signs of damage.
7. When the power cable is damaged, it must be replaced by the manufacturer or
an authorized aftersales service or a qualified professional only.
Upholstery/cleaning and disinfection:
Do not use any chemical detergents such as methylated spirit, acetone, alcohol
etc. Such detergents will damage the upholstery permanently.
Clean the synthetic leather using a damp cloth or the special detergent for
synthetic leather (optional available from Gharieni).
Clean the housing and the fittings using a damp cloth and a small amount of
soap.
Contact the Gharieni service department for information on suitable
disinfectants.
12. Guarantee provisions
The Gharieni Group GmbH supplies all new equipment subject to a 2-years
guarantee. Wearing parts (such as e.g. incandescent lamps, UV lamps, glass panels,
consumables etc.) are not covered by this guarantee. Damage or loss due to
unprofessional or improper use, non-compliance with the provisions of the
instructions for use and/or gross negligence is not covered by guarantee either. In
addition, the guarantee is invalidated if any stickers (such as e.g. the type plate,
instruction notices etc.) are removed or if appliances or parts of appliances are
opened without this being explicitly allowed in the operating instructions (e.g. for
cleaning).

12
Guarantee exclusion:
Upon delivery, it is necessary to check that the equipment has not been damaged
during transportation and that the set of accessories is complete and in good
condition. Claims must be filed within 8 days after the delivery of the Gharieni
MLL/MLK. Apart from the cases specified in the supply agreement, the
guarantee is void when:
The malfunctioning is attributable to the operator.
The instructions in this instruction manual are not followed.
The Gharieni MLL/MLK has suffered changes after repair operations
performed by a third party unauthorized by Gharieni Group GmbH.
13. Waste management
Do not dispose of the MLL/MLK together with your domestic
waste. Old and unused appliances must be send for disposal to the
responsible recycling centre for electric appliances. Do not remove
the relevant symbol from the product.
The MLL/MLK is made of metal and plastic components, electronic
components, electric cables. Dispose of the separate components in
accordance with the current local disposal regulations. For further
information, please contact your municipal disposal authorities, your
retailer or
Gharieni GmbH
Phone
02841/88300-0
Fax
02841/88300-999
[e-mail]
Service-Hotline
02841/88300-40

13
14. EC-Declaration Of Conformity
EC DECLARATION OF CONFORMITY
We
Gharieni Group GmbH
(Manufacturer)
Gutenbergstraße 40; D-47443 Moers; Germany
declare that the product
MLL/MLK
(Type or model; name)
is produced in accordance with the requirements specified in
Low Voltage Directive (LVD) 2006/95/EG
Electromagnetic Compatibility 2004/108/EG
Safety of Machinery 2006/42/EG
Moers
06/23/2010
(Place and date of issue)
S. Gharieni (CEO)
15. Status of edition
Edition
Alterations (pages)
Date
First edition
-
06/30/2016

14
NOTES
THE PROPERTY RIGHTS OF THIS INSTRUCTION MANUAL ARE
RESERVED. ITS REPRODUCTION OR TRANSMISSION TO THIRD
PARTIES IS FORBIDDEN WITHOUT THE AUTHORISATION OF THE
OWNING COMPANY. THE POWER TO PROTECT ITS RIGHTS IS
RESERVED AND OFFENDERS SHALL BE PROSECUTED.
Gharieni Group GmbH
Gutenbergstraße 40
D –47443 Moers
