Gilson PIPETMAN M P10M User manual

User’s Guide
EN
M
connected
M

TABLE OF CONTENTS
TABLE OF CONTENTS | PIPETMAN® M CONNECTED
TABLE OF CONTENTS
INTRODUCTION | 4
PARTS CHECKLIST AND ACCESSORIES | 5
Parts Checklist | 5
Accessories | 5
GETTING STARTED | 5
DESCRIPTION | 6
Reset | 6
Switch O | 6
Display | 6
PIPETTING JUST LIKE WITH PIPETMAN | 7
Switch On | 7
Adjust The Volume Setting | 7
Purge Volume | 7
PIPETTING MODES | 7
PIPET Mode | 7
REPETITIVE Mode | 8
MIX Mode | 9
REVERSE Mode | 11
CUSTOM Mode | 12
BENEFIT FROM THE BLUETOOTH CONNECTION | 13
Connect via Bluetooth | 13
Connection with the PIPETMAN M Software | 14
PIPETTING SPEED CONTROL | 15
PIPETMAN® DIAMOND TIPS | 15
GUIDELINES FOR GOOD PIPETTING | 17
Aspirate and Dispense | 17
General Guidelines for Good Pipetting | 18
PERSONALIZE YOUR PIPETMAN® M CONNECTED | 18
Tip Ejector Extension for Use with P10M | 18
Personal Label – Name and/or Application Tag | 19
GOOD LABORATORY PRACTICE FEATURES | 19
General | 19
Cycle Counters | 19
Alarms | 20

TABLE OF CONTENTS
PIPETMAN® M CONNECTED |USER’S GUIDE
POWER MANAGEMENT | 20
Battery Charging | 20
Working with Charger Connected to the Pipette | 21
Low Battery Warning | 21
Changing the Battery | 21
CONFIGURATION | 22
MAINTENANCE | 22
Service Information | 23
Adjustment | 24
Standard Readjustment | 24
Maintenance Operations | 24
Maintenance Warning | 25
Maintenance Operation for Single Channel Models | 25
Maintenance Operation for Multichannel Models | 27
CLEANING AND DECONTAMINATION | 28
Cleaning | 28
Single Channel Models | 28
Multichannel Models | 29
Decontamination | 29
Chemical Decontamination – Single and Multichannel Models | 29
LEAK TEST | 30
TROUBLESHOOTING | 31
SPECIFICATIONS | 31
SAFETY PRECAUTIONS AND LIMITATIONS OF USE | 33
REPLACEMENT PARTS | 34
Single Channel Models | 34
Multichannel Models | 34
APPENDICES | 35
Appendix A – Example of a Performance Check | 35
Appendix B – Z Factor | 36
Appendix C – Evaporation Loss | 37
REGULATORY COMPLIANCE | 38
WARRANTY | 39

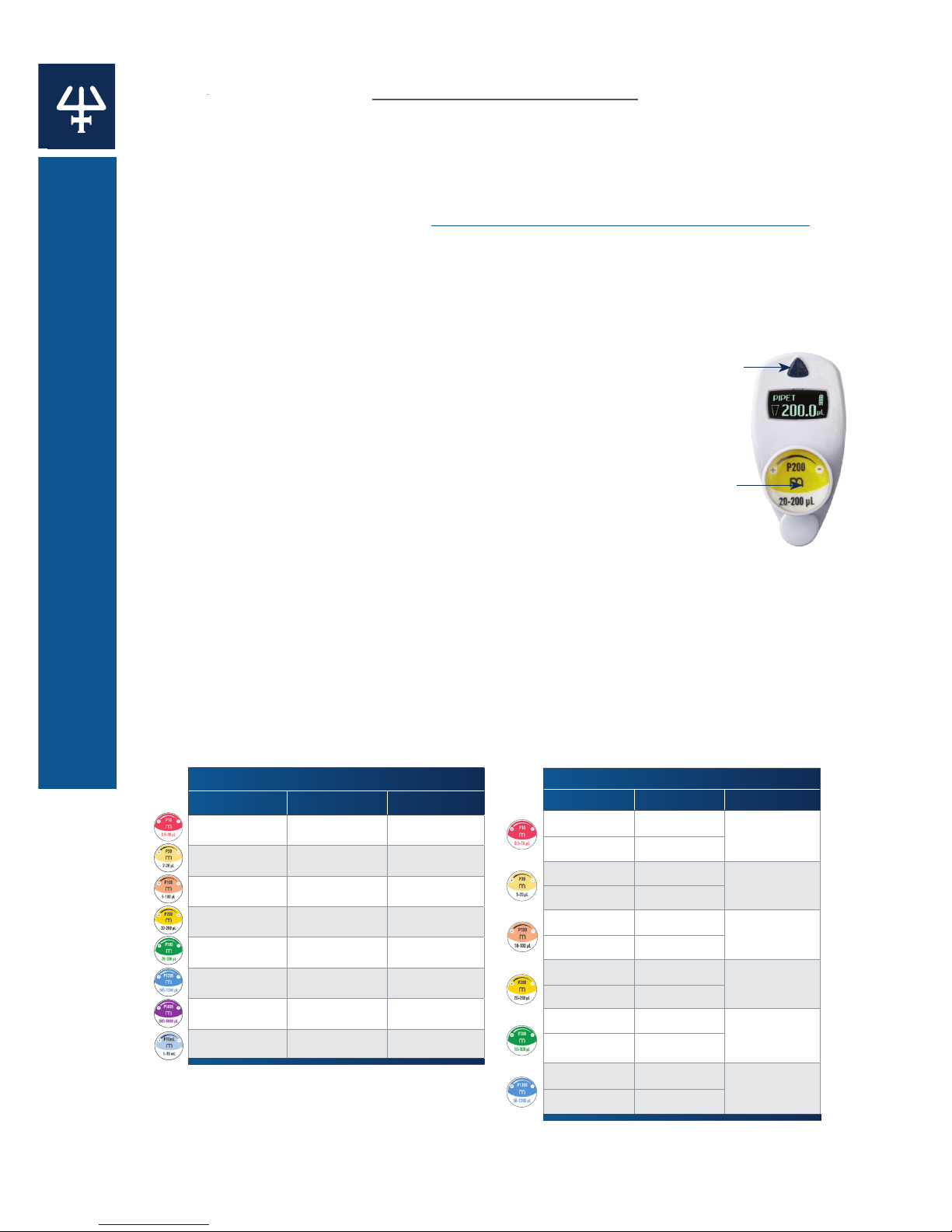

INTRODUCTION
4INTRODUCTION | PIPETMAN® M CONNECTED
Chapter 1
INTRODUCTION
Congratulations on the purchase of your PIPETMAN® M Connected, the electronic
pipette with guaranteed performance in both standard and repetitive pipetting
modes. For more information visit www.gilson.com/en/guaranteedperformance.
PIPETMAN M Connected is a Bluetooth® enabled motorized member of the
PIPETMAN® family of pipettes from Gilson, requiring virtually no pipetting forces to
aspirate and dispense samples. Combining PIPETMAN’s renowned accuracy, precision,
and robustness with user-friendly functions, PIPETMAN M Connected will reduce
pipetting fatigue, and increase pipetting efficiency.
PIPETMAN M Connected is a unique pipette with only two
buttons to operate the pipette and reach all menu options.
PIPETMAN M Connected features the classic PIPETMAN look
with additional functionality:
●Intuitive interface with five pipetting modes for a large
number of applications: forward pipetting, repetitive, mix,
reverse, and custom mode.
●Minimal effort: aspirate and dispense with one click of the
push button and eject tips with ease to help reduce the
risk of repetitive strain injuries (RSI).
●Maximum comfort: the lightweight and balanced design of PIPETMAN M Connected
offers an ergonomic design that rests comfortably in your hand as you pipette.
●Minimized pipetting variability: the motorized piston allows for high reproducibility
and accuracy while pipetting.
●Increased performance for all day pipetting comfort.
PIPETMAN M Connected is available in 20 models covering a range from 0.5 µL to 10 mL
in single channel and 0.5 µL to 1200 µL in multichannel:
Menu
button
Push
button
PIPETMAN M CONNECTED SINGLE CHANNEL
Model Part Number Volume Range
P10M F81040 0.5–10 µL
P20M F81041 2–20 µL
P100M F81042 5–100 µL
P200M F81043 20–200 µL
P300M F81044 20–300 µL
P1200M F81045 100–1200 µL
P5000M F81046 500–5000 µL
P10mLM F81047 1–10 mL
Chapter 1
PIPETMAN M CONNECTED MULTICHANNEL
Model Part Number Volume Range
P8x10M F81048
0.5–10 µL
P12x10M F81049
P8x20M F81050
1–20 µL
P12x20M F81051
P8x100M F81052
10–100 µL
P12x100M F81053
P8x200M F81054
20–200 µL
P12x200M F81055
P8x300M F81056
10–300 µL
P12x300M F81057
P8x1200M F81058
50–1200 µL
P12x1200M F81059

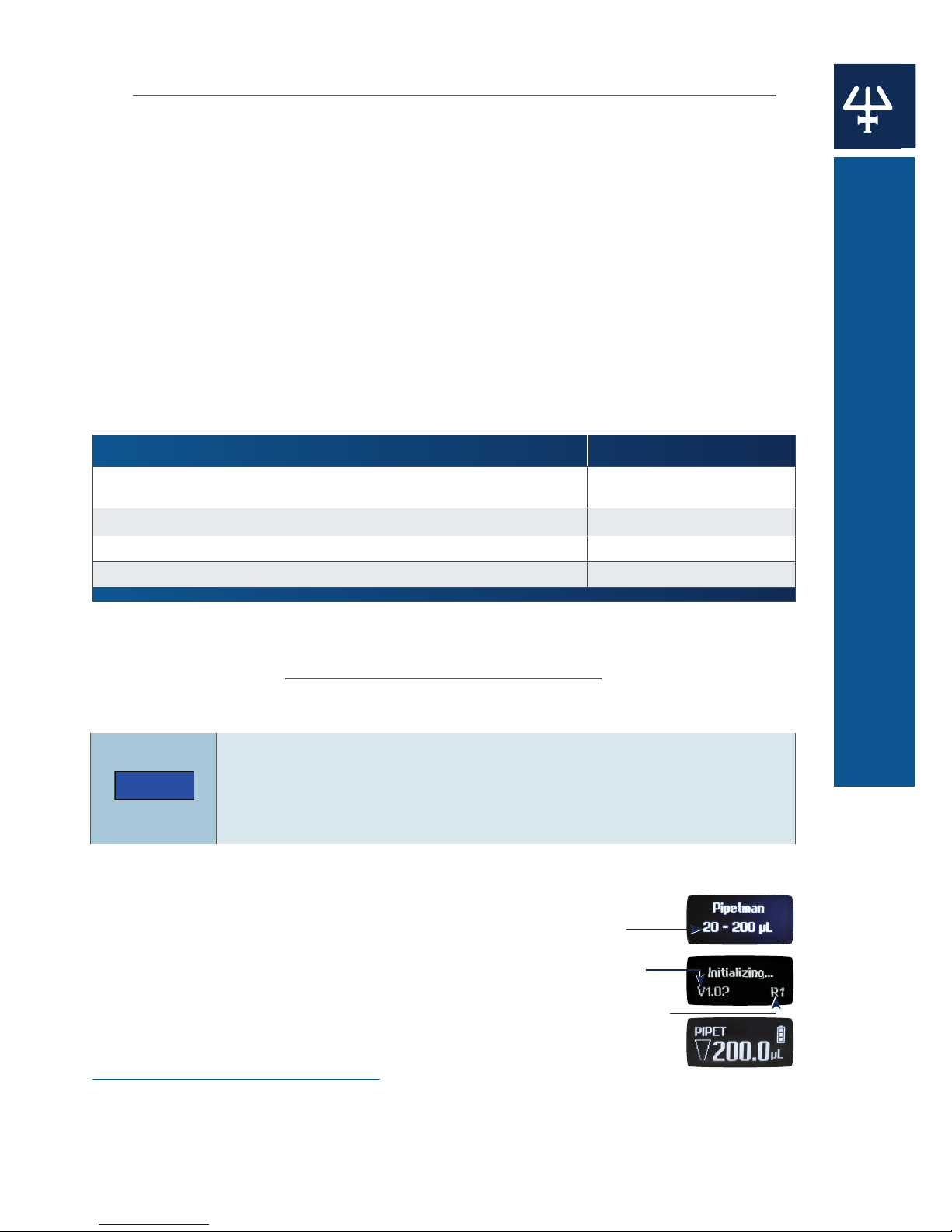

PARTS CHECKLIST AND ACCESSORIES
5
PIPETMAN® M CONNECTED |USER’S GUIDE
Chapter 2
PARTS CHECKLIST AND ACCESSORIES
Parts Checklist
Take a moment to verify that the following items are in the box:
• PIPETMAN M Connected pipette
• Power Supply 5V with AC adapter and cable
• 4 Battery side tags
• 4 Ejector side tags
• Tip ejector extension (P10M model only)
• Quick Guide
Accessories
ACCESSORIES PART NUMBER
POWER CARROUSEL: 5–position charging carrousel for single and
multichannel models FB1001
Battery side tags (set of 4) F807013
Ejector side tags (set of 4) F807014
USB Dongle F807027
Chapter 3
GETTING STARTED
Switch on your PIPETMAN M Connected. Press the push button to activate
the pipette. The start-up screen appears:
The pipette will do a self calibration test and the firmware
will reset the piston.
During initialization, the volume range, version of the
firmware, and the number of readjustments is displayed on
the screen (refer to Standard Readjustment on page 24).
Your PIPETMAN M Connected is preset on PIPET
mode and is now ready to pipette (Refer to Chapter 5
Pipetting Just Like with PIPETMAN on page 7).
PIPETMAN M Connected goes into sleep mode after three minutes of inactivity.
The display will shut off. Just press the push button to reactivate the pipette. Your last
setting and pipetting mode will appear on the screen.
• Safety bag
• Certificate of conformity
(including bar-code sticker
• Lubricant (except for P10M, and
the multichannel models)
Volume
range
Version of
firmware
Number of
readjustments
Please contact your Gilson representative to order additionnal accessories.
NOTE
PIPETMAN M Connected is provided with a minimal battery charge. Before
using your new pipette, we strongly recommend that you to fully charge the
battery. PIPETMAN M Connected charges 80% of its full battery capacity in
less than an hour, but it takes three hours to fully charge the battery. Please
refer to Chapter 12 Power Management on page 20 for charging procedure.

DESCRIPTION
6DESCRIPTION | PIPETMAN® M CONNECTED
Figure 1
PIPETMAN® M Connected single and multichannel models
Chapter 4
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19
Upper part
Push button and volume
adjustment knob
Menu button: direct access to all
menu functions
Tip ejector button
Display
Elastomer plug to cover the battery
charging port
Identity-tag clip
Identity-tag window
Connecting nut — attaches handle
to lower part
Lower part
Tip ejector: removable to access tip
holder
Optimized tip holder to reduce tip
fitting and ejection forces, removable
for cleaning and servicing
Ejector clip
Ejector support
Cover
Ejector spacer
Screen
Pipetting Mode
Aspirate and dispense indicator
Battery status
Purge indicator
Volume
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Reset
To reset your pipette, simultaneously press on the push and menu button for at
least five seconds.
Switch O
To switch off your PIPETMAN M Connected, press the push button for at least five
seconds.
Display
The PIPETMAN M display is an Organic Light-Emitting Diod (OLED) screen. It shows
the current mode and operation step, pipetting volume, battery indicator and piston
status (aspirated and dispensed volume) in real time.
Warning messages appear in the place of volume.
12
1

PIPETTING JUST LIKE WITH PIPETMAN
7
PIPETMAN® M CONNECTED |USER’S GUIDE
Chapter 6
PIPETTING MODES
PIPETMAN M Connected offers more pipette modes for a large number of applications:
you will find all pipetting modes in the menu (for system settings refer to Chapter 8
Pipetting Speed Control on page 15 and Chapter 14 Configuration on page 22). Access
the menu by pushing the menu button. To choose one of the pipetting modes, turn
the push button and then click to confirm your selection.
PIPET Mode
This is the classic pipette mode (forward pipetting) for simple
aspirating and dispensing.
•
Chapter 6
Chapter 5
PIPETTING JUST LIKE WITH PIPETMAN
Using PIPETMAN M Connected is as easy as using a mechanical
PIPETMAN. Your PIPETMAN M Connected is set by default to “PIPET
Mode”, which means forward pipetting. Select a volume and then start
to pipette.
Switch On
Press push button.
Adjust The Volume Setting
1. Hold your PIPETMAN M Connected in a nearly vertical position.
2. Turn the push button half way. The screen will display:
“ Click to change volume. ”
3. Press the push button; the volume on the display will start blinking,
you can now adjust the volume:
●Turn the push button either clockwise to decrease volume or counter
clockwise to increase volume, as indicated on the button.
●Press the push button one time when finished. The volume is locked.
Chapter 5
Figure 1
PIPETMAN® M Connected single and multichannel models
NOTE
You can use the PIPET Mode for all standard applications like DNA
extraction, plasmid isolation, cloning, dilution, PCR, qPCR and many others.
You can easily pipette aqueous liquids like buer, chemical solutions
(MgCl2, KCl …), and biological samples such as blood, DNA, and RNA.
Purge Volume
The tip can be emptied at any time during a pipetting cycle.
1. Turn the push button quickly: the message “Click to abort” will appear on the
screen.
2. Click on the push button to validate: the liquid will be dispensed and an automatic
purge followed by piston reset to zero will occur.

PIPETTING MODES
8PIPETTING MODES | PIPETMAN® M CONNECTED
Fit a tip suitable for the model of PIPETMAN M Connected that you are using
(preferably use PIPETMAN Tips for assurance of accurate and precise results, refer to
Chapter 9 PIPETMAN DIAMOND Tips on page 15).
1. Press the push button to aspirate the selected volume.
2. To dispense: click (press and release) the push button.
Three things happen: sample dispense, automatic
purge, and piston reset to zero. Or, keep your thumb
pressing the push button until the end of the dispense
cycle: the piston reset takes place after releasing the
push button again. This feature enables you to remove
the tip from the liquid, without aspirating anything.
3. Eject tip by pressing the ejection button.
Your PIPETMAN M Connected is ready for the next pipetting
cycle while maintaining the volume and the last settings.
Continue pipetting as you would with your mechanical PIPETMAN Connected; it’s as
simple as that to use your new, electronic pipette!

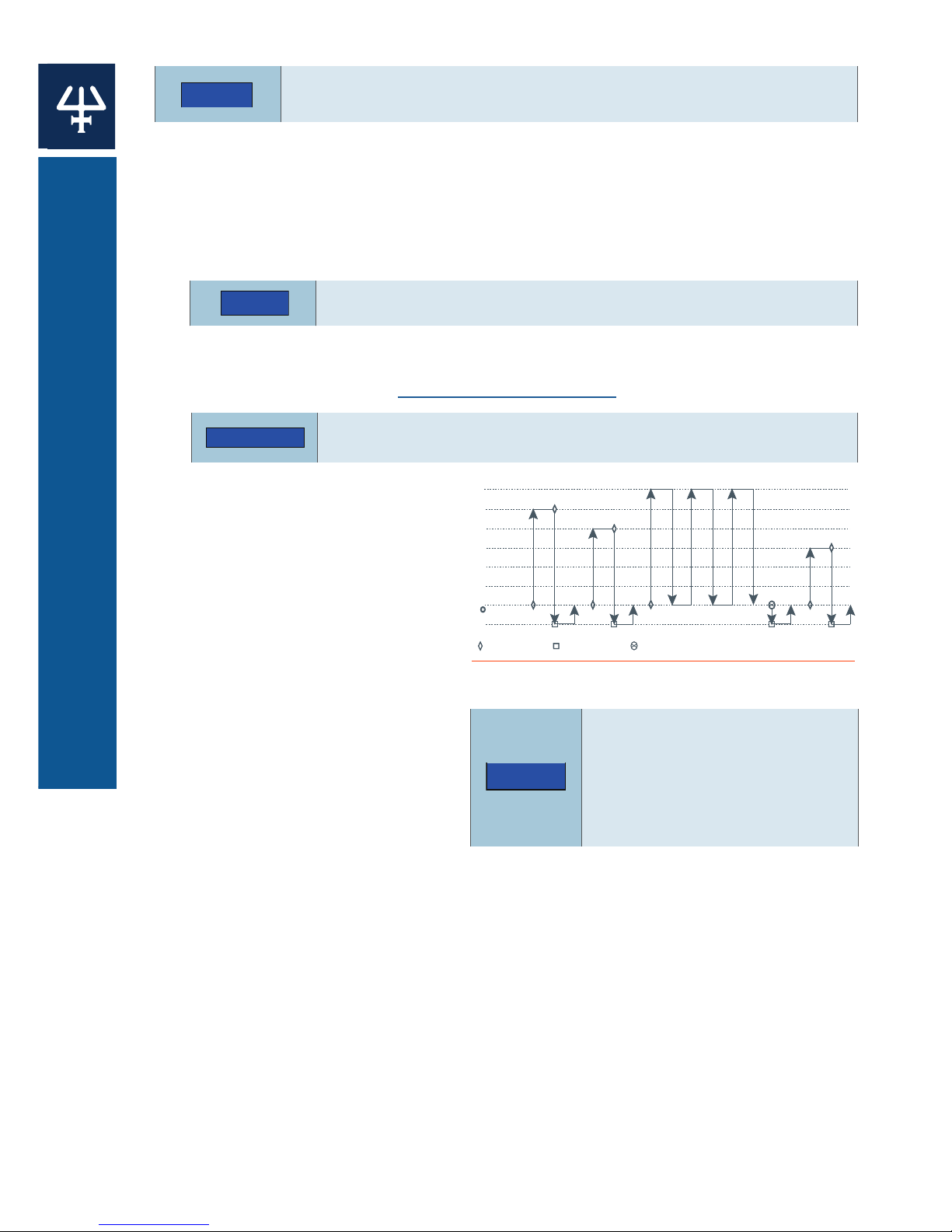

REPETITIVE Mode
The REPETITIVE Mode allows you to distribute the same volume repeatedly in a
predefined number (N) of equal aliquots. You supply the aliquot volume
(AV) and the pipette automatically calculates the number of aliquots
possible from the nominal (maximum) volume (NV) of the pipette as
follows:
N = NV/AV (e.g., 120 μL x 10 for P1200M).
You also can decrease the number of repetitions (e.g., 120 μL x 10-(n ≥1) for P1200M).
NOTICE
Always fit a tip before using any pipette.
START button
Optional STOP
0
V
Purge
Figure 2
PIPET Mode
NOTE
The REPETITIVE Mode is ideal for dispensing aliquots, e.g., dispensing a
PCR master mix into PCR tubes or 96-well, pipetting elution buer for DNA
extraction, preparing a target for spectrometric analyses, distributing loading
buer into samples, etc.
1. Press menu button to access system menu, where you can choose between
different pipette modes. Select REPETITIVE Mode by turning the push button.
To confirm your selection click on the push button.
2. Turn the push button half way, the screen will display:
“Click to change volume.”
3. Press the push button; the volume on the display will start to blink,
you can now adjust the volume.
Set the aliquot volume
1. Cick the push button, set the volume by turning the push button and click again
to confirm your settings.
2. Set the aliquot number: the maximal number of aliquots has been calculated
by your PIPETMAN M Connected. The number of aliquots flashes and you can
decrease this number (N – (n ≥1)) by turning the push button.
3. Press again to confirm your settings.

PIPETTING MODES
9
PIPETMAN® M CONNECTED |USER’S GUIDE
4. Fit a tip suitable for the model of
PIPETMAN M Connected that
you are using (preferably use
PIPETMAN Tips for assurance
of accurate and precise
results; refer to Chapter 9
PIPETMAN DIAMOND Tipson
page 15).
5. Press push button to aspirate
total volume. The volume
aspirated will be a little bit more
than required (extra volume).
The extra volume is necessary to
ensure equal operating conditions
for each dispensed aliquot.
Dispense
Press the push button. DISCARD appears on the screen. Discard the extra volume
andcontinue dispensing the aliquots. PIPETMAN M Connected distributes the aliquot
volume each time you click the push button. The number of aliquots left to dispense is
displayed on the screen. A warning beep indicates the last aliquot.
Purge
Press the push button, PURGE appears on the screen, click again to purge and reset
the piston. Keep your thumb pressing the push button until the end of the purge: the
piston reset takes place after you release the push button again. This feature enables
you to remove the tip from the liquid, without aspirating anything.
Eject Tip
Pressing the ejection button.
MIX Mode
This is the classic pipette mode (forward pipetting) followed by a mixing phase,
composed of repeatedly aspirating and dispensing, as well as an optional forward
pipetting step.
1. Press menu button to access menu, where you can choose between different
pipette modes. Select MIX Mode by turning the push button, then to confirm your
selection click on the push button.
2. Set the first volume, named VOLUME 1: click the push button, set the volume by
turning the push button and click to confirm your selection. This is the first volume
you will aspirate and dispense. Set the second volume, named VOLUME 2: click the
push button, you can now set the second volume by turning the push button.
Click again to confirm your settings.
NOTICE
Always fit a tip
before using any
pipette.
START button Optional STOP
V (+ extra vol)*
Purge
Start Purge
V (vol)
0
DISCARD ALIQUOTS PURGE
Click to Purge
Discard
Figure 3
REPETITIVE Mode
NOTE
The MIX Mode can be used to prepare a PCR master mix, enzyme restriction mix, protein
solution, oligonucleotide dilution and to mix samples with gel loading buffer and so on…
you can mix two different solutions or homogenize one solution. If you work with higher
viscosity than water (e.g., restriction enzyme), you may change the aspiration speed
(refer to Chapter 8 Pipetting Speed Control on page 15). If you work with genomic DNA,
then you should always pipette very carefully to avoid shearing and nicking.
NOTICE
Always fit a tip before using any pipette.

PIPETTING MODES
10 PIPETTING MODES | PIPETMAN® M CONNECTED
3. Set the MIX volume: click the push button, set the volume by turning the push
button. Confirm your settings with a simple click. This is the volume which will be
aspirated and dispensed repeatedly. “MIX” as long as you press the push button.
4. Set the additional pipetting volume, named VOLUME 3: You can choose a volume to be
aspirated and dispensed after the mixing step, so you can continue routine pipetting.
Click the push button, and then set the volume by turning the push button.
Confirm your settings by a simple click.
5. Fit a tip suitable for the model of PIPETMAN M Connected that you are using
(preferably use PIPETMAN DIAMOND Tips for assurance of accurate and precise
results; refer to Chapter 9 PIPETMAN DIAMOND Tips on page 15).
Aspirate VOLUME 1
Press the push button.
Dispense
Press and release the push button:
three things happen: sample
dispense, automatic purge and
piston reset to zero. Or, keep your
thumb pressing the push button
until the end of the dispense cycle:
the piston reset takes place after you
release the push button again.
This feature enables you to remove
the tip from the liquid, without
aspirating anything.
Aspirate and Dispense the
Second Volume
“VOLUME 2”, repeat steps Aspirate Volume 1 and To dispense.
Mix
Press push button; as long as you keep your thumb pressing the button, the pipette
continues mixing. Release the push button to complete the current mixing cycle.
Purge
Press push button, PURGE appears on the screen, click again to purge and reset the
piston.
Pipette
If you have chosen a VOLUME 3 > 0, you can now aspirate and dispense this volume
by repeating steps 2 and 3.
If you set the VOLUME 3 = 0 µL, then the cycle will stop after the MIX step.
NOTICE
Always fit a tip before using any pipette!
NOTE
NOTE
If you set VOLUME 1 or VOLUME 2= 0 µL, then the step will not appear.
If you set VOLUME 1 and 2 = 0 µL, then the cycle will start directly with the MIX step.
NOTE
If you choose VOLUME 1 = 0, then
step 2 won’t occur, if you choose
VOLUME 2 = 0 µL, then step 4 won’t
occur, as well if you set VOLUME
1 and 2 = 0 µL, then step 1–4 will
disappear. If you set VOLUME 3 =
0 µL step 7, then will not occur.
Figure 4
MIX Mode
START button Optional STOP
0
V
Purge
Start Purge
Push button pressed
V1 V2 V3

PIPETTING MODES
11
PIPETMAN® M CONNECTED |USER’S GUIDE
If you set the VOLUME 3 = 0 µL, then the cycle will stop after the MIX step.
NOTICE
Always fit a tip before using any pipette!
REVERSE Mode
The REVERSE Mode is reverse pipetting with a manual pipette. During
aspiration, additional liquid is added. After delivery, the excess volume
remains in the tip and is discarded.
The REVERSE Mode is ideal for pipetting viscous liquids; liquids with high vapor
pressure or those that tend to foam. Your PIPETMAN M Connected aspirates a
selected volume and an excess. This excess compensates for the liquid that remains
as a film inside the tip during dispensing. For example: protein extraction, cell lysis,
plasmid isolation, cell culture, buffer preparation and, many others.
Electrophoresis Gels Loading Protocol
1. Electrophoresis gels loading protocol: first change the pipetting speed of your
pipette (refer to Chapter 8 Pipetting Speed Control on page 15). Aspiration can be
done by using the standard speed (by default speed 6). Dispensing should be done
very slowly and carefully, to prevent swirling and spilling of the samples, so select
the lowest speed 1.
1. Press menu button to access system menu, where you can choose between
different pipette modes. Select REVERSE Mode by turning the push button.
To confirm your selection click, the push button.
Set the volume
1. Press the push button, set the volume by turning the push button and press again
to confirm your settings.
2. Fit a tip suitable for the model of PIPETMAN M that you are using (preferably use
PIPETMAN DIAMOND Tips for assurance of accurate and precise results; refer to
Chapter 9 PIPETMAN DIAMOND Tips on page 15).
Aspirate
Press push button to aspirate the selected volume.
An amount of liquid equal to the amount of purged
air is added. The volume aspirated will be a little bit
more than the set volume.
Dispense
Press push button to dispense the volume, the
additional amount of liquid remains in the tip.
Purge
Press push button, PURGE appears on the screen,
press again to purge and reset the piston. Keep
your thumb pressing the push button until the end
of the purge: the piston reset takes place after
you release the push button again.
This feature enables you to remove the tip from
the liquid, without aspirating anything.
Eject tip
Press the ejection button.
NOTICE
Always fit a tip before using any pipette.
0
Purge
START button
Optional STOP Start Purge
V (+ extra vol)*
Click to Purge
Figure 5
REVERSE Mode
NOTICE
If you purge without pulling out the tip air bubbles could get into your gel!

PIPETTING MODES
12 PIPETTING MODES | PIPETMAN® M CONNECTED
CUSTOM Mode
The CUSTOM Mode enables personalized pipetting protocol creation on a PC or tablet
for transfer to PIPETMAN M Connected through PIPETMAN M Software, an easy-to-use
software. To use this mode on a PC, the software has to be installed on it.
PIPETMAN M Software is downloadable on www.gilson.com/pipetmanmconnected.
You can also directly download the PIPETMAN M Software Android® app on your tablet.
To install PIPETMAN M software on a PC:
1. Download PIPETMAN M software zip file and extract the installation files.
Then choose the program corresponding to your operating system (Windows® 32-bit
or 64-bit).
2. Double-click the installer and follow the instructions on the screen to complete the
installation.
3. When completed, the PIPETMAN M Software icon will appear on desktop of the PC if
“ Create desktop shortcut ” was selected.
4. If PIPETMAN M Software is not launched automatically, then double-click the
PIPETMAN M icon on the desktop.
Once installed, the PIPETMAN M Software can be run by any user on the installed PC or
tablet.
You can then create, edit, import, or export custom up to 10 personalized pipetting
protocols, easily and rapidly.
To create a protocol, choose tasks in PIPETMAN M software:
●Aspirate: aspirates specified volume into the tip.
●Beep: makes pipette produce a beep sound while selected tasks are executed.
●Dispense: dispenses specified volume from the tip.
●Dispense all: dispenses all remaining volume from the tip followed by a purge action.
●Loop: enables repetition of any task once or more. Tasks between Loop (start) and
Loop (end) will be executed in sequence for the specified number of iterations.
●Mix: aspirates then dispenses a specified volume one or more times.
●Purge: dispenses all remaining volume from the tip followed by purging extra volume.
●Repetitive: dispense liquid into a number of aliquot, where during aspiration, additional
liquid is added and after delivery, the excess volume remains in the tip and is discarded.
●Reverse: handle liquid using reverse pipetting.
●Wait: introduces a wait for a specified number of seconds.
●Wait for click: pauses the protocol until Push button is clicked.
In this mode, the protocols can be automatically executed, avoiding repetitive pushes on
the button, helping to decrease risk of RSI.
To transfer a protocol to your PIPETMAN M Connected pipette, click Transfer custom
protocols to pipette and follow the instructions on the screen.
For more information on PIPETMAN M Software, refer to the User's Guide PIPETMAN M
Software P/N LT801562/B.

BENEFIT FROM THE BLUETOOTH CONNECTION
13
PIPETMAN® M CONNECTED |USER’S GUIDE
Chapter 7
BENEFIT FROM THE BLUETOOTH
CONNECTION
PIPETMAN M Connected is a smart Bluetooth connected pipette that stores your
data in the cloud for you to recall. It is compatible with the Gilson Connect platform
of apps and has the ability to be connected to a Bluetooth 4.0 smart-ready tab
or phone or any PC equiped with a Bluetooth key. You can work with your smart
pipette on any of the Gilson apps, according to your daily goals.
PIPETMAN M Connected can be connected to the PIPETMAN M Software and the
Gilson apps either with the USB cable or using the Bluetooth® connection.
Connect via Bluetooth
1. Connect the Bluetooth key (part number F807027) to a USB port. (PC only, not
required when using a tablet).
2. Press the push button on the pipette to switch it on and begin initialization.
3. When initialization is complete, press the menu button on the pipette.
4. Press and hold the push button for 2–3 seconds until the Bluetooth indicator lights
flash and then release the push button.
Associated with TRACKMAN® Connected and its PipettePilot application,
PIPETMAN M Connected will reduce risks of human errors by transferring verifiable
pipetting parameters and commands in the pipette.
Please visit www.gilsonconnect.com to learn more about Gilson applications.
PIPETMAN M Connected has is
own software:
PIPETMAN M Software, and
can be used with TRACKMAN
Connected to reduce risks of
human errors by transferring
verifiable pipetting parameters
and commands in the pipette.

BENEFIT FROM THE BLUETOOTH CONNECTION
14 BENEFIT FROM THE BLUETOOTH CONNECTION | PIPETMAN® M CONNECTED
Connection with the PIPETMAN M Software
When it is necessary to have the pipette connected, the software will prompt you.
If the pipette has been registered previously, it is only necessary to activate the
Bluetooth on the pipette to make the connection; however, if this is the first time the
pipette is being used in the software, it is necessary to register the pipette.
1. From the main menu, select Other administration and then Pipette management.
2. Select next to Registered pipettes.
3. Connect the pipette.
If connecting via Bluetooth:
• On the tablet, select The software searches for pipettes with Bluetooth
activated (indicator lights flashing).
• On the PC, select Connect via BLE. The software searches for pipettes with
Bluetooth activated (indicator lights flashing).
Many devices may be detected, but only one can be connected.
If connecting via USB:
• Use a USB cable to connect the pipette to the PC.
• Select Connect via USB. The connected pipette appears in the Devices list
4. Select the pipette in the Devices list.
5. Select Next.
6. When prompted, enter a name for the pipette. If the pipette has already been
registered, then an informational message will appear.
Current connectivity status is always shown at the bottom left part of the screen where
it is clear if the pipette is:
●USB connected
●Bluetooth connected
If you want to connect to another pipette within the same channel as the first
connected pipette, it will get disconnected and the new one will get connected while
the sign below left remains the same.
For more information about all features PIPETMAN M Software offers you, please read
the help section of PIPETMAN M Software.
●There is no connected
pipette
NOTE

PIPETTING SPEED CONTROL
15
PIPETMAN® M CONNECTED |USER’S GUIDE
Chapter 8
PIPETTING SPEED CONTROL
PIPETMAN M Connected is set by default on speed 6 (maximum speed). You may need
to change the speed of aspiration or dispensing depending on your application. You
can change aspiration speed and dispensing speed independently of one other: from
very slow to very fast (speed 1 — speed 6). Your speed selection is memorized for each
pipetting mode until you change it again.
1. Press menu button to access system menu, where you can find the different
pipette modes, the speed menu and configuration menu.
2. Select SPEED by turning the push button, to confirm your selection click on
the push button.
3. Set ASPIRATION SPEED: aspiration speed is blinking, set the speed by turning the
push button and click to confirm your selection.
4. Set DISPENSING SPEED: dispensing speed is blinking, set the speed by turning
the push button and click to confirm your selection.
After selecting the speed you go automatically back to pipetting mode.
Chapter 9
PIPETMAN® DIAMOND TIPS
PIPETMAN DIAMOND Tips are made to the highest specifications;
strict quality control is maintained throughout the manufacturing
process. These tips are used to calibrate PIPETMAN M Connected,
therefore for optimum performance we recommend using
PIPETMAN Tips with your PIPETMAN M Connected.
However, PIPETMAN M Connected also offers you a high
compatibility with a large number of other tips. For more
information, please contact your Gilson distributor.
Every PIPETMAN DIAMOND Tip is individually marked with an
identification number (ID). To ensure accuracy and precision,
Gilson’s quality assurance system focuses on the following critical
parameters:
●PIPETMAN Tips are made from pure polypropylene (virgin, metal-free, to avoid
the possibility of contamination). They are available sterilized and with filters.
●Sterilized PIPETMAN Tips are certified free of detectable RNases, DNases, DNA,
RNA, and proteases.
●Optimized shape (revised collar for optimum sealing, thin walls, and fine point),
making them easier to mount, more flexible, with no vortexing, and improved
precision.
●PIPETMAN DIAMOND Tips are free from even microscopic defects, especially
at the orifice. All surfaces are smooth and hydrophobic, thereby avoiding the
excessive retention of liquids that causes poor accuracy and a lack of precision.

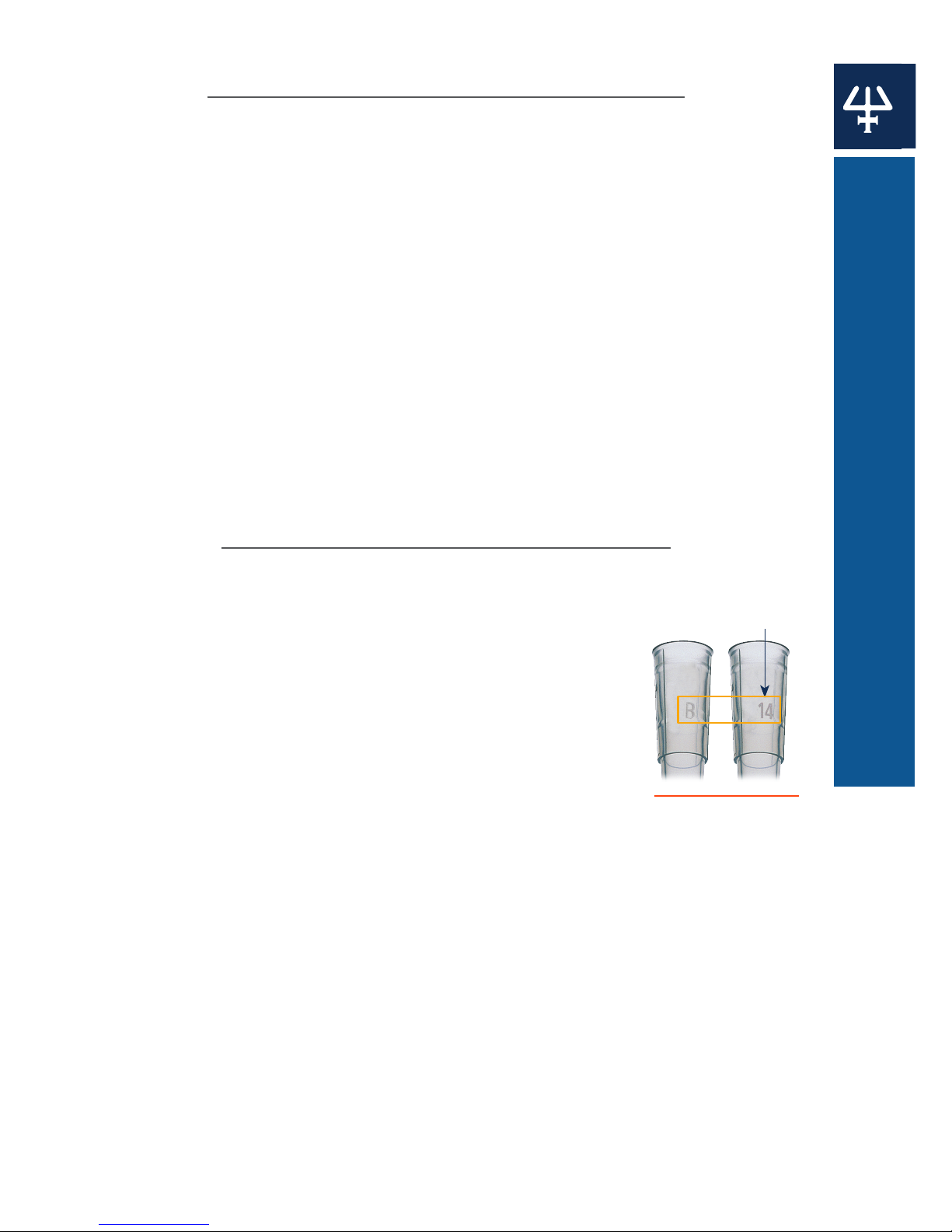

ID Number
Figure 6
ID number

BENEFIT FROM THE BLUETOOTH CONNECTION
16 BENEFIT FROM THE BLUETOOTH CONNECTION | PIPETMAN® M CONNECTED
●Mold and cavity references are marked on the collar, ensuring the traceability.
For quality assurance purposes batch numbers appear on all packages (bags and
boxes).
●They form an air-tight seal with the tip holder, preventing the leaks that cause
poor accuracy and a lack of precision.
●PIPETMAN DIAMOND Tips (except filter tips) may be autoclaved at 121°C for 20
minutes at 0.1 MPa.
NOTICE
Do not autoclave PIPETMAN Filter Tips as the filter will be damaged.
NOTE
To ensure the best performance from your Gilson pipette, you shoud
ALWAYS use PIPETMAN DIAMOND Tips (in accordance with ISO8655)
system, because PIPETMAN Tips were used to establish the specifications.
Figure 7
Plastic adapter
Figure 8
P8x10M and P12x10M
Long tips Short tips
Ejector spacer Ejector spacer D10
* A plastic adapter is required to eject D10 and
DF10 tips (short tips). The adapter is supplied
with P10M. No adapter is required when using
DL10 and DFL10 tips (long tips).
PIPETMAN M CONNECTED MULTICHANNEL
P8x10M D10
DL10
DF10
DFL10 0.5–10 µL
P12x10M
P8x20M DL10
D200
DFL10
DF30 1–20 µL
P12x20M
P8x100M
D200 DF100 10–100 µL
P12x100M
P8x200M D200
D300
DF100
DF200
DF300
20–200 µL
P12x200M
P8x300M D200
D300
DF200
DF300 10–300 µL
P12x300M
P8x1200M
D1200 DF1200 50–1200 µL
P12x1200M
PIPETMAN M CONNECTED SINGLE CHANNEL
Model PIPETMAN
DIAMOND Tips
Volume Range
P10M D10*
DL10*
DF10
DFL10 0.5–10 µL
P20M D200 DF30 2–20 µL
P100M D200 D100 5–100 µL
P200M D200
D300
DF200
DF300 20–200 µL
P300M D200
D300
DF200
DF300 20–300 µL
P1200M D1000
D1200
DF1000
DF1200 100–1200 µL
P5000M D5000 500–5000 µL
P10mLM D10mL 1–10 mL

GUIDELINES FOR GOOD PIPETTING
17
PIPETMAN® M CONNECTED |USER’S GUIDE
Chapter 10
GUIDELINES FOR GOOD PIPETTING
Aspirate and Dispense
Fit new PIPETMAN DIAMOND Tip for the best results (refer to Chapter 19
Specifications on page 31).
Single Channel Model
For single channel models, push the tip holder into the tip
using a slight twisting motion to ensure a firm and airtight
seal.
MultiChannel Model
For multichannel models, PIPETMAN DIAMOND Tips are
best fitted from the patented ROCKY RACK available
only in our TIPACKs and TOWERPACKs. ROCKY RACK
is the dome-shaped part of the pack that contains the
tips. ROCKY RACK makes it easy to securely fit the tips
to a multichannel pipette, ensuring an airtight seal on all
channels without the need to use undue pressure or to
touch the tips.
All Models
Pre-rinse the tip. Pre-rinsing consists of aspirating the first
volume of liquid and then dispensing it back into the same
vessel (or to waste). Subsequent volumes that you pipette will have levels of accuracy
and precision within specifications. Some liquids (e.g., protein-containing solutions
and organic solvents) can leave a film of
liquid on the inside the wall of the tip;
pre-rinsing the tip minimizes any errors
that may be related to this phenomenon.
Hold the pipette vertically and immerse
the tip in the liquid (refer to page 16).
Press the push button to aspirate the set
volume of liquid. Wait a few seconds (time
depends on model, refer to page 16); then
withdraw the pipette tip from the liquid.
You may wipe any droplets away from
the outside of the tip using a medical
wipe; however if you do so, take care to
avoid touching the orifice of the tip.
Place the end of the tip against the inside
wall of the recipient vessel (at an angle of
10° to 40°). Press the push button. Wait
for at least a few seconds before releasing
the push button to expel any residual liquid
from the tip. While removing the pipette
draw the tip along the inside surface of the
vessel.
MODEL IMMERSION
DEPTH (MM)
WAIT TIME
(SECONDS)
P10M 1 1
P20M 2-3 1
P100M 2-4 1
P200M 2-4 1
P300M 2-4 1
P1200M 2-4 2-3
P5000M 3-6 4-5
P10mLM 5-7 4-5
P8x10M/P12x10M 1 1
P8x20M/P12x20M 2-3 1
P8x100M/P12x100M 2-4 1
P8x200M/P12x200M 2-3 1
P8x300M/P12x300M 2-3 1
P8x1200M/P12x1200M 2-4 2-3
Table 1
Immersion depth and wait time
NOTICE
Do not autoclave PIPETMAN Filter Tips as the filter will be damaged.
NOTE
To ensure the best performance from your Gilson pipette, you shoud
ALWAYS use PIPETMAN DIAMOND Tips (in accordance with ISO8655)
system, because PIPETMAN Tips were used to establish the specifications.

PERSONALIZE YOUR PIPETMAN® M CONNECTED
18 PERSONALIZE YOUR PIPETMAN® M CONNECTED | PIPETMAN® M CONNECTED
General Guidelines for Good Pipetting
●Make sure that you fit new tips.
●Each new tip should be pre-rinsed with the liquid to be pipetted.
●When aspirating, keep the tip at a constant depth below the surface of the liquid
(refer to table 1 on page 17).
●Change the tip before aspirating a different liquid, sample, or reagent.
●Change the tip if a droplet remains at the end of the tip from the previous
pipetting operation.
●Liquid should never enter the tip holder. To prevent this:
○Never turn the pipette upside down,
○Never lay the pipette on its side when there is liquid in the tip(s),
The Gilson Stand Adapter (refer to Parts Checklist and Accessories on page 5) is
recommended for use with the CARROUSELTMand SingleTM Pipette Holder to store
your PIPETMAN M Connected pipette in the vertical position. Alternatively the
POWER CARROUSEL can be used to store and charge up to five PIPETMAN M
pipettes.
●When pipetting liquids with temperatures different to the ambient temperature,
pre-rinse the tip several times before use in order to reach equilibrium between
the temperatures of the liquid and the pipette’s dead-volume.
●For volatile liquids you should saturate the dead-volume by aspirating and
dispensing the liquid repeatedly before aspirating the sample.
After pipetting acids or other corrosive liquids that emit vapors, clean the pipette, as
described in Chapter 15 Cleaning and Decontamination on page 28.
The pipette can be used between +4°C and +40°C, but the specifications may vary (refer
to Chapter 19 Specifications on page 31).
●Do not pipette liquids having temperatures above 50°C or below 4°C.
Chapter 11
PERSONALIZE YOUR PIPETMAN® M
CONNECTED

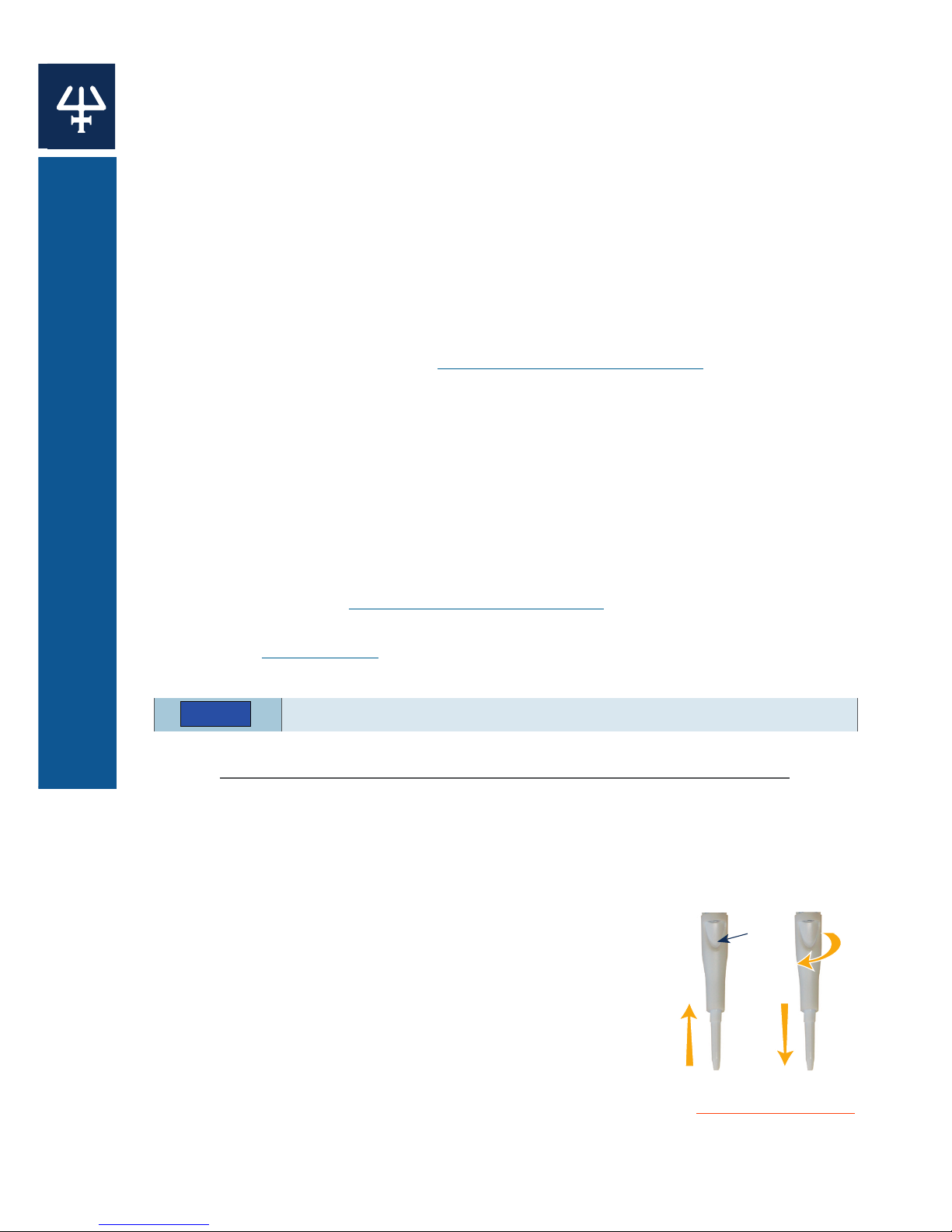

Tip Ejector Extension for Use with P10M
Tip ejector extensions are required to eject D10 tip and are
supplied with P10M pipettes.
The tip ejector extension which is made of PVDF
(polyvinylidene Fluoride), is autoclavable.
To fit a tip ejector extension:
1. Hold the pipette with the push button upright.
2. Hold the extension with the slot upright.
3. Slide the extension over the tip holder.
4. Push the extension firmly onto the end of the tip
ejector until it clicks into place (see opposite).
To fit To remove
Slot
NOTE
Extreme temperatures can aect accuracy and precision!
Figure 9
Fit a tip ejector

GOOD LABORATORY PRACTICE FEATURES
19
PIPETMAN® M CONNECTED |USER’S GUIDE
To remove a tip ejector extension (see opposite):
1. Hold the pipette in one hand and grip the extension with the other.
2. Gently twist the extension (either direction) and pull it away
from the pipette.
Personal Label – Name and/or
Application Tag
Your PIPETMAN M Connected offers you two options to mark your pipette.
You can personalize your pipette with a name tag and/or an application tag:
Window-tag:
1. Remove the window by inserting a small
screwdriver in the access slot.
2. Position the name tag on the pipette.
3. Clip the window back in place.
Clip tag:
1. Pull off the clip.
2. Position the name tag into the clip.
3. Clamp the clip back in place.
Short
tips Long
tips
Chapter 12
GOOD LABORATORY PRACTICE FEATURES
Your PIPETMAN M Connected is fully compliant to ISO8655 standard and is CE marked
(for EMC and LDV directives).
PIPETMAN M Connected includes the following good laboratory practice (GLP)
features.
General
●Lockable volume.
●Volume-range is printed on the push button.
●Volume range is displayed on the screen.
●Serial number is engraved on the body (handle) of the pipette and encoded in the
firmware.
●Bar code: on the box and with the certificate (can be transferred).
Personalization by nametags (for marking application and/or user name), refer to
Chapter 11 Personalize your PIPETMAN M Connected on page 18.
Cycle Counters
●From last volume setting (to count the number of cycles in the current “run”).
●From manufacture and since the last service (refer to
Chapter 15 Maintenance on page 22).
●By indicators (R1, R2, R3 … Rx) each time pipette is readjusted.
Maintenance intervals can be specified by weeks or number of cycles elapsed.
Figure 10
Remove a tip ejector
Window-tag
Clip tag
Figure 11
Name and application tag

POWER MANAGEMENT
20 POWER MANAGEMENT | PIPETMAN® M CONNECTED
Alarms
●Low battery warning.
●Service is overdue warning (refer to Chapter 15 Maintenance on page 22).
●Service alert can be set “On” or “Off”.
Chapter 13
POWER MANAGEMENT
PIPETMAN M Connected battery has been
designed to ensure 900 pipetting cycles
(750 for PIPETMAN M Connected Multi
200 µL and 300 µL) at maximum speed (up
to nine 96–well plates) between two charge
cycles. For service continuity when needing
more capacity, your PIPETMAN M Connected
can also be used while charging with the same
performance as a fully charged pipette.
Battery Charging
PIPETMAN M Connected charges 80% of its full
battery capacity in less than an hour, and it takes
three hours to fully charge the battery.
Charge your pipette by using the power supply:
1. Connect the AC adapter to a suitable
AC power supply.
2. Plug the adapter into the USB port
of the pipette.
The pipette starts charging.
Charge your pipette by using stand adapter (refer to
Chapter 2 Parts Checklist and Accessories on page
5):
1. First place the stand adapter on your Gilson Single
Pipette Holder or Carrousel.
2. Remove the plug. Now place your pipette on the
Stand Adapter and plug the power transformer into
the stand adapter.
The pipette starts charging.
Battery charging of PIPETMAN M Connected using
the POWER CARROUSEL:
1. First install the POWER CARROUSEL as described
above.
2. Remove the plug. Now place your pipette on the
charging position, please ensure
that the pipette is properly fitted to the contacts on
the top of the carrousel
(a proper fitting will trigger a beep sound).
The pipette starts charging.
Stand adapter
Plug
USB port
Figure 12
PIPETMAN® M Connected Power supply
Figure 13
POWER CARROUSEL for
PIPETMAN® M Connected
