Golden Avenger GA541 User manual











Owner’s Manual
Model GA541
Golden Technologies - 401 Bridge Street - Old Forge, PA - Tel: [phone] - Fax: [phone] - www.goldentech.com


2
Thank you for purchasing your Golden Avenger Scooter. We are honored you have chosen Golden
Technologies for your mobility needs.
Your package should include the following items. If your package arrived without any of
the following items, please contact us right away!
Scooter
Model GA541
Owner’s Manual
Battery Charger
Batteries (If ordered)
Seat with Arm Rests
Safety Flag
Keys
Front Basket
SC E
We ask that you read this manual before operating your new A v e n g e r
Golden Inc. is not and cannot be held responsible for any damage injury
incurred due to improper or unsafe use of the Golden A v e n g e r s Golden
Inc. disclaims for any bodily injury property
damage that may occur during any use that does not comply with a a federal, state, or
local laws or a s


3
Intended Use: The intended use of the Avenger is to provide mobility to
persons limited to a seated position that are capable of operating an electric
scooter.
CONTENTS
I. Introduction...............................................……….……… 4
II. Safety……………………………………………………….. 7
III. EMI/RFI.……………………………………………………...11

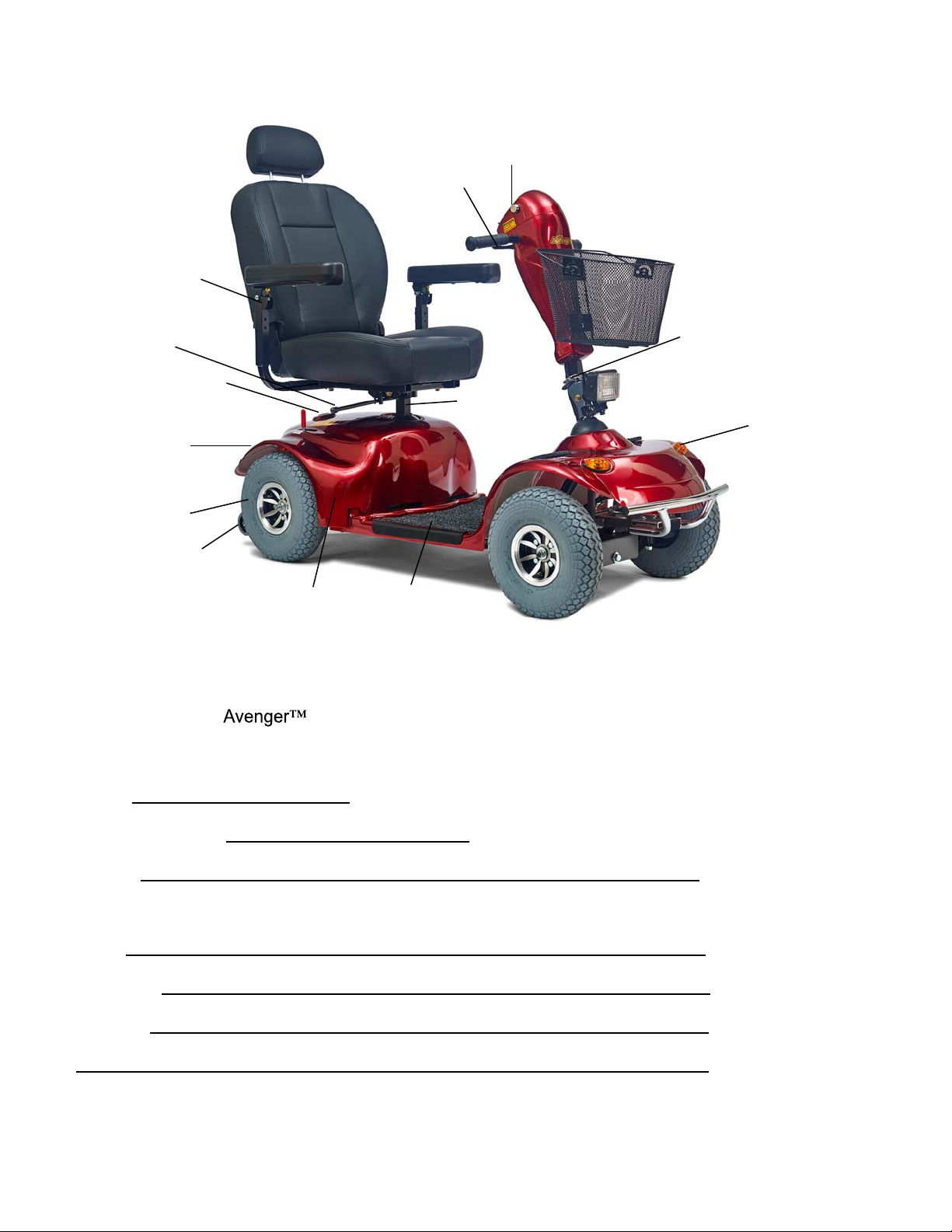

IV. Your Golden Avenger ….………………………………...12
Technical Specifications
V. Operation....………………………………………………….15
Hand Controls
Seat Controls
VI. Riding Your Avenger …………………...……………… 19
Mounting
Basic Driving
Control Through Tight Spots
VII. Disassembly............……………………….……………… 23
VIII. Assembly.……….…………………………………………. 28
IX. Transporting Your Avenger …………………………… 30
X. Diagnostics..……………………………………………….. 31
XI. Care and Maintenance.…………………………………… 32
Main Circuit Breaker
Wheels and Tires
If your does not operate
Lubrication
Charger and Batteries Battery
Maintenance Battery Cable Installation
Routine Maintenance
Cleaning your Avenger
XII. Warranty......………………………………………………. 37
Warranty Registration Card........................................... 39


4
I. INTRODUCTION
Congratulations on the purchase of your new Golden Avenger scooter. The Avenger, the
Avenger II, and the four-wheel Avenger II all combine cutting edge technology with attractive
designs that are also highly functional in today’s world. We at Golden Technologies, Inc. know
that you have chosen a scooter that will give you years of dependable operation and also will
enhance the quality of your life by providing you with the mobility to experience an active daily life
style.
Even though your new Avenger is both user-friendly and designed for maximum maneuverability
in even the tightest spaces, we ask that you please read, understand and follow all of the
instructions and suggestions in this manual before you operate your Avenger for the first time.
The safe use of your new scooter is very important to us.
If you feel that you do not understand the instructions and suggestions presented in this owner’s
manual, or if, for any reason, you do not feel capable of performing the activities necessary to
assemble, disassemble, operate, or maintain your Avenger, please contact your local Golden
Technologies, Inc. representative or call Golden Technologies, Inc. Technical Support Services
at [phone].
Golden Technologies, Inc. cannot be held responsible for personal injury or property damage
resulting from the unsafe or the improper use of any of our broad range of health and personal
mobility products. Also, Golden Technologies, Inc. cannot be held responsible for personal injury
or property damage resulting from attempts to follow instructions, suggestions, and guidelines
presented in this owner’s manual.
Our Research and Development Department, our Quality Control Department, and our
Engineering Department have used the latest product specifications and the latest product
design information to produce this owner’s manual. Golden Technologies, Inc. reserves the right
to implement changes into our product lines when those changes become desirable or
necessary. If changes are implemented into our product line, there may be minor differences
between the product you purchased and the illustrations and instructions in this owner’s manual.
Please fill out and mail the enclosed warranty registration card. We at Golden Technologies,
Inc. would appreciate hearing about the dependability of your Avenger and about the
convenience of mobility it has provided for you. We would also appreciate hearing about the
service you received from your local Golden Technologies, Inc. provider or representative.
Golden Technologies, Inc. Phone: [phone]
401 Bridge Street Fax: [phone]
Old Forge, PA 18518 Toll free: [phone]
For more information about our products and services or to send us your comments, please
visit our website at www.goldentech.com


5

*Some accessories require a mounting bracket or mounting clips. Please check with your provider
to find out if the accessory you would like to order requires a mounting bracket or mounting clip.
Safety Guidelines
The symbols below are used in the owner's manual and/or on the product to identify warnings and
to notify you of important safety information. Make sure you read and understand them completely.
WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death
or serious injury. This icon is represented as a black symbol on a yellow triangle with a
black border.
MANDATORY! Failure to perform mandatory actions can cause personal injury and/or
equipment damage. This icon is represented as a white symbol on a blue dot with a white
border.
PROHIBITED! Indicate(s) an action(s) that should not be performed under any
circumstance. Failure to adhere can cause personal injury and/or equipment damage.
This icon is represented as a black symbol with a red circle and red slash.
Safety Symbols
The symbols below identify warnings, mandatory actions, and prohibited actions. They can be
found in the owner’s manual and/or on the product. Make sure you understand all safety labels
before operating the product. Do not remove safety labels from the product.
Read and follow the Explosive conditions exist! Indoor use only!
owner’s manual!
Use only AGM or
Gel-Cell batteries! Avoid transmitters! Hot surface!
Pinch/Crush Hazard! Do not place into trash! Electrical hazard!
Corrosive chemicals Recycle Do not use personal
inside battery! hand held devices!
I. INTRODUCTION
Accessories for the Avenger Scooters
A variety of accessories are available for your Golden Avenger Scooter*. Please contact your
Authorized Golden Technologies' Provider for more information.
• Amputee Leg Supports
• Cane Holder Tube
• Cup Holder
• Travel Case
• Forearm Crutch Holder
• Mirror
• Oxygen Tank Holder
• Quad Cane Holder
• Rear Basket
• Safety Flag
• Scooter Cover
• Walker Holder
• Lap Belt


6
I. INTRODUCTION
Your Golden is a battery-operated personal mobility vehicle. Please exercise caution
and consideration when you are operating it. Driving your carefully and thoughtfully will
help ensure your personal safety and the safety of other people.
MANDATORY! Read completely and understand this owner’s manual before
assembling, operating, transporting, or disassembling your Patriot scooter.
Before learning to operate your have your Golden Technologies, Inc.
representative determine if it is advisable for you to practice getting on and off your and
operating it in the presence of an attendant.
BEFORE GETTING ON YOUR AVENGER
Check to be certain that the power is turned off. See “Operation” section in this manual. This
will eliminate the possibility of accidentally activating the thumb lever controls and causing
injury to you or to others.
Check to be certain that your brake handle is in the engaged position. See the
“Disassembly” section in this manual.
Flip up the armrests.
WHEN GETTING ON OR OFF YOUR DO NOT PUT MOST OR
ALL OF YOUR WEIGHT ON THE EDGE OF THE DECK. DOING SO MAY CAUSE THE
SCOOTER TO TIP.
GETTING ON YOUR AVENGER
Position the seat for safe and easy mounting. See “Operation” section.
Carefully place one foot on the approximate center of the deck and seat yourself comfortably
and securely on the seat.
Fasten the lap belt, if your scooter is so equipped.
Flip down the armrests.
GETTING OFF YOUR AVENGER
Make certain that the power is turned off and key is removed!
Flip up the armrest.
Unfasten the lap belt, if your scooter is so equipped.
Carefully place one foot on the ground, transfer your weight to that leg, and slowly come to a
standing position.
Step away from the scooter.
MAXIMUM WEIGHT
Your has been rated to a maximum payload (includes operator and any other carry on
baggage) of 500 pounds. Exceeding the maximum weight rating will void the warranty.
EXCEEDING THE MAXIMUM WEIGHT RATING MAY ALSO RESULT IN
INJURY TO YOURSELF AND/OR TO OTHERS.
TURNING TOO SHARPLY AROUND A CORNER CAN CAUSE THE
SCOOTER TO TIP. AVOID THIS DANGER AT ALL TIMES BY STEERING A WIDE ARC
AROUND CORNERS AND OBSTACLES. ALSO, TO AVOID THE RISK OF TIPPING, REDUCE
SPEED BEFORE NEGOTIATING ANY TURNS.


7
II. SAFETY
Please use your Golden Avenger scooter often and allow it to expand the horizons of your daily
life. The more mobility your Golden Avenger brings to you, the happier you will be, and the more
satisfied we at Golden Technologies, Inc. will be! But as with all things, especially motor operated
vehicles, observing a few rules and safety considerations will help ensure safe scooter operation.
So please follow the rules below.
Please remember that while on your Golden Avenger, you are a
pedestrian. You must observe and obey all pedestrian rules a regulations for the locale in
which you are
RULES FOR USE AND OTHER SAFETY CONSIDERATIONS
MANDATORY! Read completely and understand this owner’s manual before assembling,
operating, transporting, or disassembling your Golden Avenger scooter.
Always operate your Golden with thought, care and safety.
Do not attempt to use your on an escalator. Always use in an elevator.
Do not carry passengers under any circumstances.
Do not mount or dismount your Golden unless the brake is engaged.
Always make certain that the key switch is set to “off” before mounting or dismounting your
scooter.
Do not back your Golden down an incline or across an uneven surface.
Do not turn your scooter suddenly at full speed.
Always make certain that the seat is locked in the forward position before operating your
Avenger .
Always come to a full stop before changing direction from forward to reverse or from
reverse to forward.
Do not operate your where you could not safely or legally walk.
Do not climb ramps or curbs that exceed your scooter’s capacity.
Always approach curbs and inclines straight on.
Always be aware of and careful near mechanical pinch points (for example, when mating
the rear carriage to the front frame, especially when assembling and disassembling your scooter.
See Assembly/Disassembly section.
Never sit on your when it is being transported.
When your is being transported, make certain that it is securely fastened down with
an approved tie-down system.
Do not operate your vehicle if it is not functioning properly.
Always use caution when driving on soft or uneven surfaces such as grass and gravel. Also
use caution on decks where there is no railing.
 Never drive on the roadway, except when you must cross the street.
Always cross streets at intersections and use crosswalks or the most direct route,
making sure that your path is clear and that you are visible to motor traffic.
Never drive your up or down a step or curb that is higher than three inches.
Never back up or down a step or curb.
Never operate your while you are under the influence of alcohol or any other
controlled substance.
• Never operate your Patriot while you are under the influence of alcohol.
 Do not operate or store your mobility device where it will be exposed to rain, snow, mist,
and below freezing temperatures.
Always keep your tires properly inflated.


8
II. SAFETY
Your Golden Avenger is a battery-operated personal mobility vehicle. Please exercise caution
and consideration when you are operating it. Driving your Avenger carefully and thoughtfully will
help ensure your personal safety and the safety of other people.
Before learning to operate your Avenger, have your authorized Golden
Technologies, Inc. provider determine if it is advisable for you to practice getting on and off your
Avenger and operating it in the presence of an attendant.
BEFORE GETTING ON YOUR
Check to be certain that the power is turned off. See section V. “Operation” in this manual.
This will eliminate the possibility of accidentally activating the paddle controls and causing
injury to yourself and/or others.
Check to be certain that your Avenger’s brake handle is in the engaged position. See section
VII. “Disassembly” in this manual.
Flip up the armrests.
When getting on or off your Avenger, keep your weight toward the dle
of the deck. Putting most or all of your weight on the edge of the deck may san
unstable
GETTING ON YOUR AVENGER
Position the seat for safe and easy mounting. See section V. “Operation.”
Return tiller to full upright position
Carefully place one foot on the approximate center of the deck and seat yourself
comfortably and securely on the seat.
Fasten the lap belt, if your scooter is so equipped.
 Flip down or replace the armrests.
GETTING OFF YOUR AVENGER
Make certain that the power is turned off and the key is removed.
Return tiller to full upright position
Flip up or remove the armrests.
Unfasten the lap belt.
Carefully place one foot on the ground, transfer your weight to that leg, and slowly come to
a standing position.
 Step away from the scooter.
Over-inflated tires pose a risk of bursting and can cause serious injury.
Under-inflated tires will cause significant loss of operational range and will also cause the
motor control board to overheat.
Should you encounter a problem with the operation of your mobility device
such as a mechanical or electrical problem immediately stop using the product. Disconnect
the batteries then contact the provider from whom you purchased your mobility device for
evaluation of the problem and repair if needed.


9
II. SAFETY
DRIVING ON AN INCLINE
For maximum stability, lean forward in your seat while proceeding up ramps, slopes,
curbs, or any low rise.
Drive with caution when attempting to negotiate any incline, even handicap access ramps.
Always climb or descend a gradient by driving straight up or straight down the face of the
slope.
Do not traverse or drive across the face of a gradient.
Do not attempt to negotiate an incline that is covered with snow, ice, cut or wet grass,
leaves, or any other potentially hazardous material.
Do not back down an incline.
Try to keep your moving when climbing an incline. If you do come to a stop, restart
and accelerate slowly and carefully.
Do not try to descend or climb a slope whose gradient is greater than recommended. See
“Specifications” section.
GOING UP AN INCLINE TRAVERSING AN INCLINE
* Maximum recommended incline is 8.0°
WHILE YOU ARE DRIVING DOWN A SLOPE, YOUR SCOOTER STARTS TO
MOVE FASTER THAN YOU FEEL IS SAFE, RELEASE THE THUMB LEVER AND ALLOW
YOUR TO COME TO A STOP. WHEN YOU FEEL THAT YOU AGAIN HAVE
CONTROL OF YOUR SCOOTER, PUSH THE THUMB LEVER FORWARD AND CONTINUE
SAFELY DOWN THE REMAINDER OF THE SLOPE.
DRIVING DOWN AN INCLINE
Lower speed setting.
Whenever it is safely possible, drive forward down any ramp, low rise, or incline.
Golden Technologies Inc. does not recommend that you drive your scooter in reverse down any
incline, ramp, curb, or low rise. Backing down any slope may create a very hazardous situation.


10
II. SAFETY
If it is necessary to back down a slope follow one of two procedures.
When using either of the following procedures to back down a slope, Golden
Technologies strongly advises that you have the assistance of another person.
Procedure 1 – Under Power
1. Set the key switch to the “Off” Position. See “Operation” section.
2. Dismount your Avenger 
3. Set the key switch to the “On” position. See “Operation” section.
4. While standing alongside your scooter, carefully operate the controls at the lowest speed
setting. See “Operations” section.
5. Slowly and carefully back your scooter down the incline.
6. When you have reached a level surface at the bottom of the slope, position the free-wheel lever
in the engaged position. Carefully remount your and resume normal operation.
Procedure 2 – Emergency (No Power)
1. Set the key switch to the “Off” position. See “Operation” section.
2. Dismount your Avenger .
3. Put your scooter in the freewheel mode. See “Disassembly” section.
4. While standing alongside the scooter, carefully manually maneuver it down the slope.
5. When you have reached a level surface at the bottom of the slope, position the free-wheel lever
in the engaged position. See “Disassembly” section.
6. Carefully remount your and resume normal operation.
WHEN YOUR SCOOTER IS IN FREEWHEEL MODE, THE BRAKE IS RELEASED.
THE WEIGHT OF THE SCOOTER ON A SLOPE MAY CAUSE YOU TO LOSE CONTROL OF THE
SCOOTER. IF YOU DO NOT FEEL CAPABLE OF MANUALLY CONTROLLING YOUR SCOOTER
DOWN THE SLOPE, REQUEST ASSISTANCE OR DO NOT ATTEMPT TO USE THIS PROCEDURE.
Motor Braking S s
Your scooter is equipped with a system that uses the motor to aid in braking. This Motor Brake
system is designed to work when the key is in either the on position or the off position. When the
key is in the on position, the freewheel is in the engaged position, and the scooter is under power,
the motor will help slow down the scooter as soon as you take your hand off of the throttle lever.
When the key switch is in the off position and the freewheel is in the disengaged position, the motor
brake system will keep you from pushing the scooter too fast (i.e. down a slope). You may notice
this when pushing the scooter. The scooter will move freely until you reach a certain speed. You
will then encounter some resistance as the motor brake system is activated.
MEDICATION
Always check with your physician to determine if any of the medications you are taking may affect
your judgment and / or your ability to operate your Avenger . Also check with your physician
concerning your physical ability to operate a scooter.
DO NOT CONNECT OR ALLOW ANYONE EXCEPT AN AUTHORIZED GOLDEN
TECHNOLOGIES REPRESENTATIVE TO CONNECT ANY ELECTRICAL OR MECHANICAL DEVICE TO
YOUR AVENGER. UNAUTHORIZED ACCESSORIES WILL VOID THE WARRANTY AND MAY CAUSE
INJURY.


11
III. EMI / RFI
The rapid development of electronics, especially in the area of communications, has saturated
our environment with electromagnetic (radio) waves that are emitted by television transmitters,
cellular phones, citizen’s band radios (CBs) amateur radios (AM radios), wireless computers
links, microwave transmitters, paging transmitters, etc. These electromagnetic (EM) waves are
invisible and increase in strength the closer one gets to the source of transmission. When these
energy waves act upon electrical devices and cause them to malfunction or to function in an
erratic or uncontrolled manner, they are referred to as Electromagnetic Interference (EMI) or
Radio Frequency Interference (RFI).
EMI / RFI AND YOUR AVENGER 
All electrically powered vehicles, including scooters are susceptible to EMI / RFI. This
interference could result in abnormal, or unintended movement of your Golden Avenger .
UNINTENDED MOVEMENT OR BRAKE RELEASE COULD CAUSE AN
ACCIDENT OR INJURY.
The FDA has determined that each make and model of scooter can resist EMI / RFI to a
certain level. The higher the level of resistance, the greater the degree of protection from
EMI / RFI – measured in volts per meter (V/M). The FDA has also determined that current
technology is capable of providing 20 V/M of resistance to EMI/RFI, which would provide
useful protection against common sources of interference. The resistance level of the Golden
is not known.
EMI / RFI RECOMMENDATIONS
PROHIBITED!Do not turn on or use hand-held personal electronic
communication devices such as cellular phones, walkie-talkies, and CB
radios while your scooter is turned on.
Be aware of any nearby transmitters (radio, television, microwave, etc.) on your
intended route and avoid operation your of scooter close to any of those
transmitters.
Turn off the power if your is going to be in a stationary position for any
length of time.
Be aware that adding accessories or components or modifying your scooter may
make it more susceptible to EMI / RFI.
If unintended movement or brake release occurs, turn your scooter off as soon
as it is safe to do so.
Report all incidents of unintended movement or brake failure to your Golden
Technologies, Inc. Technical Service at [phone].
TURN OFF YOUR SCOOTER AS SOON AS IT IS SAFELY POSSIBLE IF
UNINTENDED OR UNCONTROLLABLE MOTION OCCURS OR IF UNINTENDED BRAKE
RELEASE OCCURS.


12




IV. YOUR GOLDEN AVENGER
FOR YOUR RECORDS:
Please fill in your information below. This information will be useful in the event that
you ever need to contact Golden Technologies concerning your scooter.
Model Serial Number_____________________
Date of Purchase Body Color _____________
Options
Your Golden representative or provider
Name
Company
Address
Please remember to fill in and return your warranty registration card.
Key Switch
Thumb Lever Control
Adjustable
Seat Post
Circuit Breaker Reset
Tiller Adjustment Knob
Front Basket
Anti-tip Wheels
Drive Wheels
Freewheel Lever
Head Light
Front Turn/Hazard
Signal Lights
Front Bumper
Seat Assembly
Seat Swivel Lever
Hand Grips
Battery Cover Removable Carpet
Rear Turn/Hazard
Signal Lights
Arm Assembly
Rear Bumper


13
TECHNICAL SPECIFICATIONS
SpecificationGA541
Medicare CodeNot Coded
Weight Capacity500 lbs.
Drive WheelsRear
Maximum Speed7 mph
Operating Range 1 29.6 miles
Ground Clearance under Deck4”
Turning Radius67”
Type Batteries2 - NF22
ColorsSilver, Red
Freewheel ModeYes
Electronic Speed ControlYes
Electro-Mechanical BrakesYes
ChargerOff-board
ControllerPG S 140 Amp
Length57.5”
Width24.5”
Height (ground to top of back of seat)42.5” – 45.5”
Height (ground to top of back of headrest)50”– 56”
Ground to top of Seat25” – 28”
Ground to top of Deck6.5”
Deck to top of Seat18.75” – 21.75”
Number of Seat Height Positions4
Size of Increments1”
Front Axle to Rear Axle38.5”
Weight of Unit: (assembled)265 lbs.
Front Half68 lbs.
Rear Half68 lbs.
Seat with Arms55 lbs.
Batteries37 lbs.each
Tires:Pneumatic 2
Front13”
Rear13”
Rear Anti-Tip Wheels3”


14
TECHNICAL SPECIFICATIONS
1. Battery range at 200 lbs., and will vary due to rider weight, drive surface, terrain, and battery
type.
2. Inflate tires to the maximum tire pressure recommended by the tire manufacturer.
3. Electronics warranty excludes batteries.
Literature is current at the time of printing. Golden Technologies reserves the right to make changes
to the product or literature at any time.
SpecificationsGA541
Standard Seat:Captain’s Seat
Back Height - no headrest21”
Back Height – with headrest27.5” – 31.5”
Width x Depth20” x 17”
ColorBlack Vinyl
Warranty: 
FrameLifetime
Drive Train2 Years
Electronics 3 2 Years
Batteries1 Year


15
V. OPERATION
(Reverse) Thumb Lever (Forward)
Hand Controls
Speed Adjustment Dial
The speed adjustment dial allows you to pre-select the maximum top speed of your Golden
Avenger .
Turn the dial completely counterclockwise to operate your scooter at the lowest top
speed.
Turn the dial clockwise to increase the operational speed of your scooter.
We recommend that you select a speed setting at which you feel comfortable, safe, and in
control of your Avenger .
Key Switch
This switch turns the power of your on and off.
Insert the key into the key hole and turn clockwise. Notice the TruCharge volt
meter/ diagnostics gauge will illuminate. Once illuminated, your scooter is powered On.
Always make certain that the key is removed from the key switch before
getting on or off your Golden Avenger .
Emergency Flashers
Turn Indicator Switch
Horn Button
Key
TruCharge Meter
Headlight Switch
Speed Adjustment Knob


16
V. OPERATION
When the power to your is turned on the TruCharge volt meter/ diagnostics gauge
will illuminate. This gauge is used for battery condition and diagnosing operational problems
that may arise. See “Diagnostics” section.
Horn Button
Press this button to sound the horn.
Thumb Lever Control
This self-centering lever system controls your speed (up to the maximum speed
set by the speed adjustment dial) as well as the forward and reverse direction. This control
system is also called the “Wig-wag”.
To drive forward:
Please your hands on the handgrips.
Use your thumbs to operate the control lever.
Use your right thumb to press lightly on the “F” (forward motion) lever to move your
scooter forward.
Increase the pressure applied by your thumb to increase your forward speed.
To stop your release all pressure on the lever. The lever will automatically
return to the center (neutral) position and your scooter will come to a gradual stop.
Always bring your to a full stop before changing direction
from forward to reverse, or from reverse to forward.
To drive in reverse:
Place your hands on the handgrips.
Use your thumbs to operate the control levers.
Use your left thumb to press lightly on the “R” (reverse motion) lever to move your
scooter in reverse.
Increase the pressure applied by your thumb to increase your reverse speed.
To stop your release all pressure on the lever. The lever will automatically
return to the center (neutral) position and your scooter will come to a gradual stop.


17
V. OPERATION
The TruCharge volt meter/ diagnostics gauge.
This meter shows the amount of voltage in your batteries and is also
the diagnostics gauge.
10 bars lit indicates full battery charge.
 6 or 7 bars lit, charge your batteries.
Note: Your scooter will automatically turn itself off if the battery output falls to
18 volts DC or lower.
Tiller Adjustment
The tiller on your scooter employs an adjustment lever to provide you
with infinite tiller angle settings. To set the tiller to your liking, follow these
directions:
Use one hand to grasp a handgrip.
Use your other hand to loosen the adjustment lever.
Position the tiller to a comfortable driving position.
 Tighten adjustment lever.










BE SURE THE TILLER ADJUSTMENT LEVER IS FULLY
TIGHTENED BEFORE OPERATING THE SCOOTER.
Adjustment Lever
The length of your Avenger tiller can be extended by the removal of tiller
plastic, removal of 2- 6mm machine screws. The tiller can be lengthened by 3” and the
replacement of 1 of the 6mm machine screws. (Picture not shown)


18
V. OPERATION

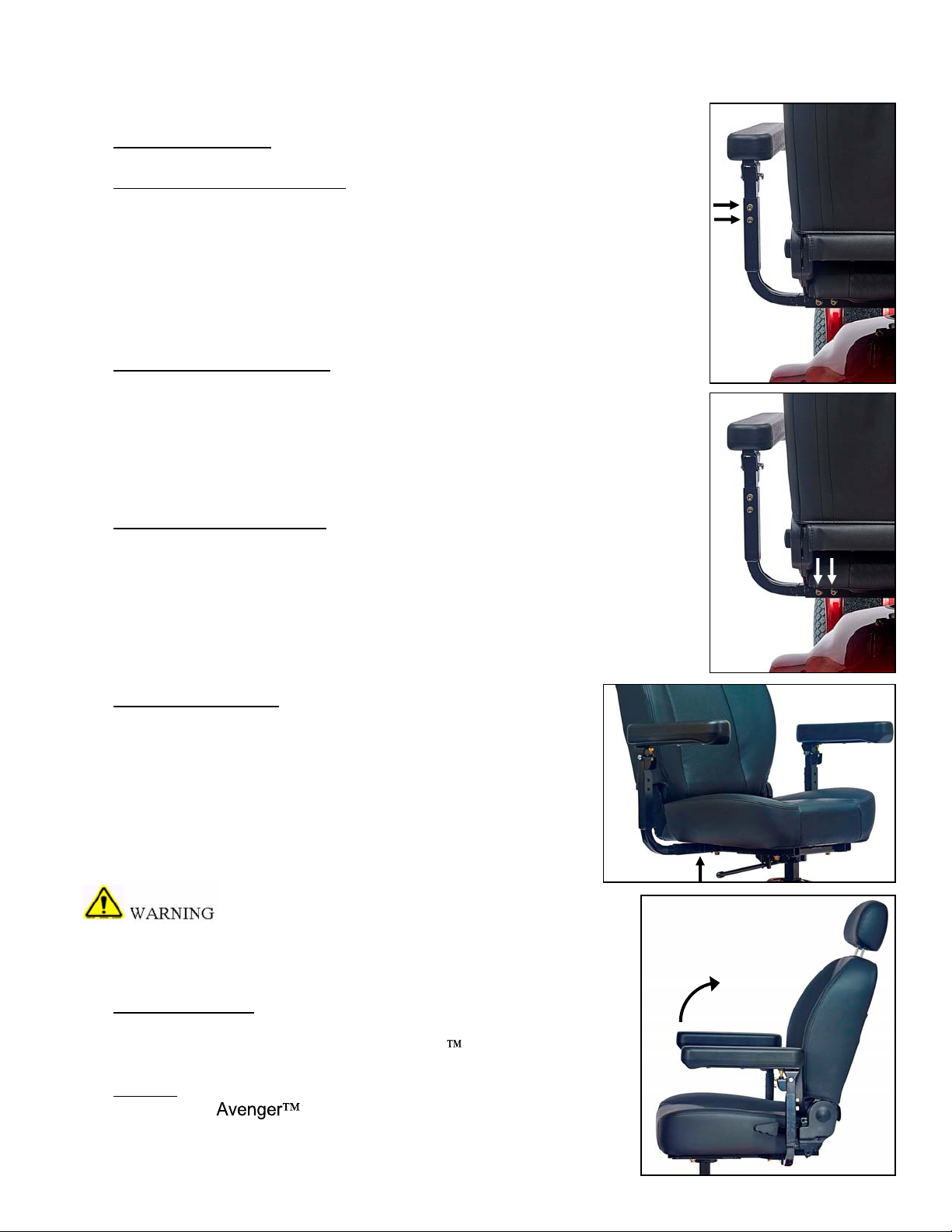

SEAT CONTROLS
Armrest Height Adjustments
To adjust the armrest height:
1. Remove the (2) 6mm adjustment screws on the back of
the armrest and raise to a comfortable position.
2. Reinsert the 2 screws.
Note: The armrest can be raised 3” and by replacing only
1 screw. You can raise the armrest and replace both screws.
Armrest Width Adjustment
To adjust the armrest width:
1. Loosen the (2) 6mm adjustment screws at the rear of each
arm.
2. Slide each arm to the desired width and tighten the
screws.
Seat Height Adjustment (Picture Not Shown)
To adjust the seat height: Lift up on seat rotate lever and turn
seat either left or right, lift seat straight up. Holding rotate lever in
the up position while lifting seat may make this task easier.
Remove 17mm machine screw and place seat post
at the desired height and re-insert screw.
Seat Rotation Lever
The seat can be rotated through 360°and locked at any
90°position.
1. Pull up on the seat rotate lever and rotate the
seat to the desired position.
2. Release the handle to lock the seat at any 90°
position.
DO NOT ATTEMPT TO DRIVE YOUR
AVENGER IN ANY SEAT POSITION OTHER THAN
FULLY FORWARD.
Flip-Up Armrests
Pull up on the end of either armrest to flip it up for easy
transfer on and off your Golden Avenger .
Seating
The Golden seat is available only in black vinyl.


19
VI. RIDING YOUR AVENGER 

MOUNTING
For you first driving sessions, make certain that your Golden Avenger
starts out on a level surface and that you will continue driving on a level surface.
To get on Your Avenger 

1. Stand behind your Avenger 
2. Make certain that the brake handle is in the “Forward” position.
3. Pull up on the seat rotate lever.
This lever is normally located on the right-hand side of the seat.
 Pull the lever up, and position the seat in a comfortable position for
seating.
 Release the lever to lock the seat into one of the four preset locking
positions.
BE SURE YOUR SEAT IS LOCKED IN THE FORWARD POSITION BEFORE
OPERATING.
Make certain that the seat is positioned for safe and easy mounting.
Position yourself in the seat.
Use the seat rotate lever to position the seat in the fully forward direction.
Fasten your lap belt, if your is so equipped.
BASIC DRIVING
1. Make certain that you are seated safely and properly on your Avenger .
2. Turn the speed control dial fully counterclockwise to its slowest setting.
Reverse movement of the scooter may not occur when the speed control dial is
set fully counterclockwise at its slowest setting.
3. Insert the key into the keyhole.
4. Push the key all the way into the key receptacle and turn clockwise to power the
scooter.
5. Place your hands on the handgrips.
a. If you wish to drive forward, position your right thumb on the right thumb lever and
push forward.


20
b. If you wish to drive in reverse, position your left thumb on the left
thumb lever and push forward.
6. Press against the thumb lever to gently accelerate your Avenger .
7. Release the lever to allow your to come gently to a full stop.
8. Practice these two basic functions until you feel that you have control
of your scooter.
Steering
Steering your Golden is easy and logical.
1. With both hands on the handgrips of the tiller, turn the tiller to the right to travel to
the right.
2. With both hands on the handgrips of the tiller, turn the tiller to the left to travel to
the left.
3. Make certain to maintain sufficient clearance when turning your scooter so that the
rear wheels will clear any obstacle.
TURNING TOO SHARPLY AROUND A CORNER CAN CAUSE THE
SCOOTER TO TIP. AVOID THIS DANGER AT ALL TIMES BY STEERING A WIDE ARC
AROUND CORNERS AND OBSTACLES. ALSO, TO AVOIDE THE RISK OF TIPPING,
REDUCE SPEED BEFORE NEGOTIATING ANY TURNS.
Steering in a tight spot
If you must steer in a tight spot, such as entering a doorway or when turning around:
1. Bring your to a full stop.
2. Turn the speed control dial to the slowest setting (Fully counter clockwise)
3. Turn the tiller to the direction in which you wish to drive.
4. Press gently on the appropriate thumb lever and slowly turn your Avenger .
For more information on dealing with obstacles and tight spots, see “Control through
Tight Spots” on the next page.
Steering in Reverse
Backing up your requires attention to what you are doing
1. Use your left thumb to press against the left thumb lever.
2. Turn the tiller to the left to drive in reverse to the left.
3. Turn the tiller to the right to drive in reverse to the right.
Your speed in reverse is fifty percent of the maximum speed set at
the speed control dial.
