Golden Buzzaround XL Series User manual









Owner’s Manual
Buzzaround XL™ Series



Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 - Tel: [phone] - Fax: [phone] - www.goldentech.com
GB117 GB147


2



3
Thank you for purchasing your Buzzaround XL™ Scooter. We are honored you have
chosen Golden Technologies for your mobility needs.
Buzzaround XL™ Series
Models: GB117/GB117S, GB147/GB147S,
GB117HD/GB117SHD, GB147HD/GB147SHD
Standard Packing List:
1 Owner’s Manual
1 Battery Pack
1 Front Basket
1 Seat with Armrest
1 Safety Flag
2 Keys
Battery Charger
Seat Post Nut and Bolt
DISCLAIMER
We ask that you read this manual completely before operating your new
Buzzaround XL™. Golden Technologies, Inc. is not and cannot be held responsible for
any damage or injury incurred due to improper or unsafe use of the Golden Buzzaround
XL™ scooter. Golden Technologies, Inc. specifically disclaims responsibility for any bodily
injury or property damage that may occur during any use that does not comply with
applicable federal, state, or local laws or ordinances.


4
CONTENTS


I. INTRODUCTION......................................................……………………………………5
Features and Benefits...…………………………………………………………………………..6
Accessories for the Buzzaround XL™ Scooter……………………………………………….7
II. SAFETY……………………………………………………………………………………….8-12
III. EMI/RFI..………………………………………………………………………………………13
IV. YOUR GOLDEN Buzzaround XL™……………………………………………………….14
Specifications………………………………………………………………………………….15-16
V. OPERATION..…………………………………………………………………………………..17
Control Panel..………………………………………………………………………………..17-18
Control Options.………………………………………………………………………………….18
Seating..………………………………………………………………………………………..19-20
Freewheel Mode.………………………………………………………………………………….21
VI. RIDING YOUR Buzzaround XL™ Scooter.……………………………………………..22
Mounting..………………………………………………………………………………………….22
Basic Driving.……………………………………………………………………………………..23
Steering in Tight Spots..……………………………………………………………………24-25
VII. DISASSEMBLY…………………………………………………………………………..26-27
VIII. ASSEMBLY………………………………………………………………………………28-31
IX. TRANSPORTING YOUR Buzzaround XL™..……………………………………………32
X. CARE AND MAINTENANCE..……………………………………………………………….33
Routine Maintenance..…………………………………………………………………………..33
Cleaning Your Buzzaround XL™ Scooter..………………………………………………….33
Batteries and Charging..………………………………………………………………………..34
If Your Buzzaround XL™ Does Not Operate........…………………………………………35
Diagnostics...………………………………………………………………………………….36-38
XI. WARRANTY...……………………………………………………………………………..39-40
Warranty/Registration Card........................……………………………………………….41


5
I. INTRODUCTION


Congratulations on the purchase of your new Buzzaround XL™ scooter. The Buzzaround
XL™ combines cutting edge technology with attractive designs that are also highly
functional in today’s world. We at Golden Technologies, Inc. know that you have chosen
a scooter that will give you years of dependable operation and also will enhance the
quality of your life by providing you with the mobility to experience an active daily
lifestyle.
Even though your new Buzzaround XL™ is both user-friendly and designed for
maximum maneuverability in even the tightest spaces, we ask that you please read,
understand and follow all of the instructions and suggestions in this manual before you
operate your scooter for the first time. The safe use of your new scooter is very important
to us.
If you feel that you do not understand the instructions and suggestions presented in this
owner’s manual, or if, for any reason, you do not feel capable of performing the activities
necessary to assemble, disassemble, operate, or maintain your Buzzaround XL™, please
contact your local Golden Technologies, Inc. provider or call Golden Technologies, Inc.
Technical Support Services at [phone].
Golden Technologies, Inc. cannot be held responsible for personal injury or property
damage resulting from the unsafe or the improper use of any of our personal mobility
products. Also, Golden Technologies, Inc. cannot be held responsible for personal injury
or property damage resulting from attempts to follow instructions, suggestions, and
guidelines presented in this owner’s manual.
Our Research and Development Department, our Quality Control Department, and our
Engineering Department have used the latest product specifications and the latest
product design information to manufacture your Buzzaround XL™. Golden Technologies,
Inc. reserves the right to implement changes into our product lines when those changes
become desirable or necessary. If changes are implemented into our product line, there
may be minor differences between the product you purchased and the illustrations and
instructions in this owner’s manual.
Please fill out and mail the enclosed warranty registration card. Registration is also
available @ www.goldentech.com. We at Golden Technologies, Inc. would appreciate
hearing about the dependability of your Buzzaround XL™ and about the convenience of
mobility it has provided for you. We would also appreciate hearing about the service you
received from your local Golden Technologies, Inc. provider or representative.
Golden Technologies, Inc. Phone: [phone]
401 Bridge Street Fax: [phone]
Old Forge, PA 18518 Toll free: [phone]
For more information about our products and services or to send us your comments,
please visit our website at www.goldentech.com


6
FEATURES AND BENEFITS
Your Buzzaround XL™ scooter has been designed with your comfort in mind. It has also
been designed to be a safe method of transportation when safety and operating
instructions are followed. Please review the features and benefits of certain components
of the Buzzaround XL™ scooter below.


 

Figure 1. Buzzaround XL™Features (Model: GB117S)
Control Panel:
Easy to read display features
from top to bottom: the LED
battery gauge; oversized speed
control knob; key switch to
turn the unit on and off; and
the red horn button.
Delta Tiller handle:
Offers rubber coated hand rests for
comfort and dual throttle control
levers for easy right or left hand use.
Seat Swivel:
A standard feature, the seat
can swivel to the left or right
for easy transfers or to sit
more comfortably at a table
or desk.
Adjustable Armrests:
Your Buzzaround XL
scooter features width
and angle adjustable
armrests to find the
most comfortable
position as well as to
make transfers easier.
Easy Access Battery Pack:
Located under the seat, the battery pack has a
wireless connector system for easy disassembly
and reassembly. The battery pack can be re-
moved and brought indoors for charging with its
off board charger.
Basket:
The Buzzaround XL
comes standard
with a removable
storage basket.
LED Headlight:
The Buzzaround XL comes
standard with a LED
angle-adjustable headlight,
which is designed to make it
easier to see and be seen.
Tiller:
Easy to use tiller
offers multiple
adjustments to
find your most
comfortable driving
position. The Tiller
Adjustment Knob
is located at the
bottom of the tiller
on the right side. 
Tiller Lock Knob:
Located at the
bottom of the tiller
in the front so that
you can lock the
tiller in place when
disassembled.
Headlight On/Off Switch:
The switch is located on the
right side of the tiller under
the control panel.


7
Read and follow the Explosive conditions Indoor use only!
owner’s manual! exist!
Use only AGM or
Gel-Cell batteries! Avoid transmitters! Hot surface!
Pinch/Crush Hazard! Do not place into trash! Electrical hazard!
Corrosive chemicals Recycle Do not use personal
inside battery! electronic devices!
I. INTRODUCTION
ACCESSORIES FOR THE BUZZAROUND XL™ SCOOTER:
A variety of accessories are available for your Golden Buzzaround XL™ Scooter. Please
contact your Authorized Golden Technologies Provider for more information or to order.
• Cane Holder - Tube
• Quad Cane Holder
• Walker Holder
• Oxygen Tank Holder
• Cup Holder
• Deluxe Pack N’ Go
• Forearm Crutch Holder
• Mirror
• Safety Flag
• Scooter Cover
• 22 AMP Battery Pack
(Optional)
*Some accessories require a mounting bracket or mounting clips. Please check with your
provider to find out if the accessory you would like to order requires a mounting bracket
or mounting clips.
Safety Guidelines
The symbols below are used in the owner's manual and/or on the product to identify
warnings and to notify you of important safety information. Make sure you read and
understand them completely.
WARNING! Indicate(s) a hazardous situation which, if not avoided, could result
in death or serious injury. This icon is represented as a black symbol on a
yellow triangle with a black border.
MANDATORY! Failure to perform mandatory actions can cause personal in
jury and/or equipment damage. This icon is represented as a white symbol on
a blue dot with a white border.
PROHIBITED! Indicate(s) an action(s) that should not be performed under any
circumstance. Failure to adhere can cause personal injury and/or equipment
damage. This icon is represented as a black symbol with a red circle and red
slash.
Safety Symbols
The symbols below identify warnings, mandatory actions, and prohibited actions. They
can be found in the owner’s manual and/or on the product. Make sure you understand
all safety labels before operating the product. Do not remove safety labels from the
product.


8
II. SAFETY
Your Buzzaround XL™ is a battery-operated personal mobility vehicle. Please exercise
caution and consideration when you are operating it. Driving your Buzzaround XL
carefully and thoughtfully will help ensure your personal safety and the safety of other
people.
Before learning to operate your Buzzaround XL, have your authorized
Golden Technologies, Inc. provider determine if it is advisable for you to practice getting
on and off your scooter and operating it in the presence of an attendant.
MANDATORY! Read completely and understand this owner’s manual before
assembling, operating, transporting, or disassembling your Buzzaround XL
scooter.
BEFORE GETTING ON YOUR BUZZAROUND XL
• Check to be certain that the power is turned off. See section V. "Operation" in this
manual. This will eliminate the possibility of accidentally activating the paddle controls
and causing injury to yourself and/or others.
• Check to be certain that your Buzzaround XL’s freewheel lever is in the engaged
position. See section V. “Operation” in this manual.
• Flip up the armrests.
When getting on or off your Buzzaround XL, keep your weight
toward the middle of the deck. Putting most or all of your weight on the edge of
the deck may cause an unstable condition.
GETTING ON YOUR BUZZAROUND XL
• Position the seat for safe and easy mounting. Ensure that the seat is facing forward.
See Section V. "Operation."
• Return tiller to full upright position if necessary.
• Carefully place one foot on the approximate center of the deck and seat yourself
comfortably and securely on the seat.
• Flip down the armrest(s.)
GETTING OFF YOUR BUZZAROUND XL
• Make certain that the power is turned off and the key is removed.
• Return tiller to full upright position
• Flip up the armrests.
• Carefully place one foot on the ground, transfer your weight to that leg, and slowly
come to a standing position.
• Step away from the scooter.
MAXIMUM WEIGHT
Your Buzzaround XL has been rated to a maximum weight capacity (operator and
anything else being carried onboard) of 300 pounds. The HD models maximum weight
capacity is 325 pounds. Exceeding the maximum weight rating will void the warranty.
Exceeding the maximum weight rating may result in injury to
yourself and/or others.


9
II. SAFETY

DRIVING ON INCLINES
• For maximum stability, lean forward in your Buzzaround XL’s seat while proceeding up
ramps, inclines, curbs, or any low rise. See figure 2.
• Drive with caution when attempting to negotiate any incline, even handicap access
ramps.
• Always climb or descend an incline by driving straight up or straight down the face of
the slope. See figure 2.
• Do not traverse or drive across the face of an incline in any direction. See figure 3.
• Do not attempt to negotiate an incline that is covered with snow, ice, salt, cut or wet
grass, leaves, or any other potentially hazardous material.
• Do not drive your scooter in reverse down an incline.
• Try to keep your Buzzaround XL moving when climbing an incline. If you do come to a
stop, restart and accelerate slowly and carefully.
• Do not try to descend or climb a slope whose gradient is greater than recommended.
*Buzzaround XL maximum recommended incline is 6°.
 
Figure 2. Going Up an Incline Figure 3. Traversing an Incline

If, while you are driving down a slope, your scooter starts to move
faster than you feel is safe, release the throttle control lever and allow your
Buzzaround XL to come to a stop. When you feel that you again have control of
your scooter, push the throttle control lever forward and continue safely down the
remainder of the slope.
DRIVING DOWN A DECLINE
• Lower speed setting.
• Whenever it is safely possible, drive forward down any ramp, low rise, or incline.
Golden Technologies, Inc. does not recommend that you drive your scooter in reverse
down any incline, ramp, curb, or low rise. Backing down any slope may create a very
hazardous situation. If it is necessary to back down a slope follow one of two procedures
on page 10.


10
II. SAFETY
When using either of the following procedures to back down a slope,
Golden Technologies, Inc. strongly advises that you have the assistance of another
person.
Procedure 1 - Under Power
1. Set the key switch to the “Off” position. See section V. “Operation.”
2. Turn the speed control dial fully counterclockwise to its slowest setting.
3. Dismount your Buzzaround XL™.
4. Set the key switch to the “On” position. See section V. “Operation.”
5. While standing alongside your scooter, carefully operate the controls at the lowest
speed setting. See section V. “Operation.”
6. Slowly and carefully back your scooter down the incline.
7. Carefully remount your Buzzaround XL and resume normal operation.
When your scooter is in freewheel mode, the park brake is released.
If the batteries are dead, the motor braking system will not work. The weight of the
scooter on a slope may cause you to lose control of the scooter. If you do not feel
capable of manually controlling your scooter down the slope, request assistance or
do not attempt to use this procedure.
Procedure 2 - Emergency (No Power)
1. Set the key switch to the “Off” position. See section V. “Operation.”
2. Dismount your Buzzaround XL™.
3. Set the freewheel lever to “Disengaged.”
4. While standing alongside the scooter, carefully manually maneuver it down the slope.
5. When you have reached a level surface at the bottom of the slope, position the
freewheel lever in the engaged position. See section V. “Operation.”
6. Carefully remount your Buzzaround XL, and set the key switch to the “On” position to
restore power.
Motor Braking System
Your scooter is equipped with a system that uses the motor to aid in braking. This motor
brake system is designed to work when the key is in either the on position or the off
position.
When the key switch is in the on position, the freewheel is in the engaged position, and
the scooter is under power, the motor will help slow down the scooter as soon as you
take your hand off of the throttle lever.
When the key switch is in the off position and the freewheel lever is in the disengaged
position, the motor brake system will keep you from pushing the scooter too fast (i.e.
down a slope).
You may notice this when pushing the scooter. The scooter will move freely until you
reach a certain speed. You will then encounter some resistance as the motor brake
system is activated.


11
II. SAFETY

MEDICATION
Always check with your physician to determine if any of the medications you are taking
may affect your judgment and/or your ability to operate your Buzzaround XL. Also check
with your physician concerning your physical ability to operate a scooter.
Do not connect or allow anyone except an authorized Golden
Technologies, Inc. provider to connect any electrical or mechanical device to your
Buzzaround XL. Unauthorized accessories will void the warranty and may cause
injury.
Please remember that while on your Golden Buzzaround XL, you are a
motorized pedestrian. You must observe and obey all pedestrian rules and regulations for
the locale in which you are riding.
Please use your Buzzaround XL™ scooter often and allow it to expand the horizons of
your daily life. The more mobility your Golden Buzzaround XL brings to you, the happier
you will be, and the more satisfied we at Golden Technologies, Inc. will be! But as with all
things, especially motor operated vehicles, observing a few rules and safety
considerations will help ensure safe scooter operation. So please follow the rules below.
RULES FOR USE AND OTHER SAFETY CONSIDERATIONS
Read completely and understand this owner's manual before
assembling, operating, transporting, or disassembling your Buzzaround XL.
• Always operate your Buzzaround XL with thought, care, and safety.
• Do not attempt to use your Buzzaround XL on an escalator. Always use an elevator.
• Do not carry passengers under any circumstances.
• Do not mount or dismount your Buzzaround XL unless the brake is engaged.
• Always make sure that the key switch is set to "Off" before mounting or dismounting
your scooter.
• Do not back your Buzzaround XL down an incline or across an uneven surface.
• Do not turn your scooter suddenly at full speed.
• Always make sure the seat is locked in the forward facing position before operating
your Buzzaround XL.
• Always come to a full stop before changing direction from forward to reverse or from
reverse to forward.
• Do not operate your Buzzaround XL where you could not safely or legally walk.
• Do not climb ramps or curbs that exceed your scooter's capacity.
• Always approach curbs and inclines straight on.
• Always be aware of and careful near mechanical pinch points especially when
assembling and disassembling your scooter.
• Never sit on your Buzzaround XL when it is being transported.
• Always fasten down your Buzzaround XL securely with an approved tie-down system
while transporting your scooter.
• Never operate your scooter if it is not functioning properly.


12
II. SAFETY
RULES FOR USE AND OTHER SAFETY CONSIDERATIONS - continued
 Always use caution when driving on soft or uneven surfaces such as grass or gravel.
Also use caution on decks where there is no railing.
 Never drive on the roadway, except when you must cross the street.
 Always cross streets at intersections and use crosswalks or the most direct route,
making sure that your path is clear and that you are visible to motor traffic.
 Never drive your Buzzaround XL up or down a step or curb that is higher than the
ground clearance listed on the specifications chart (see pages 15-16).
 Never back up or down a step or curb.
 Do not drive your Buzzaround XL in icy or salted conditions.
 Never operate your Buzzaround XL while you are under the influence of alcohol.
 Do not operate or store your Buzzaround XL where it will be exposed to rain, snow,
mist, and below freezing temperatures.

Should you encounter a problem with the operation of your
mobility device such as a mechanical or electrical problem immediately stop using
the product. Disconnect the batteries then contact the provider from whom you
purchased your mobility device for evaluation of the problem and repair if needed.


13
III. EMI/RFI

The rapid development of electronics, especially in the area of communications, has
saturated our environment with electromagnetic (radio) waves that are emitted by
television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham
radios), wireless computer links, microwave transmitters, paging transmitters, etc. These
electromagnetic (EM) waves are invisible and increase in strength the closer one gets to
the source of transmission. When these energy waves act upon electrical devices and
cause them to malfunction or to function in an erratic or uncontrolled manner, they are
referred to as Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI).
EMI/RFI AND YOUR BUZZAROUND XL™
All electrically powered vehicles, including scooters are susceptible to Electromagnetic
Interference/Radio Frequency Interference (EMI/RFI). This interference could result in
abnormal, unintended movement of your Golden Buzzaround XL.
Unintended movement or brake release could cause an accident or
injury.
The FDA has determined that each make and model of scooter can resist EMI/RFI to a
certain level. The higher the level of resistance, the greater the degree of protection from
EMI/RFI—measured in volts per meter (V/m). The FDA has also determined that current
technology is capable of providing 20 V/m of resistance to EMI/RFI, which would provide
useful protection against common sources of interference. This product has been tested
and has passed an immunity level of 20 V/m.
EMI/RFI RECOMMENDATIONS
PROHIBITED! Do not turn on or use hand-held personal electronic
communication devices such as cellular phones, walkie-talkies, and CB
radios while your scooter is turned on.
• Be aware of any nearby transmitters (radio, television, microwave, etc.) on your
intended route and avoid operating your scooter close to any of those transmitters.
• Turn off the power if your Buzzaround XL is going to be in a stationary position for any
length of time.
• Be aware that adding accessories or components or modifying your scooter may make it
more susceptible to EMI/RFI.
• If unintended movement or park brake release occurs, turn your scooter off as soon as
it is safe to do so.
• Report all incidents of unintended movement or park brake failure to Golden
Technologies, Inc. Technical Service at [phone].
Turn off your scooter as soon as it is safely possible if unintended or
uncontrollable motion occurs or if unintended park brake release occurs.


14
IV. YOUR GOLDEN Buzzaround XL™


Figure 4. Your Golden Buzzaround XL™(Model GB147SHD)
FOR YOUR RECORDS
Please fill in your Buzzaround XL’s information below. This information will be useful in
the event that you ever need to contact Golden Technologies, Inc. concerning your
scooter.
Model ________________ Serial Number_________________________________________
Date of Purchase __________________ Body Color_______________
Provider Name________________________________________________________________
Company_____________________________________________________________________
Address_______________________________________________________________________
City ____________________________________ State________ Zip_____________________
Please remember to fill in and return your warranty registration card in the back of this
manual.
Headlight Switch
Control Panel
Hand Grip
Front Basket
Tiller Adjustment Knob
LED Headlight
Tiller Lock Knob
Circuit Breaker
Battery Pack
Freewheel Lever
Seat Assembly
Headlight Switch
Seat Rotation
Lever


15
IV. YOUR GOLDEN Buzzaround XL™
1. Battery range at 200 lbs., and will vary due to rider weight, drive surface, terrain, and battery type.
2. Electronics warranty excludes batteries.
3. Assembled weight calculated with the standard battery pack 2-12 AH batteries on non-HD models.
Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the
product or literature at any time.
Specifications GB-117/GB-117S GB-147/GB-147S
Medicare Code K0800/Not Coded K0800/Not Coded
Weight Capacity 300 lbs. 300 lbs.
Drive Wheels Rear Rear
Maximum Speed 4 mph 4 mph
Operating Range 18 miles 8 miles
Ground Clearance Under Deck 3.0 in. 3.0 in.
Turning Radius 37 in. 47 in.
Type Batteries 2-12 AH 2-12 AH
Colors Red, Blue Red, Blue
Freewheel Mode Yes Yes
Electronic Speed Control Yes Yes
Electro-Mechanical Brakes Yes Yes
Charger Off-board Off-board
Controller 50 Amp 50 Amp
Length 42.5 in. 41.5 in.
Width 21.5 in. 21.5 in.
Height (ground to top seat back) 33-35 in. 33-35 in.
Ground to Top of Seat 21-23 in. 21-23 in.
Ground to Top of Deck 4.75 in. 4.75 in.
Deck to Top of Seat 16-18 in. 16-18 in.
Number of Seat Height Positions 3 3
Size of Increments 1.0 in. 1.0 in.
Front Axle to Rear Axle 33.5 in. 32 in.
Weight of Unit: (assembled) 3101 lbs./104 lbs. 109 lbs./112 lbs.
Front Half 35 lbs. 43 lbs.
Rear Half 25 lbs./28 lbs. 25 lbs./28 lbs.
Seat with Arms 22 lbs. 22 lbs.
Batteries (pack with 2-batteries) 19 lbs. 19 lbs.
Tires: Solid, low profile Solid, low profile
Front 8 in. 8 in.
Rear 8 in. 8 in.
Rear Anti-Tip Wheels 2 in. 2 in.
Standard Seat: Stadium Style Stadium Style
Seat Back Height (no headrest) 16 in. 16 in.
Width x Depth 18” x 16” 18” x 16”
Color Black Vinyl Black Vinyl
Optional Seat: Stadium Style Stadium Style
Seat Back Height (no headrest) 16.0 in. 16.0 in.
Width x Depth 20” x 18” 20” x 18”
Color Black Vinyl Black Vinyl
Warranty:
Frame Lifetime Warranty Lifetime Warranty
Drive Train 2 Year Warranty 2 Year Warranty
Electronics 22 Year Warranty 2 Year Warranty
Batteries 1 Year Warranty 1 Year Warranty


16
IV. YOUR GOLDEN Buzzaround XL™
1. Battery range at 200 lbs., and will vary due to rider weight, drive surface, terrain, and battery type.
2. Electronics warranty excludes batteries.
3. Assembled weight calculated with the standard battery pack 2-22 AH batteries on HD models.
Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the
product or literature at any time.
Specifications GB-117HD/GB-117SHD GB-147HD/GB-147SHD
Medicare Code K0801/Not Coded K0801/Not Coded
Weight Capacity 325 lbs. 325 lbs.
Drive Wheels Rear Rear
Maximum Speed 4 mph 4 mph
Operating Range 114 miles 14 miles
Ground Clearance Under Deck 3.0 in. 3.0 in.
Turning Radius 37 in. 47 in.
Type Batteries 2-22 AH (standard) 2-22 AH (standard)
Colors Red, Blue Red, Blue
Freewheel Mode Yes Yes
Electronic Speed Control Yes Yes
Electro-Mechanical Brakes Yes Yes
Charger Off-board Off-board
Controller 50 Amp 50 Amp
Length 42.5 in. 41.5 in.
Width 21.5 in. 21.5 in.
Height (ground to top seat back) 33-35 in. 33-35 in.
Ground to Top of Seat 21-23 in. 21-23 in.
Ground to Top of Deck 4.75 in. 4.75 in.
Deck to Top of Seat 16-18 in. 16-18 in.
Number of Seat Height Positions 3 3
Size of Increments 1.0 in. 1.0 in.
Front Axle to Rear Axle 33.5 in. 32 in.
Weight of Unit: (assembled) 3111 lbs./114 lbs. 119 lbs./122 lbs.
Front Half 35 lbs. 43 lbs.
Rear Half 25 lbs./28 lbs. 25 lbs./28 lbs.
Seat with Arms 22 lbs. 22 lbs.
Batteries (pack with 2-batteries) 29 lbs. 29 lbs.
Tires: Solid, low profile Solid, low profile
Front 8 in. 8 in.
Rear 8 in. 8 in.
Rear Anti-Tip Wheels 2 in. 2 in.
Standard Seat: Stadium Style Stadium Style
Seat Back Height (no headrest) 16 in. 16 in.
Width x Depth 18” x 16” 18” x 16”
Color Black Vinyl Black Vinyl
Optional Seat: Stadium Style Stadium Style
Seat Back Height (no headrest) 16.0 in. 16.0 in.
Width x Depth 20” x 18” 20” x 18”
Color Black Vinyl Black Vinyl
Warranty:
Frame Lifetime Warranty Lifetime Warranty
Drive Train 2 Year Warranty 2 Year Warranty
Electronics 22 Year Warranty 2 Year Warranty
Batteries 1 Year Warranty 1 Year Warranty


17
V. OPERATION

Figure 5. Buzzaround XL™ Delta Tiller Control Panel
CONTROL PANEL
Speed Adjustment Dial
• The speed adjustment dial allows you to preselect the maximum top speed of your
Golden Buzzaround XL. See figure 5.
• Turn the dial counterclockwise to operate your scooter at the lowest speed level.
• Turn the dial clockwise to increase the operational speed of your scooter.
• We recommend that you select a speed setting at which you feel comfortable, safe, and
in control of your Buzzaround XL.
Key Switch
This switch turns the power on and off to your Buzzaround XL. See figure 5.
• Insert the key into the key switch.
• Turn the key 90 degrees clockwise to turn on your scooter's power. The LEDs on the
battery meter will light up indicating that power is on.
• Turn the key back to the vertical position to turn off your scooter's power.
Always make certain that the key is removed from the key switch before
getting on or off your Golden Buzzaround XL or before lowering the tiller completely.
Horn Button
Press this button to sound the horn. See figure 5.
Throttle
Control Lever
LED Battery
Meter
Speed
Adjustment
Key Switch
Horn Button


18
V. OPERATION


DC Battery Voltage Meter
This meter (see figure 5) shows the amount of voltage in your Buzzaround XL’s batteries.
• Green indicates a full charge on the batteries.
• Yellow indicates caution and approximately a one-half charge of the batteries.
• Red indicates that the batteries have less than one-half of a charge remaining.
See section X. “Care and Maintenance” for instruction concerning charging the batteries.
Delta Tiller Throttle Control Lever
The Delta Tiller enables you to use only one hand (either the right or left) to operate both
the speed and the direction of the Buzzaround XL. This self-centering lever system
controls your Buzzaround XL’s speed (up to the maximum speed set by the speed
adjustment dial) and its forward and reverse direction. See figure 5.
To drive forward use either of the following:
• Use your right hand fingers to pull back on the right side of the throttle control lever.
• Use your left thumb to push the left side of the throttle control lever.
Always bring your Buzzaround XL to a full stop before changing
direction from forward to reverse, or from reverse to forward.
To drive in reverse use either of the following:
• Use your left hand fingers to pull back on the left side of the throttle control lever.
• Use your right thumb to push the right side of the throttle control lever.
When the throttle control lever is completely released, it automatically returns to the
center “stop” position and engages your scooter’s brakes, bringing you to a complete
stop. You will hear a “click” when the park brake engages.
Control Options
Golden Technologies, Inc. has made provision for the individual needs and abilities of the
operators of the Golden Buzzaround XL.
Your authorized Golden Technologies, Inc. provider can reverse the throttle control lever
controls so that when you pull on the left side of the lever, your scooter will move in the
forward direction, and when you pull on the right side of the lever your scooter will move
in the reverse direction.
DELTA TILLER ADJUSTMENT
The tiller on your Buzzaround XL scooter employs an adjustment knob to provide you
with multiple tiller angle settings. To set the tiller to your liking, follow these directions.
1. Use one hand to grasp a handgrip.
2. Use your other hand to loosen the tiller adjustment knob. See figure 4 on page 14.
3. Position the tiller to a comfortable driving position.
4. Tighten the tiller adjustment knob.


19
V. OPERATION
SEATING
Figure 6. Armrest Width Adjustment Figure 7. Armrest Angle Adjustment
Armrest Width Adjustment
To adjust the armrest width:
1. Loosen the adjustment knobs at the rear of the seat. See figure 6.
2. Slide the armrests in or out to the desired width.
3. Tighten the adjustment knobs.
Be sure adjustments knobs are securely tightened against the
inserted armrest tube. Do not overextend the armrest.
Flip-up Armrests
Pull up on the end of either armrest to flip it up for easy transfer on and off your Golden
Buzzaround XL™. See #1 on figure 7.
Armrest Angle
Loosen the locknut by turning it counter-clockwise.
To increase the armrest angle, turn the armrest angle screw counterclockwise.
To decrease the armrest angle, turn the armrest angle screw clockwise.
See #2 on figure 7.
1
2
Locknut


20
V. OPERATION











Figure 8: Seat Rotation Adjustment
Seat Rotation Lever
The seat can be rotated through 360° and locked at any 45° position.
1. Pull up on the seat rotation lever and rotate the seat to the desired position.
See figure 8.
2. Release the handle to lock the seat at any 45° position.


Figure 9 Figure 10

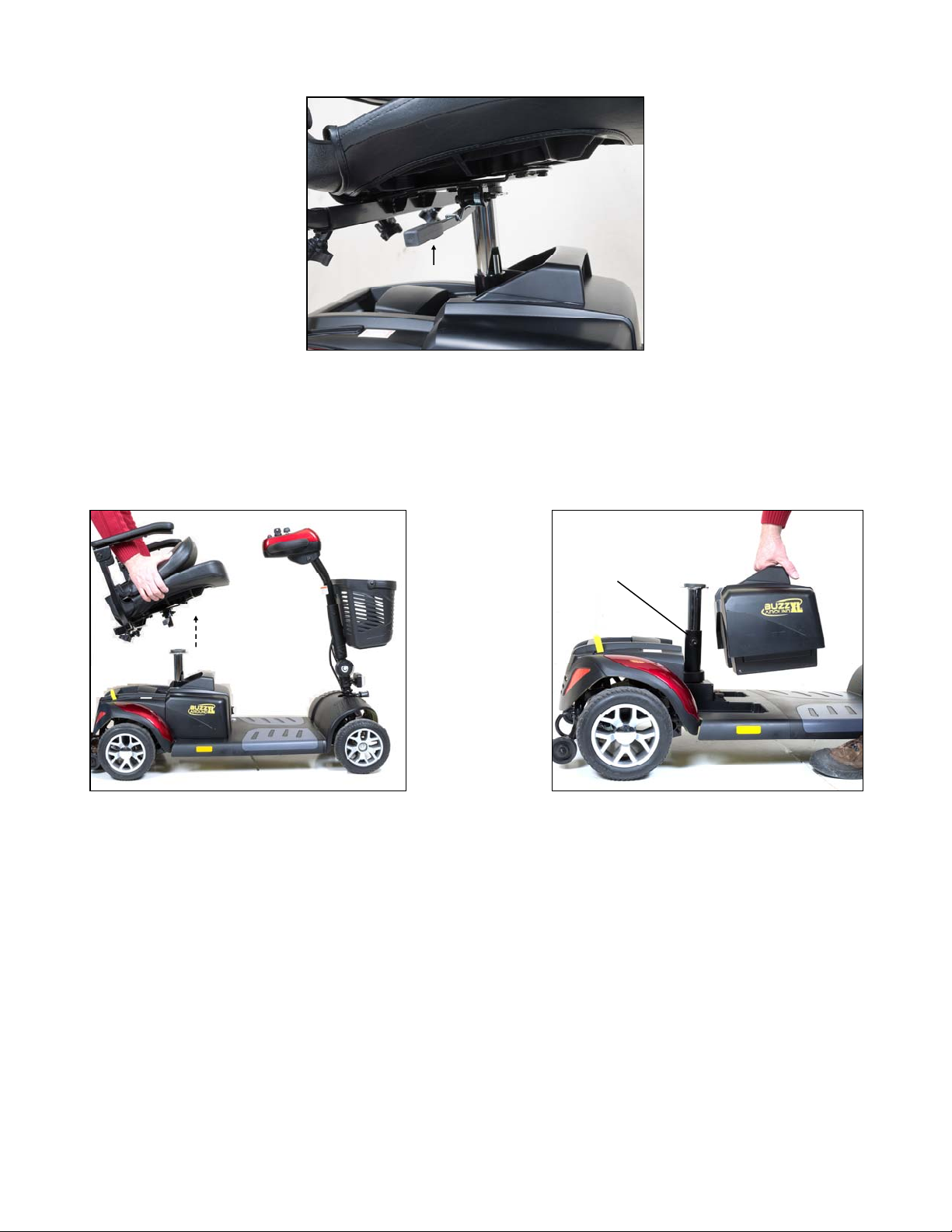

Seat Height Adjustment
To adjust the seat height:
1. Fold the seat back down, grasp the seat on both sides and lift the seat up and off of
the seat pedestal. See Figure 9. (Note: Seat arms can be removed to reduce the seat
weight).
2. Remove the battery box by lifting it up. See figure 10.
3. Remove the nut and bolt that holds the seat post in the seat pedestal.
4. Position the seat post at the desired height while aligning the holes in the seat post
and the seat pedestal.
5. Reinstall the nut and bolt.
6. Reinstall the battery box.
7. Place the seat back onto the seat post and push down to lock it into place. Move the
seat from side to side to make sure it is locked into place.
Nut and Bolt
