Goldmedal Master Pop 2451 User manual

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2451: 120V, 875W, 60Hz
2451EX: 230V, 875W, 50Hz
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Master Pop and Kettle were adjusted, inspected, and tested before it left the factory. Remove all
packing before setting up your new Master Pop. Hang the kettle on the hanger assembly attached to the
celling of your Master Pop. Finally, make sure to plug the power cord of your kettle into the power
receptacle located on the celling of your popper.

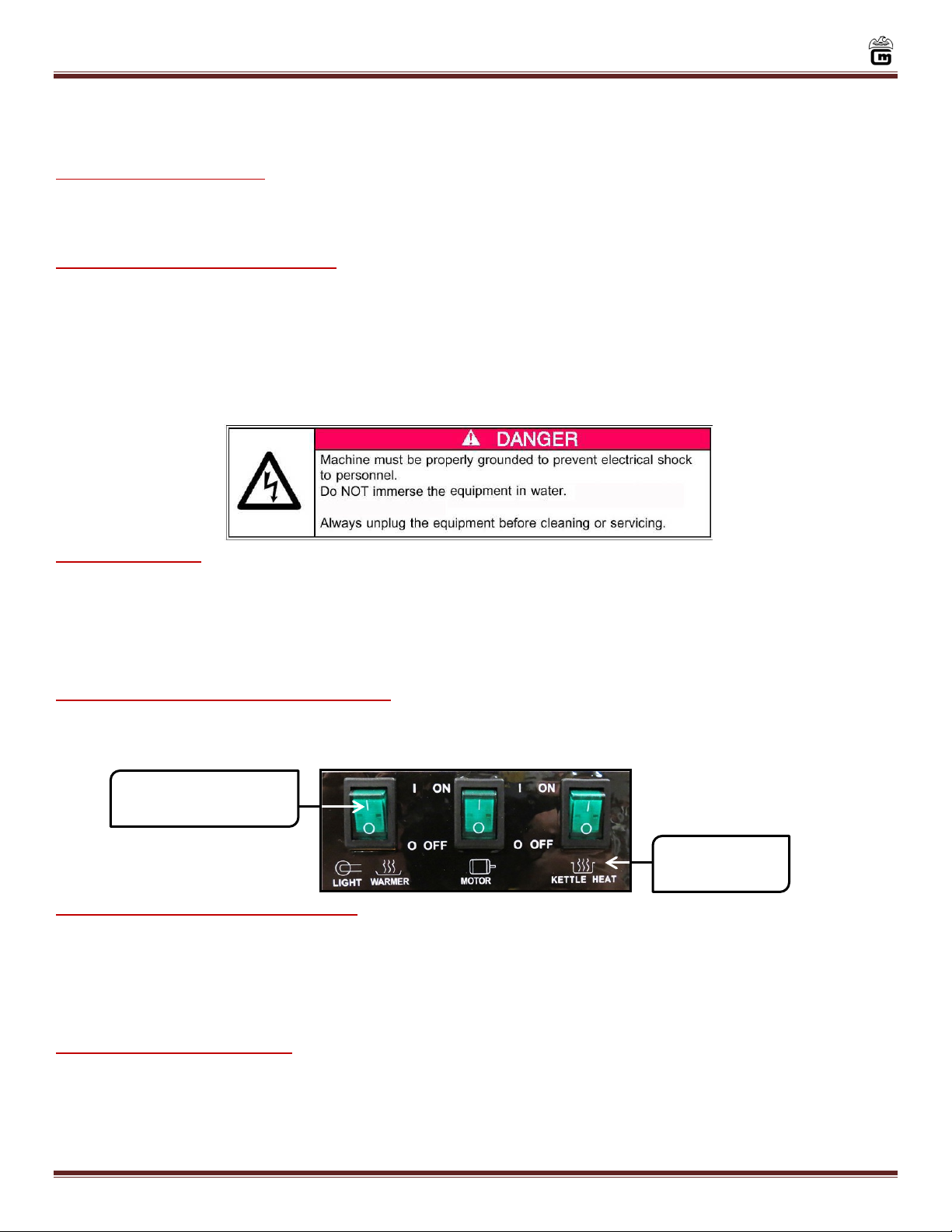

CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the kettle heat element
AMOUNT OF POPCORN AND OIL
Your new Master Pop is equipped with a 6 oz corn measuring cup (Part No. 49049).
Corn charge – 6 oz.
Oil charge – 1.6 to 2.0 oz.
Flavacol – 1 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
DPST Rocker Switch (3)
Part No. 42532
Switch Label (1)
Part No. 49840

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2451: 120V, 875W, 60Hz
2451EX: 230V, 875W, 50Hz
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Master Pop and Kettle were adjusted, inspected, and tested before it left the factory. Remove all
packing before setting up your new Master Pop. Hang the kettle on the hanger assembly attached to the
celling of your Master Pop. Finally, make sure to plug the power cord of your kettle into the power
receptacle located on the celling of your popper.
CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the kettle heat element
AMOUNT OF POPCORN AND OIL
Your new Master Pop is equipped with a 6 oz corn measuring cup (Part No. 49049).
Corn charge – 6 oz.
Oil charge – 1.6 to 2.0 oz.
Flavacol – 1 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
DPST Rocker Switch (3)
Part No. 42532
Switch Label (1)
Part No. 49840

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2451: 120V, 875W, 60Hz
2451EX: 230V, 875W, 50Hz
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Master Pop and Kettle were adjusted, inspected, and tested before it left the factory. Remove all
packing before setting up your new Master Pop. Hang the kettle on the hanger assembly attached to the
celling of your Master Pop. Finally, make sure to plug the power cord of your kettle into the power
receptacle located on the celling of your popper.
CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the kettle heat element
AMOUNT OF POPCORN AND OIL
Your new Master Pop is equipped with a 6 oz corn measuring cup (Part No. 49049).
Corn charge – 6 oz.
Oil charge – 1.6 to 2.0 oz.
Flavacol – 1 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
DPST Rocker Switch (3)
Part No. 42532
Switch Label (1)
Part No. 49840

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 6
ORDERING SPARE PARTS
1. Identify the worn or broken part by checking it with the illustrations and parts list.
2. When ordering parts, include part number, part name, and quantity required.
3. Include your model name and machine serial number (found on nameplate) with your order.
4. Address orders to:
Parts Department
Gold Medal®Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or place orders at:
[phone]
[phone]
Fax: [phone]
E-mail: [email protected]
www.gmpopcorn.com

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 7
KETTLE BREAKDOWN
Kettle Part No. 56000, 49434EXN
Model No. 56000 Bottom Assembly Model No. 49434EXN Bottom Assembly
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
17
16
18
19
20
22
13
21
17
18
23

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 7
KETTLE BREAKDOWN
Kettle Part No. 56000, 49434EXN
Model No. 56000 Bottom Assembly Model No. 49434EXN Bottom Assembly
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
17
16
18
19
20
22
13
21
17
18
23

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 7
KETTLE BREAKDOWN
Kettle Part No. 56000, 49434EXN
Model No. 56000 Bottom Assembly Model No. 49434EXN Bottom Assembly
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
17
16
18
19
20
22
13
21
17
18
23

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 7
KETTLE BREAKDOWN
Kettle Part No. 56000, 49434EXN
Model No. 56000 Bottom Assembly Model No. 49434EXN Bottom Assembly
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
17
16
18
19
20
22
13
21
17
18
23

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 8
ITEM PART NO. MODEL(S) PART NAME QTY.
147060 ALL Spur Gear 1
243434 ALL Agitator Bearing Hub 1
347106 ALL Needle Bearing 1
441742 ALL Set Screw 3
569710 ALL Agitator Shaft 1
649017 ALL Front Lid With Formend Lifter 1
749016 ALL Rear Kettle Lid 1
59102 56000 Crossbar Assembly 1
49471EXN 49434EXN Crossbar Assembly 1
969714 ALL Stir Rod 1
10 46649 ALL Set Collar 3
11 47110 ALL Knob Dump Handle 1
12 49314 ALL RH Dump Handle 1
13 49362 ALL Spacer Dump Handle 1
49328 56000 Kettle Lead Assembly 1
49490 49434EXN Export Kettle Lead Assembly 1
15 47193 56000 Thermostat Shunt Bar 1
16 76702 56000
Thermostat 525 °F 1
76089 56000
Thermostat 450 °F 1
76089 49434EXN
Thermostat 450 °F 2
56006 56000 Kettle/Heater 780W 1
46652EX 49434EXN 850W Tubular Element 1
19 49431 ALL 6 oz Kettle Shell 1
20 49368 ALL Kettle Gasket 1
21 49532 49434EXN Element Clamp 1
22 69715 ALL Kettle Weight 1
23 49596 49434EXN 6 oz Clad Kettle Assembly 1
8
14
17
18
KETTLE BREAKDOWN PARTS LIST
Kettle Part No. 56000, 49434EXN

Master Pop Model No. 2451, 2451EX
http://www.gmpopcorn.com Page 8
ITEM PART NO. MODEL(S) PART NAME QTY.
147060 ALL Spur Gear 1
243434 ALL Agitator Bearing Hub 1
347106 ALL Needle Bearing 1
441742 ALL Set Screw 3
569710 ALL Agitator Shaft 1
649017 ALL Front Lid With Formend Lifter 1
749016 ALL Rear Kettle Lid 1
59102 56000 Crossbar Assembly 1
49471EXN 49434EXN Crossbar Assembly 1
969714 ALL Stir Rod 1
10 46649 ALL Set Collar 3
11 47110 ALL Knob Dump Handle 1
12 49314 ALL RH Dump Handle 1
13 49362 ALL Spacer Dump Handle 1
49328 56000 Kettle Lead Assembly 1
49490 49434EXN Export Kettle Lead Assembly 1
15 47193 56000 Thermostat Shunt Bar 1
16 76702 56000
Thermostat 525 °F 1
76089 56000
Thermostat 450 °F 1
76089 49434EXN
Thermostat 450 °F 2
56006 56000 Kettle/Heater 780W 1
46652EX 49434EXN 850W Tubular Element 1
19 49431 ALL 6 oz Kettle Shell 1
20 49368 ALL Kettle Gasket 1
21 49532 49434EXN Element Clamp 1
22 69715 ALL Kettle Weight 1
23 49596 49434EXN 6 oz Clad Kettle Assembly 1
8
14
17
18
KETTLE BREAKDOWN PARTS LIST
Kettle Part No. 56000, 49434EXN
