Goldmedal 2016 User manual

© 2019 Gold Medal Products Co. Part No. 53021
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Staging Cabinets
Model No.: 2016, 2025, and 2025ST
Model 2016 shown

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 3
gmpopcorn.com
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at -800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 4
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 0700 Medallion Drive, Cincinnati, OH 4524 USA -(800)-543-0862.
Model Description
2016: Pop-A-Lot Staging Cabinet with white molded dome, LED lighting, and a heated
corn pan crisper.
2025: Citation Staging Cabinet with white molded dome, LED lighting, and a forced air
popcorn crisper.
2025ST: Citation Staging Cabinet with stainless steel dome, LED lighting, and a forced air
popcorn crisper.
Setup
This unit has been tested at the factory.
. Remove all packaging and tape prior to operation.
2. Place unit on a sturdy, level base for use.
3. The door knobs are shipped facing the inside of the machine. Re-adjust knobs to face
the outside of the machine.
4. After setup, the unit should be cleaned prior to use (see Care and Cleaning section).

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 5
gmpopcorn.com
Electrical Requirements
The following power supply must be provided (reference unit Data Plate for Wattage requirement):
120 V~, 60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage
requirements). We recommend this equipment be on a dedicated and protected circuit. Failure
to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal
Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of
extension cords is not recommended due to safety concerns, and may cause sacrificed and/or
reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
. Make sure all machine switches are in the OFF position before plugging the equipment
into the receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the
power supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install the unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 6
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
POWER SWIT H
Two position, ON-OFF toggle switch, provides power to the crisper system and to the
cabinet lighting and sign.
Operating Instructions
Follow the instructions below to operate the Staging Cabinet:
. Turn the Power Switch ON approximately 30 minutes prior to use for optimal pre-
warming of cabinet and to turn on the lighting and sign.
2. Once preheated, place popcorn in cabinet for use.
Power Switch

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 7
gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet.
Always unplug the equipment before cleaning or servicing.
025_111616
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of
advertising your product.
Follow the directions below to clean the unit each day after use.
. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
2. Remove any remaining popcorn.
3. Remove all pans/accessories and take them to the sink to clean with soap and water,
then rinse and dry.
4. Clean under corn pan to remove all popcorn bits and seeds with a vacuum as needed,
then wipe the area with a clean dry cloth to remove any excess grease.
5. Clean area above the corn pan using a clean, SLIGHTLY damp cloth and wipe any
excess grease from glass and cabinet.
6. Wipe stainless steel parts clean using a clean cloth and stainless steel cleaner, such as
Gold Medal Watchdog Stainless Cleaner (Item No. 2088).
DO NOT use oven cleaners or abrasive materials as they will damage parts of machine.
7. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No.
2588) is recommended.
Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner,
such as Gold Medal Watchdog Glass Cleaner (Item No. 2588).
8. Reinstall the clean and dry pans/accessories.

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 8
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 9
gmpopcorn.com
ORDERING SPARE PARTS
. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to Parts Department, Gold Medal Products Co., 0700
Medallion Drive, Cincinnati, Ohio 4524 -4807
or place orders by phone or online:
Phone: [phone]
(5 3) 769-7676
Fax: [phone]
(5 3) 769-8500
E-mail: [e-mail]
Web Page: gmpopcorn.com
Replacing Broken Glass
Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be
obtained from a local glass shop, always purchase tempered glass.
GLASS DIMENSIONS (Height x Width x Thickness)
Model Front Glass Side Glass
2016, 2025 24. 88 x 24. 88 x . 25 24. 88 x 6.75 x . 25
2025ST 28. 88 x 22.938 x . 25 28. 88 x 5.5 x . 25
. Turn machine OFF, unplug unit and allow it to cool before attempting to replace glass.
2. Carefully remove all loose pieces of broken glass.
3. Lift out the corn pan (bottom pan).
4. Locate the Glass Retainer Strips on each corner post holding in the glass panel, and
remove the screws to unfasten the retainers.
5. Carefully remove the rest of the broken glass.
6. Remove all rigid glass channels from around the glass to be replaced, set channels
aside for reuse.
7. Apply decals (if desired) to new glass panel.
8. Slide rigid glass channels over the exposed sides and bottom of new glass panel.
9. Fasten new glass panel in machine with existing glass strips and screws.
0. Reinstall corn pan (bottom pan).

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 10
gmpopcorn.com

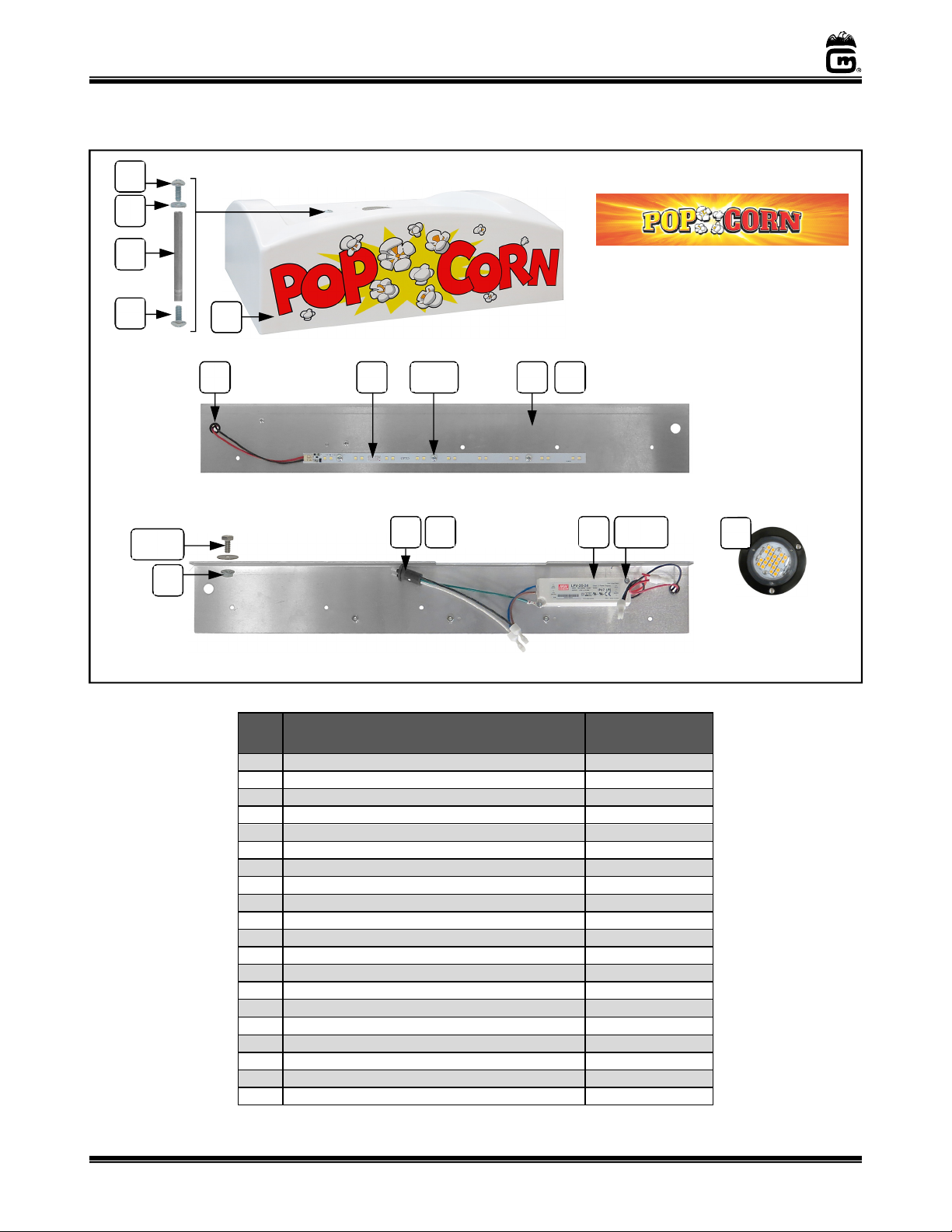

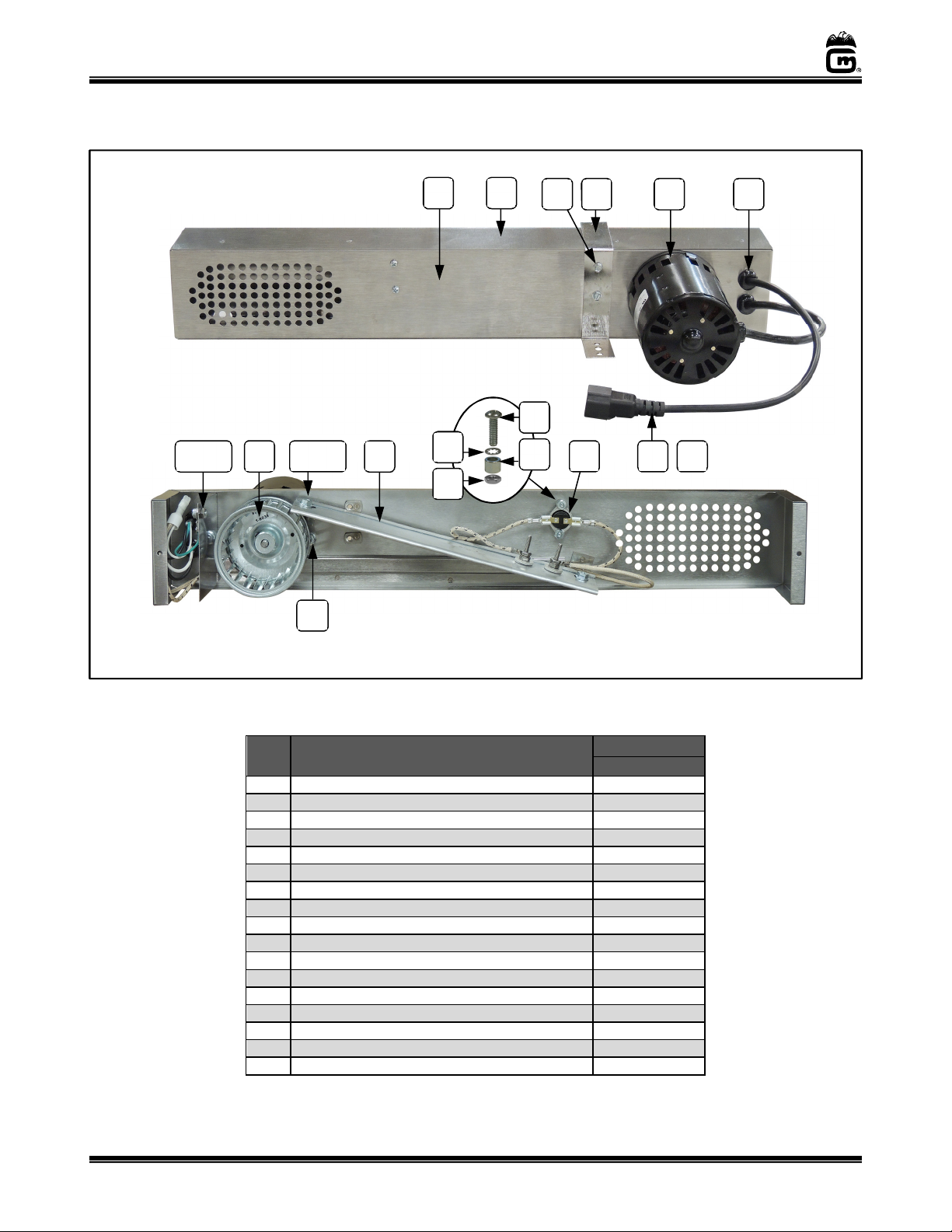

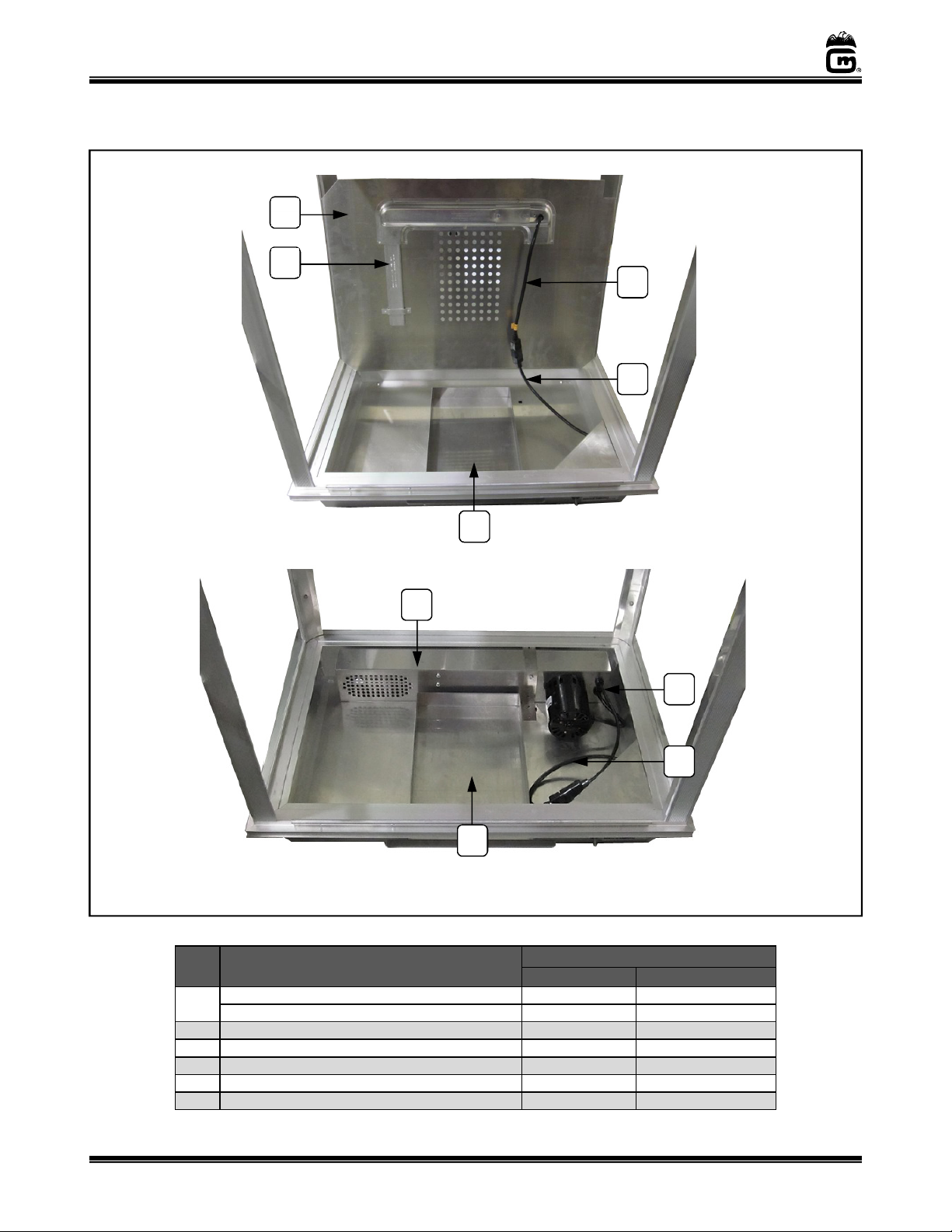

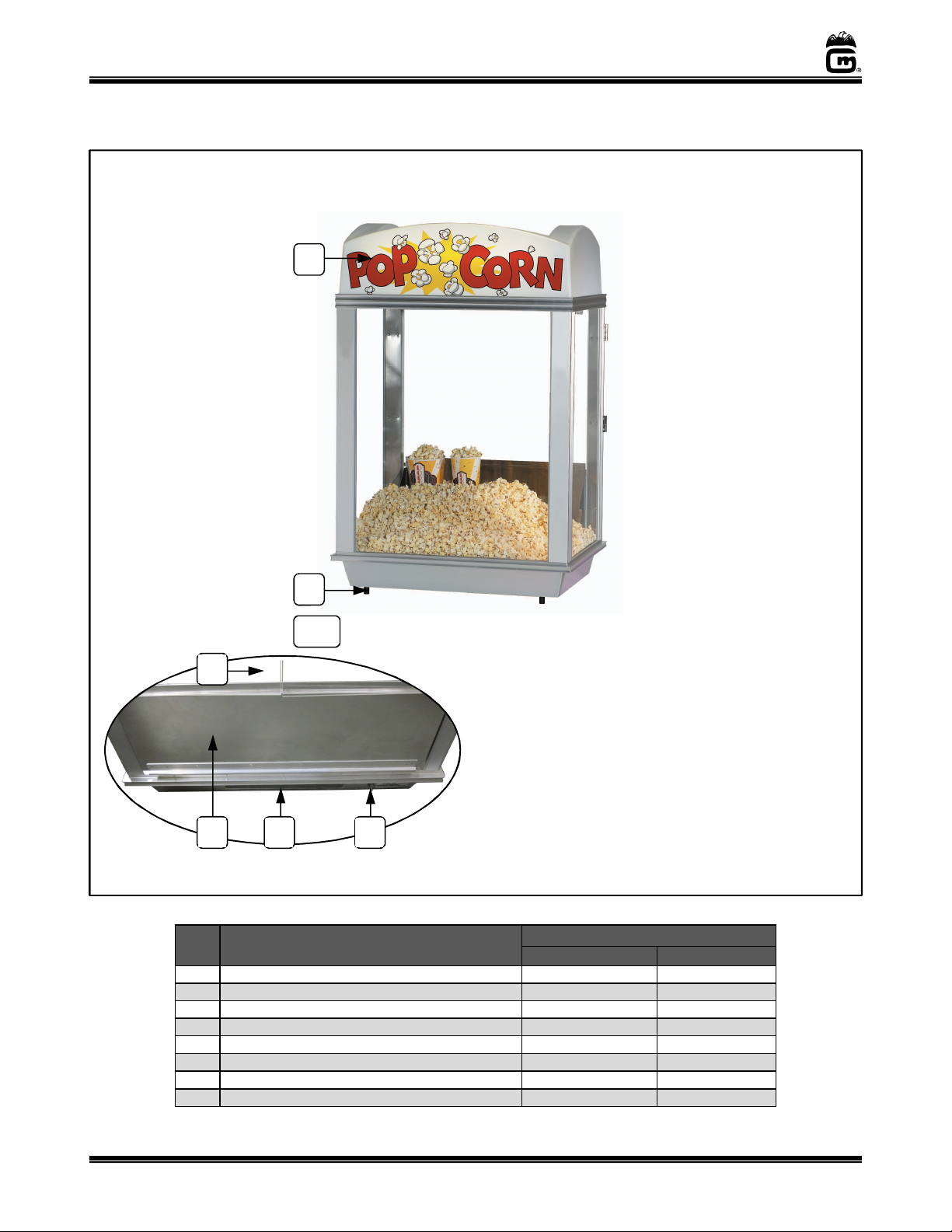

Cabinet Assembly
Item Part Description Part Number
2016, 2025 2025ST
DOME 7700 4 8
2 GLIDE (4 required) 47328 47328
3* POWER SUPPLY CORD 5 AMP 22038 22038
4 STRAIN RELIEF SR-6P3-4 76026 76026
5 DOOR 77058 47600
6
DROP PANEL
540 5
4732
7 OLD MAID PAN 47336 47336
8 SWITCH, TOGGLE DPST 4720 4720
For Glass, see
Replacing
Glass section.
3*, 4
* AUTION: If supply cord is damaged, it
must be replaced by Gold Medal Products
o., its service agent, or similarly qualified
persons in order to avoid a hazard.
1
2
*Power Supply ord and Strain Relief
See next page for Door Hardware parts breakdown.
5
8 7 6
Model 2016 shown (Model 2025ST has
a Stainless Steel Dome.

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 11
gmpopcorn.com
Door Hardware Kits – Individual Component Breakdown
Item Part Description Part Number
47054 47055
DOOR KNOB 4 0 3 4 0 3
2 8-32 X ½ SCREWS PH PAN W/SEMS 47 24 47 24
3 ACORN NUT #8-32 47702 47702
4 TEE BOLT 75267 75267
5 MALE HINGE SHORT LEFT 4 349
6 FEMALE HINGE LONG LEFT 4 352
7 FEMALE HINGE LONG RIGHT 4 35
8 MALE HINGE SHORT RIGHT 4 350
4
3
8
7
6 5
1
2
3
2
omplete Left Hand Door
Hardware Kit (P/N 47054)
(contains all parts shown above)
omplete Right Hand Door
Hardware Kit (P/N 47055)
(contains all parts shown above)

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 12
gmpopcorn.com
LED Lighting - Lighted Sign Assembly – Molded Dome
Item Part Description Part Number
5/ 6- 8 X 5/8 PH TR (fastens dome) 46638
2 5/ 6 FLAT WASHER (fastens dome) 74 34
3 DOME SPACER 540 4
4
20” X 28” MOLDED DOME
7700
5 LED LIGHT ASSEMBLY 77040
6 LED MOUNTING 55475
7 8-32 X 3/8 PH PAN (fastens LED strip) 42227
8 HEX NUT #8-32 STAINLESS (fastens LED Strip) 89 29
9 LED STRIP COOL WHITE 55379
0 .500 IN SNAP BUSHING 47236
/4-20 X /2 HEX HD (fastens LED mount.) 482
2 FENDER WASHER (fastens LED mount.) 82 0
3 /4-20 SERRATED NUT (fastens LED mount.) 463
4 MOLDED PLUG 47726
5 MOLDED RECEPTACLE, WARMER 47727
6 POWER SUPPLY 24VDC 60W 55586
60W POWER SUPPLY BRACKET (not shown) 55624
7 6-32 X 3/8 PHIL PAN (fastens power supply) 39000
8 6-32 NUT (fastens power supply) 422
9 LED REPLACEMENT NO PLATE 00544
LED Light Assembly – Front View
4
11, 12
13
LED Light Assembly – Rear View
9 7, 8 5 omplete LED
Light Assembly
6 10
2
1
3
1
2003
17, 18
16 14
LED Light for
abinet
19
Molded Recpt.
(not shown)
15
Model 2025ST Sign (PN 873)
Unit has a Stainless Steel Dome and
uses two LED Strips (PN 55379).
General images shown for parts reference only.

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 13
gmpopcorn.com
Cabinet Interior
Item Part Description Part Number
2016 2025, 2025ST
CORN PAN ASSY 20V (assy. includes element) 47598
CORN PAN 47736
2
HEAT ELEMENT
5
V,
75W
440
26
3 MALE CORDSET 6 020 6 020
4 FEMALE CORDSET 6 02 6 02
5 OLD MAID PAN 47336 47336
6 WARMER BLOWER ASSY 20V 47563
3
Model 2025 and 2025ST
2
1
2003
Model 2016
4
3
4
5
5
6
See next page for
Blower Assembly
parts breakdown.

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 14
gmpopcorn.com
Warmer Blower Assembly
Item Part Description Part Number
47563
WARMER CHASSIS ASSY 47545
2 TUNNEL COVER WELD ASSY 47542
3 8-32 X 3/8 SLT. HWH M/S 42044
4 TOP MOUNTING ANGLE 47985
5 MOTOR, WARMER 47356
6 STRAIN RELIEF SR-6P-4 44073
7 MALE CORDSET 6 020
8 FEMALE CORDSET 6 02
9 THERMOSTAT WARMER 90F 47385
0 6-32 X /2 PHIL PAN M/S 42237
#6 INT. TOOTH L/W 4 0SS 3900
2 SPACER,# 0 ID 47264
3 6-32 HEX NUT ZINC PLATED 38005
4 HEAT ELEMENT 20V 400W 47355
5 8-32 X 3/8 PH PAN W/SEMS 42227
6 8-32 SERRATED FLANGE NUT 6 5
7 BLOWER WHEEL 4 3
2022E – 47563 B lower Assembl y
Warmer Blower – Interior View
5 6 4 3
1 2
Warmer
Blower
Assembly (PN 47563)
15, 16 17
16
14
9 7 8
Female ordset
(not shown here)
15, 16
10
12
13
11
General images shown for parts reference only.

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 15
gmpopcorn.com

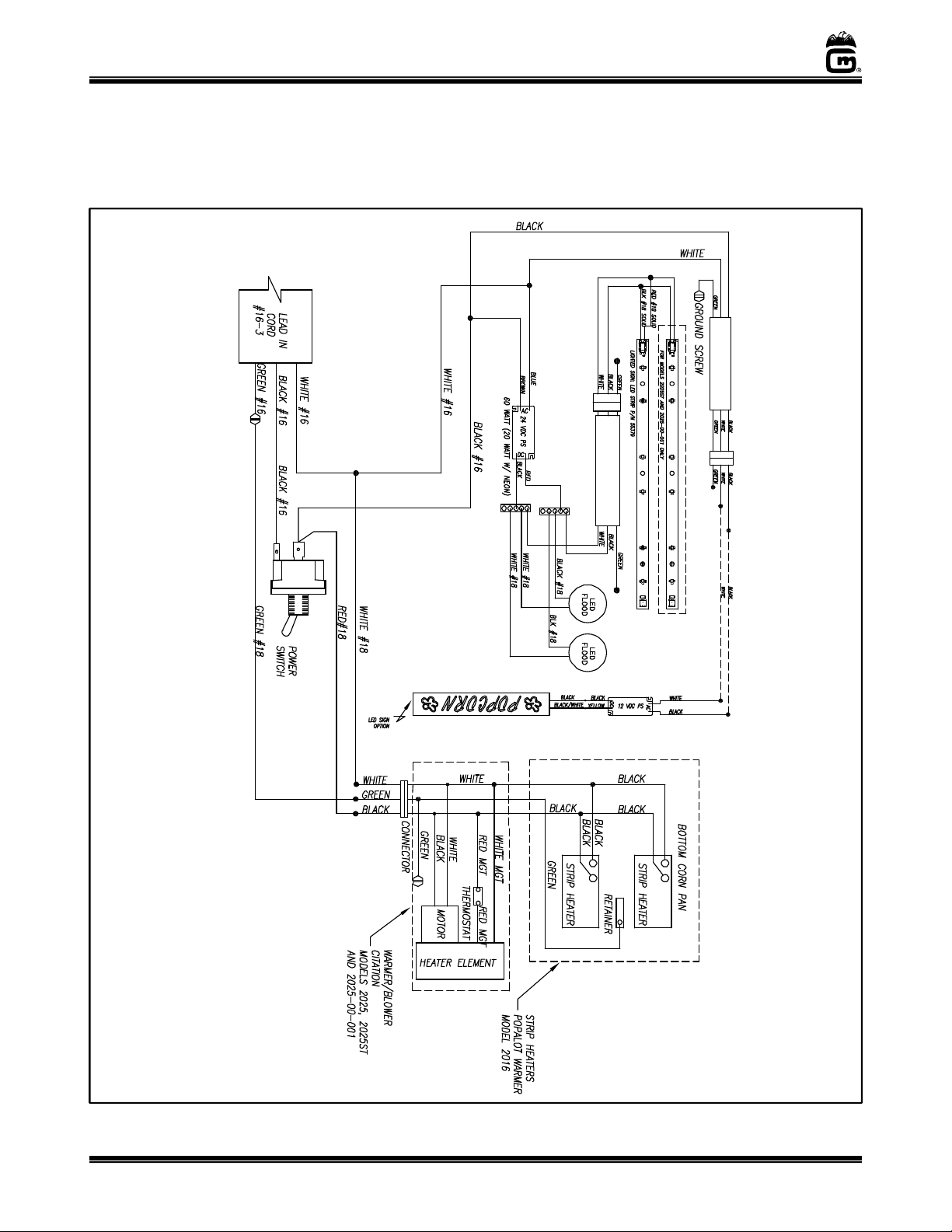

Wiring Diagram
Model No. 2016, 2015, 2015ST

Staging Cabinets Model No.: 2016, 2025, and 2025ST
Page 16
gmpopcorn.com
WARRANTY
© 2019 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
gmpopcorn.com
Phone: [phone] Fax: [phone]
[phone] [phone]
