Gorenje FG6A Series Operating and maintenance manual

GB
DETAILED
INSTRUCTIONS
FOR USE OF A GAS
FREE STANDING
COOKER
www.gorenje.comwww.gorenje.com
FG6A...

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
These instructions are only valid if
the country symbol is printed on
the appliance. If there is NO country
symbol on the appliance, please
consult the technical instructions for
adjusting the appliance according
to the requirements for use in the
relevant country.
The appliance has to be connected
in compliance with the effective
regulations, and it may only be used
in well ventilated areas. Read the
instructions before connecting or
using the appliance.
Instructions for use are also available
at our website:
http://www. gorenje.com
Important information
Tip, note

3
CONTENTS
586306
INTRODUCTION
USING THE
APPLIANCE
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
4 IMPORTANT SAFETY INSTRUCTIONS
8 Before connecting the appliance
9 GAS FREE STANDING COOKER

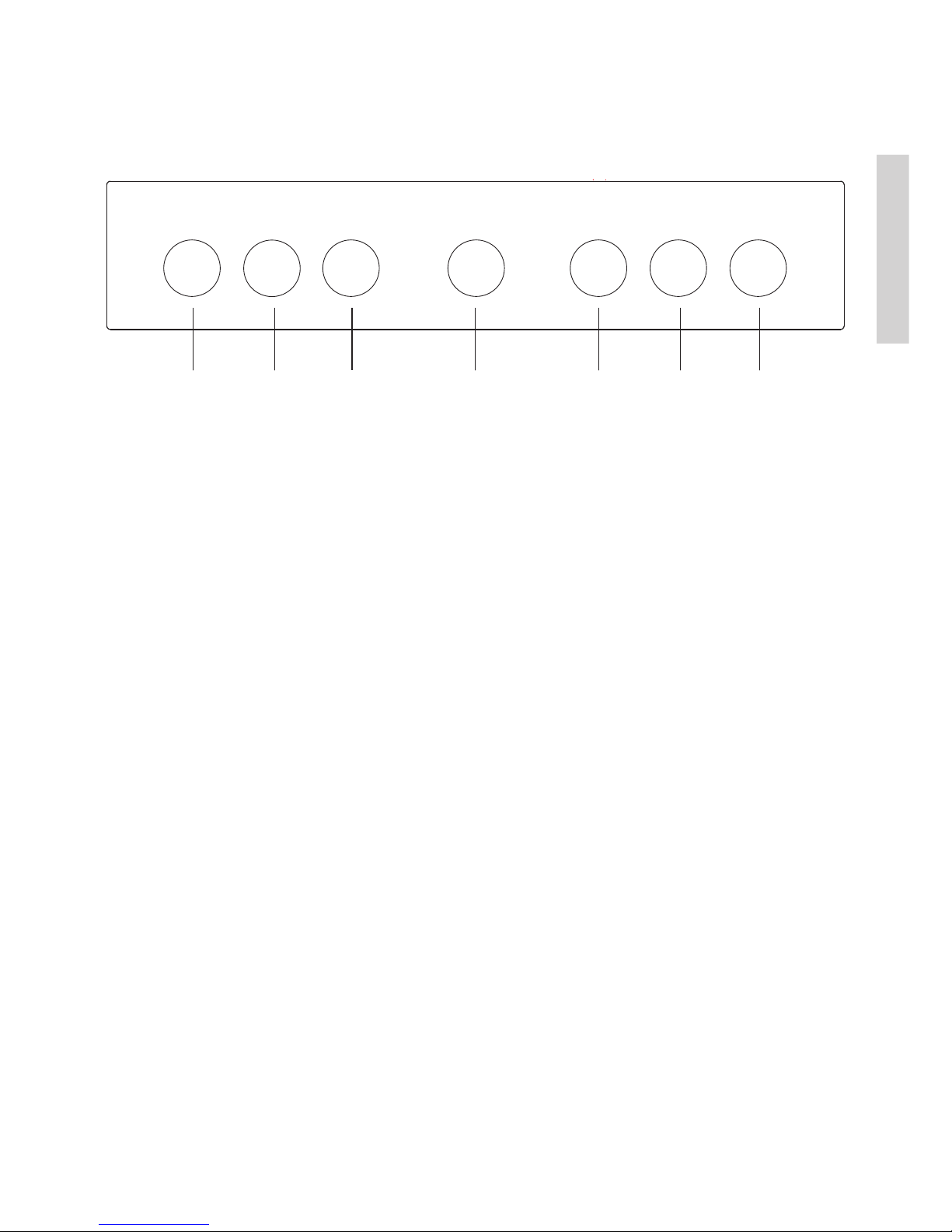

13 Control unit

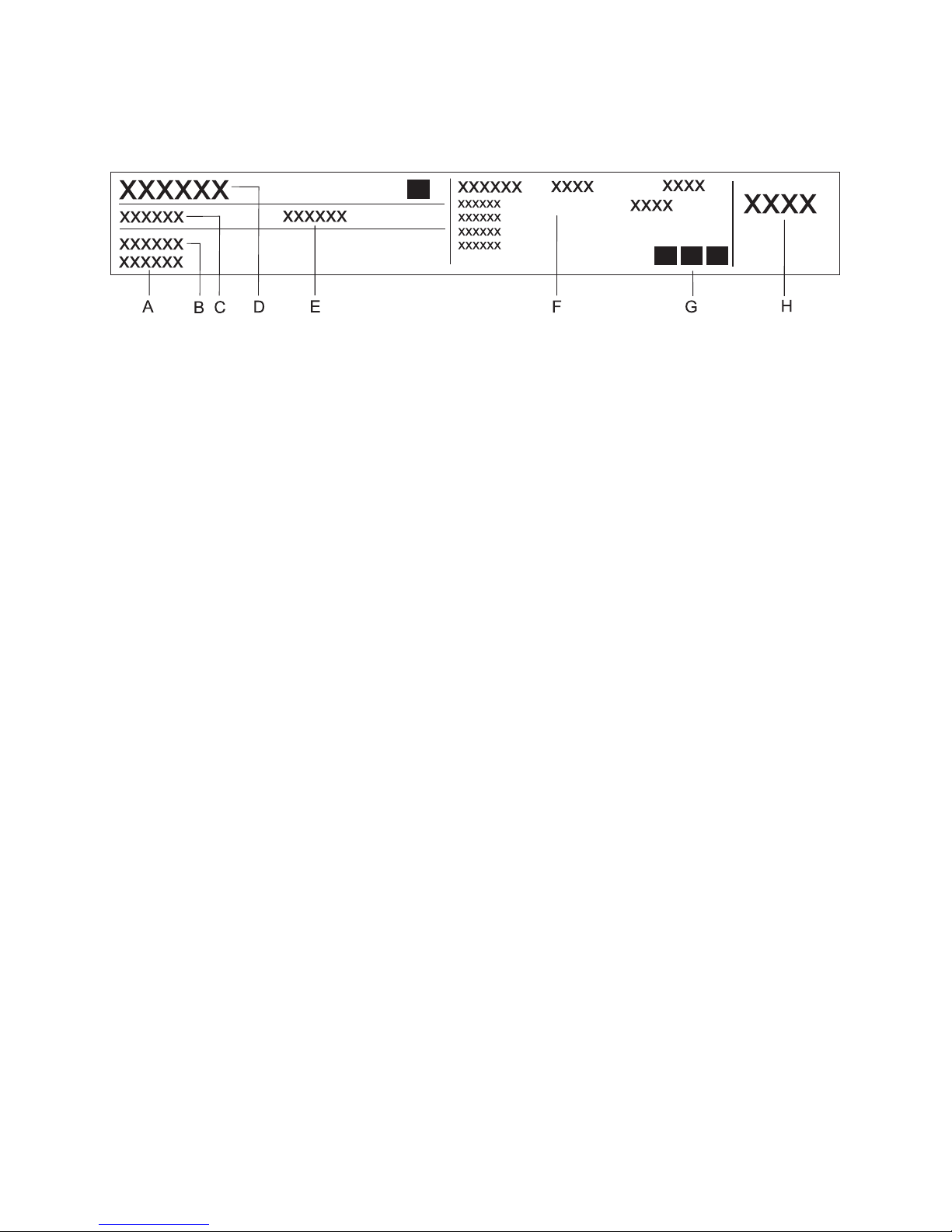

14 Appliance data - data plate
15 USING THE APPLIANCE
15 Before using the appliance for the first time
15 Cooking hob (depending on the model)
18 Oven
20 Descriptions of cooking systems and cooking table
26 MAINTENANCE & CLEANING
27 Conventional oven cleaning
27 Gas burner
28 Using the aqua clean function to clean the oven
29 Cleaning the insert bottom panel
30 Removing and cleaning wire and telescopic extendible guides
31 Removing and inserting the oven oor
34 Removing and inserting the oven inner door glass (depending on the
model)
36 Replacing the bulb
37 TROUBLESHOOTING TABLE
38 INSTALLATION AND CONNECTION INSTRUCTIONS
44 NOZZLE TABLE
46 DISPOSAL
47 COOKING TEST
OTHER
INSTALLATION
INSTRUCTIONS

4
586306
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children younger than 8 years of age shall
be kept away unless continuously supervised.
WARNING: The accessible parts of the appliance may
become hot during use. Young children should be kept
away from the oven.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
WARNING: Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire proof blanket.

5
586306
CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the mains power, in
order to prevent the hazard of an electric shock.
CAUTION: This appliance is for cooking purposes only. It
must not be used for other purposes, for example room
heating.
The appliance is not intended to be controlled by external
timers or separate remote controll system.
WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
For appliance connection use a 5 x 1,5 mm2cord with mark
H05VV-F5G1,5 or better. Cord must be installed by service
agent or similary quialified person.
The appliance is intended to be placed directly on the floor,
without any supports or plinths.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass or the glass of hinged lids of
the hob (where appropriate), since they can scratch the
surface, which may result in shattering of the glass.

6
586306
The appliance must not be installed behind a decorative
door in order to avoid overheating.
Do not use steam cleaners or high-pressure cleaners to
clean the appliance, as this may result in an electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Only use the temperature probe recommended for this
oven.
Make sure the lid is clean and that there is no liquid spilt
on it before raising it. The lid may be lacquer-coated or
glass. It may only be closed when the cooking zones have
completely cooled down.
Appliance must be connected to fixed wiring which is in
accordance with the witing rules.

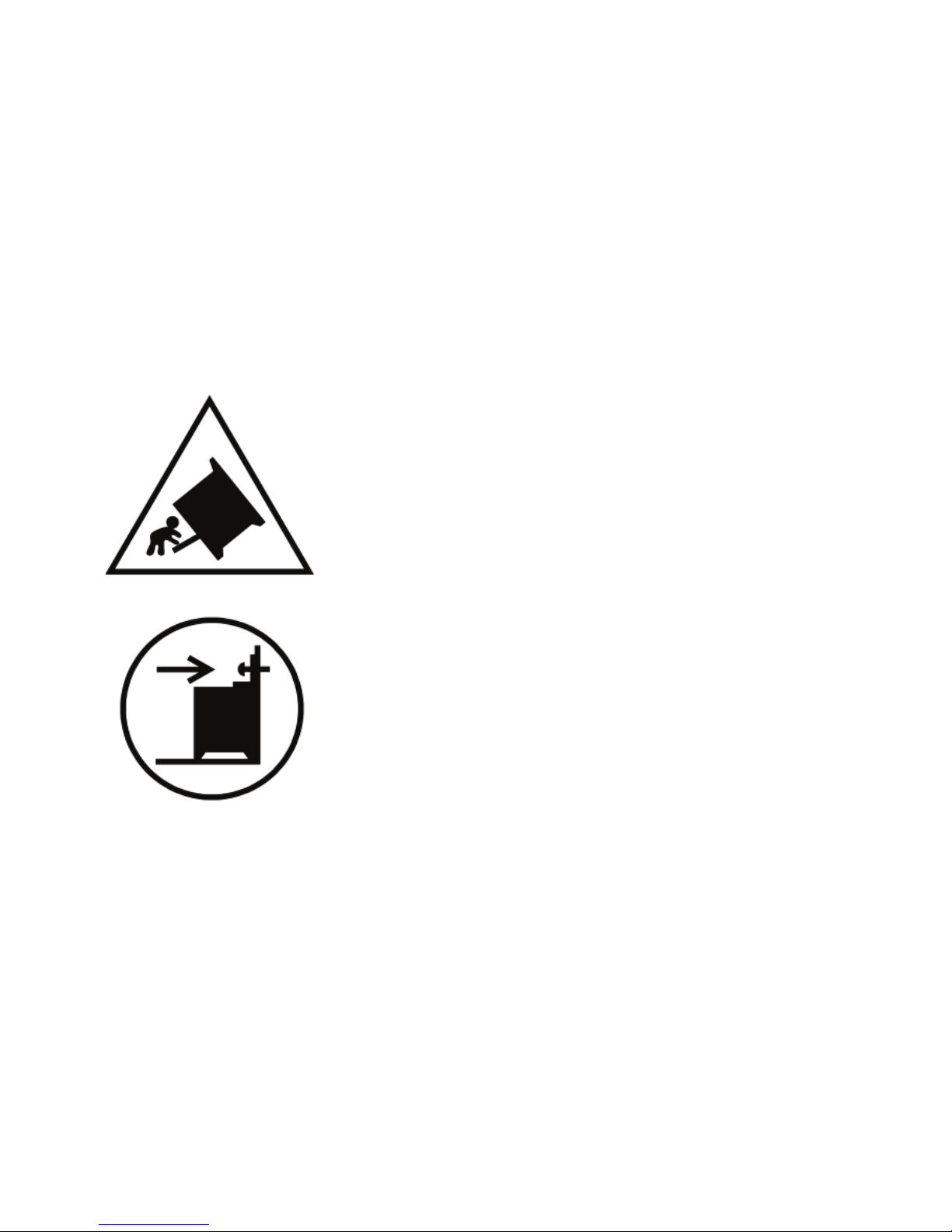

- CAUTION: possibility of tilting.
- WARNING: In order to prevent
tipping of the appliance, stabilising
means must be installed. Refer to the
instructions for installation.

7
586306
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. As
this may lead to injury or fire hazard.
The appliance may only be connected
by an expert authorized by the gas
distribution company or an authorized
service center. All relevant legislation and
local gas distributor's technical conditions
for connection to the gas mains should be
complied with.
Unauthorized service and repair can result
in risk of explosion, electric shock, or short
circuit and consequently personal injury
and damage to the appliance.
Such tasks may only be carried out by an
authorized expert.
Before installing and connecting the
appliance, make sure the local connection
conditions and characteristics (gas type
and pressure) are compatible with the
appliance set-up.
The set-up of the appliance is specified on
the rating plate.
This appliance is not connected to a
combustion products evacuation device.
It shall be installed and connected in
accordance with current installation
regulations. Particular attention shall
be given to the relevant requirements
regarding ventilation.
This is a class 2/1 appliance. The appliance
may touch the adjacent cabinets on both
sides when placed in a row. On one side,
a tall cabinet – taller than the appliance –
may be placed at a distance of at least 10
cm from the appliance. On the other side,
only a cabinet of the same height may be
placed.
Pay attention to correct placement of the
burner parts.
Do not install the appliance near powerful
sources of heat, such as solid fuel stoves,
because high temperature near them can
damage the appliance.
Close the main inlet valve if you do not
intend to use the burners for a longer
period of time (e.g. before going on
vacation).
If the power cord is damaged, it should
be replaced by the manufacturer or an
authorized service technician, in order to
avoid hazard.
Appliance operation is safe with and
without tray guides.
If you observe any faults on the gas
installation or smell gas in the room:
• immediately shut o the gas supply or
close the gas cylinder;
• put out any open fi re and extinguish any
tobacco product;
• do not switch on any electrical
appliances (including lights);
• thoroughly ventilate the room – open the
windows;
• immediately inform the service centre or
an authorized natural gas distributor.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.

8
586306
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation. A third glass is installed for
extra protection, reducing the temperature
of the outside surface (only with some
models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity.
Never stand on the open oven door and do
not let children sit on it.
Make sure the vents are never covered or
obstructed in any other way.
CAUTION:The use of a gas cooking
appliance results in the production of heat,
moisture and products of combustion in
the room in which it is installed. Ensure
that the kitchen is well ventilated especially
when the appliance is in use: keep
natural ventilation holes open or install a
mechanical ventilation device (mechanical
extractor hood).
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening of a window, or more
effective ventilation, for example increasing
the level of mechanical ventilation where
present.
The appliance is heavy. For carrying the
appliance at least 2 persons are needed.

9
GAS FREE STANDING COOKER
DESCRIPTION OF THE APPLIANCE AND EQUIPMENT
(depending on the model)
Lid
Door
Drawer/Clampshell drawer
Guides –
cooking
levels
4
3
2
1
Control unit
Adjustable feet
Door switch
Door handle
Combined or gas hob
Plinth
586306
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE LID
Make sure the lid is clean and that there is no liquid spilt on it before raising it. The lid
may be lacquer-coated or glass. It may only be closed when the cooking zones have
completely cooled down.

10
586306
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during excessive operation and cause a fire.
PUSH-PULL KNOB
Slightly push the knob until it pops out; then, rotate it.
After each use, rotate the knob back to the "off" position and push it back in. The
push-pull knob can only be pushed back when the switch is in the "off" position.
CONTROL LIGHT
The red light is no when the oven heaters are activated. When the selected temperature is
reached, the red light is switched off.
Oven lighting will be switched on automatically when the cooking system is selected.
WIRE GUIDES
The wire guides allow preparation of the food on four levels.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
EMBOSSED GUIDES
The oven has stamped side grooves in three levels for inserting of the grid.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven.
The symbol on the product or its packaging indicates that glass
lids may shatter when heated. Turn off all the burners before
shutting the lid.

11
586306
OVEN EQUIPMENT AND ACCESSORIES
(depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
Use the BAKING TRAY for cooking of all
types of meat, fish and vegetables, as well as
for catching the drippings when cooking on
the wire rack.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.

12
586306
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
The TURNSPIT (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
2
3
4

13
CONTROL UNIT
(depending on the model)
1COOKING ZONE KNOB, FRONT LEFT
2COOKING ZONE KNOB, REAR LEFT
3CONTROL LIGHT
4ELECTRIC IGNITION KNOB/T+MINUTE MINDER
5COOKING SYSTEM SELECTOR KNOB
6COOKING ZONE KNOB, REAR RIGHT
7COOKING ZONE KNOB, FRONT RIGHT
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
12 5 6 743
586306

14
APPLIANCE DATA - DATA PLATE
(depending on the model)
586306
The rating plate indicating the basic
information about the appliance is located
at the edge of the oven and it is visible
when the oven door is opened.
ASerial number
BModel
CType
DTrademark
ECode
FTechnical information
GCompliance indications / symbols
H Factory settings for gas type

15
586306
USING THE APPLIANCE
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first operation.
COOKING HOB (depending on the model)
1. Cooking zone rear left
2. Cooking zone rear right
3. Cooking zone front right
4. Cooking zone front left

16
586306
- Correct choice of cookware allows optimum cooking
time and gas consumption. Cookware diameter is the
most important in this respect.
- If a pot or a pan is too small, the flames reaching over
the edge of its bottom will damage it. Moreover, gas
consumption will be higher.
- Combustion of gas also requires air. If the pot or pan
is too large, there is not enough air and the burning
eciency is decreased.
Gas hob reducer (only with some models) Use the gas
hob reducer when cooking in a container of smaller
diameter. Place it on the grid over the auxiliary burner.
Burner type Container diameter
Large (3.0 kW) 220—260 mm
Normal (1.9 kW) 160—220 mm
Auxiliary (1.9 kW) 120—140 mm
Multi-ring burner (3,5kw) 220—260 mm
TIPS REGARDING YOUR COOKWARE
GAS BURNERS
- To sear the food, set the burner to maximum power first, and then continue to cook at
minimum power.
- Always place the burner cap accurately on the burner crown. Make sure the slots in the
burner crown are never blocked.
Burner crown cap
Burner crown with burner cap support
Thermocouple (or thermoelectric safety device, only with
some models)
Spark plug
Nozzle

17
586306

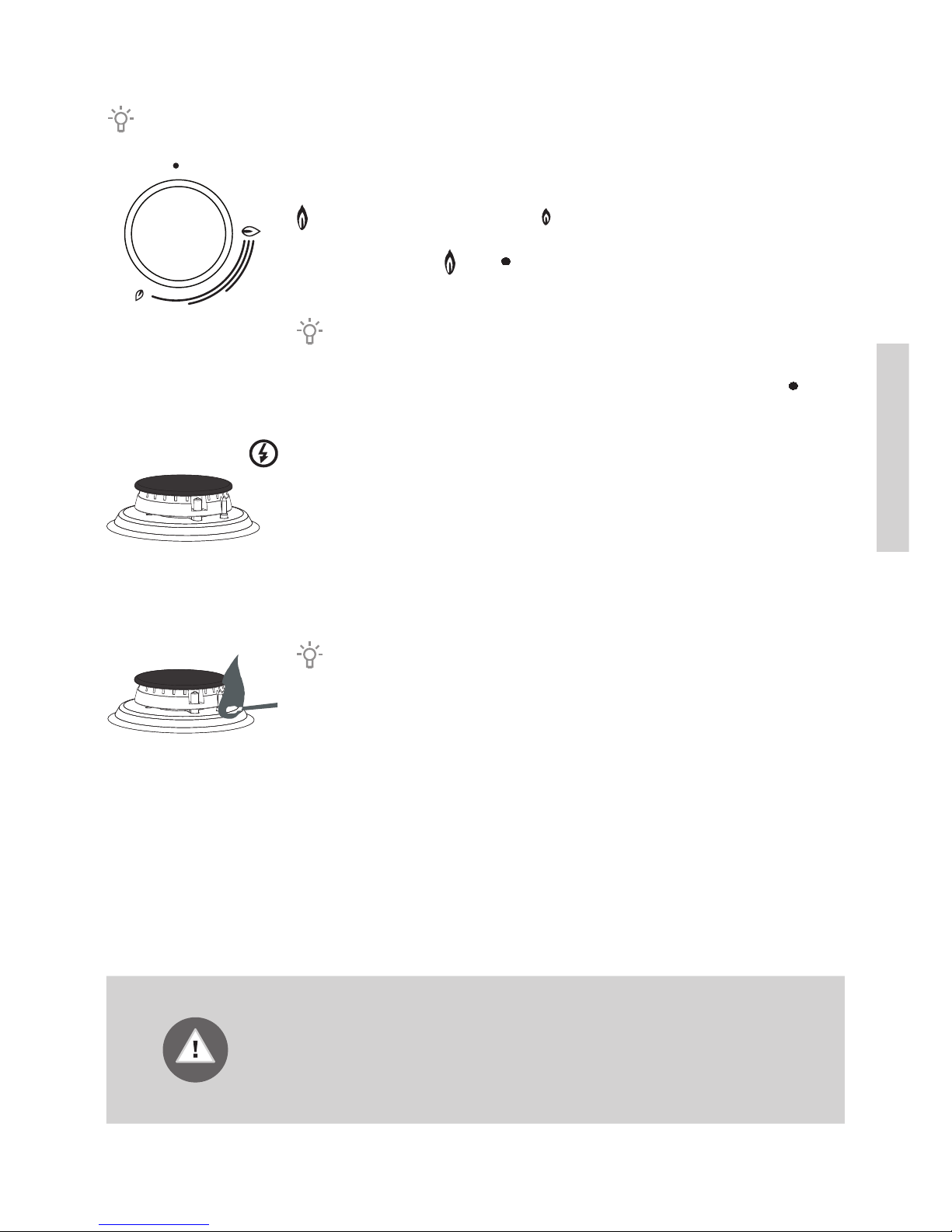

BURNER IGNITION AND OPERATION (depending on the model)
Always press the knob before rotating it.
Cooking power levels are indicated on the knobs with a large and a
small flame symbol. Rotate the knob over the large flame position
to the small flame position and back. Operating range is
between the two flame symbols.
Settings between and are not recommended. In this range, the
flame is unstable and may be extinguished.
Place the pot or pan on the gr-id above the burner before
igniting it (applies to three-ring, double-ring, and mini-wok burner).
To turn off a burner, rotate the knob to the right to position .
Single-handed ignition
To ignite a gas burner, press the corresponding knob and rotate it
to the maximum power position. Electric spark from the spark plug
will be activated and the gas will ignite.
Two-handed ignition
To ignite a gas burner, press the corresponding knob and rotate
it to the maximum power position. Press the spark plug button.
Electric spark from the spark plug will be activated and the gas will
ignite.
Electric ignition will only work if the power cord is connected
to the power mains. If electric ignition does not work due to a
power supply failure or damp spark plugs, the gas can still be
ignited with a match or a lighter. After ignition, keep the knob
depressed for approximately 10 more seconds until the flame is
stabilized.
If the burner does not ignite in 15 seconds, close it and wait for at
least 1 minute. Then repeat the ignition process.
If the flame on a burner is extinguished (regardless of the
reason), close the burner and wait for 1 minute before trying to
ignite it again.

18
Rotate the knob (left and right) to select
the cooking system (see program table).
Settings can also be changed during
operation.
586306
OVEN

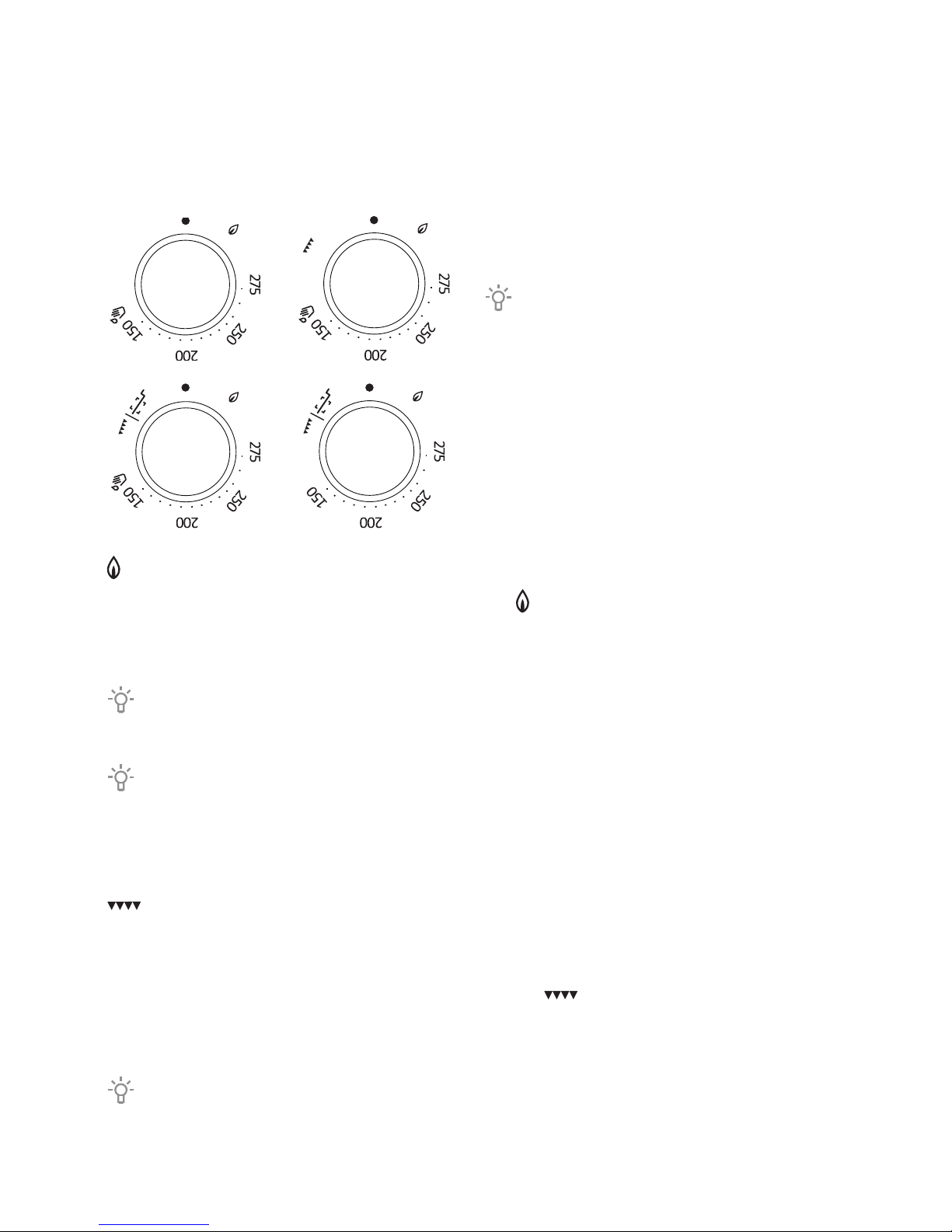

CHOOSING THE COOKING SYSTEM
(depending on the model)
CONVENTIONAL OVEN HEATING WITH GAS
Press the knob and rotate it to the left to position . At the same time, press the ignition
device knob or hold a lit match to the oven burner ignition opening until the gas is ignited.
When the flame settles, set the desired heating power between 150 and 275 °C.
After ignition, keep the knob depressed for 10 more seconds until the flame is
stabilized.
Oven temperature is regulated by a thermostat. Immediately after ignition, the burner
operates with maximum power until the set temperature is reached. Then, the thermostat
automatically reduces the burner power to the level required to maintain the set
temperature. Temperature regulation will only work correctly if the oven door is closed.
HEATING THE OVEN WITH THE INFRARED HEATER
The heat is radiated by the infrared (grill) heater installed in the oven ceiling. It is used for
grilling.
- Gas oven
Press the knob and rotate it to the right to position . At the same time, press the
ignition device knob or hold a lit match to the oven burner ignition opening until the gas
is ignited.
After ignition, keep the knob depressed for 10 more seconds until the flame is
stabilized.

19
586306
Infrared heater operation is not controlled by the thermostat; therefore, it operates
with full power.
- Electric oven
Press and rotate the knob. Grilling temperature is around 230°C. When this temperature
is reached, the heater is switched o and it is activated again when the temperature
drops to below 230°C.
During the ignition of the infrared burner keep the oven door
open. After two minutes, close the oven door.
Continue cooking with the infrared burner with the oven door
closed.
When using the infrared heater, keep the oven door closed.
STARTING THE COOKING PROCESS
Set the cooking system; then, switch it on.
SWITCHING OFF THE OVEN
Turn the COOKING SYSTEM SELECTOR KNOB to position .

20
586306
DESCRIPTIONS OF COOKING SYSTEMS
AND COOKING TABLE
If your desired food cannot be found in the cooking table, find information for similar
food. The information displayed applies to cooking on a single level.
An interval of suggested temperature is indicated. Start with a lower temperature setting
and increase it if you find the food is not browned sufficiently.
Only preheat the oven if required by the recipe in the tables in this instruction manual.
Heating an empty oven consumes a lot of energy. Hence, baking several types of pastry
or several pizzas successively will save a lot of energy, as the oven will already be
preheated.
Use dark, black silicon-layered or enamel-coated baking sheets and trays as they conduct
the heat very well.
When using parchment paper, make sure it is resistant to high temperatures.
When cooking larger chunks of meat or pastry, a lot of steam will be generated inside the
oven, which in turn may condense on the oven door. This is a normal phenomenon which
will not affect the operation of the appliance. After the cooking process, wipe the door
and the door glass dry.
Switch off the oven approximately 10 minutes before the end of the cooking process to
save energy by making use of the accumulated heat.
Do not cool the food in a closed oven to prevent condensation (dew).
