Important information
Tip, note

3
CONTENTS
491220
INTRODUCTION
PREPARING THE
APPLIANCE FOR
THE FIRST USE
COOKING STEPS
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
4 COMBINED FREE STANDING COOKER
8 Control unit
10 Technical specifications
11 IMPORTANT SAFETY INSTRUCTIONS
13 Before connecting the oven:
14 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
15 COOKING HOB
19 STEPS OF THE COOKING PROCESS (1–4)
19 Step 1: CHOOSING THE COOKING SYSTEM
21 Step 2: CHOOSING THE SETTINGS
22 Step 3: STARTING THE COOKING PROCESS
22 Step 4: SWITCHING OFF THE OVEN
23 DESCRIPTIONS OF SYSTEMS (COOKING MODES) AND COOKING
TABLES
39 MAINTENANCE & CLEANING
40 Cleaning the cooking hobs
40 Gas burner
41 Conventional oven cleaning
42 Using the aqua clean function to clean the oven
43 Removing and cleaning wire and telescopic extendible guides
44 Installing the catalytic inserts
45 Cleaning the oven cavity ceiling
46 Removing and inserting the oven door
48 Removing and inserting the oven door glass pane
49 Replacing the bulb
50 TROUBLESHOOTING TABLE
51 COOKING TEST
53 INSTALLATION AND CONNECTION INSTRUCTIONS
59 NOZZLE TABLE
60 DISPOSAL OTHER
INSTALLATION
INSTRUCTIONS
FOOD TEST

4
COMBINED FREE STANDING
COOKER

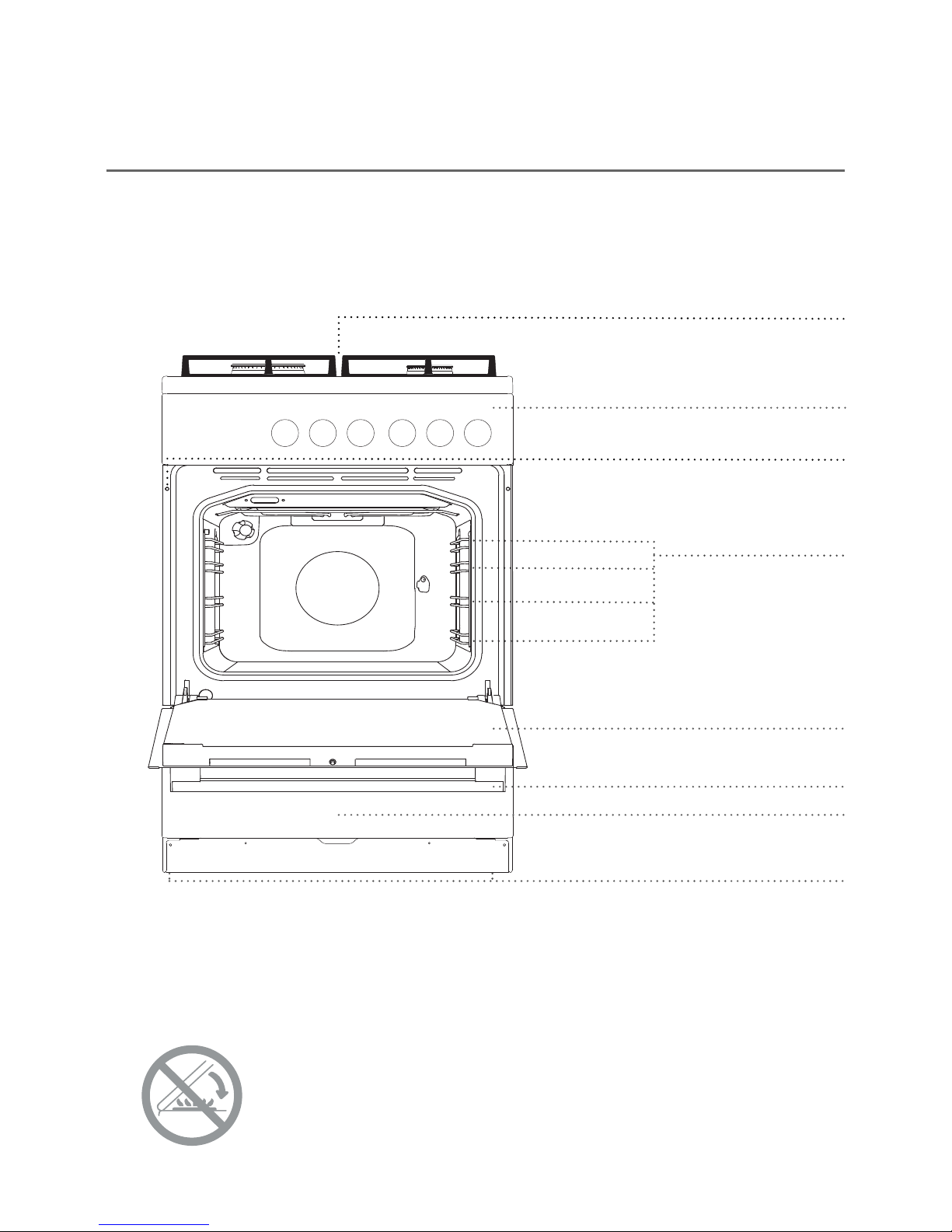

(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON
THE MODEL)
Combined or gas hob
Door
Drawer
Guides –
cooking
levels
4
3
2
1
Control unit
Adjustable feet
Door switch
Door handle
491220
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE LID
Make sure the lid is clean and that there is no liquid spilt on it before raising it. The lid
may be lacquer-coated or glass. It may only be closed when the cooking zones have
completely cooled down.
The symbol on the product or its packaging indicates that glass
lids may shatter when heated. Turn off all the burners before
shutting the lid.

5
491220
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during over operation and cause a fire.
CONTROL LIGHT
The red light is no when the oven heaters are activated. When the selected temperature is
reached, the red light is switched off.
When a function is selected, the dial of the selected knob will be lit up. These appliances
do not have a yellow light (only with some models).
Oven lighting will be switched on automatically when the cooking system is selected.
WIRE GUIDES
The wire guides allow preparation of the food on four levels (please note that the levels/
guides are counted from the bottom up).
Guides 3 and 4 are intended for grilling.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven.

6
491220

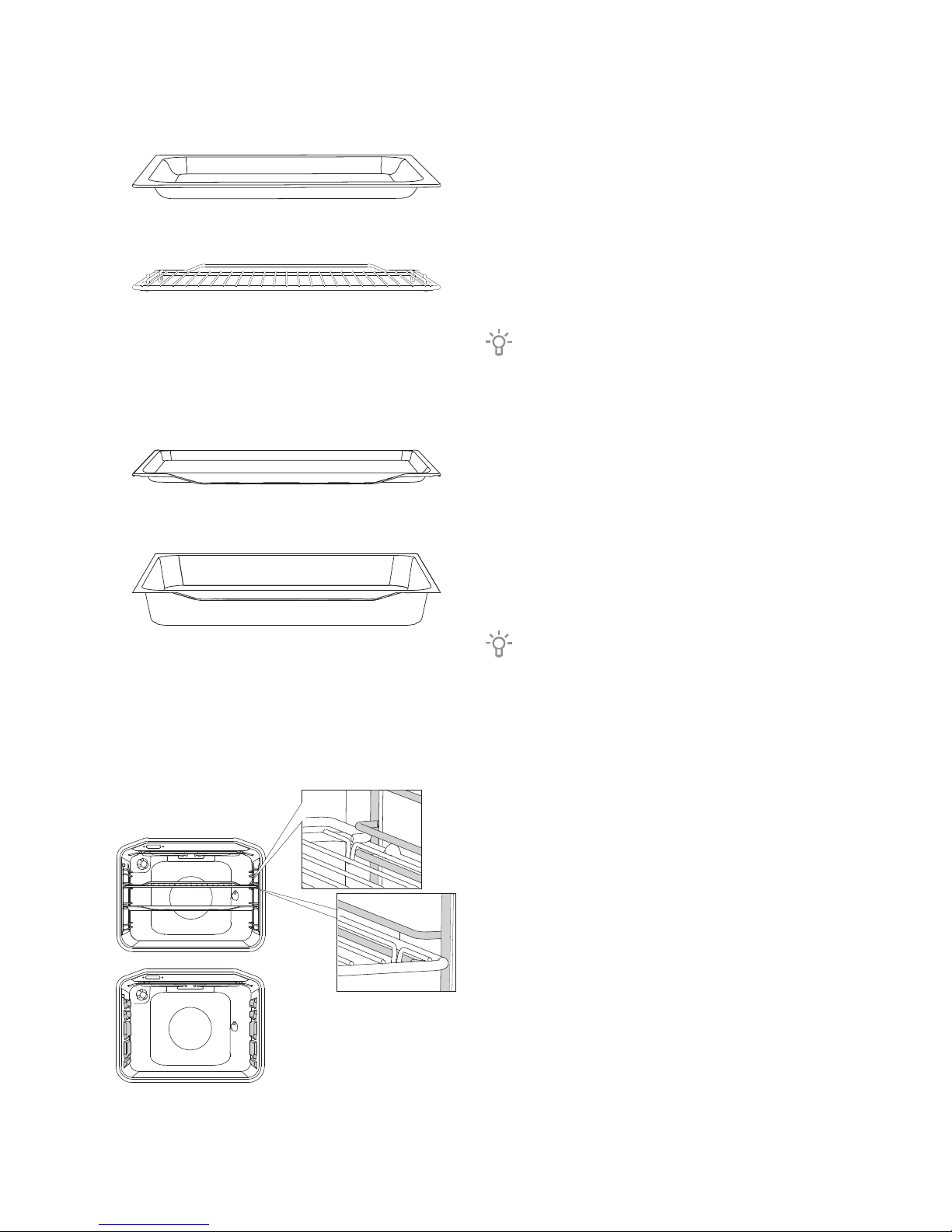

OVEN EQUIPMENT AND ACCESSORIES
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.

7
491220
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
CATALYTIC INSERTS prevent the spraying
fat from sticking to sides of the oven cavity.
GREASE FILTER protects the fan, the
round heater, and the oven from undesired
fat impurities. It may also be used when
roasting meat. Always remove it when
baking pastry.
The ROTISSERIE (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.

8

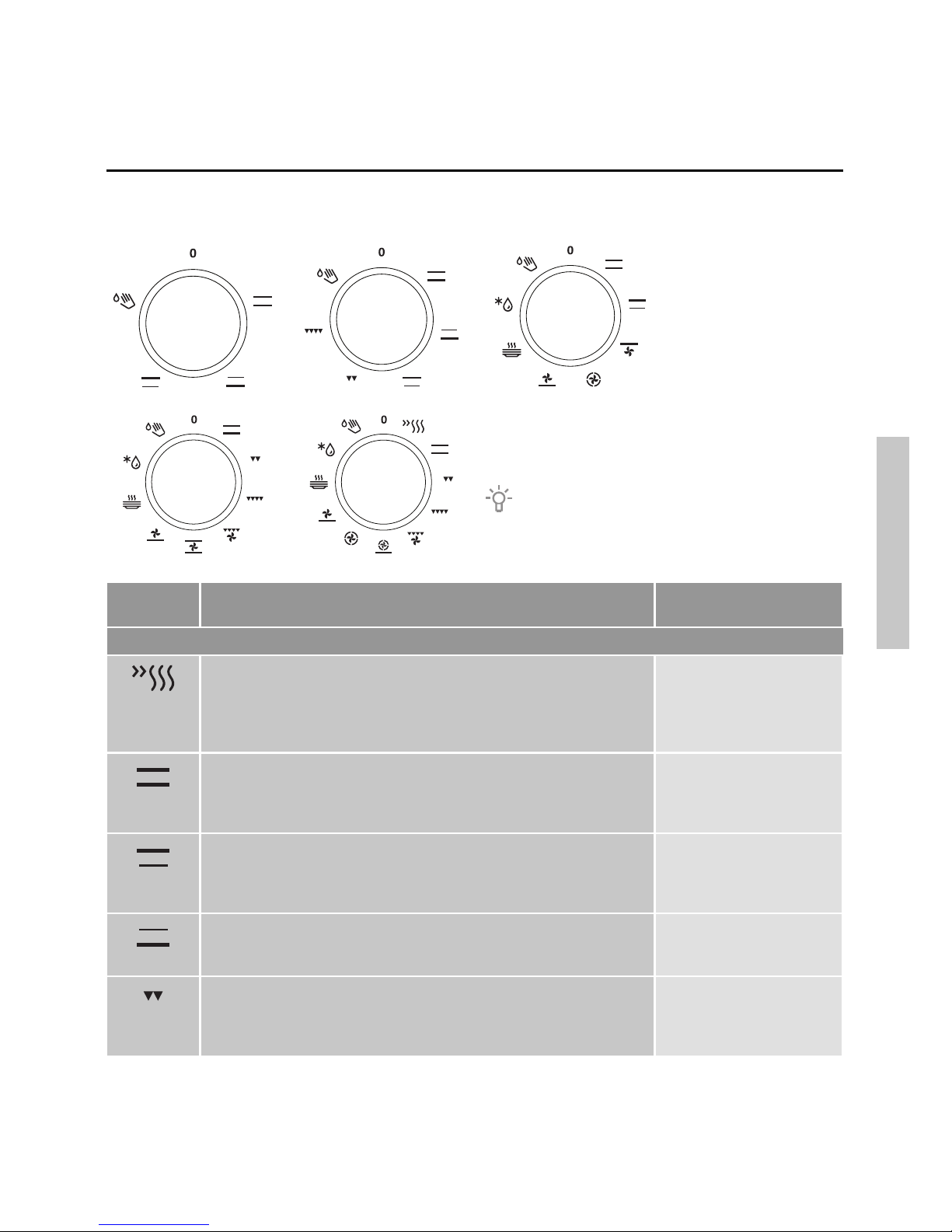

CONTROL UNIT
(DEPENDING ON THE MODEL)
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
2THE RED LIGHT
The red light
is no when the
oven heaters are
activated. When
the selected
temperature is
reached, the red
light is switched off.

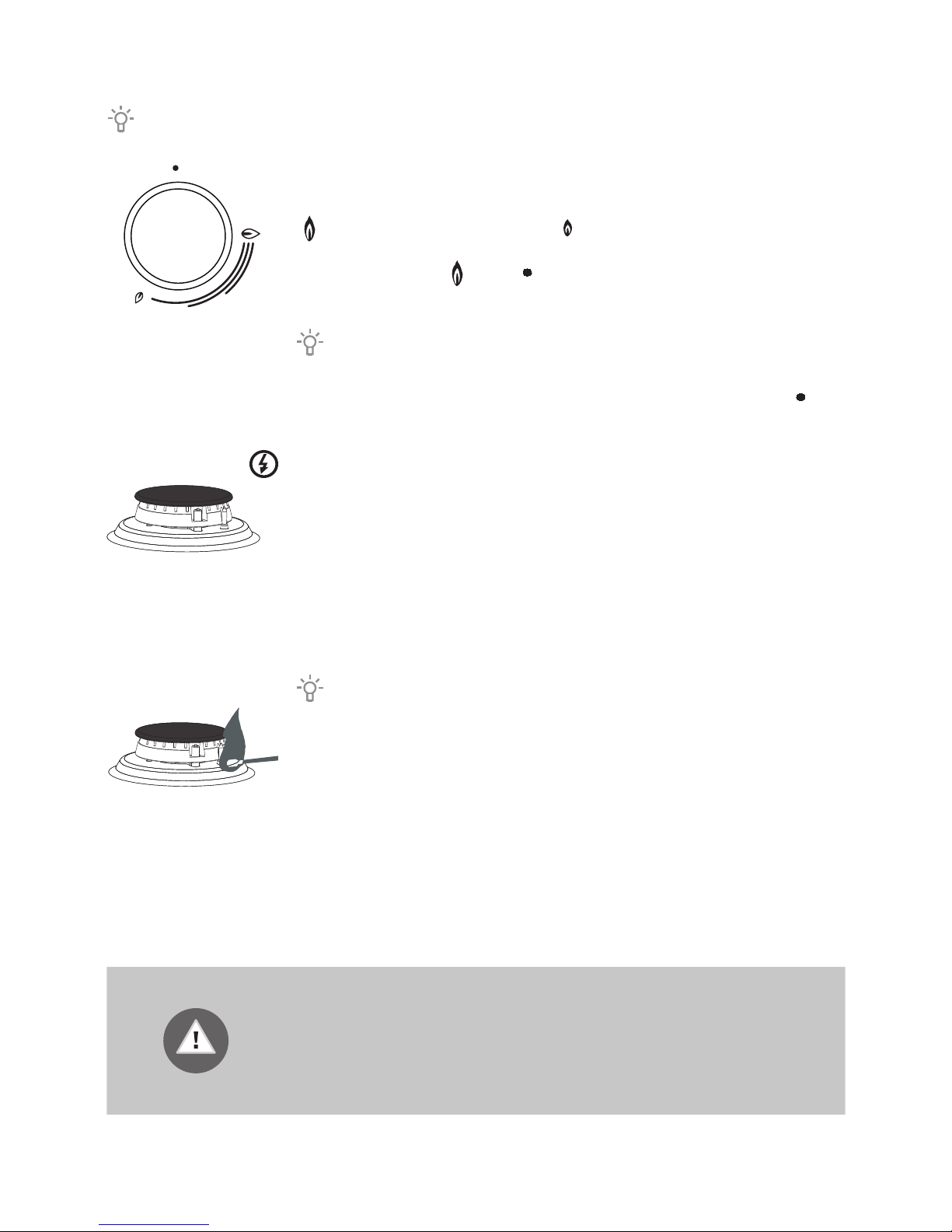

1COOKING SYSTEM
SELECTOR KNOB 3TEMPERATURE
KNOB
491220

9
4TEMPERATURE KNOB
electric cooking
zone or gas burner
5COOKING ZONE KNOB,
FRONT LEFT
electric cooking
zone or gas burner
6COOKING ZONE KNOB, FRONT
RIGHT
gas burner
7COOKING ZONE KNOB, REAR
RIGHT
gas burner
491220

10
TECHNICAL SPECIFICATIONS
(DEPENDING ON THE MODEL)
491220

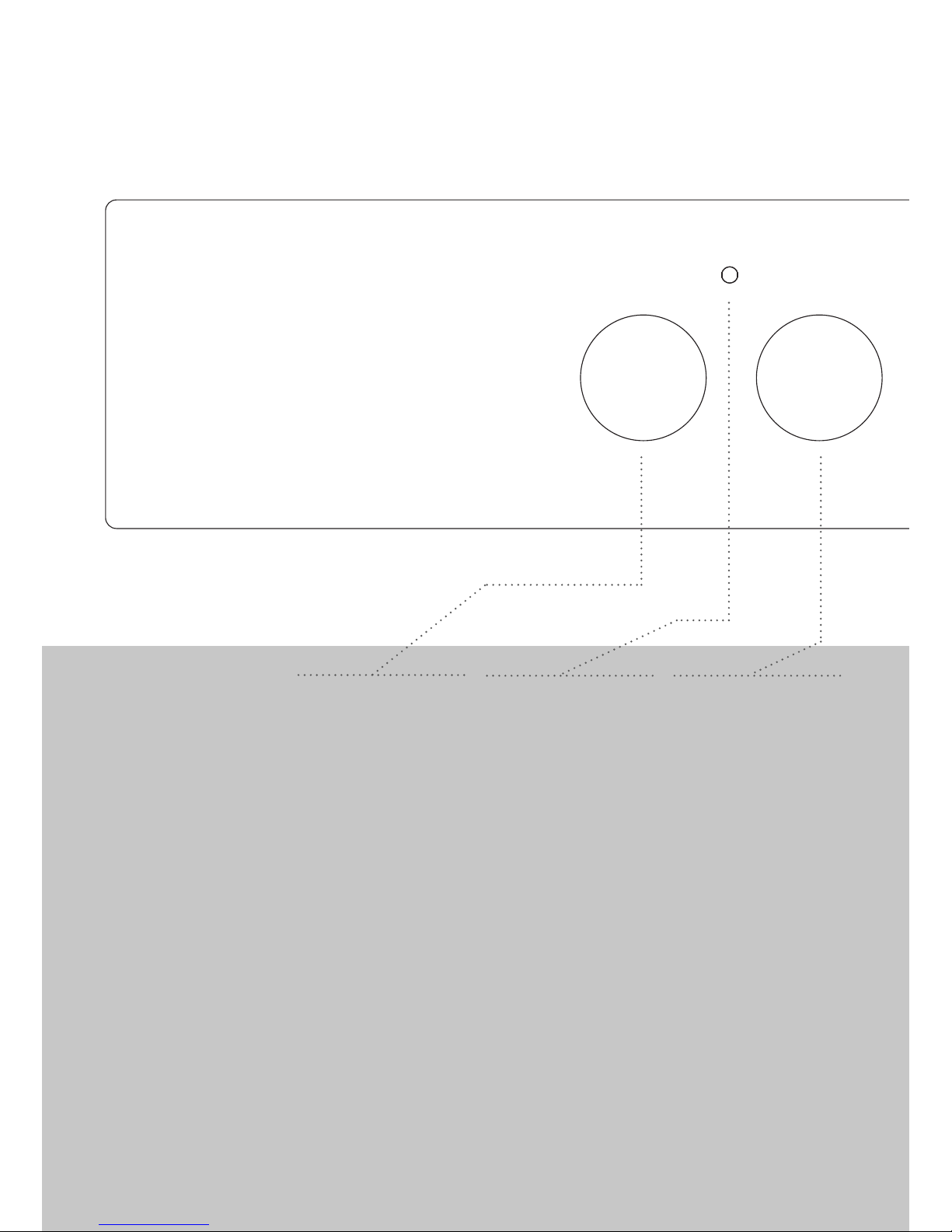

The rating plate indicating the
basic information about the
appliance is located at the edge
of the oven and it is visible when
the oven door is opened.
ASerial number
BModel
CType
DTrademark
ECode
FTechnical information
GCompliance indications / symbols
H Factory settings for gas type
