Gossen MetraWatt PROFITEST H+E EASY CHECK User manual

Operating Instructions
PROFITEST H+E EASY CHECK
Function Tester for AC Charging Stations
per IEC 61851-1, VDE 0122-1 3-447-123-03
1/10.22

PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
Table of Contents
1 Safety Instructions...................................................................1
1.1 General ................................................................................................. 1
1.2 Personnel Qualifications ........................................................................ 1
1.3 Handling the Instrument ........................................................................ 1
1.4 Damaged Instrument ............................................................................ 1
2 Applications .............................................................................3
2.1 Intended Use / Use for Intended Purpose ............................................. 3
2.2 Use for Other than Intended Purpose.................................................... 3
2.3 Liability and Guarantee.......................................................................... 3
2.4 Opening the Instrument / Repairs.......................................................... 3
3 Documentation ........................................................................4
3.1 Identifiers .............................................................................................. 4
4 Getting Started ........................................................................4
5 Background Knowledge Concerning Electromobility............5
5.1 Charging Point / Wallbox....................................................................... 5
5.2 Charging Cables ................................................................................... 5
5.3 Plugs .................................................................................................... 5
6 The Instrument.........................................................................7
6.1 Functions Description............................................................................ 7
6.2 Device Characteristics........................................................................... 7
6.3 Scope of Delivery .................................................................................. 7
6.4 Instrument Overview ............................................................................. 8
6.5 Relevant Standards............................................................................... 9
6.6 Technical Data .................................................................................... 10
7 User Interface ........................................................................12
7.1 Control Panel and Navigation .............................................................. 12
8 Initial Startup..........................................................................13
8.1 Unpacking the Instrument ................................................................... 13
8.2 Power Supply ..................................................................................... 13

Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
9 Operation ...............................................................................14
9.1 Switching the Instrument On............................................................... 14
9.2 Language Settings .............................................................................. 15
9.3 Performing the Function Test .............................................................. 16
9.4 Retrieving Saved Test Results ............................................................. 20
9.5 Test Results........................................................................................ 21
9.6 Switching the Instrument Off ............................................................... 21
10 Registering the Instrument....................................................22
11 Maintenance ..........................................................................22
12 Contact, Support and Service...............................................22
13 CE Declaration .......................................................................23
14 Returns and Environmentally Sound Disposal.....................24

1
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
1 Safety Instructions
1.1 General
• Carefully and completely read and adhere to the operating instructions for the
tester, as well as the operating instructions for the associated instrument.
The documents can be found at http://www.gossenmetrawatt.com. Retain
these documents for future reference.
• Use only the specified accessories (included in the scope of delivery or listed as
options) with the instrument.
• The instrument and its accessories may only be used for the tests described in
the documentation for the instrument. Safety of the operator, as well as that of
the instrument, is only assured when it’s used for its intended purpose.
• Only use the instrument and its accessories within the limits of the specified
technical data and conditions (ambient conditions, IP protection code, measur-
ing category etc.).
1.2 Personnel Qualifications
• The instrument is designed for use by laypersons as well as qualified electri-
cians.
1.3 Handling the Instrument
• Observe and comply with all safety regulations which are applicable for your
work environment.
• Do not use the instrument in humid environments where condensation occurs,
or in environments with explosive gases.
• Never plug in wet connector plugs.
• Connect the test setups correctly in order to prevent injury to persons and dam-
age to the equipment.
1.4 Damaged Instrument
• The test instrument may not be used:
– If external damage is apparent
– If the test plug is damaged
– If it no longer functions flawlessly
– After long periods of storage under unfavorable conditions (e.g. humidity,
dust or extreme temperature
– If any changes have been made to the instrument itself or to the accessories

2
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
• If the instrument or its accessories don’t function flawlessly, permanently
remove the instrument/accessories from operation and secure them against
inadvertent use.
• If the instrument or accessories are damaged during use, for example if they’re
dropped, permanently remove the instrument/accessories from operation and
secure them against inadvertent use.

3
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
2 Applications
Please read this important information!
2.1 Intended Use / Use for Intended Purpose
The PROFITEST H+E EASY CHECK is a function tester for testing AC charging
points in accordance with DIN EN / IEC 61851-1 (VDE 0122-1) and permits auto-
matic testing of functional performance by laypersons. In the event of a confirmed
malfunction of the AC charging point, qualified personnel must become involved.
The instrument is intended exclusively for function tests conducted on AC charging
points in charging mode 3.
The instrument can be connected to AC charging points with type 2 inlet or perma-
nently attached type 2 cable.
Safety of the operator, as well as that of the instrument, is only assured when it’s
used for its intended purpose.
2.2 Use for Other than Intended Purpose
Use of the instrument for any purposes other than those described in these operat-
ing instructions is contrary to use for intended purpose.
In particular, the instrument is not suitable for use as an adapter for vehicle simula-
tion in accordance with VDE 0122-1 (DIN EN 61851-1) for the performance of
required, standards-compliant testing of charging infrastructures for electric road
vehicles and the associated part of the electrical system.
2.3 Liability and Guarantee
Gossen Metrawatt GmbH assumes no liability for property damage, personal injury
or consequential damage resulting from improper or incorrect use of the product, in
particular due to failure to observe the product documentation. Furthermore, all
guarantee claims are rendered null and void in such cases.
Nor does Gossen Metrawatt GmbH accept any liability for data loss.
2.4 Opening the Instrument / Repairs
The instrument may only be opened by authorized, trained personnel in order to
ensure flawless, safe operation and to assure that the guarantee isn’t rendered null
and void. Even original replacement parts may only be installed by authorized,
trained personnel.
Unauthorized modification of the meter is prohibited.
If it can be ascertained that the instrument has been opened by unauthorized per-
sonnel, no guarantee claims can be honored by the manufacturer with regard to
personal safety, measuring accuracy, compliance with applicable safety measures
or any consequential damages.

4
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
3Documentation
3.1 Identifiers
The following identifiers are used in this documentation:
4 Getting Started
1. Read and adhere to the product documentation. In particular observe all safety
information in the documentation, on the instrument and on the packaging.
“Safety Instructions” 1
“Applications” 3
“Documentation” 4
2. Familiarize yourself with the instrument.
“Background Knowledge Concerning Electromobility” 5
“The Instrument” 7
“User Interface” 12
3. Start up the instrument “Initial Startup” 13.
4. Execute measurements and tests “Operation” 14.
Identifier Meaning
Attention!
!
Warning
Safety information that must be complied with
Note!
Important
Important information which must be taken into consid-
eration and complied with
Prerequisite A condition etc. which must be fulfilled before a given
action can be taken
1. Procedural step Steps of a procedure which must be completed in the
specified order
Result Result of a procedural step
•Enumeration
–Enumeration
Bullet lists
Figure 1: Caption Description of the content of a figure
Table 1: Description of the content of a table
Footnote Comment

5
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
5 Background Knowledge Concerning Electromobility
5.1 Charging Point / Wallbox
Electric vehicles are charged with alternating current (AC) at AC charging points in
charging mode 3 with type 2 plug. Since electric vehicle batteries can only store
direct current (DC), the alternating current is converted to direct current by the elec-
tric vehicle’s on-board charger.
AC charging points are available for single-phase or three-phase connection. In the
case of single-phase connection, currents of up to max. 20 A are permissible.
Three-phase connections are designed for currents of up to 32 A.
Electric vehicles are charged with direct current at so-called fast charging points.
5.2 Charging Cables
The Mode 3 charging cable establishes a connection between the electric vehicle
and the AC charging point. There are 3 different ways to establish a connection
between the electric vehicle and the AC charging point:
• The charging cable is permanently attached to the vehicle. The charging cable
is plugged into the type 2 charging socket at the AC charging point.
• The charging cable is portable. The type 2 plug is plugged into the vehicle’s
charging socket, and the type 2 coupler is plugged into the charging socket at
the AC charging point.
• The charging cable is permanently attached to the AC charging point. The type
2 plug of the AC charging point is plugged into the charging socket of the elec-
tric vehicle.
5.3 Plugs
Type 2 plugs are used to transmit power to and communicate with the electric vehi-
cle.
The plug controls the following functions:
– Verification that an electric vehicle is connected
– Monitoring of protective conductor continuity
– Switching the system on
– Switching the system off
– Charging current selection
– Charging current settings
– Locking/unlocking the connectors
– Enabling power

6
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
Figure 2: Type 2 Plug Layout
Function Function
L1
Phase conductorsL2
L3
N Neutral conductor
PE Protective conductor
PP Proximity plug
Signal line for detecting the current carrying capacity of the cable
CP Control pilot
Pilot line for safety testing and communication
CP
L3
N
PE
L2
L1
PP

7
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
6 The Instrument
6.1 Functions Description
The instrument presents laypersons with the possibility of safely checking the func-
tionality of AC charging points without the need for the direct involvement of quali-
fied personnel.
Qualified personnel only need to be summoned for further action (e.g. repair) in the
event that a malfunction has actually been confirmed.
6.2 Device Characteristics
• The instrument can only be used to test AC charging points in charging mode 3.
• The instrument simulates the charging socket of the electric vehicle. It can be
connected to the charging socket or the type 2 plug of an AC charging point.
• During the automatic program sequence, the instrument checks values for 20
and 32 A cables.
6.3 Scope of Delivery
Please check for completeness.
1 PROFITEST H+E EASY CHECK (M525F)
1 Charging cable (micro USB plug)
1 Operating instructions

8
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
6.4 Instrument Overview
6.4.1 Front
Figure 3: Front Panel
6.4.2 Symbols on the Instrument and the Included Accessories
Warning concerning a point of danger
(attention, observe documentation!)
Double insulation (protection category II)
European conformity marking
The instrument may not be disposed of with household trash
“Returns and Environmentally Sound Disposal” 24.
Type 2
Plug
Cover Cap
Micro USB Socket (on the side)
Control
Panel
Display
!

9
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
6.5 Relevant Standards
The instrument has been manufactured and tested in accordance with the follow-
ing safety regulations:
IEC 61010-1
EN 61010-1
VDE 0411-1
Safety requirements for electrical equipment for measure-
ment, control and laboratory use – general requirements
EN 60529
VDE 0470, part 1
Test instruments and test procedures
Degrees of protection provided by enclosures (IP code)
DIN EN 61326-1
VDE 0843-20-1
Electrical equipment for measurement, control and laboratory
use – EMC requirements – Part 1: General requirements
EN 55022 Information technology equipment – Radio disturbance char-
acteristics – Limits and methods of measurement
DIN EN 61000-4-2
VDE 0847-4-02
Electromagnetic compatibility (EMC) –
Part 4-2: Testing and measurement techniques –
Electrostatic discharge immunity test
DIN EN 61000-4-3
VDE 0847-4-03
Electromagnetic compatibility (EMC) –
Part 4-3: Testing and measurement techniques – Radiated,
radio frequency, electromagnetic field immunity test
DIN EN 61000-4-4
VDE 0847-4-04
Electromagnetic compatibility (EMC) –
Part 4-4: Testing and measurement techniques –
Electrical fast transient/burst immunity test
DIN EN 61000-4-5
VDE 0847-4-05
Electromagnetic compatibility (EMC) –
Part 4-5: Testing and measurement techniques –
Surge immunity test
DIN EN 61000-4-6
VDE 0847-4-06
Electromagnetic compatibility (EMC) –
Part 4-6: Testing and measurement techniques – Immunity to
conducted disturbances, induced by radio frequency fields
DIN EN IEC
61851-1
VDE 0122-1
Electric vehicle conductive charging system –
Part 1: General requirements

10
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
6.6 Technical Data
Power Supply
Internal rechargeable battery
(charging via USB port)
Type 18650H-2600
Nominal voltage 3.7 V
mAh 2600 mAh
Energy 9,62 Wh
Protective function PCB/IC protection
Charging current Max. 1 C
Discharge current Max. 5.2 A (2 C)
Internal resistance 180 mΩ
Weight 48 g
Dimensions (dia. x L) 18 x 69 mm
Ambient
Conditions
Operating temperature: -5 ... +45 °C
Storage temperature: -5 ... +60 °C
Relative atmospheric
humidity:
Max. 75%, non-condensing, no con-
densation allowed
Elevation: Max. 2000 m
Electrical
Safety
Measuring category: CAT III, 300 V
Pollution degree: 2
Protection category: II
Electro-
magnetic
Compatibility
(EMC)
Interference emission: EN 55022, class A, for use
in industrial environments
Interference immunity: DIN EN 61000-4-2
DIN EN 61000-4-3
DIN EN 61000-4-4
DIN EN 61000-4-5
DIN EN 61000-4-6
Mechanical
Design
Protection: IP 21
Housing (W × H × D): 110 × 70 × 210 mm
Weight: 998g
Display: Monochrome

11
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
6.6.1 Test/Analysis Standards
Measurement of voltage values in all three phases and N
6.6.2 Test Parameters
Data Inter-
faces
Micro USB
Internal
Memory
Last measurement is saved automatically
AC
DIN EN IEC 61851-1
VDE 0122-1
Electric vehicle conductive charging system –
Part 1: General requirements
Cables 20 A
32 A
Vehicle states
State A
State B
State C
Phase
tOFF (state E)
Rotary field
Duty Cycle

12
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
7 User Interface
The instrument is equipped with a membrane keypad which serves as a central
control panel. Individual function keys are located on the control panel. The screen
is used to display measurement results.
Press the corresponding function key on the membrane keypad in order to display
options or trigger the desired action.
7.1 Control Panel and Navigation
Figure 4: Membrane Keypad with Control Panel and Screen
Function Key Description
ON/OFF Press: the instrument is switched on.
Press and hold: the instrument is switched off.
ESC Aborts an action.
Display returns to the next higher menu level.
START/
STOP
Confirms a selection and starts the measurement.
Up Scrolls up through a list of options.
Down Scrolls down through a list of options.
OK Triggers the selected action.

13
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
Available navigation options for the current step are displayed at the screen. Press
the corresponding function key on the membrane keypad in order to display
options or trigger the desired action.
•PressON/OFF in order to switch the instrument on or off.
•PressUp/Down in order to scroll forwards or backwards through available menu
options.
•PressSTART/STOP in order to confirm a menu selection.
•PressOK to trigger an action.
•PressESC to abort an action.
8 Initial Startup
8.1 Unpacking the Instrument
1. Carefully remove the instrument and its accessories from the packaging.
2. Check for completeness and possible damage.
3. If any damage, hidden defects or missing items are detected, contact the man-
ufacturer or you dealer without delay.
4. Retain the packaging materials for future use.
8.2 Power Supply
The instrument is powered by an internal rechargeable battery. The internal battery
is charged by means of a mains power pack.
Battery Charge Level
The battery charge level is displayed briefly after switching the instrument on. If the
battery charge level drops to below a certain value during operation, a message is
displayed at the screen.

14
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
8.2.1 Charging the Instrument’s Internal Battery
1. Connect the micro USB plug to the micro USB socket on the side of the instru-
ment.
2. Connect the USB plug to a mains power pack.
3. Connect the power pack’s plug to a mains outlet.
The internal battery is charged.
9Operation
The instrument performs functional testing of AC charging points. AC charging
points in charging mode 3 with a type 2 socket or a permanently attached type 2
cable can be tested.
All parameters required for testing are set at the factory and cannot be changed by
the user. After starting the test, the test program runs automatically in a predefined
sequence. Testing is conducted first with 20 A and then with 32 A. One of these
two tests can be skipped if desired. The results appear at the display in plain text.
9.1 Switching the Instrument On
1. Briefly press the ON/OFF function key.
The instrument is switched on.
The battery charge level is displayed briefly.
The initial screen appears.
Display Battery Level
BATTERY CHARGE LEVEL OK The battery charge level is sufficient.
LOW BATTERY – PLEASE
RECHARGE
The battery charge level is low. The battery must be
charged.

15
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH

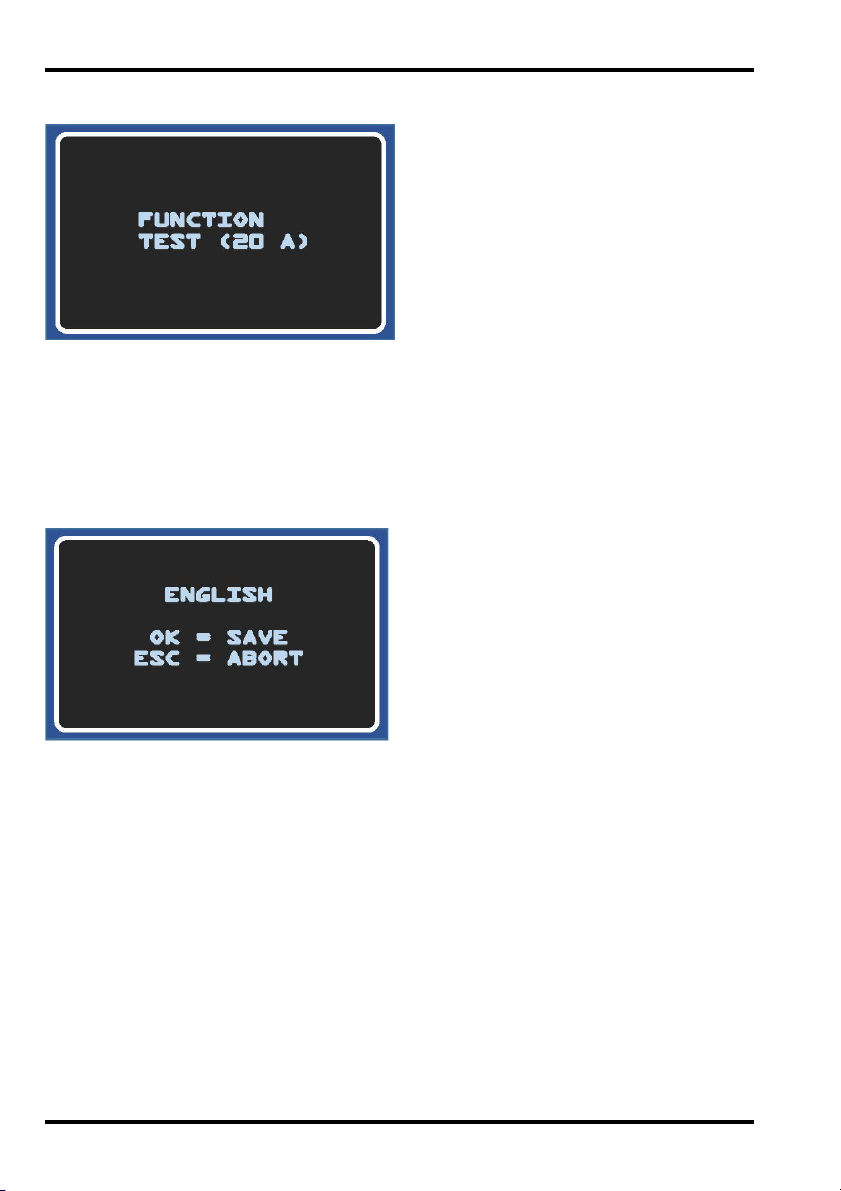

After a few seconds, the display changes and TEST STANDARD (20A) appears.
9.2 Language Settings
The initial screen appears.
1. Press Up or Down until the LANGUAGE SETTINGS submenu appears.
2. Press START/STOP in order to open the LANGUAGE SETTINGS submenu.
The currently selected language is displayed.
3. Press Up or Down to select another language, e.g. ENGLISH.
4. Press OK in order to save your selection.
The selected display language is activated.
The display returns to the next higher menu level.

16
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK
9.3 Performing the Function Test
9.3.1 Performing the Test with a 20 A Cable
The FUNCTION TEST (20A) start screen is displayed.
1. Press START/STOP in order to confirm your selection.

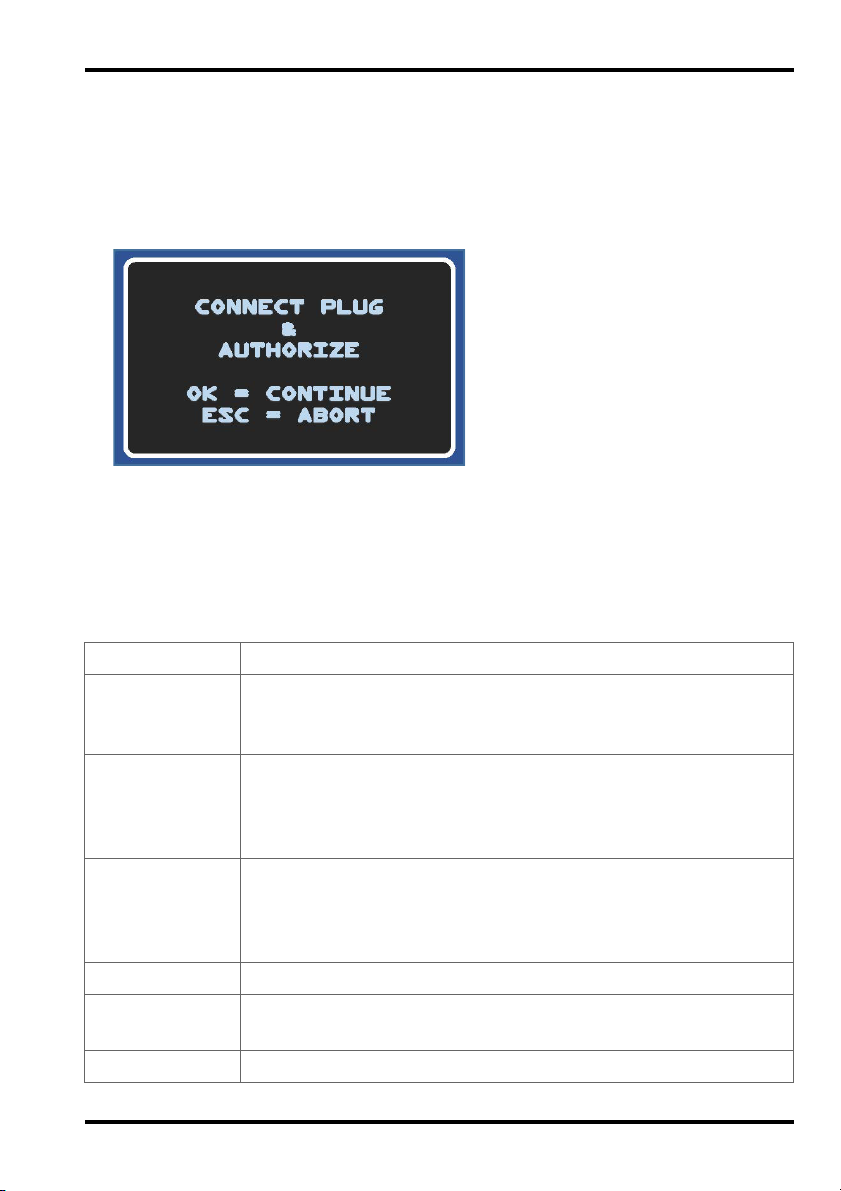

The CONNECT PLUG & AUTHORIZE prompt appears at the display.
2. Connect the instrument’s plug to the AC charging point under test.
3. Authorize yourself at the AC charging point.
4. Press OK.
Testing is started with 20 A.
State A, state B, state C, phases, tOFF (state E), rotating field and duty cycle are
tested. The display indicates which step is currently active.
Test Step Scope of Test Step
State A
Charging cable connected to AC charging point only,
CP signal (pilot line signal) is activated,
voltage between PE and CP: 12 V
State B
Charging cable connected to AC charging point and vehicle,
charging cable locked at the AC charging point and at the
vehicle, vehicle not yet ready for charging,
voltage between PE and CP: +9 V / −12 V
State C
Non-gassing vehicle detected,
vehicle ready for charging,
power is switched on,
voltage between PE and CP: +6 V / −12 V
Phases Single or 3-phase charging
tOFF (state E) In the event of a short circuit, the charging process is switched
off within 100 ms
Rotary field Testing for correct phase sequence

17
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH
When testing with 20 A has been completed, the TEST FINISHED message
appears.
5. Press OK.
The test results are displayed (PASSED or FAILED).
The TEST 32A CABLE? prompt appears at the display
Duty cycle The pulse-to-pause ratio of the PWM signal is checked. Avail-
able charging current is indicated in this way.
