QUICK GUIDE
WARNING
Read Owner’s Manual (3A9301) for complete instructions and warnings.
This quick guide is not a substitute for reading and understanding all
instruction manuals and warning labels supplied with the equipment.
Manuals are available at graco.com
Instructions in Quick Guide are for water-based paints only. See Owner’s
Manual for instructions for use with Oil-Based or Flammable materials.
Spray
Gun
Spray Tip Spray Tip Guard Storage Plug
Cup Lid
Cup
Cup Support
Pump Filter
Cup Release
Lever
KNOW YOUR SPRAYER
SPRAYER SETUP START UP
Disengage Trigger Lock and
verify Prime Valve Knob is in
the PRIME position.
Turn the Spray Tip to the
UNCLOG position and Install
a fully charged battery.
Turn the Prime Valve knob
forward to the SPRAY
position.
Verify Storage Plug is OPEN.
• Storage plug must be open
during spraying to avoid an
air lock in the cup and loss of
prime.
To prime the pump, point
the gun into a waste pail
and pull the trigger for 10
seconds.
• This will purge air from the
pump.
• The electronic gun is always
open when the trigger is
pulled, so a small amount
of fluid may spray out while
priming.
To prime the hose and gun,
point the gun into a waste
pail and pull the trigger for
10 seconds or until there is a
steady stream of paint.
• This will purge all air (and
storage fluid) from the hose
and gun.of fluid may spray out
while priming.
Turn the Spray Tip forward to
the SPRAY position.
NOTE: To avoid pump damage, if gun does not spray after
10 seconds STOP and repeat STARTUP.
You are now ready to spray!
Prime Knob
Belt Latch
Belt Clip
Trigger
Belt
Battery
Flow
Control Trigger
Lock
Holster
Release Clip
Holster
Engage Trigger lock.
• No visible red showing on
trigger lock is the locked
position.
• Always engage trigger lock
when not spraying.
Turn Prime Knob up to PRIME
position.
Remove the cup lid from the
cup.
Verify a clean pump filter is
installed in the bottom of the
cup at the pump inlet.
• A dirty or plugged pump filter
will result in poor sprayer
operation or loss of prime.
Fill cup with paint and
reinstall Cup Lid.
• Instructions in Quick Guide are
for water-based paints only.
• See owners manual for
instructions for use of Oil-Based
or Flammable materials.
BELT SETUP
PRIME SPRAY
Turn Prime knob up
to PRIME position to
relieve system pressure.
Turn Prime Knob
forward to SPRAY
position to spray fluid.
Prime Knob
1
2
3
4
5
1
2
3
4
5
6
7
Follow pressure relief procedure and wear protective equipment including
but not limited to protective eye wear.
SKIN INJECTION HAZARD: Keep clear of spray tip and leaks. Engage trigger
lock when not spraying.
FIRE AND EXPLOSION HAZARD: Use only non-flammable or water-based
materials. Follow fire and explosion warnings as listed in your manual.
FAILURE TO FOLLOW ALL WARNINGS CAN RESULT IN SERIOUS INJURY,
AMPUTATION, OR DEATH.

25-30 cm
(10-12 in.)
1
3
2
4

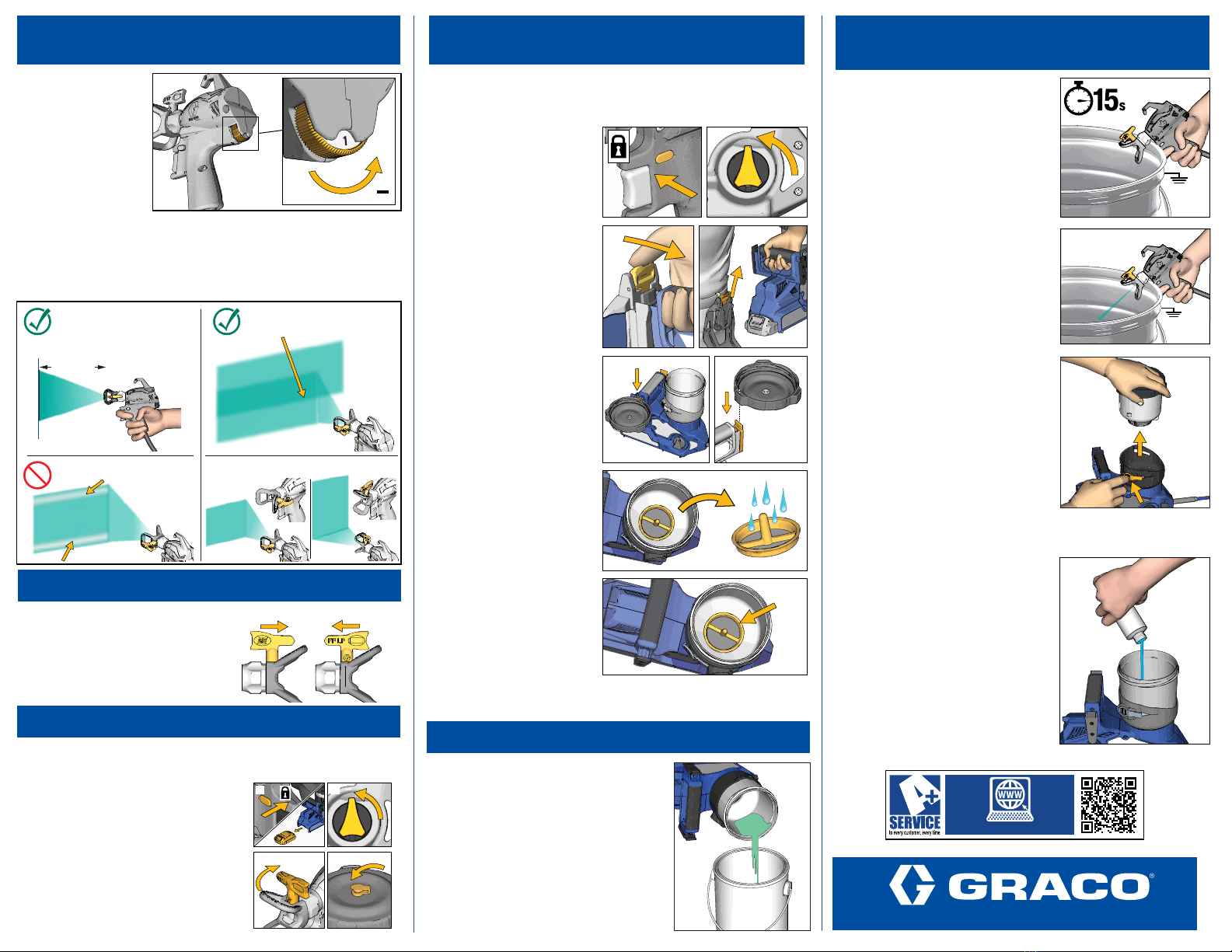

SPRAY CUP REFILLS CLEANUP AND STORAGE
continued
CLEAR TIP CLOGS
PAUSE IN SPRAYING CLEANUP AND STORAGE
Circulate Cleaning Fluid:
• Fill cup half-full of water
• Reinstall Cup Lid
• Verify Storage Plug is open
• Verify Prime Knob is pointed up to
PRIME position and turn Spray Tip to
UNCLOG position.
• Disengage Trigger Lock and turn Flow
Control to 10. Point Spray Gun into a
waste pail and trigger for 15 sec.
Spray Cleaning Fluid:
• Turn Prime Knob forward to SPRAY
position and verify Spray Tip is in the
UNCLOG position.
• Point Spray Gun into a waste pail and
trigger until cleaning fluid is emptied
from the Cup.
Clean Cup:
• Verify cup is empty and remove cup
from sprayer by depressing the Cup
Release Lever and rotating Cup out of
Cup Support.
• Clean Cup, Cup Lid, and Pump Filter
in warm water.
• Wipe out Cup Support with wet rag
and reinstall Cup, Pump Filter and
Cup Support .
Repeat steps 4 and 5 as needed until clean.
Storage:
• Circulate and spray a small amount
of Pump Armor Storage Fluid.
• Engage Trigger Lock
• Turn Prime Knob to PRIME position.
• Remove Battery, Spray Tip and Spray
Tip Guard.
• Clean Spray Tip and Spray Tip Guard
with warm water and a old tooth
brush and reinstall onto gun.
• Turn Spray Tip 90 degrees for storage
and CLOSE Storage Plug on Cup Lid.
Engage Trigger Lock and turn Prime
Knob up to PRIME position to relieve
system pressure.
Remove sprayer from Tool Belt. Remove
Cup Lid from Cup and pour extra paint
back into paint can.
Remove Pump Filter from cup and set
aside for cleaning.
Engage Trigger Lock and
Turn the Prime Valve Knob
up to PRIME position to
relieve system pressure.
If desired, remove Sprayer
from the Tool Belt by
pressing the Holster
Release Clip and pulling up
on the Sprayer.
Cup refills can be performed while wearing the sprayer on the Belt
or after removing the sprayer from the Belt and setting it on a flat
surface.
Remove the cup lid from
the cup.
• The cup lid can hook onto
sprayer as shown while
refilling cup.
Remove the Pump Filter
and clean debris from the
filter screen.
Reinstall the Pump Filter
in the bottom of the cup.
Refill the cup with paint and reinstall Cup Lid.
Follow STARTUP instructions to proceed.
Paint will dry quickly and cause clogs in the sprayer. Follow these
steps whenever you pause spraying for 5 minutes to 2 hours.
Engage Trigger Lock and remove
Battery from sprayer.
Turn Prime Knob up to PRIME position
to relieve system pressure.
Turn Spray Tip 90 degrees to seal
orifice from drying out.
Close Storage Plug in Cup Lid to seal
material in Cup.
SPRAY
If you encounter a Spray Tip clog,
Reverse the Spray Tip and spray into a
waste area to remove the clog. Return
the Spray Tip to spray position to
spray. See Owners Manual.
UNCLOG
Set Flow Control to
setting #1 (lowest
setting).
Pointing at a piece of scrap cardboard, pull the Trigger to test
the spray pattern. Adjust the following to achieve desired spray
pattern:
• Speed Control
• Hand Speed
• Distance from surface
• Spray Tip Orientation
EVEN FINISH
Good Spray Pattern
25-30 cm (10-12 inches)
parallel from surface
Aim gun here to overlap
stroke by 50%
TAILS - Gaps at edges Spray Tip Orientation Vertical
Horizontal
Tip Wear
Pressure
too low
