Instructions for
start-up, operation and maintenance
one2clean+
one2clean+ XXL
Small wastewater treatment
systems
Control unit version KL24plus
The points described in these in-
structions must be observed in all
cases. Failure to do so shall invali-
date the warranty. For any addi-
tional items purchased through
GRAF, you will receive separate
installation instructions in the
transport packaging.
The components must be checked
for any damage before the system
is transferred to the pit.
You will receive separate instruc-
tions for installation of the system.
Be sure to read before starting
up!
Contents
1. General information 2
2. Safety 3
3. Description of function 6
4. Control unit 8
5. Start-up 18
6. Level measurement 19
7. Operation and maintenance 22
8. Fault messages and rectification 28
9. EC conformity declaration 31
10. Technical data 32
11. Template for weekly / monthly check notes 34
12. Maintenance log for GRAF small wastewater
treatment systems 37
13. Notes 39

1.General information
2 / 40
1. General information
Below you will find some important information for safely operating your system for a long time to come.
•The SBR system is designed to receive all domestic wastewater. Other wastewater, e.g. from restau-
rants and / or commercial premises etc., may only be received if this was specified and taken into
account in the system's design.
•Biocides, toxic substances or substances which are not biocompatible must not enter this system
because they hinder bacteria important to wastewater cleaning and cause problems in the biological
process (detailed information is provided on the following pages).
To meet official cleaning requirements, it is essential that the system is operated in accordance
with our operating and maintenance instructions. You will find these instructions on the following
pages.
We also ask you to read the following information carefully:
The External control cabinets should be located as much in the shade as possible to prevent
them from overheating in the summer.
At all times ensure that the cabinet, especially its ventilation apertures, are not covered and are
freely accessible for maintenance work.
External control cabinet: Ventilation apertures on the rear
The power supply must be ensured at all times. Please ensure that the fuse on the control cabi-
net is sufficient (16 A). Additional electrical fixtures on the same fuse may disrupt operation.

2.Safety
3 / 40
2. Safety
This chapter contains details relating to safety measures and residual risks. Read this chapter through
carefully before using the system to ensure that it is used as safely as possible.
Intended use2.1
The control unit was specifically developed for use in SBR small wastewater treatment systems. The con-
trol unit must not be used in areas representing a danger to life and limb:
control of machinery, vehicles and safety processes,
research technology involving hazardous substances,
medical technology,
nuclear power technology,
etc.
Explanation of warning notices and prohibitions2.2

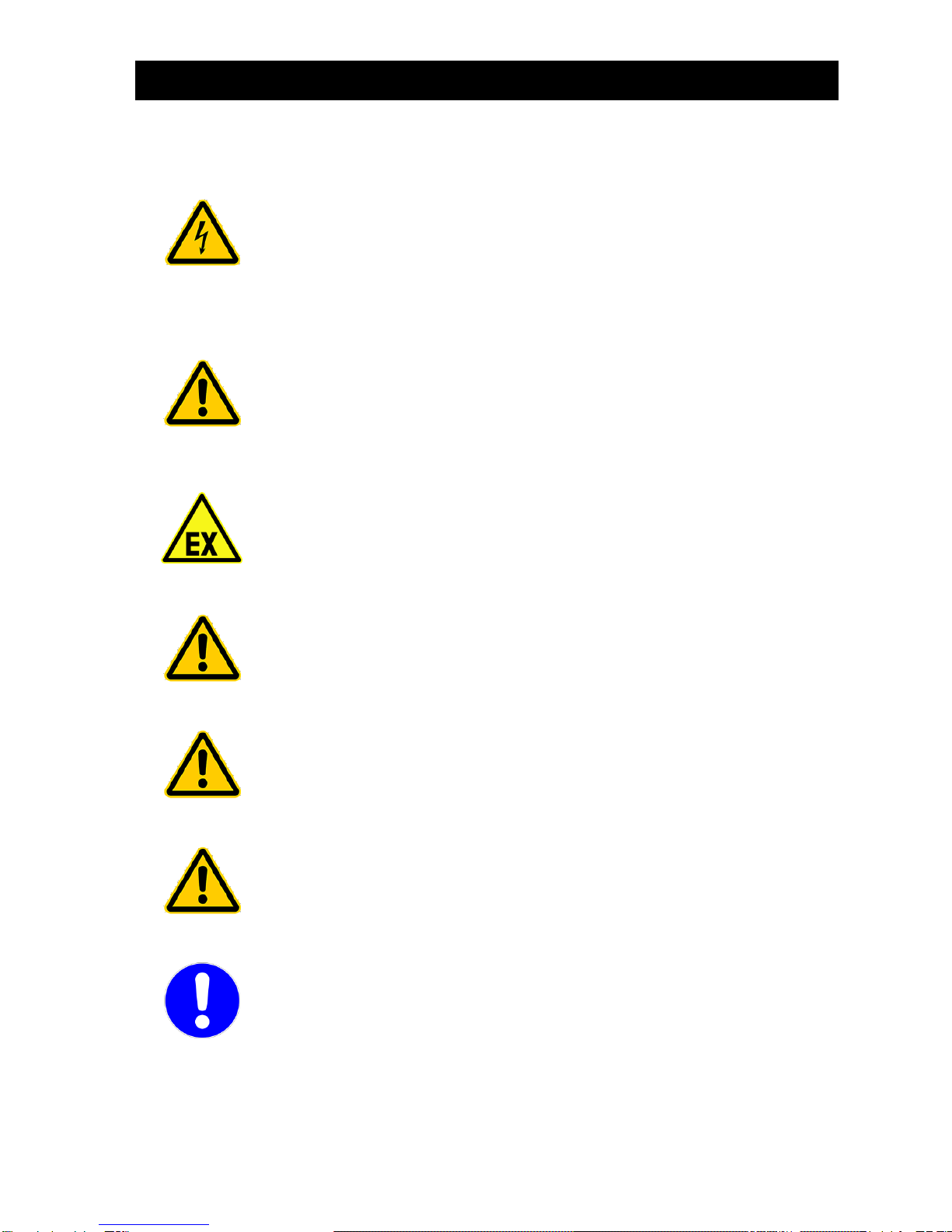

Warning of danger
Warning of dangerous voltage
Warning of tripping risk
Warning of hot surface
Warning of hand injuries
Warning of explosive atmospheres
Fire, naked flames and smoking prohibited

2.Safety
4 / 40
Danger notices2.3
1. To ensure safety, everyone who comes into direct contact with the system must note the content of
this documentation.
2. The system must not be used for any purpose other than that described by the manufacturer.
3. Local operating and safety requirements and legislation must be followed at all times, even if they
are not explicitly mentioned in these instructions. The same applies to environmental requirements.
4. If the operator becomes aware of mistakes or dangers, the manufacturer or responsible mainte-
nance company must be informed immediately.
5. Safety precautions must never be removed or bypassed during normal operation of the wastewater
treatment system. Safety precautions may only be temporarily bypassed or deactivated by the
maintenance fitter during repairs and maintenance.
6. When working with chemical substances, contact with the chemicals should be avoided Before the-
se substances may be used, the instructions for use on the packaging must be read and followed.
7. If the use of personal protective equipment (safety shoes, protective glasses, gloves, ear defenders,
etc.) is prescribed, ensure that they are used. Defective or damaged protective equipment must be
immediately replaced with fully functional equipment.
8. Work on electrical equipment may only be undertaken by specialists.
9. All safety and danger notices on the machine should always be kept fully legible.
10. Hot parts must not come into contact with explosive or highly flammable chemicals.
11. Do not put vessels containing liquids on electric switch cabinets; short circuits may occur if the liquid
is spilled.
12. The system must not be operated by anyone under the influence of alcohol or medication which lim-
its cognitive ability or ability to react.
13. The system must be de-energised before any maintenance or cleaning work takes place.
14. Other than for maintenance purposes, the system should always be left switched on, otherwise cor-
rect wastewater cleaning cannot be guaranteed.

2.Safety
5 / 40
Warning notices2.4
Be sure to observe this information. Failure to do so may result in personal injury or damage to property!
Installation loca-
tion
Ensure that the machine cabinet is not installed above or in the direct vicinity of water
vessels. There is a risk of electric shock if improperly installed.
Mains connection
Only connect the machine cabinet to a correctly installed 230 V socket or earth cable
which is fused with an upstream 16 A fuse.
Electrical equipment connected to the mains may be damaged during a storm. We
would recommend fitting surge protection in the building to protect against this.
The connection cable must be laid in a way it won’t represent a tripping hazard.
Explosive atmos-
pheres
The control unit must not be fitted or activated in environments with potential explo-
sive atmospheres or in places where there are flammable materials. Sparks in such
environments may cause an explosion or fire and this may result in physical injuries
or even death.
Interferences
The control unit may cause medical equipment to malfunction. This device should
therefore not be used in close proximity to medical equipment.
Damage
The control unit must not be operated if the housing or cable insulation is damaged or
crushed.
Service work
Service work on the machine cabinet may only be undertaken by authorised special-
ists / electricians.
Voltage supply
The power supply must be ensured at all times. Please ensure that the fuse on the
control cabinet is sufficient (16 A). Additional electrical fixtures on the same fuse may
disrupt operation.

3.Description of function
6 / 40
3. Description of function
Description of the wastewater treatment process3.1
The one2clean+ wastewater treatment system is a fully biological system and functions on the principle of
the retention process with extended aeration (Sequencing Batch Reactor). The system basically consists
of an aerobic stage, which is split into a rest and an aeration zone, linked together in the lower section.
This process therefore subjects all the domestic wastewater directly to aerobic wastewater treatment.
Blowing in compressed air aerates the entire system and the resultant aerated sludge biologically cleans
the wastewater.
The coarse materials and floating solids in the wastewater are initially retained using a scum guard in the
rest zone. Then the wastewater passes into the aeration zone via an aperture under the scum guard.
The rest zone is aerated too, so the retained solids are also aerobically broken down over the course of
time. In the one2clean+, the wastewater is treated without pre-treatment so no anaerobic putrefaction
processes can occur.
The SBR procedure is a series of different steps, undertaken one after another and at least once a day.
Step 1: Aeration
In the first phase, the wastewater is put straight through aerobic treatment for a fixed
time. As a result, the microorganisms (aerated sludge) are supplied with the oxygen
needed for the breakdown and then pressure aeration causes mixing. The system's
aeration equipment is supplied with ambient air by a compressor. Aeration is intermit-
tent so that targeted wastewater cleaning is possible. Different ambient conditions can
thereby be achieved.
Step 2: Settle
There is no aeration in the second phase. The aerated sludge and the remaining settle-
able solids can now settle with the aid of gravity. A clear water zone forms at the top
and a sludge layer at the bottom. Any floating sludge is on top of the clear water zone.
Step 3: Clear water extraction
In this phase, the biologically cleaned wastewater (clear water) is drawn out of the SBR
stage. It is pumped out by an air lift (or mammoth) pump, which uses compressed air.
The air lift pump is designed not to pump out any floating sludge on top of the clear
water layer. A minimum water level is maintained in the system without any further
components.
In multi-tank systems, there is also a phase in which the sludge is returned to the system.
Once step is complete, the cleaning process starts again with step 1.
Two cycles are undertaken a day. The maintenance company can individually adapt the switching times.

3.Description of function
7 / 40
Structure of one-tank systems3.2

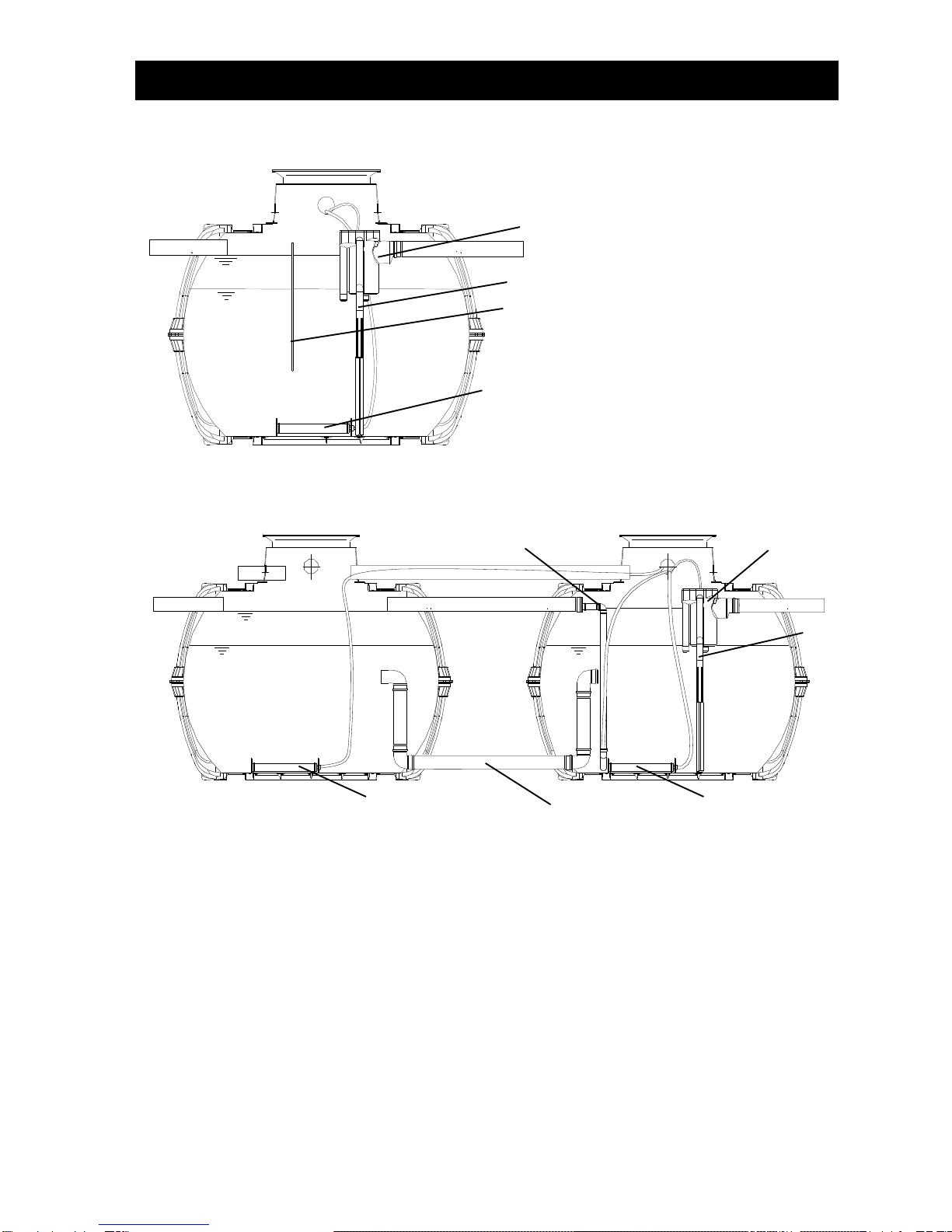

Figure 1: One-tank system
Structure of multi-tank systems3.3
Figure 2: Two-tank system
Sampling point
Clear water lifter
Scum baffle
Pipediffusors
Sampling point
Clear water lifter
Pipe Diffusors
Pipediffusors
Sludge return
Connection pipe

4.Control unit
8 / 40
4. Control unit
Connections to the KL24plus control unit4.1
The figures below show the basic structure of the switch cabinet of a two-tank system.

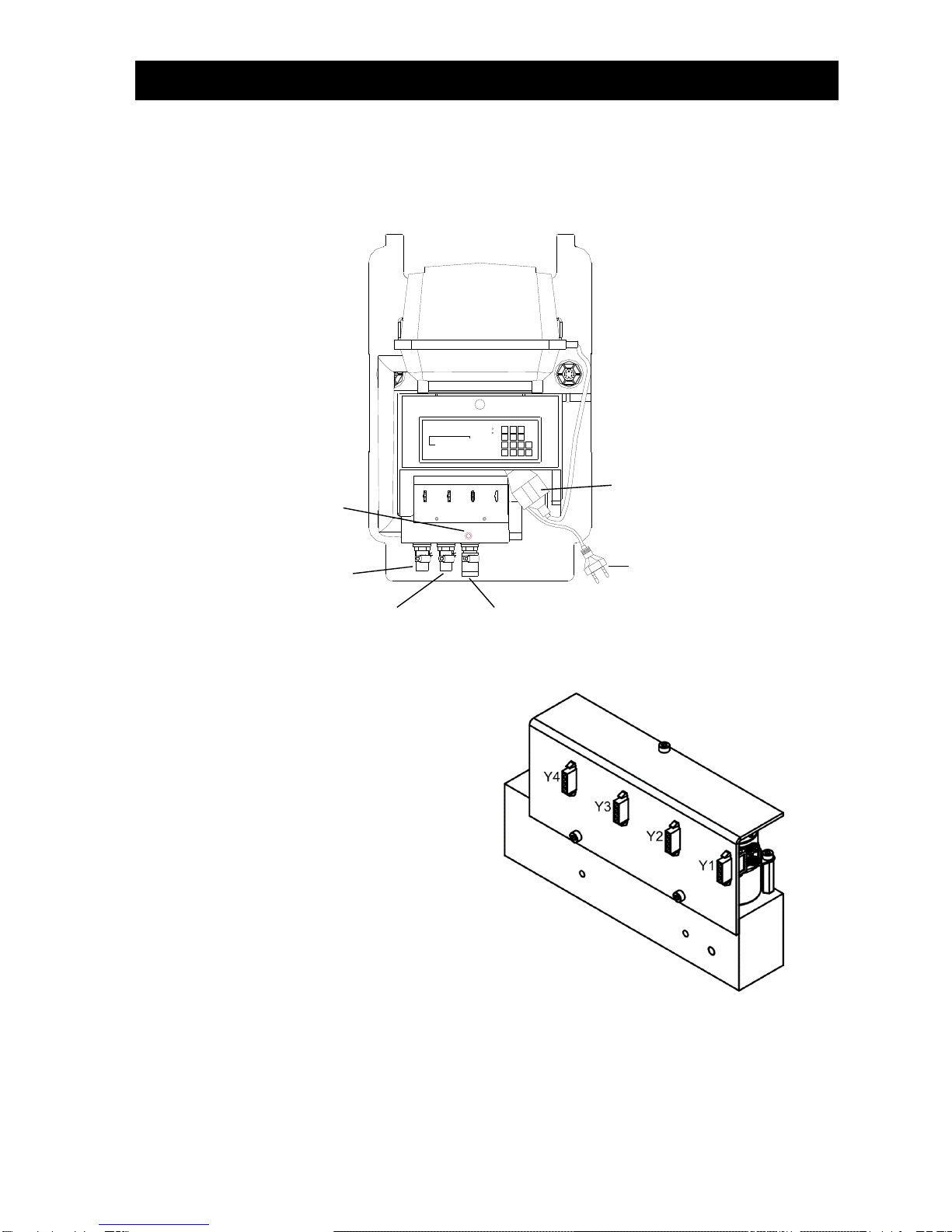

Figure 3: EPP cabinet with 3-way air distributor
The following connections can be found on the switch cabinet:
1. 230V AV ~ 50 Hz mains connection, for con-
necting the control unit to a socket
2. Compressor connection, for connecting the
compressor to the control unit via an integrat-
ed two pin plug
3. Compressor's air connection. This is used to
connect the strip of valves integrated in the
switch box to the compressor
4. Hose connection (19 mm) for connecting the
aeration unit
5. Hose connection (13 mm) for connecting the
discharge lifter
6. Hose connection (13 mm) for connecting the
sludge lifter
7. One unused hose connection
Figure 4: Air distributor with stepped motors
Y4 Y3 Y2
Compressor
Compressor connection
Connection for power supply
Connection 6 mm
for level sensor
aeration
sludge lifter
discharge lifter
(two tank systems)
Control unit

4.Control unit
9 / 40
Connections on the rear of the control unit4.2
Figure 5: Rear of KL24plus control unit
Connections:
1 Connection for mains cable
230 V AC ~ 50 Hz
2 X1: Pre-assembled valve cable
3 X2: two pin plugs for the air compressor connection
4 COM: Connection for communication module (optional) and/or port for PC
5 F1: T6.3A main fuse, slow blow
6 F2: T2A fuse for UV module, slow blow
7 Connection for temperature sensor, "must be plugged in!"
9 X3: Connection for UV module
10 P: Connection for pressure measuring hose
Connections on the air distributor/valve block4.3
When delivered, the control unit is already correctly connected to the corresponding connection on the air
distributor/valve block.
A distinction is made between three different air distributor variants:
1. 4-way air distributor (4 separate valves Y1 …Y4)
2. 3-way air distributor (3 separate valves Y2 …Y4) and
3. 2-way air distributor (2 separate valves Y3 and Y4)
To allow you to correctly connect up at a later date, the connectors of the control unit (X1.1 …X1.4), their
function (aeration, clear water extraction or sludge extraction) and the connections on the air distributor in
a matrix are shown in detail in the table below.
Control unit
Air distributor connections
Functions
Valves
Connectors
3-way
Y2
Y3
Y4
Aeration
Valve 1
X1.1
X
Clear water extraction
Valve 2
X1.2
X
Sludge Return
Valve 3
X1.3
X
-----
Valve 4
X1.4

4.Control unit
10 / 40
Starting up the control unit4.4
Once the system has been connected to the power supply, perform a brief system test. The system test
takes a few seconds and checks the real-time buffering. During this time, the LED lights up red. Then the
LED switches to green and the start phase is complete. During the system test the words "SYSTEM TEST
... OK" appear. The program version and the control unit's serial number are displayed briefly. The sys-
tem's current operating mode is then displayed in the liquid crystal display. Once the system test is com-
plete, the date and current time should be checked and adjusted if necessary.
After checking the date/time, the function of the installed parts should be checked. The check can only
take place as soon as the installed parts are connected to the control cabinet via the air hoses needed.
The check should be carried out via the "Manual operation" menu item in the control unit. The individual
installed parts should be activated and checked in turn.
The system should be reset to automatic mode once the check is completed successfully.
PLEASE NOTE: The clear water lifter will only work if the tanks are filled.
If the time and date are not set correctly, operating faults are saved with the wrong times.

4.Control unit
11 / 40
Instructions for operating the wastewater treatment system4.5
The system is operated using a microprocessor in the control unit. The microprocessor allows operating
parameters to be set, operating statuses to be displayed, system parameters to be queried and operating
times to be programmed by a specialist.
Settings are entered by scrolling through numerical values using the and arrow keys.
The setting is then confirmed by pressing the key.
The individual dialogues can be closed prematurely by pressing or close automatically after 2
minutes.
The control unit is divided into the following display screens:
1. Basic level: Status of cycle process with remaining time elapsing and fault message display.
2. Operator level: By pressing the key, the operator can enter the operator level and undertake
operator-specific settings.
3. Service level: A password-protected service level is accessed from the operator level via an additional
code. This level is reserved for trained staff. Settings and/or changes can be undertaken here and di-
agnosis data called up.
4.5.1 Control programs
The control unit switches the outputs for air compressors and valves at specific times.
The times are defined by the set sequence tables.
In accordance with the sequence table selected, a complete cleaning cycle is started at each start time.
Setting holiday times at operator level enables all cleaning cycles to be suppressed for the set time peri-
od. Only a holiday cycle with greatly reduced activity occurs during this time. No treated wastewater is
extracted during this time because no water should be fed in.
The current sequence table can be modified by trained staff in the service level. Depending on the size of
the wastewater treatment system, another sequence table can be selected. The current sequence table
and other settings are stored resistant to zero voltage. The current sequence table is only modified or a
new sequence table selected in the cycle pause. This ensures that the current extraction is always under-
taken at the end of a complete cleaning cycle.
If this is not necessary, the user can perform a "Cycle restart" to immediately adopt the modified parame-
ters.
A sequence table consists of:
•table name - comprising max. 16 characters, e.g. one2clean+ 4PE C
•number of start times (cycles) - max. 24
•cycles - with cycle times and the consumers to be switched

4.Control unit
12 / 40
4.5.2 Operating status display

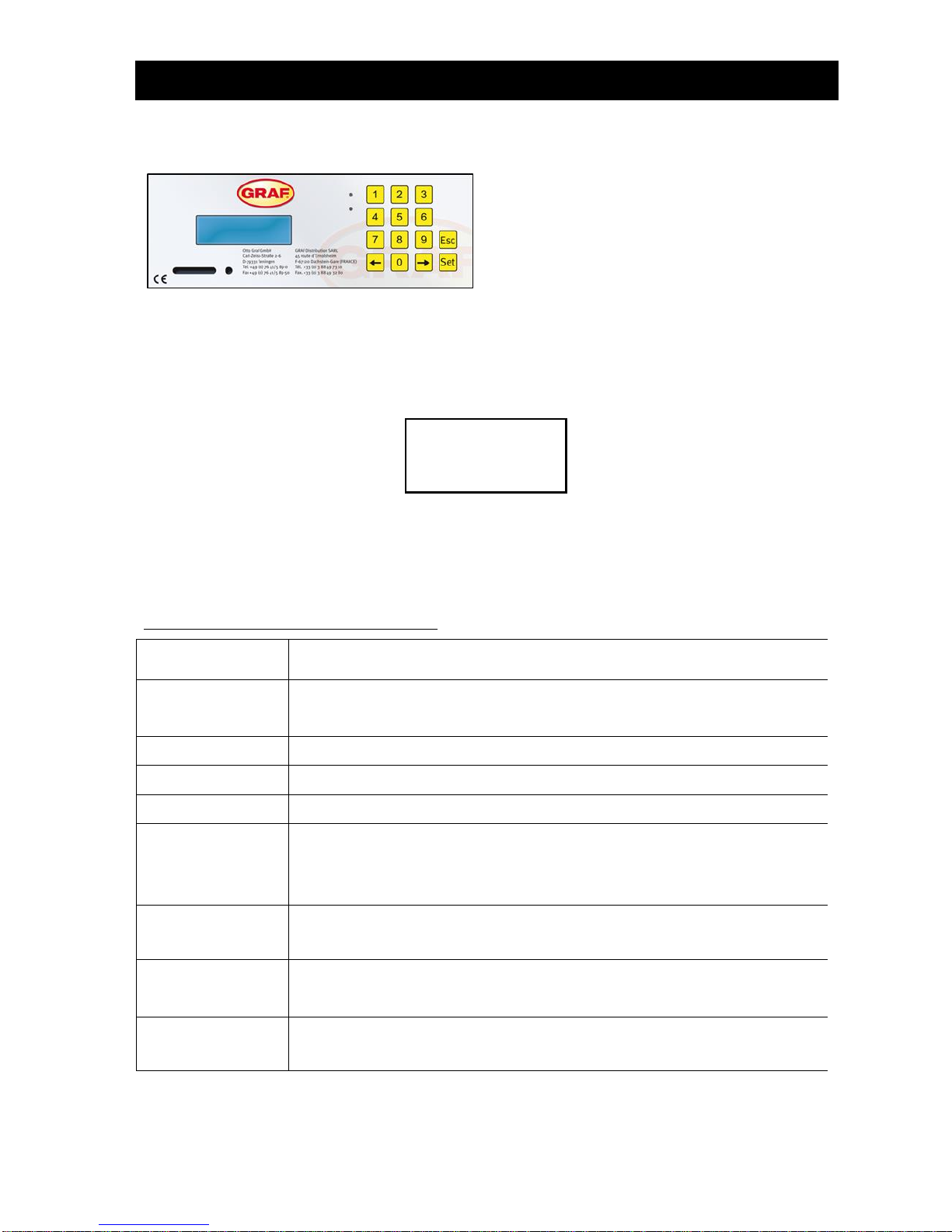

Figure 6 View of KL24plus operating unit
The system's operating status is indicated by the LEDs (Green = Operation / Red = Fault) and by text on
the screen.
In normal operating mode (aeration mode), the display looks like this:
In automatic mode, the liquid crystal display shows the current operating phase and time remaining in this
stage of operation.
If a fault occurs, the red LED switches on. A message appears in the liquid crystal display indicating
which component is faulty (e.g. compressor 0.0A fault).
The following operating phases are displayed:
KL24plus
Control unit
Process undertaken
Denitrification
Aeration is activated intermittently, the aerated sludge is briefly mixed. There are
long pauses in between (reaction times).
Aeration
Aeration is activated, the system is aerated at intervals.
Settling phase
Rest phase; the aerated sludge settles.
Discharge phase
Discharge lifter is activated, the clear water is pumped into the discharge.
Sludge removal
Sludge lifter is activated, the excess sludge is pumped out of the last tank back
into the first one.
ONLY with multi-tank systems
Cycle pause
Aeration is activated, the system is aerated at intervals (considerably less than in
the "aeration" phase).
Holiday mode
Aeration is activated, the system is aerated at intervals, no cleaning cycles are
undertaken.
Remaining: XXX.XX
min
Display showing time remaining.
Aeration
Remaining:
120:10min

4.Control unit
13 / 40
Operating the control unit4.6
You can start various queries when in automatic mode.
Pressing takes you to the first operating level. Now you can call up the individual queries by pressing
the two arrow keys and followed by :
Display
KL24plus
Meaning
Operating mode
Remaining time
Time remaining in current operating phase
Operating hours
counter reading
Operating hours display for individual valves and compressor
Manual mode
function
Manual activation of valves
Date
time
Current time, day and date. Can be set by pressing SET
Holiday mode
set date
Set holiday mode (max. 90 days)
Read out old
faults
Operational faults are saved here and can be read out. Press to switch be-
tween the error message and the associated date
Display
settings
The current settings can be viewed using the arrow keys
Action code
For specialists
Enter service
menu code
For specialists
4.6.1 Operating hours query
Press the key. Screen shows:
By again pressing , the operating hours can be called up for valves, compressor and house pump in
turn using the arrow keys and .
Pressing once takes you back to the "Operating hours" display.
Note: If no key is pressed for 10 minutes, normal mode engages automatically.
Operating hours

4.Control unit
14 / 40
4.6.2 Manually controlling the valves and cabinet fan using "Manual mode"
Press , then press the arrow key until the following appears on screen:
Manual mode can now be set for all functions by again pressing and using the arrow keys to
make the relevant selection.
Taking the example of valve 1, the screen now shows:
By selecting "1" for "ON" and "0" for "OFF", valve 1 can be activated and deactivated in manual mode.
You can proceed in the same way with the other valves. The valves are selected with the arrow keys
as described above.
Pressing the key once takes you back to the maintenance level. And pressing again restores auto-
matic mode.
Note: Each valve should run for at least 5 seconds when testing because it takes some time to
monitor the power consumption of valves before any faults are detected. After the valves,
the cabinet fan (if fitted) can also be activated and checked.
Manual mode
function
Manual mode
Valve1: OFF

4.Control unit
15 / 40
4.6.3 Setting date/time
Press , then press the arrow keys until the following appears on screen (example):
By pressing you can set the time and date using the arrow keys . To confirm each change,
you must press .
Pressing once takes you back on to holiday mode. Pressing takes you back to manual mode.
Note: The system's time and date MUST be set correctly to ensure accurate recording of operat-
ing hours and any malfunctions that may occur. The built-in clock has a maximum deviation
of 5 minutes per year. There is no automatic switchover from summer to winter time.
If no key is pressed for 10 minutes, normal mode engages automatically.
4.6.4 Setting holiday mode
Note: The wastewater treatment system has a reduced operation when in holiday mode. This
mode should only be used if no wastewater will be fed into the wastewater treatment system
during the selected period. Wastewater which does enter the system during holiday mode is
not cleaned. Holiday mode is automatically activated and deactivated on the dates entered.
Press , then press the arrow keys until the following appears on screen:
The input of holiday data is released by again pressing :
Start of holiday:
Pressing enters the year, month and day in the format YY-MM-DD. should be pressed each
time a year, month of day is entered.
End of holiday:
Press the key again and enter the end date for holiday mode using the numerical keys:
20:15:56
2014-12-19 Mo
Holiday
set date
Holiday
Beg.: 21-05-2007
Holiday
end.: 21-05-2007

4.Control unit
16 / 40
Pressing the key saves the input of data for holiday mode and exits this function.
Note: Holiday mode can be set for a maximum of 90 days.
If no key is pressed for 2 minutes, normal mode engages automatically without the date just
entered being saved.
4.6.5 Reading out errors –old faults
The control unit saves fault messages and the operation of valves using "Manual mode" in what is known
as a logbook. This function can be used to call up previous fault messages with time and date. The indi-
vidual messages can be called up using the arrow keys. The menu item can be exited using .
Note: 128 fault messages can be saved. Once this figure is reached, each new message overwrites
the oldest one. The memory can be cleared by a maintenance specialist in the service level using the
"Clear logbook" command.
4.6.6 Displaying settings
The current control unit settings can be viewed under this menu item. These settings cannot be changed.
This menu item is used to analyse the settings without changing them.
4.6.7 Service menu
Operating parameters can be changed in the Service menu. Access is protected by a code. This second
maintenance level is reserved for qualified staff!
Changing fuses4.7
The control unit has two interchangeable fuses. These are located on the rear of the control unit.
De-energise the control unit before changing the fuses.
Fuses used:
Microfuse
KL24plus control unit
F1 supply
6.3 A, slow blow
Consumer F2
2 A, slow blow
Function of the power cut detector4.8
The control unit is equipped with a power cut detector, which is powered via an integrated emergency
power supply (buffer). Upon delivery, the emergency power supply is flat. It charges when the control unit
is switched on. In the event of a power cut, the charge of one emergency power supply for indicating the
power cut will last around 12 hours. If the emergency power supply is not required in response to power
cuts, it is prevented from discharging by a switching circuit.
Important: In the event of mains failure, the time / date setting is powered for around 10 days by an extra
buffer. All saved data, such as operating hours, program settings etc., is retained. If the time and date are
not set, weekly operating hours for the units are no longer saved. Error messages occurring in the future
are saved with the wrong date.

4.Control unit
17 / 40
If the system is disconnected from the mains (e.g. due to a power cut, should the internal fuse blow or by
disconnecting from the socket), the indicator issues an acoustic and optical signal in turn regardless of
the cause. There is a 5-second delay before the device responds to a mains failure. This prevents brief
interrupts, which often occur e.g. during a storm but do not impact on the wastewater treatment system's
overall function, from being indicated unnecessarily.
After the 5-second delay, there is an intermittent beep with a red flashing signal. Five flashing
signals and one beep repeat at intervals of 5 seconds for around 12 hours (if the emergency
power supply is fully charged).
The device cannot be switched off when in this state.
When the mains voltage is restored, the device is returned to the monitoring status and the control unit
continues from where it left off without any keys having to be pressed. The fault message disappears
automatically. If the emergency power supply is flat, the device restarts with a cycle pause.
Power cut
Please note: If the system is disconnected from the mains for more than 24 hours,
the system will be unable to clean the wastewater properly if at all. Never switch off
system (the only exceptions are if maintaining system parts and in the case of sys-
tem faults restricting function)

5.Start-up
18 / 40
5. Start-up
When starting up, the functionality of the small wastewater treatment system is checked by means of a
test run. The start-up also includes setting the control unit and instructing the operator.
Preparations5.1
Before starting up, the following should be ensured for correct operation:
The switch cabinet and installed parts must not be damaged in any way.
The connections (inlet and outlet) should be established correctly (no mistakes).
Lines (air hoses) must be routed and used in the empty pipe as specified.
The aeration and ventilation function must be checked (smoke cartridge test)
All installed parts (aeration, lifter and sampling tank) must be checked.
The switch cabinet must be installed and the electrical connection established.
The tank's seal integrity should be checked.
Test run5.2
The system must be filled with water for the test run. The system must be filled to at least 10 cm above
the minimum water level so that the lifter's intake connection is covered with water.
The test run is undertaken by the system's control unit. This requires the system to be switched on after
filling via the two pin plug.
The system is now ready and runs fully automatically.
System test
When the control unit is switched on, a system test is performed automatical-
ly. The system is powered up and the serial number displayed.
System test
set time
A note indicating that the time should be set then appears. This note only
appears during the first system test. If the control unit was previously
switched on before the first start-up, this note does not appear.
HH:MM:SS
2013-31-01 Mo
Press , then press the arrow keys until the "Time / date" screen
appears. Again pressing allows the time and date to now be set in turn
using the arrow keys . To confirm each change, you must press .
Pressing takes you back to the menu.

6.Level measurement
19 / 40
6. Level measurement
The control units are fitted with an integrated pressure sensor as standard. This can establish the level by
means of the aeration unit (membrane aerator) secured to the base of the tank.
This level measurement is mainly used:
1. to save power when the wastewater infeed is low (underload detection)
2. to prevent sludge from leaking in the event of overflows (overload detection)
When supplied, this function is deactivated so during your start-up the system runs in automatic mode
regardless of utilisation - the amount of wastewater flowing in.
Function6.1
The water level is measured at adjustable intervals at the start of a cleaning cycle by means of the pres-
sure in the membrane aerator. If the level in the tank exceeds a previously set level ("Level measurement"
in service level), the system starts a cleaning cycle. If the set level is not reached, the system automatical-
ly goes into cycle pause for the set interval. Only enough oxygen to maintain the biological components is
then pumped into the system. The water level continues to be measured during the cycle pause at set
intervals. Should sufficient wastewater have again flowed into the system after a certain time, the control
unit switches to the normal cleaning cycle once the set level is reached.
Activation of level measurement6.2
The tank must be filled with water up to the level at which a cleaning cycle is triggered. This level depends
on the geometry of the tank and the number of connected inhabitants.
The recommended levels above the minimum water level are stated in the table below for the plastic
tanks of the Carat.
Note Calibration has to be run in order to activate the level measurement. Calibration should be under-
taken at least once a year during all maintenance interventions because the pressure at the
aeration's membrane may change during operation.
Table 1: Recommended setting for levels:
Carat
Type
2700
3750
4800
6500
H [cm]
100
115
130
155

6.Level measurement
20 / 40
1st step: Calibrating the pressure sensor
It is absolutely essential that the sensor is calibrated for first starting up. Please carefully work through
the following points in order:
Service menu
Go to "Service code", press the key and enter the following code when
prompted to do so: 9 9 9 9
Calibrate?
No
Use the arrow keys to select "Calibrate Yes" and confirm with the
key. Calibration then starts automatically.
Measurement un-
derway
3 measurement processes are undertaken automatically
Current
level input: 000 cm
Enter the current level as measured with rule (measured from base of tank to
surface of water) and confirm with .
Save?
xxx cm No
The measurement now entered is displayed again. Use the arrow keys
to select "Save yes" and confirm with the key. The calibration is
complete and you can exit this menu with the key.
2nd step: Setting the control parameters
It is absolutely essential that the control parameters for the level measurement are set for the system to
function correctly. Please carefully work through the following points in order:
Service menu
Go to "Service menu", press the key and enter the general service code
X.X.X. when prompted to do so.
Level measurement
Use the arrow keys to select "Level measurement" and confirm with
the key.
Level
start from: 000 cm
Enter the water level from which a cleaning cycle is to start. Confirm this with
the key.
Overflow warning
from: 000 cm
If 000 cm is saved, this warning message remains deactivated.
Measurement inter-
val
04 h
The measurement interval of the level measurement is changed hourly using
the arrow keys . The set measurement interval can be confirmed
using the key. This menu item has a default setting which can usually be
retained.
To activate the overflow warning, you need to measure the height between the tank base and the bot-
tom edge of the emergency overflow on the sampling tank. The level of the overflow warning should be
around 5 to 10 cm below the emergency discharge.
This level then has to be entered under "Warning overflow" using the arrow keys and confirmed
with the key.
If 000 cm is saved, the overflow warning message is deactivated.
