Grange Bow Top Arch User manual

BOW TOP ARCH (BTA)
PLAN
2.5m
1.6m
0.720m
0.45m
0.9m - 1.4m
GRANGE FENCING LIMITED
Halesfield 21, Telford TF7 4PA
Tel:01952 588088 Fax:01952 581522
Email:[email protected] Web:www.grangefen.co.uk
OUT OF HOURS MESSAGE SERVICE: 01952 588088
JULY 2011 - VERSION 2
BOW TOP
ARCH
PLEASE SEE OVERLEAF FOR
ASSEMBLY INSTRUCTIONS
ALL PRODUCTS ARE MEASURED TO THE HIGHEST AND
WIDEST POINT AND ALL SIZES ARE APPROXIMATE
Grange Code: BTA
Bow Top Arch Inst 8/7/11 09:47 Page 1
ELITE
BOW TOP ARCH
ASSEMBLY INSTRUCTIONS
BEFORE YOU START
ASSEMBLY
•Check the pack/s and make sure that you have
all of the parts listed above. If not, contact
your retailer who will be able to help you.
•When you are ready to start, make sure you
have the right tools to hand, plenty of space
and a clean, dry area for assembly.
•It is advisable for two people to carry out
the work.
Ref.
POZIDRIVE SCREWDRIVER - ELECTRIC DRILL
PARTS SUPPLIED
TOOLS REQUIRED (not supplied)
B
D
POSTS
Qty.
CSIDE
SECTIONS
2
2
2
x8 x 40 csk 16
w4 x 50 csk 10
1x HARDWARE PACK:
y3.5 x 17 32
z‘L’ CLIPS 8
SITE PREPARATION
Excavate a 300mm squarehole
(approx) for each post to a depth
of at least 300mm. (see Fig.A)
We would recommend that you
use MetCrete,fast set post fixing
concrete to fix your posts. Easy
to use, it sets in just 10 minutes.
1. Begin with the roof assembly.
2. Mark offfive points along the length of each
of the curved beams where the rafters will be
fitted (see Fig.1). It is recommended that the
centre is marked first (1)and the other points
measured from it.
3. Fix the rafters to the curved
beams using screws (w)
from the topside of the
rafters into the curved
beams.
4. Use the Trellis Sections
(C)to mark wherethe
‘L’ Clips (z)need to be
fitted to the posts.
The ‘L’ Clips should be
positioned so that they
fit into the corners of
the trellis. The top clips
should be 100mm below
the shoulder at the top
of the post (see Fig.2).
Fig A.
300mm
5. Fit the trellis to the
metal brackets using
screws (y).
NB. Check the posts
are the correct way
around so that they fit
inside the roof curved
beams (see Fig.3).
6. Fit the roof assembly
onto the posts of the
side assemblies and fix
at the desired position
with screws (x).
Make sure the overhang
at each end is the same.
=
=
=
===
=
Fig 1.
Fig 3.
Fig 4.
Fig 2.
w
z
1
100mm
D
D
E
x
x
ROOF BEAMS
E5ROOF RAFTERS
APOSTS 2
C
A
B
D
D
E
Toensure longevity
of your structure it
is recommended that
it is treated with a
wood preservative
on a yearly basis.
AFTERCARE
Bow Top Arch Inst 8/7/11 09:47 Page 2

Other manuals for Bow Top Arch

1

Other Grange Lawn And Garden Equipment manuals

Grange Apollo User manual

Grange

Grange Apollo User manual

Grange 222308B002MMBZ01C1 User manual

Grange

Grange 222308B002MMBZ01C1 User manual

Grange 220600A007OMBZ01C1 User manual

Grange

Grange 220600A007OMBZ01C1 User manual

Grange ELITE SQUARE PLANTER MEDIUM User manual

Grange

Grange ELITE SQUARE PLANTER MEDIUM User manual

Grange VALENCIA ARCH User manual

Grange

Grange VALENCIA ARCH User manual

Grange CONTEMPORARY User manual

Grange

Grange CONTEMPORARY User manual

Grange FLOWER WALK PERGOLA User manual

Grange

Grange FLOWER WALK PERGOLA User manual

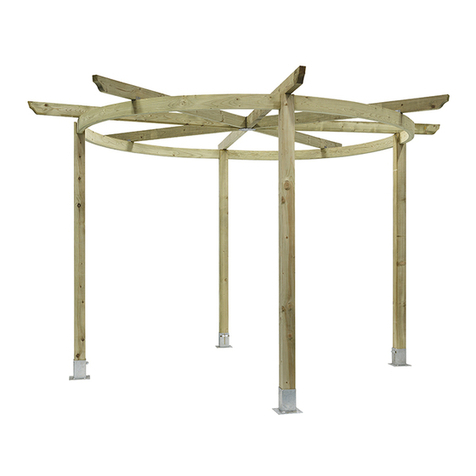

Grange PKITCRAG User manual
