Grange ROPE WALK PERGOLA User manual

ROPE WALK
PERGOLA
ASSEMBLY INSTRUCTIONS
STEP 7
Fix the other two curved
beam assemblies as Step 6.
STEP 8
Fix the Rope Rings (w)in
place as shown in fig.4.
STEP 9
Finally, feed the ropes
through the rings and tie
wrap them in place as
shown in fig.5.
Use 4 screws
to fix each
Rope Ring
Use Tie Wraps
(x)to secure
ropes to rings.
2.74 m
FRONT VIEW
2.74 m
TOP VIEW
3.15 m
2.7 m
1.3 m
z
z
(fig.4)
(fig.5)
B
A
A
B
C
w
w
x
THE PICTURE HERE
SHOWS TWO LINKED
ROPE PERGOLAS
PLUS AN END PACK
ALL PRODUCTS ARE MEASURED TO
THE HIGHEST AND WIDEST POINT
AND ALL SIZES ARE APPROXIMATE.
PLAN
GRANGE FENCING LIMITED
Halesfield 21, Telford TF7 4PA
Tel:[phone] Fax:[phone]
Email:[email protected] Web:www.grangefen.co.uk
OUT OF HOURS MESSAGE SERVICE: 01952 588088
JULY 2011 - ISSUE 2
ALL PRODUCTS ARE MEASURED TO THE HIGHEST AND
WIDEST POINT AND ALL SIZES ARE APPROXIMATE
Toensurelongevity of your structureit is recommended that it is treated with a wood preservative on a yearly basis.
AFTERCARE
ROPE WALK PERGOLA (JFRW3G)
Grange Code: JFRW3G
Rope Walk Pergola Inst 8/7/11 10:32 Page 1

BEFORE YOU START
•Please ensure that you check all the component parts for quantity and quality before you
commence building the product. Report any missing parts immediately. The manufacturer will
not accept any responsibility for damaged items once any part of the product has been fitted or
altered in any way.
•Timber is a natural material and will react to varying levels of moisture content - ie. will swell or
shrink. All of the Timber components are pressure treated green. However, should extra
protection be required, they should be treated using a wood preservative treatment, following the
manufacturers instructions.
HEALTH AND SAFETY
Do N
NO OT Toverstretch when working from the step ladder.
In order to reduce the risk of suffocation please keep all plastic bags and small parts away from children.
•When you are ready to start, make sure you have the right tools to hand, plenty of space and a
clean, dry area for assembly.
It is advisable for two people to erect the structure.
PREPARATION
Make sure the area where the Rope Walk is to be positioned is clear and ready for building the structure.
Thank you for choosing this garden structure from Grange Fencing Ltd. In order to gain the most
benefit from it please read the following instructions carefully.

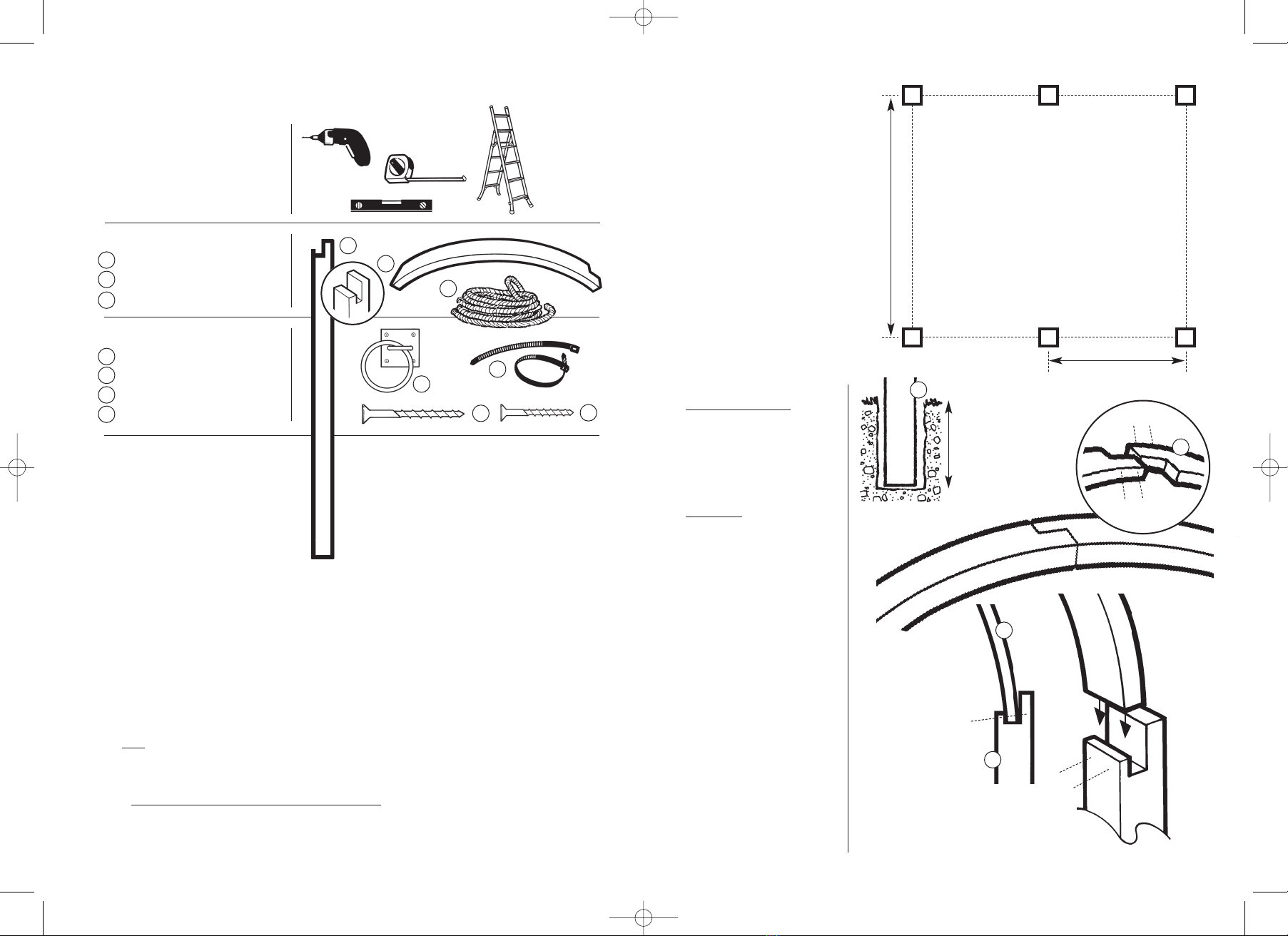

TOOLS REQUIRED (Not Supplied)
POWER SCREWDRIVER
TAPE MEASURE
STEPLADDER
SPIRIT LEVEL
PARTS LIST
POSTS 6
CURVED BEAM 6
ROPES 3
HARDWARE PACK
ROPE RINGS 9
TIE WRAPS 9
SCREW No.10 x 3” 24
SCREW No.8 x 2” 36
ASSEMBLY INSTRUCTIONS
SITE PREPARATION
Mark out the area where the
structure is to be sited using the
footprint shown above.
Excavate a hole for each post to
a depth of 300mm (see fig.1)
This will give your structure
adequate stability.
ASSEMBLY
STEP 1
Take two of the Curved Beams
(B) and fix them together as
shown in fig.2.
STEP 2
Position the assembly to enable
an accurate position for the
posts (A) to be ascertained.
Mark the positions.
(see ‘footprint’ above).
STEP 3
Fix two posts in the positions
marked. Ensure they are vertical.
STEP 4
Repeat Steps 2 and 3 for the two
remaining positions.
STEP 5
Repeat Step 1 for the remaining
Curved Beams.
STEP 6
Check the posts are secure
before fixing one of the curved
beam assemblies as shown in
fig.3.
(continued overleaf)
A
y
z
B
C
w
x
z
w
x
y
1.3 m
STEP 1
STEP 6
SITE
PREPARATION
ROPE WALK
‘FOOTPRINT’
Measurements indicated to
centre of posts.
(fig.2)
(fig.3)
C
B
A
2.74 m
300mm
A
y
y
y
A
B
yy
yy
B
We would recommend
that you use MetCrete,
fast set post fixing
concrete to fix your
posts. Easy to use,
it sets in just 10
minutes.
