GRANULDISK GD 600plus User manual

GD 600plus
Usermanual
Art. nr 16001/ 02.2004/ EN
Granuldisk AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
1.TECHNICAL DATA.....................................................................................6
2. INSTRUCTIONS...............................................................................................8
3. DAILY CLEANING.....................................................................................15
4.TROUBLESHOOTING
AND ALARMS........................................................................................................16
Contents
EN

Declaration of Conformity
The Manufacturer:
GRANULDISK AB
Jägershillgatan 15
SE-213 75 MALMÖ, Sweden
declares that the following machinery:
The Granuldisk system GD 600plus
Basic conception
a) is manufactured in conformity with the Svenska Arbetarskyddsstyrelsens Författningssamling AFS1994:48. This law conforms
with the COUNCIL DIRECTIVE of 22 June 1998 concerning harmonisation of member states` legislation for machinery (the
Machinery Directive 98/44/EG), with particular reference to Annex 1 concerning the essential health and safety requirements relat-
ing to the design and construction of the machinery.
b) is besides the provisions under a) manufactured according to the following directives: the EC Low Voltage Directive 73/23/EEC
and the EMC Directive 89/336/EEC
c) is manufactured in conformity with the following harmonised standards:
EN 60204-1, EN 55014, EN 60335-2-58, EN 60439-1, EN 418, EN 294, EN 50081-1:1992 and EN 50082-2:1995
d) is manufactured in conformity with the following national standards and technical specifications: ELSÄK-FS 1994:7
Malmö, Sweden 01.08.2000
Signed on behalf of GRANULDISK AB
GRANULDISK AB: Jägershillgatan 15
SE-213 75 MALMÖ, Sweden
Phone: [phone]
Fax: [phone]
...............................................
Per Sandberg
(Managing Director)

To the user Safety instructions
The GD 600plus is a granule potwash-
ing machine - a potwashing machine for
commercial kitchens that is designed for
washing/cleaning things like pots and pans
This instruction manual is your guide to the
correct use of the GD 600plus granule pot-
washing machine
Granuldisk AB recommends that you study
the manual carefully to ensure that the
machine is used correctly and safely
Ensure that the manual is available during
the whole life of the machine
Granuldisk AB accepts no responsibility for
any damage to the machine or any other
indirect damage caused by failing to follow
the instructions in the manual.
The plastic in the granules is approved for
use in conjunction with food
The machine uses hot water. Avoid contact
with the water in the machine as there is a
risk for scalding
There is a risk for slipping if granules are left
on the floor
Formaldehyde, which is injurious to the
lungs, can be formed if the granules burn
Regarding the handling of detergent in the
manual, please see the manufacturer’s
instructions.
5

1.Technical data
6
Weight................................................ 343 kg filled machine
Tank volume .................................... 84 litres
Granule amount ............................ 6 kg
Wash water temperature......... 65°C
Rinse water temperature.......... 85°C
Rinse water volume ..................... 8 litres/wash cycle
Wash programme......................... normal 5 min, 30 s.
long 7 min, 30 s
ultrashort 3 min, 30 s.
Design................................................. 2 fittings that slide out
Capacity............................................. 4 GN 1/1, 200 mm deep
8 GN 1/2, 200 mm deep or equivalent in other kitchenware
Capacity /hr with
normal programme ..................... GD 600plus 32 GN 1/1 /hr
Noise level ........................................ <70 dB(A)
Tank heater*.................................... 9 kW
Rinse tank heater*........................ 9 kW
Voltage** ........................................... 400 V (standard) 3-phase, earth
200,208,230,415,440V (alternative) 3-phase earth.
Fuse** ................................................. 400, 415, 440 V : 25 A
230V : 35A
200, 208V : 50A
Frequency ......................................... 50/60 Hz
Max. power ....................................... 12.2 kW
Pump motor.................................... 3 kW
Sealing class ..................................... IP 55
Hot water connection................. 1/2” (DN15) int. 55 – 65°C, 3 – 10°dH
NB. Osmosis water and totally softened water must not be used.
Cold water connection............... 1/2”(DN15) int., 3 – 10°dH
Recommended extraction
Capacity............................................. 150m3/h
Water pressure .............................. 3 – 6 bar at the open magnetic valve
Outflow .............................................. Ø32 mm pipe
Drain ................................................... Min. capacity 100 litres/minute
* Not in operation simultaneously
**For the exact figures for your machine look at the sign on the machine.
• Non-return protection in accordance with EN1717 should be fitted between the water supply network and the potwash-
ing machine. Alternatively, the GD 600plus can be supplied with an integrated non-return protection in accordance with
DVGW, SVGW or ETA.
• The machine is supplied with a 2 m long electrical cable which is connected to the mains box on the wall.The mains box is
not included.

7

2. Operation 1
2
3
3:1
3:2
8

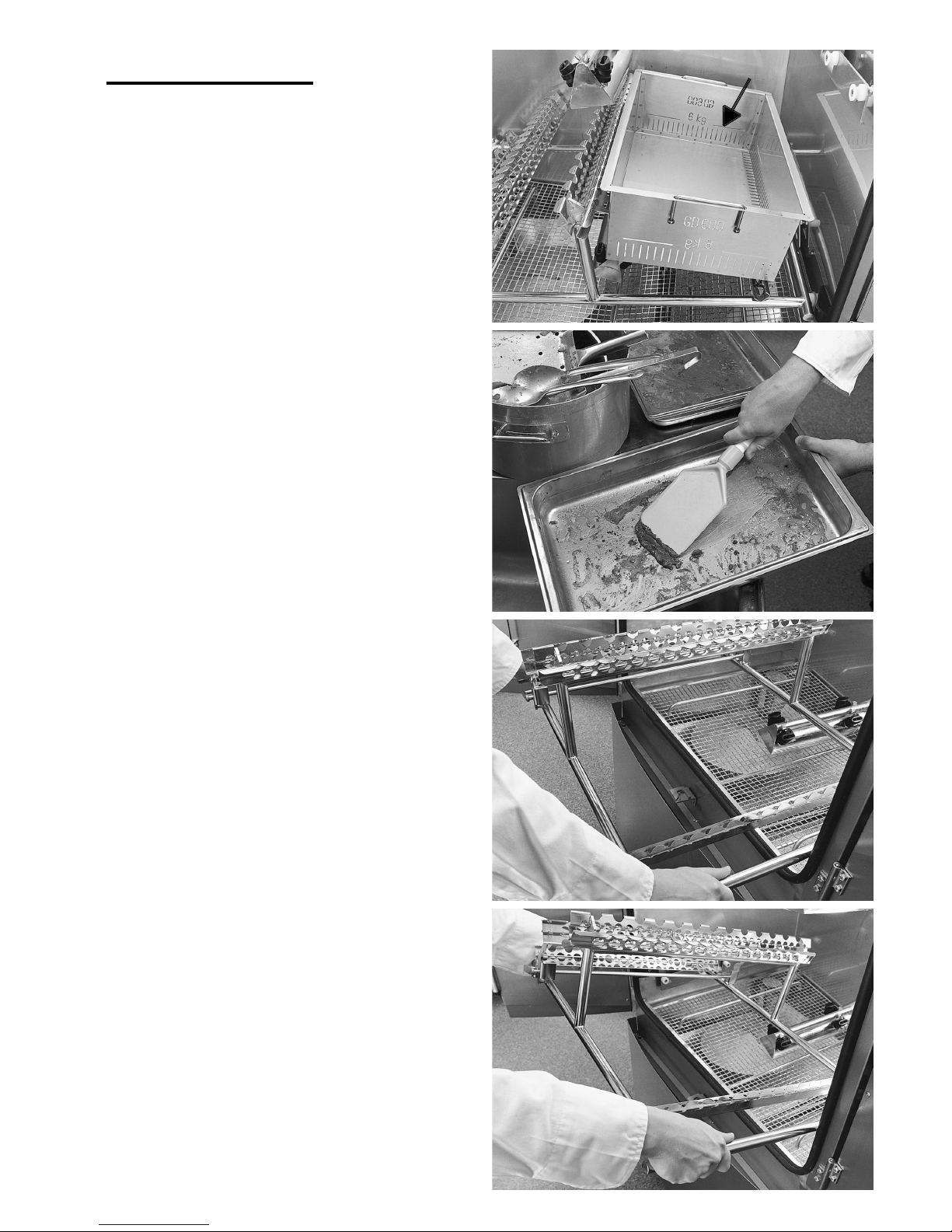

At the start of the day
Check the amount of granules in the granule collectors. When the
granules have been evened out they should reach the 6 kg marking
on each collector. Add more granules as required (ill. 1).
Pour the granules into the wash tank.
Fill with water, see Filling the machine page 13.
Preparing utensils
Scrape or rinse off all loose food remains before placing
kitchenware in the machine, ill 2.
NB! Pots should not be soaked. To avoid foaming, do not prewash
with washing-up liquid. If foaming occurs, the machine will not
clean properly.
Loading utensils
For all washing up, utensils must be loaded upside down.
Changing fittings
The fittings can be removed and changed.
To remove an insert, follow instructions 3:1 – 3:2.
Fittings are put into the machine by following the instructions
below in reverse order.
3:1 Draw the fitting out as far as it will go.
3:2 Tilt the fitting by lifting it straight up. Remove the fitting.

4
4:1
4:2
5:1
9

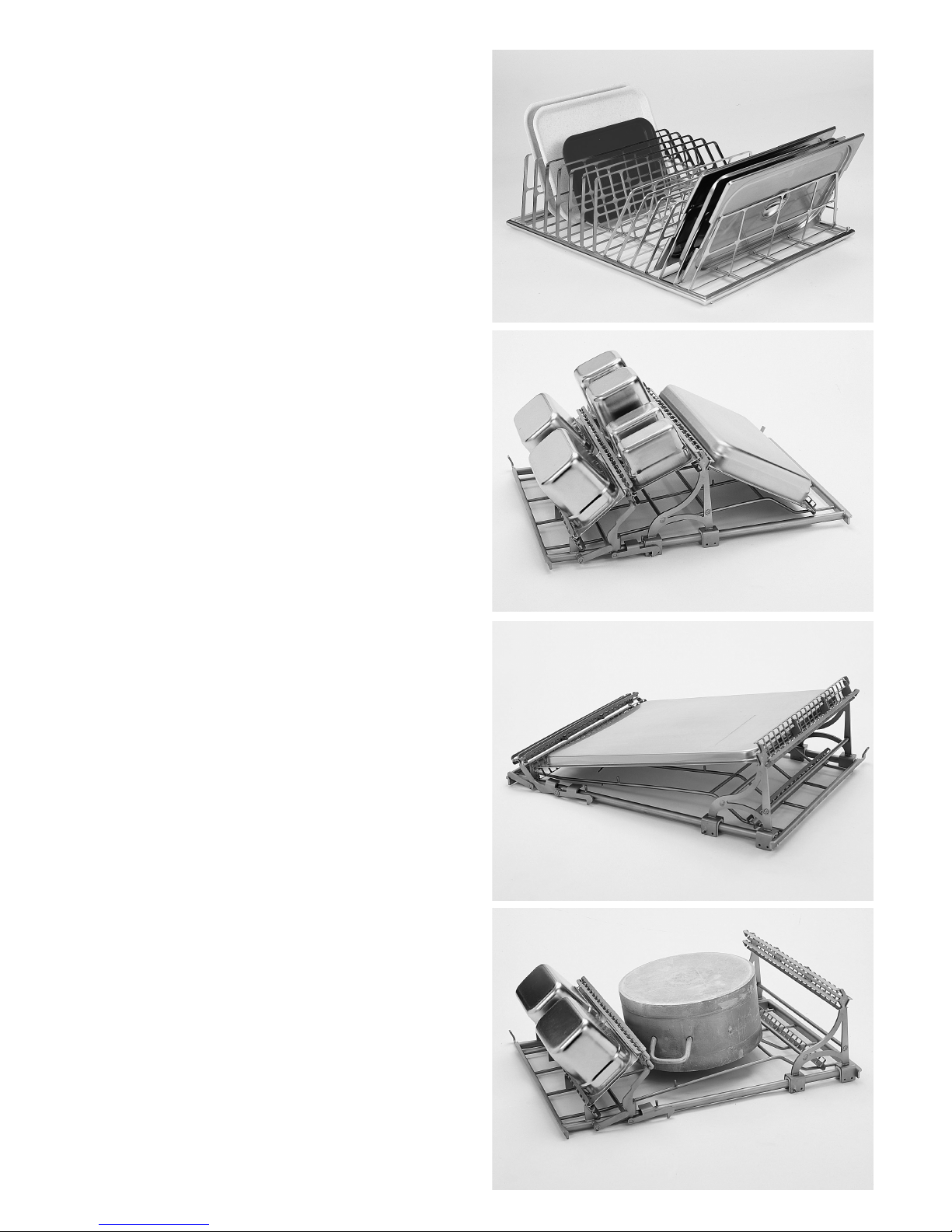

GD 672 Insert for containers (4:1)
1/1, 2/3, 1/2 and 1/3 GN containers can be washed with the
divider lowered.
GD 672 Insert for containers (4:2)
1/1, 2/3, 1/2, 1/3, 1/4, 1/6 and 1/9 GN containers can be
washed with the divider raised.
GD 673 Flexible insert (5:1 - 5:2)
Any kitchenware, with the inside facing down wards, can be
placed in this fitting and the fastening frame is then lowered
over.The rubber bands ensure that items do not move during
washing.The rubber bands can break because of wear against
sharp edges and are quite simple to replace.
NB! Items of the same depth should be placed on the same side
to ensure that they are all properly held in place.
5:2

6
7:1
7:2
10
GD 674 Insert for lids and trays (6)
Lids, trays and similar items with a maximum depth of 20 mm
are washed with this fitting.
NB! Because of the location of this fitting it is only suitable for
lightly soiled kitchenware.
GD 675 Insert for containers and large pots
(7:1 - 7:4)
All containers in the Gastronorm series from small 1/9 to
large 2/1 as well as mediumsize and large pots can be washed
with this insert.
7
7:3

11

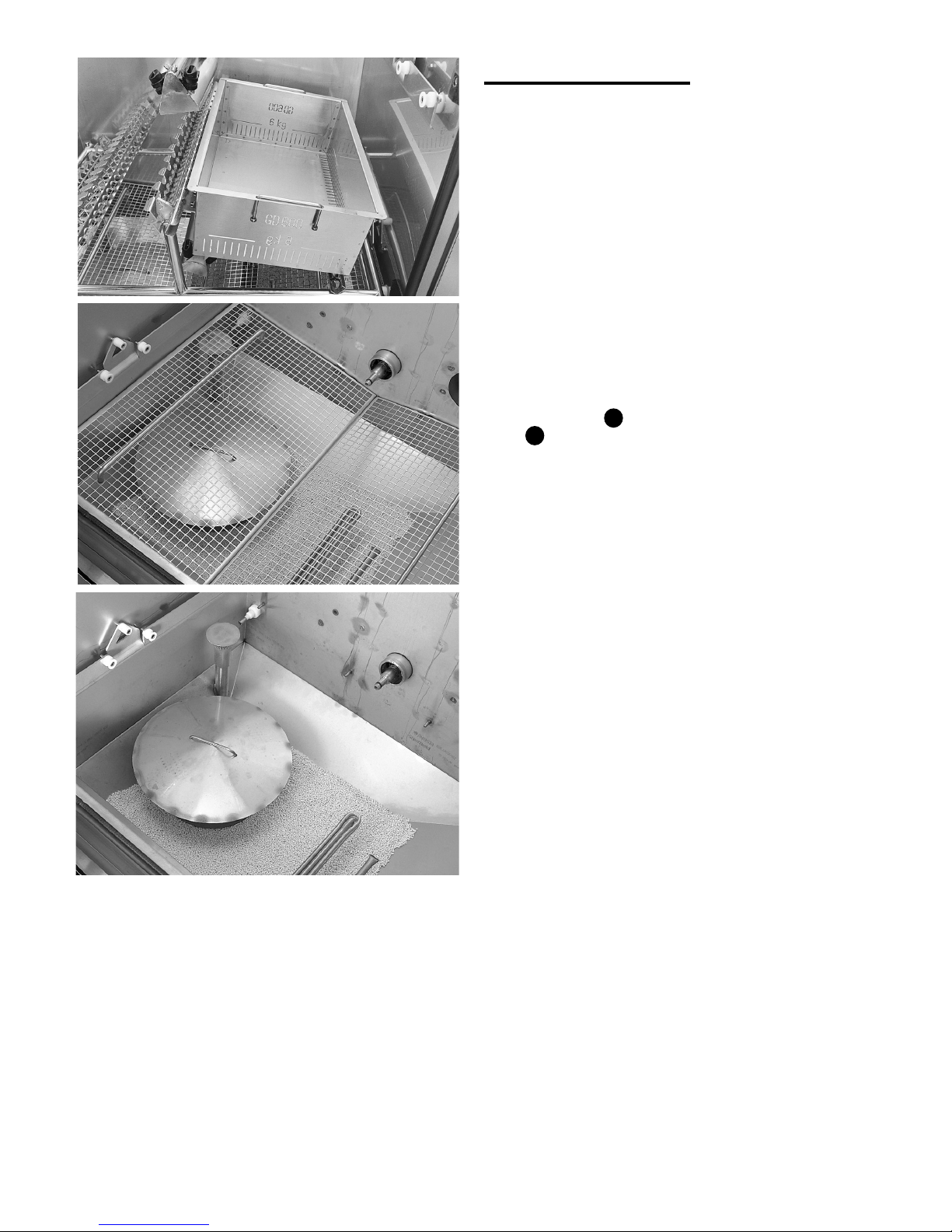

GD 675 Insert for pans and large pots
Large pots as deep as 700 mm can be washed together with
the GD 654 short spray pipe.
GD 651 Netbasket (8)
Net basket for ladles, whisks, bowls, small saucepans or pots
etc.
8
7:4

12
Removing / Replacing spray pipes
Press the spray pipe in and turn it anticlockwise. Pull it straight out
(Ill 11).
Press the spray pipe in and turn it clockwise, (Ill. 12). Secure by
gently pulling it outwards. If replacing the spray pipe is difficult then
the seal may be dry in which case dampen it with a little water.
NB! The small spray pipe is not supplied as standard.
11
12

13
1
2
3
4
5
6
7
8
10
9

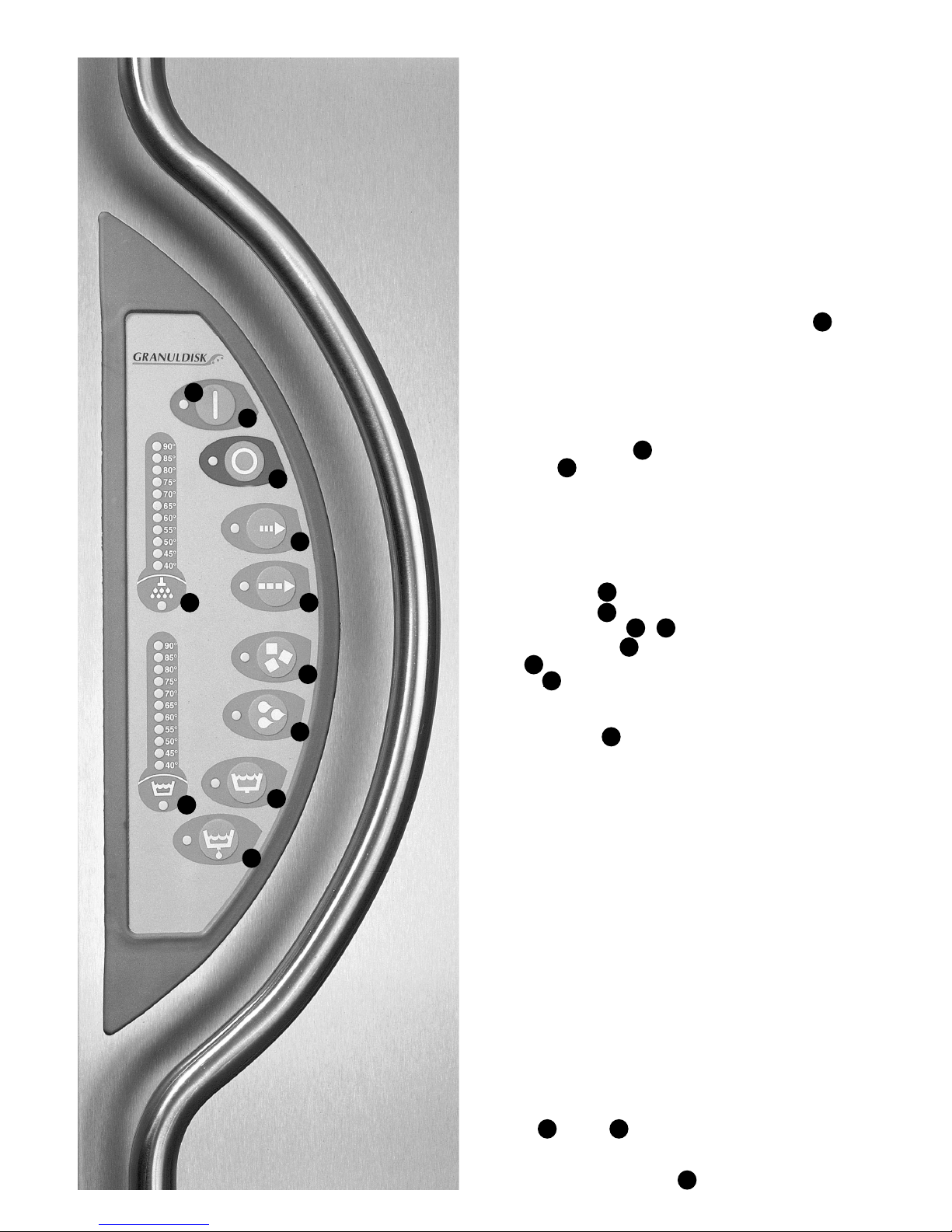

Control panel
1. Start button
2. Stop button
3. Choice of normal program
4. Choice of long programme
5. Washing up with granules
6. Washing up without granules
7. Closing waste valve
8. Emptying tank
9. Shows rinse water temperature
10. Shows washing up water temperature
Filling the machine
The bottom valve is closed by pressing the close button (7) or
by selecting a programme. The machine automatically fills with
water when the doors are closed and a programme selected. The
lamps for the wash programmes selected to fill the machine flash
out of time while the machine fills with water.
Select washing with or without granules
Washing-up with granules (5) is used for all heavily soiled items.
Washing-up (6) without granules should be selected for lightly
soiled goods or for perforated trays or utensils where granules can
fasten as well as for transparent plastic materials. There is an ultra-
short programme for lightly soiled utensils. NB! The ultrashort
programme is not designed to cope with burnt-on food.
Select desired washing up time
• Short, 5 min 30 s. 3
• Long, 7 min 30 s. 4
• Ultrashort 3 min, 30 s. 1 + 3
Keep button for normal 3 programme pressed down while start
button 1 is pressed.
The lamp 3 will blink as confirmation of the choice.
Start
Press the start button (1) . The water temperature in the wash tank
should be at least 60 °C to obtain the best results (the preset tem-
perature is 65 °C). Washing at temperatures that are too low also
increases the risk for the creation of foam and a poor wash result.
The machine can be preprogrammed so that it cannot be started
before the temperature in the tank has reached at least 60 °C. Re-
programming should only be carried out by qualified staff.
This default temperature is already installed at the factory in
machines equipped with GDT™. To clean the inside of the ma-
chine, run a short programme with the machine empty before
the first run.
Operation
The wash programme begins by washing with/without granules
for 1, 3 or 5 minutes after which there is a rinse without granules
followed by a final rinse at 85 °C with fresh water for 30 seconds.
If the temperature of the final rinse water is too low, the wash
time is increased until 85 °C is reached. The air in the machine
is then cooled for 1 minute to lower the temperature of the pots
and remove steam.
When the rinse or wash tank elements are activated and the wa-
ter is being heated, this is indicated by the lamp lighting under
the rinse (9) or wash (10 tank thermometer. Not in operation
simultaneously.
NB! The doors cannot be opened before the wash programme is com-
pleted and the operating lamp is off 1a .
13
7
3
4
1
3
3
1
3
5
6
1
910
1a
1a

14
Stopping the machine while in operation
Should it be required to stop the machine before the washing
cycle is complete, switch to washing with water for about 30 sec-
onds (6) to rinse off all granules. Then press the stop button (2)
. The stop button can be pressed immediately if the programme
without granules is being used or if the machine must be stopped
in an emergency.
NB! Utensils can have remains of detergent on them and should be
washed again before they are taken out of the machine and used!
Inspecting pots and pans
It is important, as with all washing up, that staff check the re-
sults. Remove any granules that have fastened in corners, sharp
angles and other inaccessible places (fig 14)
Granules
Granule potwashing machines from Granuldisk AB work best
with our specially designed granules. Their design ensures the
best wash results as well as the longest working life both for
themselves and the machine. For this reason, the guarantee only
applies if granules from Granuldisk AB are used in the machine.
The plastic material in the granules is approved for use in con-
junction with food.
We recommend that the granules are replaced several times a year.
Hygiene
The machine is prepared for automatic HACCP documentation.
Specially developed software, GDT™, Granuldisk Documenta-
tion Tool, and a modem are then required.
14
6 2

Collecting and cleaning the granules
The granule collector, which comes with the machine, is the
easiest way of emptying the machine of granules for cleaning or
changing. Place the GD 655 granule collector in the runners for
a GN 1/1 on the right of a GD 672 or GD 675 insert (see fig.
15). The insert should be placed in the bottom of the cabinet.
Close the doors and start a long programme (see p. 13). All the
granules will end up in the granule collector.
Take out the filled granule collector and wash (shower) the
granules thoroughly so that any food remains are washed away.
The machine should have about 6 kg granules. There is a mark
for 6 kg in the granule collector. Alternative method for control
of granule level, please see Servicemanual page 13.
NB! Never use too many granules in the machine. This can lead
to blockages in the spray pipes as well as an inferior wash result.
Emptying the tank
Press the stop button (2) (see page 13). Then press the emptying
button (8) (see page 13).
The lamp lights briefly while the valve moves into the open position.
Cleaning
• Lift out inserts (fig. 3).
• Take out both spray pipes (fig. 11).
• Lift out bottom grating (fig. 16).
• Lift out overflow sieve (A, fig. 17).
• Wash inside of machine with water only (fig. 17).
• Remove sieve cover by pulling handle straight up (B, fig. 17).
• Then clean parts that have been lifted out. Be especially careful
to check that spray pipes are not blocked.
• Wipe the level guard (C, fig. 17).
• The drip channel should also be washed clean and dried (D,
fig. 17). It is important that this is done to avoid the channel
becoming blocked.
• Wipe door seals.
• Wipe inside of machine with a damp cloth. The outside of
the machine should not be washed with high-pressure water.
• The top should be wiped off as required or at least once a month.
Replacement of fittings
Replace all fittings.
Ensure the handle on the sieve cover is pressed in (B, fig. 17).
It is important that the spray pipes are secured properly. If this is
a problem it could be that there are granules between the spray
pipe and the rubber seal. Take out the spray pipe, remove any
granules and try again. Never use force to fit the spray pipes!
NB! If the overflow sieve is not put back then the granules will
run down the drain.
During longer stoppages
• Ensure that wash tank is completely empty after cleaning.
Any water remaining in the bottom should be removed with a
sponge or similar absorbent.
• Leave doors slightly open so that air can circulate in the
machine.
• Granules should be stored in granule collector standing in the
machine.
• After a longer stoppage; check operation of the machine
according to service manual, possibly with the assistance of a
service engineer.
3. Daily cleaning
15
2
8
15
16
17

4.Troubleshooting and alarms
16
Check the following if the utensils are not completely clean:
·Are the spray nozzles blocked?
·Were the utensils located cor
rectly?
·Wasthe right programme selected?
·Is the wash water very dirty?
·Are there sufficient granules?
·Is the detergent dosing correct?
The machine is equipped with various alarms.
Spray pipe motor alarm
If the spray pipes should become blocked for any reason, the
machine comes to a total standstill and all the lamps on the
control panel 1 - 10 begin to blink in time. If the alarm goes
off: Switch the machine off by pressing the stop button 2.
Open the doors, check what has caused the alarm and remedy
the fault. Then close the doors, select a new wash programme
and start the machine.
NB! Contact a service engineer if no fault is found.
Long filling time
If it takes too long to fill the wash tank, the lamp for emptying
the wash tank blinks out of time with the others. Check that
the water supply is switched on. Another cause can be a block in
the drain valve or a false reading for the water level. NB! If the
drain valve is blocked or there is a false level reading, contact the
service staff.
Long time after filling
If the washing with granules lamp blinks out of time with the
others, the most likely problem is foaming in the machine.
NB! Contact the service staff to check that the temperatures in the
wash and rinse tanks are correct. Check that washing-up liquid is
not being used in the machine. Contact your detergent supplier to
check if the detergent dosing is correct.
Wrong temperature in the wash or rinse
tank
If either of the lamps under the symbols for the washwater
or rinse water thermometers blinks out of time with the
others the thermostat is not working. The machine cannot be
started before the thermostat has been replaced.
NB! Contact the service staff for a check.
1
2
3
5
10
9
10
1
2
3
4
5
6
7
8
10
9

Notes
