Contents
CE Declaration of Conformity 5
1 General Description and Safety 7
1.1 To the user 7
1.2 Safety regulations 7
1.3 Technical data 8
2 Operating 11
3 Daily cleaning 23
3.1 Collecting and cleaning PowerGranules 23
3.2 Cleaning inside the machine 24
3.3 Replacement of cleaned items 26
3.4 Over night and at longer stoppages 26
3.5 GD Memo™ 27
4 HACCP Hygiene and Operation
Documentation 29
5 Troubleshooting and alarms 31
6Notes 35
3

CE Declaration of Conformity
The Manufacturer:
GRANULDISK AB
Jägershillgatan 15
SE-213 75 MALMÖ, Sweden
declares that the following machinery:
The GRANULDISK system Granule Maxi®.
TheGranuleMaxi®isaGranulepotwashingmachine–apotwashingmachineforcommercial
kitchens that is designed for washing such wares as pots and pans.
Basic conception
a. the equipment, to which the CE Mark has been affixed, complies with the Machinery
Directive, 2006/42/EC.
b. is besides the provisions under a) manufactured according to the following directives: the
EC Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC
c. is manufactured in conformity with the following harmonised standards: EN 60204-1:2006,
EN 55014-1, EN 60335-2-58, EN 60439-1, EN 55022, EN ISO 13850:2008, EN ISO
13857:2008, EN 61000-6-3 and EN 61000-6-2
d. is manufactured in accordance with EN 1717 and fitted with a type AB back flow protection
device with airgap in accordance with EN 13077:2008.
Malmö, Sweden 11.02.2012
Signed on behalf of
GRANULDISK AB GRANULDISK AB
Jägershillgatan 15
21375MALMÖ
Phone: [phone]
Fax: [phone]
Peter Schön
President
Rev. 2015-02 5

CE Declaration of Conformity

1 General Description and Safety
1.1 To the user
Granule Maxi® is a Granule pot washing machine – a pot washing machine for commercial kitchens
that is designed for washing pots and pans.
This manual is your guide for the correct use of the Granule Maxi® pot washing machine.
GRANULDISK recommends that you study the manual thoroughly to be sure that the machine is
installed and used correctly and safely.
Ensure that the manual is always available during the whole life of the machine.
GRANULDISK accepts no responsibility for damage to the equipment or other damage or injury
caused by not following the directions in this manual.
1.2 Safety regulations
The machine uses hot water. Avoid contact with the skin as there is a risk for scalding!
Do not open the doors during a wash cycle! Risk of burn.
The plastic in the Granules is approved for use in conjunction with food.
There is a risk of slipping if Granules are left on the floor.
Formaldehyde, which is dangerous if inhaled, may be formed if the Granules catch fire.
Regarding the handling of detergent in the manual, please see the manufacturer’s instructions.
Rev. 2015-02 7

1.3 Technical data 1 General Description and Safety
1.3 Technical data
Weight ................................. 666kg(filled machine), 485 kg (empty machine)
Externaldimensions ................. 2029(±25mm)x1452x1089mm(HxWxD)
Tankvolume .......................... 165litres
Granuleamount ...................... 16litres
Washwatertemperature ............. 65°C
Rinse water temperature ............ 85 °C
Wash programmes w Granules ..... Eco: 2 min, 30 sec
Short: 4 min, 40 sec (1 min longer with steam reduction)
Normal: 6min,40sec(1 min longerwithsteamreduction)
Wash programmes w/o Granules ... Eco: 2 min, 30 sec
Short: 3 min, 40 sec (1 min longer with steam reduction)
Normal: 5min,40sec(1 min longerwithsteamreduction)
Rinsewatervolume .................. 7litres/ECOprogramme
14 litres/short, normal programme
To achieve 3600 HUE according to NSF/ANSI 3, 14 litres
is necessary.
Capacity ............................... 8xGN1/1or16xGN1/2,orequivalentinotheritems
Loadingvolume ....................... 450litres(w540xh1060xd680mm)
Design ................................. CompactSystemwithfixed sliding cassette.
Flow System with 1 trolley and 2 loose cassettes.
Freeflow System with 2 trolleys and 2 loose cassettes.
Voltage** ............................. 3~400V/50Hzor60Hz+PE
3~ 208v/60 Hz + PE
3~ 230 V/50 Hz or 60 Hz + PE
3~ 380 V/50 Hz or 60 Hz + PE
3~ 415 V/50 Hz + PE
3~ 440 V/60 Hz + PE
3~ 575 V/60 Hz + PE
Fuse** ................................ 400V:40Ahotwaterconnection,20Asteamheated,
50 A cold water connection
208 V: 63 A hot water connection
230 V: 63 A hot water connection
380 V: 40 A hot water connection, 50 A cold water
connection
415 V: 40 A hot water connection, 50 A cold water
connection
440 V: 40 A hot water connection
575 V: 32 A hot water connection
Frequency. ........................... 50Hzor60Hz
Maximumpower ..................... 21kWhotwaterconnection
29 kW cold water connection
5 kW steam heated
Washpumpmotor ................... 2x2,2kW(2x3,0kW575V)
Rinse pump motor ................... 0,37 kW
8 Rev. 2015-02

1 General Description and Safety 1.3 Technical data
Washtankelement* ................. 16kWhotwaterconnection
24 kW cold water connection
Rinsetankelement* ................. 16kWhotwaterconnection
24 kW cold water connection
Encapsulationclass ................. IPX5
Soundpressurelevel ................ <70dB(A)
Hotwater ............................. ½”(DN15),55-65°C,3-10°dH(5–18°fH,54–179ppm)
NB! Reverse osmosis water and totally softened water
must not be used.
Water pressure/flowh.w ............ 1-6bar,25l/min
Coldwater ............................ ½”(DN15),3-10°dH(5–18°fH,54–179ppm)
Water pressure / flow c.w ........... 1-6 bar, 25 l/min (steam reduction only; 3-6 bar 15 l/min)
Recommendedventilationcapacity 700 m3/h (without steam reduction)
200 m3/h (with steam reduction). N.B. steam reduction is
factory fitted for Granule Maxi®. For ECO-programmes,
the factory setting for Steam reduction is OFF.
Outflow ............................... PipeØ32mm
Drain .................................. Requiredcapacity50l/min.
The machine should not be placed directly above the
drain.
* Not in use simultaneously
** For specific data regarding delivered machines, please see machine rating plate
NOTE
TheGranuleMaxi®issuppliedwitha2metreslongelectriccabletobeconnected
to an approved supply disconnecting device on the wall. The supply disconnecting
device is not included in the delivery.
Rev. 2015-02 9

1.3 Technical data 1 General Description and Safety

2Operating
Start up
1. Fill the machine with the right amount of
PowerGranules fromtheGranulecollectors.
2. Close the drain valve (see Figure 1 Close
the drain valve).
3. Switch on the main electrical switch.
Figure 1: Close the drain valve
Filling with water
1. Close the doors.
2. Press the Confirm(1)buttoninordertofill
thewashtank.
Fill wash tank?
3. The programme selection diodes flash out
of sequence with the diodes for washing
with or without Granules during filling.
XX°C XX°C
Filling the wash
tank
4. Filling and heating take about 20 minutes
(standard; hot water connection, +55 °C).
For optional cold water connection (+10 to
12 °C), filling and heating take about 40
minutes. If the correct temperature has not
been attained in the wash tank after filling,
the following message is displayed; Figure 2: Control panel
Rev. 2015-02 11

2 Operating
50°C 60°C
Heating the
wash tank, 65 C
5. Ready to use when the correct temperature
has been attained in the wash tank. A
preselected programme is now displayed;
65°C 85°C
Eco program
with Granules
wash time: 2:30
NOTE
Indication lamps
RED LAMP; indicates that
the machine is working.
Do not open the door!
GREEN LAMP; indicates
that the machine is ready
for use.
Figure 3: Indication lamps
Preparing utensils
1. Empty and scrape off all food remains
before loading the utensils (see Figure 4
Scrape off food).
• No soaking or scrubbing is needed.
• No usage of hand-soap or similar (to
avoid foaming which could lead to
extended problem)
2. Pots and pans containing moist protein-rich
food remains may need a splash of water
before being loaded into the machine.
Figure 4: Scrape off food
12 Rev. 2015-02

2 Operating
Loading utensils
All utensils must be loaded with the inside facing
thespraynozzles. SeeFigure5Loadingutensils.
Figure 5: Loading utensils
Inserting and removing the cassette
Granule Maxi, Compact Version: The cassette is
an integral part of the machine and can be slid
halfway out of the machine.
Granule Maxi, Flow system: roll the trolley up to
theloaded cassette. Undothecatchandraisethe
handle(Figure6 Hookingthecassette). Hookthe
cassette on by pushing the handle down again.
Thecassette isthenrolled into the machine using
the trolley. Unhook the cassette by undoing the
catch and raising the handle (Figure7Trolley
catch).
The cassette can easily be suspended on wall
hooks next to the machine by following the above
instructions in reverse.
Granule Maxi, FreeFlow system: The cassette is
loaded suspended onto the trolley. The cassette
is then rolled into the machine using the trolley.
Unhook the cassette by undoing the catch and
raising the handle (Figure 7 Trolley catch).
Figure 6: Hooking the cassette
Figure 7: Trolley catch
Rev. 2015-02 13

2 Operating
Multicassette for Granule Maxi Flow/FreeFlow
(14469)
For8GN1/1containersor4GN2/1orthe
equivalent in other wash ware.
See Figure 8 Multicassette.
Figure 8: Multicassette
Pot- and saucepan holder (10972)
Capacity: 3-5 pots/saucepans with handles or
ears to be hung on to the hooks.
See Figure 9 Pot- and saucepan holder.
Figure 9: Pot- and saucepan holder
Utensil holder (10362)
For ladles, whisks etc (up to 500 mm). The
utensil holder is fitted in one of the upper runners
on the cassette.
See Figure 10 Utensil holder.
Figure 10: Utensil holder
14 Rev. 2015-02

2 Operating
Dividers for GN containers, sizes GN 1/9-2/3
(19313)
ToallowGN1/2,1/3,1/6,1/9and2/3.The
Divider makes it possible to load one of the
following combinations:
• 4 x 1/2 GN containers or
•8GN1/4or
• 2 x 1/3 and 2 x 2/3 GN containers or
• 4 x 1/6 and 2 x 2/3 GN containers or
• 6 x 1/9 and 2 x 2/3 GN containers
See Figure 11 Divider.
Figure 11: Divider
Lid- and tray holder (10950)
Capacity:upto9pcsofGN1/1sizedflat trays
and lids. The lid holder is best fitted in the lower
cassette runners. See Figure 12 Lid and tray
holder.
Figure 12: Lid and tray holder
Holder for small GN pans (10948)
Capacity:upto6GN1/3or12GN1/6or18
GN 1/9. The holder is placed in one of the four
existing runners on the cassette.
Each row in the holder can take the following
combination: 2 x 1/3 or 4 x 1/6 or 6 x 1/9 GN
containers.
See Figure 13 Holder small GN pans.
Figure 13: Holder small GN pans
Rev. 2015-02 15

2 Operating
Netbasket with lid (21477)
For ladles, whisks up to 500 mm length. Place at
the bottom of the cassette, following the runners.
See Figure 14 Netbasket.
Figure 14: Netbasket
Insert for baking trays (22017)
Capacity: 8 x 600x400 mm baking trays, max 20
mm edge.
Figure 15: Insert for baking trays
16 Rev. 2015-02

2 Operating

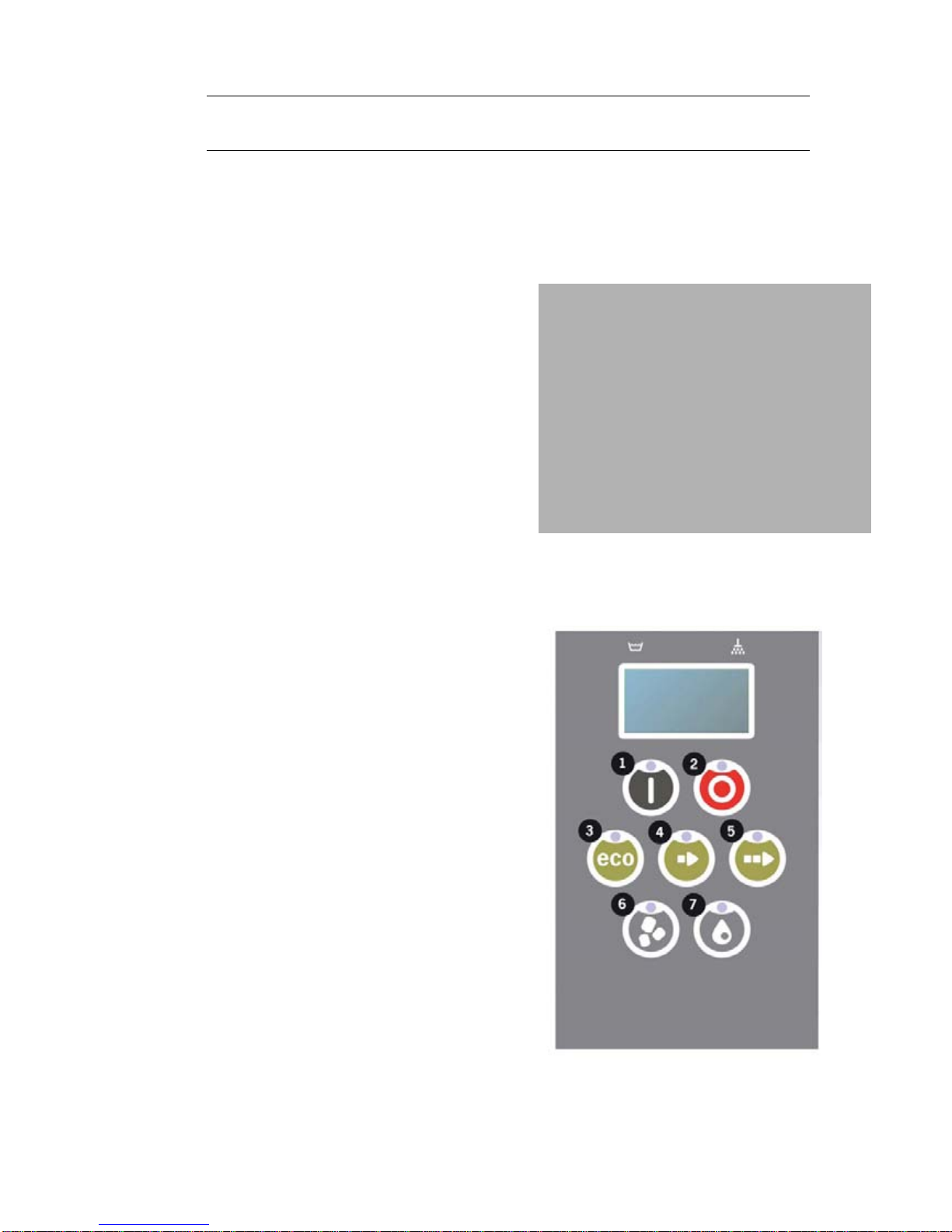

Control Panel
1. Confirmbuttonisusedtoanswer“yes”toa
question shown in the display window
2. The Stop button is used to reset potential
alarms.
It is also used to enter sleep mode. After 30
seconds the display light goes out and the
machine goes into sleep mode. The Stop
button’s red diode stays lit during sleep
mode, but all functions in the machine are
deactivated.
Push any button to reactivate the machine.
In sleep mode there is no heating of the
wash tank or rinse tank.
3. Start Eco programme
4. Start Short programme
5. Start Normal programme
6. Washing with Granules
7. Washing without Granules
Start and Operation
1. Press the Confirm button (1)
• Iftemperatureislowerthan65°Cinwashtankatthetimeofthefirst start, once the wash
tank has been filled, the machine will continue heating.
• Washing at a too low temperature increases the risk of foaming and the items not being
hygienically clean.
• Reprogramming may be carried out by authorised personnel only.
62°C (blinking) 59°C
Heating the
wash tank, 65°C
2. Select washing with or without Granules (6) or (7). For slightly soiled pans or specificitems
with Granule “traps” (i.e perforated containers), choose programme without Granules. Normal
to heailyy soiled pots and pans, choose the right powerful Granule cycles to blast the utensils
clean.
Rev. 2015-02 17

2 Operating
3. Select and start required wash time (3), (4)
or (5)
Eco
2min,30sec(withGranules),
2 min, 30 sec (without Granules)
Short
4min,40sec(withGranules),
3 min, 40 sec (without Granules)
+ 1 minute with steam reduction
Normal
6min,40sec(withGranules),
5 min, 40 sec (without Granules)
+ 1 minute with steam reduction
65°C 85°C
Eco program
with Granules
Time remaining: 2:30
4. After 3 seconds a countdown of remaining
wash time will appear in the display.
5. When the wash programme is complete,
theword”END”flashes and the green
indication lamp goes on.
65°C 85°C
END
6. When the doors are opened the display
goes back into stand-by mode and shows
the latest programme used. Figure 16: While a programme is running the red light is
shining.
18 Rev. 2015-02

2 Operating
65°C 85°C
Eco program
with Granules
Wash time: 2:30
WARNING
Do not open the door
during a wash cycle! Risk
of burn.
7. Keepthedoorsclosedifyou arenotrunning
another wash programme straight away.
It saves energy and reduces evaporation
from the wash tank. Figure 17: When the programme is finished the green light
goes on.
Stopping the machine while in operation
• Switch to washing with water (7) for about 30 seconds in order to rinse off all Granules. Then
press STOP (2)
• In an emergency: Just press STOP (2)
NOTE
Utensils may have remains of detergent and should be washed again before
they are taken out of the machine. Never drain an emergency stopped machine!
(Granules left in the pump without water will jam the pump impeller.)
WARNING
Do not open the door during a wash cycle! Risk of burn.
Rev. 2015-02 19

2 Operating
Resetting of overheat protection
Reset overheat protection if error codes 104,
105, 106, 107, 108 occur.
1. Empty the wash tank.
2. Clean the level sensor.
3. Unscrew the black cap, .
4. Reset the overheat protection using a small
screwdriver to stick into the protector and
push the reset button. If the protection has
tripped, a click is heard when it is reset.
5. If the error code recurs in the next few hours,
contact a service engineer. Figure 18: Access to overheat protectors
Inspecting the pots and pans
• Examine the pots and pans after each
programme.
• TomakesurenoGranulesareleft,turnall
washware (baskets, pans etc) upside down,
before taking the items out of the machine.
• Remove any Granules that may be stuck in
corners, sharp angles and otherinaccessible
places (see Figure 19 Make sure no
Granules are stuck.).
Figure 19: Make sure no Granules are stuck.
PowerGranules
• Specially designed to work with Granule pot and pan washing machines from GRANULDISK.
• Ensure the best wash result as well as the longest working life both for themselves and the
machine.
• The plastic material is approved for use in conjunction with food.
• For spotless clean result, please control the recommended level (Total of 16 litres; 8 litres in
each Granule collector) of Granules every day when collecting the PowerGranules. Top up
with PowerGranules if the level goes under the horizontal level mark in each Granule
Collector! (See Figure 21 Check Granule level.)
• Please follow the recommended exchange of PowerGranules communicated by the
GDMemo™ (message occurs every 2 500 Granule cycle).
20 Rev. 2015-02
