GREAT PLAINS Turbo-Max 6.0M User manual

Read the operator manual entirely. When you see
this symbol, the subsequent instructions and
warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Illustrations may show optional equipment not
supplied with standard unit.
!
Table of Contents Index
Original Instructions 588-015M
Great Plains
OPERATOR MANUAL
MODELS 6.0M & 8.0M

Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you or the dealer have added options not originally ordered with the machine, or removed options that were originally
ordered, the weights and measurements are no longer accurate for your machine. Update the record by adding the
machine weight and measurements with the option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Year of Construction
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
Dealer’s Customer
No.:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

To our customer:
Congratulations on the purchase of your Great Plains product. Great Plains welcomes you to its
growing family of new product owners. Your product has been designed and built by skilled
workers using quality materials.
Your dealer has performed the necessary pre-delivery service to your machine, and will advise
you of the proper maintenance and operating practices that will give you long, satisfactory use of
your machine. Do not hesitate to contact your dealer when you have a question related to your
machine.
Your machine has been designed to run efficiently in most operating conditions, and will perform
relative to the service it receives. If you need customer service or repair parts, contact your dealer
who has trained personnel, repair parts, and equipment specially designed for Great Plains
products.
Read this manual carefully before using the machine. It will familiarize you with safety, operation,
adjustments, and maintenance of your new equipment. This manual must always be kept with
your machine.
Great Plains wants you to be satisfied with your product. If for any reason you do not understand
any part of this manual or are otherwise dissatisfied, please take the following actions first:
1. Discuss the matter with your dealership service manager. Make sure he is aware of
any problems so he can assist you.
2. If you are still unsatisfied, seek out the owner or general manager of the dealership.
If your dealer is unable to resolve the problem or the issue is parts related, please contact:
Great Plains Service Department
1525 E. North St.
P.O. Box 5060
Salina, KS, USA 67402-5060
Printed 01/31/2019 | English
Great Plains reserves the right to revise and improve its products at any time. This publication describes the state of this product at the
time of its publication, and may not reflect the product in the future. The content of this publication may be changed without notice.

© 2018 Great Plains | Printed in the United States of America
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any
means, including photocopying, recording, or other electronic or mechanical methods, without the prior written
permission of the publisher, except in the case of brief quotations embodied in critical reviews and certain other
noncommercial uses permitted by copyright law.
Trademarks of Great Plains Manufacturing, Inc. include: AccuShot, DrillCommand, Max-Chisel, Row-Pro, Singulator
Plus, Short Disk, Swath Command, Terra-Tine, Ultra-Chisel, and X-Press.
Registered trademarks of Great Plains Manufacturing, Inc. include: Air-Pro, Clear-Shot, Discovator, Great Plains, Land
Pride, MeterCone, Nutri-Pro, Seed-Lok, Solid Stand, Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo-Max, Turbo-
Trill, Ultra-Till, Whirlfilter, and Yield-Pro.
Brand and produce names that appear and are owner by others are trademarks of their respective owners.
For permission requests, write to the publisher at the address below.
Great Plains Mfg.
1525 E. North St.
P.O. Box 5060
Salina, KS 67402
You can also visit our website at www.greatplainsag.com/en/manuals/905/product-manuals for a full catalog of this
and other manuals.
Ordering Information:
Quantity sales. Special discounts are available on quantity purchases by corporations, associations, and others. For
details, contact the publisher at the address above.
Orders for personal, non-commercial use. Please contact our service department by mail or our website
www.greatplainsag.com.

Turbo-Max Cover Index
Great Plains | 588-015M | 2019/01/31 v
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Intended Use Statement . . . . . . . . . . . . . . . . . . . 1
Prohibited Use . . . . . . . . . . . . . . . . . . . . . . . . 1
Machine Serial Number . . . . . . . . . . . . . . . . . . . . 1
Turbo-Max Models Covered. . . . . . . . . . . . . . 1
Document Family . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . 2
Before Getting Started . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Handling and Disposing of Chemicals . . . . . . 3
Operation Noise Hazard. . . . . . . . . . . . . . . . . 3
PTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
High Pressure Fluids . . . . . . . . . . . . . . . . . . . 4
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Chain. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Lights and Devices . . . . . . . . . . . . . . . 4
Shutdown and Storage. . . . . . . . . . . . . . . . . . . . . 4
Proper Waste Disposal . . . . . . . . . . . . . . . . . . . . 4
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Reflectors - Red Triangle . . . . . . . . . . . . . . . . 5
Preparation and Setup. . . . . . . . . . . . . . . . . . . 10
Pre-Operation Checklist . . . . . . . . . . . . . . . . . . . 10
Hitching Turbo Max to Tractor . . . . . . . . . . . . . . 10
Electrical Hookup. . . . . . . . . . . . . . . . . . . . . . . 11
Hydraulic Hose Hookup . . . . . . . . . . . . . . . . 12
Transport Locks . . . . . . . . . . . . . . . . . . . . . . 12
Wing Folding/Unfolding . . . . . . . . . . . . . . . . . . . 13
Unfolding . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front to Rear Leveling . . . . . . . . . . . . . . . . . . . . 13
Level Bar Spring Adjustment . . . . . . . . . . . . . . . 13
Wing Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 14
Gang Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . 14
Weight Package Installation. . . . . . . . . . . . . . . . 15
Brake Connections. . . . . . . . . . . . . . . . . . . . . . . 15
Air Brake Connections . . . . . . . . . . . . . . . . . 15
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pre-Start Checklist . . . . . . . . . . . . . . . . . . . . . . . 16
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Transport Steps . . . . . . . . . . . . . . . . . . . . . . . . . 16
Field Operation. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Field Set-Up Checklists . . . . . . . . . . . . . . . . 16
Final Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . 17
General Operation and In-Field Adjustments. . . 17
Hydraulic Down Pressure. . . . . . . . . . . . . . . . . . 18
Tillage Gang Controls. . . . . . . . . . . . . . . . . . . . . 18
Depth Stop Adjustment . . . . . . . . . . . . . . . . . . . 19
Rolling Harrow and Reel (Option). . . . . . . . . . . . 19
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Placing Machine Into Storage. . . . . . . . . . . . 20
Removing Machine From Storage . . . . . . . . 20
Hydraulic Fold & Re-track Layout. . . . . . . . . 25
Hydraulic Fold Layout. . . . . . . . . . . . . . . . . . . . . 26
Hydraulic Fold Connections . . . . . . . . . . . . . 26
Hydraulic Lift Layout. . . . . . . . . . . . . . . . . . . . . . 27
Hydraulic Lift Connections . . . . . . . . . . . . . . 27
Hydraulic Gang Layout. . . . . . . . . . . . . . . . . . . . 28
Hydraulic Gang Connections . . . . . . . . . . . . 28
Lighting Wire Layout. . . . . . . . . . . . . . . . . . . . . . 29
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Tire Inflation Chart . . . . . . . . . . . . . . . . . . . . . . 30
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Wheel Bearing Hubs. . . . . . . . . . . . . . . . . . . 30
All Turnbuckles and Threaded Adjustments. 31
Coulter Bearings. . . . . . . . . . . . . . . . . . . . . . 31
Finishing Reel. . . . . . . . . . . . . . . . . . . . . . . . 31
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Cover Index

Great Plains | 588-015M | 2019/01/31 1
Turbo-Max Table of Contents Index Introduction
Introduction
Great Plains’ Turbo-Max is a pull-type unit designed
for tilling and working soil. Every Turbo-Max we build
is designed and built 588-015M with care using only
quality materials. For the best user experience, read
this manual and follow all instructions carefully.
These pages will guide you through the operation
and contain tips for easier adjustment and
maintenance.
Intended Use Statement
The 6.0 & 8.0M Turbo Max with standard equipment
and/or authorized attachments and options is
intended to be used as a “vertical” tillage tool when
operated according to instruction and safety
precautions in this manual, machine decals and
other information provided with the machine.
Use this tillage tool to cut and size residue, till soil for
faster seedbed warming break up soil crust and hard
dried fields while eliminating compaction layers.
The front and rear gangs may be adjusted from 0-6
degree angels, depending on the aggressiveness
desired.
Right-hand and left-hand side are determined by
facing the direction of forward travel.
Prohibited Use
Do not use this machine for any purpose or in any
way other than what is described in this manual,
machine decals, or any other information provided
with the machine. These materials define the
intended use of the machine.
Unauthorized modifications to the machine will
relieve the manufacture of all liability for any resulting
injury or damage.
Machine Serial Number
Your machine’s parts were specially designed and
should only be replaced with Great Plains parts.
Always use the serial and model number when
ordering parts from your dealer. The ID plate is on
the front face of the center frame on the left hand
side.
Turbo-Max Models Covered
Document Family
See “Specifications and Capacities” on page 85
for precise swath information.
6.0 Meter Turbo-Max 19cm row spacing
8.0 Meter Turbo-Max 19cm row spacing
588-015M Operator Manual (this document)
588-015Q Pre-Delivery Manual
588-015P Parts Manual

Turbo-Max Table of Contents Index Safety Information
Great Plains | 588-015M | 2019/01/31 2
Safety Information
The safety symbol indicates a potential safety
hazard to persons operating or near the
machine and advises on how to avoid it.
The notice symbol indicates a potential for
machine or property damage from operator
error and advises on how to avoid misuse.
The information symbol indicates useful - but
not crucial - information for machine
operation, assembly, or adjustment.
Before Getting Started
1. Read this manual in its entirety before attempting
to start and operate the machine.
2. Only use operators that are thoroughly trained by
the owner or trained by someone with the
owner’s consent. The operator must be familiar
with all functions of the tractor and attachments,
and be able to handle emergencies quickly.
3. Maintain attention on operation at all times. Do
not operate if using a smart phone, tablet, or
similar electronic device, and never operate
machine while impaired by alcohol, medication,
any controlled substance, or while fatigued.
4. Do not ever allow passengers to ride the
machine at any time, for any reason.
5. Before operation, make sure that all tractor cab
levers are in their neutral positions and that the
parking brake is engaged.
6. Check brakes, link pins, and other mechanical
parts for wear before using machine.
7. Never wear loose or bulky clothing around
machine. Use additional safety equipment, such
as hard hats, eye and ear protection, safety
boots, etc., as needed.
8. Do not modify the machine. Unauthorized
modification can result in unsafe conditions that
lead to machine damage or personal injury.
Operation
1. Always stop the tractor, put in Park and turn off
engine before leaving the cab. Dismounting from
a moving tractor can cause serious injury or
death.
2. Consider turning radius of tractor and implement
in the field. Turning tractor too tight can cause
hitched implement to ride up on wheels which can
result in injury or equipment damage.
3. Pull machine only from the hitch at the end of the
tongue. Never pull from jack stand, safety chain,
or any point other than the hitch.
4. Never leave the tractor cab unattended while the
implement is running. Remove key and turn off
tractor before exiting the tractor cab.
5. Watch your surroundings at all times. Do not
operate with bystanders nearby, and avoid
contacting overhead obstructions.
6. Check that all guards and shields are
undamaged, installed, and secure before
operating implement.
7. Keep children out of the work area. Do not
operate or turn on machine while children are in
the area.
8. Do not operate near ditches, holes, steep slopes,
embankments, or other surfaces which may
collapse under the machine’s weight or tip the
machine over.
9. Never stand between tractor and implement
unless parking brake is applied.
!
!
i

Great Plains | 588-015M | 2019/01/31 3
Turbo-Max Table of Contents Index Safety Information
Handling and Disposing of Chemicals
Agricultural chemicals can be dangerous. Improper
use can seriously injure persons, animals, plants, soil
and property.
1. Read chemical manufacturer’s instructions
carefully, and then take appropriate precautions
before use.
2. Wear protective clothing.
3. Wash hands and face before eating after working
with chemicals. Shower as soon as application is
completed for the day.
4. Apply only with acceptable wind conditions. Make
sure wind drift of chemicals will not affect any
surrounding land, people or animals.
5. Dispose of unused chemicals and chemical
waste as specified by the manufacturer. Observe
all the local ordinances and regulations in your
area.
Operation Noise Hazard
1. Use proper ear protection like headphones or
earplugs while working.
PTO
1. Wait until all moving components have
completely stopped before adjusting, cleaning, or
servicing any PTO driven equipment.
2. Before installing or using PTO driven equipment,
read the tractor manual and review the safety
labels attached to the equipment.
3. When operating stationary PTO driven
equipment, always apply the parking brake and
place chocks behind wheels.
4. Stay clear of and never step over any rotating
parts.
Maintenance
1. Understand procedure before doing work. Use
proper tools and equipment.
2. Work in a clean, dry area.
3. Lower the implement. Put tractor in Park, turn off
engine. To prevent unauthorized starting, remove
key before performing maintenance or service
work.
4. If work must be performed with wings raised, set
the wing tilt locks to the road position.
5. Make sure all moving parts have stopped and all
system pressure is relieved.
6. Relieve hydraulic pressure before disconnecting
hydraulic lines or performing any work on the
system.
7. Do not work underneath any hydraulically
supported components. Hydraulics can settle,
leak, or be accidentally lowered. If working
underneath hydraulically supported components
is necessary, secure implement with stands or
suitable blocking beforehand.
8. Disconnect electronic monitor and lighting
harness from the tractor before servicing or
adjusting electrical systems.
9. Before welding, disconnect electronic monitor and
lighting harness from the tractor. Protect hydraulic
lines. Avoid fumes from heated paint.
10. Remove buildup of grease, oil, or debris.
11. Check and replace worn brake lines as needed.
12. Remove all tools and unused parts from
implement before operation.
Tire Safety
1. Check tires for cuts, bulges, and correct
pressure. Replace worn or damaged tires.
2. Tire changing can be hazardous and must be
performed by trained personnel using correct
tools and equipment.
3. Tire explosion and/or serious injury can result from
over inflation. Do not exceed tire inflation
pressures.
4. When removing and installing wheels, use wheel-
handling equipment adequate for weight involved.
5. Tighten wheel bolts only to the specified torque.

Turbo-Max Table of Contents Index Safety Information
Great Plains | 588-015M | 2019/01/31 4

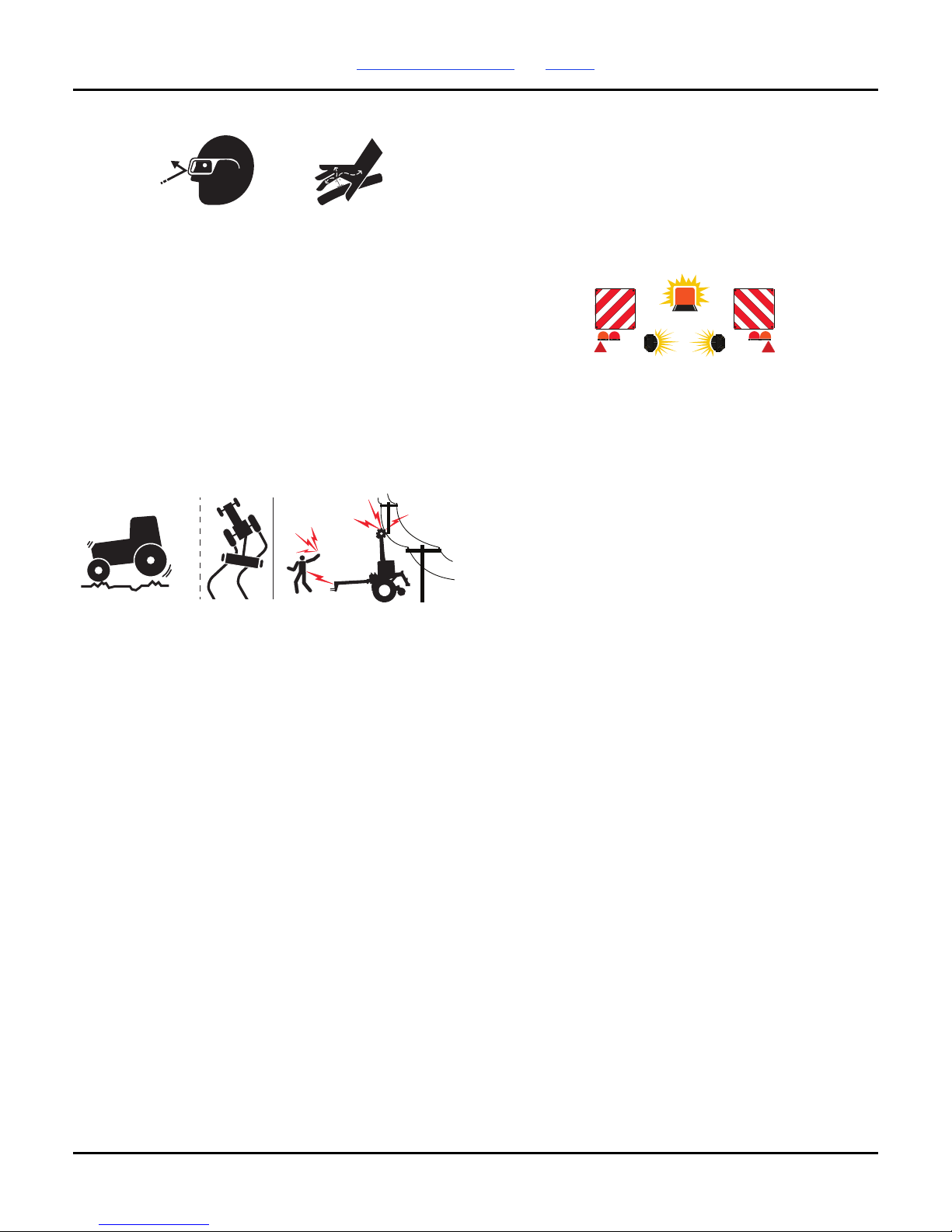

High Pressure Fluids
1. Escaping fluid from holes in hydraulic lines is
difficult to spot. Do not use your hands or bare
skin to search for suspected leaks; instead, use a
piece of cardboard or wood. If injured by
escaping hydraulic fluid, see a medical
professional immediately. Exposure can result in
gangrene or severe allergic reaction.
2. Check that hydraulic fittings are tight and all
hydraulic hoses and lines are in good condition
before applying pressure to the system.
3. Wear protective gloves and safety glasses or
goggles when working with hydraulic systems.
Transporting
1. As with transporting any piece of heavy
machinery, comply with all local laws and
regulations before and during transport process.
2. Transport only at recommended transport speed
for implement. Some rough terrains require a
slower speed. Sudden braking can cause a
towed load to swerve and upset.
3. Before towing implement on roads, make sure to
empty out all material from the hoppers or boxes.
4. Know transport height and width of implement.
5. Do not tow an implement that, when fully loaded,
weighs more than 1.5 times the weight of towing
vehicle.
6. Keep clear of overhead power lines and other
obstructions when transporting.
7. Do not fold or unfold the implement while the
tractor is moving.
8. Reduce speed when turning, and make as wide a
turn as possible. Turning tractor too tight can
cause implement to tip over.
9. When towing on a trailer, secure implement with
tie downs and chains.
10. When towing on a trailer, sudden braking can
cause a trailer to swerve and upset. Reduce
speed if trailer is not equipped with brakes.
Safety Chain
1. Use a chain with a strength rating equal to or
greater than the gross weight of towed machinery.
2. Replace chain if any links or end fittings are
broken, stretched or damaged.
3. Do not use safety chain for towing.
Safety Lights and Devices
1. Always use safety lighting. Slow-moving tractors
and towed machinery can create a hazard when
driven on public roads. They are difficult to see,
especially at night.
2. If equipped, use flashing warning lights and turn
signals whenever driving on public roads.
3. Use safety devices provided with implement.
4. Keep safety lights and signs clean and visible from
front and rear of machine.
5. Keep lights in operating condition.
Shutdown and Storage
1. Park the tractor and implement on a solid, level
surface where children normally do not play.
2. Fold and tilt wings.
3. Put tractor in park or set the parking brake. Turn
off engine and remove switch key to prevent
unauthorized starting.
4. Wait for all components to come to a complete
stop before leaving the operator’s seat.
5. Turn lockout valve and wing lock levers to locked
position to prevent the wings from lowering.
6. Detach the tractor. Secure the implement using
blocks.
Proper Waste Disposal
1. Dispose of waste properly to avoid threatening
the environment and ecology. Potential harmful
waste includes oil, fuel, filters, and batteries.
2. Use a leak-proof container for draining fluids. Do
not use a food or beverage container that may be
mistaken for a consumable product.
3. Do not drain or pour waste onto the ground,
down a drain, or into any water source.
4. Contact your local environmental or recycling center
for the proper way to recycle or dispose of waste.

Great Plains | 588-015M | 2019/01/31 5
Turbo-Max Table of Contents Index Safety Decals
Safety Decals
Your implement comes equipped with safety
reflectors and decals in place.
Read and follow decal directions. Keep all safety
decals clean and legible. Replace all damaged,
faded, or missing decals.
Order new decals from your Great Plains dealer.
Refer to this section for proper decal placement.
When ordering new parts or components, also
request corresponding safety decals.
To install new decals:
Clean the area on which the decal is to be placed.
Peel backing from decal. Press firmly on surface,
being careful not to cause air bubbles under decal.
Reflectors - Red Triangle
833-399C
Two red triangles at rear of unit.
Reflectors - Fluo rescent Panels
833-398C
Two panels at front and two panels at rear of unit.
69017
69017
69017

Turbo-Max Table of Contents Index Safety Decals
Great Plains | 588-015M | 2019/01/31 6
Crushing Hazard
848-513C
Do not stand between tractor and implement while
tractor is moving.
One decal on the hitch.
848-507C
Use ladder, not tires, to climb on machine.
Four decals one located near each tire location.
848-516C
Do not drive machine underneath low power wires.
One decal on the hitch.
844-066C
Avoid standing in front of tongue while unhitching.
One decal on the hitch.
69374a
69374f
69374a
69374a

Great Plains | 588-015M | 2019/01/31 7
Turbo-Max Table of Contents Index Safety Decals
844-067C
Lower machine to the ground before adjusting
turnbuckle and keep feet away from ground tools
while working.
Four decals on each side of center frame & wings,
above disc blades.
858-634C
Do not place hands between folding parts.
Four decals one the front and rear on each frame.
858-633C
Avoid crushing hazard by wings by not standing
under wings during operation.
Four decals, one on each side of the outside of the
center frame & the wing frames.
848-512C
Read & follow general instructions prior to machine
operation.
One on the rear right side of the hitch.
69374c
69374e
69374e
848-512C
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
69374b

Turbo-Max Table of Contents Index Safety Decals
Great Plains | 588-015M | 2019/01/31 8
858-636C
Do not preform any procedure that loosens
hardware, take appropriate precautions outlined in
this manual, carefully read all instructions for
machine use, do not move tractor with someone on
hitch.
One decal on the front fold bracket.
69374d

Great Plains | 588-015M | 2019/01/31 9
Turbo-Max Table of Contents Index Safety Decals

Turbo-Max Table of Contents Index Preparation and Setup
Great Plains | 588-015M | 2019/01/31 10
Preparation and Setup
This section helps you prepare your tractor and
Turbo Max for use, and covers tasks that need to be
done for new machines, seasonally, or when the
tractor/Turbo-Max configuration changes.
Before using the Turbo-Max in the field, you must
hitch it to a suitable tractor, inspect systems and level
the Turbo-Max. Before using the Turbo-Max for the
first time, and periodically thereafter, certain
adjustments and calibrations are required.
Pre-Operation Checklist
Complete this checklist before routine setup:
Read and understand “Important Safety
Information”on page 1.
Check that all working parts are moving freely, bolts
are tight, and cotter pins are spread.
Make sure your tractor horsepower matches the
implement you are pulling. This is important so the
implement can do the best possible job.
Clean all hydraulic couplings and connect to tractor,
see “Hydraulic Hose Hookup” on page 12.
If machine is folded, unlock wings and open wing lock
valve then slowly unfold the unit. Make sure no one is
under the wings during the unfolding process.
Check again for hydraulic leaks and watch that hoses
do not get pinched in hinges, wing stops, etc.
After the machine is completely unfolded, raise and
lower the Turbo Max several times to purge air from
the hydraulic system. Again check for hydraulic leaks
and tighten or replace if necessary.
Check safety chain hookup. Make sure all warning
lights are hooked up and functioning correctly.
Check that all grease fittings are in place and
lubricated. “Lubrication”on page 18. The hubs will
come pre-greased and will not need greased at this
time.
Check that all safety decals and reflectors are
correctly located and legible. Replace if damaged.
See “Safety Decals” on page 5.
Inflate tires to pressure recommended and tighten
wheel bolts as specified. See “Tire Inflation Chart”
on page 19.
Refold the machine slowly, then lock wings and close
wing lock valve. Always place wing locks in locked
position when moving from field to field. Put transport
locks into place. You are now ready to go to the field.
Hitching Turbo Max to Tractor
!
Hitch to a tractor for highway transport or field
operations.
DANGER: Crushing Hazard
Do not stand or place any body part between turbo max and
moving tractor. You may be severely injured or killed by being
crushed between the tractor and turbo max. Stop tractor engine
and set parking brake before attaching cables and hoses.
1. Raise tractor three-point arms (if equipped)
clear up to clear Turbo-Max.
2. For TWO-WHEEL DRIVE and MFWD trac-
tors, pin drawbar in fixed center position for
field and transport. For FOUR-WHEEL DRIVE
and TRAC-DRIVE tractors, leave one hole
clearance on each side of drawbar for field posi-
tion, hitch damage may occur if pinned solid.
Pin in center position for transport to maintain
maximum steering control.
3. Use jack (1) to raise and lower turbo max
tongue. Back tractor draw bar into alignment
with hitch (2). Secure with a locking hitch pin.
Secure safety chain (3) to an anchor on the trac-
tor.
Negative Tongue Weight Hazard
Make certain that turbo max is securely hitched to the
tractor or leading implement before unfolding. An
unhitched turbo max can tip over backwards during
folding and unfolding if the tongue is not secured.
1
2
3

Great Plains | 588-015M | 2019/01/31 11
Turbo-Max Table of Contents Index Electrical Hookup
4. Retract jack foot (1). Re-orient jack to storage
position. After hitching tractor to turbo max,
store jack on storage stub (4) on Turbo-Max
tongue.
Lock Drawbar
Lock drawbar swing to center position to
minimize any side-to-side sway to assure
proper tracking in the field, and safe road
travel. See “Transport” on page 14, for safe
transporting.
Electrical Hookup
1. Make sure tractor is shut down with accessory
power off before making connections.
2. Connect lighting connector and any options or
after-market electronics to tractor outlets.
3. Tie up excess cable, allowing enough slack for
the unit to make turns.
Make Electrical Connections
Make connections prior to machine
movement.
4
i
i

Turbo-Max Table of Contents Index Electrical Hookup
Great Plains | 588-015M | 2019/01/31 12
Hydraulic Hose Hookup
Great Plains hydraulic hoses are color coded to help
you hookup hoses to your tractor outlets. Hoses that
go to the same remote valve are marked with the
same color.
High Pressure Fluid Hazard
Shut down tractor before making hydraulic
connections. Only trained personnel should
work with system hydraulics.

Escaping fluid under pressure can have
sufficient pressure to penetrate the skin
causing serious injury. If an accident occurs,
seek immediate medical assistance from a
physician familiar with this type of injury.

Use paper or cardboard, NOT BODY PARTS,
to check for leaks. Wear protective gloves and
safety glasses or goggles when working with
hydraulic systems.
To distinguish hoses on the same hydraulic circuit,
refer to hose label.
The hose with an extended-cylinder symbol feeds a
cylinder base end.
The hose with a retracted-cylinder symbol feeds a
cylinder rod end.
Secure hoses and cables so that they have sufficient
slack for hitch movements, but cannot get caught
between moving parts of tractor, turbo max or hitch.
Failure to safely route and secure hoses and cables
could result in damage requiring component repair/
replacement, and lost field time.
Clean all hydraulic couplings and hook hoses to
tractor.
Transport Locks
1. Once the cylinders are connected, raise the unit
completely. If the transport locks (1) are in place
on cylinders (2), remove them at this time.
2. Store the transport locks (1) on the sides of the
center frame. Stick pin (3) through tube on the
sides of the center frame between the frame and
carrier tire.
Color Hydraulic Function
Black Lift (2 hoses)
Green Fold (2 hoses)
Red Gang Adjustment (2 hoses)
!
1
3
2

Great Plains | 588-015M | 2019/01/31 13
Turbo-Max Table of Contents Index Electrical Hookup
Wing Folding/Unfolding
Unfolding
1. If the wing lock levers are in the locked position,
turn handle (1) until set securely into the unlock
position.
2. Turn down pressure valve (2) so handle is facing
the outside of the machine.
3. Once the transport and wing locks are raised and
wing fold valve is in the open position (as
shown), unfold the wings from the tractor termi-
nal.
Operating Wing Lock Valve
The wing locking valve (2) is located on the
bypass/down pressure valve (6). To close
the locking valve, turn handle (5) 90
degrees, to keep wings from unfolding.
4. Once the machine is unfolded, raise and lower
the machine several times to purge air from the
lift system. Again, watch for any leaks and
tighten if necessary.
Front to Rear Leveling
Level Machine On Flat Surface
Pre-leveling of machine should be done on a
good level surface.
1. If your machine is equipped with the turnbuckle
option use the following steps to level your
machine. Lower machine so front coulter gangs
are 2.5 - 5cm off of ground. Loosen jam nut (1)
with turnbuckle wrench (2) (stored on rear pegs
of hitch). Adjust the turnbuckle (3) at the front
of machine to level it front to back. (Shorten to
bring front down, extend to bring front up).
2. When the front coulter gangs are the same dis-
tance off ground as rear coulter gangs re-tighten
jam nut (1).
Level Bar Spring Adjustment
1. To adjust the level bar spring assembly to the
preset position of 49cm, loosen jam nut (1) with
turnbuckle wrench (stored on rear pegs of hitch).
2. Adjust nut (3) until the 49cm dimension is
reached between backside of spring guide (4)
and front side of level bar spring rod plate (5).
3. Re-tighten the jam nut (2) to secure.
1
i
2
i
1
3
2
49cm
2
1
3
4

Turbo-Max Table of Contents Index Electrical Hookup
Great Plains | 588-015M | 2019/01/31 14
Wing Adjustment
1. Once the machine is level fore to aft, the wings may
be leveled. Start by unfolding the wings. Lower the
lift cylinders down until center coulter gangs are
2.5 - 5 cm off of ground.
2. Set the wings to match the depth of the center.
Start by loosening jam nut (1) with turnbuckle
wrench (stored on rear pegs of hitch). Turn the
turnbuckle (2) to adjust (shorten turnbuckle to
run shallower and lengthen to run deeper).
3. Run machine in field with wings unfolded and
down pressure applied. If wings are not making
contact or running too deep into the soil, make
additional adjustments to turnbuckle.
Gang Cylinders
Check Gang Angle
Check gang angle adjustment annually.
Always adjust the front gangs first and then
the rear.
1. With front gang cylinders (1) in the full retract
position, the gang bar (2) should be 7.5cm from
tubes (3). If gang bar is not 7.5cm from tubes,
loosen allen screw (4) on clevis on rod end of
cylinder and shorten cylinder rod (6) by turning
cylinder rod. Re-tighten allen screw.
2. After the center is set, adjust the wings the same
way.
3. When the front gang adjusting cylinders - see
“Front Gang Angle Adjustment” on page 13 -
have been adjusted and are in the full retract
position the rear gang bar (6) should be parallel
to back frame tube.
4. If rear gang bar (6) is not parallel to back frame
tube, remove pin (7) from turnbuckle end (8).
Turn clevis to adjust gang bar length.
5. Re-install pin (7) when adjustment is made.
6. Unlock jam nuts from both ends of the gauge
link (9). Turn rod until indicator (10) - located
on front of the machine’s right wing - reads 0°.
7. Re-tighten jam nuts.
2
1
i
3
21
4
5
6
7
8
0°
1°
2°
3°
4°
5°
6°
910
