1 | About this documentation G 1200
4 / 18 B-H89.0.0X.DK252-1.4
1 About this documentation
1.1 Foreword
_
Read this document carefully and familiarise yourself with the operation of the device
before you use it.
Keep this document ready to hand and in the immediate vicinity of the device so that it
is available to the personnel/user for reference at all times in case of doubt.
The user must have carefully read and understood the operating manual before begin-
ning any work.
1.2 Legal notices
The liability and warranty of the manufacturer for damages and consequential damag-
es are voided with misuse, disregarding this document, disregarding safety notices,
assignment of inadequately qualified technical personnel and arbitrary modifications of
the device.
This document is entrusted to the recipient for personal use only.
Any transmission, duplication, translation into other languages or excerpts from this
operating manual require the consent of the manufacturer.
The manufacturer assumes no liability for print errors.
1.3 Further information
_
Software version of the device:
–V1.0 or later
For the exact product name, refer to the type plate on the rear side of the device.
_
NOTE
For information about the software version, press and hold the ON button to switch on
for longer than 5 seconds. The series is shown in the main display and the software
version of the device is shown in the secondary display.

G 1200 Safety | 2
B-H89.0.0X.DK252-1.4 5 / 18
2 Safety
2.1 Explanation of safety symbols
_
DANGER
This symbol warns of imminent danger, which can result in death, severe bodily injury,
or severe property damage in case of non-observance.
_
CAUTION
This symbol warns of potential dangers or harmful situations, which can cause damage
to the device or to the environment in case of non-observance.
_
NOTE
This symbol indicates processes, which can have a direct influence on operation or
can trigger an unforeseen reaction in case of non-observance.
2.2 Foreseeable misuse
_
The fault-free function and operational safety of the device can only be guaranteed if
applicable safety precautions and the device-specific safety instructions for this docu-
ment are observed.
If these notices are disregarded, personal injury or death, as well as property damage
can occur.
_
DANGER
Incorrect area of application!
In order to prevent erratic behaviour of the device, personal injury and property dam-
age, the device must be used exclusively as described in the chapter Description in the
operating manual.
–The device is not suitable for use in explosion-prone areas!
–The device must not be used for diagnostic or other medical purposes on pa-
tients!
–Not suitable for use with requirements on functional safety, e.g. SIL!
–Do not use in safety / emergency stop devices!

2 | Safety G 1200
6 / 18 B-H89.0.0X.DK252-1.4
2.3 Safety instructions
_

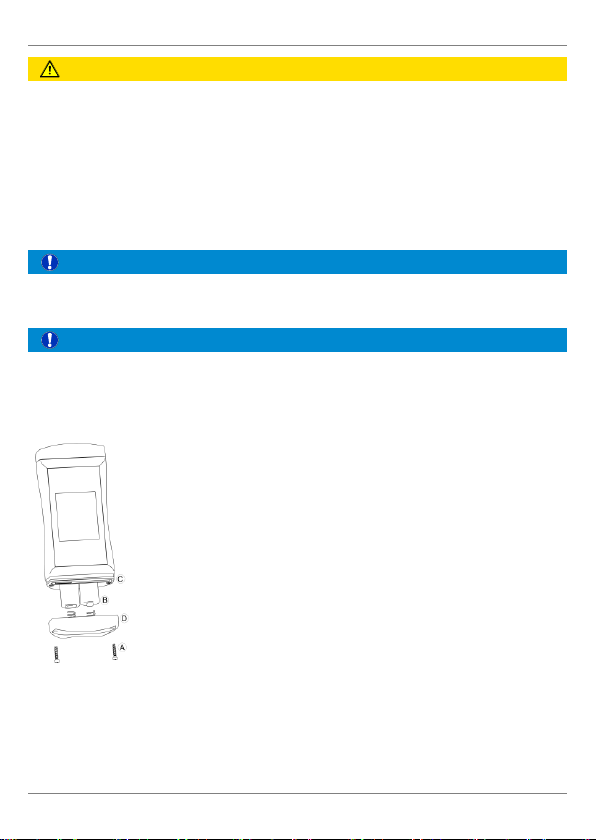

CAUTION
Risk of injury at the temperature sensor!
Devices with insertion probes entail the risk of stab injuries due to the pointed probe
design.
There is a risk of burns when measuring in high (and very low) temperatures. Use
gloves if necessary.
CAUTION
Empty batteries and batteries of inferior quality can leak more easily, which can
destroy the device. Please also observe the instructions in the chapter “Operation and
maintenance”.
NOTE
This device does not belong in children's hands!
_
_
NOTE
The device housing is not designed for continuous contact with foods.
For measurements in food in accordance with EC Regulation 1935 / 2004, suitable
temperature probes must be used:
2.4 Intended use
_
The device is thermometer for type K interchangeable probes.
It is designed, with the appropriate probe, for precise and instantaneous temperature
measurements in the following media:
–Liquids, gases, soft plastic materials, bulk material
–Food
2.5 Qualified personnel
For commissioning, operation and maintenance, the relevant personnel must have
adequate knowledge of the measuring process and the significance of the measure-
ments. The instructions in this document must be understood, observed and followed.
In order to avoid any risks arising from interpretation of the measurements in the
concrete application, the user must have additional expertise. The user is solely liable
for damages/danger resulting from misinterpretation due to inadequate expertise.

G 1200 The device at a glance | 3
B-H89.0.0X.DK252-1.4 7 / 18
3 The device at a glance

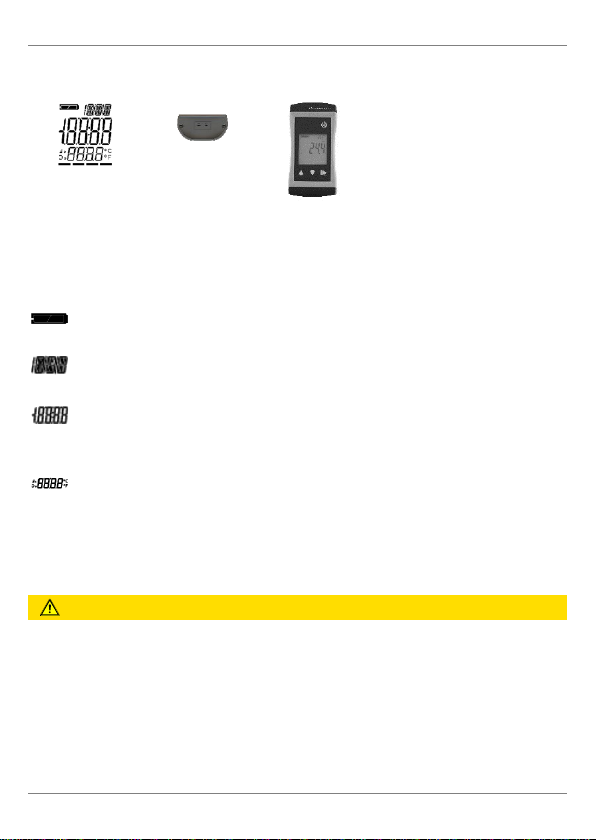

LCD Display
Top view
Front view
3.1 Display elements
_
Display
_
Battery indicator
Evaluation of the battery status
_
Unit display
Display of units or min/max/hold
_
Main display
Measurement of the current temperature or value
for min/max/hold
_
Auxiliary display
Measurement of the current temperature in
min/max/hold mode with unit
3.2 Connections
Thermos couple plug
Connection for temperature sensor
CAUTION
The device ensures extensive protection against splashing water and rain.
However, immersion in water is not possible due to the socket opening.
–Protect the connector opening / contacts from soiling and moisture!
–Dry damp device and plug connectors as quickly as possible!

3 | The device at a glance G 1200
8 / 18 B-H89.0.0X.DK252-1.4

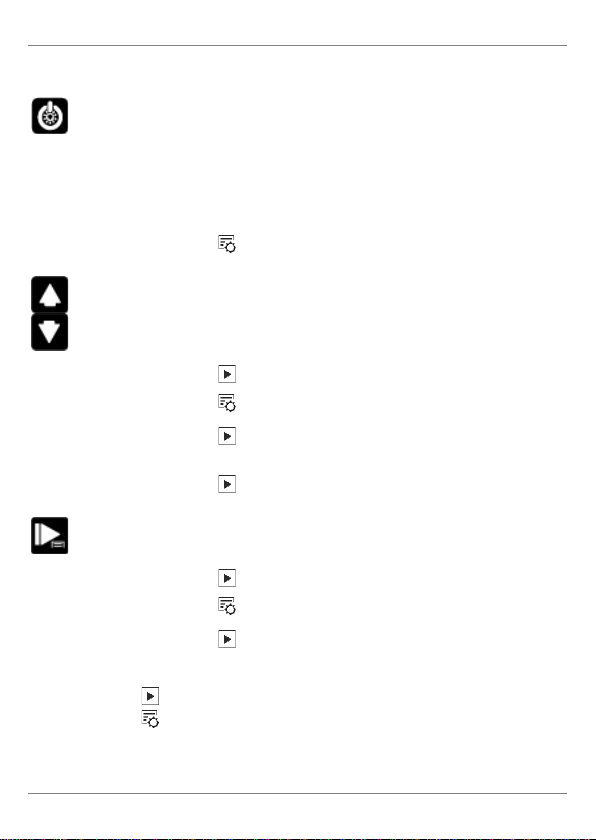

3.3 Operating elements
_
On / Off button
Press briefly
Switch on the device
Activate / deactivate lighting
Long press
Switch off the device
Reject changes in a menu
_
Up / Down button
Press briefly
Display of the min/max value
Change value of the selected parameter
Long press
Reset the min/max value of the current measure-
ment
Both simultaneously
Rotate display, overhead display
_
Function button
Press briefly
Freeze measurement (Hold)
Call up next parameter
Long press, 2s
Start menu “configuration”, (ONF appears in the
display
Operating status device is in measured value display
device is in a menu

G 1200 Operation | 4
B-H89.0.0X.DK252-1.4 9 / 18
4 Operation
4.1 Opening the configuration menu
1. Press the Function button for 2 seconds to open the Configuration menu.
2. (ONF appears in the display. Release the Function button.
_
Parameter
Values
Meaning
POFF
Shut-off time
OFF
No automatic shut-off
0:15, 0:30, 1:00,
4:00, 12:00
Automatic shut-off after a selected time in
hours:minutes, during which no buttons have been
pressed
L,TE
Backlight
OFF
Backlight deactivated
0:15, 0:30, 1:00,
2:00, 4:00
Automatic shut-off of the backlight after a selected
time in minutes:seconds, during which no buttons
have been pressed
ON
No automatic shut off of the backlight
UN,T
Display unit
°(
Temperature display in °C
°F
Temperature display in °F
IN,T
Factory settings
NO
Use current configuration
YES
Reset device to factory settings.
After confirming with the function-button, the display
shows: IN,T DONE

4 | Operation G 1200
10 / 18 B-H89.0.0X.DK252-1.4
4.2 Adjustment of the measuring input
The temperature input can be adjusted with the zero point correction and the gradient
correction. If an adjustment is made, you change the pre-adjusted factory settings.
This is signalled with the display text T.OF or T.SL when switching on.
1. Switch the device off.
2. Hold the down button and press the On/Off button briefly to switch on the device
and open the Adjustment menu.
3. The display shows the first parameter. Release the down button.
Parameter
Values
Meaning
_T.OF
Zero point correction
0.0
No zero point correction
-5.0 … 5.0
Zero point correction in °C. (at °F -9.0 .. 9.0)
T.SL
Gradient correction of the temperature
0.00
No gradient correction of the temperature
-5.00 … 5.00
Gradient correction in %
Formula used by device:
Temperature = °C: Display = (measured value - T.OF) * (1 + T.SL / 100)
Temperature = °F: Display = (meas. value - 32 °F - T.OF) * (1 + T.SL / 100) + 32 °F
Adjustment example:
Temperature unit= °C, the adjustment is carried out in 2 separate steps at 0 °C (e.g. ice
water) and at a reference temperature (e.g. clinical thermometer with water bath 37 °C).- First
set the values of t.oF and t.SL in the adjustment menu to 0
Zero point: - Set the temperature probe to 0 °C and let it adjust.
- Start the adjustment menu and enter the display value at 0 °C for t.oF
- After leaving the menu, the device should now display 0.0 °C.
Slope: - Set the temperature sensor to the reference temperature and let it adjust.
- Calculate slope correction:    󰇡
  󰇢  
- Start adjustment menu and enter the calculated value at t.SL
- Exit menu, the device should now display the reference temperature.

G 1200 Measurement Basics | 5
B-H89.0.0X.DK252-1.4 11 / 18
5 Measurement Basics
5.1 Sensor/device accuracy
The device can be equipped with different interchangeable sensors. The temperature
sensors are divided into the following classes according to EN 60584-2.
class
deviation
temperature range
1
±1.5 °C or ±0.4 % of measured value *
-40 … 1000 °C
2
±2.5 °C or ±0.75 % of measured value *
-40 … 1200 °C
3
±2.5 °C or ±1.5 % of measured value *
-200 … 40 °C
* = larger value counts
The system accuracy of the measuring chain (device + probe) is the sum of the accu-
racy of the probe and the accuracy of the characteristic curve and cold junction of the
device.
5.2 Possible measuring errors
5.2.1 Immersion depth
_
Liquid: Immerse to a depth of at least 20 mm and then stir. Otherwise, measuring
errors can occur due to the heat transmission of the sensor tube if the immer-
sion depth is too shallow.
Gas: Immerse as far as possible into the gas to be measured so that the measur-
ing sensor is subjected to a heavy flow.
5.2.2 Surface effects and poor heat transfer
_
Special measuring sensors are required for this purpose. Surface characteristics, de-
sign of the measuring sensor, heat transfer and environmental temperature influence
the measurement result.
NOTE: Thermally conductive paste between the measuring sensor and surface can
also in-crease measurement accuracy in some cases.
5.2.3 Cooling / evaporation
_
When measuring the air temperature, the probe should be dry, otherwise the tempera-
ture measured will be too low.
5.2.4 Response time
_
An adequate wait time must be observed for the measuring process before reading the
measured value. The response time T90 describes the time in which the displayed
measured value reached 90% of the end value.

6 | Operation and maintenance G 1200
12 / 18 B-H89.0.0X.DK252-1.4
6 Operation and maintenance
6.1 Operating and maintenance notices
_
NOTE
The device and temperature probe must be handled with care and used in accordance
with the technical data. Do not throw or strike.
_
NOTE
Plugs and sockets must be protected from soiling.
_
NOTE
If the not used for an extended period of time, the batteries must be removed. Leaks
from the batteries are avoided as a result.
6.2 Battery
6.2.1 Battery indicator
_
If the empty frame in the battery display blinks, the batteries are depleted and must be
replaced. However, the device will still operate for a certain length of time.
If the BAT display text appears in the main display, the battery voltage is no longer
adequate for operation of the device. The battery is fully depleted.
6.2.2 Changing battery
_
DANGER
Danger of explosion!
Using damaged or unsuitable batteries can generate heat, which can cause the batter-
ies to crack and possibly explode!
–Only use high-quality and suitable alkaline batteries!
_

G 1200 Operation and maintenance | 6
B-H89.0.0X.DK252-1.4 13 / 18
CAUTION
Damage!
If the batteries have different charge levels, leaks and thus damage to the device can
occur.
–Only use high-quality and suitable alkaline batteries!
–Do not use different types of batteries!
–Remove depleted batteries immediately and dispose of them at a suitable collec-
tion point.
_
NOTE
Unnecessary unscrewing endangers the protection against moisture and should
therefore be avoided.
NOTE
Read the following handling instructions before replacing batteries and follow them
step by step.
If disregarded, the device could be damaged or the protection from moisture could be
diminished.
1. Unscrews the Phillips screws (A)and remove the cover.
2. Carefully replace the two Mignon AA batteries (B). En-
sure that the polarity is correct! It must be possible to in-
sert the batteries in the correct position without using
force.
3. The O-ring (C) must be undamaged, clean and posi-
tioned at the intended depth.
4. Fit the cover (D) on evenly. The O-ring must remain at
the intended depth!
5. Tighten the Phillips screws (A).

7 | Error and system messages G 1200
14 / 18 B-H89.0.0X.DK252-1.4
7 Error and system messages
Display
Meaning
Possible causes
Remedy
----
No suitable meas-
uring probe con-
nected
Measurement far
outside of the
measuring range
Incorrect measuring
probe
Measuring probe or
device defect
Connect a suitable meas-
uring probe
Measurement leaves the
permissible range
Send in for repair
No display,
unclear char-
acters or no
response when
buttons are
pressed
Battery depleted
System error
Device is defective
Battery depleted
Error in the device
Replace battery
Send in for repair
BAT
Battery depleted
Battery depleted
Replace battery
ERR.1
Measuring range
exceeded
Measurement too
high
Incorrect measuring
probe connected
Measuring probe or
device defect
Stay within allowable
measurement range
Check measuring probe
Send in for repair
ERR.2
Measuring range is
undercut
Measurement too
low
Incorrect measuring
probe connected
Measuring probe or
device defect
Stay within allowable
measurement range
Check measuring probe
Send in for repair
ERR.7
System error
Cold junction out-
side operating range
or defect
Stay within allowable
operating temperature
Send in for repair
SYS ERR
System error
Error in the device
Switch device on/off
Replace batteries
Send in for repair

G 1200 Technical data | 8
B-H89.0.0X.DK252-1.4 15 / 18
8 Technical data
Sensor connection
Connection socket for miniature flat plug
Supported sensor type
Thermocouple type K (NiCr-Ni)
Measuring range
-65.0 … +1200.0 °C (-85.0 ... +2192 °F)
Accuracy
(at nominal temperature)
Note: The system accuracy depends on the accuracy of the
used temperature sensor!
Device
±0.1 % of m.v. ±1 °C
Cold junction
±0.3 °C
Temperature drift
±0.01 % of m.v. / K ±0.025 °C / K
Measuring cycle
approx. 3 measurements per second
Display
3-line segment LCD, additional symbols, illuminated (white,
luminous duration adjustable),
Display orientation 180° rotatable (overhead display)
Additional functions
Min/max/hold
Adjustment
Offset and gradient correction
Housing
Break-proof ABS housing
Protection rating
IP40 (sensor socket)
IP65 / IP67 (rest of the housing)
Dimensions L*W*H
108 * 54 * 28 mm
Weight
approx. 125 g, incl. batteries
Nominal temperature
25 °C
Oberating conditions
-20 to 50 °C; 0 to 85 %RH (non-condensing)
Current supply
2 * AA batteries (mignon)
Current require-
ment
approx. 1 mA, approx. 3 mA with backlight
battery life
Service life > 2500 hours with alkaline batteries
(without backlighting)

9 | Disposal G 1200
16 / 18 B-H89.0.0X.DK252-1.4
Battery indicator
4-stage battery status indicator,
Replacement indicator for depleted batteries: "BAT"
Auto-power-OFF
function
The device switches off automatically if this is activated
Directives and stand-
ards
The devices conform to the following Directives of the Coun-
cil for the harmonisation of legal regulations of the Member
States:
2014/30/EU EMC Directive
2011/65/EU RoHS
Applied harmonised standards:
EN 61326-1:2013 Emission limits: Class B
Immunity according to Table 1
Additional errors: < 1 % FS
EN IEC 63000:2018
The device is intended for mobile use and/or stationary
operation in the scope of the specified operating conditions
without further limitations.
_
_
9 Disposal
Separation by material and recycling of device components and packaging must take
place at the time of disposal. The valid regional statutory regulations and directives
applicable at the time must be observed.
_
NOTE
The device must not be disposed of with household waste. Return it to us,
freight prepaid. We will then arrange for the proper and environmentally-
friendly disposal.
Private end users in Germany have the possibility of dropping off the device at the
municipal collection centre. Batteries must be removed beforehand!
Please dispose of empty batteries at the collection points intended for this purpose

G 1200 Service | 10
B-H89.0.0X.DK252-1.4 17 / 18
10 Service
10.1 Manufacturer
If you have any questions, please do not hesitate to contact us:
GHM Messtechnik GmbH
GHM GROUP - Greisinger
Hans-Sachs-Str. 26
93128 Regenstauf | GERMANY
Email: [e-mail] | www.greisinger.de
WEEE reg. no. DE 93889386
10.2 Calibration and adjustment service
The purpose of the calibration is to verify the precision of the measuring device by
comparing it with a traceable reference.
Both ISO calibration certificates and DAkkS calibration certificates are available from
Greisinger.
_
Explanation
The ISO standard 9001 is applied for the iso-calibration certificates.
These certificates area affordable alternative to the DAkkS calibration certificates and
provide information of the traceable reference, a list of individual values and documen-
tation.
The DAkkS calibration is based on DIN EN ISO/17025, the accreditation basis is
recognised worldwide. These certificates offer high-quality calibration and consistently
high quality. The DAkkS calibration includes any necessary adjustment with the pur-
pose of minimising a deviation of the measuring device.
_
NOTE
The device is delivered with a test report.
This confirms that the measuring device has been adjusted and tested, without making
any statement about the accuracy of a temperature sensor.
_
NOTE
Only the manufacturer can check the basic settings and make corrections if necessary.
Contact

10 | Service G 1200
18 / 18 B-H89.0.0X.DK252-1.4
10.3 Accessories
Spare parts:
GB-AA-2
art. no. 479249
Spare batteries AA (2 pcs.)
Suitable sensors:
GTE 130 OK
art. no. 601483
Insertion probe without cable, Ø1,5 mm
GF 1TK-T3
art. no. 609695
Compact immersion probe with silicone
handle, Ø3 mm
GF 1TK-E3
art. no. 609697
Compact insertion probe with silicone
handle, Ø3 mm
GF 1TK-E1.5
art. no. 609699
Compact insertion probe with silicone
handle, Ø1,5 mm
GF 1TK-L3
art. no. 611299
Compact air probe with silicone handle,
Ø3 mm
GTF 300
art. no. 600072
Wire probe for measurements in fractions
of a second
GTF 40K-620
art. no. 610829
T-handle insertion probe for bulk material,
soil, compost
Further accessories:
ST-G1000
art. no. 611373
Protective bag with belt clip
GCLIP 1000
art. no. 475820
Metal belt clip, self-adhesive
G1000_BASE
art. no. 481885
Table stand, wall holder
GKK 1000
art. no. 611603
Case (235 x 185 x 48 mm),
with punched lining for 1 device of the
G1xxx-series
GKK 252
art. no. 601056
Case (235 x 185 x 48 mm),
with foam lining for universal use
