Grundfos TPE Series User manual

GRUNDFOS INSTRUCTIONS
TPE Series 1000
Installation and operating instructions

English (US)
2
English (US) Installation and operating instructions
Original installation and operating instructions.
CONTENTS
Page
1. Limited warranty 3
2. Symbols used in this document 3
3. Abbreviations and definitions 3
4. General information 4
4.1 Radio communication 4
4.2 Battery 4
5. Mechanical installation 4
5.1 Mounting 4
5.2 Cable entries 4
5.3 Ensuring motor cooling 4
5.4 Outdoor installation 4
5.5 Drain holes 4
6. Electrical installation 5
6.1 Protection against electric shock, indirect contact 5
6.2 Mains supply 5
6.3 Additional protection 6
6.4 Connection terminals 7
6.5 Signal cables 9
6.6 Bus connection cable 9
7. Operating conditions 9
7.1 Maximum number of starts and stops 9
7.2 Ambient temperature 9
7.3 Installation altitude 10
7.4 Air humidity 10
7.5 Motor cooling 10
8. User interfaces 10
9. Standard control panel 11
9.1 Setpoint setting 11
10. Grundfos GO Remote 12
10.1 Communication 12
10.2 Menu overview for Grundfos GO Remote 13
11. Description of selected functions 15
11.1 Setpoint 15
11.2 Operating mode 15
11.3 Set manual speed 15
11.4 Control mode 15
11.5 Analog inputs 18
11.6 Pt100/1000 inputs 18
11.7 Digital inputs 19
11.8 Digital inputs/outputs 19
11.9 Relay outputs 20
11.10 Analog output 20
11.11 Controller settings 20
11.12 Operating range 21
11.13 Setpoint influence 21
11.14 Monitoring functions 24
11.15 Special functions 24
11.16 Communication 24
11.17 General settings 24
12. Assist 25
12.1 Setup of multi-pump system 25
13. Selection of control mode 26
14. Changing the position of the control panel 27
15. Bus signal 28
16. Priority of settings 28
17. Grundfos Eye 29
18. Signal relays 30
19. Megging 31
20. Technical data, single-phase motors 31
20.1 Supply voltage 31
20.2 Leakage current 31
21. Technical data, three-phase motors 31
21.1 Supply voltage 31
21.2 Leakage current 31
22. Inputs/outputs 31
23. Other technical data 32
23.1 Torques 32
23.2 Sound pressure level 32
24. Disposal 32
Warning
Prior to installation, read these installation and
operating instructions. Installation and operation
must comply with local regulations and accepted
codes of good practice.

3
English (US)
1. Limited warranty
Products manufactured by GRUNDFOS PUMPS CORPORATION
(Grundfos) are warranted to the original user only to be free of
defects in material and workmanship for a period of 24 months
from date of installation, but not more than 30 months from date
of manufacture. Grundfos' liability under this warranty shall be
limited to repairing or replacing at Grundfos' option, without
charge, F.O.B. Grundfos' factory or authorized service station,
any product of Grundfos' manufacture. Grundfos will not be liable
for any costs of removal, installation, transportation, or any other
charges which may arise in connection with a warranty claim.
Products which are sold but not manufactured by Grundfos are
subject to the warranty provided by the manufacturer of said
products and not by Grundfos' warranty. Grundfos will not be
liable for damage or wear to products caused by abnormal
operating conditions, accident, abuse, misuse, unauthorized
alteration or repair, or if the product was not installed in
accordance with Grundfos' printed installation and operating
instructions.
To obtain service under this warranty, the defective product must
be returned to the distributor or dealer of Grundfos' products from
which it was purchased together with proof of purchase and
installation date, failure date, and supporting installation data.
Unless otherwise provided, the distributor or dealer will contact
Grundfos or an authorized service station for instructions.
Any defective product to be returned to Grundfos or a service
station must be sent freight prepaid; documentation supporting
the warranty claim and/or a Return Material Authorization must
be included if so instructed.
GRUNDFOS WILL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, LOSSES, OR EXPENSES
ARISING FROM INSTALLATION, USE, OR ANY OTHER
CAUSES. THERE ARE NO EXPRESS OR IMPLIED
WARRANTIES, INCLUDING MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, WHICH EXTEND BEYOND
THOSE WARRANTIES DESCRIBED OR REFERRED TO
ABOVE.
Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages and some jurisdictions do
not allow limit actions on how long implied warranties may last.
Therefore, the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights and you may
also have other rights which vary from jurisdiction to jurisdiction.
2. Symbols used in this document
3. Abbreviations and definitions
Warning
If these safety instructions are not observed,
it may result in personal injury.
Warning
If these instructions are not observed, it may lead
to electric shock with consequent risk of serious
personal injury or death.
Warning
The surface of the product may be so hot that
it may cause burns or personal injury.
Caution
If these safety instructions are not observed,
it may result in malfunction or damage to the
equipment.
Note
Note
Notes or instructions that make the job easier
and ensure safe operation.
AI Analog input.
AL Alarm, out of range at lower limit.
AO Analog output.
AU Alarm, out of range at upper limit.
Current sinking The ability to draw current into the terminal and
guide it towards GND in the internal circuitry.
Current
sourcing
The ability to push current out of the terminal
and into an external load which must return it
to GND.
DI Digital input.
DO Digital output.
ELCB Earth leakage circuit breaker.
FM Functional module.
GDS Grundfos Digital Sensor.
Factory-fitted sensor in some Grundfos pumps.
GENIbus Proprietary Grundfos fieldbus standard.
GFCI Ground fault circuit interrupter.
(USA and Canada).
GND Ground.
Grundfos Eye Status indicator light.
LIVE Low voltage with the risk of electric shock if the
terminals are touched.
OC Open collector:
Configurable open-collector output.
PE Protective earth.
PELV
Protective extra-low voltage.
A voltage that cannot exceed ELV under
normal conditions and under single-fault
conditions, except earth faults in other circuits.
SELV
Safety extra-low voltage.
A voltage that cannot exceed ELV under
normal conditions and under single-fault
conditions, including earth faults in other
circuits.
TPE Pump without factory-fitted
differential-pressure and temperature sensor.

English (US)
4
4. General information
These installation and operating instructions apply to the
Grundfos TPE pumps.
The pumps are fitted with frequency-controlled
permanent-magnet motors for single-phase or three-phase mains
connection.
4.1 Radio communication
For installation in the USA and Canada, see also page 33.
This product can communicate with the Grundfos GO Remote
and other products of the same type via the built-in radio module.
In some cases, an external antenna may be required.
Only Grundfos-approved external antennas may be connected to
this product, and only by a Grundfos-approved installer.
4.2 Battery
Pumps fitted with the advanced functional module (FM 300)
incorporate a Li-ion battery. The Li-ion battery complies with the
Battery Directive (2006/66/EC). The battery does not contain
mercury, lead and cadmium.
5. Mechanical installation
5.1 Mounting
The pump must be secured to a solid foundation by bolts through
the holes in the flange or the base plate.
5.2 Cable entries
The motor has four M20 screwed cable entries fitted with blind
plugs from factory.
The following cable glands are included:
• 2 x M20 cable gland, cable diameter ∅0.016" (5 mm)
• 1 x M20 cable gland, cable diameter ∅0.023 -0.046"
(7-14 mm).
5.3 Ensuring motor cooling
Fig. 1 Minimum distance (D) from the motor to a wall or other
fixed objects
5.4 Outdoor installation
When installed outdoors, the motor must be provided with a
suitable cover to avoid condensation on the electronic
components. See fig. 2.
The cover must be sufficiently large to ensure that the motor is
not exposed to direct sunlight, rain or snow. Grundfos does not
supply covers. We therefore recommend that you have a cover
built for the specific application. In areas with high air humidity,
we recommend that you enable the built-in standstill heating
function.
Fig. 2 Examples of covers (not supplied by Grundfos)
5.5 Drain holes
When the motor is installed in moist surroundings or areas with
high air humidity, the bottom drain hole should be open.
The enclosure class of the motor will then be lower. The open
drain hole helps prevent condensation in the motor as it will make
the motor self-venting and allow water and humid air to escape.
The motor has a plugged drain hole on the drive side. The flange
can be turned 90 ° to both sides or 180 °.
Fig. 3 Drain holes
Warning
Installation and operation must comply with local
regulations and accepted codes of good practice.
Note
Note
In order to maintain the UL mark, additional
installation procedures must be followed.
See page 33.
Note
Note
In order to ensure sufficient cooling of the motor,
the distance (D) between the end of the fan cover
and a wall or other fixed objects must always be
at least 0.16" (50 mm), irrespective of motor size.
See fig. 1.
TM05 5236 3512
Note
Note
When fitting a cover to the motor, observe the
guideline in section 5.3 Ensuring motor cooling.
TM05 7919 1613TM02 9037 1604
D
B3 B14 B5

5
English (US)
6. Electrical installation
Carry out the electrical connection according to local regulations.
Check that the supply voltage and frequency correspond to the
values stated on the nameplate.
6.1 Protection against electric shock, indirect contact
Protective-earth conductors must always have a yellow/green
(PE) or yellow/green/blue (PEN) colour marking.
6.1.1 Protection against mains voltage transients
The motor is protected against mains voltage transients in
accordance with EN 61800-3.
6.1.2 Motor protection
The motor requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking.
6.2 Mains supply
6.2.1 Single-phase supply voltage
• 1 x 200-240 V - 10 %/+ 10 %, 60 Hz, PE.
Check that the supply voltage and frequency correspond to the
values stated on the nameplate.
The wires in the motor terminal box must be as short as possible.
Excepted from this is the separated earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
For maximum backup fuse, see section 20.1 Supply voltage.
Fig. 4 Example of a mains-connected motor with mains
switch, backup fuse and additional protection
Fig. 5 Mains connection, single-phase motors
Warning
Before making any connections in the terminal
box, make sure that the power supply has been
switched off for at least 5 minutes. Make sure that
the power supply cannot be accidentally
switched on.
The motor must be connected to an external
all-pole mains switch according to local
regulations.
The motor must be earthed and protected against
indirect contact in accordance with local
regulations.
If the power supply cable is damaged, it must be
replaced by the manufacturer, the manufacturer's
service partner or a similarly qualified person.
Note
Note
The user or the installer is responsible for the
installation of correct earthing and protection
according to local regulations. All operations
must be carried out by a qualified electrician.
Warning
The motor must be earthed and protected against
indirect contact in accordance with local
regulations.
TM05 4034 1912TM05 3494 1512
ELCB
(GFCI)

English (US)
6
6.2.2 Three-phase supply voltage
• 3 x 440-480 V - 10 %/+ 10 %, 60 Hz, PE.
Check that the supply voltage and frequency correspond to the
values stated on the nameplate.
The wires in the motor terminal box must be as short as possible.
Excepted from this is the separated earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
For maximum backup fuse, see section 21.1 Supply voltage.
Fig. 6 Example of a mains-connected motor with mains
switch, backup fuses and additional protection
Fig. 7 Mains connection, three-phase motors
6.3 Additional protection
6.3.1 Single-phase motors
If the motor is connected to an electric installation where an earth
leakage circuit breaker (ELCB) or ground fault circuit interrupter
(GFCI) is used as additional protection, this circuit breaker or
interrupter must be marked with the following symbol:
The leakage current of the motor can be found in section
20.2 Leakage current.
6.3.2 Three-phase motors
If the motor is connected to an electric installation where an earth
leakage circuit breaker (ELCB) or ground fault circuit interrupter
(GFCI) is used as additional protection, this circuit breaker or
interrupter must be of the following type:
• It must be suitable for handling leakage currents and cutting-in
with short pulse-shaped leakage.
• It must trip out when alternating fault currents and fault
currents with DC content, i.e. pulsating DC and smooth DC
fault currents, occur.
For these motors an earth leakage circuit breaker or ground fault
circuit interrupter, type B, must be used.
This circuit breaker or interrupter must be marked with the
following symbols:
The leakage current of the motor can be found in section
21.2 Leakage current.
Protection against phase unbalance
The motor must be connected to a power supply with a quality
corresponding to IEC 60146-1-1, class C, to ensure correct motor
operation at phase unbalance.
This also ensures long life of the components.
Caution
In order to avoid loose connections, ensure that
the terminal block for L1, L2 and L3 is pressed
home in its socket when the supply cable has
been connected.
Note
Note
Corner grounding is not allowed for supply
voltages above 3 x 480 V, 60 Hz.
TM05 3942 1812TM05 3495 1512
L1
L2
L3
L2
L1
L3
PE
ELCB
(GFCI)
Note
Note
When an earth leakage circuit breaker or ground
fault circuit interrupter is selected, the total
leakage current of all the electrical equipment in
the installation must be taken into account.
Note
Note
When an earth leakage circuit breaker or ground
fault circuit interrupter is selected, the total
leakage current of all the electrical equipment in
the installation must be taken into account.
ELCB
(GFCI)
ELCB
(GFCI)

7
English (US)
6.4 Connection terminals
The descriptions and terminal overviews in this section apply to
both single-phase and three-phase motors.
For maximum tightening torques, see section 23.1 Torques.
The number of terminals depends on the functional module (FM).
The fitted module can be identified on the motor nameplate.
See fig. 8.
Fig. 8 Identification of functional module
6.4.1 Connection terminals, advanced functional module
(FM 300)
The advanced functional module is only available as an option.
The advanced module has these connections:
• three analog inputs
• one analog output
• two dedicated digital inputs
• two configurable digital inputs or open-collector outputs
• Grundfos Digital Sensor input and output*
• two Pt100/1000 inputs
• two LiqTec sensor inputs*
• two signal relay outputs
• GENIbus connection.
* Not applicable for TPE pumps.
See fig. 9.
•Inputs and outputs
All inputs and outputs are internally separated from the
mains-conducting parts by reinforced insulation and
galvanically separated from other circuits.
All control terminals are supplied by safety extra-low voltage
(SELV), thus ensuring protection against electric shock.
•Signal relay outputs
– Signal relay 1:
LIVE:
Mains supply voltages up to 250 VAC can be connected to
this output.
SELV:
The output is galvanically separated from other circuits.
Therefore, the supply voltage or safety extra-low voltage
can be connected to the output as desired.
– Signal relay 2:
SELV:
The output is galvanically separated from other circuits.
Therefore, the supply voltage or safety extra-low voltage
can be connected to the output as desired.
•Mains supply (terminals N, PE, L or L1, L2, L3, PE).
A galvanically safe separation must fulfil the requirements for
reinforced insulation including creepage distances and
clearances specified in EN 61800-5-1.
TM05 8641 2513
Env.Type :
Serial no :
SF CL:
PF:
PB
FM
HMIEff
n max:
CIMWgt:
DE :
kg
NDE :Tamb :
:FAA
V
~
P.C. :
Made in Hungary
OUTPUT VARIANT INPUT
TEFC
Type :
P.N. :Uin :
I1/1 :
fin
Hp
Hz
P2
I SF Amp:
rpm
:::
:
:
:
:
Xxxxxxxxxxx
E.P. Motor
DK - 8850 Bjerringbro, Denmark
E
n
v
.
T
y
y
p
e
p
:
S
eria
l
n
o
:
S
F
C
L
:
P
F
:
Eff
n
W
g
g
t
:
DE
:
k
g
g
N
D
E
:
T
a
m
b
:
:
F
A
A
V
~
P
.
C
.
:
INP
U
T
T
E
F
C
T
yp
yp
e
:
P
.N.
:
U
in
:
I
1
/
1
:
f
i
n
H
z
P
I
S
F Am
p
p
:
:
PB
FM
HMI
CIM
VARIANT
Hp
rpm
:
:
:
:
PB
:
HMI
:
C
IM
:
H
p
r
pm
Note
Note
Digital input 1 is factory-set to be start/stop input
where open circuit will result in stop. A jumper
has been factory-fitted between terminals 2 and
6. Remove the jumper if digital input 1 is to be
used as external start/stop or any other external
function.
Note
Note
As a precaution, the wires to be connected to the
connection groups below must be separated
from each other by reinforced insulation in their
entire lengths.

English (US)
8
* If an external supply source is used, there must be a
connection to GND.
Fig. 9 Connection terminals, FM 300 (option)
TM05 3509 3512
3
15
8
26
23
25
24
7
21
20
22
B
Y
6
5
2
4
10
A
+24 V*
1
14
9
12
17
19
11
18
+24 V*
+
+24 V* OC DI
+24 V*/5 V*
+24 V*
+
++
+24 V*/5 V*
+24 V*
+24 V*
+
+
+24 V*/5 V*
+24 V*
+5 V*
AI2
GDS RX
GDS TX
GND
GENIbus A
GENIbus B
+5 V
+24 V
+24 V
GND
GENIbus Y
GND
+5 V
DI1
AI1
DI3/OC1
LiqTec
AI3
GND
DI2
LiqTec
GND
AO
Pt100/1000
Pt100/1000
DI4/OC2
GND
+24 V* OC DI
GND
NC
C2
NO
NC
C1
NO
+5 V*
Terminal Type Function
NC Normally closed
contact Signal relay 1
(LIVE or SELV)C1 Common
NO Normally open contact
NC Normally closed
contact Signal relay 2
(SELV only)C2 Common
NO Normally open contact
18 GND Ground
11 DI4/OC2
Digital input/output,
configurable.
Open collector: Max. 24 V
resistive or inductive.
19 Pt100/1000 input 2 Pt100/1000 sensor input
17 Pt100/1000 input 1 Pt100/1000 sensor input
12 AO
Analog output:
0-20 mA / 4-20 mA
0-10 V
9 GND Ground
14 AI3
Analog input:
0-20 mA / 4-20 mA
0-10 V
1 DI2 Digital input, configurable
21 LiqTec sensor input 1 LiqTec sensor input (white
conductor)
20 GND Ground (brown and black
conductors)
22 LiqTec sensor input 2 LiqTec sensor input (blue
conductor)
10 DI3/OC1
Digital input/output,
configurable.
Open collector: Max. 24 V
resistive or inductive.
4AI1
Analog input:
0-20 mA / 4-20 mA
0.5 - 3.5 V / 0-5 V / 0-10 V
2 DI1 Digital input, configurable
5+5V Supply to potentiometer and
sensor
6 GND Ground
A GENIbus, A GENIbus, A (+)
Y GENIbus, Y GENIbus, GND
B GENIbus, B GENIbus, B (-)
3 GND Ground
15 +24 V Supply
8 +24 V Supply
26 +5 V Supply to potentiometer and
sensor
23 GND Ground
25 GDS TX Grundfos Digital Sensor
output
24 GDS RX Grundfos Digital Sensor input
7AI2
Analog input:
0-20 mA / 4-20 mA
0.5 - 3.5 V / 0-5 V / 0-10 V

9
English (US)
6.5 Signal cables
• Use screened cables with a cross-sectional area of min.
AWG 20 (0.5 mm2) and max. AWG 16 (1.5 mm2) for external
on/off switch, digital inputs, setpoint and sensor signals.
• Connect the screens of the cables to frame at both ends with
good connection. The screens must be as close as possible to
the terminals. See fig. 10.
Fig. 10 Stripped cable with screen and wire connections
• Screws for frame connections must always be tightened
whether a cable is fitted or not.
• The wires in the motor terminal box must be as short as
possible.
6.6 Bus connection cable
6.6.1 New installations
For the bus connection, use a screened 3-core cable with a
cross-sectional area of min. AWG 20 (0.5 mm2) and max.
AWG 16 (1.5 mm2).
• If the motor is connected to a unit with a cable clamp which is
identical to the one on the motor, connect the screen to this
cable clamp.
• If the unit has no cable clamp as shown in fig. 11, leave the
screen unconnected at this end.
Fig. 11 Connection with screened 3-core cable
6.6.2 Replacing an existing motor
• If a screened 2-core cable is used in the existing installation,
connect the cable as shown in fig. 12.
Fig. 12 Connection with screened 2-core cable
• If a screened 3-core cable is used in the existing installation,
follow the instructions in section 6.6.1 New installations.
7. Operating conditions
7.1 Maximum number of starts and stops
The number of starts and stops via the power supply must not
exceed four times per hour.
When switched on via the power supply, the pump will start after
approx. 5 seconds.
If a higher number of starts and stops is desired, use the input for
external start/stop when starting/stopping the pump.
When started via an external on/off switch, the pump will start
immediately.
7.2 Ambient temperature
7.2.1 Ambient temperature during storage and transportation
-22 - +140 °F (-30 - +60 °C).
7.2.2 Ambient temperature during operation
-4 - +122 °F (-20 - +50 °C).
The motor can operate with the rated power output (P2) at 122 °F
(50 °C), but continuous operation at higher temperatures will
reduce the expected product life. If the motor is to operate at
ambient temperatures between 122 and 140 °F (50 and 60 °C),
an oversized motor must be selected. Contact Grundfos for
further information.
TM02 1325 4402TM05 3973 1812
A
Y
B
A
Y
B
1
2
3
1
2
3
Motor
TM02 8842 0904
A
Y
B
A
Y
B
1
2
1
2
Motor

English (US)
10
7.3 Installation altitude
Installation altitude is the height above sea level of the installation
site.
• Motors installed up to 3281 ft (1000 m) above sea level can be
loaded 100 %.
• Motors installed more than 3281 ft (1000 m) above sea level
must not be fully loaded due to the low density and
consequent low cooling effect of the air. See fig. 13.

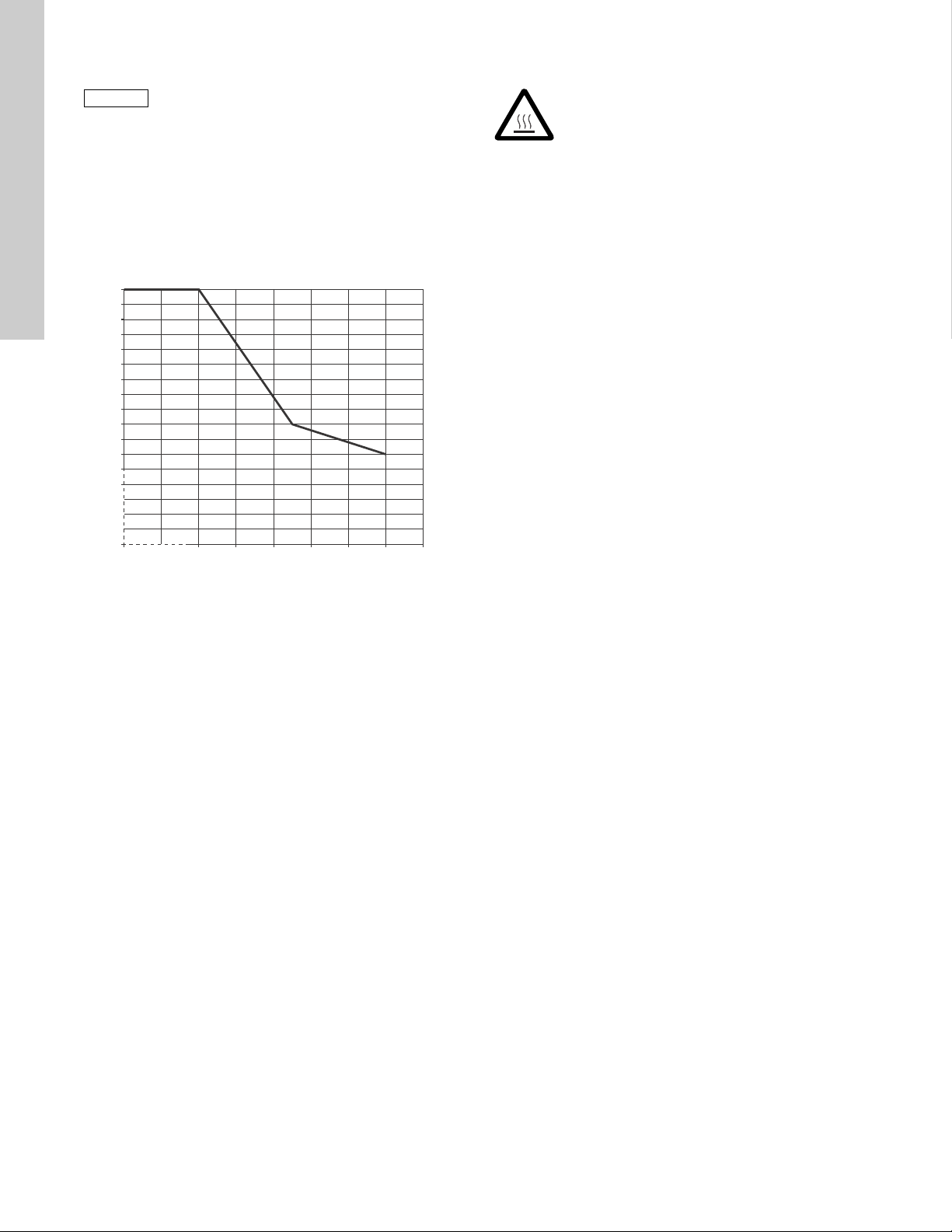

Fig. 13 Derating of motor output power (P2) in relation to
altitude above sea level
7.4 Air humidity
Maximum air humidity: 95 %.
If the air humidity is constantly high and above 85 %, one of the
drain holes in the drive-end flange should be open. See section
5. Mechanical installation.
7.5 Motor cooling
To ensure cooling of motor and electronics, observe the following:
• Position the motor in such a way that adequate cooling is
ensured. See section 5.3 Ensuring motor cooling.
• The temperature of the cooling air must not exceed 122 °F
(50 °C).
• Keep cooling fins and fan blades clean.
8. User interfaces
Pump settings can be made by means of the following user
interfaces:
• Standard control panel.
See section 9. Standard control panel.
• Grundfos GO Remote.
See section 10. Grundfos GO Remote.
If the power supply to the pump is switched off, the settings will
be stored.
Factory settings
The pumps have been factory-set to constant-curve control
mode. See section 9.1.2 Pump in constant-curve control mode.
The setpoint value corresponds to maximum pump performance.
See data booklet or WebCAPS.
Caution
The motor must not be installed more than 6562
ft (2000 m) above sea level.
TM05 6400-U.S. 1013
1
0.99
0.98
0.97
0.96
0.95
0.94
0.93
0.92
0.91
0.90
0.89
0.88
0
0
3281 3937 4593 5249 5906 6562 7218
[ft]
P2
[%]
Warning
The product may be so hot that only the buttons
should be touched to avoid burns.

11
English (US)
9. Standard control panel
This control panel is fitted as standard on TPE pumps.
Fig. 14 Standard control panel
9.1 Setpoint setting
Set the desired setpoint of the pump by pressing or .
The light fields on the control panel will indicate the setpoint set.
9.1.1 Pump in differential-pressure control mode
The following example applies to a pump in an application where
a pressure sensor gives a feedback to the pump. If the sensor is
retrofitted to the pump, it must be set up manually as the pump
does not automatically register a connected sensor.
Figure 15 shows that the light fields 5 and 6 are activated,
indicating a desired setpoint of 4.3 psi (3 m) with a sensor
measuring range from 0 to 8.5 psi (0 to 6 m) The setting range is
equal to the sensor measuring range.
Fig. 15 Setpoint set to 4.3 psi (3 m), differential-pressure
control
9.1.2 Pump in constant-curve control mode
In constant-curve control mode, the pump performance will lie
between the max. and min. curve of the pump. See fig. 16.
Fig. 16 Pump in constant-curve control mode
Setting to max. curve:
•Press continuously to change over to the max. curve of
the pump (top light field flashes). When the top light field is on,
press for 3 seconds until the light field starts flashing.
• To change back, press continuously until the desired
setpoint is indicated.
Example: Pump set to max. curve.
Figure 17 shows that the top light field is flashing, indicating max.
curve.
Fig. 17 Max. curve duty
TM05 4848 3512
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of the pump.
See section 17. Grundfos Eye for further
information.
2 - Light fields for indication of setpoint.
3 Changes the setpoint.
4
Enables radio communication with the
Grundfos GO Remote and other products of
the same type.
5
Makes the pump ready for operation/starts
and stops the pump.
Start:
If the button is pressed when the pump is
stopped, the pump will only start if no other
functions with higher priority have been
enabled. See section 16. Priority of
settings.
Stop:
If the button is pressed when the pump is
running, the pump will always be stopped.
When the pump is stopped via this button,
the "Stop" text next to the button will
illuminate.
1
2
3
4
5
Stop
TM06 0910 1214TM05 4895 2812TM05 4896 2812
0
8.5
4.3
psi
H
Q
H
Q

English (US)
12
Setting to min. curve:
•Press continuously to change over to the min. curve of the
pump (bottom light field flashes). When the bottom light field is
on, press for 3 seconds until the light field starts flashing.
• To change back, press continuously until the desired
setpoint is indicated.
Example: Pump set to min. curve.
Figure 18 shows that the bottom light field is flashing, indicating
min. curve.
Fig. 18 Min. curve duty
9.1.3 Start/stop of pump
Start the pump by pressing or by continuously pressing
until the desired setpoint is indicated.
Stop the pump by pressing . When the pump is stopped, the
"Stop" text next to the button will illuminate. The pump can also
be stopped by continuously pressing until none of the light
fields are on.
If the pump has been stopped by pressing , it can only be
given free to operation by pressing again.
If the pump has been stopped by pressing , it can only be
restarted by pressing .
The pump can also be stopped with the Grundfos GO Remote or
via a digital input set to "External stop". See section 16. Priority of
settings.
9.1.4 Resetting of fault indications
A fault indication can be reset in one of the following ways:
• Via the digital input if it has been set to "Alarm resetting".
• Briefly press or on the pump. This will not change the
setting of the pump.
A fault indication cannot be reset by pressing or if the
buttons have been locked.
• Switch off the power supply until the indicator lights are off.
• Switch the external start/stop input off and then on again.
• With the Grundfos GO Remote.
10. Grundfos GO Remote
The pump is designed for wireless radio or infrared
communication with the Grundfos GO Remote.
The Grundfos GO Remote enables setting of functions and gives
access to status overviews, technical product information and
actual operating parameters.
The Grundfos GO Remote offers three different mobile interfaces
(MI). See fig. 19.
Fig. 19 Grundfos GO Remote communicating with the pump
via radio or infrared light
10.1 Communication
When the Grundfos GO Remote communicates with the pump,
the indicator light in the middle of the Grundfos Eye will flash
green. See section 17. Grundfos Eye.
Communication must be established using one of these
communication types:
• radio communication
• infrared communication.
10.1.1 Radio communication
Radio communication can take place at distances up to
30 meters. It is necessary to enable communication by pressing
or on the pump control panel.
10.1.2 Infrared communication
When communicating via infrared light, the Grundfos GO Remote
must be pointed at the pump control panel.
TM05 4897 2812
H
Q
TM05 5383 4312
Pos. Description
1
Grundfos MI 202:
Add-on module which can be used in conjunction
with Apple iPod touch 4G, iPhone 4G or 4GS.
2
Grundfos MI 204:
Add-on module which can be used in conjunction
with Apple iPod touch 5G or iPhone 5.
Grundfos MI 301:
Separate module enabling radio or infrared
communication. The module can be used in
conjunction with an Android or iOS-based
Smartphone with Bluetooth connection.
+
+
1
2

13
English (US)
10.2 Menu overview for Grundfos GO Remote
10.2.1 Main menus
Dashboard
Status
Resulting setpoint
Actual controlled value
Motor speed (rpm, %)
Power consumption
Energy consumption
Acc. flow, specific energy
Operating hours
Motor current
Number of starts
Pt100/1000 input 1
Pt100/1000 input 2
Analog output
Analog input 1
Analog input 2
Analog input 3
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Fitted modules

English (US)
14
Settings Section Page
Setpoint 11.1
Setpoint 15
Operating mode 11.2
Operating mode 15
Control mode 11.4 Control mode 15
Date and time
Buttons on product
Controller 11.11
Controller settings 20
Operating range 11.12
Operating range 21
Ramps 11.15.2
Ramps 24
Pump number 11.16.1
Pump number 24
Radio communication
Analog input 1
11.5
Analog inputs 18Analog input 2
Analog input 3
Pt100/1000 input 1 11.6
Pt100/1000 inputs 18
Pt100/1000 input 2
Digital input 1 11.7
Digital inputs 19
Digital input 2
Digital in/output 3 11.8
Digital inputs/outputs 19
Digital in/output 4
Predefined setpoint 11.13.2
Predefined setpoints 24
Analog output 11.10
Analog output 20
External setpoint funct. 11.13.1 External setpoint influence 21
Signal relay 1 11.9
Relay outputs 20
Signal relay 2
Limit 1 exceeded 11.14.1
Limit-exceeded function 24
Limit 2 exceeded
Standstill heating
Motor bearing monitoring
Service
Reset to factory settings
Store settings
Recall settings
Undo
Pump name
Unit configuration
Alarms and warnings
Alarm log
Warning log
"Reset alarm" button
Assist
Assisted pump setup
Assisted fault advice
Multi-pump setup
Product information
Product information

15
English (US)
11. Description of selected functions
11.1 Setpoint
The setpoint for all control modes can be set in this submenu
when the desired control mode has been selected. See section
11.4 Control mode.
11.2 Operating mode
Possible operating modes:
•Normal
The pump runs according to the selected control mode.
•Stop
The pump stops.
•Min.
The min. curve mode can be used in periods in which a
minimum flow is required.
•Max.
The max. curve mode can be used in periods in which a
maximum flow is required.
This operating mode is for instance suitable for systems with
hot-water priority.
•Manual
The pump is operating at a manually set speed.
See section 11.3
Set manual speed .
The pump can be set to operate according to the max. or min.
curve, like an uncontrolled pump. See fig. 20.
Fig. 20 Max. and min. curves
11.3 Set manual speed
The pump speed can be set in %. When the operating mode has
been set to "Manual", the pump will run at the set speed.
11.4 Control mode
Possible control modes:
•Const. pressure (constant pressure)
•Const. temp. (constant temperature)
•Con. diff. press. (constant differential pressure)
•Con. diff. temp. (constant differential temperature)
•Const. flow rate (constant flow rate)
•Const. level (constant level)
•Const. other val. (constant other value)
•Const. curve (constant curve).
The setpoint for all control modes can be changed in the
"Setpoint" submenu under "Settings" when the desired control
mode has been selected.
11.4.1 Constant pressure
The pump maintains a constant discharge pressure,
independently of the flow rate. See fig. 21.
Fig. 21 Constant pressure
This control mode requires an external differential-pressure
sensor as shown in the examples below:
Fig. 22 Constant pressure
TM00 5547 0995
Q
H
Max.
Min.
Note
Note
The operating mode must be set to " Normal "
before a control mode can be enabled.
TM05 7901 1613
Examples
• One external differential-pressure sensor.
H
Q
p
p

English (US)
16
11.4.2 Constant temperature
This control mode ensures a constant temperature.
Constant temperature is a comfort control mode that can be used
in domestic hot-water systems to control the flow to maintain a
constant temperature in the system. See fig. 23. When this
control mode is used, no balancing valves must be installed in the
system.
Fig. 23 Constant temperature
This control mode requires an external temperature sensor as
shown in the examples below:
Fig. 24 Constant temperature
11.4.3 Constant differential pressure
The pump maintains a constant differential pressure,
independently of the flow in the system. See fig. 25. This control
mode is primarily suitable for systems with relatively small
pressure losses.
Fig. 25 Constant differential pressure
This control mode requires either an external differential-pressure
sensor or two external pressure sensors as shown in the
examples below:
Fig. 26 Constant differential pressure
TM05 7900 1613
Examples
• One external temperature sensor.
H
Q
t
t
t
TM05 7901 1613
Examples
• One external differential-pressure sensor.
• Two external pressure sensors.
H
Q
p
p
p
p
p
p
p
p

17
English (US)
11.4.4 Constant differential temperature
The pump maintains a constant differential temperature in the
system and the pump performance is controlled according to this.
See fig. 27.
Fig. 27 Constant differential temperature
This control mode requires either two external temperature
sensors or one external differential-temperature sensor as shown
in the examples below:
Fig. 28 Constant differential temperature
11.4.5 Constant flow rate
The pump maintains a constant flow in the system, independently
of the head. See fig. 29.
Fig. 29 Constant flow rate
This control mode requires an external flow sensor as shown in
the example below:
Fig. 30 Constant flow rate
11.4.6 Constant level
The pump maintains a constant level, independently of the flow
rate. See fig. 31.
Fig. 31 Constant level
This control mode requires an external level sensor.
The pump can control the level in a tank in two ways:
• as an emptying function where the pump draws the liquid from
the tank.
• as a filling function where the pump pumps the liquid into the
tank.
See fig. 32.
The type of level control function depends on the setting of the
built-in controller. See section 11.11
Controller settings .
TM05 7954 1713
Examples
• Two external temperature sensors.
• One external differential-temperature sensor.
H
Q
△t
t
t
t
t
TM05 7955 1713
Example
• One external flow sensor.
TM05 7941 1613
H
Q
Q
set
Q
H
Q

English (US)
18
Fig. 32 Constant level
11.4.7 Constant other value
Any other value is kept constant.
11.4.8 Constant curve
The pump can be set to operate according to a constant curve,
like an uncontrolled pump. See fig. 33.
The desired speed can be set in % of maximum speed in the
range from 25 to 100 % (110 %).
Fig. 33 Constant curve
11.5 Analog inputs
Available inputs depending on the functional module fitted in the
pump:
To set up an analog input, make the settings below.
Function
The analog inputs can be set to these functions:
•Not active
•Feedback sensor
•Ext. setpoint infl.
See section 11.13
Setpoint influence .
•Other function.
Measured parameter
Select one of the parameters, i.e. the parameter to be measured
in the system by the sensor connected to the actual analog input.
Unit
Available measuring units:
Electrical signal
Select signal type (0.5 - 3.5 V, 0-5 V, 0-10 V, 0-20 mA or
4-20 mA).
Sensor range, min. value
Set the min. value of the connected sensor.
Sensor range, max. value
Set the max. value of the connected sensor.
11.6 Pt100/1000 inputs
Available inputs depending on the functional module fitted in the
pump:
Function
The Pt100/1000 inputs can be set to these functions:
•Not active
•Feedback sensor
•Ext. setpoint infl.
See section 11.13
Setpoint influence .
•Other function.
Measured parameter
Select one of the parameters, i.e. the parameter to be measured
in the system.
Examples
• One external level sensor.
– emptying function.
• One external level sensor.
– filling function.
TM05 7957 1713
L
L
H
Q
Function (terminal) FM 300
(advanced)
Analog input 1, setup (4) ●
Analog input 2, setup (7) ●
Analog input 3, setup (14) ●
Parameter Possible units
Pressure bar, m, kPa, psi, ft
Pump flow m3/h, l/s, yd3/h, gpm
Liquid temp. °C, °F
Other parameter %
Function (terminal) FM 300
(advanced)
Pt100/1000 input 1, setup (17 and 18) ●
Pt100/1000 input 2, setup (18 and 19) ●

19
English (US)
11.7 Digital inputs
Available inputs depending on the functional module fitted in the
pump:
To set up a digital input, make the settings below.
Function
Select one of these functions:
•Not active
When set to "Not active", the input has no function.
•External stop
When the input is deactivated (open circuit), the pump will
stop.
•Min. (min. speed)
When the input is activated, the pump will run at the set min.
speed.
•Max. (max. speed)
When the input is activated, the pump will run at the set max.
speed.
•External fault
When the input is activated, a timer will be started. If the input
is activated for more than 5 seconds, the pump will be stopped
and a fault will be indicated.
•Alarm resetting
When the input is activated, a possible fault indication will be
reset.
•Dry running
When this function has been selected, lack of inlet pressure or
water shortage can be detected.
When lack of inlet pressure or water shortage (dry running) is
detected, the pump will be stopped. The pump cannot restart
as long as the input is activated.
This requires the use of an accessory, such as these:
– a pressure switch installed on the suction side of the pump
– a float switch installed on the suction side of the pump.
•Accumulated flow
When this function has been selected, the accumulated flow
can be registered. This requires the use of a flowmeter which
can give a feedback signal as a pulse per defined flow of
water.
See section 11.15.1
Pulse flowmeter setup .
•Predefined setpoint digit 1 (applies only to digital input 2).
When digital inputs are set to predefined setpoint, the pump
will operate according to a setpoint based on the combination
of the activated digital inputs.
See section 11.13.2
Predefined setpoints .
The priority of the selected functions in relation to each other
appears from section 16. Priority of settings. A stop command will
always have the highest priority.
11.8 Digital inputs/outputs
Available inputs/outputs depending on the functional module
fitted in the pump:
To set up a digital input/output, make the settings below.
Mode
The digital input/output 3 and 4 can be set to act as digital input
or digital output:
•Digital input
•Digital output.
Function
The digital input/output 3 and 4 can be set to these functions:
Possible functions, digital input/output 3
Possible functions, digital input/output 4
Function (terminal) FM 300
(advanced)
Digital input 1, setup (2 and 6) ●
Digital input 2, setup (1 and 9) ●
Function (terminal) FM 300
(advanced)
Digital input/output 3, setup (10 and 16) ●
Digital input/output 4, setup (11 and 18) ●
Function if input Function if output
•Not active
•External stop
•Min.
•Max.
•External fault
•Alarm resetting
•Dry running
•Accumulated flow
•Predefined setpoint digit 2
•Not active
•Ready
•Alarm
•Operation
•Pump running
•Warning
•Limit 1 exceeded
•Limit 2 exceeded
Function if input Function if output
•Not active
•External stop
•Min.
•Max.
•External fault
•Alarm resetting
•Dry running
•Accumulated flow
• Predefined setpoint digit 3
•Not active
•Ready
•Alarm
•Operation
•Pump running
•Warning
•Limit 1 exceeded
•Limit 2 exceeded

English (US)
20
11.9 Relay outputs
The pump incorporates two signal relays for potential-free
signalling. See section 18. Signal relays for further information.
The signal relays can be configured to be activated by one of the
following incidents:
•Ready
•Operation
•Alarm
•Warning
•Limit 1 exceeded
•Limit 2 exceeded
•Pump running
•Control of external fan
•Not active.
11.10 Analog output
Whether the analog output is available or not, depends on the
functional module fitted in the pump:
To set up the analog output, make the settings below.
Output signal
•0-10 V
•0-20 mA
•4-20 mA.
Function of analog output
•Actual speed
•Actual value
•Resulting setpoint
•Motor load
•Motor current
•Limit 1 exceeded
•Limit 2 exceeded
•Flow rate.
11.11 Controller settings
The pumps have a factory default setting of gain (Kp) and integral
time (Ti).
However, if the factory setting is not the optimum setting, the gain
and the integral time can be changed:
• Set the gain (Kp) within the range from 0.1 to 20.
• Set the integral-action time (Ti) within the range from 0.1 to
3600 s.
If 3600 s is selected, the controller will function as a P
controller.
Furthermore, the controller can be set to inverse control.
This means that if the setpoint is increased, the speed will be
reduced. In the case of inverse control, the gain (Kp) must be set
within the range from -0.1 to -20.
Guidelines for setting of PI controller
The tables below show the recommended controller settings:
L1 = Distance ft (m) between pump and sensor.
1) In heating systems, an increase in pump performance will
result in a rise in temperature at the sensor.
2) In cooling systems, an increase in pump performance will
result in a drop in temperature at the sensor.
L2 = Distance ft (m) between heat exchanger and sensor.
Function (terminal) FM 300
(advanced)
Relay output 1 (NC, C1, NO) ●
Relay output 2 (NC, C2, NO) ●
Function (terminal) FM 300
(advanced)
Analog output ●
Differential-pressure
control KpTi
0.5 0.5
0.5 L1 < 16.4 ft (5 m): 0.5 L1 > 16.4 ft (5 m): 3
L1 > 32.8 ft (10 m): 5
Temperature control
KpTi
Heating
system1) Cooling system2)
0.5 -0.5 10 + 5L2
0.5 -0.5 30 + 5L2
p
p
p
p
ǻS
L1
L1
ǻS
L2
t
L2
t
