Guldmann Stepless LP7 User manual

© Guldmann GB/US-2583/04/2022 • # 558526_3
GB/US ....LP7 & LP7+ Lifting platform
User manual – vers. 3.00

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
2
LP7 & LP7+
Item numbers:
LP7: 5582-xx
LP7+: 5583-xx
1.00 ........Purpose and use ..............................................3
1.01 ........Manufacturer ..................................................3
1.02 ........Purpose and use ...............................................3
1.03 ........Important/warnings .............................................4
1.04 ........Denitions ....................................................4
1.05 ........Safety rules ...................................................5
1.06 ........Assembly .....................................................5
1.07 ........Electrical connection ............................................5
2.00 ........Description of functions ........................................6
2.01 ........Labels .......................................................6
2.02 ........Operating instructions ...........................................7
2.03 ........Safety functions ................................................8
2.04 ........Accessories ..................................................10
3.00 ........Dismantling and transport .....................................11
4.00 ........Maintenance and storage ......................................11
4.01 ........Cleaning.....................................................11
4.02 ........Storage and keeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.03 ........How is corrosion avoided?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.04 ........What maintenance is required by the owner? ........................11
5.00 ........Servicing and useful life .......................................12
5.01 ........Useful life and servicing.........................................12
5.02 ........General inspection.............................................12
5.03 ........Troubleshooting ...............................................13
6.00 ........Technical specications .......................................14
7.00 .........EU Declaration of conformity ...................................14
8.00 .........Warranty and service conditions ................................14
A. ..........Warranty.....................................................14
B. ..........Service or Repair ..............................................15

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
3
1.00 Purpose and use
1.01 Manufacturer
V. Guldmann A/S
Graham Bells Vej 21-23A
DK-8200 Aarhus N
Denmark
Tel. + 45 8741 3100
1.02 Purpose and use
Purpose
The lifting platform can be used to lift people in need of help with negotiating
height di󰀨erences.
Use
The LP7 & LP7+ are designed for permanent installation indoors and
outdoors.
The lifting platform may only be operated by users who have been properly
instructed to do so, or by personnel who have been professionally trained to
use this assistive technology/working tool.
Entering and exiting the lifting platform takes place at each end of the lifting
platform.
The access ramp and doors serve to protect the user by keeping him/her
from rolling o󰀨 during use. There are also handrails on both sides of the lifting
platform. The LP7+ is tted with doors as a standard feature.
The lifting platform is designed and manufactured in relation to applicable
norms.
LP7 can lift up to 800 mm (31½”).
LP7+ can lift up to 1500 mm (59”).
The lifting interval of the LP7 and the LP7+ can be adjusted between heights
of 50-1500 mm (2”-59”).
The lifting platform may be used in temperatures from -10 to +40°C.
In temperatures of less than zero, the application of suitable heating beneath
the lifting platform is recommended.
Great importance is attached to the design and implementation to achieve
attractive and harmonious installation in di󰀨erent environments, private and
public. Public environments are institutions, public buildings, etc., where the
lifting platform is subject to a certain amount of supervision. In these environ-
ments, the lifting platform should be locked, protecting it against unintentional
use or play.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
4
1.03 Important/warnings
• All of the operating instructions must be read before the product is used.
• The LP7 & LP7+ must be assembled by the Guldmann Service Team, or by
an engineer approved by Guldmann.
• The LP7 & LP7+ are controlled by a microprocessor print which can be
damaged by static electricity if touched without the necessary precautions.
The electronics must therefore be serviced by trained technicians only.
• The accompanying safety chain must be used when the service engineer
moves around beneath the lifting platform.
• The lifting platform’s secondary power source (battery) must be disconnected
via the key switch when the service engineer is working beneath the lifting
platform.
• The MAXIMUM load of 350 kg (770 lbs.) must not be exceeded.
• The lifting platform and access ramp must be swept clean of gravel, fallen
leaves, snow, etc. before use.
• The lifting platform is to be used to transport people, and must be used in
accordance with the descriptions in this manual.
• The lifting platform must not be used during re.
• Safety equipment must only be reset by qualied assistance.
• All playing by and with the lifting platform is forbidden.
1.04 Denitions
1. Lifting platform
2. Access ramp
3. Railing
4. Door
5. Operation panel
Safety door (optional)
LP7
LP7+
5
4
3
2
1
5
3
2
1

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
5
1.05 Safety rules
When working beneath the lifting platform, there is a risk of becoming trapped
between the moving parts of the lifting platform. The following safety rules
must therefore be observed:
1. The safety chain/strap must always be used while working beneath the
lifting platform.
2. The secondary power source (battery) must be disconnected via the key
switch while working beneath the lifting platform.
3. The lifting platform may NOT be raised/lowered while work is being performed
beneath the lifting platform. This rule applies even if safety devices are in
place.
4. Once the lifting platform has been installed, connected and can be raised/
lowered only one person must work at the lifting platform at a time.
Safety equipment
When working beneath the lifting platform, a safety stop MUST be used to
mechanically block the lifting platform from descending.
1.06 Assembly
The LP7 & LP7+ must be assembled by the Guldmann Service Team or an
engineer approved by Guldmann according to Guldmann’s instructions.
Please refer to the Installation Manual Platform Lift LP7 for information on
handling and installation.
1.07 Electrical connection
Please refer to the Installation Manual Platform Lift LP7 for information on
electrical connections.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
6
2.00 Description of functions
2.01 Labels
(positioned on the lifting platform).
max xxx kg/xxx lbs
max x
xxxxxx
xxxxxxxxxx
230V, 0.5A, xx Hz, xx W
Internally powered
equipment 24V DC
V. Guldmann A/S
Graham Bells Vej 21-23A
DK-8200 Aarhus N
yyyy-mm-dd
Xxxxxxxx
Explanation of labels
Manufacturer: Manufacturer
CE-marking: This represents the manufacturer’s declaration
that the product comply with MDR
Warning sign: General warning
IFU: Read the manual before starting work
REF: Part number
SN: Serial number
Emergency lowering label
• Turn the key to (O) to turn the
lifting platform o󰀨.
• Turn the key to (I) to turn the
lifting platform on.
• Turn the key to the and hold
it for 10 sec to activate the
emergency lowering function.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
7
2.02 Operating instructions
The lifting platform is operated by means of the operating panel.
The lifting platform is logical and unproblematic to operate and use, even with
no prior knowledge.
When the lifting platform is parked at the lower level, the ramp/doors can be
opened by pressing and holding the DOWN button (2).
1. UP
2. DOWN
2
1
Raising the lifting platform from the lower level
1. When the lifting platform is at the lowest level and the access ramp has been
lowered to the proper level, users can freely drive up on to the
lifting platform.
2. Activate the control panel by pressing UP button (1), and the access ramp will
go up / the doors will close; this way, the access ramp serves to protect the
user from rolling o󰀨.
3. When the access ramp is all the way up and (1) is held down, the lifting plat-
form will begin its ascent. The lifting platform only ascends when (1) is active-
ly held down (hold-to-run).
4. When the lifting platform is level with the landing, the lifting platform stops
automatically and the user can drive onto the landing.
5. When using the safety gate, it is opened automatically. It is electronically
secured and cannot be opened until the lifting platform is in the highest posi-
tion.
Lowering the lifting platform from the upper level
1. The user drives onto the lifting platform.
2. When using the safety gate, it must be closed before the lifting platform can
be operated. This is done by activating (2).
3. Activate the operating panel by pressing button (2) to lower the lifting platform.
The lifting platform only descends when (2) is actively held down (hold-to-run).
4. When the lifting platform is at its lowest level, the access ramp will be low-
ered/the doors opened, and the user can drive o󰀨 the lifting platform.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
8
2.03 Safety functions
Important!
Individual and specic consideration must be given to how an emergency
summoning system must work. One or more responsible people should be
appointed to help with the correct use of the lifting platform. It should always
be possible to call those responsible in any emergency situation. The users
must be informed of who holds this responsibility.
3
Description of emergency stop
The emergency stop must be used
in emergencies only. If the emer-
gency stop is activated owing to a
malfunction, the dealer must be
contacted before the LP7 & LP7+
are used again.

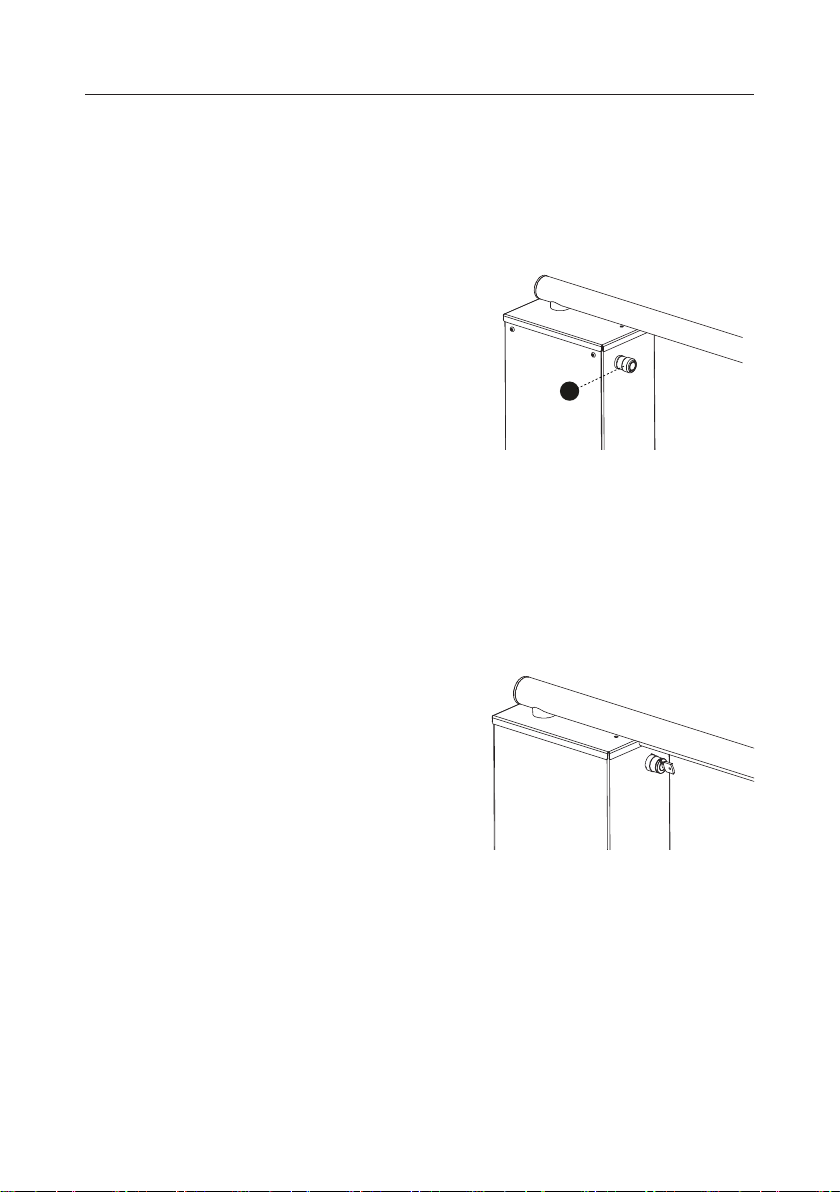

The emergency stop button (3) is
located at the top of the right tower.
It stops all movement when activated.
Restarting the control system
• The emergency stop button must be pulled out, and the LP7/LP7+ can be
restarted by pressing the control buttons.
• Alternatively, activate the emergency stop button for 5 seconds and then
release it to restart the control system.
Description of electrical emergency
lowering – lifting platform
Great attention and the required
mobility is needed to use the
emergency lowering, which is why
the person responsible for the use
of the lifting platform should be
called.
The person responsible must have
read the manual so that he can be
called at any time to assist a user.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
9
The emergency lowering must be used in emergencies only. This requires
qualied assistance.
You must contact the dealer before using the LP7 & the LP7+ again. Remove
the key after installation and keep it with the manual.
The electric emergency lowering device is activated by turning the key switch
to the left for 10 seconds. The lifting platform will then begin its descent. The
lifting platform will stop if the key is released. If the key is not activated for 10
seconds, the electrical emergency lowering device will be deactivated, after
which it can be activated again.
The switch is located in the left tower on the lifting platform.
Description of emergency lowering – access ramp
The access ramp is tted with a
hexagonal screw on the left side.
Remove this screw and the access
ramp can be closed up.
Important!
When the screw is removed from the
access ramp, the ramp can no longer
be secured. Hold onto the access
ramp when removing the screw.
Safety curtain
The safety curtain ensures that nobody can move beneath the lifting platform
when it is at its highest level and thereby risk getting trapped when the lifting
platform is lowered. The safety curtain is tted upon delivery.
If the safety curtain has not been installed, or if it is damaged and the area
beneath the lifting platform cannot be accessed, the lifting platform cannot be
used until the problem has been solved.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
10
Safety cut-out function
If anyone or anything gets trapped
beneath the lifting platform when it is
lowered, the descent will stop as
soon as the safety list is activated.
The safety function is reset by
pressing ”UP” (1), which will raise the
lifting platform. Next, remove the ob-
ject that activated the safety list.
Overload protection
The lifting platform is designed so that it is protected against overloading. In
the event of overload, the lifting platform will issue a visual alert on the control
panel. The lifting platform cannot be used in the event of an overload.
Remove load so that the lifting platform can be operated again.
2.04 Accessories
Extra operating panel
External control panels with ”UP or “DOWN”
button for wall or free-standing installation.
The control panel is tted with a lock. The
control panel is also available in a wireless
version.
Wireless operation
Use this when there are one or more independent users.
This allows users to control the lifting platform without being dependent on a
helper.
The remote control is only to be used when the lifting platform is in the
operator’s eld of vision.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
11
Heating cable
The lifting platform is delivered without heating. Heating cables can be
embedded in a concrete foundation beneath the base frame. The purpose of
heating is to keep the lifting platform free of snow and ice.
3.00 Dismantling and transport
Please refer to the Installation Manual Platform Lift LP7 for information on
transport and dismantling.
4.00 Maintenance and storage
4.01 Cleaning
The LP7 & LP7+ are cleaned with a sponge or brush and soapy water.
The LP7 & LP7+ can be sprayed or rinsed at ordinary water pressure; they
must not be rinsed under high pressure.
Never use acids, bases or solvents for cleaning.
4.02 Storage and keeping
No special requirements. Please note, however, that the batteries’ life span is
shortened if they are not connected to the charger for a long period of time.
4.03 How is corrosion avoided?
The LP7 & LP7+ are made of corrosion-resistant materials and require no
further corrosion prevention.
Avoid using salt on the lifting platform as it will reduce the lifting platform’s
lifetime.
4.04 What maintenance is required by the owner?
The owner is responsible for ensuring that legally mandated service
inspections are performed.
Cleaning as required.
Keep the space around the lifting platform clean to avoid interruptions caused
by foreign objects.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
12
5.00 Servicing and useful life
5.01 Useful life and servicing
The LP7 & LP7+ must be inspected in accordance with the national law and
at least twice a year.
Attention: Please note that there can be specic demands if there is public
access to the lifting platform.
• The LP7 & LP7+ have an expected life span of 15 years with regular daily
use.
• The lifting actuator must be replaced after 10 000 lifts.
The life span is based on correct usage, cleaning, and maintenance, as
well as two annual inspections and maintenance by qualied personnel or the
Guldmann Service Team. After this period, the LP7 & LP7+ must be assessed
by qualied personnel before future use.
Spare parts lists and drawings can be ordered from the manufacturer or the
distributor.
5.02 General inspection
Please refer to the “Safety inspection checklist for Lifting platforms” and “Ser-
vice inspection checklist for Lifting Platforms” for information on general
inspection.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
13
5.03 Troubleshooting
Fault Possible cause Solution
None of the electrical func-
tions work.
The emergency stop button has
been pressed.
Turn the emergency stop
button to the right.
The lifting platform is off. Turn on the lifting platform
using the key switch. The key
must be vertical to turn the lift-
ing platform on.
The lifting platform has been shut off. Turn on the socket.
The fuse has blown. Change the fuse or reset the
residual current device.
The lifting platform does
not go all the way down.
Foreign objects below the lifting
platform/lift basket.
The safety list is activated.
Clear away snow/ice or other
foreign objects.
The lifting platform shows
overload.
The maximum load of the lifting plat-
form has been exceeded.
Remove some of the load
from the lifting platform. Do not
exceed the maximum load of
the lifting platform.
The lifting platform won’t
start after the lower door
has been closed.
The lower door does not indicate
closed and locked.
Press the DOWN button until
the door is completely open.
Check that there are no foreign
objects between the door and
the lifting platform. Run the
lifting platform as normal. If the
problem continues, contact the
supplier to adjust the door lock.
The lifting platform does
not go down after the upper
door has been closed.
The upper door shows no sign that it
has been closed and locked.
Press the UP button until the
door is open. Check that there
are no foreign objects between
the door and the lifting plat-
form. Run the lifting platform
as normal. If the problem con-
tinues, contact the supplier to
adjust the door lock.
The control panel flashes 1 flash: Overload activated. Remove load so that the lifting
platform can be operated again.
2 flashes: Error on EOS inputs Contact supplier
3 flashes: Error on hall elements or
magnet
Contact supplier
4 flashes: Overheating Allow the lifting platform to
cool off for 20 minutes, and
contact the supplier if problems
continue
5 flashes: Error on Power_Hbridge Contact supplier
6 flashes: Low voltage Contact supplier
7 flashes: Power supply error Contact supplier
8 flashes: Overvoltage Contact supplier
Lasting flash: Lost position Contact supplier
If the points above do not solve the problem, please contact the Guldmann
Service Team or your distributor.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
14
6.00 Technical specications
Please refer to the datasheet for LP7 or the datasheet for LP7+ for informati-
on on technical specications.
For electrical schematics, contact the Guldmann Service Team or your distri-
butor.
7.00 EU Declaration of conformity
The product is manufactured in compliance with the Council Directive
2006/42/EC of May 17th 2006 on machinery and amending Directive 95/16/EC.
8.00 Warranty and service conditions
A. Warranty
Guldmann warrants its equipment is free from material defects under normal
use, and will perform substantially in accordance with the specications set
forth in documentation provided with the equipment.
This express warranty shall be in e󰀨ect for one year from the date of original
purchase and installation (the “Warranty Period”). If a valid claim is made
during the Warranty Period for malfunction or equipment defect, Guldmann will
repair or replace the equipment at no additional cost to you. Guldmann retains
sole discretion as to whether the equipment will be repaired or replaced.
The warranty does not cover any part of the equipment that has been subject
to damage or abuse by the user or others. The warranty does not cover any
part of the equipment that has been altered or changed in any way by the
user or others. Guldmann does not warrant that the lifting device functions will
meet your requirements, be uninterrupted or error free.
The warranty set forth is in lieu of all other express and implied warran-
ties, whether oral, written or implied, and the remedies set forth above are
your sole and exclusive remedies. Only an authorized o󰀩cer of Guldmann
may make modications to this warranty, or additional warranties binding on
Guldmann. Accordingly, additional statements such as advertising or presen-
tations, whether oral or written, do not constitute warranties by Guldmann.

© Guldmann GB/US-2583/04/2022 • # 558526_3 © Guldmann GB/US-2583/04/2022 • # 558526_3
15
This warranty shall be null and void if the equipment is operated and main-
tained in any manner inconsistent with its intended use or the instructions
provided with the product. Further, in order for the warranty to remain in e󰀨ect
for the full Warranty Period, all service to the equipment must be provided
by a Guldmann certied technician. Any parts or components repaired or re-
placed by a Guldmann certied technician will be guaranteed for the remain-
der of the Warranty Period.
Only for USA
This warranty shall be null and void if the equipment is operated and main-
tained in any manner inconsistent with its intended use or the instructions
provided with the product. Further, in order for the warranty to remain in e󰀨ect
for the full Warranty Period, all service to the equipment must be provided
by a Guldmann Certied Technician. A Guldmann Certied Technician is a
technician who has successfully completed Guldmann Service Training, and
who holds a valid Service Training Certicate from Guldmann, and is in pos-
session of a valid password to access Guldmann’s Service and Information
Console (SIC). A Guldmann Service Training Certicate and SIC password
are valid for three years (only USA) from the date the technician is rst certi-
ed. Thereafter, the technician must undergo re-certication training to obtain
a new valid certicate and password. Any parts or components repaired or
replaced by a Guldmann Certied Technician will be guaranteed for the re-
mainder of the Warranty Period. In the event the warranty is rendered null
and void, the purchaser shall indemnify and hold Guldmann harmless of and
from any and all claims or liability arising as a result of equipment malfunction
or misuse.
B. Service or Repair
Contact Guldmann Repair for an authorization to return any defective item
during the Warranty Period. You will be provided with a return authorization
number and address for returning the item for warranty service or replace-
ment. Do not return items to Guldmann under warranty without receiving a
Return Authorization Number.
If mailing the item, pack it carefully in a sturdy carton to prevent damage.
Include your Return Authorization Number, a brief description of the problem
and your return address and phone number. Guldmann does not assume the
risk of loss or damage while in transit, so it is recommended you insure the
package.

© Guldmann GB/US-2583/04/2022 • # 558526_3
V. Guldmann A/S
Corporate O󰀩ce:
Tel. [phone]
E-mail [email protected]
www.stepless.com
Guldmann Inc.
Tel. [phone]
Tel. [phone]
Fax [phone]
[email protected]
www.stepless.net
