PACK 6 | BUILD INSTRUCTIONS
ALIEN
KIT 37
THE LEFT RIBS
AND RIGHT THIGH (II)
KIT 38
THE LEFT RIBS
AND RIGHT THIGH (III)
KIT 39
THE LEFT RIBS
AND RIGHT THIGH (IV)
KIT 40
THE PELVIS (I)
KIT 41
THE RIGHT LEG (IV)
STEPS & TIPS ONLINE
KIT 42
THE RIGHT FOOT
AND RIBCAGE
KIT 43
THE RIGHT FOOT
KIT 44
THE RIGHT HAND
AND SKULL (I)
WARNING: Some parts are assembled using magnets. These magnets can cause serious
injury if they are swallowed. Keep away from children. If you suspect a magnet has been
swallowed, seek medical help straight away.
Some parts may have sharp edges, please handle them with care.
The installation of electronic parts must always be carried out by an adult. When replacing batteries,
use the same type of batteries.
Please ensure that the battery compartment is securely fastened before you use the model.
Used batteries should be recycled.
Please make sure to check with your local council how batteries should be disposed of in your area.
Batteries can present a choking danger to small children and may cause serious harm if ingested. Do
not leave them lying around and keep any spare batteries locked away at all times.

11
ASSEMBLY GUIDE
In this kit you will continue to work on the left rib and right thigh assemblies.
KIT 37: THE LEFT RIBS
AND RIGHT THIGH (II)
37-1 37-2 37-3
37-637-537-4

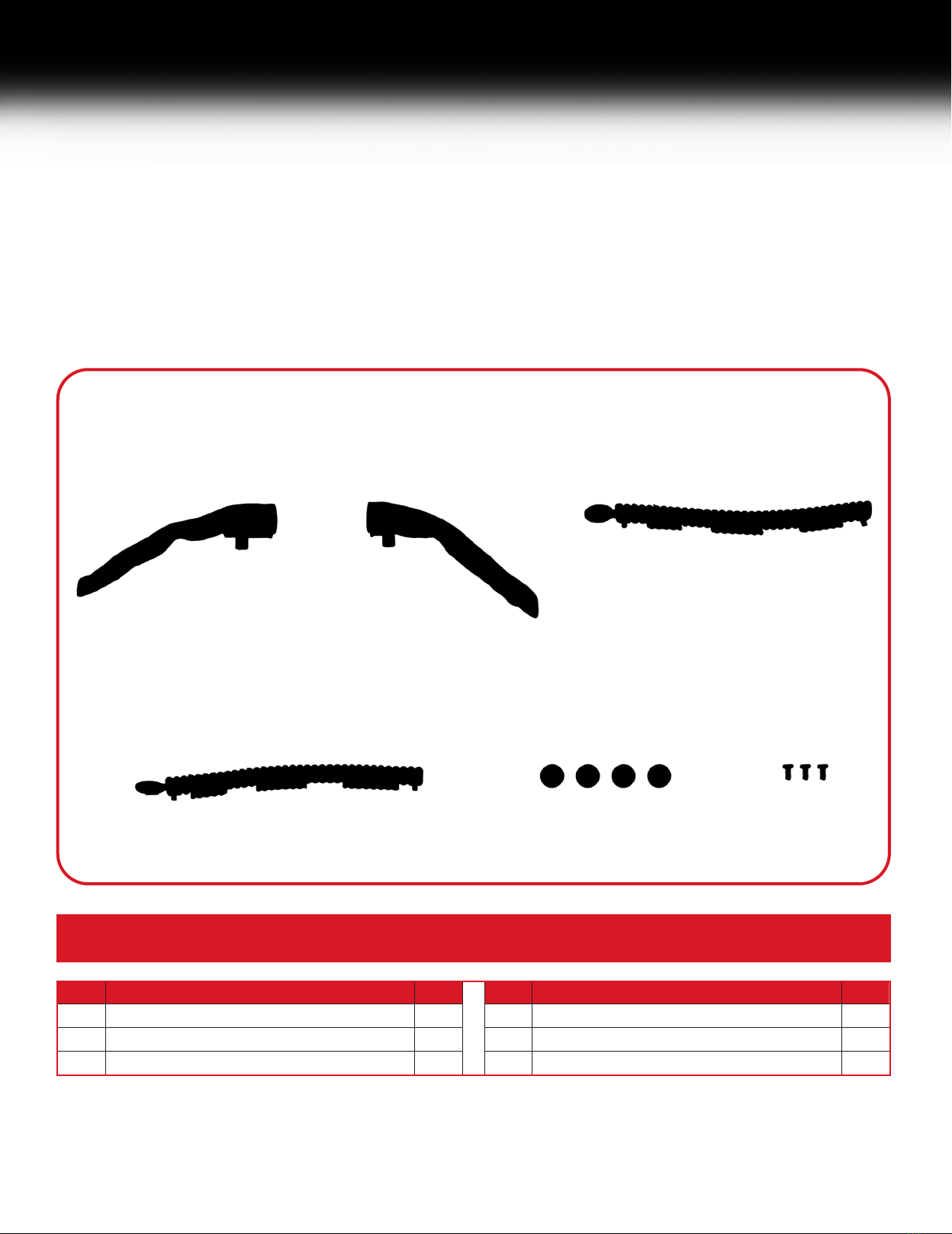

PARTS SUPPLIED
Ref. Name Qty.
37-1 Left Rib 1
37-2 Left Rib 1
37-3 Pipe D1 (right thigh) 1
Ref. Name Qty.
37-4 Pipe D2 (right thigh) 1
37-5 Magnets 4
37-6 2.3x4mm screw (1 spare) 3

22
KIT 37: THE LEFT RIBS AND RIGHT THIGH (II)
1
2
37-6
37-6
37-2
35-3
32-3
37-2
37-1

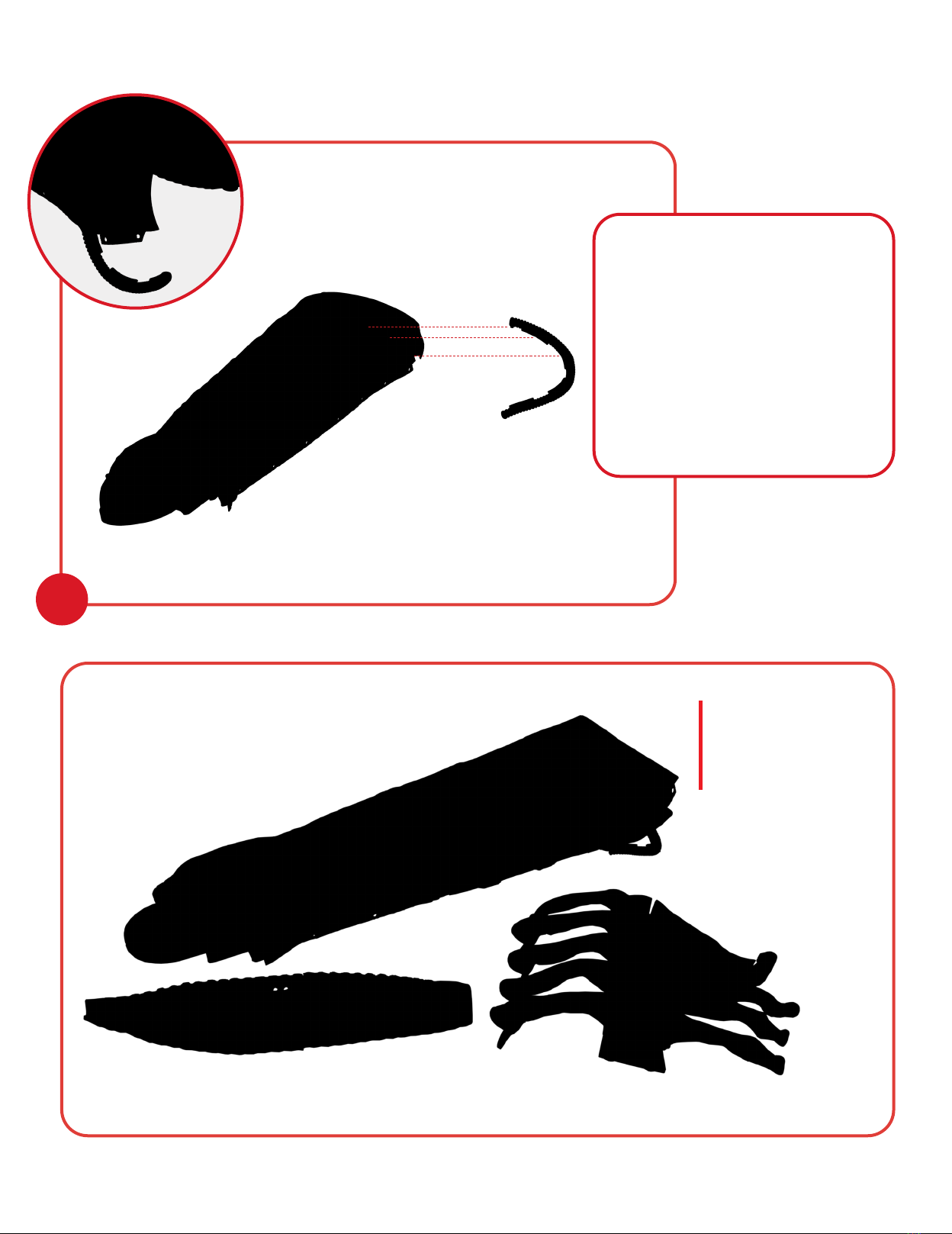

Fit the peg at the end of the Left
Rib 37-2 into the raised socket
inside Rib 37-1 and fix in place
with a 2.3x4mm screw 37-6.
Take the rib support assembly
32-3 from the pack 5 - kit 36 and
fit Rib 37-2 into the hole next to
rib 35-3. Secure in place with
a 2.3x4mm screw 37-6. Put the
assembly safely aside.

33
KIT 37: THE LEFT RIBS AND RIGHT THIGH (II)
3
4
37-3 (D1)
37-4 (D2)
37-3 (D1)
36-2
36-2

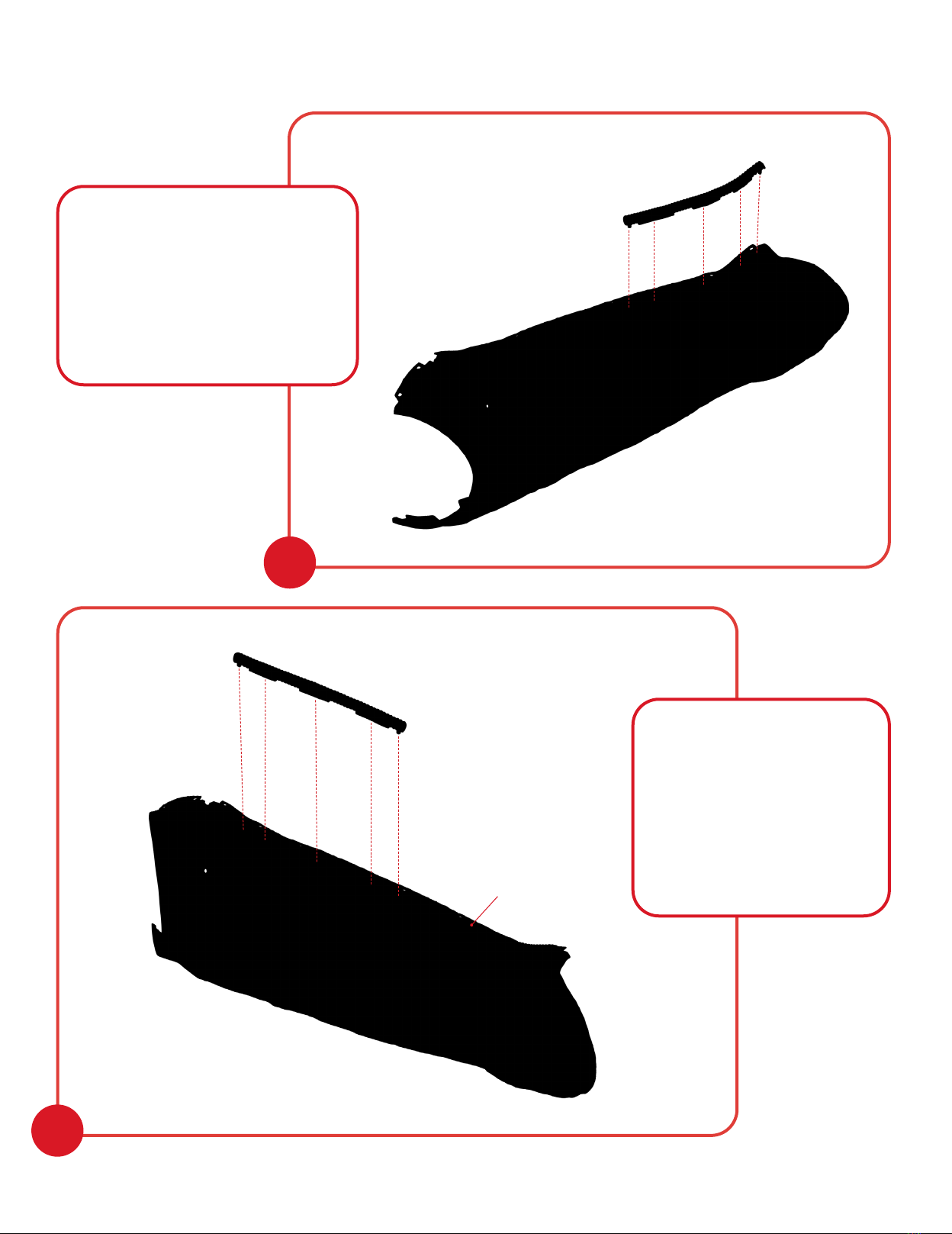

Next, test-fit Pipe D2 37-4
in place so that it continues
along from Pipe D1 37-3.
When sure of a good fit,
apply a little glue to the tabs
and pegs on Pipe D2 37-4
and secure in place. Again,
hold firmly in place until the
glue has set.
Take the Right Thigh Skin 36-2
supplied with pack 5 - kit 36 and
test-fit Pipe D1 37-3 in place, as
shown. When sure of a good fit,
apply a little glue to the tabs and
pegs on the Pipe D1 37-3 and
hold firmly in place until the glue
has set.

44
KIT 37 IS COMPLETE
5
37-5
37-5
36-2
THE NINTH LEFT RIB HAS BEEN ADDED
AS WELL AS PIPES AND MAGNETS
BEING FITTED TO THE THIGH SKIN.

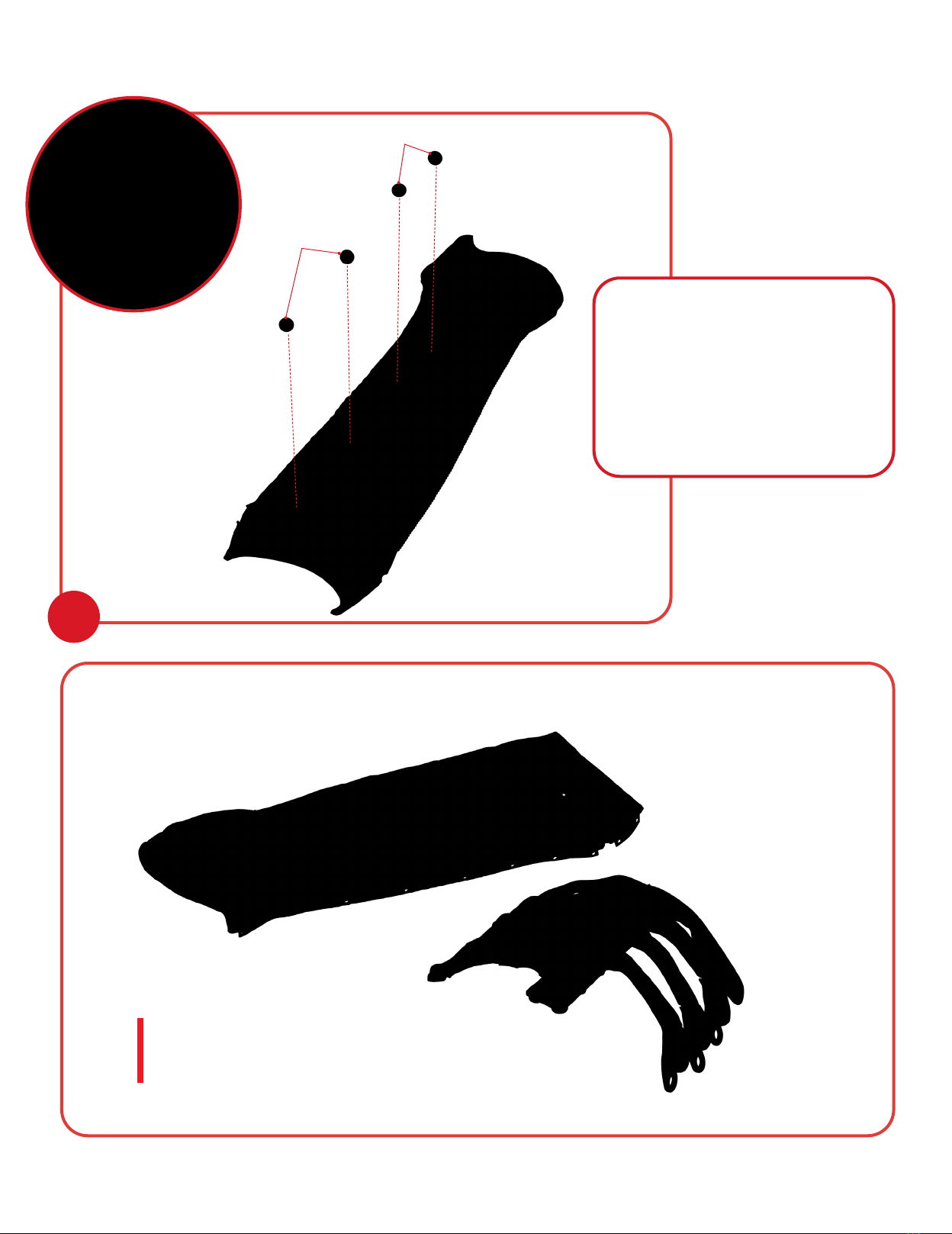

Turn the Thigh Skin 36-2 over
and note the position of the
circular recesses for the magnets,
as shown. Apply a little superglue
to the recesses and firmly fix the
four Magnets 37-5 in place. The
polarity of the magnets doesn’t
matter at this stage.
KIT 37: THE LEFT RIBS AND RIGHT THIGH (II)

11
ASSEMBLY GUIDE
In this kit you will continue to build the left rib section and work
on the right femur and thigh.
KIT 38: THE LEFT RIBS
AND RIGHT THIGH (III)
38-1 38-2 38-3
38-638-538-4
PARTS SUPPLIED
Ref. Name Qty.
38-1 Left Rib 1
38-2 Thigh Protector 1
38-3 Thigh Protector 1
Ref. Name Qty.
38-4 Pipe D3 (right thigh) 1
38-5 Magnets 4
38-6 2.3x4mm screws (1 spare) 3

22
KIT 38: THE LEFT RIBS AND RIGHT THIGH (III)
2
1
38-6
38-6
38-2
38-3
38-1
32-3
36-1
Take the support assembly 32-3
from the previous kit. Fit the screw
socket on the Rib 38-1 into the
hole next to rib 36-1. Fix in place
with a 2.3x4mm screw 38-6.
Keep the assembly safely aside
until it is needed in the next kit.
Next, the Thigh Protector parts
38-2 and 38-3 are fitted
together. After test fitting, as
shown, fix the two parts together
with a 2.3x4mm screw 38-6. Put
the assembly safely aside.

33
KIT 38: THE LEFT RIBS AND RIGHT THIGH (III)
3
4
35-4
33-4 34-3
32-4
36-2
38-5
38-5
35-4
33-4
Magnets are now fitted to the
femur. Take the thigh skin 36-2
from pack 5 - kit 36 and the femur
assembly 33-4/35-4 which was
last worked on in pack 5 - kit 35.
Making sure the recesses for the
magnets in assembly 33-4/35-4
align with the magnets below, fit
the femur assembly 33-4/35-4
into the thigh skin 36-2.
Place the four Magnets
38-5 into the circular
recesses in femur parts
33-4 and 35-4, as shown.
Before they are glued in
place check which way
round they should be fitted.
The polarity of each magnet
needs to be arranged so
that it is attracted to the
corresponding magnet
below. Once you are happy
with the orientation of each
magnet, firmly glue them in
place.

44
KIT 38 IS COMPLETE
5
38-4 (D3)
36-2
THE TENTH LEFT RIB HAS
BEEN ADDED AS WELL AS
PIPES AND MAGNETS BEING
FITTED TO THE THIGH SKIN.
Turn the thigh skin 36-2 over
and test-fit the Pipe D3 38-4
into the slots shown on left. Note
that there is a peg at one end of
Pipe D3 38-4 which fits into a
corresponding hole in skin part
36-2. Only the first one and a half
tabs on the pipe are fixed in place
at this stage. Also, study the inset
photograph which shows more
detail. When sure of a good fit,
secure in place with a little glue.
KIT 38: THE LEFT RIBS AND RIGHT THIGH (III)

11
ASSEMBLY GUIDE
In this kit you will continue to work on the left rib and right thigh assemblies.
KIT 39: THE LEFT RIBS
AND RIGHT THIGH (IV)
39-1 39-2 39-3
39-639-539-4
PARTS SUPPLIED
Ref. Name Qty.
39-1 Left Rib 1
39-2 Left rib 1
39-3 Pipe D4 (right thigh) 1
Ref. Name Qty.
39-4 Pipe D5 (right thigh) 1
39-5 Magnets 4
39-6 2.3x4mm screws (1 spare) 3

22
KIT 39: THE LEFT RIBS AND RIGHT THIGH (IV)
2
1
39-6
39-6
37-2
32-3
32-3
39-2
39-1

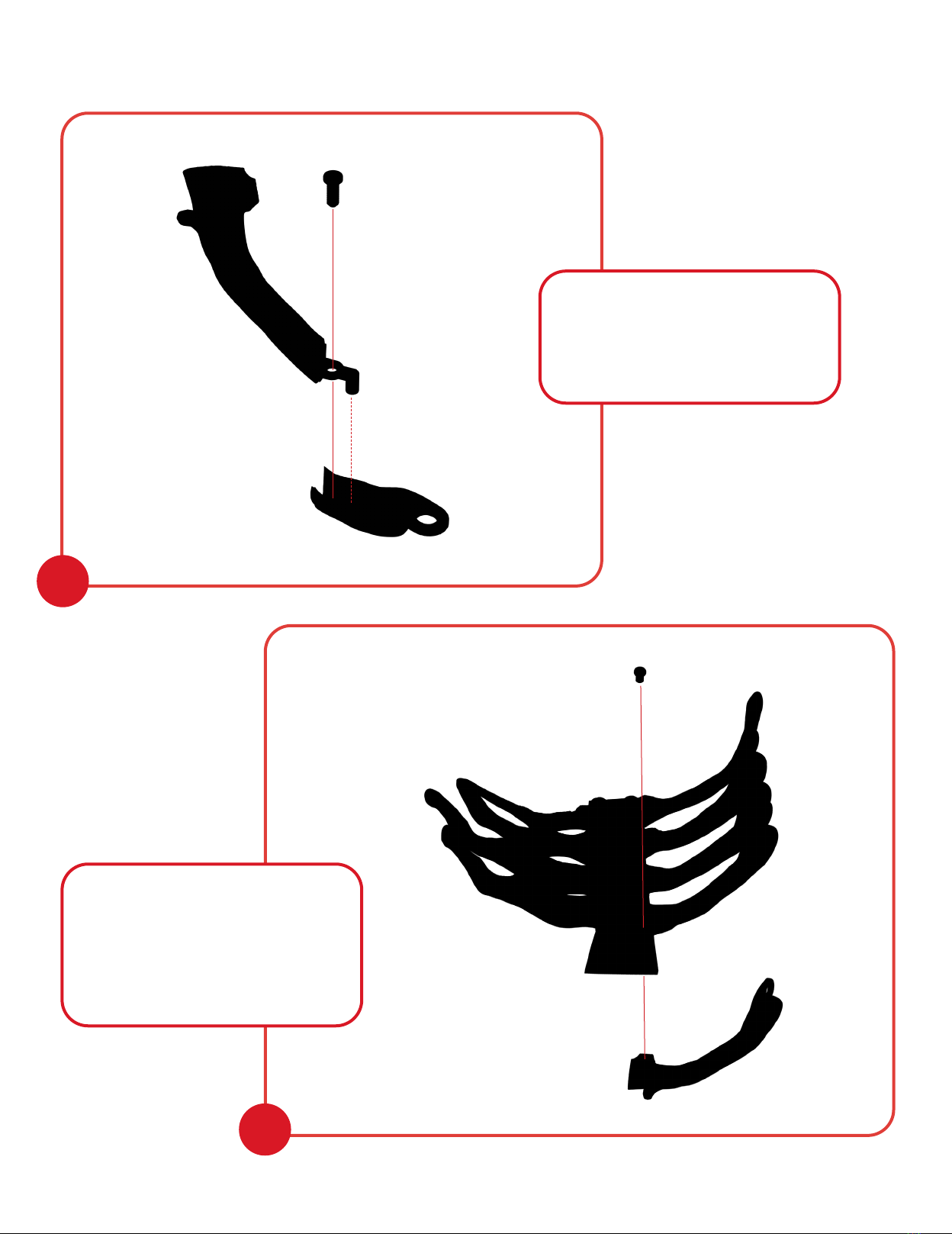

Take the rib support
assembly 32-3 and fit the
raised screw socket on Rib
39-2 into the hole next to
rib 37-2. Fix in place with a
2.3x4mm screw 39-6.
Fit the final Left Rib 39-1
into the remaining hole in
support assembly 32-3
and secure in place with a
2.3x4mm screw 39-6. Store
the assembly safely until it
is needed in a later kit.

33
KIT 39: THE LEFT RIBS AND RIGHT THIGH (IV)
3
4
39-5
39-5
34-3
32-4
38-2
38-3
39-3 (D4)
36-2
Take the thigh protector 38-
2/38-3 from the previous kit.
Test-fit the Pipe D4 39-3 in place,
as shown, noting that there is a
peg at each end of the pipe. When
certain of a good fit, apply a little
glue to the tabs and pegs and fix
firmly in place.

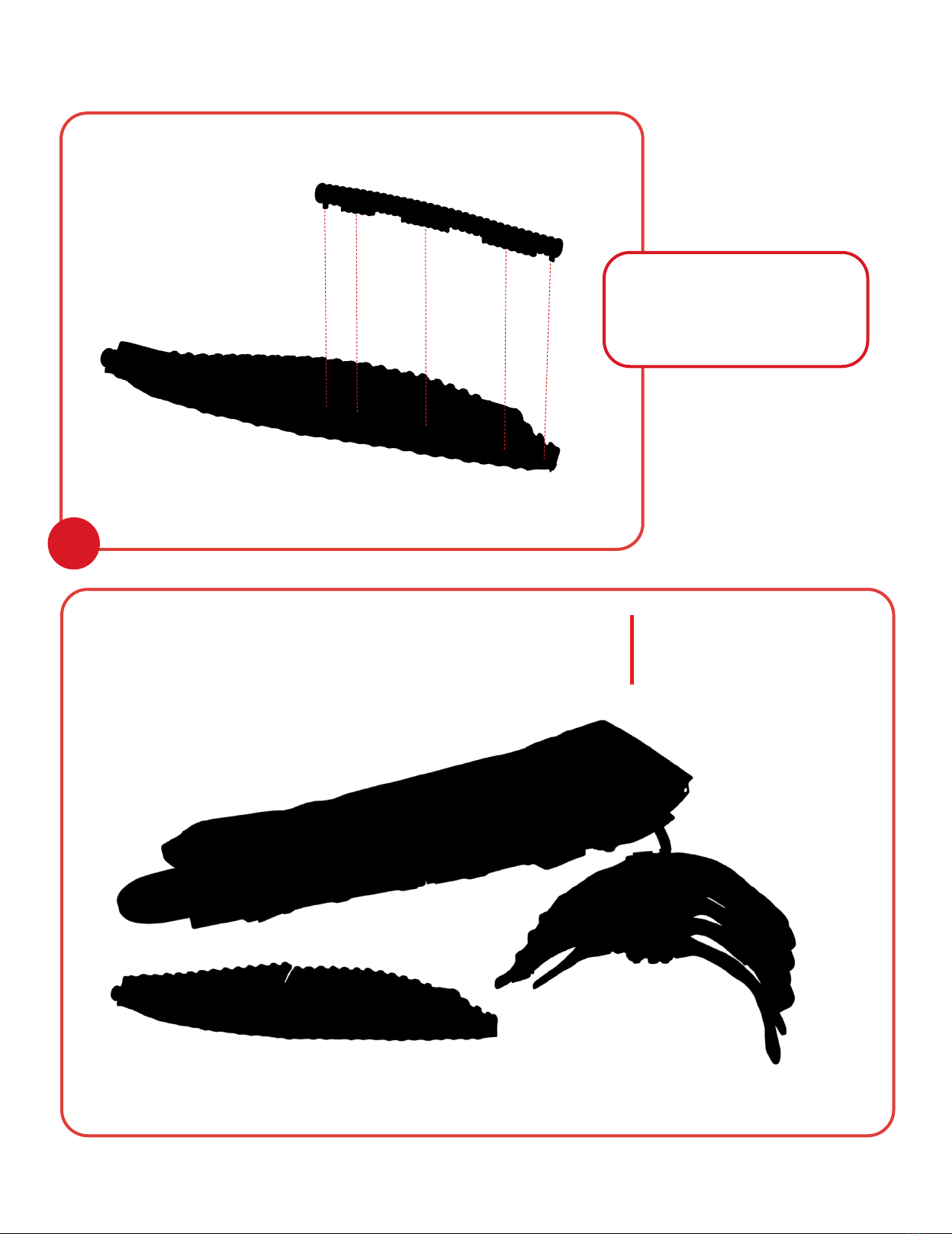

In a similar way to steps 3 and 4 in
the previous kit, further magnets
are to be fitted to the inside of the
femur assembly 32-4/34-3. With
the femur assembly 32-4/34-
3resting inside the skin 36-2
place four Magnets 39-5 into the
circular recesses in femur parts
32-4 and 34-3. As before, check
that they are the correct way
round so that they are attracted
to the magnets underneath. When
certain they are correctly fitted,
firmly glue into place.

44
KIT 39 IS COMPLETE
5
39-4 (D5)
38-2
THE LAST OF THE LEFT RIBS HAVE BEEN
ADDED, MAGNETS FITTED AND TWO
MORE PIPES HAVE BEEN ATTACHED.
KIT 39: THE LEFT RIBS AND RIGHT THIGH (IV)
Repeat the previous step to
fix Pipe D5 39-4 in place on
the thigh protector 38-2.

11
ASSEMBLY GUIDE
In this kit you will start to build the Xenomorph’s pelvis.
KIT 40: THE PELVIS (I)
40-1
40-5
40-3
40-4
40-6
40-7 40-8
PARTS SUPPLIED
Ref. Name Qty.
40-1 Joint 1 1
40-2 Joint 2 1
40-3 Grip 1
40-4 Ball Joint 1
Ref. Name Qty.
40-5 Socket Liner 2
40-6 2.3x6mm screw (1 spare) 5
40-7 3x22mm screw (1 spare) 3
40-8 Nuts 3
40-2

2222
KIT 40: THE PELVIS (I)
2
1
40-5
40-5
40-2
40-1

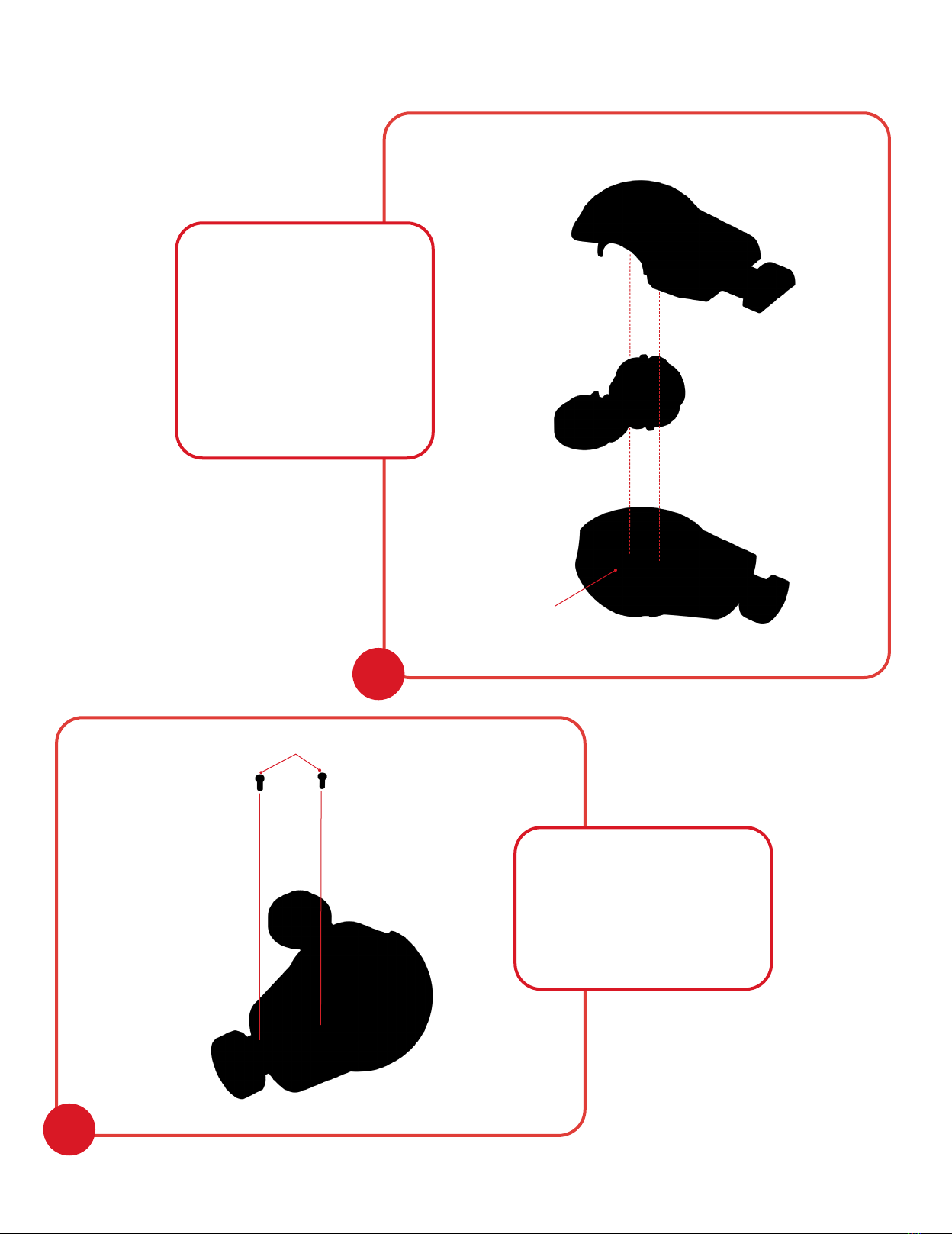

Repeat the previous step
to fit the other Socket Liner
40-5 into the socket on
Joint 2 40-2.
Fit the two pegs on one
of the Socket Liners
40-5 into the holes in
the Joint 1 40-1.

3333
KIT 40: THE PELVIS (I)
3
4
40-5
40-6
40-2
40-4
40-1
40-2
Take the Ball Joint 40-4
and fit the larger end into
the insert assembly 40-
1/40-5, as shown. Take
time to study the diagram
and make sure that part
40-4 is fitted the correct
way round. Next, cover
this with the other joint
assembly 40-2/40-5.
When certain the sections
are neatly joined, fix the
assembly together by using
two 2.3x6mm screws 40-6,
as shown. Take care not to
over-tighten the screws.

4444
KIT 40 IS COMPLETE
56
40-2
40-7
40-3
40-6
40-1
34-3
35-4
40-2
40-8
40-8
THE RIGHT HIP JOINT HAS
BEEN ASSEMBLED AND
FITTED TO THE THIGH.
KIT 40: THE PELVIS (I)
Insert three 3x22mm screws
40-7 into the remaining holes
in Joint 2 40-2. These will be
secured in place from underneath
the assembly by using three nuts
40-8 which fit into hexagonal
recesses.
Take care not to over-tighten the
screws as it is important that
the joint is free to move, yet stiff
enough to hold the leg in place.
Take the right thigh assembly 34-3/35-
4 which was worked on in the previous
kit. Fit the shaft near the end of the joint
assembly 40-1/40-2 over the semi-
circular bridge formed by femur parts
34-3/35-4. Secure these parts together
by placing the Grip 40-3 over the
square top to the shaft on joint assembly
40-1/40-2. Note that the grip is not
symmetrical and can only be fitted one
way round. Secure the grip in place using
two 2.3x6mm screws 40-6.

11
ASSEMBLY GUIDE
In this kit you will continue to build the Xenomorph’s right leg - working on the tibia,
femur and knee.
KIT 41: THE RIGHT LEG
(IV)
41-1
41-4 41-5 41-6 41-7
41-8
41-2 41-3
PARTS SUPPLIED
Ref. Name Qty
41-1 Thigh Protector 1
41-2 Thigh Protector 1
41-3 Knee Washers 2
41-4 Knee 1
Ref. Name Qty
41-5 3x22mm screw 1
41-6 Nut 1
41-7 2x4mm Flange screw (1 spare) 5
41-8 2.3x6mm screw (1 spare) 9

22
KIT 41: THE RIGHT LEG (IV)
1
2
14-1
36-2
32-4
4-4
22-1
4-6
A
C
B
Take the right calf assembly
which was last worked on in
pack 4 - kit 24. Detach the
two outer Skins 14-1 (A)
and 4-4 (B) as well as the
Calf Protector 4-6/22-1
(C). Keep these outer parts
safely to one side until they
are needed again in step 7.
Take the assembly 36-2/32-4
which was worked on in the last
kit and separate the Outer Skin
36-2 from the femur assembly
32-4. Put to one side until it is
needed in the next kit.
