PACK 7 | BUILD INSTRUCTIONS
ALIEN
KIT 45
THE RIGHT HAND &
THE SKULL (II)
KIT 46
THE RIGHT HAND &
THE SKULL (III)
KIT 47
THE RIGHT ARM (I)
KIT 48
THE RIGHT ARM (II)
KIT 49
THE RIGHT ARM (III)
STEPS & TIPS ONLINE
KIT 50
THE RIGHT ARM (IV)
KIT 51
THE RIGHT ARM (V)
KIT 52
THE LEFT HAND (I)
WARNING: Some parts are assembled using magnets. These magnets can cause serious
injury if they are swallowed. Keep away from children. If you suspect a magnet has been
swallowed, seek medical help straight away.
Some parts may have sharp edges, please handle them with care.
The installation of electronic parts must always be carried out by an adult. When replacing batteries,
use the same type of batteries.
Please ensure that the battery compartment is securely fastened before you use the model.
Used batteries should be recycled.
Please make sure to check with your local council how batteries should be disposed of in your area.
Batteries can present a choking danger to small children and may cause serious harm if ingested.
Do not leave them lying around and keep any spare batteries locked away at all times.

PB 1
ASSEMBLY GUIDE
In this kit you will continue to assemble parts of the right hand and install
a second LED assembly in the Xenomorph’s skull.
KIT 45: THE RIGHT HAND
AND THE SKULL (II)
45-1
45-7 45-8 45-9
45-2
45-5 45-645-445-3

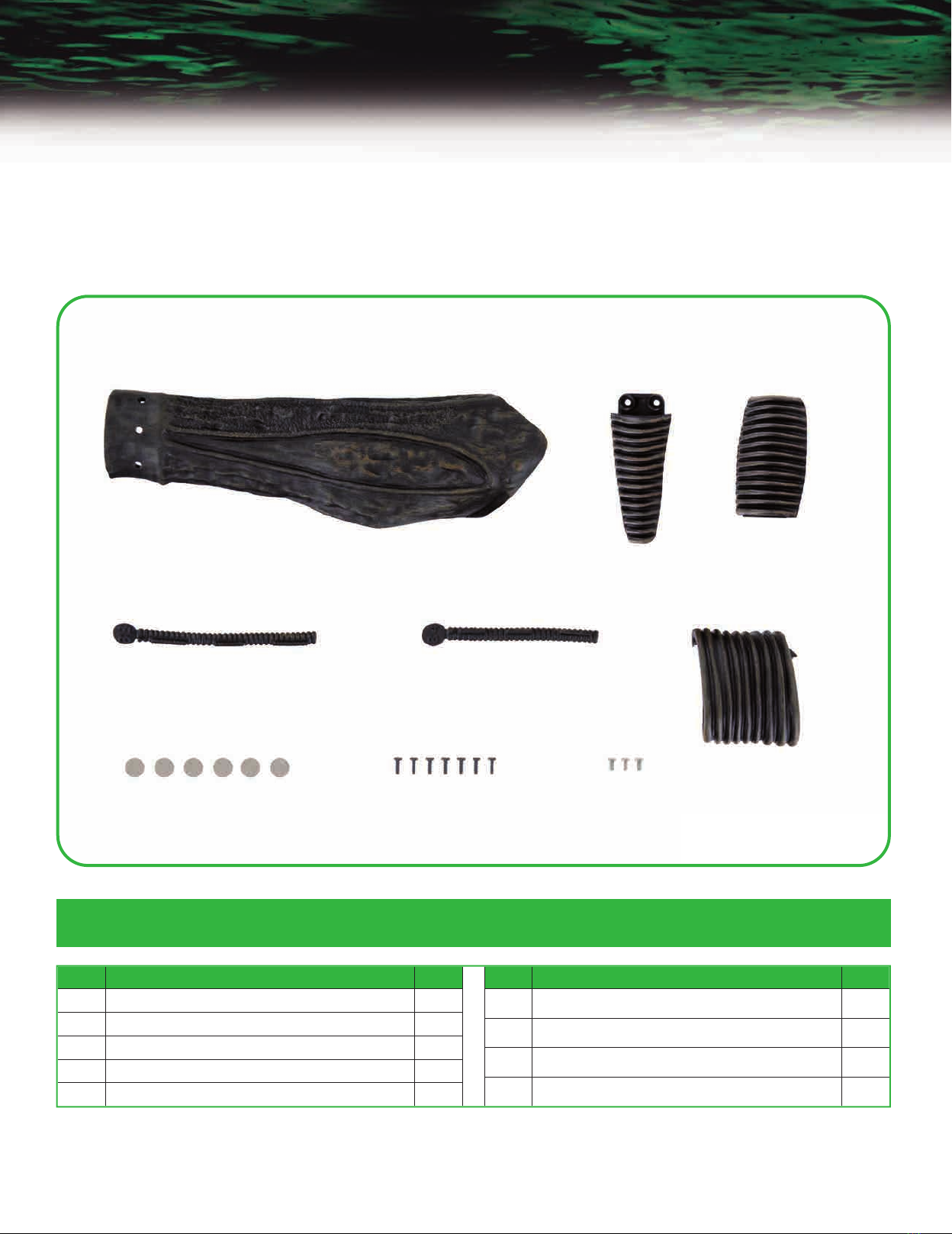

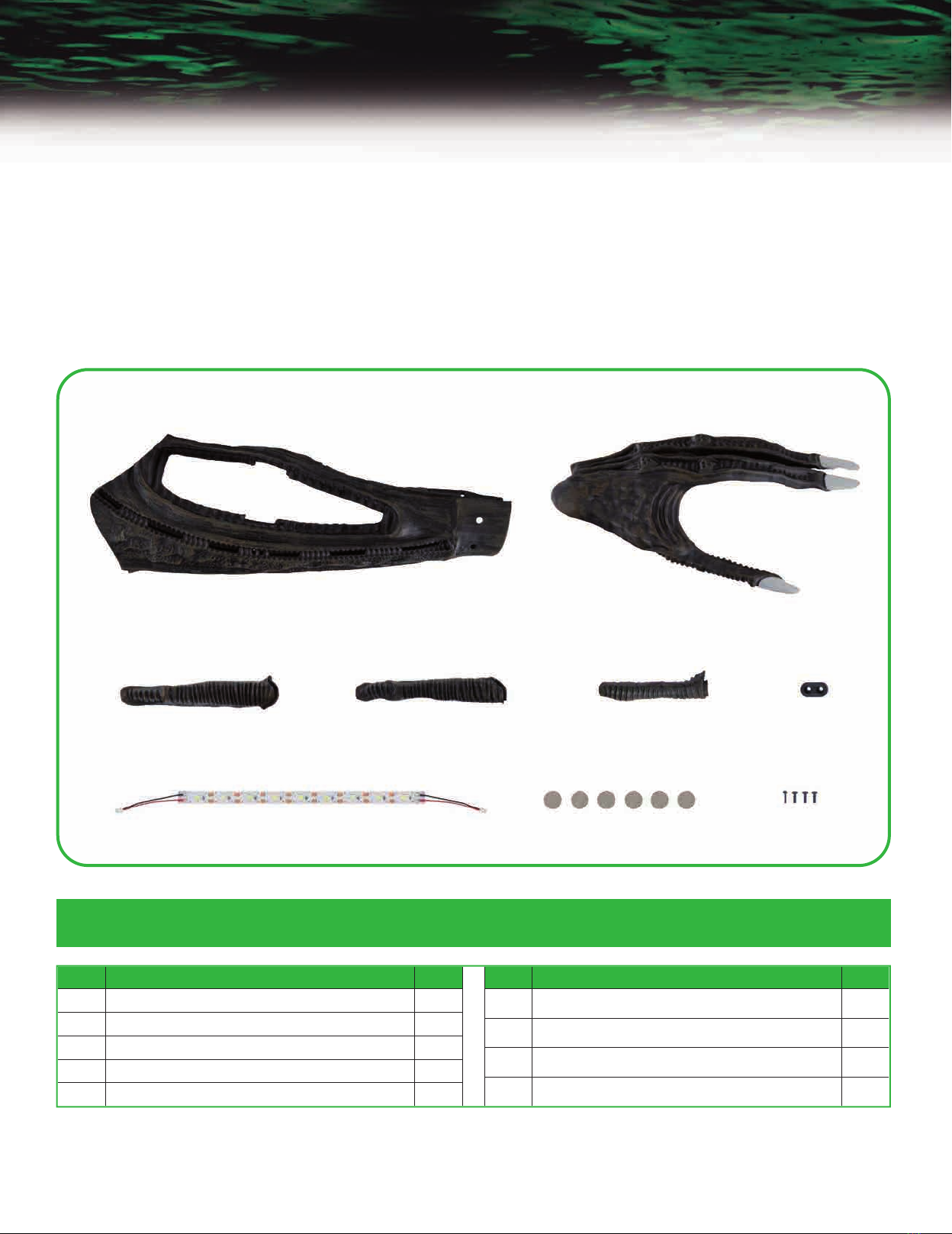

PARTS SUPPLIED
Ref. Name Qty.
45-1 Radius O uter S k in 1
45-2 Righ t-b ack Part of Hand 1
45-3 Righ t Finger R4 1
45-4 Righ t Finger R5 1
45-5 Righ t Finger R6 1
Ref. Name Qty.
45-6 Connector 1
45-7 S k ul l LE D B 1
45-8 M agnets 6
45-9 2.3x6mm screws (1 spare) 4

23 23
KIT 45: THE RIGHT HAND AND THE SKULL (II)
1
2
45-8
44-8
45-8
44-8
44-1
45-1
45-8
45-1

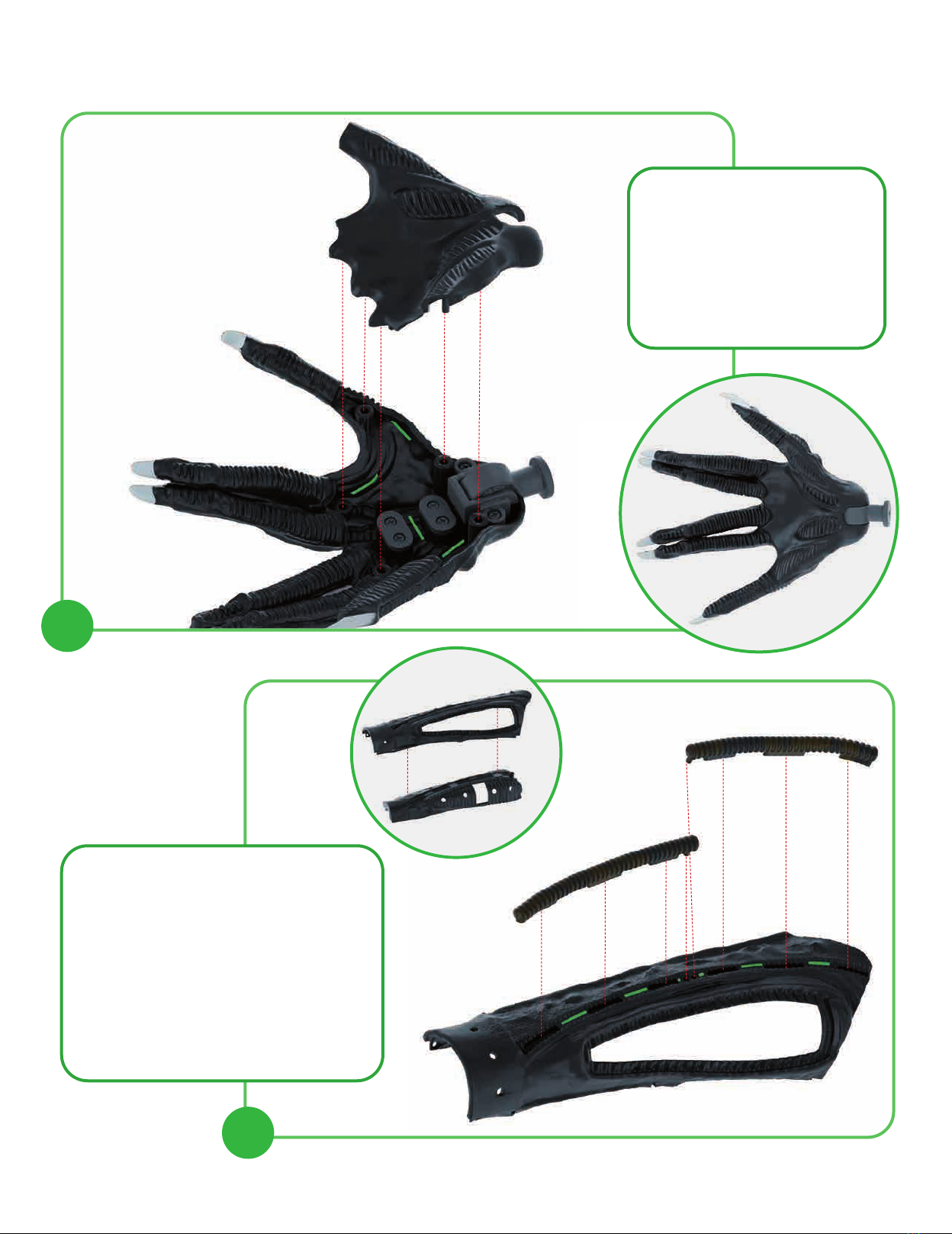

Glue the six Magnets 45-8
into the circular recesses
inside the Radius Outer
Skin 45-1. It doesn’t matter
which way round (polarity)
they are fitted at this stage.
Next, take the six magnets
44-8 and the radius 44-1
which were supplied with
pack 6 - kit 44. Fit the radius
44-1 into the Outer Skin 45-
1. Place the magnets 44-8
into the circular recesses in
radius 44-1 ensuring that
they are attracted to the
magnets positioned below
on Skin 45-1. When certain
of their orientation, glue the
magnets rmly in place. Put
the assembly aside until it is
needed in the next kit.

23 23
KIT 45: THE RIGHT HAND AND THE SKULL (II)
3
4
45-4 (R5)
45-2
45-5 (R6)
45-3 (R4)
45-2

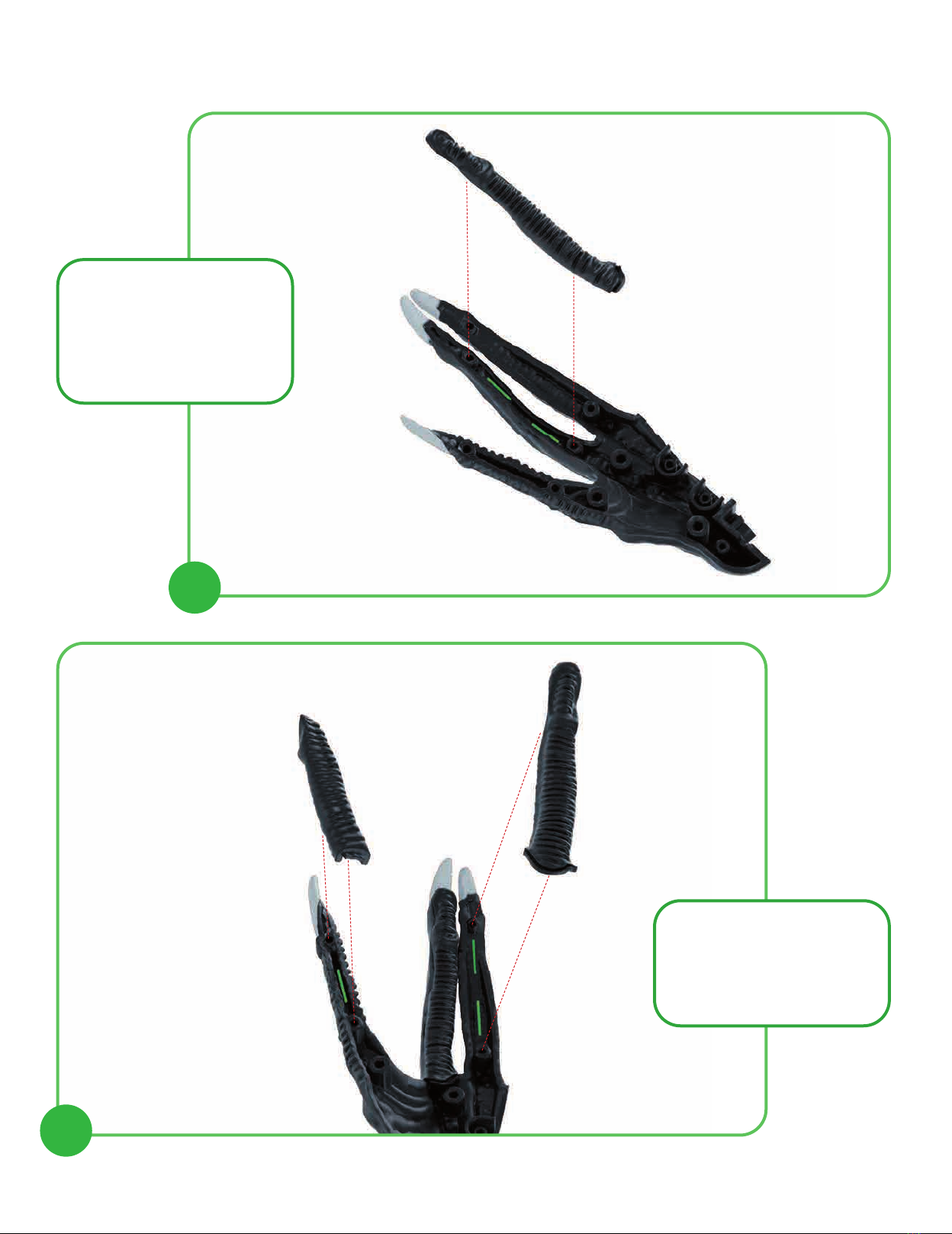

Take the Hand 45-2 and
check the t of Right
Finger R5 45-4.Once
certain of a good t, glue
in place.
Repeat the previous step
to add Right Fingers R6
45-5 and R4 45-3. As
before, glue in place.

45 45
45-9
44-2
44-6
45-2
5
6.1 6.2
6
3-13
3-13
3-12
3-12
45-7
45-7
9V 6LR61
9V 6LR61
KIT 45: THE RIGHT HAND AND THE SKULL (II)

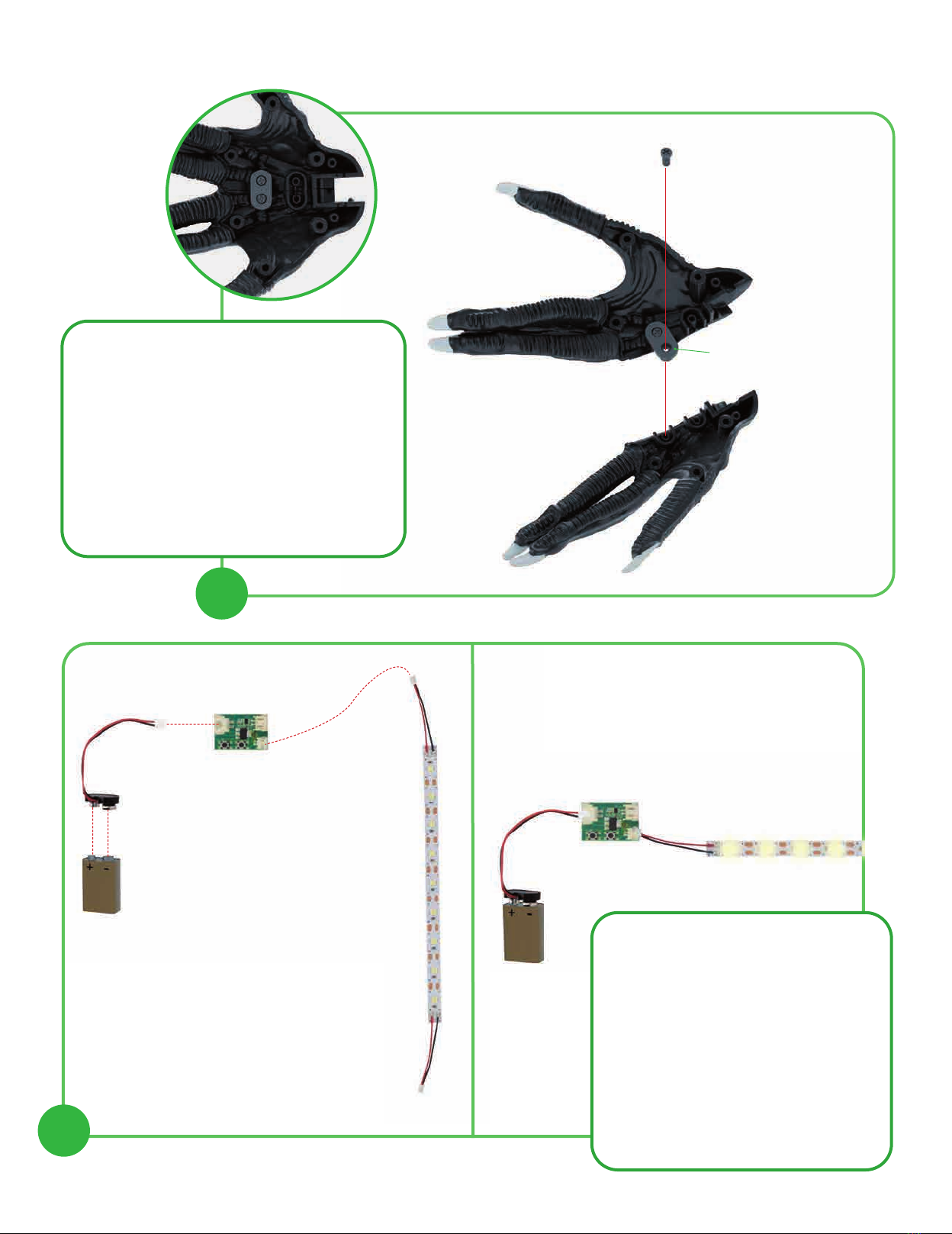

The two halves of the hand are now joined
together. Take the hand assembly 44-2
from pack 6 - kit 44 and t the connector
44-6 over the raised screw socket on
hand assembly 45-2. (The connector may
need to be temporarily loosened whilst
tting.) Fix in place with a 2.3x6mm screw
45-9 (inset above). Keep the assembly
and the Connector 45-6 supplied aside
until it is needed in the next kit.
Next, the Skull LED B 45-7 is
tested. Lay out the LED strip 45-7,
the circuit board 3-12, the battery
connector 3-13 and the 9V battery,
as shown in the diagram. Connect
the Skull LED B 45-7 to the lower
right hand socket and the battery
connector 3-13 to the left socket.
Then connect the battery to test the
LED strip. Once satised that the
LEDs work, disconnect the parts and
store safely.

45 45
KIT 45 IS COMPLETE
7
45-7
44-7
3-1
FURTHER WORK HAS BEEN DONE TO
THE RIGHT HAND, MAGNETS FITTED
TO THE RADIUS AND THE LED LIGHTS
CONTINUED ALONG THE SKULL.
KIT 45: THE RIGHT HAND AND THE SKULL (II)

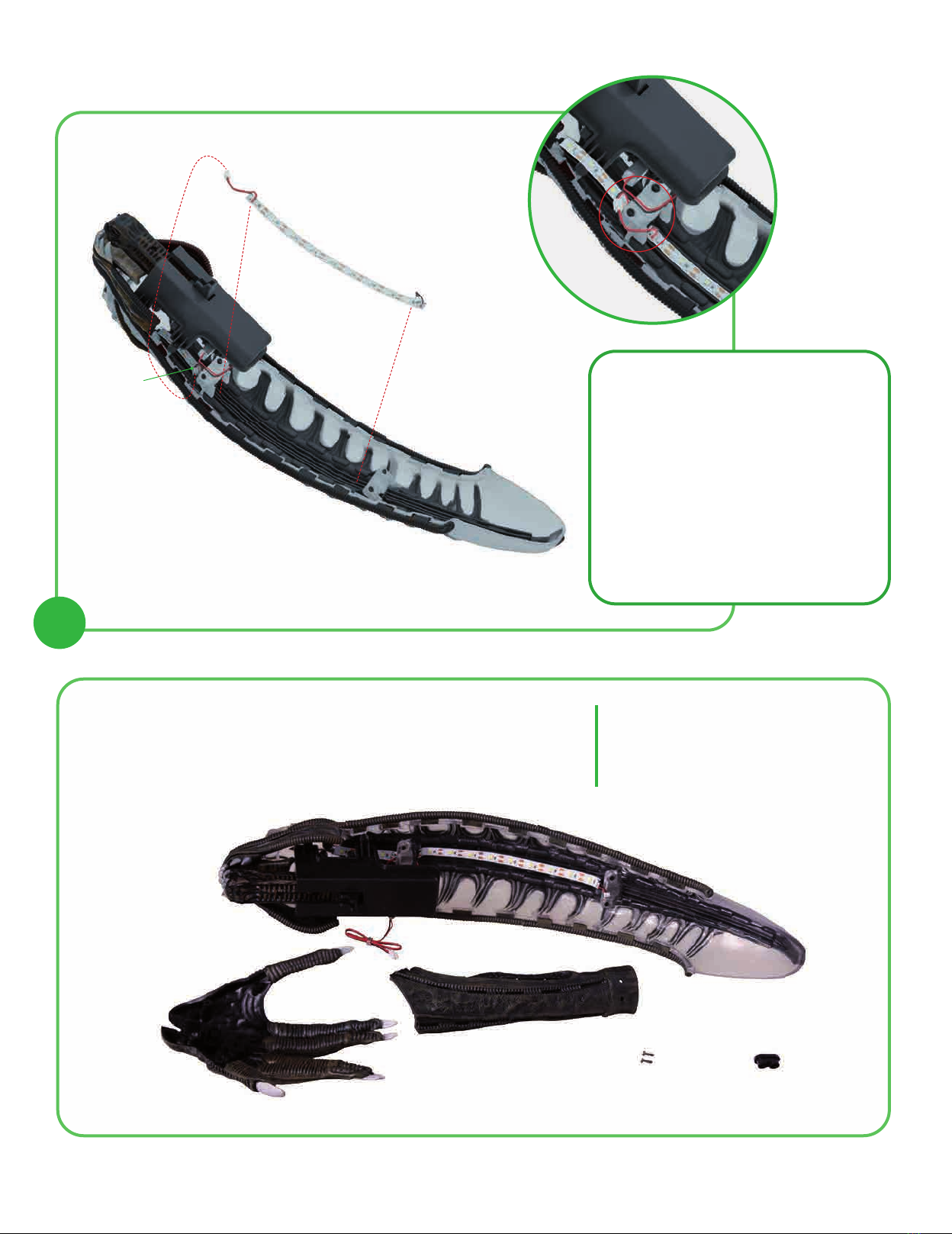

Study the diagrams carefully
and note the position of the LED
Strip 45-7 in the centre of the
skull 3-1. The socket at one end
of Skull LED B 45-7 connects
to the plug on skull LED A 44-7
which was fitted in the previous
kit. Once certain of the fit, remove
the backing film from the adhesive
strip and secure the Skull LED B
strip 45-7 in place, as shown.

PB 1
ASSEMBLY GUIDE
In this kit you will continue to work on the right hand and radius, plus install
a third LED within the skull assembly.
KIT 46: THE RIGHT HAND
AND THE SKULL (III)
46-1 46-2
46-3
46-7 46-8 46-9 46-10
46-4 46-5 46-6
PARTS SUPPLIED
Ref. Name Qty.
46-1 Righ t Radius 1
46-2 Pal m of Righ t Hand 1
46-3 W rist J oint 1
46-4 Pipe B 1 1
46-5 Pipe B 2 1
Ref. Name Qty.
46-6 B rack et 1
46-7 Pin 1
46-8 S k ul l LE D C 1
46-9 M agnets 6
46-10 2.3x6mm screws (1 spare) 3

23
KIT 46: THE RIGHT HAND AND THE SKULL (III)
1
2
46-3
44-2
45-2
46-7
46-3
46-7
Insert the Pin 46-7
into the central hole
of the Wrist Joint
46-3.
Take the right hand assembly,
which was worked on in the
last kit and t the Wrist Joint
46-3 into the corresponding
slot in the wrist area. The slot
in the hand 44-2/45-2 will
need to be temporarily opened
slightly for the part to t, and
the ends of the Pin 46-7
should rest in recesses on the
hand parts 44-2 and 45-2.
See also the diagram in the
next step.

23
KIT 46: THE RIGHT HAND AND THE SKULL (III)
4
3
44-2
46-10
45-9
45-2
44-2
45-6
46-10
46-6
45-2
Orientate the Bracket 46-6, as
shown and t the screw holes
over the raised screw sockets
on parts 44-2 and 45-2.
When sure of a good t, secure
in place with two 2.3x6mm
screws 46-10.
Take the connector 45-6 and
two of the 2.3x6mm screws 45-9
which were supplied with the last
kit. Fit the connector 45-6 onto
the raised screw sockets in the
hand assembly 44-2/45-2 and
screw in place.

45
6
5
46-4 (B1)
45-1
46-5 (B2)
45-1
44-1
45-2
44-2
46-2
Take the radius assembly 44-1/45-1
from the previous kit and remove the skin
45-1 (inset). The two Pipes B1 46-4
and B2 46-5 are then tted into the slots
in skin 45-1, as shown. Note that there
are locating pegs at the end of each pipe
which t into corresponding holes in the
skin. When certain of a good t, glue in
place. Keep the assembly aside until the
next kit.
Test-t the pegs on the
underside of the Palm of Right-
hand 46-2 into the remaining
holes in the hand assembly
44-2/45-2. When certain of
a good t, glue in place and put
the assembly aside.
KIT 46: THE RIGHT HAND AND THE SKULL (III)

45
7.1 7.2
7
3-13
3-13
3-12
3-12
9V 6LR61
9V 6LR61
8
46-8
46-8
46-8
45-7
5-1
Study the diagram carefully
and note how the Skull LED
C 46-8 is a continuation of
the previously tted strip 45-
7. The socket at one end of
Skull LED C 46-8 connects
to the plug on Skull LED B
45-7. Once certain of the t,
remove the backing lm from
the adhesive strip and secure
the Skull LED C 46-8 in the
centre of the underside of the
skull 5-1, as shown.
Take the circuit board 3-12 and battery
connector 3-13 which were used in
the previous kit. As before, the battery
connector is inserted into the left of the
socket. Plug the Skull LED C 46-8 into
the lower socket to the right of the circuit
board. Then connect the battery to test
that the LED strip is working. Once
checked, disconnect the battery and
then the LED strip.
KIT 46: THE RIGHT HAND AND THE SKULL (III)

6PB
KIT 46 IS COMPLETE
9
3-14
46-8
3-14
46-8
THE WRIST JOINT AND PIPES HAVE
BEEN ADDED TO THE RIGHT HAND AND
A FURTHER LED STRIP ADDED BEFORE
PLACING THE SKULL ON THE HEAD.
EXPERT TIP: It
may be helpful to label
each of the cables using
a small sticker, or similar,
to help identify them at a
later stage.
Take the lower head assembly
which was last worked on in
pack 3 - kit 13 and fit the skull
assembly over the head assembly,
as shown. Make sure that the
cables 3-14 and 46-8 pass
through the rectangular hole
(inset) and out to the underside of
the head.
KIT 46: THE RIGHT HAND AND THE SKULL (III)
! Keep the magnets safely aside until they are needed in the next kit.

PB 1
ASSEMBLY GUIDE
In this kit you will assemble the component pieces of the right arm and radius.
KIT 47: THE RIGHT ARM (I)
47-1
47-4 47-5 47-6
47-7 47-8 47-9
47-2 47-3
PARTS SUPPLIED
Ref. Name Qty.
47-1 Radius S k in 1
47-2 Radius Protector 1
47-3 Radius Protector 1
47-4 Pipe B 3 1
47-5 Pipe B 4 1
Ref. Name Qty.
47-6 Righ t W rist 1
47-7 M agnets 6
47-8 2.3x6mm screws (1 spare) 7
47-9 2.3x4mm screws (1 spare) 3

23
KIT 47: THE RIGHT ARM (I)
1
2
47-7
46-9
46-9
46-9
47-7
47-7
47-7
47-7
47-7
47-1
47-1
46-1
Lay the Radius Skin
47-1 on the work
surface and glue the
six Magnets 47-7 into
the circular recesses,
as shown.
Take the right radius 46-1
and magnets 46-9 from the
previous kit. Place the radius
46-1 inside the Radius
Skin 47-1 and check that
it is correctly aligned. Fit
the magnets 46-9 into the
circular recesses in the radius
part 46-1 ensuring that they
are attracted to the magnets
below on Radius Skin 47-1.
When certain of the correct
orientation, glue the magnets
rmly in place.

23
KIT 47: THE RIGHT ARM (I)
4
3
47-5 (B4)
47-4 (B3)
45-1
44-1
46-1
46-3
Take the skin 45-1, which was
worked on in the last kit, and t
Pipes B3 47-4 and B4 47-5
into the slots near the edge of
part 45-1. After checking the
t, glue rmly in place. Note
that there is a locating peg at
one end of each of the pipes
which ts into corresponding
holes in the skin.
Next, the radius assemblies 44-1 and
46-1 are joined to the wrist assembly
46-3. Take the wrist joint 46-3 from
the previous kit and sandwich it between
the radius parts 44-1/46-1, as shown.

45
6
5
46-1
47-1
45-1
47-8
47-8
47-8
KIT 47: THE RIGHT ARM (I)
The two skin parts 45-1
and 47-1 are now joined
together. Apply glue to the
contact areas on part 45-
1, as shown in green. Hold
the parts together rmly
until the glue has set. Do
not glue the other edges at
this stage.
Whilst keeping the parts in place,
turn the assembly over and secure
together using six 2.3x6mm screws
47-8. The screws t through holes
in radius part 46-1, as shown.

45
7
8
47-1
47-1
46-1
44-1
47-6
45-1
45-1
47-6
KIT 47: THE RIGHT ARM (I)
EXPERT TIP: You may
nd it easier to glue and secure
one half of the wrist before
xing the other half in place.
Locate the six pegs on the inside of
the Right Wrist 47-6. Carefully pull
the edges of the Wrist 47-6 apart so
that it ts around the arm assembly
45-1/47-1. Test t the pegs in the
corresponding holes (circled in green)
and when certain of a good t, apply
a little glue to the pegs to secure in
place. The edges of the wrist must
remain separated for now (inset).
After making sure the Right
Wrist 47-6 is rmly attached,
carefully separate the edges
of the skin assembly 45-
1/47-1/47-6 and t it
around the arm assembly
44-1/46-1. Do not glue in
place for the moment.

6PB
KIT 47 IS COMPLETE
910
47-9
47-2
47-3
44-1
47-2
47-3
THE HAND HAS BEEN FITTED TO THE
ARM, LAYERS OF SKIN ADDED AS WELL
AS FURTHER MAGNETS AND PIPES.
KIT 47: THE RIGHT ARM (I)
Join the two radius protector
parts together by tting the
holes in 47-2 over the screw
sockets at the end of 47-
3. When sure of a good t,
secure in place using two
2.3x4mm screws 47-9.
Fit the four pegs on the
protector 47-2/47-3 into
the corresponding holes in the
radius 44-1, as shown. Do
not glue in place for now.

PB 1
ASSEMBLY GUIDE
In this kit you will start to build the Xenomorph’s right humerus.
KIT 48: THE RIGHT ARM (II)
48-1
48-2
48-3
48-5
48-4
PARTS SUPPLIED
Ref. Name Qty.
48-1 Righ t Humerus S k in 1
48-2 Pipe B 5 1
48-3 Pipe B 6 1
48-4 Pipe B 7 1
48-5 M agnets 8
