Hafele ER4800 User manual

ER4800

Product features
Before Using
Random security coding function
Two way solution
When you enter your home with friends or other people, you don't want to show secret code
to them. In this case, you may press any number randomly without limitation and then enter
your secret code at nal. Then, you can open the door without revealing your secret code.
Available to use secret code as well as card key.
Individual managerment for card
Auto lock / Auto re-lock function
Individual registration or delete of card is available.
When the door is closed, to be locked status automatically. And if users do not open the door
after unlocking with password, etc, it is to be locked antomatically for higher security.
Double lock function
When double lock systen is activated, the door can not be opened from outside even with the
registered card key or secret code.
With 5 times of abnormal try with wrong number, function of door lock is suspended
with alarm sound.
The mortise lock of this product facilitates easy adjusting to left or right handle direction
Low battery indicator with alarm sound shows battery replacement time.
Trespass alarm function
Prevent mischief and hacking
Low battery indicator and alarm for battery replacement time.

Safety precautions
Do not disassemble or alter the lock. Assembling or disassembling the door lock
may damage the product. Damages to the product caused by unauthorized
persons may result in damages to your property. Please contact our Customer
Service.
Please do not close the door with the deadbolt on the locked position. It may
damage the product cause a malfunction.
Do not force to pull the front cover. It may damage the product or cause a
malfunction.
Please do not mix old with new batteries or use different types. Always use new
alkeline batteries. Please make sure the batteries are inserted correctly (+/-) as
indicated in the battery compartment. Otherwise, it may cause a leaks or
explosions.
Do not allow the battery electrodes to make contact with metals such as keys,as
the battery may overheat, causing explosion or severe damage.
Batteries should not be exposed directly to heat sources or flames, or submerged in
water, because they may leak or explode, resulting in severe damage. Please do
not use damaged batteries.
Do not clean the product with flammable materials such as alcohol, benzene or
thinners. Such materials may damage the suiface or cause a fire.
Please check the batteries every 6 months to see if the batteries are leaking and to
check the cleanliness of battery terminals. If leakage is discovered, please wipe out
with a dry cloth and replace the new batteries. In case of exposure to leakage,
wash with soap and water immediately.
Please keep the product away from water or any liquids. If the product is exposed
to salty water or liquids,please wipe off the moisture with a soft cloth. If moisture or
foreign material penetrate the product, remove the batteries immediately and
contact the Service Agency or Customer Service Center for advice. Using a product
contaminated with foreign materials may cause problems.
If the product generates harmful gased or smoke,please remove the batteries
immediately from the product. If you do not take this step immediately,the product
may suffer severe damage.

Before Using
Before using
Product features
Safety precautions
Contents
Product composition and components
Name and function of each part - Front ass'y
Name and function of each part - Back ass'y
How to replace battery
How to apply external power in the emergency
How to use touch-pad and random security
How to change mode
(Normal mode > Safety mode)
How to change mode
(Safety mode > Normal mode)
Basic function
Basic function
Normal Mode
How to register secret code in normal mode
How to register card key in normal mode
How to delete all card key in normal mode
Safety mode
How to register secret code in safety mode
How to register card key in safety mode
How to delete all card data in safety mode
How to delete individual card data in safety mode
Guest secret mode (Temporary use)
How to set manager in safety mode
Change manager code in safety mode
Changer manager card in safety mode
Applications
How to Install
How to Install
How to open from outdoor
(secret code, card, mute function)
How to lock the door from outdoor
How to lock the door from indoor
How to set auto/manual locking system
How to open or close
with thumb-turn from indoor
How to open or close with
[Open/Close] button from indoor
How to hold or release
the user’s secret code or card
How to set double locking function
Auto-locking system
Auto-relocking system
How to control volume level
Warning function
against mischief or hacking
Warning alarm function
against trespassing by force
System reset

1. Front Ass’y
2. Back Ass’y
3. Strike
4. Strike spacer
5. Card key
9. Installation template
11. Door thickness
(4-1) Dead Bolt Guider : Should remove after finishing installation.
71.8mm (W) x 163.6mm (H) x 18.4mm (D)
154mm (W) x 93mm (H) x 37mm (D)
76mm (W) x 140mm (H) x 28mm (D)
31mm (W) x 140mm (H) x 2mm (D) 1EA
31mm (W) x 140mm (H) x 4.5mm (D) 3EA
4EA
6. Battery 4 pcs (1.5V, "AA" size, LR6 Alkaline)
8. User manual Main user manual
Use for making hole at the door
7. Mounting Plate 77mm (W) x 87mm (H) x 3mm (D)
For 40~50mm
5 x 30mm 2EA : For back cover
5 x 29mm 4EA : For inner upper part
4 x 30mm 12EA : For front/Back plate
4 x 19mm 12EA : For front/Back plate
Including rubber pad
Including rubber pad
Using for
Height of strike
Including warranty form
TH M5 x 30mm
10. Screw 5 x 60mm 2EA : For back cover TH M5 x 60mm
OH M5 x 29mm
FH T4 x 19mm
FH T4 x 30mm
Name Product specification Remark
Product composition and components
Installation
template
User manual

Before Using
Name and function of each part - Front ass'y
Battery replacement indicator
Lock/Unlock lamp
When the battery is low, red lamp
is flickering. Please change batteries
to new one.
Card key touch plate
Touch the registered card key
to open the door.
Indicate lock/unlock status
Touch type numeric pad
Input secret code for opening door.
External power supply
When the batter is entirely
exhausted, please contact
9V battery (6LF22) to emergency
power terminal.

Double locking switch
Name and function of each part - Back ass'y
Battery cover
Push up to open the battery cover
[10 key] button
- Setting for normal mode
- Registration/delete of code, card
[R/C] button
- Setting for safety mode
- Registration/delete of code, card
Battery
4 pcs (1.5V, "AA" size, LR6 Alkaline)
Switch to set double locking mode.
[Open/Close] button
It is easy to open or close the door
with one touch button from inside.
Thumb-turn
In emergenct, it is available to
open or close manually
with Thumb-turn from inside.

Before Using
Contact 9V battery to electrode Touch the cardInput secret code
(Ex:123456)
If battery lamp is flickering
with sound
Replace batteries in same position
as like above picture.
Note
˙ Life of battery is around one year based on 10 times of uses a day.
˙ Battery life can be vary depending on battery's manufacturer, production date,
installed environment and usage frequency.
˙ Do not use rechargeable battery.
˙ Leakage on battery can be caused and it is very harmful for door lock's operation.
Please check batteries periodically (at least every 6 months) and if there is any of leakage on battery,
replace all to new batteries.
Note
˙ Position of polarity is in regardless.
˙ Please use 9V battery only in case the batteries are exhausted entirely.
If battery lamp in RED is flickering with sound, Replace all 4 batteries to new one.
(1.5V, "AA" size, LR6 Alkaline)
How to replace battery
When the battery is entirely exhausted and door lock is not activated, please contact 9V (6LF22)
battery to external power supply.
Once the door lock is activated, open the door by secret code and replace the batteries in back ass'y.
How to apply external power in the emergency

Random security coding function - Press any number randomly without limitation and then enter your secret
code at final. With this function, you can open the door without revealing your secret code to others.
Touch the front pad Numeric buttons
are displayed
How to use touch-pad and random security coding function
Press random code (Ex : 1389)
Press secret code (Ex : 123456) and [ ].
Pull down the handle, then door is opened.
Note
˙
Do not wear gloves during operation for touch pad.
˙
When you use random security coding function, actual secret code shall be entered at final.
˙
Please use soft cloth when you clean touch pad

Before Using
Note
˙ Existing secret code, card
are deleted automatically
after registration of new
manager code.
˙ Only one of manager code
can be registered
with 6 ~ 12 digits.
˙ Manager code & manager
card shall be controlled by
authorized person for security.
˙ After input manager code
which was used at safety
mode and press [#],
all code/card which were
registered at safety mode
shall be deleted.
Newly registered code is
for usage at normal mode.
˙ Max. 10EA of Secret code
can be registered
with 6 to 12 digits.
˙ Previous code is deleted
automatically with registration
of new code.
˙ Please do the change /
registration of new code at
door opened status to prevent
unintentional locking.
˙ After changing secret code,
please verify it by unlocking
with new secret code.
How to change mode (Normal mode Safety mode)
˙ To register multiple code,
input new secret code and
press successively.
Open battery cover.
Press [10Key] button
for 5 sec. (Bik~Bik~)
Enter Manager Code.
(Ex : 456789)
Enter
New Secret Code.
(Ex : 123456)
Press [ # ]
(Brik~Brik~)
Press [ # ]
(Briririk~)
Enter New Secret
Code again.
(Ex : 123456)
Press [ # ]
(Brik~)
Open battery cover.
Press [R/C] button
for 5 sec. (Bik~Bik~)
Press [ # ]
(Brik~)
Enter Secret Code.
(Ex : 123456)
Enter
New Manager Code.
(Ex : 456789)
Enter New Manager
Code again.
(Ex : 456789)
Press [ # ]
(Brik~Brik~)
Press [ # ]
(Briririk~)

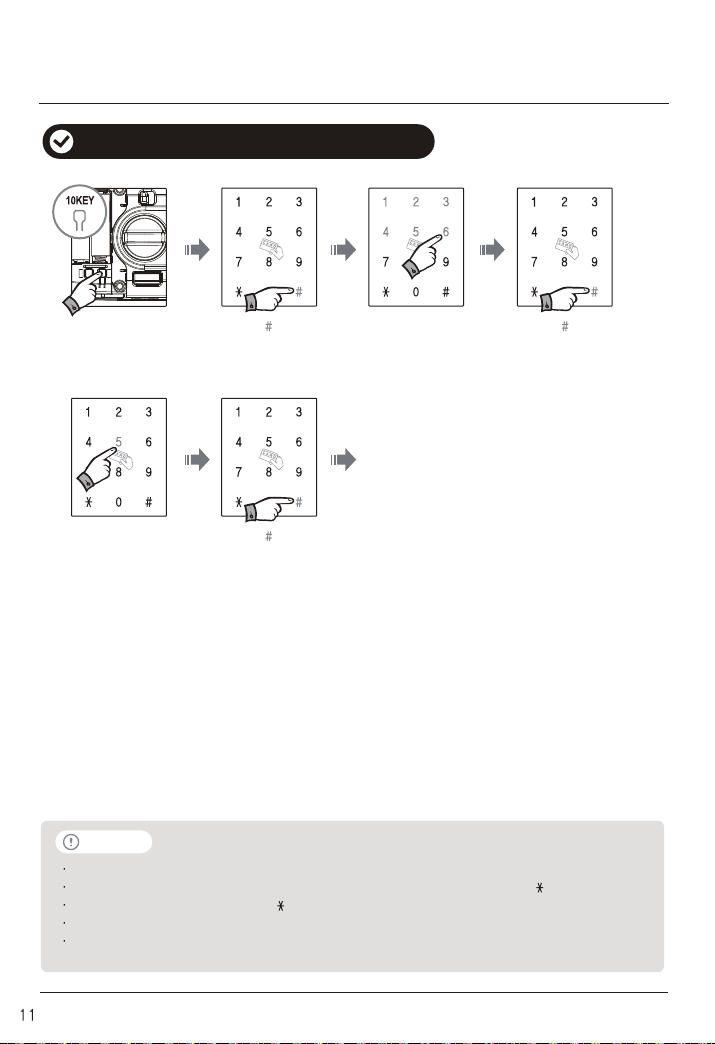

How to register secret code in normal mode
Open battery cover
and press [10key]
button shortly. (Bik)
Open battery cover
and press [10key]
button shortly. (Bik)
Press new secret
code. (Ex : 123456)
Press [ ]
(BrikBrik)
Press new secret
code. (Ex : 234567)
Complete registration
by [ ]
Note
˙ Factory setting (Mode : Normal mode, Secret code : 123456)
˙ Max. 10EA of Secret code can be registered with 6 to 12 digits.
˙ To register multiple code, input new secret code and press [ ] successively.
˙ Previous code is deleted automatically with registration of new code.
˙ Please do the change/registration of new code at door opened status to prevent unintentional locking.
˙ After changing secret code, please verify it by unlocking with new secret code.
How to register card key in normal mode
Touch the card key
one by one.
Complete registration
by [ ]
Normal Mode
Max.50EA of User card key
can be registerd.
Press [ ]
(BrikBrik)
(Max.10EA of
secret code
can be registerd)
To register
more secret code

Basic function
How to delete all card key in normal mode
Input registered
secret code.
(Ex : 123456)
Open the battery
cover and press
[10KEY] button shortly.
(Bik~)
Delete confirm
(
Briririk~ )
Press [ ]
Press [ ]
Press [ ]
Press [ 5]
Note
Previous card key memory is deleted automatically after registration of new card key.
To register multiple secret code, press new secret code successively and press [ ].
To finish registration, please press [ ] one more time.
Max. 50 card keys can be registered.
For high security, please use cards which are supplied by HÄFELE.

Registered manager code (Ex : 456789)
or manager card
How to register secret code in safety mode
Press [ ]
Press [ ] Press [ ]
(BirikBirik)
Press [ 1]
Open the battery cover
and press [R/C] button
shortly. (Bik~)
Press [ ]
(BirikBirik)
Press [ ]
Complete with sound
(BirikBirik)
Note
˙ Max. 10EA of Secret code can be registered with 6 to 12 digits.
˙ To register multiple code, input new secret code and press [ ] successively.
˙ To finish registration, please press [ ] one more time.
˙ Previous code is deleted automatically with registration of new code.
˙ Please do the change/registration of new code at door opened status to prevent unintentional locking.
˙ After changing secret code, please verify it by unlocking with new secret code.
Safety Mode
Manager code & manager card shall be controlled by authorized person for security.
To register
more
secret code
(Max.10EA of
secret code
can be registerd)
Input new secret code.
(Ex : 234567)
Input new secret code.
(Ex : 123456)

Basic function
Press [ ]
Complete with
sound
(BirikBirik)
Even though new card is registered, previous card data is not deleted.
If same registration number is applied, hold registration mode with warning sound.
Manager code (Ex : 456789)
or manager card
How to register card key in safety mode
Open the battery
cover and press
[R/C] button shortly.
(Bik)
Press [ 2]Press [ ]
Press [ ] Press [ ]
(Birik)
Touch the card key.
(BirikBirik)
Press [ ] Touch the card key.
(BirikBirik)
Card registration
number (2 digits)
Card registration
number (2 digits)
Note
˙ To register multiple card, repeat to input new registration number and touch the another card key
successively.
˙ To finish registration, please press [*] one more time.
˙ Registration number shall be two digits. (01 ~ 50)
(Ex : 1 => 01, 2 => 02, etc.)
To register
more user card key
(Max.50EA of
User card key
can be registerd)

It is not available to delete multiple individual card data in one time.
Select card
registration number
To use this function, manager has to remember the exact registration number of each user card.
If there is no card data on certain registration number, warning sound will be caused. (Bik~Bik~)
How to delete all card data in safety mode
How to delete individual card data in safety mode
Open the battery
cover and press
[R/C] button shortly.
(Bik)
Press [ 8]Press [ ]
Press [ ] Press [ ]
(BirikBirik~)
Press [ ] Complete
with sound (BirikBirik~)
Note
Manager code (Ex : 456789)
or manager card
Press [ ]
Press [ ]
(Biriririk~)
Press [ 5 ]
Open the battery
cover and press
[R/C] button shortly.
(Bik)
Manager code (Ex : 456789)
or manager card

Basic function
Guest secret code (Temporary use)
Touch the
front pad
Input manager code
(Ex : 456789)
or touch the manager card
Press [ ]
Press [9]
Press [ ]
Press [ ]
Input guest
secret code Press [ ]
Input guest
secret code
Note
˙ Guest secret code is for temporary use. Once a guest open the door, this code is deleted.
˙ Guest secret code function is only available in safety mode.
˙ Only one code can be registered with 6 ~ 12 digits.
˙ For guest secret code, random security coding function is not available.

Input new manager
code (Ex : 567890)
Change manager code in safety mode
Change manager card in safety mode
Press [ ]
(Bik)
Press [ ]
(Bik)
Press [ ]
(Brik~Brik~)
Press [ ]
(Bik)
Press [ ]
(Bik)
Press [ ]
(Brik~)
Manager code
(Ex : 456789)
Manager code
(Ex : 456789)
Open the battery cover
and press [R/C] button
shortly. (Bik)
Open the battery cover
and press [R/C] button
shortly. (Bik~)
Press [0]
Press [ ]
(Bik)
Press [1]
Max. 3EA of Master
Cards can be registerd.
Touch new manager
card (BirikBirik~)
Press [ ]
(Bik)
Note
Only one manager code available.
Manager code can be registered with 6 to 12 digits.
Max. 3EA of manager cards can be registered.
Previous manager cards are deleted automatically with registration of new manager card.
To register multiple manager card, register Max. 3EA successively and press [ ].
How to set manager in safety mode
Input new manager
code (Ex : 567890)
Press [ ]
(Briririk~)

Basic function
(Biriririk~)
1. Open the door using secret code
2. Open the door using card key
3. Open the door with mute function (No sound)
Touch the front pad Press [ ] and door
is unlocked
(Biriririk~)
Press [ ] and door
is unlocked
Enter secret code
(Ex : 123456)
Touch the registered
card key to card
contact point
Touch the registered
card key to card
point
Touch the numeric pad
for about 3 second.
Numeric pad is flickering
two times.
Touch the numeric pad
for about 3 second.
Numeric pad is flickering
two times.
How to open from outdoor (Secret code, card, Mute function)
Enter secret code
(Ex : 123456)

Input secret code (Ex : 123456)
or Touch the card key
5: [Auto-locking] mode
6: [Manual-locking] mode
Touch the front pad Press [ ]
Press [ ]
1. Lock the door at auto-locking mode 2. Lock door at manual-locking mode
2. In manual-locking mode
Close door and
touch the front pad
Press [ 0] button,
then door will be
locked
When the door is closed, it is locked automatically
with beeping sound.
At manual-locking mode, door is not locked
automatically even though the door is closed.
After closing door, press [Open/Close] button,
then door is locked with beep sound.
(Biririk~ )
When the door is closed, door is locked with
beep sound automatically
※If the door is not
closed correctly,
warning sound
can be caused.
Please check and
confirm the door
closing status.
※In Auto-locking mode, door will be locked
automatically after closing.
In Manual-locking mode, door will be locked
with pressing manual lock button after closing.
How to lock the door from outdoor
How to set auto/manual locking system
1. In auto-locking mode
How to lock the door from indoor

Basic function
Turn to clockwise, it will be unlocked Turn to counterclockwise, it will be locked.
Press in locked status, it will be unlocked. Press in unlocked status, it will be locked.
If you press [Open/Close] button, it is locked or unlocked automatically
The lock can be locked or unlocked by turning the turmb-turn.
How to open or close with thumb-turn from indoor
Input secret code (Ex : 123456)
or Touch the card key
4: [Hold] mode
7: [Release] mode
Touch the front pad Press [ ]
Press [ ]
How to open or close with [Open/Close] button from indoor
How to hold or release the user’s secret code or card
