Hagie DTS 10 User manual

CALIFORNIA
Proposition 65
WARNING: Diesel engine exhaust and
some of its constituents are known to the
State of California to cause cancer and
birth defects or other reproductive harm.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds, chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm.
ANY PICTURES CONTAINED WITHIN THIS OPERATOR’S
MANUAL THAT DEPICT SITUATIONS WITH SHIELDS, GUARDS,
RAILS, OR LIDS REMOVED ARE FOR DEMONSTRATION
PURPOSES ONLY. HAGIE MANUFACTURING COMPANY
STRONGLY URGES THE OPERATOR TO KEEP ALL SHIELDS
AND SAFETY DEVICES IN PLACE AT ALL TIMES.

HAGIE MANUFACTURING COMPANY
OPERATOR’S MANUAL
FOR
HAGIE MODEL DTS 10 HI-TRACTOR
06-08 493409
© 2007 Hagie Manufacturing Company. Clarion, Iowa USA
COVERS MACHINE SERIAL NUMBERS: U1410880001 thru U1410880200
U1410890001 thru U1410890100
721 CENTRAL AVENUE WEST
BOX 273
CLARION, IOWA 50525-0273 [phone]

ABBREVIATIONS
A/C .................................................AIR CONDITIONING
ACCUM ............................................... ACCUMULATOR
ADJ ................................................................... ADJUST
ADPTR ........................................................... ADAPTER
AGI ................................................................AGITATOR
ALT.......................................................... ALTERNATOR
AMP .................................................................AMPERE
APPROX ...........................................APPROXIMATELY
ASSY............................................................ASSEMBLY
AUX.............................................................. AUXILIARY
BRKT.............................................................. BRACKET
BTTRY.............................................................BATTERY
C.......................................................................CELSIUS
CAL ......................................................... CALIBRATION
CCA........................................ COLD CRANKING AMPS
CHEM............................................................CHEMICAL
CYL ............................................................... CYLINDER
DIA ................................................................. DIAGRAM
DISPL.................................................. DISPLACEMENT
EA ......................................................................... EACH
ELECT........................................................... ELECTRIC
F ............................................................... FAHRENHEIT
FIG .....................................................................FIGURE
FLO .......................................................................FLOW
FRT .....................................................................FRONT
FT..........................................................FOOT OR FEET
GA ...................................................................... GAUGE
GAL ...................................................................GALLON
GPA.............................................GALLONS PER ACRE
GPM ........................................ GALLONS PER MINUTE
GPS...................... GLOBAL POSITIONING SATELLITE
HAL ................................................................HALOGEN
HR ........................................................................ HOUR
HYD............................................................ HYDRAULIC
HYDRO ................................................. HYDROSTATIC
ID......................................................INSIDE DIAMETER
IN............................................................................ INCH
INFO....................................................... INFORMATION
Km/H .................................... KILOMETERS PER HOUR
LB....................................................................... POUND
MAINT ................................................... MAINTENANCE
MIN.................................................................... MINUTE
M/F............................................................. MAINFRAME
MPH.................................................. MILES PER HOUR
MT...................................................................... MOUNT
MTH ................................................................... MONTH
MTR ................................................................... MOTOR
NO ................................................................... NUMBER
OD ............................................... OUTSIDE DIAMETER
PLT ...................................................................... PLATE
POLY .................................................. POLYETHYLENE
PRESS.........................................................PRESSURE
PRKNG ........................................................... PARKING
PSI................................. POUNDS PER SQUARE INCH
QT....................................................................... QUART
RAD .............................................................. RADIATOR
REC ....................................................RECOMMENDED
REQ..............................................................REQUIRED
RPM................................ REVOLUTIONS PER MINUTE
SEC ................................................................. SECOND
SERV............................................................... SERVICE
SLCTR ......................................................... SELECTOR
SMV...................................... SLOW MOVING VEHICLE
SOLE ............................................................ SOLENOID
SOLU............................................................ SOLUTION
SPCNG ........................................................... SPACING
SPEC................................................... SPECIFICATION
STRG............................................................ STEERING
SQ.................................................................... SQUARE
TACH ......................................................TACHOMETER
TEMP....................................................TEMPERATURE
TERM.............................................................TERMINAL
TRD .................................................................... TREAD
TT ................................................................TUBE-TYPE
TU.................................................................TUBELESS
VAR ............................................................... VARIABLE
V ............................................................................ VOLT
VFC.................................. VARIABLE FLOW CONTROL
VLV...................................................................... VALVE
W/ .......................................................................... WITH
W/O.................................................................WITHOUT
W ...................................................................... WEIGHT
WD.......................................................... WHEEL DRIVE
WHL....................................................................WHEEL

Congratulations on your selection of a Hagie Model DTS 10 sprayer. We recommend
that you study this Operator’s Manual and become acquainted with the adjustments and
operating procedures before attempting to operate your new sprayer. As with any piece of
equipment, certain operating procedures, service, and maintenance are required to keep it
in top running condition.
We have attempted herein to cover all of the adjustments required to fit varying
conditions. However, there may be times when special care must be considered.
Hagie Manufacturing Company reserves the right to make changes in the design and
material of any subsequent sprayer without obligation to existing units.
We thank you for choosing a Hagie sprayer and assure you of our continued interest in
its satisfactory operation for you. If we might be of assistance to you, please call us.
We are proud to have you as a customer.
TO THE OWNER
A WORD FROM HAGIE MANUFACTURING COMPANY
Read this manual before operating.
1

2
The following pages and illustrations will help
you operate and service your new sprayer. It is the
responsibility of the user to read the Operator’s
Manual and comply with the safe correct operating
procedures and lubricate and maintain the product
according to the maintenance schedule.
The OWNER AND OPERATOR is responsible
for inspecting the machine and having parts
repaired or replaced when continued use of the
product causes damage or excessive wear to other
parts.
Keep this manual in a convenient place for
easy reference when problems arise. This manual
is considered a permanent fixture with this
machine. In the event of resale, this manual should
accompany the sprayer. If you do not understand
any part of the manual or require additional
information or service, contact the Hagie Customer
Support Department:
Hagie Manufacturing Company
Box 273, Clarion, IA 50525
[phone]
TO THE OPERATOR
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to
the operator, service personnel, or the equipment.

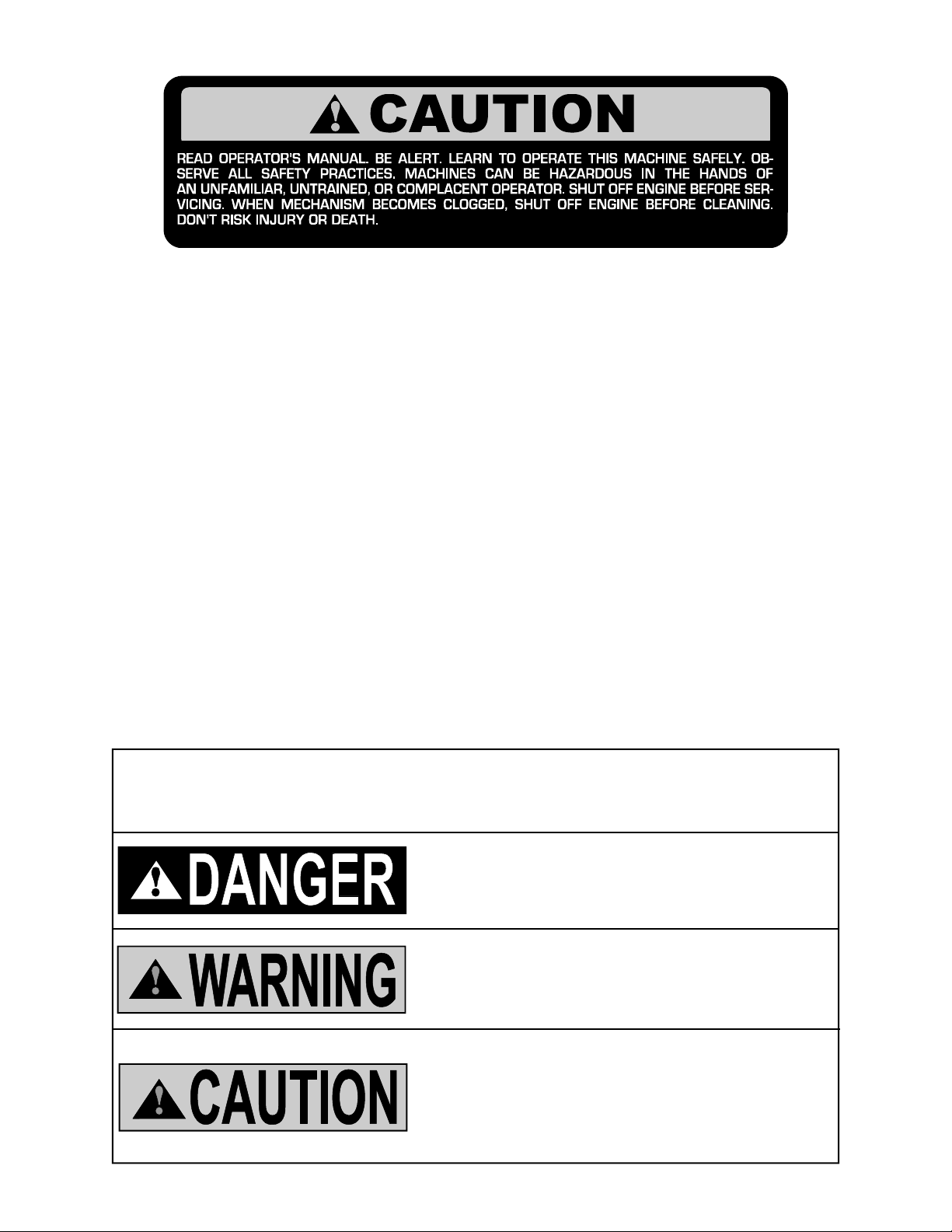

This symbol indicates an immanently hazardous situation
which, if not avoided, will result in death or serious injury .
This symbol indicates a potentially hazardous situation
which, if not avoided, could result in death or injury.
This symbol indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe
practices.

I. SAFETY/DECALS .......................................................................................................... 4-13
II. SPRAYER IDENTIFICATION .................................................................................... 14-15
III. SPECIFICATIONS ........................................................................................................ 16-21
IV. PREPARING TO OPERATE ....................................................................................... 22-26
V. OPERATING INFORMATION .................................................................................. 27-69
VI. CALIBRATION ............................................................................................................. 70-71
VII. TRANSPORTING ......................................................................................................... 72-73
VIII. SERVICE AND MAINTENANCE ........................................................................... 74-106
I . STORAGE .................................................................................................................. 107-108
. TROUBLE SHOOTING ........................................................................................... 109-116
I. LIMITED WARRANTY .................................................................................................. 117
INDE ............................................................................................................................... 118
TABLE OF CONTENTS
3

Most accidents occur as the result of failure to
follow simple and fundamental safety rules. For this
reason, most accidents can be prevented by
recognizing the real cause and doing something
about it before the accident occurs.
Many conditions cannot be completely
safeguarded against without interfering with
efficient operation and/or reasonable accessibility.
4
I. SAFETY/DECALS
SAFETY PRECAUTIONS
Therefore, you must study this Operator’s Manual
and learn how to use the sprayer controls for safe
operation. Likewise, do not let anyone operate
without instruction.
Do not make modifications such as
weldments, add-ons, adaptations, or changes from
the original design of sprayer. Such changes and/
or modifications may become safety hazards to
you and to others and will void all warranties.
DRIVING
• Before moving sprayer, make sure no persons or obstructions are in path of travel.
• Do not permit passengers on sprayer when it is moving; they may fall off or obstruct
operator’s view.
• Never drive near ditches, embankments, holes, mounds, or other obstacles.
• Never drive on hills too steep for safe operation.
• Always drive at a reasonable field speed.
• Reduce sprayer’s speed before turning.
• Come to a complete stop before reversing direction.
• Pull over to side of road before stopping.
• Additional weight caused from partially full or full solution tanks may cause erratic or
increased stopping distance.
• Do not activate parking brake while machine is in motion or damage may occur to
sprayer.
• Use flashing/hazard warning lights when traveling on public roads, day or night, unless
prohibited by local law.
• Make sure SMV emblem is in place and visible from rear when traveling on public roads.

5
I. SAFETY/DECALS
OPERATING
TREAD WIDTH
• Select widest tread setting to fit between crop rows.
• Never manually adjust tread width on sprayer until wheels have been properly
blocked. Loosen leg clamp bolts only enough for leg to slide on frame.
• If equipped with hydraulic tread adjust, never loosen leg mounting bolts to adjust
bearing clearance. It is recommended to either add additional or remove shims to
gain the proper clearance.
SPRAYER BOOMS
• Before doing the following make sure machine is in neutral.
• Cradle booms when sprayer is unattended.
• Make sure booms are folded when cradled.
• Select a safe area before unfolding booms. Avoid power lines and overhead
structures.
GENERAL OPERATION SAFETY
• Do not adjust factory engine RPM settings.
• Operate engine at one bump or 1800 RPM’s to assure proper charge pressure for
brakes to work properly.
• Start engine from operator’s seat only. Do not by-pass safety-start switch.
• The use of starting fluid is not recommended.
• Never run sprayer engine in a closed building. Proper exhaust ventilation is required.
• If equipped with ground speed sensing radar, do not look directly into radar beam. It
emits a very low intensity microwave signal which may cause possible eye damage.

6
I. SAFETY/DECALS
REPAIR/MAINTENANCE
HYDRAULICS
• Use caution when working with hydraulic fluid under pressure. Escaping hydraulic fluid can
have sufficient force to penetrate your skin, causing serious injury. This fluid may also be
hot enough to burn.
• Always lower load or relieve hydraulic pressure before repairing a hydraulic oil leak.
• Avoid torching, welding, and soldering near pressurized hydraulic lines.
FUELING
• Always turn engine off and allow it to cool before refueling.
• Do not smoke while refueling.
• Do not fill fuel tank completely. Fuel may expand and run over.
GENERAL REPAIR/MAINTENANCE
• Turn off engine before checking, adjusting, repairing, lubricating, or cleaning any part of
sprayer.
• When servicing radiator, let engine cool before removing pressurized cap.
• Disconnect battery ground cable before servicing electrical system or welding on machine.
• When charging battery, connect positive cable to positive terminal and negative cable to
negative terminal. Failure to do so may result in an explosion and cause harm to operator
or the machines electric system.Likewise, avoid battery acid contact also may cause injury.

I. SAFETY/DECALS
7
WARNING DECALS
CHEMICAL HANDLING
• Never allow chemicals to come in contact with skin or eyes. Wear protective clothing
or respirators as recommended by chemical manufacturer. Store this clothing
outside cab so as not contaminate filtered cab environment. Also, clean your boots
to remove soil or other contaminated particles prior to entering cab.
• Never pour chemicals into an empty tank, fill tank half full of water first.
• Follow chemical manufacturer’s instructions for mixing chemicals.
• Dispose of empty chemical containers properly.
• Wash spilled chemicals or spray residue from sprayer to prevent corrosion and
deterioration.
• Select a safe area to fill, flush, calibrate, and clean sprayer where chemicals will not
drift or run off to contaminate people, animals, vegetation, or water supply.
• Never place nozzle tips or other parts to one’s lips in an attempt to unclog spray tip.
• Do not spray when wind is in excess of chemical manufacturer’s recommended
speed.
• Store pesticides in their original containers with label intact. Keep them in a
separate, locked building.
GENERAL SAFETY
• Keep a fire extinguisher close at all times.
• Keep all shields in place.
• Keep clear of all moving parts and keep others away when operating.
• Do not wear loose fitting clothing that may be blown or drawn into moving parts.

650175
650336
I. SAFETY/DECALS
8
DECAL LOCATION
Decals warning you of avoidable danger are
located on various parts of the sprayer. They are
there for your personal safety and protection. DO
NOT remove them. They will fracture upon
attempted removal and therefore must be replaced.
Following are locations of important safety
decals. Replace them if they are torn or missing. All
warning decals and other instructional Hagie
decals or machine striping may be purchased
through the Hagie Customer Support Department.
To replace decals, be sure that the installation area
is clean and dry; decide on exact position before
you remove the backing paper.
WARNING DECALS
Inside rear cab window on left side.
Inside right-hand cab window to the rear.

650340
650337
I. SAFETY/DECALS
9
DECALS CONTINUED
Right-hand cab window.
Steering column.
Near brake switch on switch panel in cab.
650339

650847
650350
I. SAFETY/DECALS
10

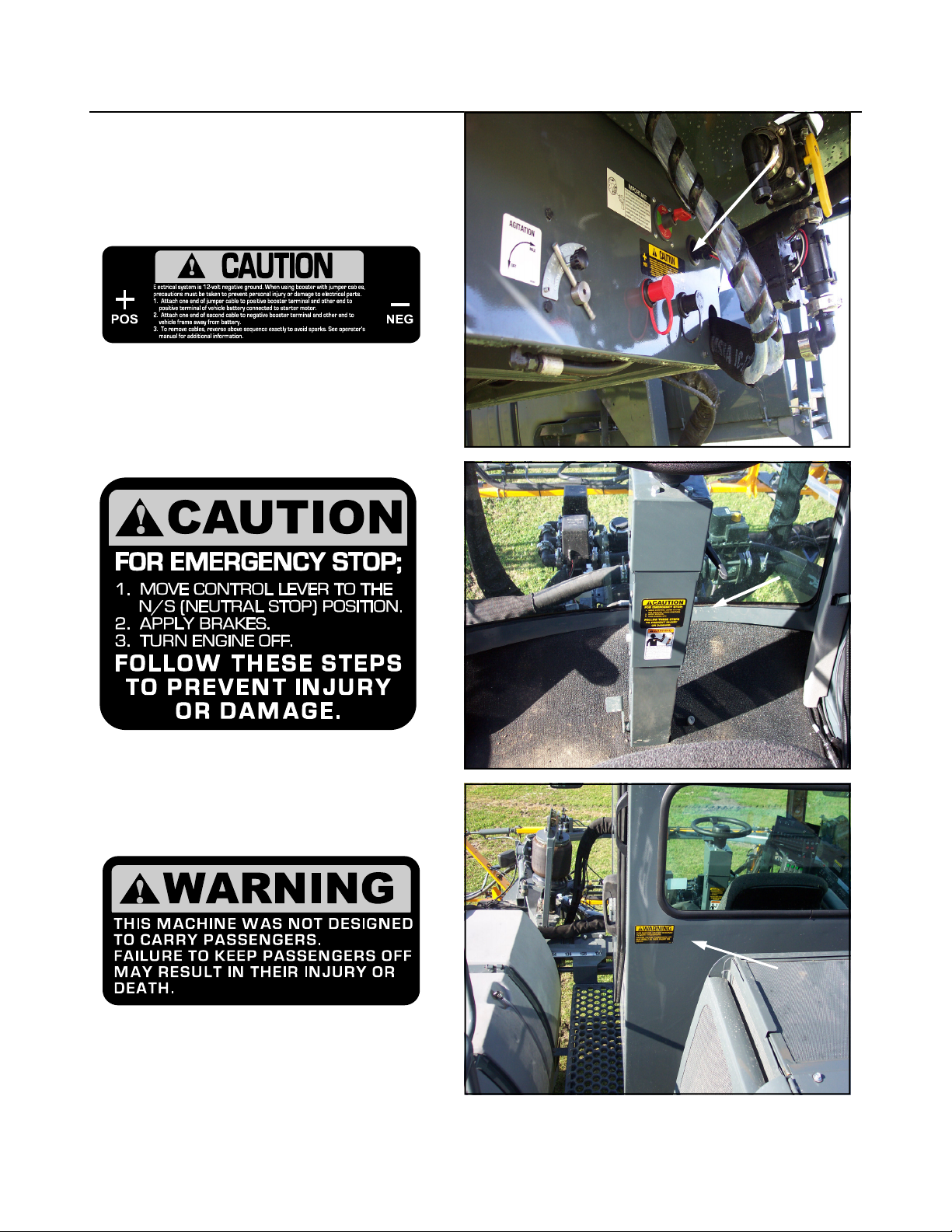

Rear of mainframe above booster terminals.
Steering column.
Outside, left-hand, rear panel of cab
650831

650849
650848
650848
I. SAFETY/DECALS
11

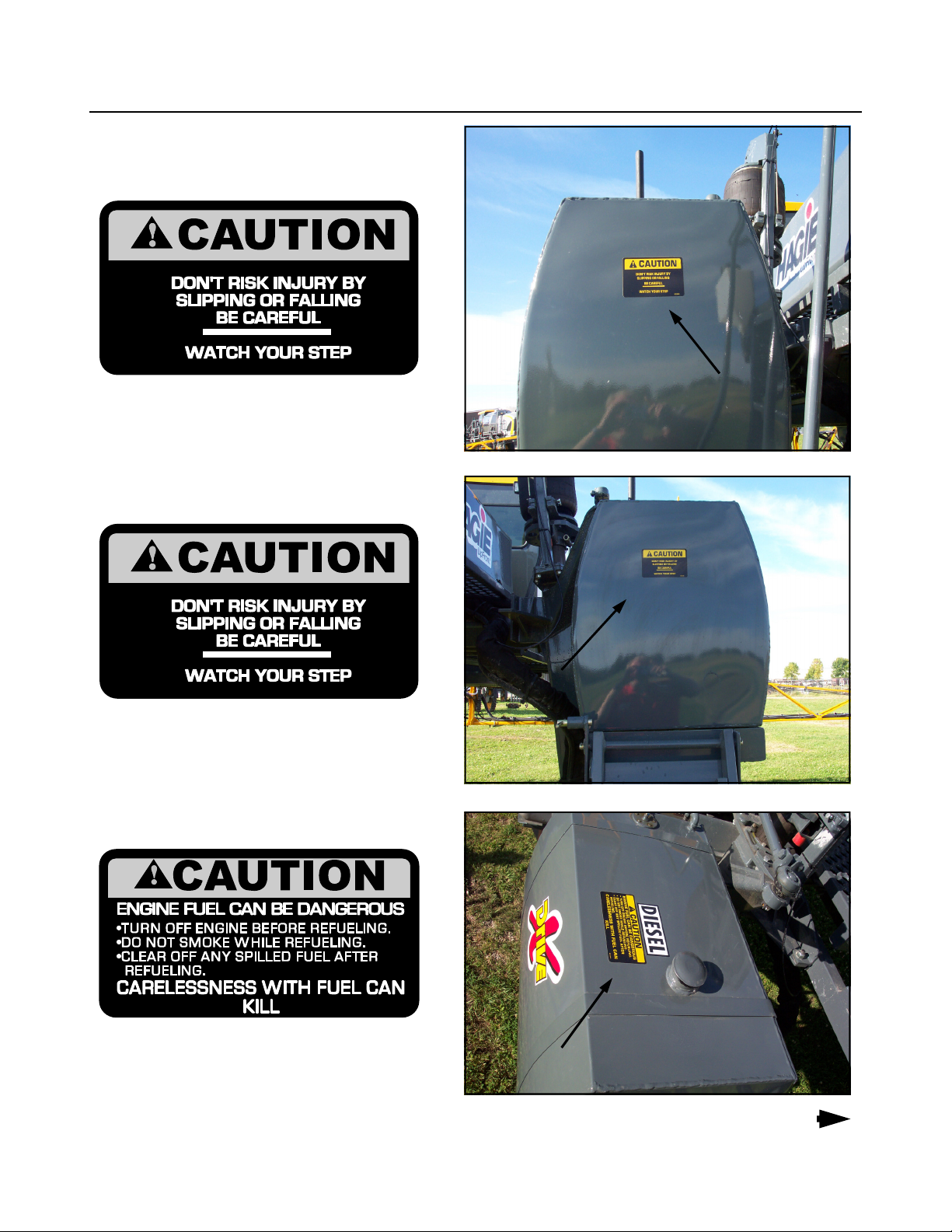

Rear of left-hand fuel tank.
Rear of right-hand fuel tank.
Top of each fuel tank.
DECALS CONTINUED

650851
650851
650850
I. SAFETY/DECALS
12
Top of each solution tank.
Right rear mainframe.
Left rear mainframe

650852
650981
650982
I. SAFETY/DECALS
13
Storage console lid in cab.
Front of mullion .
Inside right hood, above battery.

NOTE:
Reference to left-hand and right-hand used throughout
this manual refers to the position when seated in the
operator’s seat facing forward.
14
II. IDENTIFICATION NUMBERS

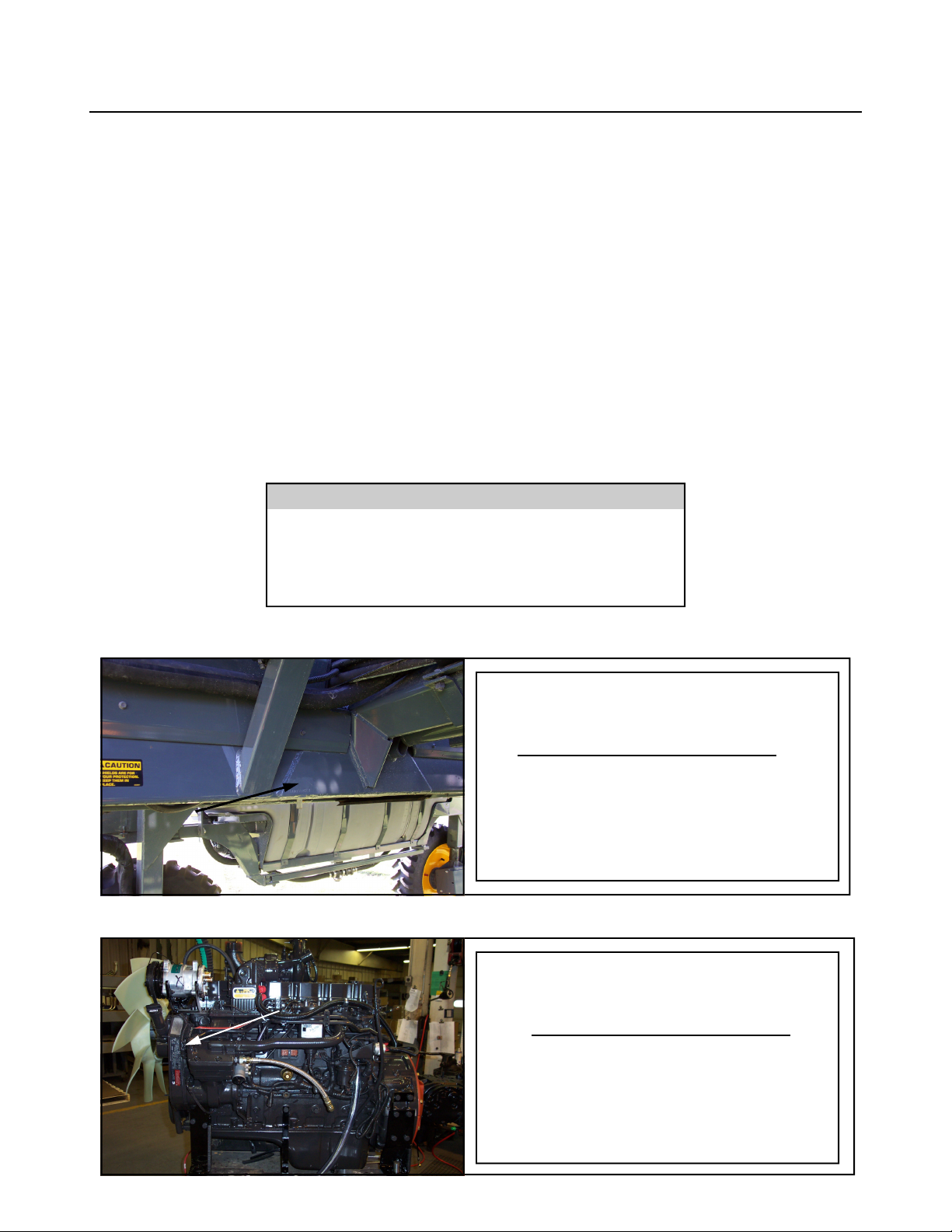

SPRAYER IDENTIFICATION
Each Hagie sprayer is identified by means of a
frame serial number. This serial number denotes
the model, year in which it was built, and the
number of the sprayer. For further identification, the
engine has a serial number, the hydrostatic pumps
have serial numbers, the wheel motors have
identification tags, and the planetary hubs have
identification plates that describe the type of mount
and gear ratio. To ensure prompt, efficient service
when ordering parts or requesting service repairs
from Hagie Manufacturing Company, record the
serial and identification numbers in the space
provided below.
NOTE:Diesel engine serial number located on
the side of the front left gear housing.
Engine
NOTE:Sprayer serial number stamped in the
frame on right rear corner.
Sprayer

15
II. IDENTIFICATION NUMBERS

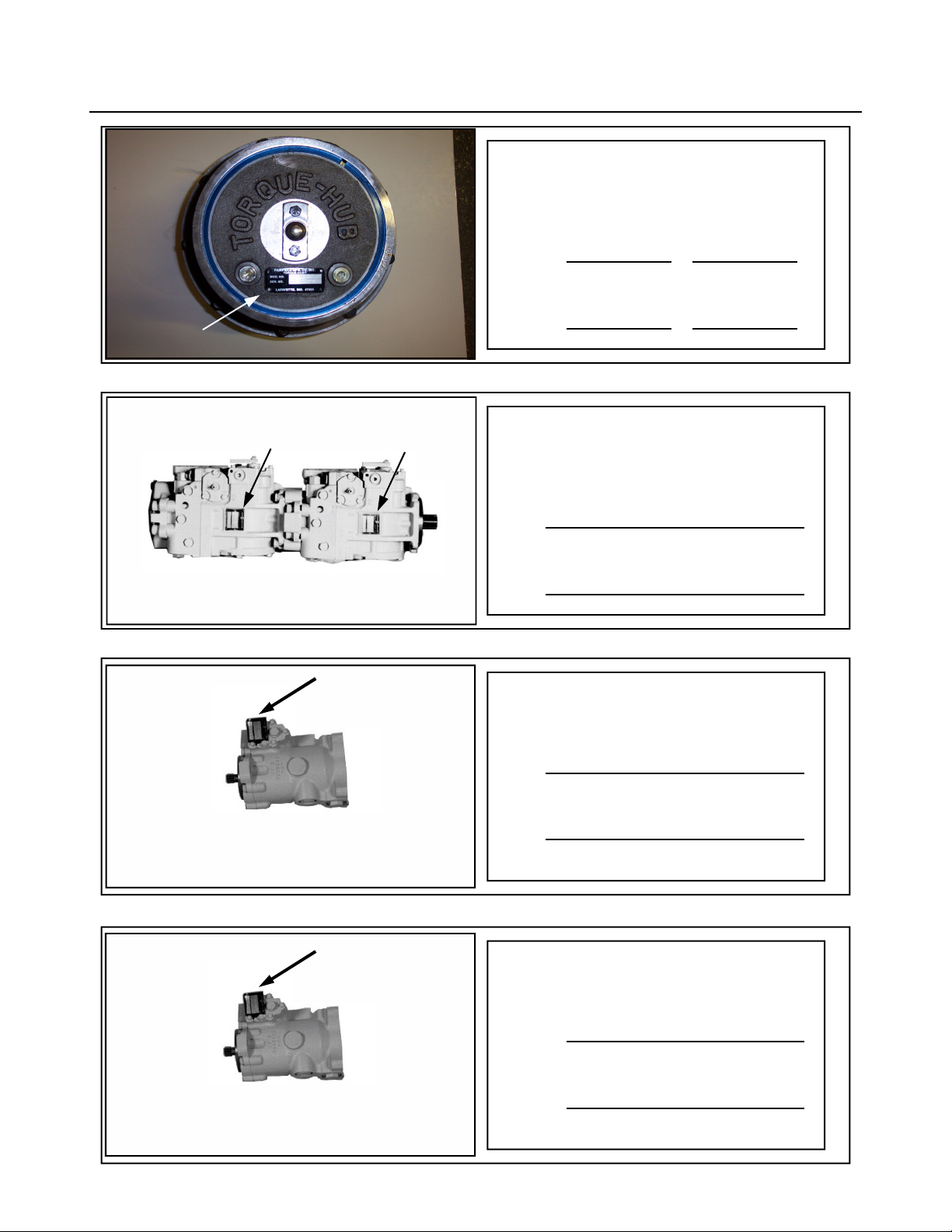

Front:
Rear:
Planetary Hubs
Left Right
Front:
Rear:
Hydrostatic Pumps
Refer to parts manual.
Front Wheel Motors
Left:
Right:
Refer to parts manual.
Rear Wheel Motors
Left - w/
Sensor:
Right - w/o
Sensor:

III. SPECIFICATIONS
16
A. Overall tractor height ............................138.47"
B. Raised transom height………………….133"
C. Transom lift range............ 23"-101" (78" range)
D. Static loaded hub height ...........................25.8"
E. Wheel base............................................ 139"
F. Sprayer length ....................................... 296"
G. Rear handrail height .............................. 124"
SPRAYER DIMENSIONS
GENERAL SPRAYER INFORMATION
♦ Frame type...........................Rigid, 4 wheel
independent air
bag
♦ Approximate dry weight .......13,600 lb.
H. Width (booms folded, 120” tread)............... 143"
I. Frame clearance........................................... 73"
J. Center clearance .......................................... 67"
K. Lower leg clearance .................................. 25.5"
L. Tire center to inside of lower leg ......14.5" (rear)
M. Tread width* ......................................Adjustable
120" - 144"
Optional ................................Adjustable
120" - 154"
*NOTE: Measure tread width at ½ tire height.
♦ Shipping width......................143"
♦ Ladders (2)..........................Rear
Primary ..........................Side mounted,
stationary
Secondary .....................Folding,
A B
C1-C2
D
F
E
C1
C2
G

III. SPECIFICATIONS
17
ENGINE
Manufacturer and model .......................................................................Cummins
Model.....................................................................................................6BTA5.9 Turbocharged QSB
Type ......................................................................................................In line, liquid cooled
Number of cylinders ..............................................................................6
Displacement ........................................................................................5.9 liter
Horsepower...........................................................................................205, intermittent
Type of fuel ...........................................................................................Number 1 or number 2 diesel
Fuel system...........................................................................................Filtered, direct-injected
Air cleaner .............................................................................................Dry-type, double element
Slow idle ................................................................................................800 RPM
Fast idle.................................................................................................2720 RPM (no load)
POWER TRAIN
Drive
Hydrostatic pump ..................................................................................Sauer-Danfoss
Tandem 90 series
Range....................................................................................................132CC(66X2) LIMITED STROKE ,
(VARIABLE DISPLACEMENT)
Drive train ..............................................................................................All-time four wheel drive
Speed - Low .....................................................................................0-14 mph
- Medium ...............................................................................0-18 mph
- High ....................................................................................0-28 mph
Hydrostatic wheel motor - front and rear...............................................Sauer-Danfoss M46
Final drives
Type ......................................................................................Planetary gear reduction hubs
- front and rear ............................................................Torque Hub
®
7000 series
7HBA & 7HBX
Lubrication……………………………………………………… Oil Bath
Brakes
Type ......................................................................................................Integral
Spring applied
Hydraulically released
Steering System
Type ......................................................................................................Hydraulic, priority on demand
Control...................................................................................................Full-time power
Steering cylinders..................................................................................Self-centering, double action
Turning radius (120" tread setting)........................................................19' 5"
