ORIGINAL INSTRUCTIONS –
KÄÄNNÖS ALKUPERÄISESTÄ
KÄYTTÖOHJEESTA –ÖVERSÄTTNING AV
ORIGINAL BRUKSANVISNING
MANUAL STACKER
KÄSIKÄYTTÖINEN PINOAMISVAUNU
MANUELL STAPLARE
HAVA1000PI, HAVA1000PIK

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
Welcome to use the HAVA1000PI/PIK hydraulic manual stacker. Owner/Operator must read and
understand this instruction manual before using the product. Incorrect use may lead to personal injury
or property damage. Hydraulic manual stacker shall be used only by competent personnel. Retain this
instruction manual for future reference.
WARNING!
Pay attention to the following matters before operating this stacker:
1. HAVA1000PI/PIK manual stacker can only be operated indoors on even and solid ground. It is
strictly prohibited to operate the stacker in a corrosive environment with acid and alkali.
2. Please read this manual carefully and understand the operating principle and functions of the
stacker before operating; Inspection of the stacker should be conducted carefully every time
before operation to ensure that the stacker is in normal condition. It is strictly prohibited to
operate a faulty stacker.
3. It is strictly prohibited to overload the stacker. The load capacity and the load center should meet
the requirements in the parameter table of this manual. Specifications and load capacity charts
are marked on the products and they must be followed.
4. When the stacker is used for piling, the gravity center of the goods must be within the two forks.
It is strictly prohibited to pile loose goods.
5. When it is required to transport the goods for a comparatively long distance, the height of the
forks from the ground should not exceed 0.5m.
6. When piling goods, it is strictly prohibited for people to stand under the forks or around the
stacker.
7. It is prohibited to put any part of the body under the load or the forks. Operator must be careful
not to leave any body part between moving parts of the stacker.
8. It is strictly prohibited to stand on the forks for operation.
9. When the goods are on high level, the goods should be pushed forward or pulled backward
slowly and no cornering is allowed in such a case.
10. It is prohibited to make any modifications or attach any add-ons to the product. All repairs must
be executed by a qualified person. Original spare parts shall be used.
11. Only palletized cargo shall be lifted. It is forbidden to lift or move persons or free objects.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International

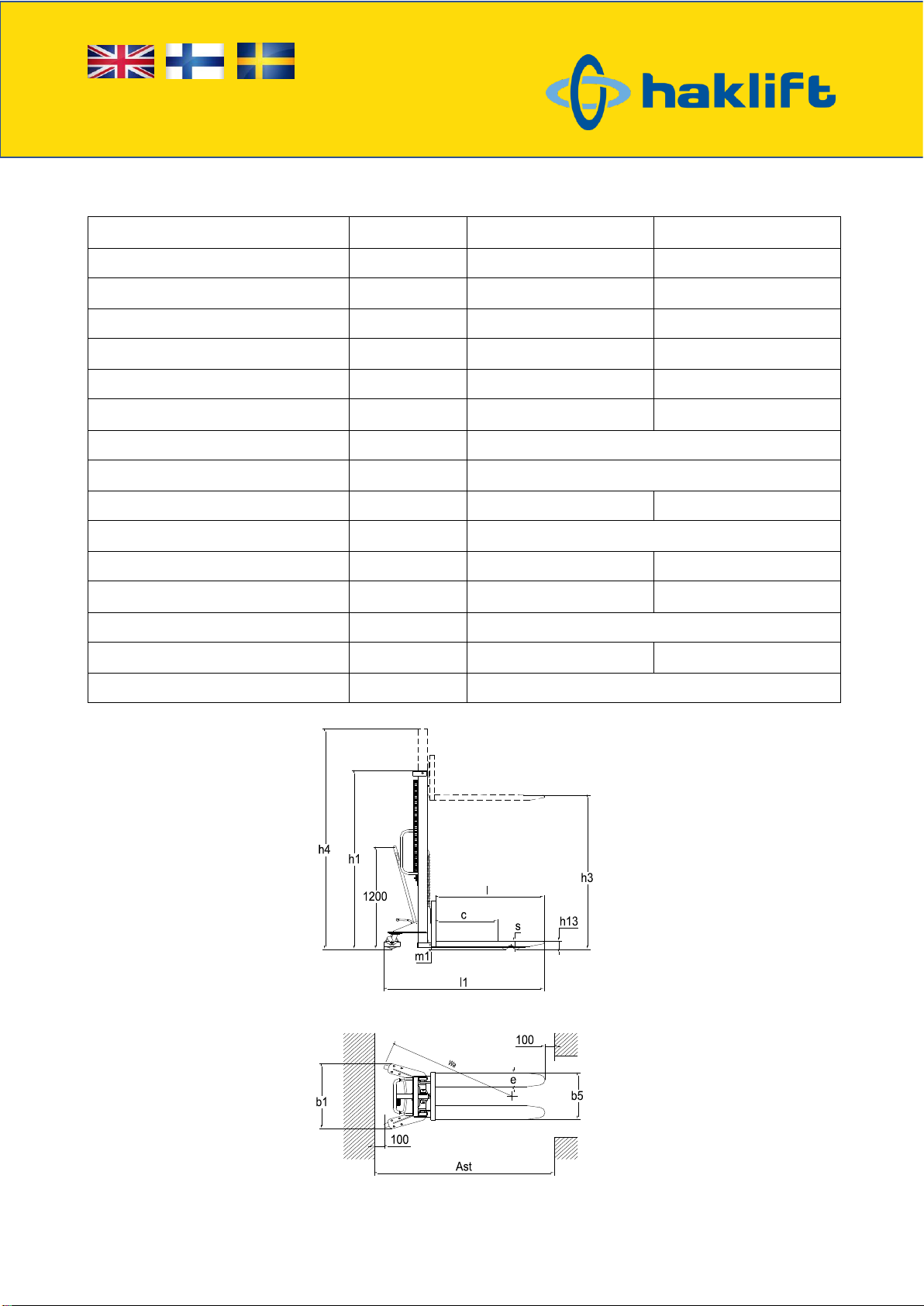

1. TECHNICAL PARAMETERS
Model
HAVA1000PI
HAVA1000PIK
Load capacity
Q(kg)
1000
1000
Load center distance
c(mm)
600
600
Service weight
kg
214
307
Height, mast lowered
h1(mm)
2080
2090
Max. lift height
h3(mm)
1600
3000
Height, mast extended
h4(mm)
Single mast
3420
Lowered fork height
h13(mm)
90
Overall length
l1(mm)
1695
Overall width
b1(mm)
760
860
Fork dimensions
s/e/l(mm)
61x175x1150
Distance between fork-arm
b5(mm)
550
585
Turning radius
Wa(mm)
1320
1350
Lift speed, laden/unladen
mm/times
20/22
Lowering speed, laden/unladen
mm/s
170/35
143/53
Noise level
dB
<70

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
2. STRUCTURAL CHARACTERISTICS AND WORKING PRINCIPLE
HAVA1000PI/PIK manual stacker consists of a hydraulic system, mast and forks.
The stacker uses a manual hydraulic pump (hydraulic device) as a force to lift heavy goods, which are pushed,
pulled and handled manually. The hydraulic device is equipped with an oil return valve and the fork decline
speed is controlled via a hand lever to make the operation of the hydraulic system correct, safe and reliable.
The mast is welded with high quality profile steel with features such as good rigidity and high strength.
Universal wheels with braking device are adopted as the back wheels, which can rotate freely, easily and
flexibly. Both front and back wheels are installed on wheel shafts with ball bearings so as to rotate flexibly.
Wear-resistant and durable Nylon wheels are adopted so that it is not easy to damage the operation ground.
When lifting goods, insert the forks under the pallet of the goods. When necessary, break the back wheels.
Set the control hand lever to the lowest position and pull the handle. The pinch roller presses the pump core
to make the oil in the pump cylinder flow into the piston cylinder, in order to push the piston rod move upward
and lift the forks upward via a chain for a two times travel. Pull the handle back and forth so as to lift the goods
and achieve the purpose of lifting. When the forks are lifted to the maximum height, the pressurized oil flows
back into the oil tank via an oil draining hole and in that case, even the handle is pulled, the forks raise no
more to avoid damaging components by impacting the top. Stacker is also equipped with a leg operated pump.
By pumping the pedal (control hand lever in the lowest position) the forks will rise.
When handling heavy goods, the stacker is able to travel via manual pushing (pulling).
When unloading, pull the control hand lever slowly. The oil return valve opens and with the effect of the dead
weight of the heavy goods and forks, the operational oil in the piston cylinder flows back into the oil tank
through the oil return valve. When the piston rod and the forks decline to the lowest position, the goods are
unloaded and the forks can be withdrawn. For safety reasons, when lowering the goods, the control hand lever
should be operated slowly and in a controlled manner.
3. OPERATION CONDITIONS
The operation of HAVA1000PI/PIK manual stacker should meet following conditions:
1. Ambient temperature for operation: -25ºC~+40ºC.
2. The relative humidity of the environment should be less than 90%RH.
3. The stacker can only operate in an environment without rain and harmful gas erosion.
4. The stacker can only operate indoors on even and solid ground.
4. OPERATION AND MAINTENANCE
1. The oil must be filtered and clean. Sufficient oil quantity and quality must be ensured.
2. Before operation, inspection must be conducted for the stacker to ensure the stacker is in
normal condition and there are not any loose or defective components. It is forbidden to use a
defective product, it must be removed from service immediately.
3. The load should be smoothly distributed on the forks and no overload is allowed.
4. After the operation is completed, the goods should be unloaded. Heavy goods are not
allowed to be on the forks for a long time.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
5. When lowering the goods, the control hand lever of the oil return valve should be operated
slowly and gently to avoid sudden declination during quick lowering process which causes
unsafe situation. When lowering the goods quickly, the oil return valve cannot be closed
suddenly as inertial acceleration is generated during the process of quick declination. If that, a
great force will be generated to damage the components and goods.
6. Raise and pull outward the front part of the panel by hands, take off the panel and then the
stacker can be used as pallet truck cart or pallet stacker.
7. The brakes on the back wheels are installed for the purpose of safety in operation process.
When the forks are rising for lifting goods or it is used as an operation platform, the brakes
should be stepped down with foot to prevent the stacker from moving.
5. PACKING LIST WITH SPARE PARTS
No.
Name
Quantity
Use for
1
HAVA1000PI/PIK manual stacker
1
The whole
unit
2
HAVA1000PI/PIK operation manual
1
3
Quality certificate
1
4
Packing list
1
5
Combined washer Φ20
2
Pump
6
O-ring Φ47.5×3.55
1
7
O-ring Φ65×3.55
1
8
UHS seal ring Φ16
1
9
UHS seal ring Φ31.5
1
10
DHS dust-proof ring Φ16
1
11
DHS dust-proof ring Φ31.5
1

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
6. POSSIBLE FAILURES AND TROUBLESHOOTING
No.
Failure
Cause analysis
Troubleshooting
1
The lifting height
cannot meet the
desired
requirement.
Insufficient amount of operation oil.
To fill oil into the oil cylinder, loose
the bolt, fill in filtered and clean
operation oil to the oil inlet height and
then tighten the bolt.
2
When the handle
is pulled, the forks
do not rise.
1. The viscosity of the operation oil
is too great or no operation oil has
been filled in.
Replace or fill in operation oil
according to the oil quantity
regulated.
2. There is foreign matter in the
operation oil, which makes the oil
inlet valve unable to close tightly.
Filter out the foreign matter or
replace operation oil according to the
stipulation.
3. The oil draining valve, control
hand lever and tension spring do not
work, control handle lever not at the
lowest position or blocked by other
foreign mater.
-Examine the tension spring to see if
it is in order.
-Adjust the control hand lever to the
lowest close position.
-Remove foreign mater.
4. The position of the oil draining
valve and control hand
lever/unloading device have not
been correctly adjusted.
Readjust the unloading tension bar
nut position.
3
After being raised,
the forks do not
decline.
1. The control hand lever/unloading
device is not correctly adjusted.
2. Over heavy load deviation, so
permanent piston deformation
occurs.
3. The fork frame, roller or chain
wheel is blocked.
-Adjust as described above.
-Disassemble for maintenance or
replace the piston rod.
-Disassemble for maintenance or
replace bearing.
4
Oil leakage.
1. Damaged or failed seal washer.
2. There is a slight crack or through
hole in individual component.
3. Loose thread connection or non-
tightly pressed sealing ring.
-Replace with new sealing washer.
-Repair or replace new components.
-Repair and tighten.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International

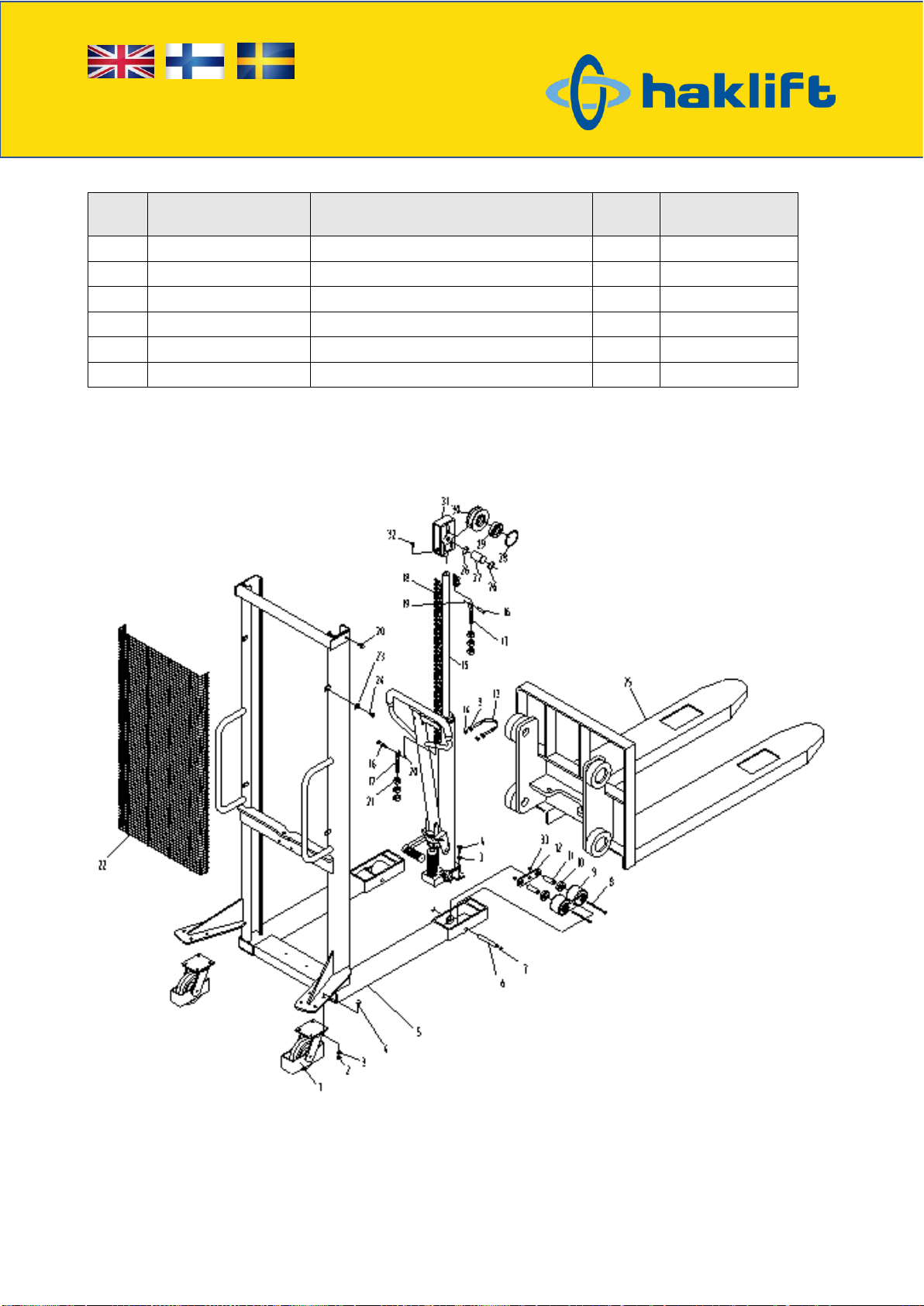

7. EXPLODED VIEWS AND PART LISTS / RÄJÄYTYSKUVAT JA OSALISTAT / EXPLODERADE VYER
OCH DELLISTOR
7.1 General spare parts / Yleiset varaosat / Generella reservdelar

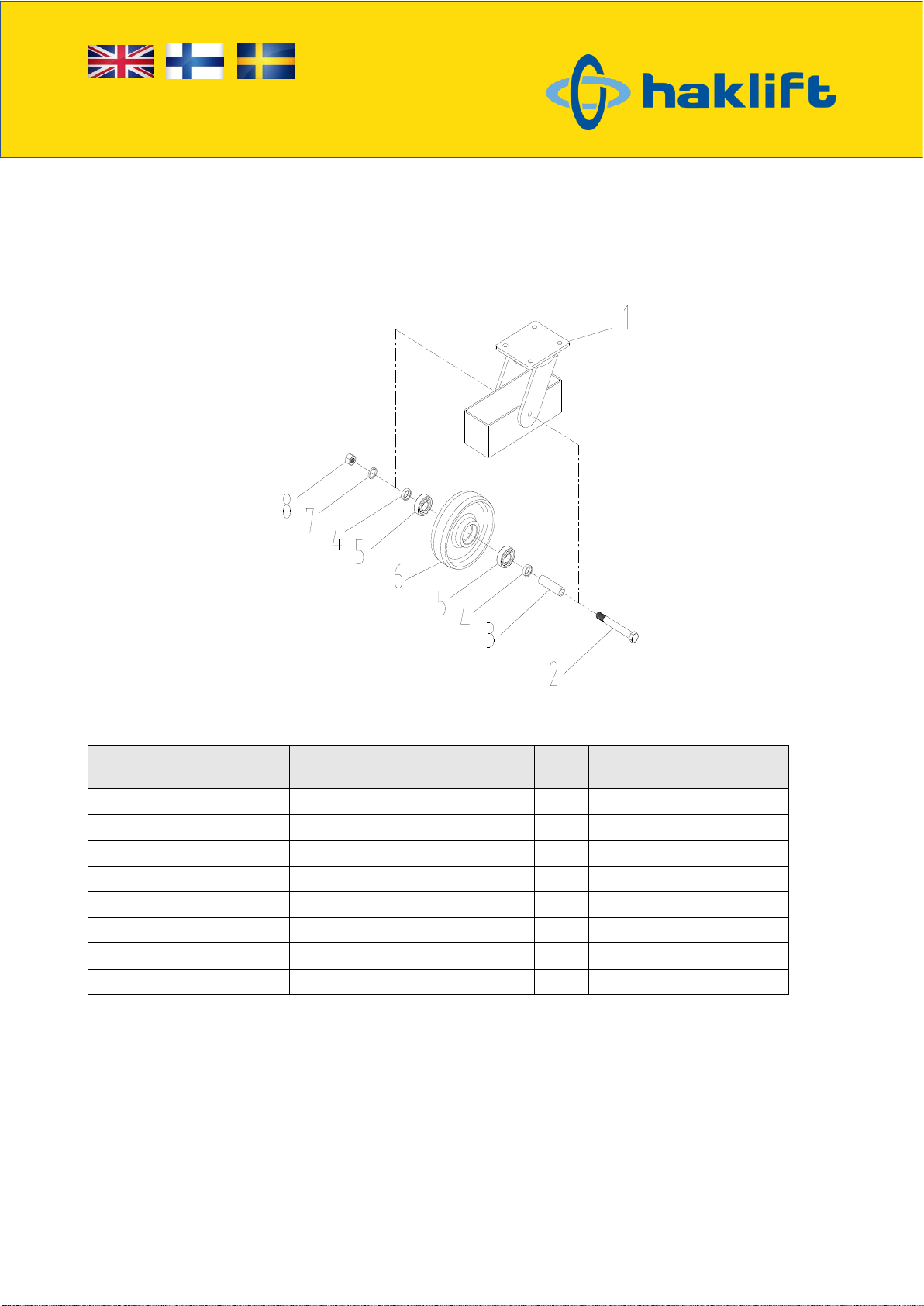

7.1.1 Universal wheel assembly / Yleismallisen pyörän kokoonpano / Universal hjulmontering
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
Remark
Huom.
Anmärkning
1
MD-P6-CH
Universal wheel frame
1
2
GB5780-86
Hex bolt M12×100
1
0908420093
3
SDJA500-01-03
Sleeve
1
0909220008
4
SDJA500-01-02
Snap ring
2
0909020023
5
GB276-76
Deep channel ball bearing 6203
2
0907020004
6
SDJA500-01-01
Big nylon wheel Ø147×40
1
0905010028
7
GB95-85
Washer Ø12
1
0908350021
8
GB889-86
Nonmetal lock nut M12
1
0908010020

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7.1.2 Handle assembly / Aisan kokoonpano / Handtag montering
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
Remark
Huom.
Anmärkning
1
DF.1－01A
Locating tab
1
2
GB879-86
Spring pin Ø4×32
2
0908500015
3
DF.1－02
Roller
1
0904010006
4
GB879-86
Spring pin Ø4×20
1
0908500012
5
GB879-86
Spring pin Ø6×32
1
0908500040
6
GB879-86
Spring pin Ø4×20
1
0908500012
7
DF.1－03
Handlebar
1
0909170002
8
SDJA500.08.04-01
Pull rod assembly
1
9
SDJA500.08.04-02
Handle
1
1133600002

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7.1.3 Pull rod assembly / Vetovarren kokoonpano / Dragstång montering
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
Remark
Huom.
Anmärkning
1
DF.1.2－01
Connecting plate
1
0909990019
2
DF.1.2－02
Pull rod
1
3
GB867-86
Rivet Ø3×10
2
0908080001
4
DF.1.2－03
Plastic sleeve
2
5
GB6075-86
Chain C-6-9-04C
1
6
DF.1.2-04
Eyelet bolt
1
0908140004
7
GB889-86
Nonmetal nut M5
1
0908010004

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7.1.4 Oil plug assembly / Öljyruuvin kokoonpano / Oljeplugg montering
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
Remark
Huom.
Anmärkning
1
SDJA500-08-13-01
Oil plug
1
0901120026
2
SDJA500-08-13-02
Column sponge Ø4×6
1
3
SDJA500-08-13-03
Bolt with a hole
1
0901120007

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International

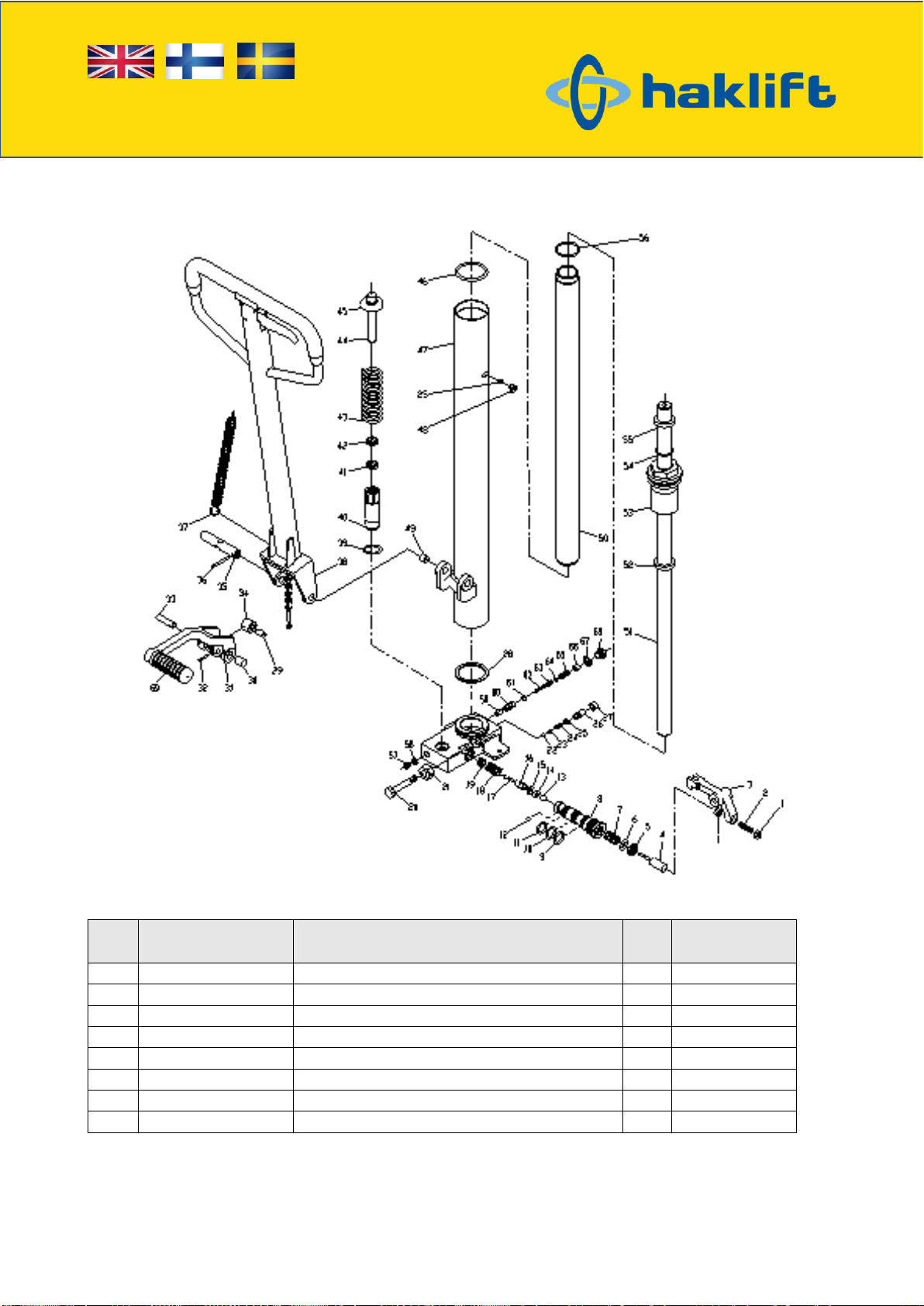

7.1.5 Pump assembly / Pumpun kokoonpano / Pump montering
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
Remark
Huom.
Anmärkning
1
GB6170-86
Hex nut M6
2
0908030012
2
GB78-85
Inner Hex lock nut M6×30
1
0908170014
3
SDJA500.8.12
Lever plate
1
0860010007
4
NF.2-24
Firing pin
1
0901090007
5
GB3452.1-82
O-ring Ø4.87×1.8
2
0902050003
6
CN.2-25
Firing pin spring
1
0903040003
7
NF.2-23
Firing pin valve seat
1
0901100003
8
JB892-77
Combined washer Ø20
2
0902010009

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
9
GB3452.1-82
O-ring Ø12.5×2.65
2
0902050028
10
GB308-77
Steel ball Ø8
1
0907010014
11
GB5780-86
Bolt M8×50
1
0908420039
12
GB1337-77
Nut M8
1
0908030013
13
GB119-86
Pin Ø3×16
1
0908470003
14
NF.2-18
Valve seat 500
1
0901110007
15
GB308-77
Steel ball Ø5
1
0907010010
16
NF.2-19
Pin
1
0901150010
17
NF.2-20
Valve seat spring
1
0903080002
18
GB892-77
Combined washer Ø10
1
0902010004
19
NF.2-17
Bolt
1
0901120036
20
SF1
Combined bushing 1220
1
0907040011
21
SF1
Combined bushing 2015
2
0907040023
22
SDJA500.08.03-00
Compressed frame
1
0860010014
23
GB879.86
Spring pin Ø4×25
1
0908500014
24
CN.2－14
Axle with a hole
1
0906050001
25
CN.2－13
Pinch roller
1
0909120016
26
GB879.86
Spring pin Ø4×35
1
0908500017
27
SDJA500.08.10
Compressed frame axle
1
0906170003
28
SDJA500.08.09
Tension spring
1
0903110001
29
SDJA500.08.04-00
Handle assembly
1
1133600002
30
GB3452.1-82
O-ring Ø22.4×2.65
1
0902050046
31
SP.8-11
Pump cylinder Ø18
1
0901020020
for 0.5 t
Pump cylinder Ø16
1
0901020022
for 1 t
Pump cylinder Ø14
1
0901020021
for 1.5 t
32
UHS18
UHS seal ring Ø18
1
0902030005
for 0.5 t
UHS16
UHS seal ring Ø16
1
0902030004
for 1 t
UHS14
UHS seal ring Ø14
1
0902030002
for 1.5 t
33
DHS18
DHS dust proof ring Ø18
1
0902040007
for 0.5 t
DHS16
DHS dust proof ring Ø16
1
0902040006
for 1 t
DHS14
DHS dust proof ring Ø14
1
0902040005
for 1.5 t
34
SP.8-09
Large spring
1
0903130009
35
SDJA1000.08.01
Pump core Ø18 (0.5T)
1
0901030019
for 0.5 t
SDJA1000-08-01
Pump core Ø16 (1.0T)
1
0901030020
for 1 t
SDJA1500-04-01
Pump core Ø14 (1.5T)
1
0901030018
for 1.5 t
36
SDJA500.08.02
Large spring seat
1
0909060002
37
GB3452.1-82
O-ring Ø65×3.55
1
0902050108
38
SDJA500.08.07-00
Cylinder sleeve
1
for 1.6 m
SDJ1000-2.5-05-05-00
1
for 2.5 m
SDJ1030-04-03-00
1
for 3.0 m
39
GB3452.1-82
O-ring Ø7.5×2.65
2
0902050011
40
SDJA500.08.13.00
Oil plug
1

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
41
SF1
Combined washer 2012
2
0907040029
42
SP.8-12
Rectangular seal ring
1
0902070004
43
GB308-77
Steel ball Ø6.5
1
0907010012
44
SP.8-18
Safety valve seat
1
0901110020
45
SP.8-17
Safety valve spring
1
0903130005
46
SPIII.8-16
Safety valve adjusting screw
1
0901120010
47
SP.8-15
Safety valve boot
1
0901150012
48
SDJA500.08.06
Piston rod
1
0901010081
for 1.6 m
SDJ1000-2.5-05-04
1
0901010083
for 2.5 m
SDJ1030-04-02
1
0901010085
for 3.0 m
49
UHS
UHS seal ring Ø31.5
1
0902030021
50
SDJA500.08.05
Oil cylinder
1
1113600006
for 1.6 m
SDJ1000-2.5-05-03
1
1113600004
for 2.5 m
SDJ1030-04-01
1
1113600005
for 3.0 m
51
SDJA500.08.08
Top cap
1
1109600001
52
GB3452.1-82
O-ring Ø31.5×3.55
1
0902050059
53
DHS
DHS dust proof ring Ø31.5
1
0902040018
54
GB3452.1-82
O-ring Ø47.5×3.55
1
0908240097
55
GB308-77
Ball Ø4
1
0907010007
56
SDJA500-08-03-03
Rubber sheath
1
0904100002

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International

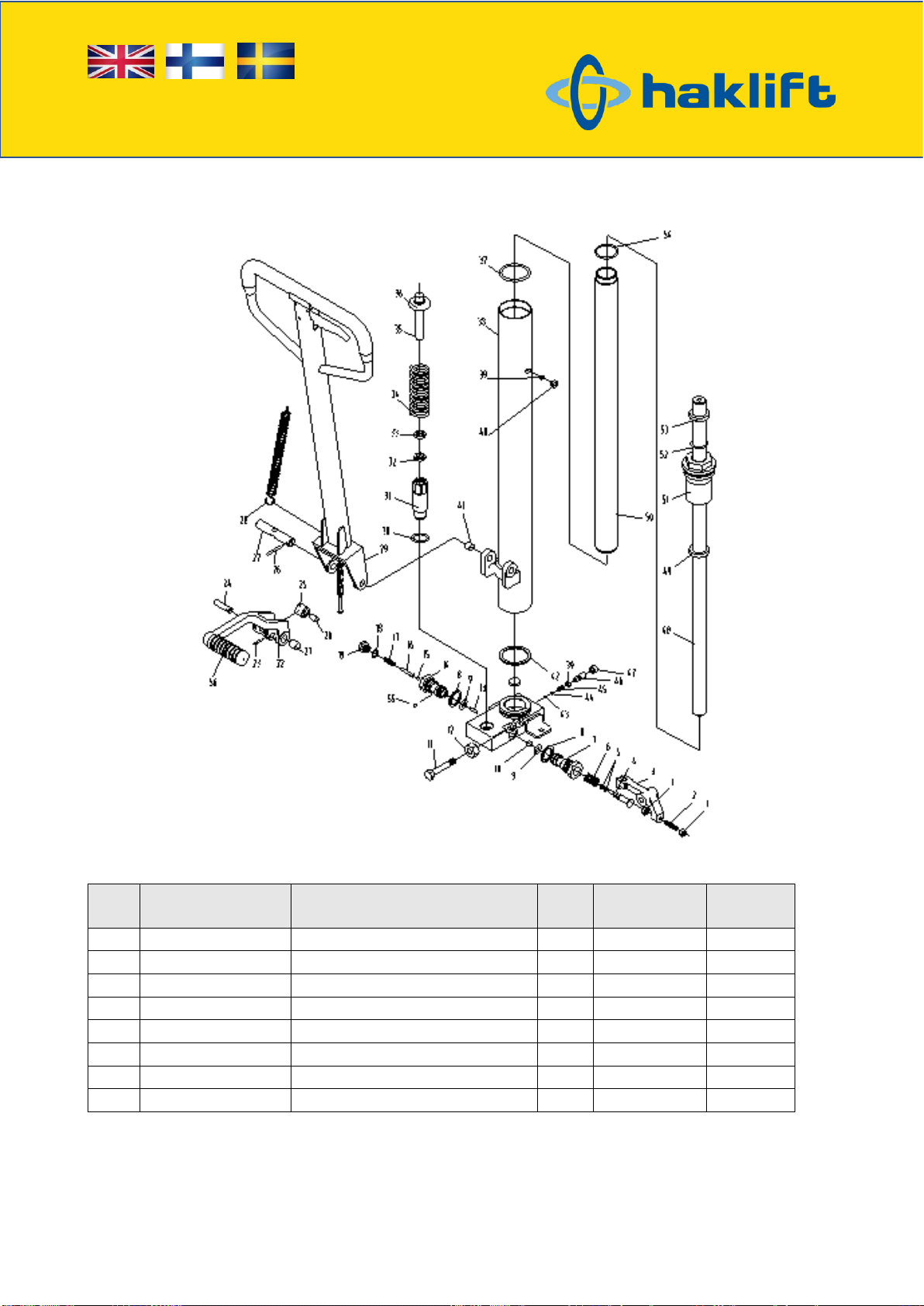

7.1.6 Jack unit / Pumppuyksikkö / Pump enhet (HAVA1000PIK)
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
1
GB6170-86
Hexagon nut M6
2
0908030012
2
GB78-85
Hexagon socket set screws with flat point M6×30
1
0908170014
3
SDJA500.8.12
Lever plate
1
0860010007
4
NF.2-24
Firing pin
1
0901090007
5
DH12
Dust ring 12
1
0902040002
6
GB3452.1-86
O-type ring Ø12×2.65
1
0902050028
7
AM.2.1-03
Spring, firing pin
1
0903120005
8
AM.2.1C-02
Valve seat
1
0901110001

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
9
GB3452.1-86
O-type ring Ø15×2.65
1
0902050037
10
GB3452.1-86
O-type ring Ø14×2.65
1
0902050034
11
GB3452.1-86
O-type ring Ø13.2×2.65
1
0902050030
12
GB308-77
Steel ball Ø3.5
1
0907010005
13
GB308-77
Steel ball Ø7
1
0907010013
14
AM.2.1B-02
Valve guard
1
0901110012
15
GB3452.1-86
O-type ring Ø6.9×1.8
1
0902050008
16
AM.2.1B-03
Valve
1
0901070001
17
K01-03
Valve core
1
0901080004
18
SYBC.2-09
Spring 0.5×4.8×21
1
0903020006
19
K01-01
Valve screw
1
0901110023
20
GB5782-86
Hexagon bolt M8×50
1
0908420039
21
GB/T 41-2000
Hexagon nut M8
1
0908030013
22
GB308-77
Steel ball Ø6.5
1
0907010012
23
SP.8-18
Seat, safety valve
1
0901110020
24
SP.8-17
Spring, safety valve
1
0903130005
25
GB3452.1-86
O-type ring Ø7.5×2.65
1
0902050011
26
SPⅢ.8-16
Adjusting screw, safety valve
1
0901120010
27
SP.8-15
Sheath, safety valve
1
0901150012
28
SP.8-12
Seal ring
1
0902070004
29
SF-1
Composite bush 1220
1
0907040011
30
SF-1
Composite bush 2015
2
0907040023
31
SDJA500-08-03-00
Press holder unit
1
0860010014
32
GB/T 879.2-2000
Spring pin Ø4×25
1
0908500014
33
CN.2-14
Pin with hole
1
0906050001
34
CN.2-13
Pressure wheel
1
0909120016
35
SDJA500-08-10
Pin roll, press holder
1
0906170003
36
GB/T 879.2-2000
Spring pin Ø4×35
1
0908500017
37
SDJA500-08-09
Tension spring
1
0903110001
38
SDJA500-08-04-00
Handle unit
1
39
GB/T3452.1-86
O-type ring Ø22.4×2.65
1
0902050046
40
SP.8-11
Pump cylinder Ø16
1
0901020022
41
UHS
Seal ring Ø16
1
0902030004
42
DHS
Dust ring Ø16
1
0902040006
43
SP.8-09
Spring
1
0903130009
44
SDJA1000-08-01
Pump core Ø16
1
0901030020
45
SDJA500-08-02
Spring seat
1
0909060002
46
GB3452.1-86
O-type ring Ø65×3.55
1
0902050108
47
SDJA500-08-07-00
Socket set
1
48
SDJA500-08-13-00
Oil plug
1
49
SF-1
Composite bush 2012
2
0907040029
50
SDJ1030-04-01
Oil cylinder
1
1113600005
51
SDJ1030-04-02
Piston rod
1
0901010085

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
52
UHS
Seal ring Ø31.5
1
0902030021
53
SDJA500-08-08
Top cap
1
1109600001
54
GB3452.1-86
O-type ring Ø31.5×3.55
1
0902050059
55
DHS
Dust ring Ø31.5
1
0902040018
56
GB3452.1-86
O-type ring Ø47.5×3.55
1
0908240097
57
CN.2-17
Screw plug M10×1
1
0901120033
58
JB982-77
Combined gasket 10
1
0902010004
59
AM1000-1.6-01-01
Washer
1
60
6W804.1-17B
Damping valve
1
61
GB3452.1-86
O-type ring Ø10.6×0.8
1
0902050020
62
6W804.1-16A
Damping valve spring
1
63
6W804.1-15A
Damping valve core
1
64
GB893.1-86
Circlip for hole Ø9
1
0908310004
65
958130
Spring, firing pin Ø1.5×11×24
1
0903990073
66
AM1000-1.6-01-02
Spring seat
1
67
JB982-77
Combined washer 16
1
0902010007
68
DB.2-06
Seal screw M16×1.5
1
0901120017
69
SDJA500-08-03-03
Rubber jacket
1
0904100002
7.2 Final assembly / Loppukokoonpano / Slutlig montering

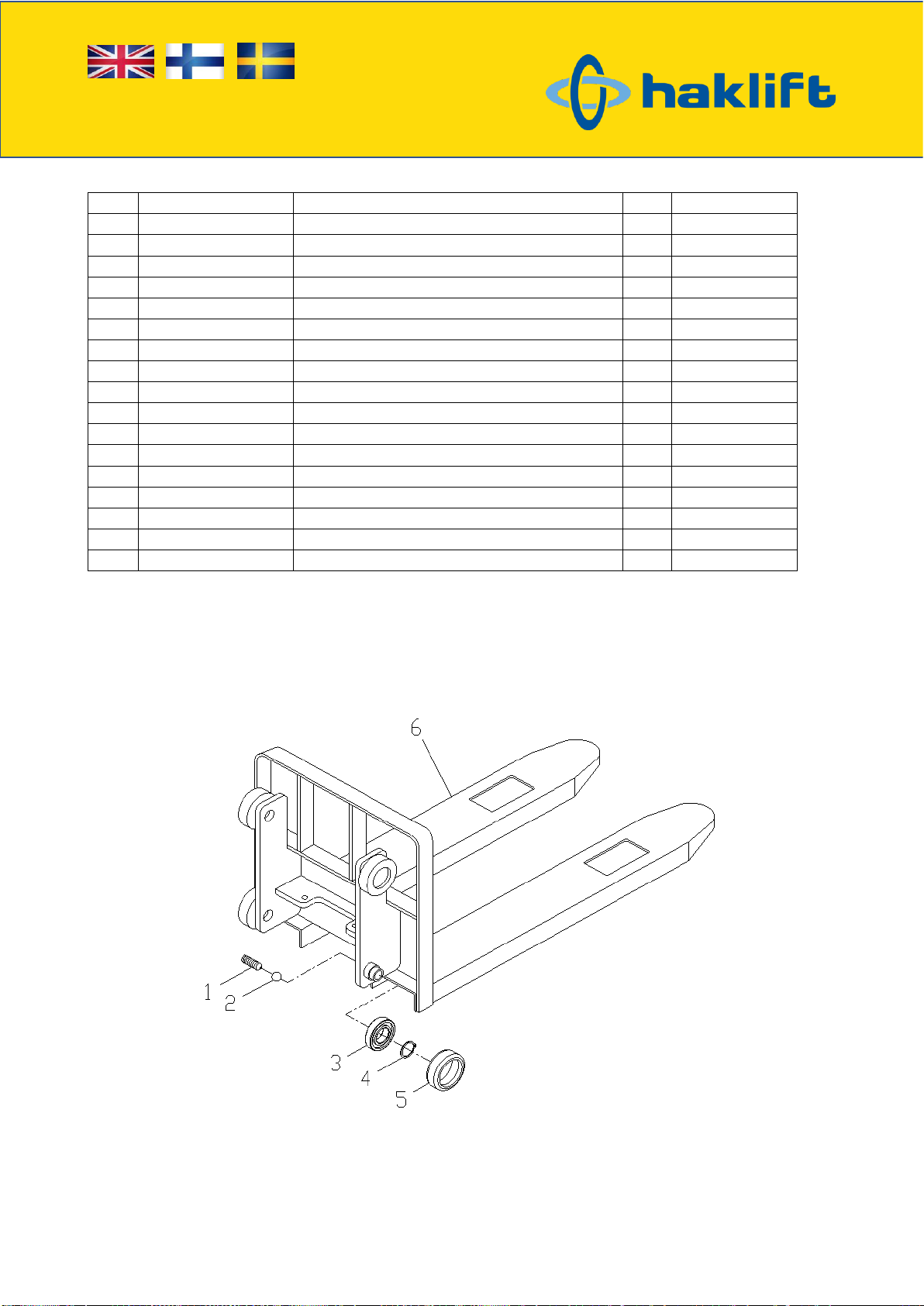

7.2.1 Fork frame assembly / Haarukkakehikon kokoonpano / Gaffelram montering (HAVA1000PI)

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
1
GB77-85
Inner hex lock nut M16×50
4
0908220014
2
GB308-77
Steel ball Ø19
4
0907010026
3
GB276-64
Bearing 6207
4
0907020045
4
GB894.1-86
Axial elastic snap ring Ø35
4
0908320029
5
SDJA500-17
Large roller
4
0909120008
6
SDJ1000.03.01-00
Fork frame
1
7.2.2 Final assembly / Loppukokoonpano / Slutlig montering (HAVA1000PI)

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
1
SDJA500.01-00
Universal wheel assembly
2
201903001
2
GB6170-86
Hex nut M10
8
0908030015
3
GB95-85
Washer Ø10
14
0908350016
4
GB5781-86
Hex bolt M10×25
10
0908420050
5
SDJ1000.03-00
Frame assembly
1
6
SDJA1000-12
Front wheel axle
2
0906170008
7
GB894.1-86
Axial elastic snap ring Ø16
4
0908320013
8
GB5781-86
Hex bolt M12×87
4
0908420090
9
NF.5-06
Tandem wheel Ø83×60
4
0905010023
10
GB278-64
Bearing 6204
8
0907020038
11
NF.5-03
Sleeve
4
0909220004
12
NF.5-04
Bracket plate
4
1122060002
13
SDJA500.07
Oil cylinder hoop
1
0909190002
14
GB889-86
Nonmetal nut M10
2
0908010009
15
SDJA1000.08-00
Pump assembly
1
201815001
16
SDJA1000-03
Chain pin
2
061405085
17
SDJA1000-02
Screw rod
2
0909190009
18
SDJA1000-04
Chain LH1623
1
061405017
19
GB91-76
Split pin Ø3×20
2
0908490012
20
GB5761-86
Hex bolt M10×35
2
0908420056
21
GB6170-86
Hex nut M16
6
0908030021
22
SDJ1000-01
Screen cover
1
120603001
23
SDJA500-13
Fixed clip
6
24
GB5781-86
Hex bolt M6×20
6
0908240024
25
SDJ1000.03-00
Fork frame assembly
1
26
GB894.1-86
Axial elastic snap ring Ø35
2
0908320029
27
SDJA1000-10
Chain wheel axle
1
0906170601
28
GB893.1-86
Elastic snap ring for hole Ø72
1
0908310029
29
GB278-64
Bearing 80207
1
0907020045
30
SDJA1000-11
Chain wheel
1
0909120031
31
SDJA1000-09
Chain wheel frame
1
31050502025
32
GB70-85
Inner hex bolt M12×25
1
0908240097
33
GB889-86
Non-metallic insert nut (thin) M12
4
0908010011

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International

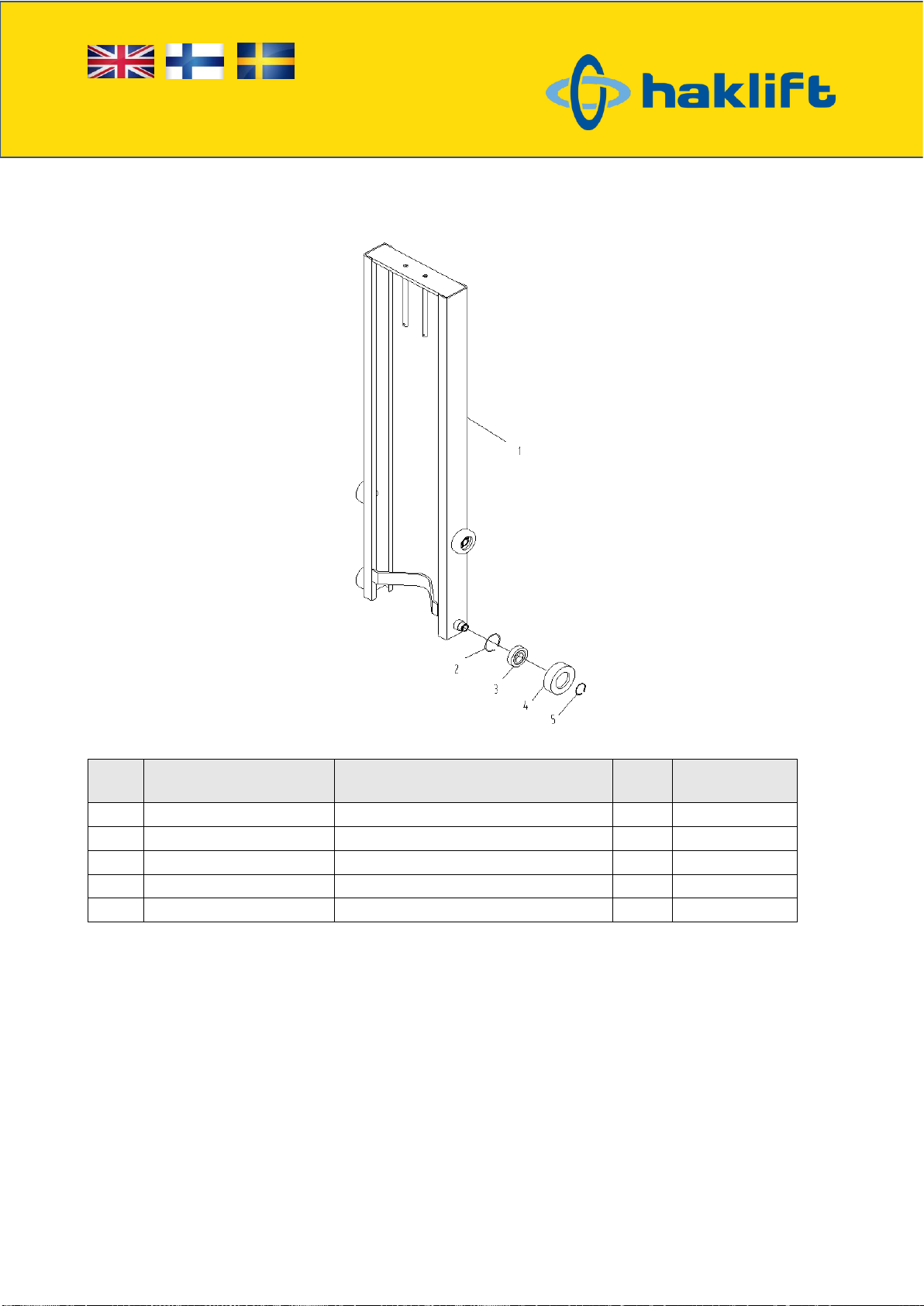

7.2.3 Inner mast assembly / Sisemmän maston kokoonpano / Inre mast montering (HAVA1000PIK)
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
1
SDJ1030-02-00
Mast
1
2
GB893.1-86
Snap ring for hole Ø72
4
0908310029
3
GB276-64
Deep channel ball bearing 60207
4
0907020045
4
SDJ1000-2.5.02.04.01
Roller
4
0909120010
5
GB893.1-86
Axial elastic snap ring Ø35
4
0908320029

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7.2.4 Final assembly / Loppukokoonpano / Slutlig montering (HAVA1000PIK)
No.
Nro.
Nr.
Drawing No.
Piirustusnro.
Ritning nr.
Description
Kuvaus
Beskrivning
Qty.
Määrä
St.
Stock code
Varastokoodi
Lagerkod
1
SDJA500.01.00
Universal wheel assembly
2
201903001
2
GB889-88
Hex nut M10
8
0908030015
3
GB95-85
Washer Ø10
12
0908350016
4
GB5781-86
Hex bolt M10×25
10
0908420050
5
SDJ1030.01.00
Outer mast assembly
1
6
NF.5-06
Tandem wheel Ø83×60
4
0905010023
7
NF.5-03
Sleeve
4
0909220004
