HAMPTON BAY HD10 User manual

THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this patio heater. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
USE AND CARE GUIDE
38,200 BTU BRONZE HEAT-FOCUSING PROPANE GAS PATIO HEATER
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item #882731
Model #HD10

2
Table of Contents
Table of Contents ...................................2
Safety Information ................................2-3
Warranty ..........................................4
Pre-Assembly ......................................5
Planning Assembly.................................5
Tools Required ....................................5
Hardware Included.................................5
Package Contents .................................6
Technical Data ....................................7
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16
Positioning Instructions ......................... 14-15
Connecting The Cylinder ...........................15
Use Instructions ..................................15
Lighting Instructions ..............................15
To Turn OFF .....................................15
Leak Testing.....................................16
Gas And Regulator ................................16
Maintenance ......................................17
Flame Characteristic ..............................17
Screw and Bolt Connections ........................17
Storage ........................................17
Service.........................................17
Care & Cleaning ...................................17
Safety Information
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
DANGER
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
WARNING: For Outdoor Use Only.
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause property damage,
injury or death. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing
this equipment.
WARNING: NEVER use indoors, in an enclosed area or
below ground level.
WARNING: This appliance is intended for use with LP
bottled gas only.
WARNING: Failure to read and follow these instructions
could result in serious injury or damage to property.
WARNING: DO NOT move this product when in use.
WARNING: Any modication of this appliance may be
dangerous.
WARNING: DO NOT use heater where the reector is
within 40 in. (1 m) of any ammable structure or surface.
WARNING: NEVER operate the heater with the top half
covered (burner head, reector, etc.).
WARNING: DO NOT leave this product unattended when
in use.
WARNING: Always keep the cylinder level and vertical
when positioning inside the base.

3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING: This appliance features a ame failure and tilt
device. In the event of a wind blowing the ame out or the
unit being tipped over, the gas supply will be cut off from
the cylinder. In this event, the knobs should be set to off and
you should wait 5 minutes before re-lighting.
WARNING: This product will become hot when in use –
take care when touching.
WARNING: Keep children and pets at a safe distance
from the unit when in use.
WARNING: ONLY use this appliance on a at LEVEL non
ammable surface or ground.
WARNING: When positioning, ensure the unit is a
minimum of 40 in. (1 m) from ammable items or structure
from all sides and above.
WARNING: Always leak test the unit before use, annually,
or after storage, when parts are replaced/serviced or if the
gas cylinder is removed or replaced.
WARNING: When storing the appliance or gas cylinder,
ensure they are away from ammable materials or liquids.
WARNING: Regularly check that the regulator seal and
hose is tted and that it is in good condition. Replace parts
if necessary.
WARNING: Always follow the care and maintenance
instructions – regularly maintain your appliance.
WARNING: Always replace worn parts – do not use the
appliance if a leak, wear, or damage is found.
WARNING: DO NOT store or cover the appliance until fully
cooled.
WARNING: Always shut off the valve at the gas cylinder
or the regulator before moving the appliance.
WARNING: In the event of high winds particular attention
must be taken. Store the unit away or ensure it is at a safe
distance from other items in the event that the unit is blown
over.
WARNING: Only use with gazebo’s specically designed
to be used with patio heaters.
WARNING: Ensure the heater is at a safe distance from
glass and PVC doors and windows to stop damage from any
heat build up.
WARNING: Read the warnings and use instructions
before operation.
WARNING: Do not leave the heat focusing reector of
the patio heater in the tilt position during rain or windy
conditions or when the patio heater is not in use or
unattended. Always position the heat focusing reector in
the full down position when not in use or during windy or
rainy conditions.
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF
SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING
BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. For more information go to:
www.P65Warnings.ca.gov.
WARNING: It is normal for the heater to smoke during the
rst few minutes of use.
WARNING: If you smell gas – turn off the appliance and
extinguish all ames. If the odor continues, immediately
contact your gas supplier.
WARNING: In the event of an uncontrollable re,
immediately disconnect the gas cylinder moving it away
from re and contact the re services. DO NOT PUT
YOURSELF AT RISK!
WARNING: Ensure aerosols are not used near this unit
when in use.
WARNING: Ensure all packaging and plastic bags are
disposed of safely.
Safety Information (continued)
NOTE: THESE INSTRUCTIONS ARE FOR YOUR SAFETY.
PLEASE READ THEM THOROUGHLY BEFORE USE AND RETAIN
THEM FOR FUTURE REFERENCE.

4
1 YEAR LIMITED WARRANTY
WHAT IS COVERED
We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for 1
year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer. This
warranty shall be effective from the date of purchase as shown in the purchaser’s receipt.
WHAT IS NOT COVERED
Defects or damage caused by the use of other genuine parts are not covered by this warranty. This warranty is valid for the original
customer only and excludes product damage due to shipment or failure which results from alteration, product abuse or product misuse
whether performed by a contractor, service company, or consumer. We will not be responsible for labor charges and/or damage incurred in
installation, repair or replacement, nor for incidental or consequential damage.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.
Warranty

5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Assembly
PLANNING ASSEMBLY
Before You Start, check the contents of the box and make sure you have all the parts and ttings listed. If not, contact Hampton Bay
Customer Service at 1-855-HD-HAMPTON. When you are ready to start, make sure that you have the right tools at hand, plenty of space and
a clean dry area for assembly.
TOOLS REQUIRED
Adjustable
wrench x 2 1/4 in. Spanner
HARDWARE INCLUDED
NOTE: Hardware not shown to actual
size.
Part Description Quantity
AA 1/4 in. dome head bolt 27
BB 1/4 in. nut 33
CC 1/4 in. hex bolt 19
DD 1/4 in. washer 7
EE 5/16 in. washer 3
FF 5/16 in. bolt 3
GG 1/4 in. spring washer 7
NOTE: It is recommended that the carton is cut open and
spread out on the oor and used as a protective surface
during assembly.
WARNING: While every precaution has been made in the
manufacture of this product, care must be taken during
assembly in case sharp edges are present.
NOTE: Refer to the assembly diagrams as necessary.
NOTE: Please lay out all nuts and bolts and check lengths
before assembly.
AA BB CC DD EE FF GG

6
Pre-Assembly (continued)
PACKAGE CONTENTS
Part
A
B
C
D
E
F
Description
Base
Cylinder Chamber Supports (A, B, C)
Lower Support Pole
Cylinder Chamber Wall
Cylinder Chamber Door
Cylinder Chamber Top
A
B
D
C
G
H
E
I
K
L
Quantity
1
3
1
1
1
1
Part
G
H
I
J
K
L
Description
Upper Support Pole
Lantern And Hose
Regulator
Reector Handle
Top Panel
Side Panels
Quantity
1
1
1
1
1
6
F
J

7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Assembly (continued)
TECHNICAL DATA
Overall Height
Overall Weight
Overall Width
Heater Heat Input (·Qn)
Heater Gas Consumption
Heater Injector Size
Setting Pressure
Regulator Outlet Pressure
Standard
Gas Supply Pressure
95 in. approx.
82.6 lbs
34 in.
38,200 Btu/h
1.77 Lbs per hour
0.0744 in.
11.0 in. per W.C
11.0 in. per W.C
ANSI Z83.26-2014 Gas Fired Outdoor infrared Patio heaters
Max. 250 PSI, MIN.5 PSI

8
Assembly
1 Assembling the legs
□Attach the cylinder chamber supports (B) to the
corresponding section on the base (A) with six of the
bolts (CC).
□Finger tighten only at this stage.
2 Attaching the lower support pole
□Attach the lower support pole (C) to the cylinder chamber
supports (B) using six bolts (CC) and nuts (BB).
□Finger tighten only at this stage.
A
B
CC
CC
C
B
BB

9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)
3 Attaching the cylinder chamber wall
□Using six of the bolts (AA) and nuts (BB), attach the
cylinder chamber wall (D) to the cylinder chamber
supports (B).
□Finger tighten only at this stage.
4 Attaching the cylinder chamber door
□Hang the cylinder chamber door (E) on the hinges.
□Ensure that the alignment is correct and tighten all bolts
securely.
D
B
AA
BB
E

10
Assembly (continued)

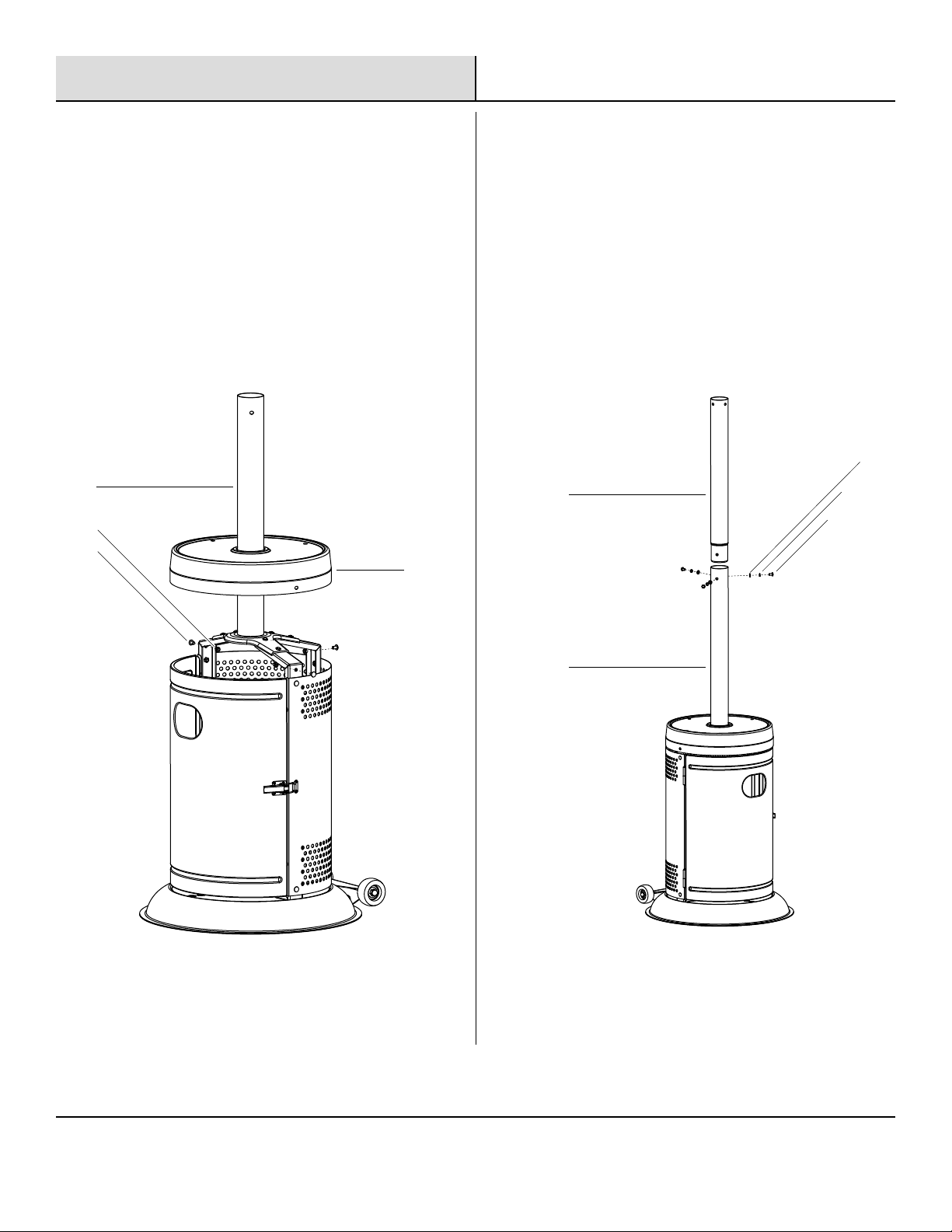

5 Attaching the cylinder chamber top
□Slide the cylinder chamber top (F) down over the lower
support pole (C) as shown and secure to the cylinder
chamber supports (B), using three bolts (AA) and three
nuts (BB).
6 Attaching the upper support pole
□Attach the upper support pole (G) to the lower support
pole (C) using three bolts (CC), three washers (DD) and
three spring washers (GG).
F
C
AA
BB CC
GG
DD
C
G

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)

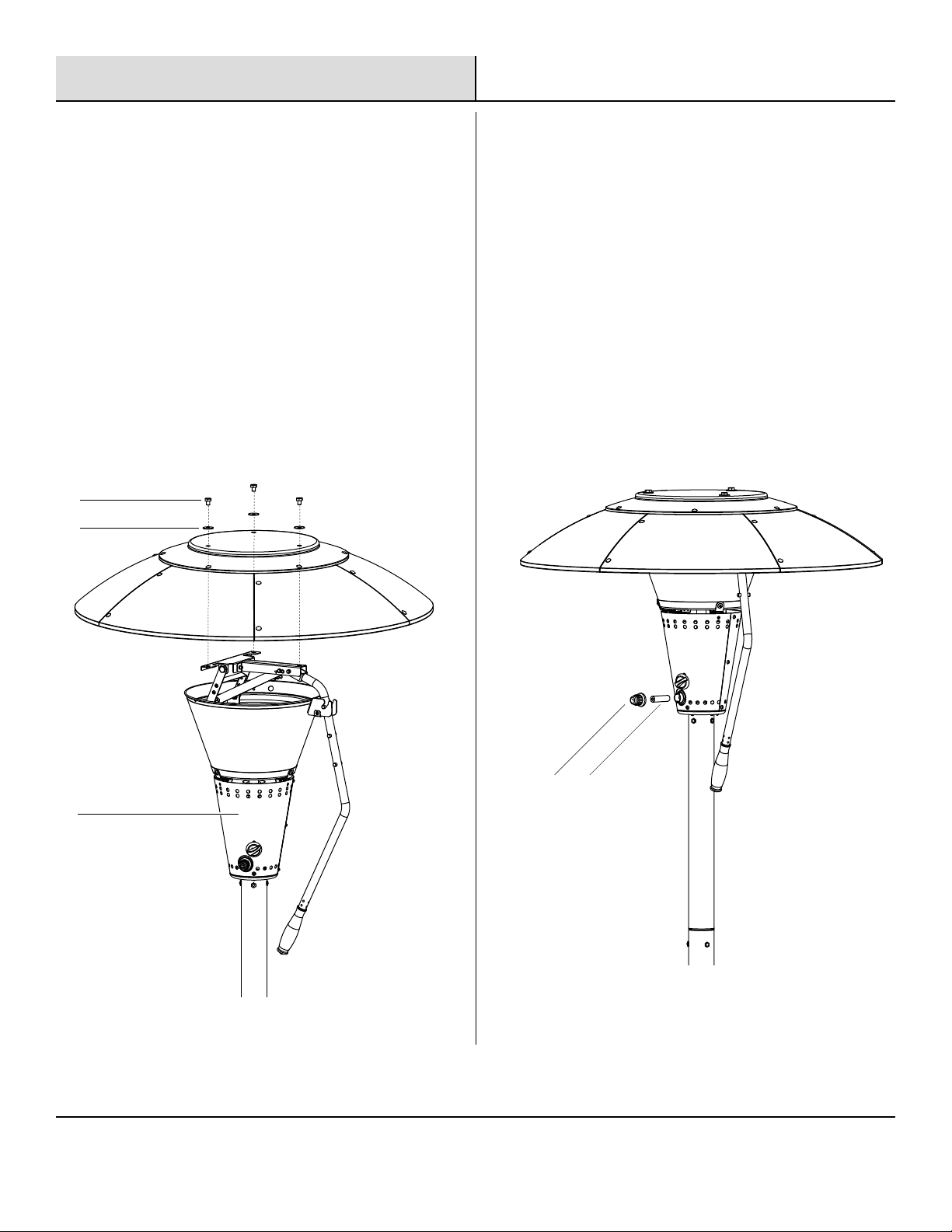

8 Attaching the regulator and propane
bottle
□Connect the lantern and hose (H) to the regulator (I) and
secure tightly with the adjustable wrenches.
□Screw the regulator (I) onto the gas cylinder (turn
clockwise to tighten it securely).
□Position the gas cylinder inside the cylinder chamber as
shown securing with the chain.
□Perform a Leak Test (see page 16).
NOTE: THE CYLINDER MUST BE POSITIONED AS SHOWN IN
THE PATIO HEATER CYLINDER CHAMBER TO PROVIDE VAPOR
WITHDRAWAL.
7 Attaching the lantern
□Feed the hose down through the support pole (G) and
secure the lantern (H) to the support pole (G) using four
bolts (CC), washers (DD) and spring washers (GG).
H
G
CC
GG
DD
H
I

12
Assembly (continued)
10 Assembling the reector
□Loosely screw the side panels (L) together using twelve
bolts (AA) and nuts (BB), overlapping as shown below.
□Attach the top panel (K) to the top of the assembled side
panels (L) using six bolts (AA) and nuts (BB) and then fully
tighten all bolts.
WARNING: While every precaution has been made in the
manufacture of this product, care must be taken during
assembly in case sharp edges are present.
9 Fitting the reector handle
□Using the pre-tted R-clip (1) and pin (2), secure the
reector handle (J) to the bracket as shown.
21
J
BB
AA
L
AA
BB
K
L

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
11 Attaching the reector to the
lantern
□Fit the reector to the lantern (H) using three bolts (FF)
and washers (EE).
Assembly (continued)
12 Fitting the battery
□Unscrew sparker button (1) and insert battery (2), positive
side facing outwards.
FF
EE
H
1 2

14
□The heater, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
□Certain materials or items, when stored under the heater, will be subjected to radiant heat and could be seriously damaged.
□Inspect the visible portion of the hose before each use of the appliance. The hose inside cylinder pole housing should be checked
annually and a leak test should be performed when re-assembled.
□Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing
ignition.
□Young children should be carefully supervised when they are in the area of the heater.
□Clothing or other ammable materials should not be hung from the heater, or placed on or near the heater.
□Any guard or other protective device removed for servicing the heater must be replaced prior to operating the heater.
□Installation and repair should be done by a qualied service person. The heater should be inspected before use and at least
annually by a qualied service person.
□More frequent cleaning may be required as necessary. It is imperative that control compartment, burners and circulating air
passageways of the heater be kept clean.
□Keep the appliance area clear and free from combustible materials, gasoline and other ammable vapors and liquids.
□Do not obstruct the ow of combustion and ventilation air.
□Keep the ventilation openings of the cylinder enclosure free and clear from debris.
□The LP-gas supply cylinder to be used must be: a. Constructed and marked in accordance with the specications for LP-gas
cylinders of the U.S. Department of Transportation (DOT); or the Standard for cylinders, Spheres and Tubes for Transportation of
Dangerous Goods and Commission, CAN/CSA-B339, as applicable; b. Provided with a listed overlling prevention device; and c.
Provided with a cylinder connection device compatible with the connection for the appliance. d. 20LB (9kg) cylinder. LPG capacity
4.7 gallons (17.8 litres) Cylinder Dimensions: Height 17.75 in. (451 mm) and width 12.25 in. (311 mm) e. The LP - gas cylinder used
must include a collar to protect the cylinder valve.
□A cylinder must be stored outdoors in a well-ventilated area out of reach of children. A disconnected cylinder must have dust caps
tightly installed and must not be stored in a building, garage or any enclosed area. The pressure regulator and hose supplied must
be used and any replacement pressure regulator or hose must be those as specied by the manufacturer.
□Do not store spare LP-gas cylinder under or near this appliance.
□Never ll the cylinder beyond 80% full; and for appliances designed to use a CGA No. 791 Connection: Place the dust cap on the
cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other types of caps or plugs may result in leakage of propane.
POSITIONING INSTRUCTIONS
□This appliance is for OUTDOOR USE ONLY and should be placed in a well ventilated area.
□A well ventilated area must have a minimum of 30% of its surface area open. (Surface area is dened as the total surface of the
walls surface.)
□The sides of the appliance should NEVER be closer than 40 in. (1 m) from any combustible surface.
□Keep this appliance away from any ammable materials!
40 in. (1M) 40 in. (1M)
Operation

15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
□Important - Make sure the gas bottle is placed level within the base.
□Should you need to change the gas bottle, conrm the gas supply is turned off at the regulator or bottle / cylinder valve, and there
are no sources of ignition (cigarettes, open ame, sparks, etc.) near before proceeding.
□Inspect the gas hose to ensure it is free from any twisting or tension. The hose should hang freely with no bends, folds, or kinks
that could obstruct free ow of gas. Always inspect the hose for cuts, cracks, or excessive wear before use. If the hose is damaged,
it must be replaced with hose suitable for use with LP Gas.
CONNECTING TO THE CYLINDER
□Conrm all control knobs are in the off position.
□Connect the regulator to the gas bottle according to your regulator and bottle dealers instructions.
USE INSTRUCTIONS
□Before proceeding make sure you understand the warnings section of this manual.
□This patio heater shall be used only in a well ventilated space and shall not be used in a building, garage or any other enclosed
area.
□This patio heater may be installed in shelter no more inclusive than; with walls on all sides but with no overhead cover, within a
partial enclosure which includes an overhead cover and no more than two side walls (these side walls may be parallel, as in a
breezeway or at right angles to each other), within a partial enclosure which includes an overhead cover and three side walls, as
long as 30% or more of the horizontal periphery of the enclosure is permanently open.
LIGHTING INSTRUCTIONS
□Fit battery to sparker.
□Turn on the gas supply at the cylinder.
□Push the dial in and turn to position .
□While the dial is held pressed in at position , press the spark button to ignite the heater.
□Hold the dial in for at least 10 seconds to ensure the heater stays lit.
□If the heater does not light after holding in the dial in for 20 seconds wait 5 minutes and try again. Do not continuously hold the dial
in as you may cause a build up of gas.
□In windy conditions, shield from wind to ensure easy lighting and hold the dial in for at least 20 seconds to ensure the heater stays
lit.
□Turn the control dial to high or low ame position as required. Correct operation of the heater is indicated by a predominantly blue,
quiet ame.
□If the sparker fails, you can light your patio heater using a match. To light your patio heater with a match: 1. Place the lit match
through the gap below the burner mesh and wind guard. 2. Turn the control dial to the position. After the burner ignites, keep
the control dial held in for 10 seconds to ensure the burner stays lit and then release. 3. If the burner does not light after holding
the control dial in for 20 seconds with the lit match in position, remove the match, turn the control dial to the off position, wait 5
minutes and then repeat.
TO TURN OFF
□Push the dial in and turn to position .
□Turn the gas off and disconnect at the cylinder when not in use.
□Remove battery from ignition unit during prolonged periods of non-use.
Operation (continued)

16
LEAK TESTING
Your patio heater has been checked at all factory connections for leakage. To check the connection at the gas hose/regulator/cylinder:
□Ensure you are in a well ventilated area.
□Conrm all control knobs are in the off position.
□Open the gas control valve on the bottle.
□Check for leaks by brushing a solution of 50% water and 50% dish soap over the gas system joints, including all valve connections,
hose connections and regulator connections.
□NEVER USE AN OPEN FLAME to test for leaks at any time.
□If bubbles form over any of the joints, there is a leak.
□Turn off the gas supply and retighten all joints.
□Repeat test. If bubbles form again, do not use the patio heater. Please contact the helpline stated in this manual.
□Leak test annually and whenever the gas bottle is removed or replaced.
GAS AND REGULATOR
□The gas hose must be connected in accordance with these instructions. When installed correctly all parts of the hose should be
contained within the patio heater pole and gas cylinder chamber. No part of the hose should be outside of the patio heater body
where it could be a trip hazard or could be accidently damaged.
□This appliance is for propane use only.
□See instructions supplied with the regulator for correct use and attachment.
□Gas bottles should never be stored on their side.
□Never store gas bottles indoors.
□This appliance is supplied with a propane regulator which must only be used for propane gas.
□NEVER use an adjustable regulator with this appliance.
□Please consult your gas dealer for the most suitable gas bottles for your regulator.
Operation (continued)
Hose/Regulator
Regulator/Cylinder
valve

17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
FLAME CHARACTERISTIC
□The ame pattern at the burner mesh should be visually checked whenever the heater is operated.
□Normally, the burner ame is blue with yellow ame at the top. The burner mesh will become red hot.
□If ames extend beyond the surface of the burner mesh, or there is the phenomena of ame lift or light back, or a black spot is
accumulating on the burner mesh or reector, the heater should be turned off immediately.
□The heater should not be operated again until the unit is serviced or repaired.
SCREW AND BOLT CONNECTIONS
□All screws and bolts, etc, should be checked and tightened on a regular basis.
STORAGE
□Do not leave the patio heater exposed to outside weather conditions or stored in damp moist conditions.
□To save space during long-term storage, the reector can be removed. Take care to ensure the shape of the reector is not
damaged or deformed, as this will affect performance.
□When using the heater after extended periods of storage, re-attach the reector.
□The heater should never be operated without the reector in place.
□If the heater is to be stored indoors, the gas bottle must be disconnected and left outside in a dry, well-ventilated area, away from
any sources of heat or ignition.
□Do not let children tamper with the bottle.
SERVICE
□We recommend that servicing of this appliance should be performed either after every 100 hours of use or annually, which ever is
achieved soonest.
□If your heater needs maintenance or is not working properly, please contact your local authorized agent for service.
□It is a necessity to contact an authorized source for replacement of parts and/or servicing.
□This work must be carried out by a qualied gas technician.
□Spare parts may be obtained by contacting Hampton Bay Customer Service at 1-855-HD-HAMPTON.
Manufactured by Universal Innovations. Kilcoole Industrial Estate, Kilcoole, Co. Wicklow, Ireland.
Care & Cleaning
□Regularly clean your patio heater between uses and especially after extended periods of storage.
□Ensure the heater control is turned fully to the off position, the gas supply is shut off at the regulator or bottle / cylinder valve, and
the heater and its components are sufciently cool before cleaning.
□Never douse the heater with water when its surfaces are hot.
5010527
Yellow Tip
Primary blue ame
Maintenance

Page intentionally left blank.

Page intentionally left blank.

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
