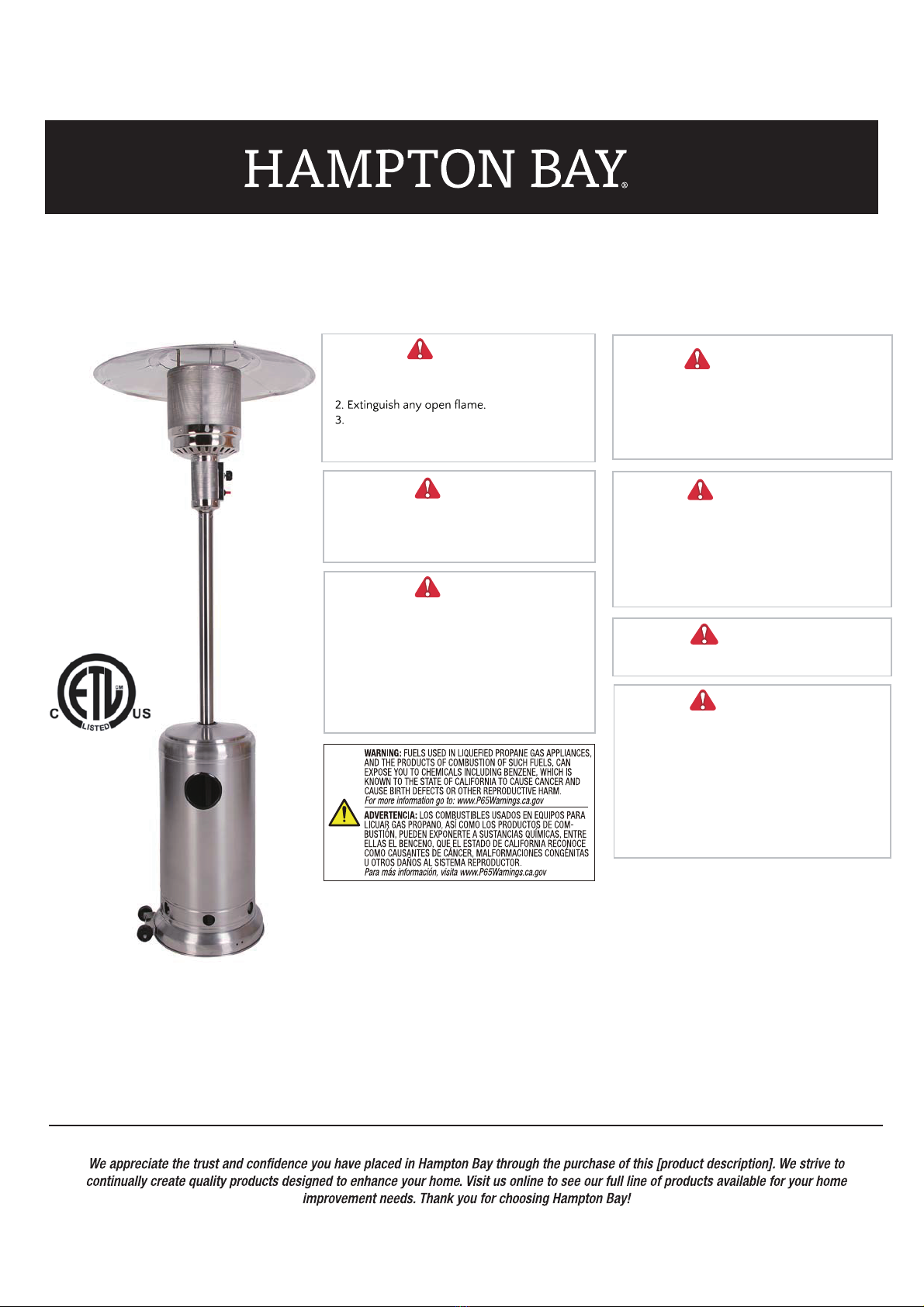

HAMPTON BAY PH01-SS User manual

DANGER
FOR YOUR SAFETY: If you smell gas:
1. Shut off gas to the appliance.
If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
DANGER
Failure to comply with the precautions and
instructions provided with this heater can
result in death, serious bodily injury and
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons who can
understand and follow the instructions should
use or service this heater.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP cylinder not connected for
use shall not be stored in the vicinity of this or
any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
FOR OUTDOOR USE ONLY!
ATTENTION
If your patio heater model is equipped with a base
weight/sand box, it is strongly recommended
that
you fill it with sand or fine gravel and attach it
securely to the bottom of the heater. In windy
conditions, store the heater in a protected area or
otherwise secure it. Unsecured heaters can be
blown over in moderate to high wind. Damage
due to weather or acts of God is not covered
under warranty.
Item # 1005793859
Model #PH01-SS
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
USE AND CARE GUIDE
THD PRODUCT NAME: STAINLESS STEEL GAS PATIO HEATER

TABLE OF CONTENTS
Before You Begin Page 2
Safety Information Page 3
Package Contents Page 4
Hardware Contents Page 4
Assembly Page 5-8
Operating Instructions Page 9-12
Care and Maintenance Page 13
Troubleshooting Page 14
Page 15
BEFORE YOU BEGIN
SAFETY INFORM
2HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Warranty Information

DANGER
EXPLOSION—FIRE HAZARD
Keep solid combustibles, such as building
materials, paper, or cardboard a safe
distance away from the heater as
recommended by the instructions.
openings into the combustion chamber.
Never use the heater in spaces which
do or may contain volatile or airborne
combustibles, or products such as
gasoline, solvents, paint thinner, dust
particles, or unknown chemicals.
During operation, this appliance can be a
source of ignition. Keep heater area clear
and free from combustible materials,
gasoline, paint thinner, cleaning solvents
Do not use heater in areas with high dust
content. Minimum heater clearances from
combustible materials:
.
Never store propane near high heat, open
ignition sources or where temperatures
exceed 120 F (49 C).
Propane vapors are heavier than air and
can accumulate in low places. If you smell
gas, leave the area immediately.
Never insta l or remove a propane
cylinder
lights, or other ignition sources
or while heater is hot to the touch.
This heater is red hot during use and can
from top and 2 feet (24 inches) from sides.
and vapors well away from heater.
Store the propane cylinder outdoors in a
well ventilated space out of the reach of
children. Never store the propane cylinder
in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect
the propane cylinder for outdoor storage.
WARNING
BURN HAZARD
Never leave heater unattended when hot
or in use.
Keep out of reach of children.
CAUTION
SERVICE SAFETY
sure propane cylinder valve outlet is clean.
During set up, check all connections and
Use as a heating appliance only. Never
alter in any way to use with any device.
WARNING
Certain materials or items, when stored
under the heater, will be subject to radiant
heat and could be seriously damaged.
DANGER
CARBON MONOXIDE HAZARD
This heater is a combustion appliance.
All combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to
produce extremely minute, non-hazardous
amounts of CO if used and maintained
in accordance with all warnings and
or out of the heater.
Carbon Monoxide (CO) poisoning produces
dizziness, fatigue, and possibly death.
You can’t see and you can’t smell it. It is
an invisible killer. If these symptoms are
present during operation of this product,
get fresh air immediately!
For outdoor use only.
Never use inside house or other unventilated
or enclosed areas.
This heater consumes air (oxygen). Do not
use in unventilated or enclosed areas to
avoid endangering your life.
WARNING:
FOR OUTDOOR USE ONLY
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor. Using it in an enclosed
space can kill you. Never use this appliance
in an enclosed space such as a camper, tent
or home.
DANGER
indicates an imminently
hazardous situation which, if not avoided,
will death or serious injury.
CAUTION
CAUTION indicates an imminently
hazardous situation which, if not avoided,
may result in minor or moderate personal
injury, or property damage.
WARNING
This product is fueled by propane gas.
Propane gas is invisible, odorless, and
to
help detect leaks and can be described as
having a “rotten egg” smell. The odorant can
fade over time so leaking gas is not always
detectable by smell alone.
Propane gas is heavier than air and leaking
propane will sink to the lowest level
possible. It can ignite by ignition sources
including matches, lighters, sparks or
from the
original leak. Use only propane gas set up
for vapor withdraw l.
Store to use propane gas in compliance with
local ordinances and codes or with ANSI/
NFPA 58. Turn off propane when not in use.
Alert children and adults to the hazards
of high surface temperatures. Stay away
from these surfaces to avoid burning skin
or igniting clothing.
Carefully supervise young children when in
the vicinity of the heater.
Do not hang clothing or any other
or
place near the heater.
Replace any guard or protective device
removed for servicing the appliance prior to
placing back in service.
Installation and repair should be done by a
be inspected before use and annually be
imperative that the control compartment,
burners, and circulating air passageway of
the appliance be kept clean.
WARNING
WARNING indicates an imminently
hazardous situation which, if not avoided,
result in death or serious injury.
3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
SAFETY INFORM

HARDWARE CONTENTS
CONTENTS
4HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
HH
GG
FF
DD
CC
BB
KK
JJ
II
MM
LL
EE
Item Desc rip ytQno
1A
1B
1C
1D
E
1
F
3
1G
1H
REFLECTOR
BURNER ASSEMBLY
TANK HOUSING
POST SUPPORT
SUPPORT LEGS
REGULATOR
BASE
WHEEL
Item Descrip ytQno
AA M6x10 Screw
1tuN6MBB
CC M8 Bolt
6tloB22x6MDD
1hcnerWEE
FF Re 3dutSrotce
3tuNgniWGG
6rehsaWHH
3mrAgnirohcnAII
3tuNgnirohcnAJJ
9tuNpaCKK
9wercsllamSLL
MM
6
2
5
2
REMARK
6pcs pack separately
Pack separately
Pack separately
2pcs assembled into
wheel
assembled into wheeltuN8M
Pack separately

PREPARATION
Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list
and hardware contents as listed on page 4 of this manual. If any part is missing or damaged, do not attempt to assemble
this product. Contact Customer Service for replacement parts.
ESTIMATED ASSEMBLY TIME: 60 minutes
ASSEMBLY INSTRUCTIONS
5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
CC
F
1Attach Wheel Hinto the base
Fusing 2 pcs
M8X16 bolts CC.Using wrench EE to fasten them.
CC
E
F
2Attach the
using 3 pcs M8x16 bolts CC.
NOTE:
Keep the support leg with belt in the middle.
3 pcs support legs Eto the top of the base F

ASSEMBLY INSTRUCTIONS
DD
BB
D
E

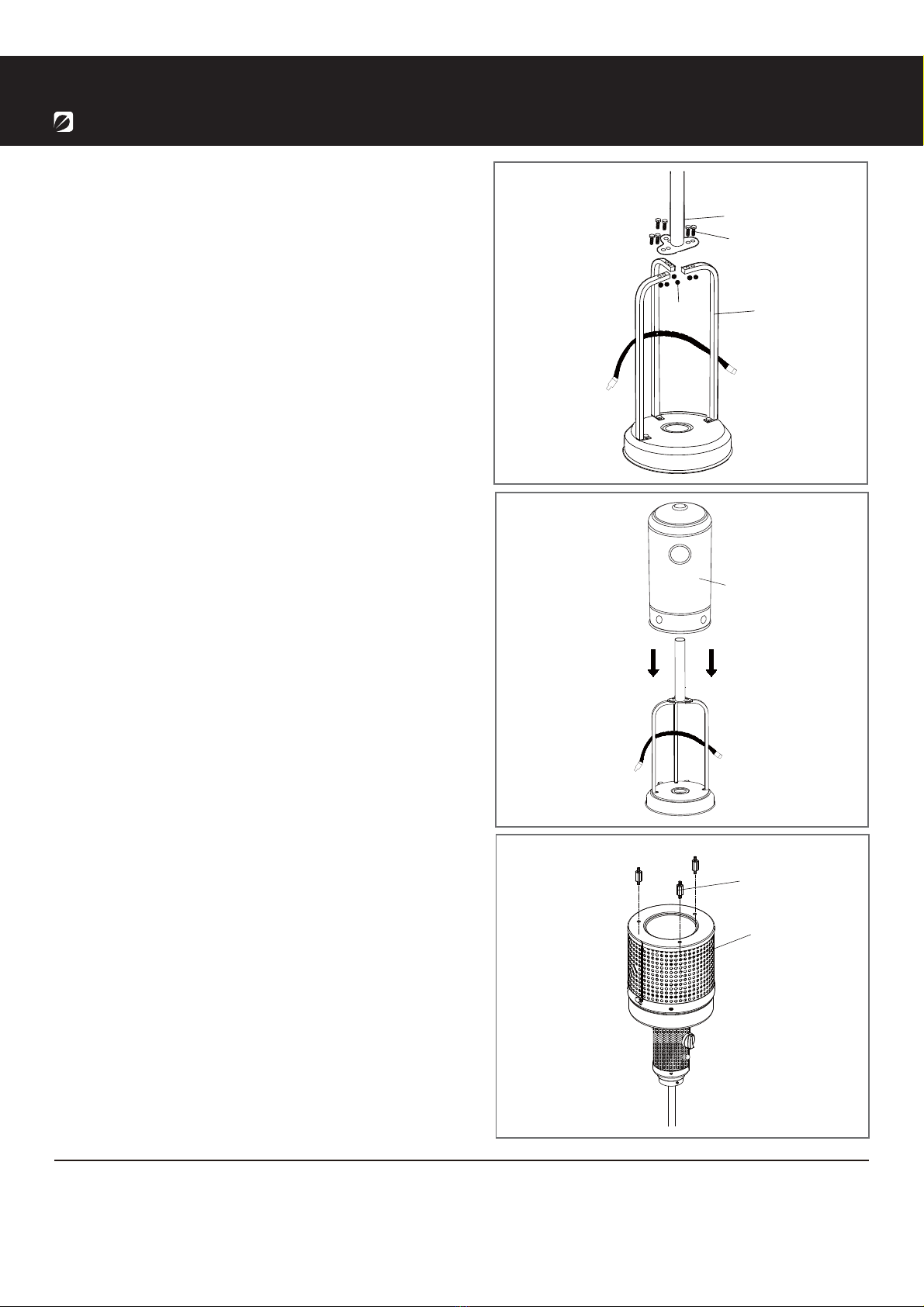

3Attach the E using 6 pcs M6x22 bolts DD.
and 6 pcs M6 nuts BB.
post support D to the top of the support legs
C4Place the tank housing C on top of the assembly.
FF
B
5Screw one end of the reflector sutds FF into the top holes
of top holes of the burner assembly B.
6HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

ASSEMBLY INSTRUCTIONS
7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

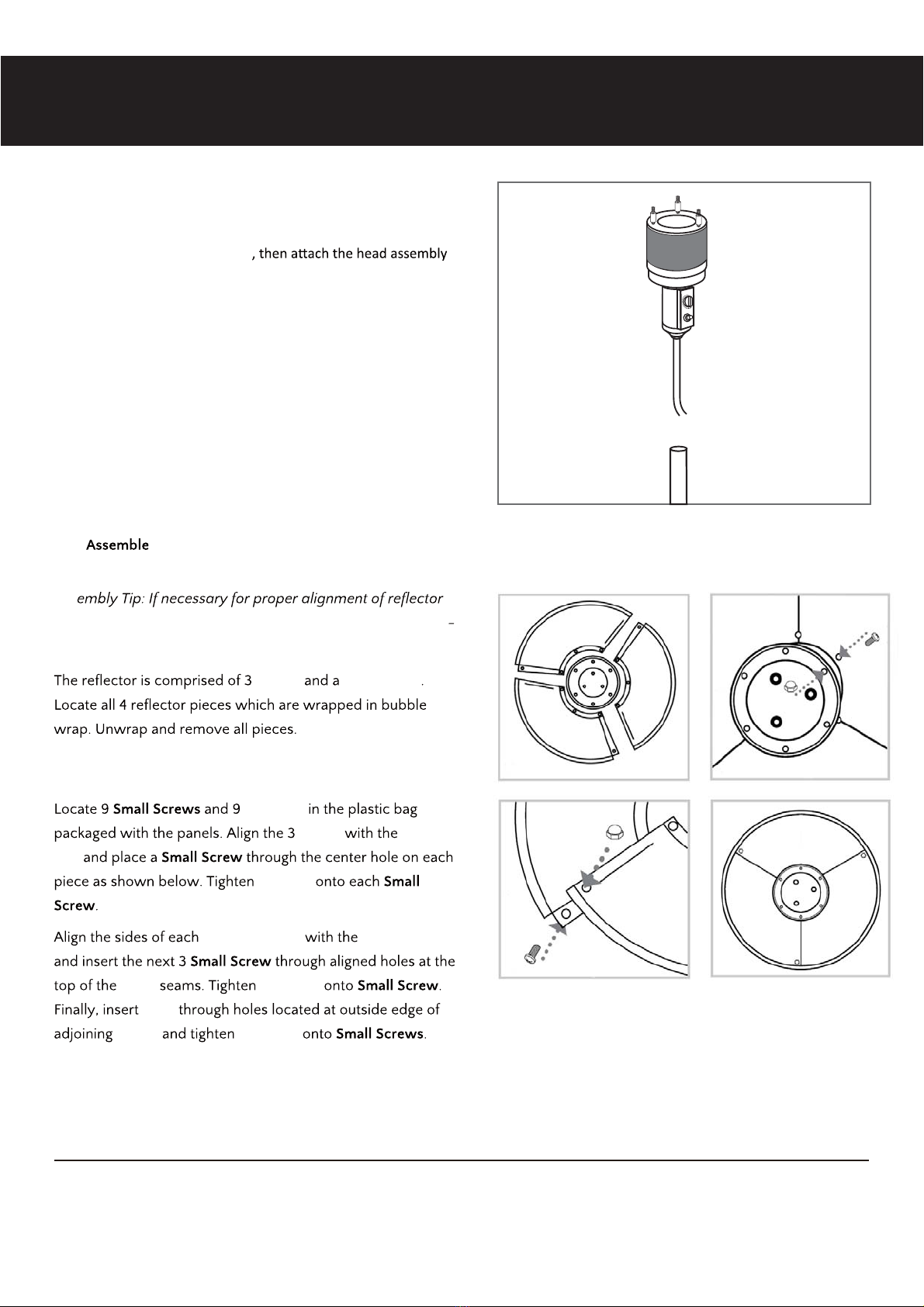

7reflector.
Ass
sections, loosen each screw prior to further assembly and re
tighten after sections are aligned.
Panels Center Cap
NOTE: REMOVE
PROTECTIVE PLASTIC FILM ON REFLECTOR PIECES PRIOR TO
ASSEMBLY!
Cap Nuts
Panels Center
Cap
Cap Nut
Reflector Panel Center Cap
Panel Cap Nuts
Bolts
Panels Cap Nuts
ASSEMBLY INSTRUCTIONS
IGNITER
OFF
HI
LO
PILOT
6Unscrew the four bolts that are pre-assembled on the
burner assembly B. Insert the regulator from the top
end of the post support D B,
to the post support D, using the four bolts re-moved at the
beginning of this step.

ASSEMBLY INSTRUCTIONS
8HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

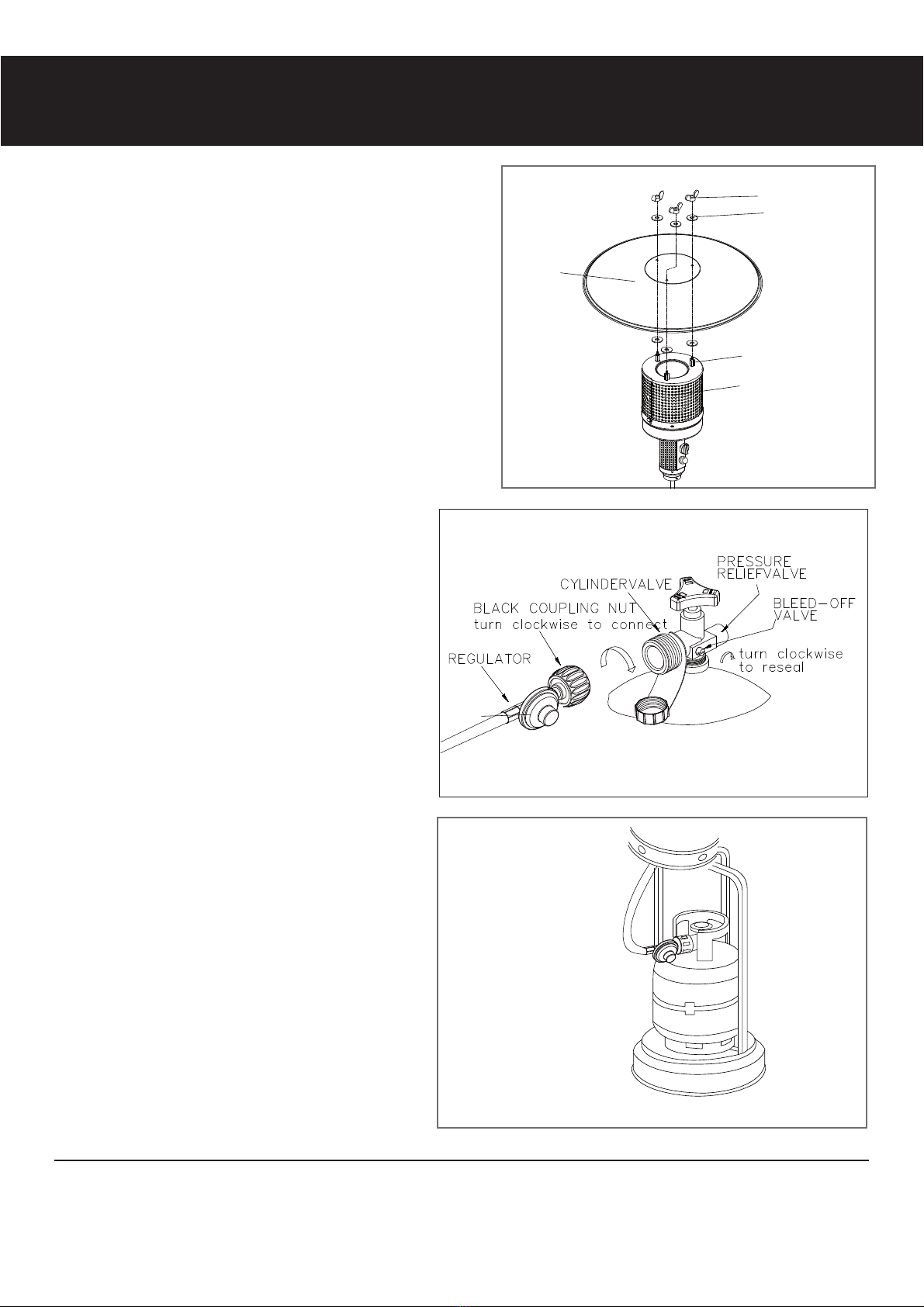

9Turn the cylinder valve on the tank cloctwise to
close the propane tank.
Attach the regulator Gto the cylinder valve by
turning the regulator coupling nut clockwise.
Make sure it is fastened securely and tighten
connections by hand only.
Place the 20 lb gas cylinder in the center
of the base, fasten it with the belt.
ASSEMBLY INSTRUCTIONS
G
10
GG
HH
FF
B
A
8Attach the reflector Ato the top of the reflector FF
stud on the burner assembly Busing 6 pcs washers HH
and 3 pcs wing unts GG.

A minimum supply pressure of .5 psi is required for the purpose of input
adjustment of propane gas. Storage of an appliance indoors is permissible
only if the cylinder is disconnected and removed from the appliance. A cylinder
must be stored outdoors in a well-ventilated area out of the reach of children.
A disconnected cylinder must have dust caps tightly installed and must not
be stored in a building, garage, or any other enclosed area. The minimum
permissible gas supply pressure of 11 W.C. is required for purpose of hose
adjustment. The minimum hourly of 17,500 BTU is required input rating for
a heater for automatic operation rating less than full input rating.
The pressure regulator and hose assembly supplied with the appliance must
be used.
The installation must conform with local codes, or in the absence of local codes,
with national fuel gas code, ANSI Z223.1/NFPA54, natural gas and propane
Installation Code, CSA B149.1, or propane storage and handling code, B149.2
A dented rusted or damaged propane cylinder may be hazardous and should
be checked by your local cylinder supplier. Never use a propane cylinder
with a damaged valve connection. The propane cylinder must be constructed
Department of Transportation (DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and commission, CAN/CSA-B339.
• The cylinder must have a connection device compatible with the connection
for the appliance.
• The cylinder used must include a collar to protect the cylinder valve.
• Never connect an unregulated propane cylinder to the heater.
• Do not store a spare LP-gas
cylinder under or near this
appliance.
80 percent full.
• Place the dust cap on the
cylinder valve outlet whenever
the cylinder is not in use. Only
install the type of dust cap
on the cylinder valve that is
provided with the cylinder
valve. Other types of caps or
plugs may result in leakage of
propane.
OPERATION
9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

LEAK TEST
1. Make 2-3 oz. of leak test solution
detergent and three parts water).
2. Apply several drops of solution
where hose attaches to regulator.
3. Apply several drops of solution
where regulator connects to cylinder.
4. Make sure all patio heater valves are OFF.
5. Turn cylinder valve ON.
IF BUBBLES APPEAR AT ANY CONNECTION, THERE IS A LEAK.
1. Turn cylinder valve OFF.
2. If leak is detected at hose/regulator connection, tighten connection and
perform another leak test. If bubbles continue to appear, call our customer
service desk at
3. If leak is detected at regulator/cylinder valve connection, disconnect,
reconnect, and perform another leak test. If you continue to see bubbles
after several attempts, cylinder valve is defective. Call our customer service
desk at
IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE.
Note: Whenever gas connections are loosened or removed, you must
perform a complete leak test.
Caution: Do not attempt to
operate this appliance until you
have read and understand all
Safety Information in this manual
and all assembly is complete and
leak tests have been performed.
WARNING
Perform all leak tests outdoors.
NEVER leak test when smoking
Do not use heater until all connections
have been leak tested and show no signs
of leakage.
BEFORE TURNING GAS SUPPLY ON:
1. Your heater was designed and
approved for OUTDOOR use
only. Do NOT use it inside a
building, garage, or any other
enclosed area.
2. Make sure surrounding areas are
free of combustible materials,
3. Ensure that there is no
obstruction to air ventilation. Be
sure all gas connections are tight
and there are no leaks.
4. Be sure the cylinder cover is
clear of debris. Be sure any
component removed during
assembly or servicing is
replaced and fastened prior
to starting.
BEFORE LIGHTING:
1. Heater should be thoroughly
inspected before each use, and
at least annually. If re-lighting a
hot heater, always wait at least
5 minutes.
2. Inspect the hose assembly for
evidence of excessive abrasion,
cuts, or wear. Suspected areas
should be leak tested. If the
hose leaks, it must be replaced
prior to operation. Only use the
replacement hose assembly
WARNING:
FOR OUTDOOR USE ONLY
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor. Using it in an enclosed
space can kill you. Never use this appliance
in an enclosed space such as a camper, tent
or home.
OPERATION
10 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
8 a.m. - 7 p.m.,ETS,Monday -Friday, 9 a.m.-6 p.m.,EST,
8 a.m. - 7 p.m.,ETS,Monday -Friday, 9 a.m.-6 p.m.,EST,
Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM
Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM

WARNING
FOR YOUR SAFETY
Be careful when attempting to manually
ignite this heater. Holding in the control
knob for more than 10 seconds before
upon ignition.

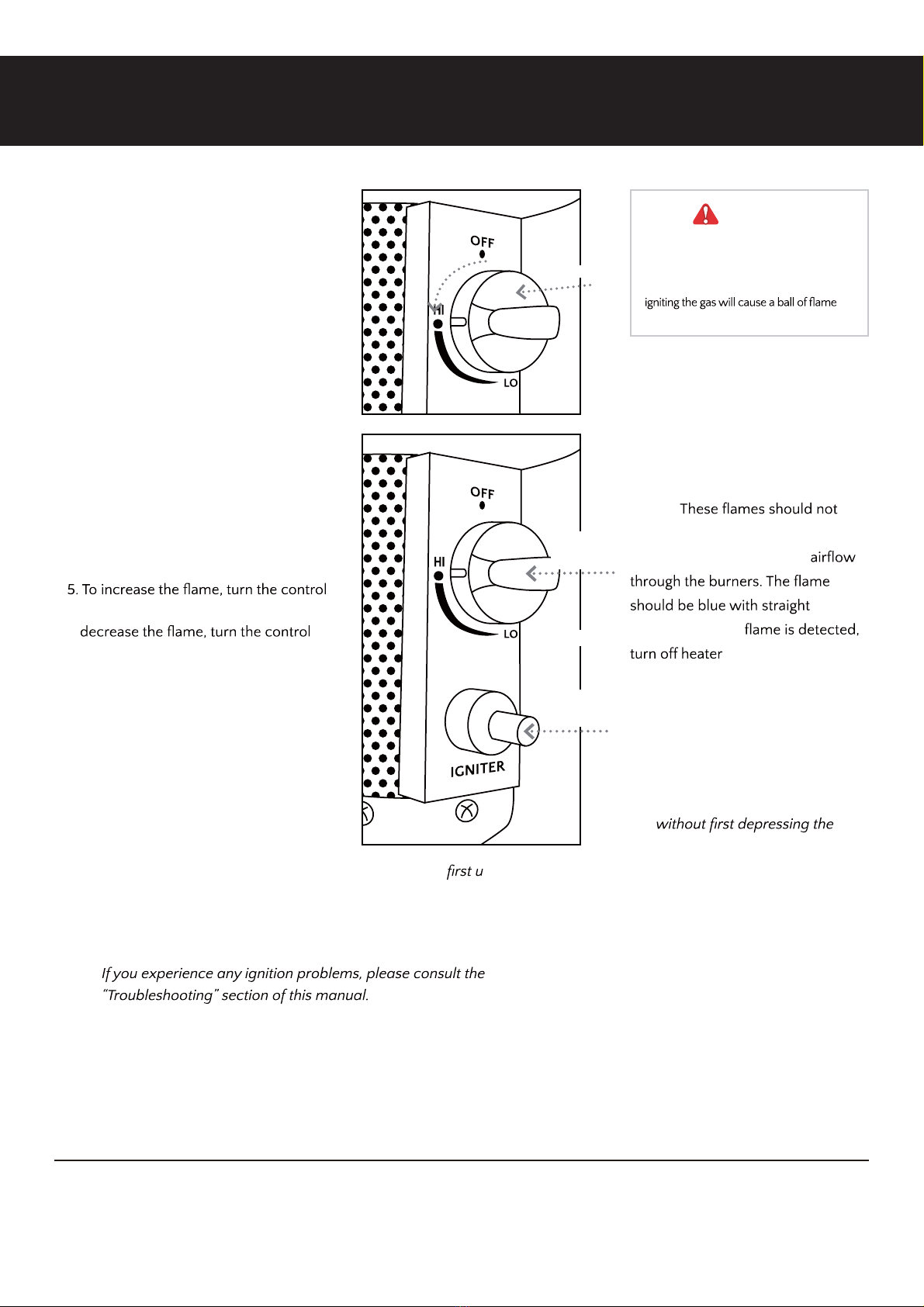

LIGHTING
NOTE: For initial start or after any cylinder
change, hold the control knob in for 2
minutes to purge air from all gas lines
before proceeding.
1. Turn the control knob to the “OFF”
position.
2. Fully open the LPG tank valve.
3. Push in and turn the control knob
to HI symbols.
4. Keep the control knob depressed
and then push the RED igniter button
simultaneously, push several times to
ignite the main burner. Repeat until the
burner ignites. Keep the control knob
fully depressed for an additional 30
seconds after the burner ignites, then
release the control knob.
knob clockwise towards HI. To
knob counter-clockwise towards LO.
6. To turn the appliance OFF, depress the
control knob and turn clockwise to the
OFF position.
7. Wait at least 5 minutes before
attempting to re-light the heater.
8. Turn the LPG tank valve to OFF
WHEN HEATER IS ON:
Emitter screen will become bright
red due to intense heat. The color is
more visible at night. Burner will
display tongues of blue and yellow
flames.
produce thick black smoke,
indicating an obstruction of
yellow
tops. If excessive
and consult the
“Troubleshooting” section of this
manual.
RE-LIGHTING:
Note: For your safety, the control
knob cannot be turned OFF
control knob and then rotating
to OFF.
1. Turn control knob to OFF.
2. Wait at least 5 minutes to
allow gas to dissipate before
re-lighting.
3. Repeat the “Lighting” steps
listed above.
PUSH &
HOLD
PUSH IN
TURN
PUSHING
IN BUTTON
WHILE
or closed. If you experience any
ignition problems, please consult the
“Troubleshooting” section of this manual.
Caution: Avoid inhaling fumes emitted from the heater’s se. Both
smoke and odor from the burning of oils used in the manufacturing will
appear. Both smoke and odor will dissipate after approximately 30 minutes.
The heater should NOT produce thick black smoke.
Caution: Avoid inhaling fumes emitted from the heater’s first use. Smoke
and odor from the burning of oils used in the manufacturing will appear.
Both smoke and odor will dissipate after approximately 30 minutes.
The heater should NOT produce thick black smoke.
OPERATION
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

WARNING
FOR YOUR SAFETY
Heater will be hot after use. Handle with
extreme care.
OPERATION CHECKLIST:
For a safe and heating experience, perform this check
before each use:
BEFORE OPERATING:
I am familiar with entire owner’s manual and understand all
precautions noted.
All components are properly assembled, intact and operable.
No alterations have been made.
All gas connections are secure and do not leak.
Wind velocity is below 10 mph.
Heater is for use outdoors (outside any enclosure).


Heater is away from windows, air intake openings, sprinklers and
other water sources.
Heater is at least 36 in. on top and at least 24 in. on sides from
combustible materials.
Heater is on a hard and level surface.

All burner passages are clear.
All air circulation passages are clear.
Clothing or other protective material should not be hung from the
heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater
must be replaced prior to operating the heater.

The heater should be inspected before each use and at least annually
OPERATION INFORMATION AND SAFETY:
°
surface
temperatures and should stay away to avoid burns or clothing ignition.
area of the heater.
imperative
that control compartment burner and circulating air passageways of the
heater be kept clean and free of debris and/or spider or insect nests.
SHUT DOWN:
1. Turn control knob
clockwise to OFF while
depressing the knob.
(Normally, burner will
make a slight popping
noise when extinguished).
2. Turn cylinder valve
clockwise to OFF and
disconnect regulator
when heater is not in use.
NOTE: After use, some
discoloration of the
emitter screen is normal.
AFTER OPERATION:
1. Gas control knob is in
OFF position.
2. Gas tank valve is OFF.
3. Disconnect gas line.
4. Heater is stored upright
in a secure location.
OPERATION
12 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

WARNING
FOR YOUR SAFETY
•Do NOT touch or move heater for at least
45 minutes after use.
•
•
To enjoy years of outstanding performance from your heater, make sure you
perform the following maintenance activities on a regular basis:
KEEP EXTERIOR SURFACES CLEAN.
1.
cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner and
control compartment dry at all times. Do not submerge the control valve
assembly. If the gas control is submerged in water, do NOT use it. It must
be replaced.
air passageways clean. Signs of possible blockage include:
• Heater does NOT reach the desired temperature.
• Heater glow is excessively uneven.
• Heater makes popping noise.
condition can damage heater and render it unsafe for use. Clean
burner holes by using a heavy-duty pipe cleaner. Compressed air
may help clear away smaller particles.
screen with warm soapy water if any carbon deposits develop.
Note: In a salt-air environment (such as near an ocean), corrosion
occurs more quickly than normal. Frequently check for corroded areas
and repair them promptly.
TIP FOR STAINLESS STEEL MODELS:
Use high-quality automobile wax to help maintain the appearance
of your heater. Apply to exterior surfaces from the post down.
DO NOT apply to emitter screen or domes.
STORAGE:
Between uses:
• Turn control knob OFF.
• Disconnect LP source.
• Store heater upright in an area
sheltered from direct contact
with inclement weather (such
as rain, sleet, hail, snow, dust
and debris).
• If desired, cover heater to
protect exterior surfaces and
to help prevent build-up in air
passages. Never leave LPG tank
exposed to direct sunlight or
excessive heat.
Note: Wait until heater is
cool before covering.
SERVICE:
O
should repair gas passages and
associated components.
Caution: Always allow heater to
cool before attempting service.
MAINTENANCE
13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Main burner will
not light
Gas valve may be off Turn gas valve ON
Fuel tank may be empty
Air in supply system
Purge air from lines pen gas lines and depress control knob
for 2-3 minutes.
Loose connection
Igniter fails Use stick lighter to manually light
Gas pressure low with valve open full Replace cylinder or regulator
New cylinder or 1st ignition Purge air from lines
Replace hose/regulator assembly
Pressure is low Replace LPG tank
Tank is low on fuel Fill LPG tank
Gas hose is kinked Check and straighten or replace
Burner unit
Clean components as needed
Thick black smoke Blockage in burner assembly—thoroughly clean burner
TROUBLESHOOTING
14 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
