Hanskamp Spider User manual

Spider
EN
Installaon and operang instrucons
Item number: 010-301-000
Date: October 2021
Version 3.0 - Adjusted instrucon manual
According to Annex 1 chapter 1.7.4 Machine guideline 2006/42/EG
Doenchem,
The Netherlands
www.hanskamp.nl/en
Feeding computer
Voercomputer
Fütterungscomputer
Logiciel d’alimentation

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 2 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 3 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
Preface
Manual Contents
This manual contains the informaon necessary for the correct installaon and operaon of Spider. Study and understand
this informaon thoroughly before conguraon of the Spider. Failure to do so could result in damage to equipment. Please
consult your milking equipment dealer if you do not understand the informaon in this manual, or if you need addional
informaon.
All informaon in this manual has been compiled with care. Hanskamp shall not be liable for errors or faults in this manual.
The recommendaons are meant to serve as guidelines. All instrucons, pictures and specicaons in this manual are based
on the latest informaon that was available at the me of publicaon. Your Spider may comprise improvements, features or
opons that are not covered in this manual.
Applicability
The table below shows the type numbers of the Spider for which this manual is applicable.
Model designaon
Contact number local service provider
We suggest you note down the name, address, telephone number and e-mail address of your local service provider in the
table below. This makes sure you can easily nd the informaon.
Model Type number
SpiderServer 005-100-000
SpiderClient 005-115-000
Name
Address
Telephone number
E-mail address

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 4 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
1. Introducon 6
2. Safety 7
2.1 Introducon 7
2.2 Signal words 7
2.3 Safety instrucons 7
2.3.1 General safety 8
2.3.2 Electrical safety 8
2.3.3 Installaon safety 8
2.3.4 Operang safety 8
2.3.5 Maintenance safety 9
2.3.6 Safety warnings 9
3. Installaon Hardware 10
3.1 Construcon overview Spider 11
3.2 Installaon in FeedStaon 12
3.2.1 Overview SpiderPCB 14
3.2.2 Assembly examples Spider on FeedStaon Walk-In 15
3.2.3 Expanding the SpiderServer with the SpiderClient 16
3.2.3.1 Fing an SF/UTP cable with network connectors 16
3.2.4 Assembly L’port and/or T’port to Spider 17
3.3 Installaon in the milking parlour 19
3.3.1 Connecng the limit switch 19
3.3.2 Examples of installaon in the milking parlour 20
4. Signing in / starng up 21
4.1 Signing in 21
4.1.1 Signing in on a PC or via a home network (oponal) 21
4.2 Adding and congurang SpiderPCB 22
4.3 SpiderPCB parameters (transponder conguraons) 24
4.3.1 Tag tuning 24
4.3.2 Set factory defaults 25
4.3.3 LED test 25
4.3.4 Seng/ne-tuning parameters manually 26
5. Adjusng the FloorAntenna 27
6. Using the LED indicators 28
7. User interface 29
7.1 Updates 29
7.1.1 Internet update 29
7.1.2 USB update 29
7.1.3 Firmware update 29
7.2 Backup 29
7.3 TAURUS-link with management system 30
7.4 Manual motor sengs 31
7.5 Calibraon 31
7.6 User ps 32
7.7 Reading animal data 33

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 5 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
8. Explanaon of the feeding principle 34
9. Replacing components 35
9.1 Replacing PCB 35
9.2 Replacing Antenna 35
9.3 Replacing CarrierBoard 35
10. Extra informaon 36
11. Declaraon 37
12. Nocaons & FAQ 38
12.1 Nocaons 38
12.2 FAQ 39
13. Appendices 40
13.1 Appendix SpiderServer 40
13.2 Appendix SpiderClient 41
13.3 Appendix Descripon parts Hanskamp Antenna 42
13.4 Appendix FloorAntenna 43
13.5 Appendix Control motors 44
14. Accessories 45

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 6 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
1. Introducon
Spider is of interest for dairy farmers who would like to feed automatically, regardless of company size. The Spider consists
of a SpiderServer with SpiderAntennas. It can read 16 Antennas, control 16 feed dispensers, and operate 12 air vents
within a 10 m range. A motor can be connected to each exit, e.g. a motor that dispenses concentrate. The electronics in a
Spider box are capable of controlling four feeding stations, each with four different types of feed. Using one control box,
one type of feed can be dispensed in a 2 x 8 milking parlour. For greater range and/or more outputs, the SpiderServer can
be expanded with one or more SpiderClients (same number of outputs as the SpiderServer).
The informaon in this manual is aimed at dairy farmers and technicians.
• Dairy farmers use the informaon to test and adjust Spider or to list overviews.
• Technicians use the informaon to install and set up the Spider.

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 7 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
2. Safety
2.1 Introducon
The safety alert symbol idenes important safety messages on your Spider and in the manual. When you see this symbol,
be alert to the possibility of personal injury or death. Follow the instrucon of the safety message.
2.2 Signal words
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The signal word for each
message uses the following guidelines:
Warning! Indicates a potenally hazardous situaon that, if not avoided, could result in injury or damage of
equipment or surroundings.
Danger! Indicates an imminently hazardous situaon that, if not avoided, will result in serious injury or death.
2.3 Safety instrucons
You are responsible for the safe operaon and maintenance of your Spider. You must make sure that you and anyone else
who is going to operate, maintain or work in the vicinity of the Spider, knows all the related safety informaon in this
manual.
You are the key to safety. Good safety pracces protect you and the people around you. Make these pracces a working
part of your safety program. Make sure EVERYONE who operates, maintains or works near the Spider obeys the safety
precauons. Do not risk injury or death by ignoring good safety pracces.
• Spider owners must train operators before they operate the Spider. This training must be repeated at least once
a year.
• The operator must read, understand and obey all safety and operang instrucons in the manual.
• A person who has not read and understood all safety and operang instrucons is not permied to operate the
Spider.
• Do not modify the equipment in any way. Unauthorized modicaon may impair the funcon and/or safety and
could aect the life of the equipment, and persons.
• Only use approved spare parts, and make sure they are installed by authorized technicians only.
Safety Alert Symbol

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 8 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
2.3.1 General safety
• Read and understand the manual and all safety signs before you connect power supplies to operate or adjust
Spider.
• Only trained persons are permied to operate the Spider.
• Install all protecve covers and guards before you operate the Spider.
• Wear proper protecve clothing and equipment.
• Disconnect and isolate the electrical power supply before you clean or do maintenance on the Spider.
• Make sure you know how to contact your local medical emergency center.
• Contact your nearest milking equipment dealer if you have any quesons.
• Review safety related items with all operators frequently (annually).
2.3.2 Electrical safety
• Only authorized electricians are permied to install the electrical power supply for the Spider.
• Make sure the electrical grounding of the electrical system and all parts of the Spider meet the local rules and
regulaons.
• Replace any damaged electrical lines, conduits, switches and components immediately.
• Isolate the electrical power supply before you open the Spider enclosure to work on the electrical system.
2.3.3 Installaon safety
• Read and understand the instrucons in this manual.
• Make sure the Spider is installed correctly.
2.3.4 Operang safety
• Read and understand the applicable manual and all safety signs before you connect power supplies to operate
or adjust the Spider.
• Only trained persons are permied to operate the Spider.
• Switch o the electrical power supply by pulling the plug out of the power point and secure the plug before
you clean or do maintenance on the Spider.
• Install the covers and guards before you operate the Spider.
• Keep away hands, feet, hair and clothing from all electrical parts.
• Keep away unauthorized persons, especially small children, from the Spider at all mes.
• Before the electrical supply is aached to the Spider, make sure all parts are installed rmly and that all the
parts are in good condion.
• Contact your nearest milking equipment dealer if you have any quesons.

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 9 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
2.3.5 Maintenance safety
• Read and understand the applicable manual and all safety signs before you connect power supplies to operate
or adjust the Spider.
• Only trained persons are permied to maintain the Spider.
• Switch o the electrical power supply by pulling the plug out of the power point and secure the plug before
you clean or do maintenance on the Spider.
• Wear protecve clothing and safety goggles when you do work on the electrical system.
• Make sure all the covers and guards are installed when maintenance work is complete.
2.3.6 Safety warnings
• General safety warnings are shown in this safety warnings secon. Specic safety messages can be found in
applicable parts of this manual when potenal hazards may occur if the instrucons or procedures are not
followed.

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 10 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3. Installaon Hardware
General comment:
The Spider is Hanskamp's feeding computer for automacally dispensing concentrate to
individual animals in the milking parlour or feeding staon. It is great for any dairy farmer
interested in automated and economical feeding, regardless of company size. One of the
Spider's perks is that, in most cases, it will work with transponders you already have. The
Spider's user interface has been designed in a logical way, making it easy to control Spider
from your PC, smartphone, or tablet. The SpiderServer establishes its own wi network,
providing access to the built-in web server and allowing you to quickly and easily adjust
concentrate porons for individual animals or groups, and monitor problem animals.
This instruction will help you to install the Spider. Read this instruction carefully and
follow the safety instructions.
Examples of installation can be found at www.hanskamp.nl/en.
The order numbers and names of accessories can be found in attachments 13.1 (SpiderServer)
and 13.2 (SpiderClient).
Transport and storage:
Spider will be shipped in a sealed box. The box is completely sealed with tape and lined
with protective foil on the inside to prevent damage. The Spider shall also be stored in
this way. See fig. 1 for supply specifications.
Please note! Always move the box carefully!
Please note! When opening the packaging, parts may fall out.
Make sure the packaging is always facing up upon opening!
Please note! When opening the packaging beware of damage and loose
and protruding parts that could cause injury!
Safety stickers:
The user and installer are solely responsible for the safe operation and maintenance of the
Spider. Safety stickers are used to ensure safety in and around the Spider. These stickers must
be placed correctly. There is one safety sticker applicable to Spider (see fig. 2). This sticker
must be placed on the right or left side of the unit.
Applying the stickers:
• Make sure the surface is dry and clean.
• Make sure the surface temperature is at least 5°C.
• Find the right position for the sticker.
• Remove a small part of the foil on the back.
• Place the sticker on the surface and press a small part of
the self-adhesive layer onto the surface.
• Carefully remove the foil and press down the rest of the
sticker.
• Remove any air bubbles with a needle and use the foil to
smoothen the sticker.
The box contains:
1. SpiderServer 005-100-000
2. PowerUnit 002-812-000
3. X number of Antennas 005-150-000
Oponal:
4. SpiderClient 005-115-000
Product
name Product
specicaons
Manufacturer CE
marking
Type descripon;
can be found on the side of the enclosure
Figure 1: Supply specicaons
Figure 2: Product specicaons

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 11 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en

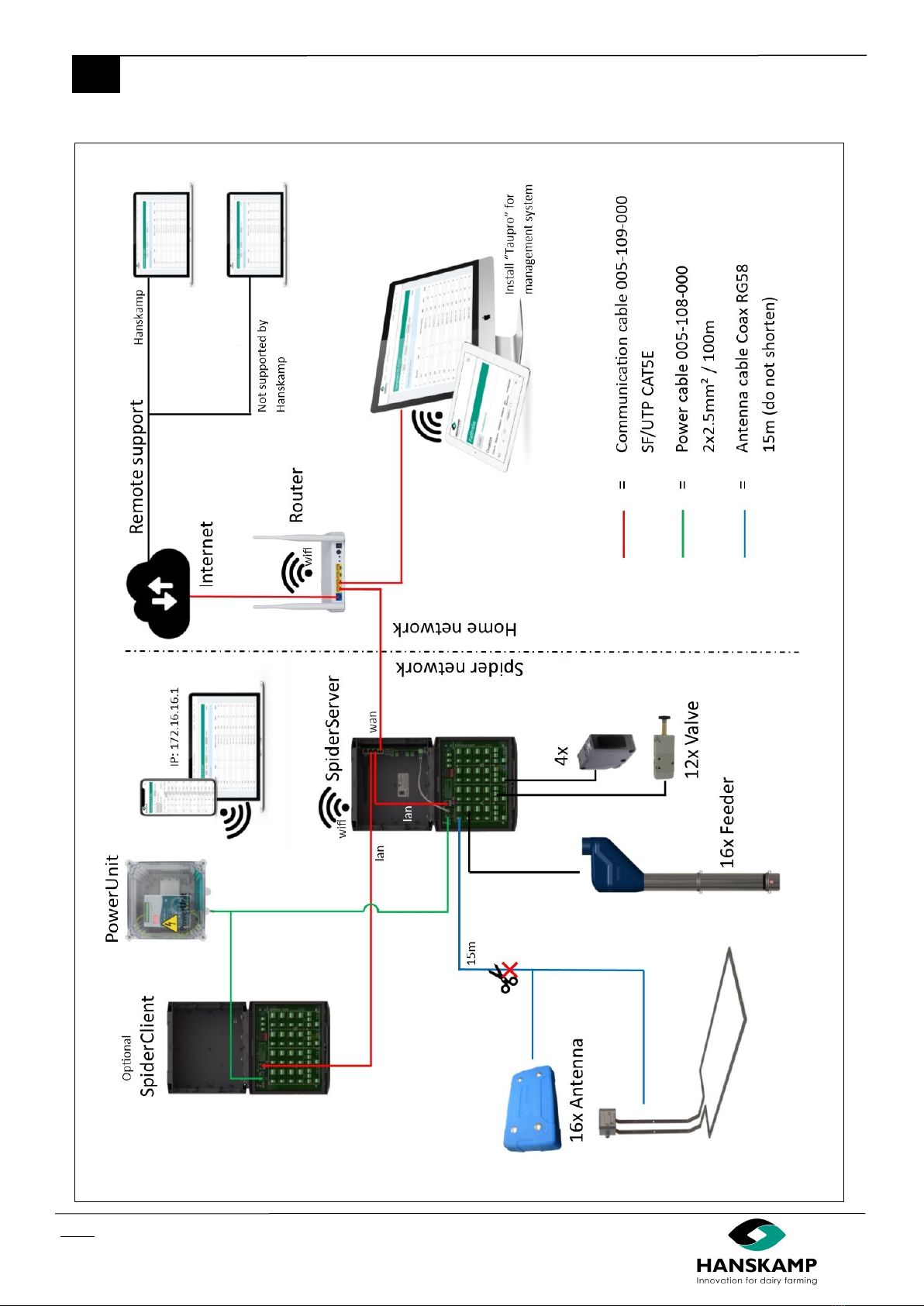

3.1 Construcon overview Spider
User
IP: generated by router; see 4.1.1
Detecon

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 12 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.2 Installaon in FeedStaon
1. Check if all components are present according to the parts list at the
back of the manual.
2. Find a locaon for the Spider near the feeding staon (max. 10 meters
distance). The locaon must be dry, easily accessible and have a power
supply (24VDC PowerUnit). Once a suitable locaon has been found,
the Spider can be installed. Use the included mounng hardware to
aach the unit's mounng feet to the outside of the case. To aach
the Spider to the feeding staon, use the case mounng plate (art. no.
004-247-000). Install the SpiderServer on one side and the PowerUnit
(art. no. 002-812-000) on the other.
3. Install the SpiderAntenna on the feed trough and run the cable to the
Spider unit. Make sure that it is out of reach of the animals (g. 1).
See chapter 3.2.2 for ear and leg recognion.
Cauon: The Antenna cable must not be shortened.
Shortening the cable will negavely aect Antenna
performance.
4. Connect the SpiderAntenna to the SpiderPCB as illustrated in gure 2.
The core is + and the sheath is -.
All inputs and outputs are numbered, as is the cable entry plate
(art. no. 005-161-001) (g. 3). Ensure that the holes line up with the inputs
and outputs to keep the cables uncluered.
Example: 4 feeding staons with 4 feed types and a closing gate (g. 4).
Please note! A black Antenna is 120 kHz!
1
3
4
Fs4
Fs3
Fs2
Fs1
2

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 13 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
The SpiderPCB can be freely congured, allowing control of up to 16
feeding staons with 1 feed type. If this is not enough, the SpiderServer
can be expanded with a SpiderClient, doubling the number of inputs
and outputs. Connect the units with a shielded data cable (art. no. 005-
109-000 SF/UTP CAT5E).
Cauon! The feeding staons must not be more than 10
meters apart, as the Antenna cable is 15 meters long.
If they are further apart, you will need to use an extra
SpiderClient.
5. Use the data cable (art. no. 005-107-000) to connect the
SpiderPCB to the CarrierBoard. The SpiderClient can be
connected in the same way. Use the ethernet (LAN) ports on
the CarrierBoard and SpiderPCB. The ethernet (LAN) ports on
the CarrierBoard serve as a switch. Do NOT connect the
SpiderPCB or SpiderClient to the WAN port on the le (g. 7).
6. Connect the CarrierBoard and the SpiderPCB to the 24VDC
power supply. The SpiderPCB comes with two power ports
which are linked internally. The second port can be used to
power the CarrierBoard (g. 8).
7. An extra data cable (art. no. 005-109-000) is required to
connect the Spider to a PC in your home network. Connect the
extra data cable to the WAN port on the CarrierBoard and the
router in your home network. The Spider can then be accessed
through the web browser on any PC in the network. See
chapter 3.2.3.1 for informaon on ng data cables.
Note: If the SpiderServer and router are more than 100
meters apart, a switch must be used in between.
5
6
7
8
SpiderServer
SpiderClient
SpiderClient
LAN
CarrierBoard
SpiderPCB
SpiderPCB
SpiderServer SpiderClient

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 14 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.2.1 Overview SpiderPCB
Output gates
Detecon
Arcle number

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 15 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.2.2 Assembly examples Spider on FeedStaon Walk-In
Figure 9: Neck recognion: can be mounted directly to the feed trough.
Figure 10: Leg recognion: ensure that the EWA Antenna Transformer unit
(art. no. 005-175-000) is located under the feed trough mounng plate and
that the Antenna cannot come into contact with the feed trough.
Figure 11: Ear recognion: use the mounng plate (art. no. 004-246-000) to install the
Antenna for ear recognion. Place the Antenna on the same side as the
PipeFeeder.
Cauon! Run the Antenna cable through the tubes carefully to prevent
damage to the cable.
910 11
±10cm
9a
10a
11a

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 16 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.2.3 Expanding the SpiderServer with the SpiderClient
Install the SpiderClient in the same manner as the SpiderServer, near or on a feeding staon. The SpiderServer
and SpiderClient must not be more than 100 meters apart.
Use a data cable (art. no. 005-109-000) to connect the SpiderClient to the SpiderServer.
Cut the SF/UTP cable to size before installaon (see g. 7 on page 13).
3.2.3.1 Fing an SF/UTP cable with network connectors
Hanskamp oers a set with a crimping tool and tester for ng and tesng cables (art. no. 005-166-000).
Orange—white
Orange
Green—white
Blue
Blue—white
Green
Brown—white
Brown

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 17 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.2.4 Assembly L’port and/or T’port to Spider
L'port connecon diagram (control unit art. no. 002-480-001). If the switch works the other way around, rotate it by 180
degrees.
12
Green
Brown
White
Blue
Brown
Valve 24V DC
12
13
Green
FS X
FS X
Example L’port /
T’port Back
Example FeedStation
Walk-Through
brown
T’port Back

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 18 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
Wiring plan L'port & T'port FeedStaon Walk-Through (control box art. no. 002-481-001).
If the switch works the other way around, rotate it by 180 degrees.
14
Cable
Cut o
yellow wire
Green
Pink
Yellow
White
Gray
Brown
White
Green
Brown
Cable
Direcon Spider
Valve T’port
001-295-015 cable 3x0,5 LiYY 15 mtr. Direction Spider “Detection”
Brown
Pink
Yellow
White
Grey
Green
Green
White
Brown
Cut off
yellow
wire
001-593-000 cable LiYY 8x0,34 direction Spider “Gate”
L’port cable 001-100-000 + Caution! Is already I attached to L’port
004-338-001 Cable to sensor Caution! Cable is already attached to sensor
001-593-000 cable LiYY 8x0.34 Direction Spider ‘Gate’
001-295-015 cable 3x0.5 LiYY 15m Direction Spider ‘Detection’
Cut off
yellow
wire
Green
White
Brown
White
Grey
Green
Brown
Pink
Yellow
Valve T’port L’port cable 001-100-000 + Caution! Already attached to L’port I
004-338-001 Cable to sensor Caution! Cable is already attached to sensor

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 19 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.3 Installaon in the milking parlour
As Spider has 16 Antenna inputs and 16 feed outputs, it can also be used for individual feeding in the milking parlour. Every
posion can be seen as a feeding staon. Please refer to chapter 3.2.1 for instrucons on how to connect.
3.3.1 Connecng the limit switch
A limit switch can be installed to prevent animals from being recognised and stopping before the last stall. The limit switch
deacvates the Antennas during the switch. This prevents feeding unl all the cows are in the correct posion.
The below example shows the correct set up for a 2x8 milking parlour.
Detecon port 1works for feeder 1-4
2works for feeder 5-8
3works for feeder 9-12
4works for feeder 13-16
This can be connued as in the example. In this instance, one switch is used for feeders 1-8 and one for feeders 9-16.
Detecon 1 and 2 are connected in this example
Side A Side B
Read yellow as green in direcon SpiderPCB
The Antennas are inoperative when the
switch is operated. Connect the brown
and green wires. (NO)
The Antennas are inoperative when the
switch is not operated. Connect the
brown and yellow wires. (NC)
Milking parlour 2x8
Side A Side B
NO

Spider
EN Feeding computer - Voercomputer - Füerungscomputer - Logiciel d’alimentaon
Index 20 - 46
Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en
3.3.2 Examples of installaon in the milking parlour
Figure 15: Leg recognion
To determine the posion of the Antenna, consider the posion of the animal and where the transponder will be situated.
Ensure that the animal's transponder is within the boundaries of the Antenna.
Figure 16-17: Ear recognion
Use the mounng kit (art. no. 007-535-000) for installaon on the
MulFrame (40° - 50° & 60° - 70°). Because the animals all have their
ear transponders on the same side, the Antenna must be installed on the
opposite wall of the milking parlour. The cable can be run through the side
by breaking o the tab on the Antenna (g. 19).
Figure 18: Neck recognion
A mounng bracket (art. no. 007-525-000) is available for installing neck
recognion.
19
15 16.1 17 1816.2
15-25cm
