Harbor Breeze 40045 User manual

1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB16284
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
ITEM #0726317, 0833274
CEDAR SHOALS
CEILING FAN
MODEL #40045, 40156
Español p. 22

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................11
Wiring .........................................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions .............................................................17
Care and Maintenance ............................................................18
Troubleshooting..................................................................18
Limited Lifetime Warranty ..........................................................20
Replacement Parts List ............................................................21

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
GMotor Assembly 1
H Switch Housing 1
I Switch Housing Cap (preassembled to Light Kit [K]) 1
J Hood (preassembled to Light Kit [K]) 1
K Light Kit 1
L Finial Cap (preassembled to Light Kit [K]) 1
M Finial (preassembled to Light Kit [K]) 1
N Yoke Cover 1
O Bulb 2
P Glass Bowl 1
Q Cap 1
RBlade Arm 5
S Blade 5
T Motor Screw (preassembled to Motor Assembly [G]) 10 + 1 extra
U Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
V Hex Nut (preassembled to Light Kit [K]) 1
W Rubber Washer (preassembled to Light Kit [K]) 1
X Phillips-head Closemount Screw (preassembled to Motor Assembly [G]) 3
Y Set Screw (preassembled to Motor Assembly [G]) 2
Z Switch Housing Screw (preassembled to Switch Housing Cap [I]) 3
AB Adapter Plate (preassembled to Motor Assembly [G]) 1
AC Adapter Plate Screw (preassembled to Adapter Plate [AB]) 3
AD Blade Balancing Kit 1
A
CB
D
E
F
G
H
I
J
K
LM
NO
P
Q
R
T
S
U V W X Y Z AC AD
AB

4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Rubber Washer
Qty. 15
+ 1 extra
Pull Chain Extension
Qty. 2
AA BB CC DD EE
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Beforeyoubegininstallingthefan,disconnectthepowerbyremovingfusesorturningo󰀨thecircuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 17.9 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoanoutlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipmento󰀨andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver
--Connecttheequipmentintoandoutletonacircuitdi󰀨erentfromthattowhichthereceiveris
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Pleasenotechangesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7
INITIAL INSTALLATION
1. Turno󰀨thecircuitbreakersandthewallswitchtothe
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard mounting is best suited for ceilings 8 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle-style mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance. Note:
If using the angle mount, check to ensure the ceiling
angle is not steeper than 16°.
Closemount-style mounting is more suitable for
ceilings lower than 8 ft. high.
Flushmount installation is not available for this item.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (S) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (S) will be at least 7 ft. above the
oor.
A
7 ft.
Minimum
30 in.
Minimum
3
1
A
S

8
INITIAL INSTALLATION

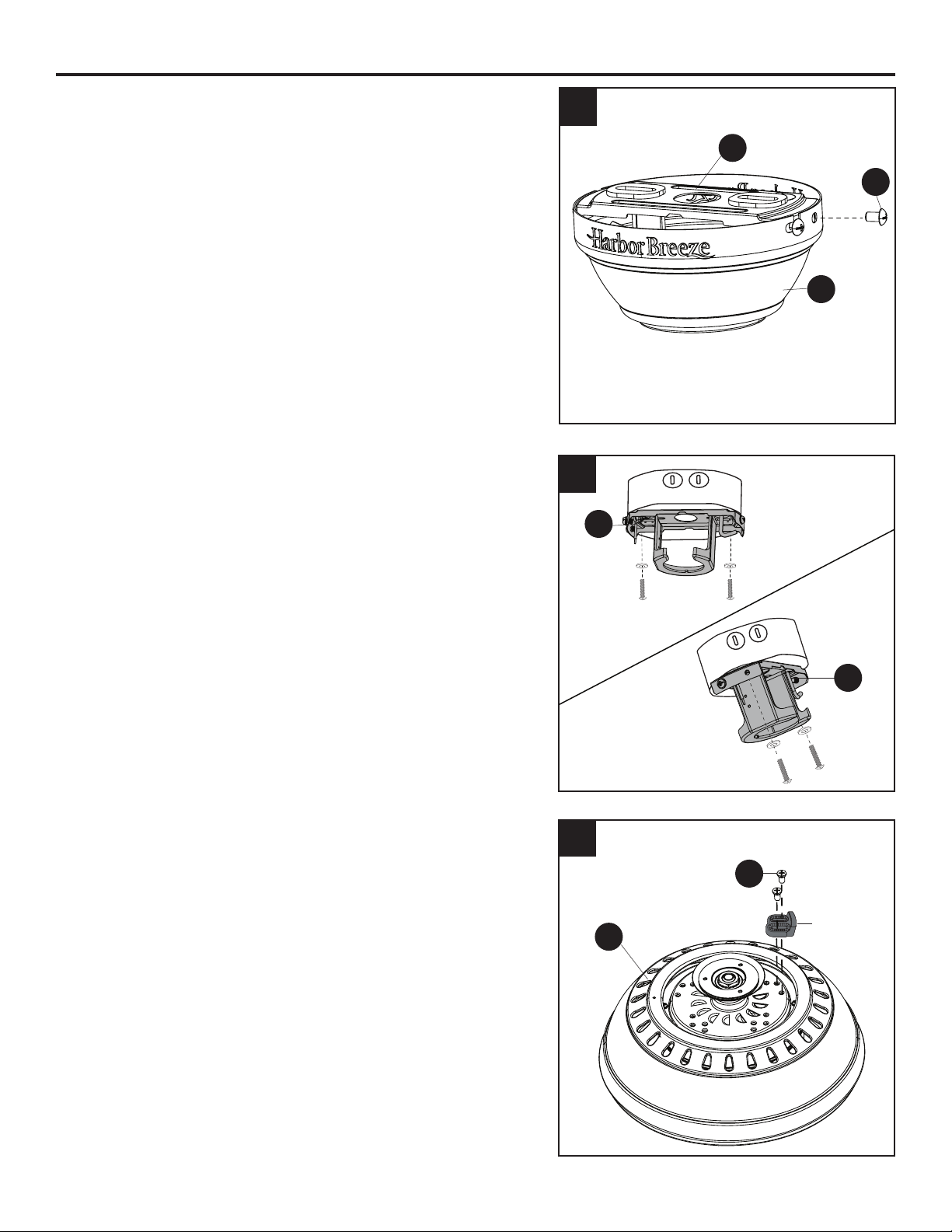

4. Loosen all four preassembled mounting bracket
screws (U), then completely remove the two
mounting bracket screws (U) from the round holes
of canopy (E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
Important:If using the angle mount, ensure the open
end of the mounting bracket (D) is installed facing the
higher point of the ceiling.
6. Remove all 10 preassembled motor screws (T) and
vepreassembledplasticmotorblocksfromthe
underside of the motor assembly (G). Discard the
motor blocks, but keep the motor screws (T) for later.
For Standard or Angle Mounting Instructions, continue
to page 9. For Closemount Instructions, proceed to
page 11.
G
5
6
4
E
D
U
D
D
T
Standard or
Closemount
Mounting
Angle
Mounting
Motor
Block

9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod pin (B) and downrod clip (C) from
the downrod (A). Then partially loosen the set screws
(Y) in the yoke at the top of the motor assembly (G).
2. Insert the downrod (A) through the canopy (E) and yoke
cover (N). Feed the wires from the motor assembly (G)
through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (G), align the holes, then re-install the
downrod clip (C) and downrod pin (B). Secure with set
screws (Y).
A
G
B
C
Y
2
E
A
N
G
3
A
C
YB G
Yoke
1
Yoke

10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

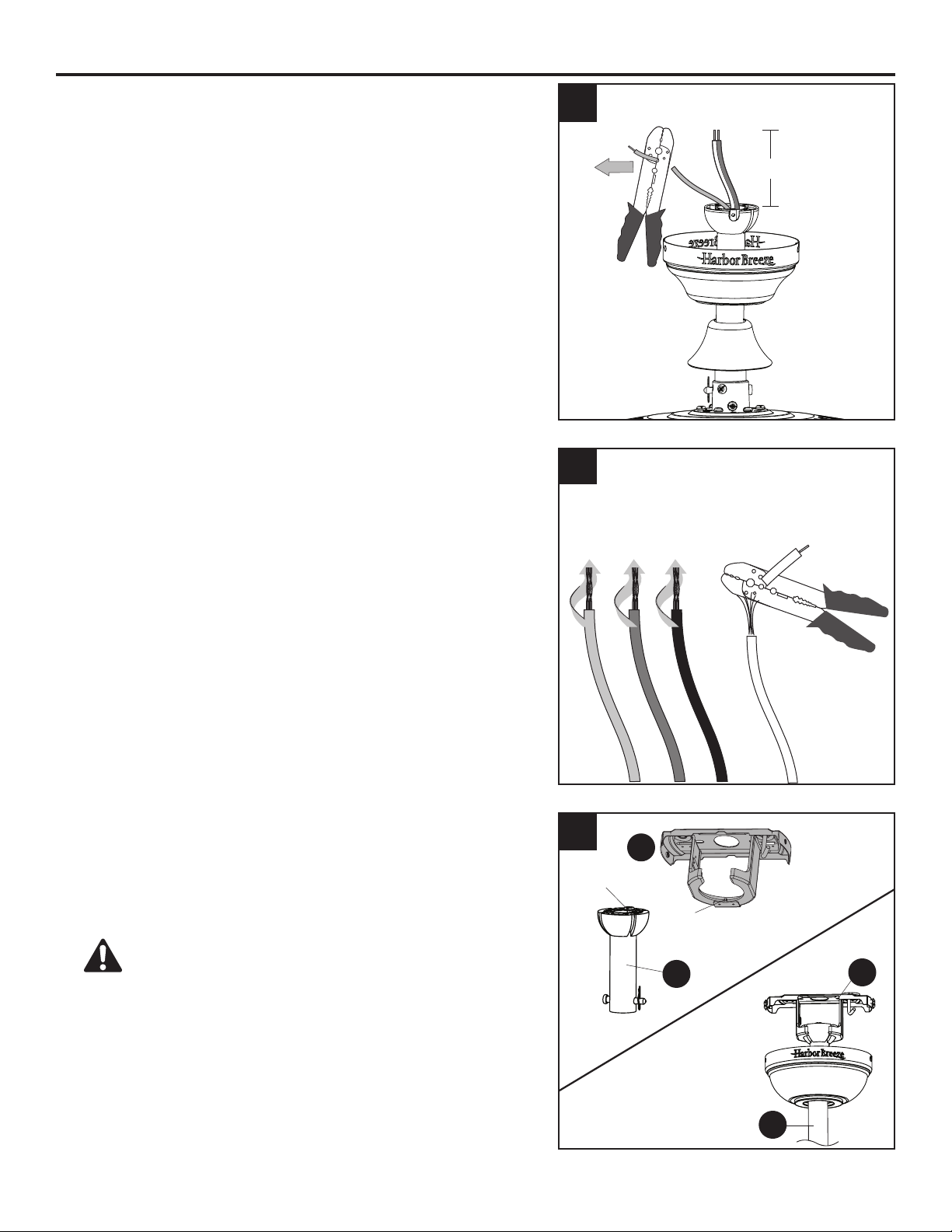

4. Depending on the length of downrod you use, you may
need to cut the lead wires back to simplify the wiring.
If you decide to cut back the lead wires, take the lead
wires and make sure you have pulled them all the way
through the top of the downrod. Measure at least 8
inchesofleadwire,thencuttheexcesswireo󰀨with
wire cutters (not included).
5. If you decided to cut back the lead wire in Step 4, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat this step for
black, blue and green wires.
Note: If you did not cut back the lead wires in Step 4, Step
5 is not necessary and you may proceed to Step 6.
6. Install the ball end of the downrod (A) into the opening
of mounting bracket (D). Align one of the four slots in
the ball with the tab in the mounting bracket (D).
Note:The downrod (A) should not rotate if installed
correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may cause
the fan to wobble or fall, which could result in serious
injury or death.
Proceed to the Wiring on page 12.
4
5
6
A
A
D
D
Tab
Slot
8 in.

11
CLOSEMOUNT INSTRUCTIONS
Helpful Hint: The downrod (A), canopy cover (F) and
yoke cover (N) are not used in this type of installation.
1. Remove and discard the canopy cover (F) from the
bottom of the canopy (E).
2. Remove three Phillips-head closemount screws (X)
from the top of the motor assembly (G). Align the
canopy (E) with the holes in the top of the motor
assembly (G), then re-install the Phillips-head
closemount screws (X) to secure the canopy (E) to
the top of the motor assembly (G).
3. Raise the fan and place the canopy (E) on the hook
on the mounting bracket (D), temporarily leaving
hands free for the wiring process.
1
F
E
2
X
E
E
D
G
3

12
WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
•ConnecttheGreenwirefromthedownrod(A)and
mounting bracket (D) to the Bare/Green supply wire.
Note: Closemount installation does not use
downrod (A), so there will only be two Green wires
to connect.
•ConnecttheWhitewirefromthefantotheWhite
supply wire.
•ConnecttheBlackandBluewiresfromthefantothe
Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the Blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Blue wire is hot power for light. The Green wire is the
groundwire.Ifhouseholdsupplywiresaredi󰀨erent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White
Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the
Green and White wire connections on the opposite
side of the outlet box from the Black and Blue wire
connections.
1
3
AA
AA
AA
D
2

13
FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (U) preassembled on mounting
bracket (D). Place the keyholes of the canopy (E)
onto the mounting bracket screws (U) and rotate the
canopy (E) clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (U) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (U) securely.
3. Partially insert the blade screws (BB) along with the
blade washers (CC) and rubber washers (DD) through
the blade (S) and into the blade arm (R). Tighten
each blade screw (BB) with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat this
step for the remaining blades (S) and blade arms (R).
Hardware Used
BB Blade Screw x 15
Blade Washer x 15
Rubber Washer x 15
1
2
E
E
U
D
Note:Closemount installation will not have the downrod (A), yoke cover (N) or canopy cover (F).
3BB
CC
DD
S
R
CC
DD

14
FINAL INSTALLATION
4. Install the blade arm (R) to the underside of the motor
assembly (G) with motor screws (T) previously removed
(Step 6, page 8). Tighten with Phillips screwdriver.
Repeat for each blade arm (R).
5. Remove one of the adapter plate screws (AC) from
the adapter plate (AB), and loosen (do not remove) the
other two screws.
Insert the wires from the motor assembly (G) through
the hole in the switch housing (H). Then, attach the
switch housing (H) to the adapter plate (AB) by twisting
the switch housing (H) until the loosened adapter plate
screws (AC) engage the keyholes on switch housing (H).
Re-install the third adapter plate screw (AC) into the
closed hole in the switch housing (H) and securely
tighten all three adapter plate screws (AC).
Connect the 9-pin connector from the fan to the 9-pin
connector from the switch housing (H).
Note: If you wish to install the fan without the light kit (K),
proceed to Step 11.
6. To install the light kit (K), remove the preassembled
nial(M),nialcap(L),hexnut(V)andrubberwasher
(W) from the light kit (K).
4
R
T
G
6
5
K
AC
AB
G
H
W
V
L
M
9-pin Connectors

15
FINAL INSTALLATION
7. Remove the three switch housing screws (Z) from the
switch housing cap (I). Then connect the single-pin
connector from the switch housing (H) to the single-
pin connector from the light kit (K) -- Blue to Black and
White to White. Feed the pull chain from the switch
housing (H) through the hole in the switch housing cap
(I) and down through the preassembled grommet on the
lower part of the light kit (K).
Then, secure the switch housing cap (I) with light kit (K)
to the switch housing (H) using the previously removed
switch housing screws (Z).
IMPORTANT: Ensure the hole for the pull chain, located
in the switch housing cap (I), is aligned with the pull
chain shooter when installing the light kit (K) to the switch
housing (H).
8. Install the bulbs (O) into the sockets on the light kit (K).
IMPORTANT: Make sure you allow the bulbs (O) and
light kit (K) to cool before you replace the bulbs.
9. Feed pull chain coming from the center of the light
kit (K) through the center hole in the glass bowl (P).
Feed the pull chain coming from the switch housing
(H)throughtheo󰀨-centerholeintheglassbowl(P).
Re-install hex nut (V) and rubber washer (W). Feed the
pullchainsthroughtheappropriateholesinthenial
cap(L)andtheholeinthenial(M),thenliftthenial
cap(L)upuntilitisushwiththeglassbowl(P).Screw
thenial(M)ontothethreadedrodofthelightkit(K)to
secure.
W
P
K
V
L
M
9
7
H
K
I
Z
8
O
K
Single-pin
Connector
Pull Chain
Shooter

16
12
FINAL INSTALLATION
10. Attach the pull chain extensions (EE) or custom pull
chain extensions (not included) to the fan and light pull
chains.
Proceed to Step 12.
Hardware Used
EE Pull Chain
Extension x 2
11. To install the fan without the light kit (K), remove the
three switch housing screws (Z) from the switch housing
cap (I). Then, attach the cap (Q) to the switch housing
(H) using the switch housing screws (Z).
Attach the the pull chain extension to the pull chain.
Hardware Used
EE Pull Chain
Extension x 1
12. Turn on power supply to the fan.
Assembly is complete.
H
a
r
b
o
r
B
r
e
e
z
e
Q
Z
EE
H
EE
11
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
10
Light Pull Chain Fan Pull Chain
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

17
Fig. 2a Fig. 2b
Fig. 2c
OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is LOW,
and four turns the fan OFF. The pull chain in the center
of the light kit (G), if applicable, turns the lights ON and
OFF.
2. The reverse switch is located on the switch housing (H).
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
settinginwinterwithoutfeelingadi󰀨erenceinyour
comfort.
Note:Wait for the fan to stop before moving the reverse
switch.
2a. In warmer weather, push the reverse switch left,
whichwillresultindownwardairowcreatingawindchill
e󰀨ect.
2b. In cooler weather, push the reverse switch right,
whichwillresultinupwardairowthatcanhelpmove
stagnant,hotairo󰀨theceilingarea.
Important:The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
H
2
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
1
Reverse Switch
Light Pull Chain Fan Pull Chain

18
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor assembly with only a soft brush or lint-free cloth to avoid
scratchingthenish.Cleanthebladeswithalint-freecloth.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Shuto󰀨themainpowersupplybeforeyoubeginanymaintenancetask.Donotusewateroradamp
cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. Thewallswitchisturnedo󰀨.
3. Thepoweriso󰀨orthefuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch
completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turnthepowero󰀨andcheckall
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

19
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screws on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
the blade balancing kit (AD).
3. Turno󰀨thepower.Loosenthecanopy
and verify that the mounting bracket
is secure to the electrical outlet box.
Thebracketmustbeushwithout
movement against the outlet box.
Verify the outlet box is secure.
4. Use a longer downrod (sold
separately) or move the fan to another
location.
5. Lift up the yoke cover and tighten the
set screws on the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire connection.
1. Re-install the bulb(s).
2. Ensure the plugs in the switch housing
are connected properly.
3. Turnthepowero󰀨andcheckall
connections at the ceiling outlet box.

20
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbya󰀩xinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.
