Harbor Breeze STONECROFT 41946 User manual

1
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
ITEM #0803776
STONECROFT
CEILING FAN
MODEL #41946
Español p. 20
JS21052
RATED FOR
DAMP LOCATIONS
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected] or visit www.lowespartsplus.com.

2
TABLE OF CONTENTS
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initial Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Replacement Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket 1
E Canopy (preassembled to Mounting Bracket [D]) 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Motor Assembly 1
H Light Pan 1
I Light Pan Screw (preassembled to Light Pan [H]) 3
J Light Cage Screw (preassembled to Light Cage [Q]) 3
K Set Screw (preassembled to Motor Assembly [G]) 2
L Yoke Cover 1
M Bulb 3
N Fitter Plate (preassembled to Motor Assembly [G]) 1
O Light Kit 1
P Fitter Plate Screw (preassembled to Fitter Plate [N]) 4
Q Light Cage 1
RBlade Arm 5
S Blade 5
T Remote Pack 1
UMounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
A
BC
D
E
F
UK
JH
G
I
LM
NT
O
P
QRS
00
0000

4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 6
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Motor Screw
10 + 1 extra
AA XX BB CC

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o󰀨 the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 20.81 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into and outlet on a circuit di󰀨erent from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes.
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
1-888-251-1003

7
INITIAL INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 10°.
Flushmount installation is not available for this item.
Closemount installation is not available for this item.
3. Ensure the blades (S) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (S) will be at least 7 ft. above the
oor.
1
2
Standard Mounting
Flushmount Closemount
Angle Mounting
7 ft.
Minimum
30 in.
Minimum
3
A
S

8
INITIAL INSTALLATION
4. Loosen all four mounting bracket screws (U) on
mounting bracket (D), then completely remove the two
mounting bracket screws (U) from the round holes of
canopy (E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
5. Secure the mounting bracket (D) to the outlet box
using screws and washers provided with the outlet
box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
6. Remove the downrod pin (B) and downrod clip (C)
from the downrod (A). Then partially loosen the
set screws (K) in the yoke at the top of the motor
assembly (G).
D
U
E
D
Standard
Mount
Angle Mount
6
4
5
Yoke
A
C
B
G
K

9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
7. Insert the downrod (A) through the canopy (E)
and yoke cover (L). Feed the wires from the motor
assembly (G) through the downrod (A).
8. Slide the downrod (A) into the yoke of the motor
assembly (G), align the holes, then re-install the
downrod clip (C) and downrod pin (B). Secure with set
screws (K) and slide the yoke cover (L) down until it
rests on top of the motor assembly (G).
9. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner: Take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
8 inches of lead wire, then cut the excess wire o󰀨 with
wire cutters (not included).
9
7
8
L
KC
BA
L
G
A
G
E
8 in.

10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
10.If you decided to cut back the lead wire in Step 9, strip
1/2 in. of insulation from the end of the wires. Twist
the stripped ends of each strand of wire within the
insulation with pliers (not included).
Note: If you did not cut back the lead wires in Step 9,
Step 10 is not necessary and you may proceed to Step
11 instead.
11. Install the ball end of the downrod (A) into the opening
of the mounting bracket (D). Align the slot in the
ball in the downrod (A) with the tab in the mounting
bracket (D). Note: The downrod (A) should not rotate if
installed correctly.
DANGER: Failure to align the slot in the ball with
the tab could cause the fan to fall, which may result in
serious injury or death.
12.Insert the receiver from remote pack (T) into the
mounting bracket (D) with the at side facing the
ceiling.
11
A
D
D
10
Slot
Tab
Receiver
12

11
1
AA
3
2
1D
AA
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and there is more than one house wire to connect to the two
fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Connect the wires from receiver from remote pack (T),
household supply, and fan according to the diagram
and these steps:
• Connect the Green wires from the fan and the
mounting bracket (D) to the Bare/Green (ground)
supply wire.
• Connect the Blue wire (FOR LIGHT) from the receiver
to the Blue fan wire.
• Connect the Black wire (TO MOTOR L) from the
receiver to the Black fan wire.
• Connect the White wire (TO MOTOR N) from the
receiver to the White fan wire.
• Connect the Black wire (AC IN L) from the receiver to
the Black (hot/power) supply wire.
• Connect the White (AC IN N) from the receiver to the
White (neutral) supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Important: The Blue fan wire is power for the light.
The Black wire is power for the fan. The White wire is
common/neutral. The Green wire is the ground wire. If
supply wires are di󰀨erent colors than referred to above,
a professional electrician should determine proper
wiring.
Hardware Used
AA Wire Connector x 6
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Black
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire strands are visible
after making connections. Place Green and White wire
connections on opposite sides of outlet box from the
Black.

12
FINAL INSTALLATION
1. Align the canopy (E) over the loose mounting bracket
screws (U) preassembled on mounting bracket (D)
and turn canopy (E) in a clockwise direction.
Secure the canopy (E) with the mounting bracket
screws (U) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (U) securely.
2. Partially insert three blade screws (BB) along with
three blade washers (CC) through one blade (S) and
into one blade arm (R). Tighten each blade screw
(BB) with a Phillips screwdriver (not included), starting
with the one in the middle. Repeat this step for the
remaining blades (S) and blade arms (R).
Hardware Used
BB Blade Screw x 15
CC Blade Washer x 15
3. Install the blade arm (R) to the underside of the motor
assembly (G) with motor screws (XX). Tighten with
Phillips screwdriver (not included).
Repeat for each blade arm (R).
Hardware Used
XX Motor Screw x 10
E
CC
R
BB
S
U
1
2
3
XX
G
R

13
FINAL INSTALLATION
4. Remove one of the four tter plate screws (P) located
on the underside of the motor assembly (G) and loosen
the other three screws. Align the screw holes of the
light pan (H) with the loosened tter plate screws (P)
and turn in a clockwise direction. Replace previously
removed tter plate screw (P), then tighten all screws.
5. Remove one of the three light pan screws (I) from the
light pan (H) and loosen the other two screws. Connect
the single-pin connectors from the motor assembly (G)
to the single-pin connectors from the light kit (O) -- Blue
to Blue and White to White. Align the two key slots in the
light kit (O) with the two previously loosened light pan
screws (I). Place the light kit (O) over the two screws and
turn the light kit (O) clockwise. Re-install the previously
removed light pan screw (I), and tighten all three screws
securely.
6. Install the bulbs (M) into the sockets of the light kit (O).
Important: Make sure you allow the bulbs (M) and light
kit (O) to cool before you replace the bulbs.
6
5
M
H
I
O
P
N
H
Single-pin
Connector
4
O

14
FINAL INSTALLATION

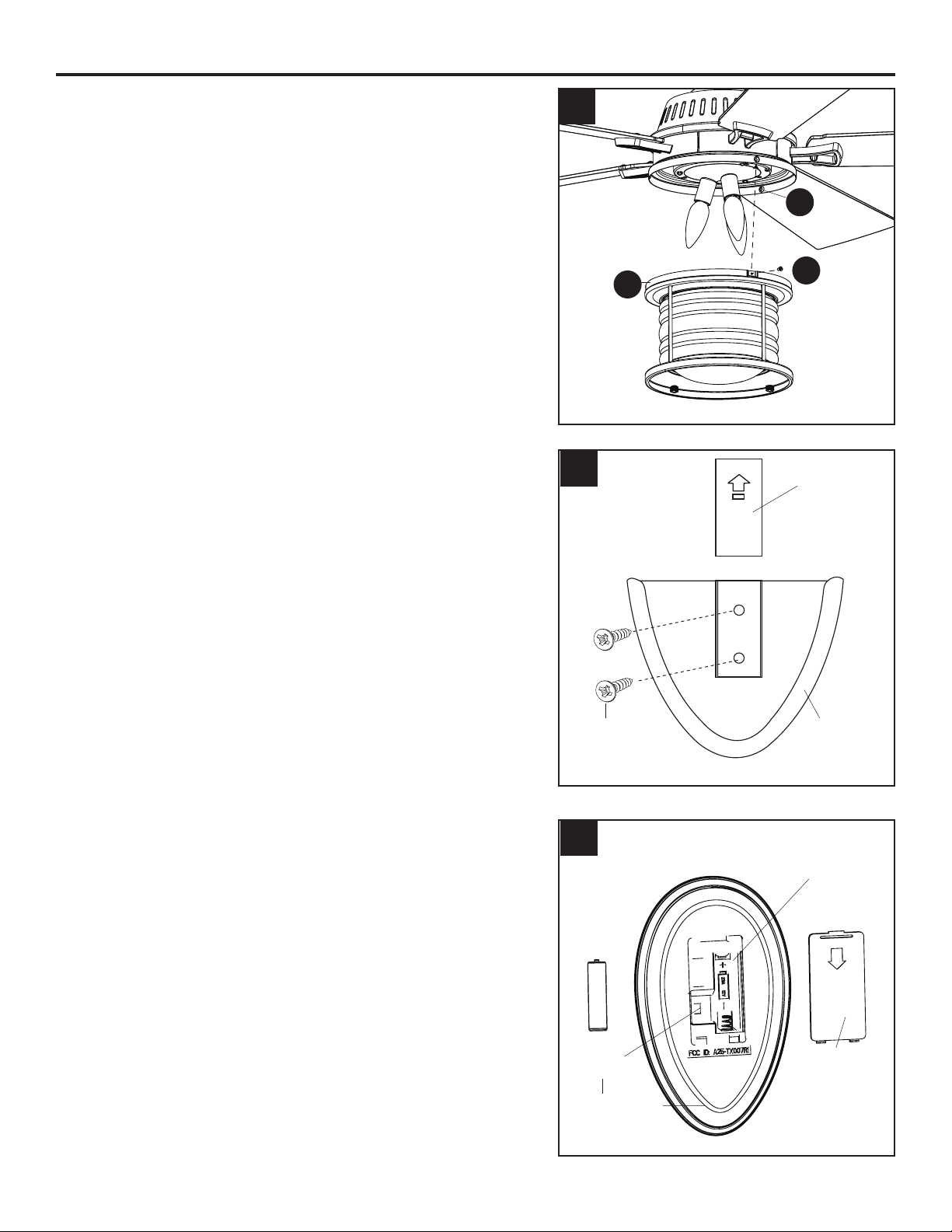

7. Remove the three light cage screws (J) from the top
edge of the light cage (Q). Then, align the screw holes
in the light cage (Q) with the screw holes in the light pan
(H) and secure the light cage (Q) to the light pan (H)
using the light cage screws (J). Tighten all three screws.
Installation is complete. Restore the power at the
main fuse or circuit breaker.
8. Remote pack (T) comes equipped with a wall bracket.
If you wish to install the wall bracket, remove the small
plate to expose the screw holes. Insert wall brackets
screws through holes and into wall, then cover with the
previously removed small plate. Remote control sits
inside the wall bracket.
9. Remove the battery cover from the back of the remote
found in remote pack (T). Insert the battery from remote
pack (T) into the remote; ensure polarity of battery
matches the polarity indicated in the battery compartment
-- positive (+) to positive (+) and negative (-) to negative
(-). Replace the battery cover.
Note: If remote doesn’t turn on the fan, see
TROUBLESHOOTING (page 17).
7
H
J
Q
8
9
Wall
Bracket
Wall Bracket
Screw
Small Plate
+
-
Remote
Learn
Button
Battery
Battery
Compartment
Battery
Cover

15
Fig. 2A Fig. 2B
Fig. 2C
2
OPERATING INSTRUCTIONS
1. To operate the fan using the remote, press and
release the following buttons:
000 - High fan speed
00 - Medium fan speed
0 - Low fan speed
O - Turns the fan o󰀨.
- Press this button quickly to turn the lights on
or o󰀨. Press and hold to dim or brighten lights (for
dimmable bulbs only). Note: The receiver stores the
light setting when the light is turned o󰀨. When the
light is turned on again, it starts with the most recent
setting.
2. The reverse switch is located on the top of the motor
assembly (G).
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
di󰀨erence in your comfort. Note: Wait for the fan to
stop before moving the reverse switch.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill
e󰀨ect (Fig. 2a).
In cooler weather, push the reverse switch right,
which will result in upward airow that can help move
hot air o󰀨 the ceiling area (Fig. 2b).
Important:The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
Reverse Switch
2
00
0000
ORemote
1

16
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Use 40-watt max. E12-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Battery Replacement for Remote: Use A23 12-volt battery. Exhausted batteries should be removed
from the remote. Non-rechargeable batteries should not be recharged. Do not dispose of batteries in
re, as they may explode or leak.
Important: Shut o󰀨 the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o󰀨 or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o󰀨. Loosen the
canopy and check all connections.
3. Check that the single-pin
connectors from the light kit and
fan are connected properly.
4. Push the reverse switch
completely to the left or right.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not compatible
with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do NOT use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
a blade balancing kit (sold separately).
3. Turn o󰀨 the power. Loosen the canopy
and verify that the mounting bracket
is secure to the electrical outlet box.
The bracket must be ush without
movement against the outlet box.
4. Use a longer downrod (sold separately)
or move the fan to another location.
5. Lift up the yoke cover and tighten the
set screw to the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure the single-pin connectors are
properly secured.
3. Turn the power o󰀨 and check all
connections at the ceiling outlet box.
Remote control
does not work.
1. Power surge may have
cleared memory and remote
needs to be re-synced to the
receiver.
2. Battery in remote control
needs to be replaced.
3. Interference from another
remote.
1. Turn power to fan o󰀨 and back on.
Within 30 seconds, press the LEARN
button (or the HIGH and LOW buttons)
for 5 seconds. When syncing is
complete, the fan will start on low
speed with light (if applicable) o󰀨.
2. Insert new 12V battery in battery
compartment of the remote control (see
page 14).
3. If there are several fans in close
proximity, turn power o󰀨 to other fans
and re-sync the remote (see Corrective
Action 1 above).

18
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by a󰀩xing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

19
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
PART DESCRIPTION PART#
A Downrod 4L000011110
D Mounting Bracket 4L000011290
E Canopy 4L000014640
F Canopy Cover 4L000011150
H Light Pan 4L000011220
L Yoke Cover 4L000011170
O Light Kit 4L000011210
Q Light Cage 4L000011250
R Blade Arm (x 5) 4L073900001
S Blade (x 5) 4L085290000
T Remote Pack 4L000011280
HW Hardware Kit 4L000011240
9414 PB · 020121
A D F
E
LH
HW
O Q RS
T
00
0000
