Harbor Breeze 52 IN CLASSIC STYLE 40081 User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
1
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Lowes.com/harborbreeze
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB13350
ITEM #0451798, 0451799
52 IN CLASSIC STYLE
CEILING FAN
MODEL #40081, 40082
Español p. 22
LISTED FOR
WET LOCATION

2Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

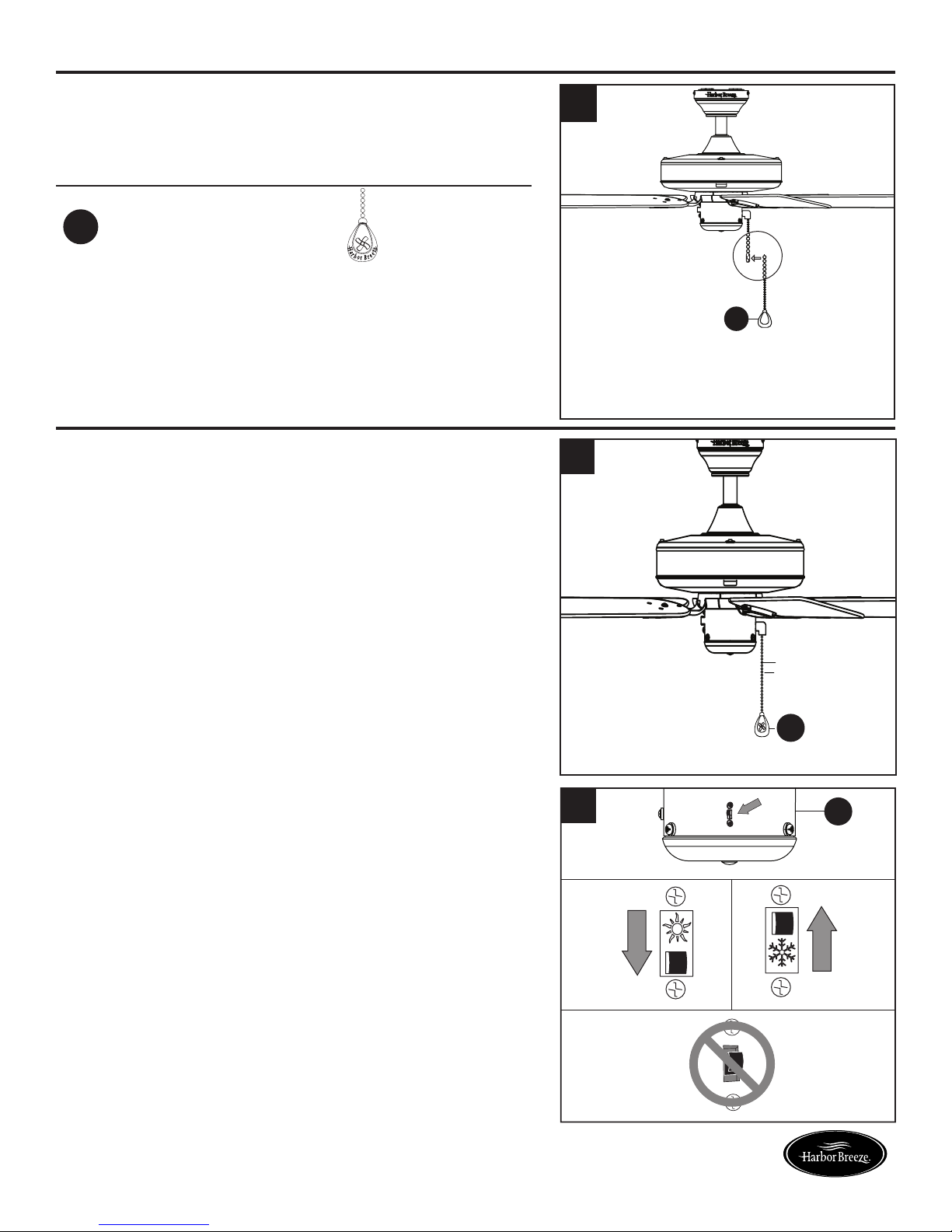

Operating Instructions .............................................................17
Care and Maintenance ............................................................18
Troubleshooting..................................................................18
Limited Lifetime Warranty ..........................................................20
Replacement Parts List ............................................................21

3Lowes.com/harborbreeze

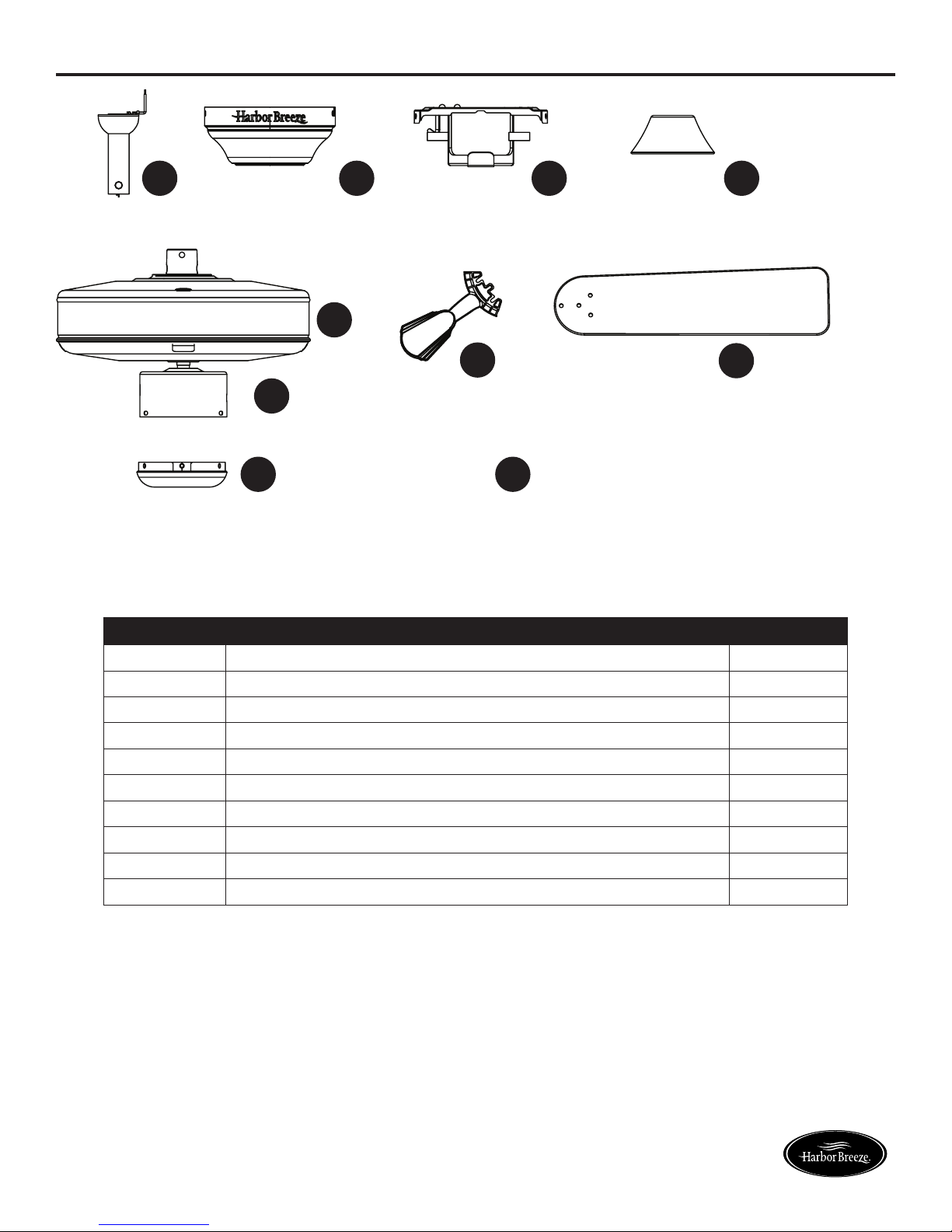

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy (preassembled to Mounting Bracket (C)) 1
C Mounting Bracket 1
D Yoke Cover 1
EMotor Assembly 1
F Switch Housing (preassembled to Motor Assembly (E)) 1
G Switch Housing Cap (preassembled to Switch Housing (F)) 1
HBlade Arm 5
I Blade 5
J Canopy Cover (preassembled to Canopy (B)) 1
A
E
F
G
HI
B
J
C D

4Lowes.com/harborbreeze

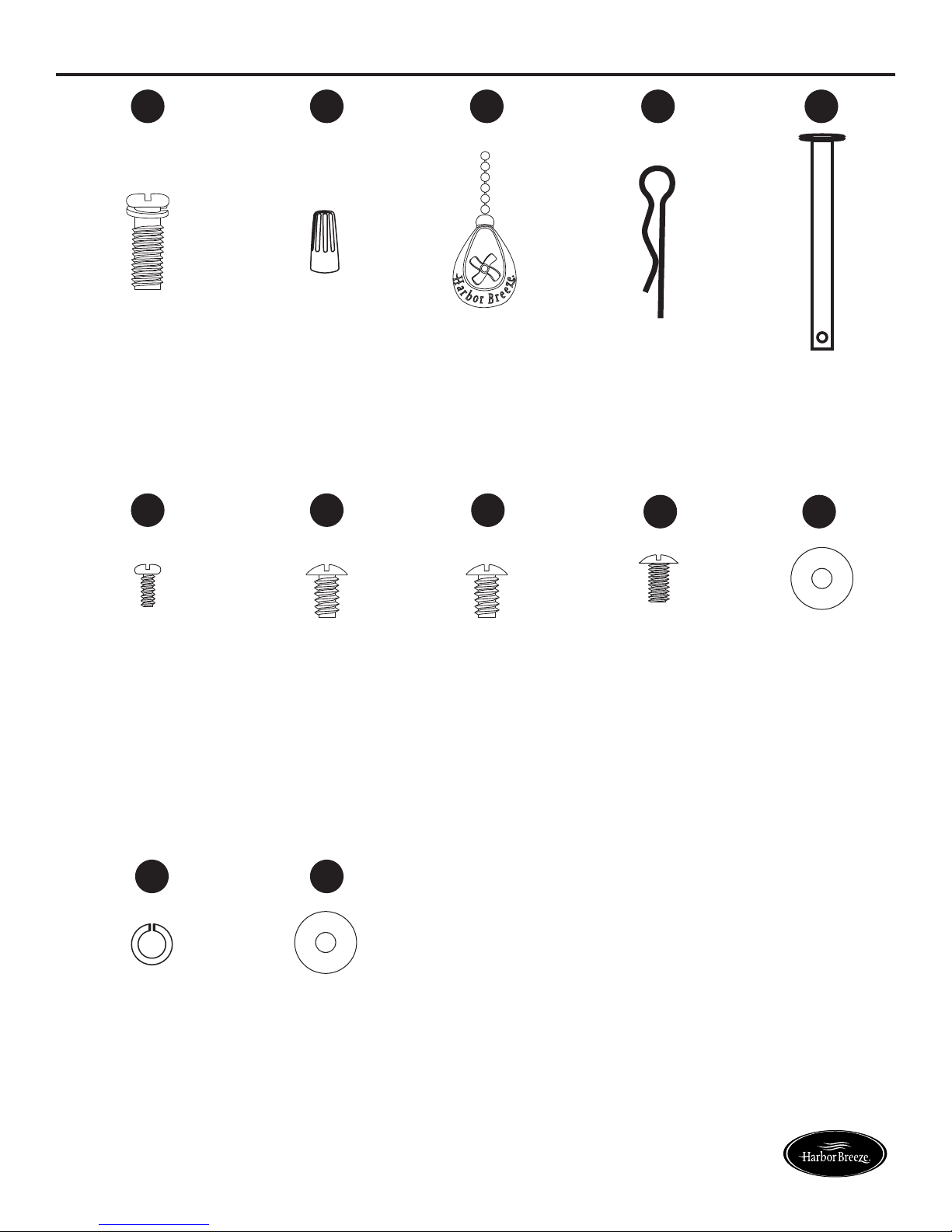

HARDWARE CONTENTS
Motor Screw
Qty. 10
(preassembled to
Motor Assembly (E))
+ 1 extra
Wire
Connector
Qty. 3 + 1 extra
Pull Chain
Extension
Qty. 1
Downrod Clip
Qty. 1
(preassembled to
Downrod (A))
Downrod Pin
Qty. 1
(preassembled to
Downrod (A))
Motor Housing Set
Screw
Qty. 2
(preassembled to
Motor
Assembly (E))
Closemount
Screw
Qty. 3
(preassembled to
Motor
Assembly (E))
Mounting Bracket
Screw
Qty. 4
(preassembled to
Mounting Bracket
(C))
Blade Screw
Qty. 5 + 1 extra
Blade Washer
Qty. 5 + 1 extra
Spring Washer
Qty. 10
(preassembled to
Motor Screw (AA))
+1 extra
Rubber Washer
Qty. 5 + 1 extra
AA
KK LL
BB
GG
FF HH II JJ
CC DD EE

5Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
ElectricalCode,andANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 12.32 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
DANGER: If using the fan in a wet location, the fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical
shock or death.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoan
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
theoutletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure they are
secured.
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damagetothenish.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

7Lowes.com/harborbreeze
INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
2. Determine the mounting method to use.
Helpful Hint: Downrod mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (not included). Angle
mounting is best suited for angled or vaulted ceilings.
A longer downrod is sometimes necessary to ensure
proper blade clearance.
Note:Flushmount installation is not available for this
item.
Important:If using the angle mount, check to ensure
the ceiling angle is not steeper than 23°.
2
Downrod Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (I) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (I) will be at least 7 ft. above the
oor. A
I
3
7 ft.
minimum
30 in.
minimum

8Lowes.com/harborbreeze
C
INITIAL INSTALLATION
4. Remove the two mounting bracket screws (HH)
from the round holes of the canopy (B). Set aside
for later use. Detach mounting bracket (C) from
canopy (B).
Hardware Used
HH Mounting
Bracket Screw x 2
4
B
HH
C
5. Feed black, blue and white wires up from the plug on
the mounting bracket (C) up through the hole in the
top.
6. Remove and discard the three rubber stoppers and
theveplasticspacersfromtheundersideofthe
motor assembly (E).
For Standard or Angle Mounting Instructions,
continue to page 9. For Closemount Instructions,
proceed to page 12.
5
Rubber
Stopper
Plastic
Spacer
E
6

9Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.
1. Connect with supply and mounting bracket (C) wires
according to the diagram and these steps:
•ConnecttheWhitewirefromthemountingbracket
(C) to the White supply wire.
•ConnecttheBlueandBlackwirefromthemounting
bracket (C) to the Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (BB).
Note:The Black wire is hot power for the fan. The
White wire is common. The Blue wire is
hot power for light (sold separately; wiring
instructions will differ if optional light kit is
purchased. Refer to light kit manufacturer’s
instructions). The Green wire is the ground
wire and will be connected later. If house wires
are different colors than referred to above, stop
immediately. It is recommended a professional
electrician determines the proper wiring.
Hardware Used
BB Wire Connector x 2
2. Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
Hardware Used
BB Wire Connector x 2
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (BB) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Black
and White wire connections on opposite sides of the
outlet box.
BB
BB
BB
A
Mounting
Bracket
Black
White
Black Blue White
1
2
3

10 Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Feed green/bare (ground) supply wire down through
the hole in the top of the mounting bracket (C). Secure
the mounting bracket (C) to the outlet box using
screws and washers provided with the outlet box.

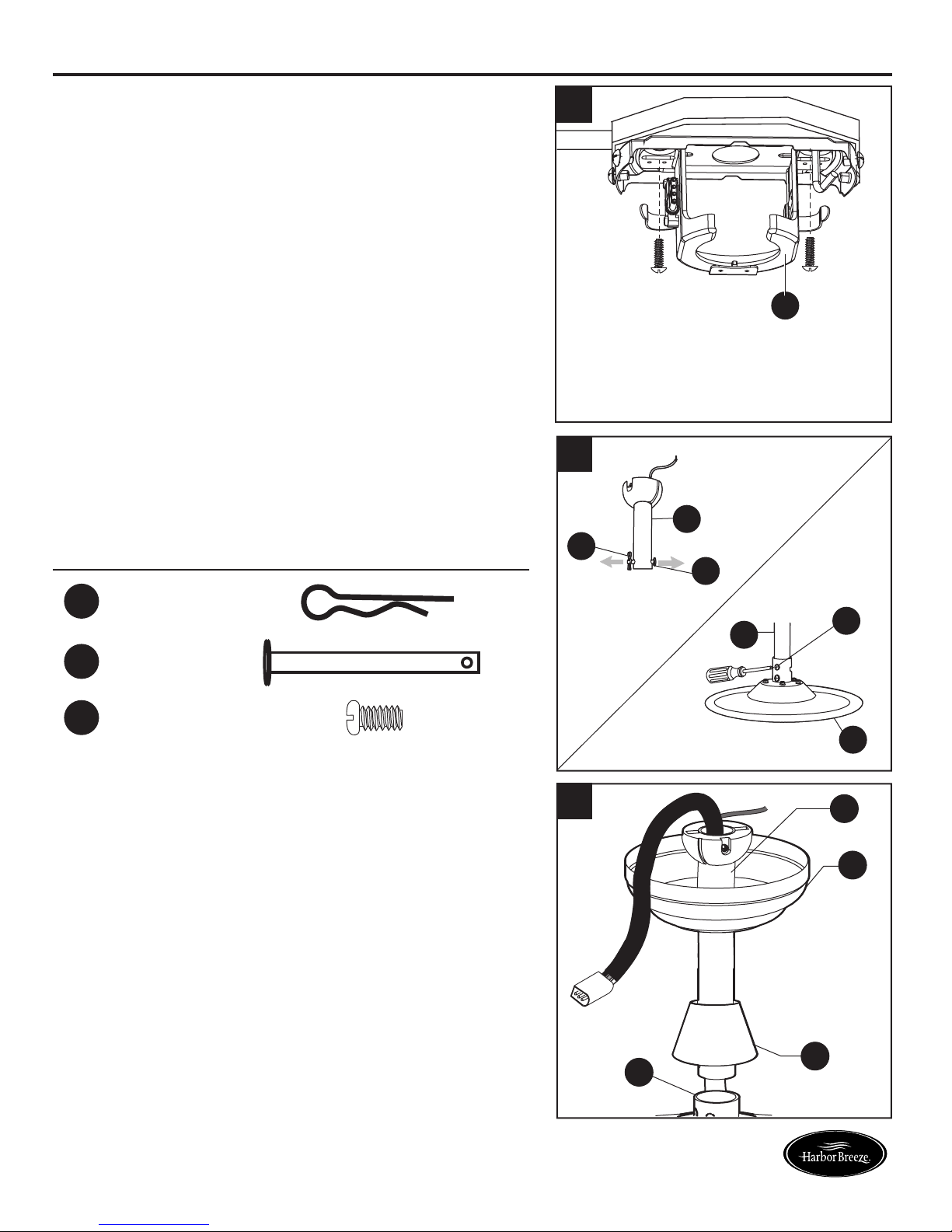

5. Remove the downrod clip (DD) and downrod pin
(EE) from the downrod (A). Then partially loosen the
motor housing set screws (FF) in the yoke at the top
of the motor assembly (E).
Hardware Used
DD Downrod Clip x 1
EE Downrod Pin x 1
FF Motor Housing
Set Screw x 2
6. Place the downrod (A) into the canopy (B) and yoke
cover (D). Feed the wire harness from the motor
assembly (E) through the downrod (A).
E
A
DD
EE
FF
A
C
12 A
B
D
E
4
5
6

11 Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
7. Slide the downrod (A) into the yoke of the motor
assembly (E), align the holes, and re-install the
downrod clip (DD) and downrod pin (EE). Then
tighten the motor housing set screws (FF).
Hardware Used
DD Downrod Clip x 1
EE Downrod Pin x 1
FF Motor Housing
Set Screw x 2
DD
FF
A
E
EE

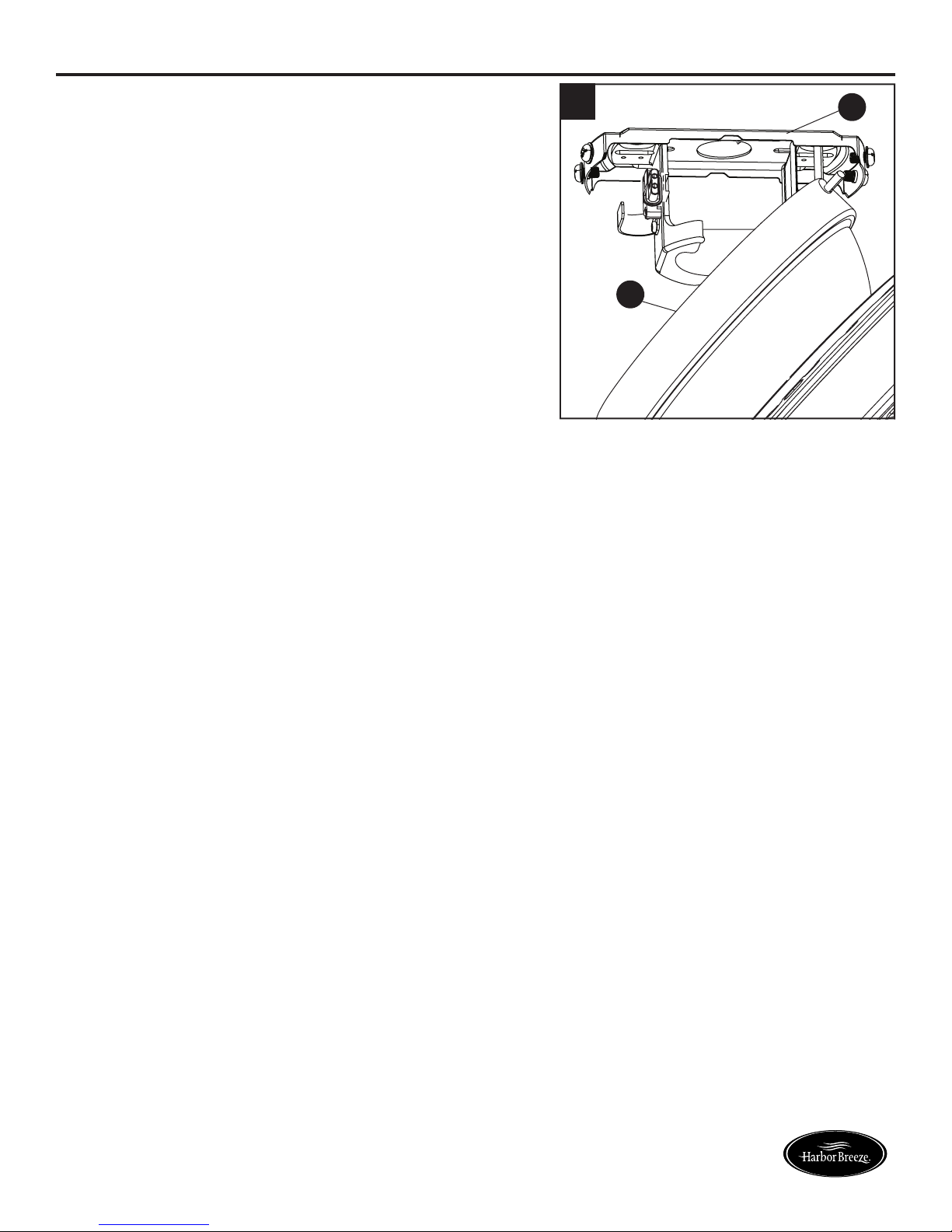

8. Carefully lift the downrod (A) onto the mounting
bracket (C). Rotate the downrod (A) until the slot on
the downrod (A) engages the tab on the mounting
bracket (C).
DANGER: Failure to align the slot in the ball
with the tab may result in serious injury or death.
C
A
C
A
Tab
Slot
9. Connect the green wires from the downrod (A) and
the mounting bracket (C) to the bare/green (ground)
supply wire using a wire connector (BB).
Then, wrap electrical tape around the wire connector
(BB) down to the wire. Turn the spliced/taped wires
upward and gently push the wires and wire connector
(BB) into the outlet box.
Proceed to Final Installation on page 15.
Hardware Used
BB Wire Connector x 1
7
8
C
A
BB
9

12 Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTION
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.
1. Connect with supply and mounting bracket (C) wires
according to the diagram and these steps:
•Connectthegreenwirefromthemountingbracket
(C) to the Bare/Green (ground) supply wire.
•ConnecttheWhitewirefromthemountingbracket
(C) to the White supply wire.
•ConnecttheBlueandBlackwirefromthemounting
bracket (C) to the Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (BB).
Note:The Black wire is hot power for the fan. The
White wire is common. The Blue wire is hot power
for light (sold separately; wiring instructions will
differ if optional light kit is purchased. Refer to light
kit manufacturer’s instructions). The Green wire
is the ground. If house wires are different colors
than referred to above, stop immediately. It is
recommended a professional electrician determines
the proper wiring.
Hardware Used
BB Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
Hardware Used
BB Wire Connector x 3
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (BB) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Black
and White wire connections on opposite sides of the
outlet box.
BB
BB
BB
BB
A
Mounting Bracket
Black
White
Bare/Green
Black Blue White
Green
1
2
3

13 Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTIONS
4. Secure the mounting bracket (C) to the outlet box
using screws and washers provided with the outlet
box.
5. Remove the canopy cover (J) from the bottom of the
canopy (B).
Helpful Hint: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. high. The
downrod (A) and canopy cover (J) are not used in
this type of installation.
6. Remove closemount screws (GG) from the top of the
motor assembly (E). Align the canopy (B) with the
holes in the top of the motor assembly (E). Secure
the canopy (B) to the top of the motor assembly (E)
with the closemount screws (GG).
Hardware Used
GG Closemount
Screw x 3
1
J
B
C
4
5
E
B
GG
6

14 Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTIONS
7. Raise the fan and place the canopy (B) on the hook
on the mounting bracket (C).
B
C
7

15 Lowes.com/harborbreeze
FINAL INSTALLATION
Note:Downrod (A) is shown/referenced, but instructions are applicable to both standard and
closemount-style installations.
1. Wrap the wire harness coming from the downrod
(A) around the hooks on the back of the mounting
bracket (C).
Note: Extra wire harness length accommodates
longer downrods (sold separately).
2. Connect the pin connector from the mounting
bracket (C) to the pin connector at the end of the wire
harness.
3. Align the key slots on the canopy (B) with the heads
of the mounting bracket screws (HH) preassembled
on mounting bracket (C). Lift the canopy (B) up and
rotate it clockwise until the mounting bracket screws
(HH) engage the key slots.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the
Green and White wire connections on opposite
sides of the outlet box from the Black and Blue (if
applicable) wire connections.
Hardware Used
HH Mounting Bracket
Screw x 2
C
A
Hook
C
A
1
2
B
C HH
3

16 Lowes.com/harborbreeze
H
AA
E
II
JJ
I
H
LL
FINAL INSTALLATION
4. Secure the canopy (B) with mounting bracket screws
(HH) previously removed (Step 4, page 8). Tighten all
mounting bracket screws (HH) securely.
Hardware Used
HH Mounting Bracket
Screw x 4
5. Align blade arm (H) studs with their corresponding
holes in the blade (I) and then insert the blade screw
(II), blade washer (JJ) and rubber washer (LL) to
attach one blade arm (H) to a blade (I). Tighten the
blade screw (II). Repeat for each blade (I).
Hardware Used
II Blade Screw x 5
Blade Washer x 5
Rubber
Washer x 5
6. Slide the two holes of a blade arm (H) over the two
motor screws (AA) preassembled on motor assembly
(E). Tighten motor screws (AA) to secure blade arm
(H). Repeat for remaining blade arms (H).
Hardware Used
AA Motor Screw x 10
B
HH
4
5
6
JJ
LL
Stud

17 Lowes.com/harborbreeze
FINAL INSTALLATION
7. Attach the pull chain extension (CC) or custom pull
chain extension (not included) to the fan pull chain.
Hardware Used
CC Pull Chain
Extension x 1
H
a
r
b
o
r
B
r
e
e
z
e
CC
7
OPERATING INSTRUCTIONS
1. The pull chain labeled FAN has four positions to
control fan speed. One pull is HIGH, two is MEDIUM,
three is LOW and four turns the fan OFF.
2. Use the fan reverse switch, located on the switch
housing (F) to optimize your fan for seasonal
performance.
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting
in winter without feeling a difference in your comfort.
Note:Wait for the fan to stop before moving the
reverse switch.
2A. In warmer weather, push the reverse switch down
to display a Sun icon, which will result in downward
airowcreatingawindchilleffect.
2B. In cooler weather, push the reverse switch up to
displayaSnowakeicon,whichwillresultinupward
airowthatcanhelpmovestagnant,hotairoffthe
ceiling area.
Important:The reverse switch must be set either
completely up or down in order for the fan
to function correctly. If the reverse switch
is set in the middle position, the fan will
not operate (Fig. 2C).
1
CC
Fig. 2A Fig. 2B
Fig. 2C
F
2
H
a
r
b
o
r
B
r
e
e
z
e
Fan
Pull Chain
Fan Pull
Chain

18 Lowes.com/harborbreeze
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
thenish.Cleanthebladeswithalint-freecloth.Youmayoccasionallyapplyalightcoatoffurniture
polish to wood blades for added protection.
Important:Shut off the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch to
either the left or right.
2. Make sure the wall switch is turned
on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The break-in period has not
surpassed.
5. The outlet box is not secure.
6. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Run the fan continuously for 24 - 48
hours on medium or high speed for
a “break in” period.
5. Ensure the outlet box is secured to
the building structure.
6. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

19 Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade
from the opposite side. Or balance
the fan using a balancing kit (not
supplied).
3. Turn off the power. Loosen the
canopy and verify that the mounting
bracket is secure to the electrical
outlet box. The bracket must be
ushwithoutmovementagainstthe
outlet box.
4. Use a longer downrod or move the
fan to another location.
5. Lift up the yoke cover and tighten
the set screw to the yoke until
secure.

20 Lowes.com/harborbreeze
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plexiglas blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbyafxinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.
