Harbor Breeze AR09-52WHT User manual

OLLINGTON INDOOR
CEILING FAN
HARBOR BREEZE and logo design are
trademarks or registered trademarks of LF,
LLC. All rights reserved.
MODEL # AR09-52WHT AR09-52BLK
AR09-52BN
Español p. 19
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
also contact us at [email protected].
1
ITEM # 5497070 5497071
5497072
AS23223

2
Safety Information .....................................................................................................
Package Contents .....................................................................................................
2
5
6
6
7
9
10
12
15
16
16
17
18
Hardware Contents ...................................................................................................
Preparation ................................................................................................................
Initial Installation ........................................................................................................
Fan Mounting ............................................................................................................
Wiring ........................................................................................................................
Final Installation ........................................................................................................
Operating Instructions ...............................................................................................
Care and Maintenance ..............................................................................................
Troubleshooting .........................................................................................................
Limited Lifetime Warranty ..........................................................................................
Replacement Parts List .............................................................................................
TABLE OF CONTENTS
SAFETY INFORMATION
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: Dimmable to 10% with select dimmers. See lowes.com for more information.

3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product.
SAFETY INFORMATION
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades
to the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 16.94 lbs.
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount to an outlet box
UL-Listed acceptable for fan support of 35 lb. (15.9 kg) or less and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
To reduce the risk of fire, electric shock or personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the outlet box.
NEED HELP? In the event you have broken glass or are missing parts, call 888-251-1003. Do
not return the ceiling fan to the place of purchase. Be sure to have available the owner's manual,
item or model number, finish, color, type of glass, etc.
Attention Statement needs to read this way.
ATTENTION: The use of a fan brace with all ceiling fans is recommended. Application style
vary. Braces are sold separately in the lighting or electrical department.
ATTENTION: Do not use an extension cord with this fan.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to
avoid electrical shock.

4
SAFETY INFORMATION
CAUTION
To reduce the risk of personal injury, use only the screws provided with the outlet box.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly
to ensure that they are secured.
WARNING
Risk of Fire and Electric Shock: Do not repair or service this light kit. The light source is
designed for this specific application and can overheat if serviced by untrained personnel. If
any servicing is required, call our customer service department (at 888-251-1003) for return
authorization and shipping instructions.

5

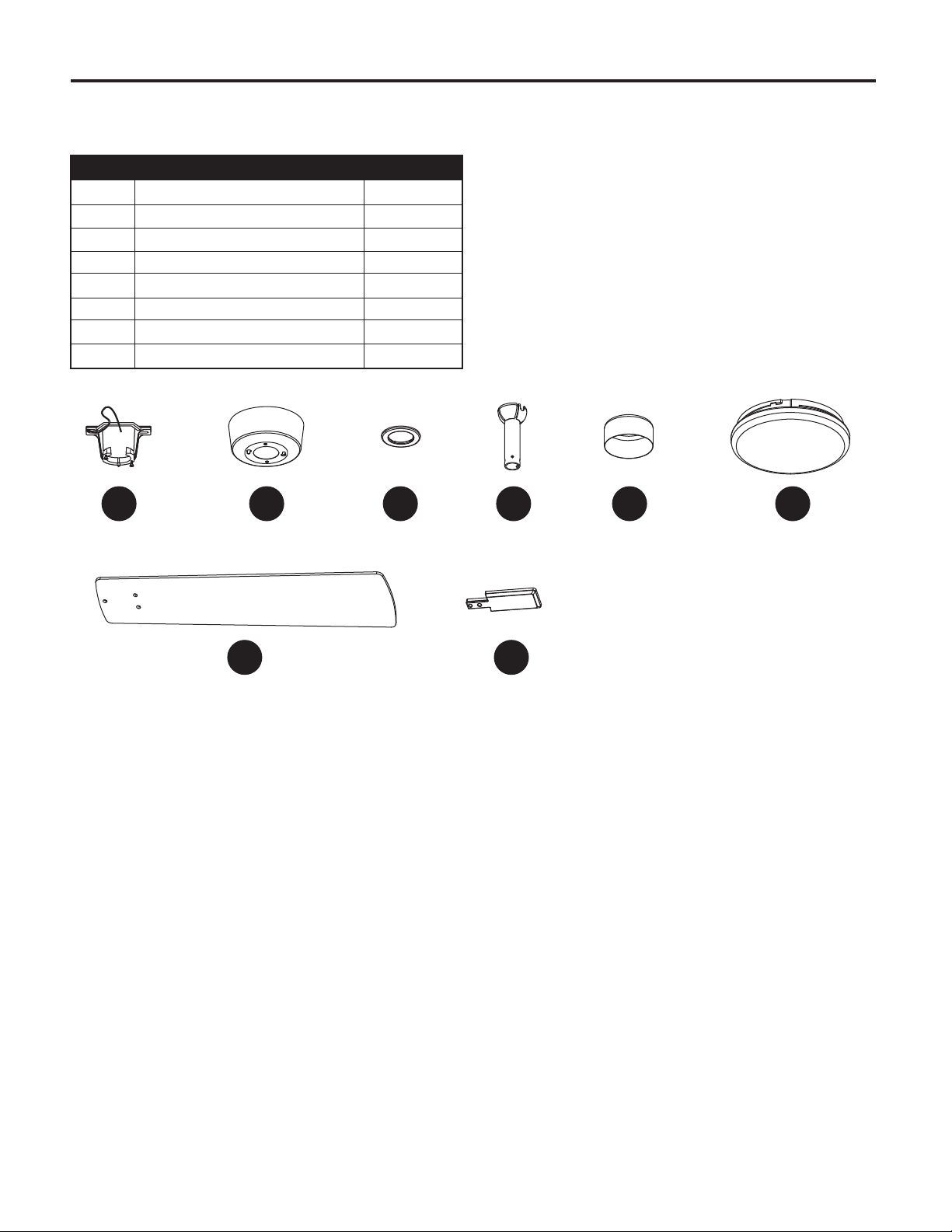

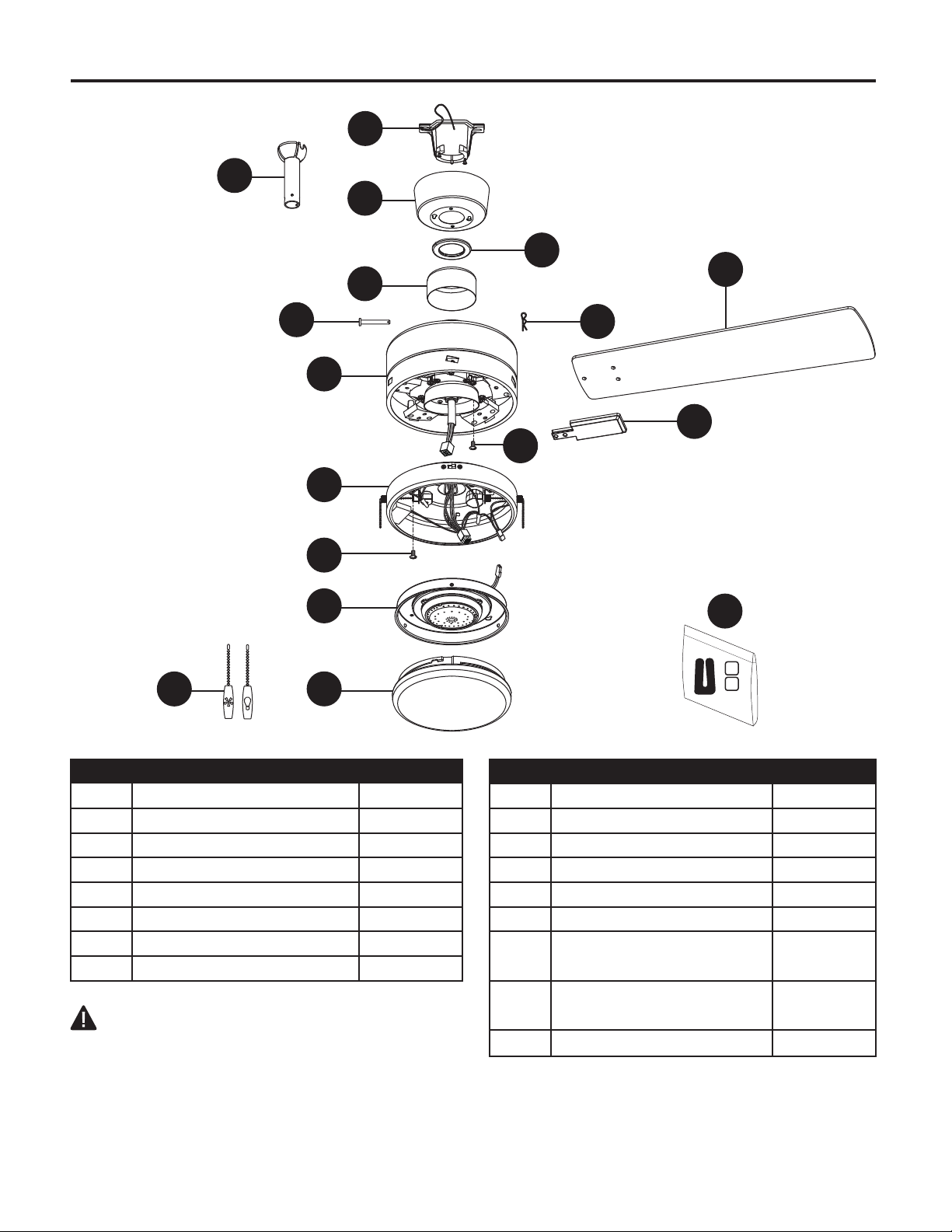

PACKAGE CONTENTS
D
B
E
F
G
H
I
N
L
A
C
M
K
O
P
J
IMPORTANT REMINDER: You must use
the parts provided with this fan for proper
installation and safety.
A
B Canopy 1
Mounting Bracket 1
C
D
Canopy Bottom Cover 1
Downrod
E Coupling Cover 1
1
F Fan motor Assembly 1
1
G Switch Housing
1H 20W LED Light Kit
DESCRIPTIONPART QUANTITY
I
J Blade 5
Glass Shade 1
K
L
Blade Arm
Pull chain and fob
5
Cotter Pin (preassembled)
M
Clevis Pin (preassembled)
1
1
2
N
Switch Housing Mounting
Screw (preassembled) 3
3
O
LED Light Kit Mounting
Screw (preassembled)
1
P
Q Balance Kit
DESCRIPTIONPART QUANTITY
Q

6
Fiber
Blade
Washer
Qty. 15
+ 1 extra
Blade
Screw Blade
Arm
Screw
Qty. 15
+ 1 extra
Qty. 10
+ 1 extra
Wire
Connector
Qty. 4
HARDWARE CONTENTS
PREPARATION
BB CC
AA DD
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached
to the building structure and can support the full weight of the fan. Failure to do this can result in
serious injury or death. The stability of the outlet box is essential in minimizing wobble and noise
in the fan after installation is complete.
CAUTION: Be sure outlet box is properly grounded and a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove
motor from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure they
are secured.

7
INITIAL INSTALLATION
1. Turn off circuit breakers and wall switch to the
fan supply line leads.
2. Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
*Helpful Hint: Standard mounting is best suited
for ceilings 7 ft. high or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
3. Check to make sure blades (J) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
DANGER: Failure to disconnect power
supply prior to installation may result in
serious injury or death.
1
ON
OFF
ON
OFF
2
3
J
6

8
Remove the canopy bottom cover (C) from
the canopy (B) by turning the canopy
bottom cover (C) counterclockwise.
Remove the mounting bracket (A) from the
canopy (B) by loosening canopy mounting
screws a half turn from the screw head.
Next, turn the canopy (B) counterclockwise
to remove the mounting bracket (A) from
the canopy (B).
Secure mounting bracket (A) to outlet box
(not included) using screws, lock washers
and flat washers provided with the outlet
box.
*NOTE: It is very important you use the
proper hardware when installing the
mounting bracket (A) as this will support
the fan.
IMPORTANT: If using the angle mount,
make sure open end of mounting bracket
(A) is installed facing the higher point of the
ceiling.
INITIAL INSTALLATION
4
5
6
4.
5.
Remove the cotter pin (M) and clevis pin
(N), and loosen the two collar set screws
from the fan motor assembly collar.
6.
A
A
B
C
Flat Washers
Set Screw
Set Screw
Collar
Outlet Box
Screws
Lock Washers
Canopy Mounting
Screw Canopy Mounting
Screw
N
M

F
C
A
D
E
9

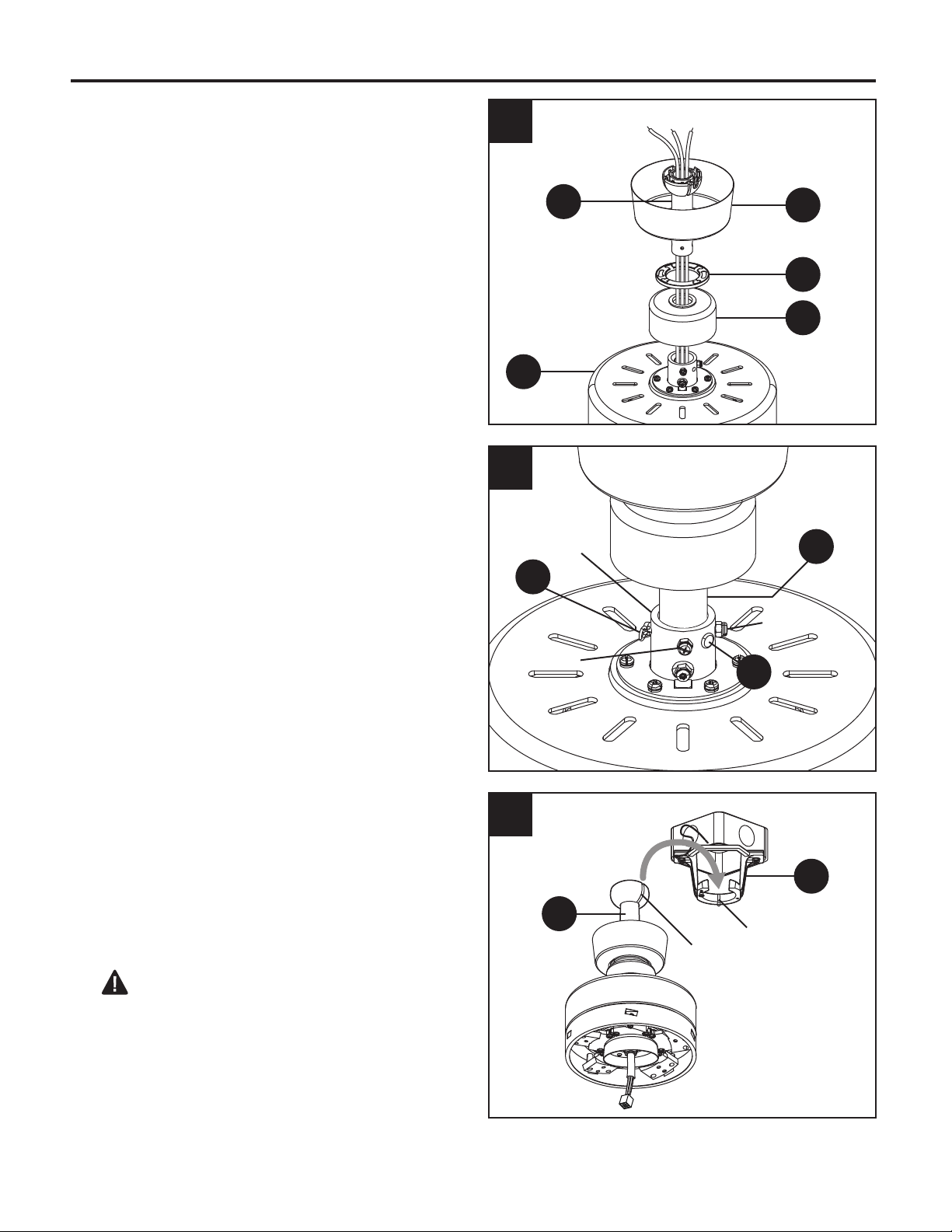

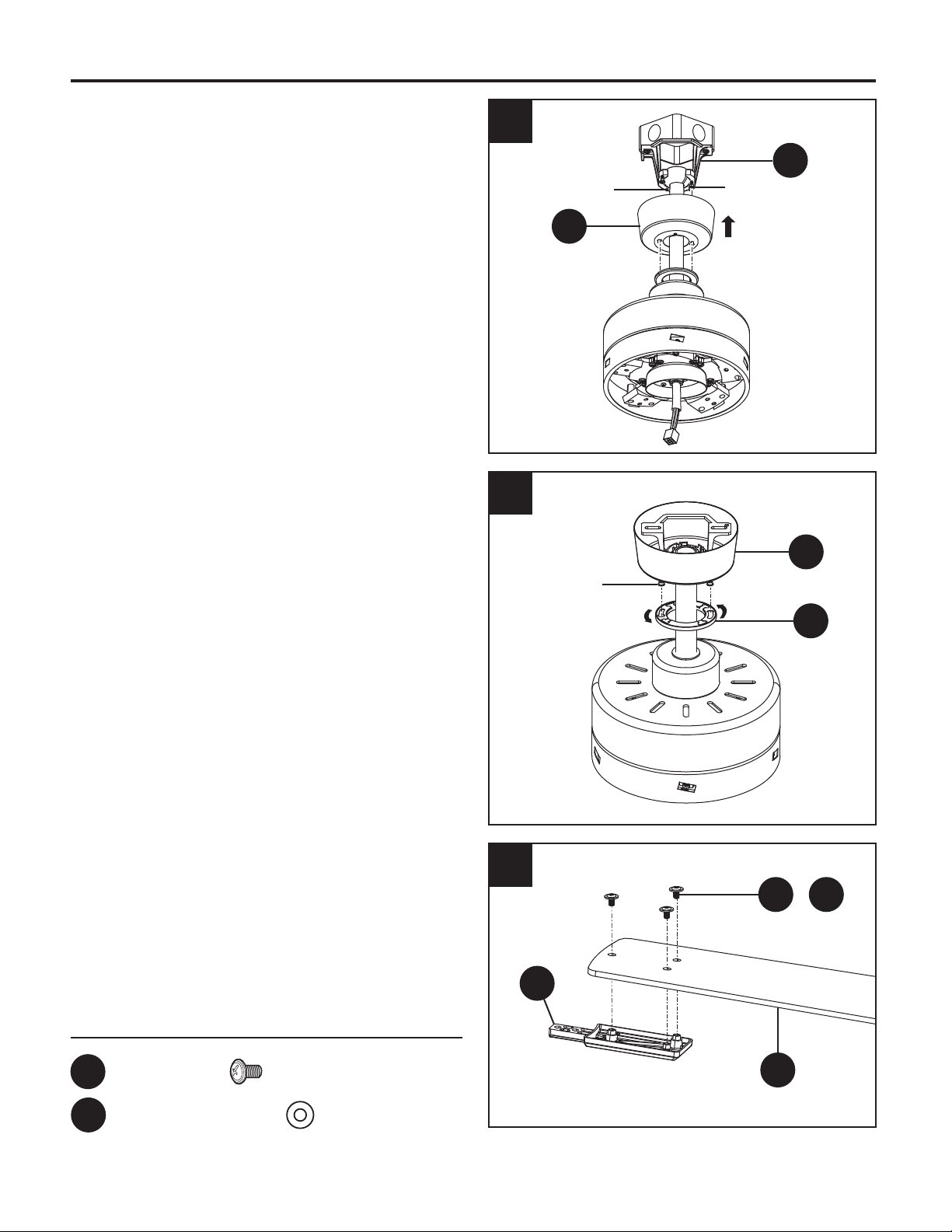

FAN MOUNTING
D
D
B
Insert downrod (D) through canopy (B),
canopy bottom cover (C) and coupling cover.
Thread wires from fan motor assembly (F)
up through downrod (D).
1
3
1.
Slip downrod (D) into collar, align holes and
re-install clevis pin (N) and cotter pin (M).
Tighten set screws in collar.
2.
Carefully lift the fan motor assembly (F) up
to the mounting bracket (A) and seat the
downrod (D) in the mounting bracket (A)
socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the
groove in the downrod (D). This will help to
balance the ceiling fan.
3.
2
Set Screw
Slot
Tab
Set Screw
N
M
DANGER: Failure to align slot in ball
with tab may cause the fan to wobble or fall,
which could result in serious injury or death.
Collar

BLACK
(WALL
SWITCH)
10
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY PULL CHAINS
1A
BLACK (POWER)
WHITE (NEUTRAL)
BLACK
GROUND/GREEN (BARE)
WHITE
120V POWER
FROM CEILING
BLUE &
BLACK
GREEN
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
NOTE: This fan is remote control adaptable (remote control not included). If you choose to
purchase a remote control for use with the fan, be advised that the dimming function for the light
will not be operable. Dimming capability for this light is only possible by using wall controls that
control the fan and light separately, such as the WM-7WWL (not included).
CAUTION: Be sure outlet box is properly grounded and a ground (green or bare) wire is present.
WIRING

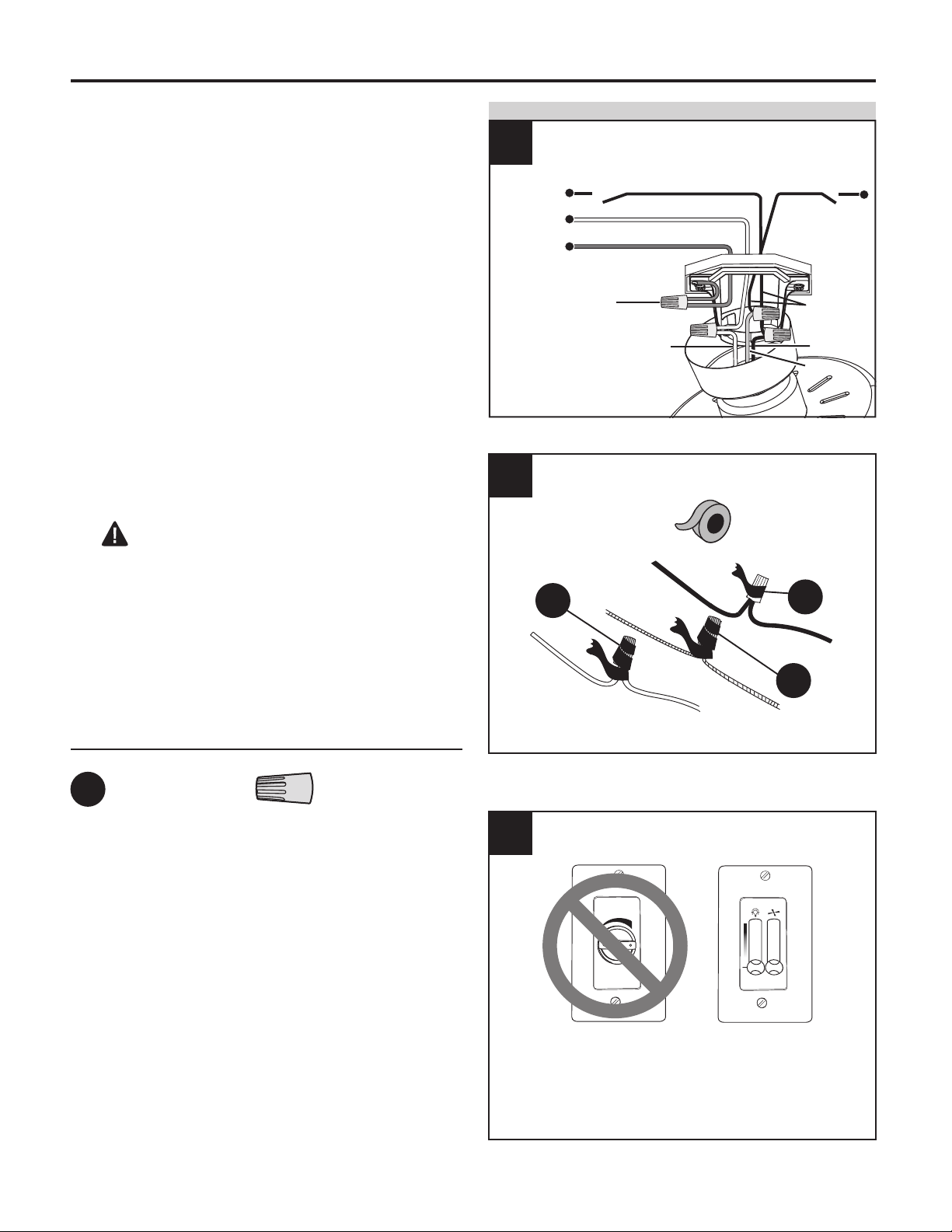

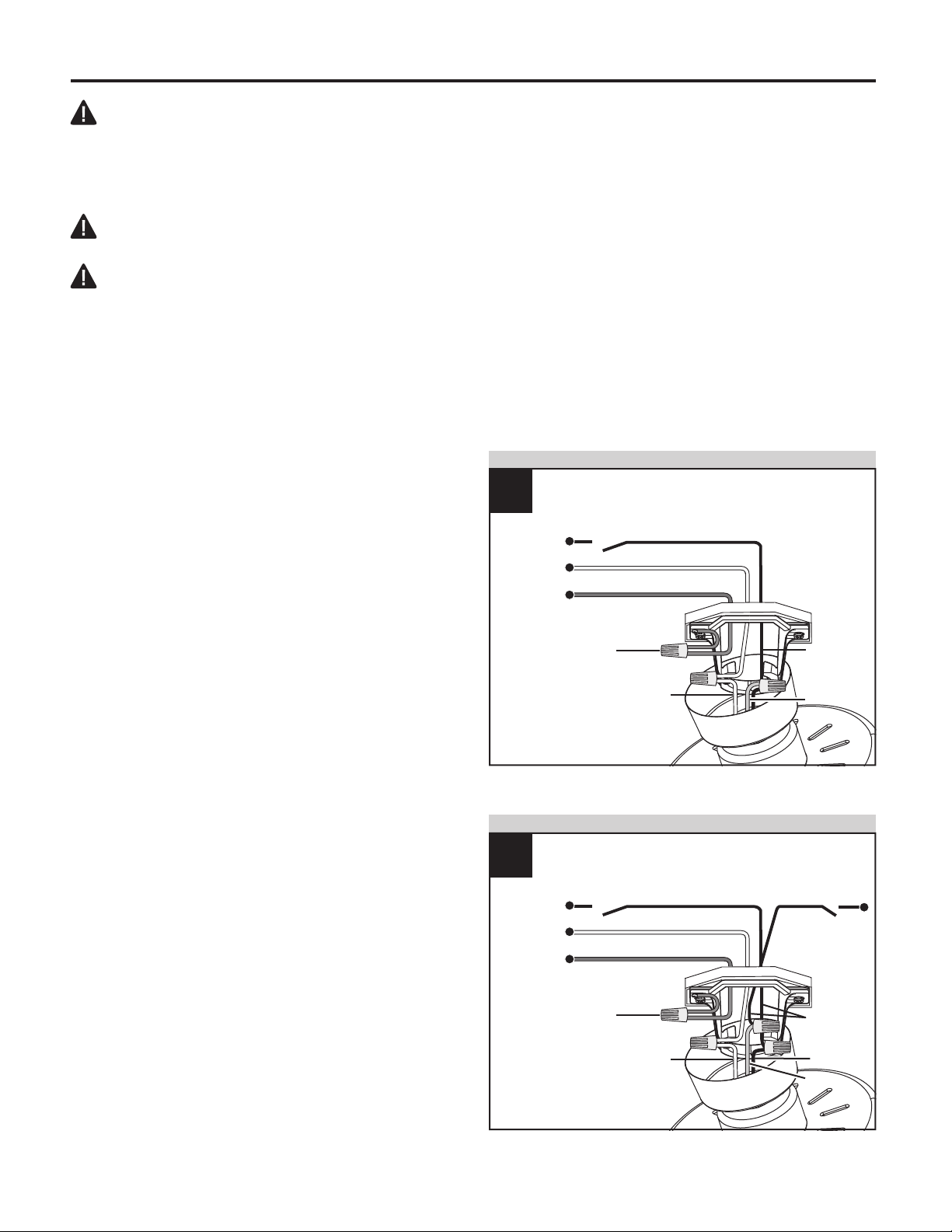

Choose wiring diagram (Fig. 1A, Fig. 1B or
Fig. 1C) that fits your situation and make
appropriate wiring connections as follows:
[IMPORTANT: For each wire connection
below, use one of the wire connectors (AA),
making sure to screw wire connector (AA)
on in a clockwise direction.]
1A. FAN AND LIGHT CONTROLLED BY
PULL CHAINS: Connect BLACK and BLUE
wire from fan to BLACK wire from ceiling.
Connect WHITE wire from fan to WHITE
wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on
downrod (D) and mounting bracket (A)) to
BARE/GREEN wire from ceiling.
1B. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall
switch, connect BLACK wire from fan to
BLACK wire from ceiling. Connect BLUE
wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from
ceiling. Connect all GROUND (GREEN)
wires together from fan (on downrod (D) and
mounting bracket (A)) to BARE/GREEN wire
from ceiling.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
1B
BLACK (POWER)
WHITE (NEUTRAL)
BLACK
BLACK
GROUND/GREEN (BARE)
WHITE
120V POWER
FROM CEILING
BLUE
GREEN
1.

11
1C. FAN AND LIGHT CONTROLLED BY
TWO WALL SWITCHES: If you intend to
control the fan and light with separate wall
switches, connect BLACK wire from fan to
BLACK wire from the independent wall
switch for the fan. Connect BLUE wire from
fan to the BLACK wire from the other
independent wall switch for the light.
Connect WHITE wire from fan to WHITE
wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on
downrod (D) and mounting bracket (A)) to
BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan.
BLUE wire is hot power for light kit. WHITE
wire is common for fan and light kit. BARE/
GREEN wire is ground.
BLACK
(WALL
SWITCH)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1C
BLACK (POWER)
WHITE (NEUTRAL)
BLACK
BLACK
GROUND/GREEN (BARE)
WHITE
120V POWER
FROM CEILING
BLUE
GREEN
3. IMPORTANT: Using a full range dimmer
switch (not included) to control fan speed
will cause a loud humming noise from fan.
To reduce the risk of fire or electrical shock,
do NOT use a full range dimmer switch to
control fan speed.
2
AA
AA
AA
3
Dimmer
Switch Speed Switch
For illustrative purposes only--not
intended to cover all types of controls
1
2
3
2. Wrap electrical tape (not included) around
each individual wire connector (AA) down to
the wire.
Turn spliced/taped wires upward and gently
push wires and wire connectors (AA) into
outlet box.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections. Place GREEN and WHITE
connections on opposite side of box from
the BLACK and BLUE (if applicable)
connections.
AA
Hardware Used
Wire Connector x 4
WIRING

12
FINAL INSTALLATION
Make sure connections are neatly tucked
into the ceiling outlet box.
Slide the canopy (B) up to the mounting
bracket (A) and place the key holes on the
canopy (B) over the loose canopy mounting
screws on the mounting bracket (A). Turn
the canopy (B) clockwise until it locks in
place at the narrow section of the key
holes. Make sure the positioning pin (OO)
on the mounting bracket falls into one of
two holes on the canopy (B), and then
tighten the two canopy mounting screws.
1.
Attach the canopy bottom cover (C) to the
canopy (B) by inserting the screw heads
into the key slots in the canopy bottom
cover (C) and rotating it clockwise.
NOTE: Adjust the canopy mounting screws
as necessary until the canopy (B) and
canopy bottom cover (C) are snug.
2.
Attach the blades (J) to the blade arms (K)
using the three blade attachment screws
(BB) and fiber blade washers (CC). Insert a
blade attachment screw (BB) and fiber blade
washer (CC) into the blade arm (K), but do
not tighten. Repeat for the two remaining
screws (BB) and fiber blade washers (CC).
Tighten each screw securely starting with
the center screw. Make sure the blade (J)
is straight. Repeat these steps for the
remaining blades.
3.
C
B
Canopy
Mounting
Screw
2
BB
Hardware Used
CC
Blade Screw
Fiber Blade Washer
x 15
x 15
J
K
BB CC
3
+
B
1
A
Canopy Mounting
Screw
Positioning Pin

13
FINAL INSTALLATION

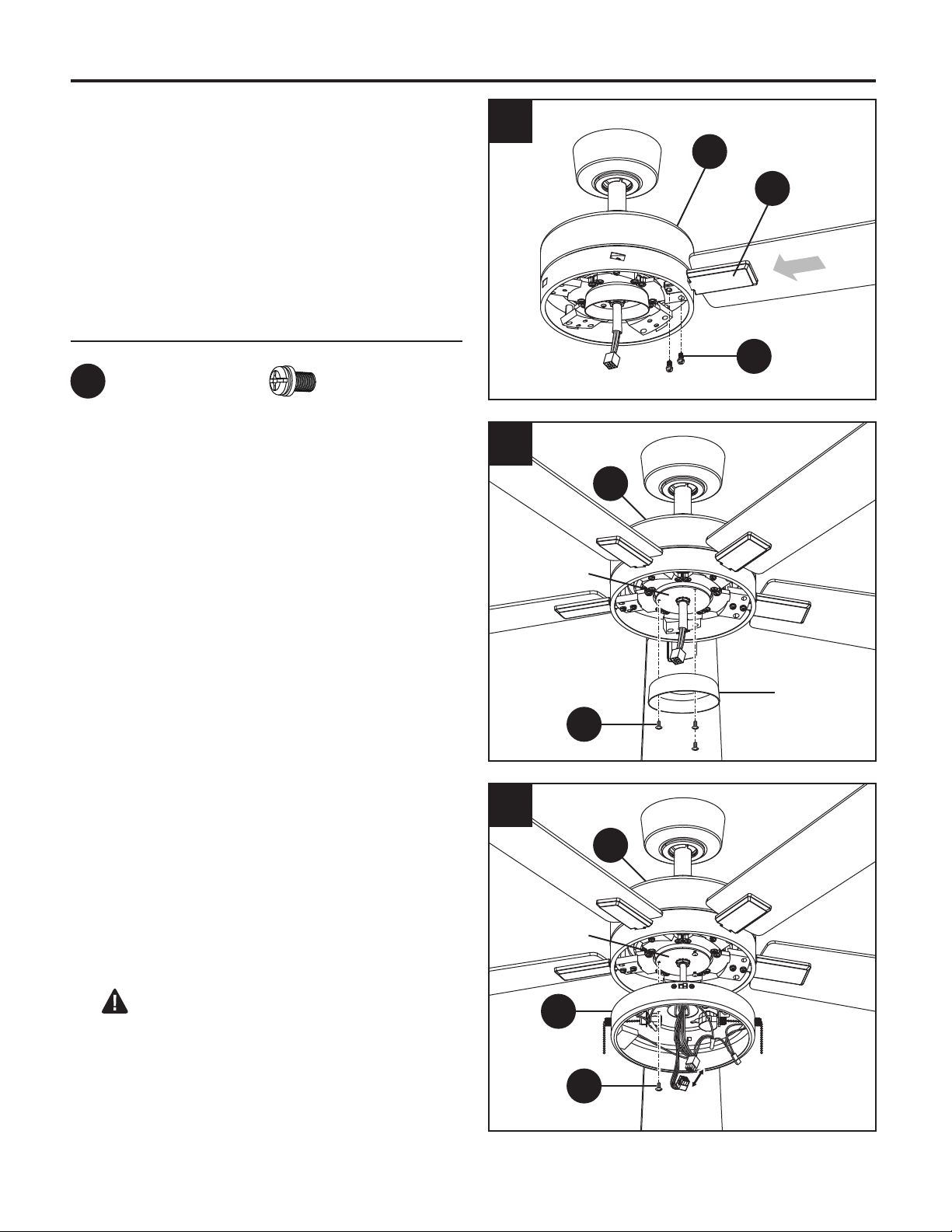

Insert the blade assembly through the slot
in the housing. Align the holes from the
blade arm (K) to the holes from the fan
motor assembly (F), and secure the blade
assembly in place with screws and lock
washers (DD) provided.
Repeat this procedure with the remaining
blades assembly.
4.
The fan motor assembly is shipped with
packing mount to prevent movement during
transportation. Remove the packing mount
from the switch housing mounting ring and
discard prior to attaching the switch
housing (G).
5.
DD
Hardware Used
Blade Arm Screw x 10
Switch Housing
Mounting Ring
6
O
G
F
Reinstall the two switch housing mounting
screws (O) that were just removed back to
the switch housing mounting ring. (Do not
tight.)
While holding the switch housing (G) under
the fan motor assembly (F), snap together
the wire connection plug with the 9-pin plug
from the switch housing (G).
Place the key holes on the switch housing
(G) over the two screws (O) previously
loosened from the mounting ring. Turn the
switch housing (G) until the switch housing
(G) locks in place at the narrow section of
the key holes. Secure by tightening the two
mounting screws (O) previously loosened
and the one (O) previously removed.
6.
CAUTION: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at the
fuse box. Turning power off using the fan
switch is not sufficient to prevent electric
shock.
K
F
DD
4
Switch Housing
Mounting Ring
Packing
Mount
5
O
F

14
FINAL INSTALLATION

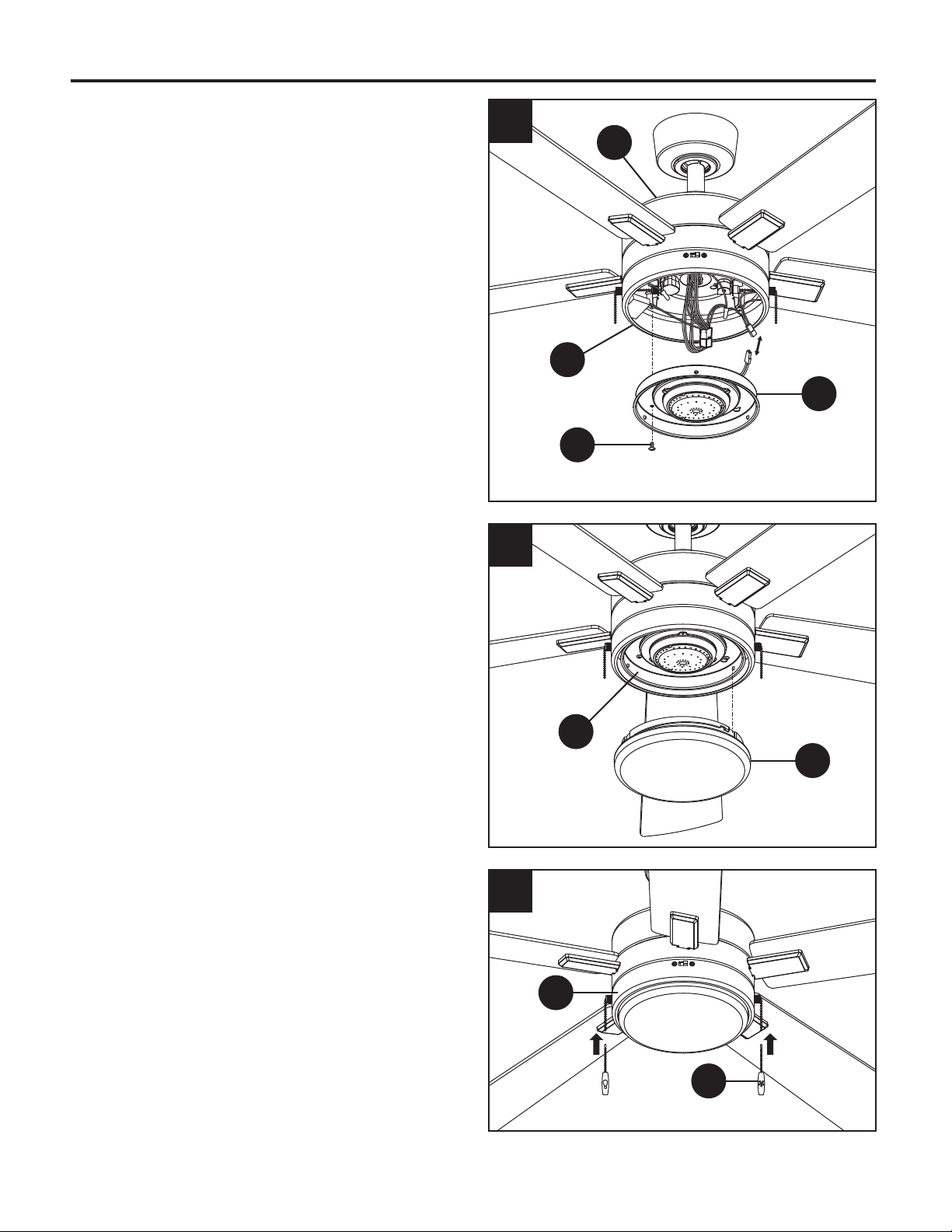

Remove one of the three light kit mounting
screws (P) from the switch housing (G) and
loosen the other two light kit mounting
screws (P). (Do not remove.)
While holding the 20W LED light kit (H)
under the fan motor assembly (F), make
the 2-pin wire connections.
Place the key holes on the 20W LED light
kit (H) over the two mounting screws (P)
previously loosened from the switch housing
(G). Turn the 20W LED light kit (H) until the
20W LED light kit (H) locks in place at the
narrow section of the key holes. Secure by
tightening the two light kit mounting screws
(P) previously loosened and the one (P)
previously removed.
8
7.
Raise the glass shade (I) up against the 20W
LED light kit (H) and secure it to the fan by
turning the glass shade (I) clockwise until
snug. DO NOT OVERTIGHTEN.
8.
Install the pull chains and fobs (L) onto the
pull chains located in the switch housing (G).
9.
H
I
L
G
9
7
P
H
G
F

15

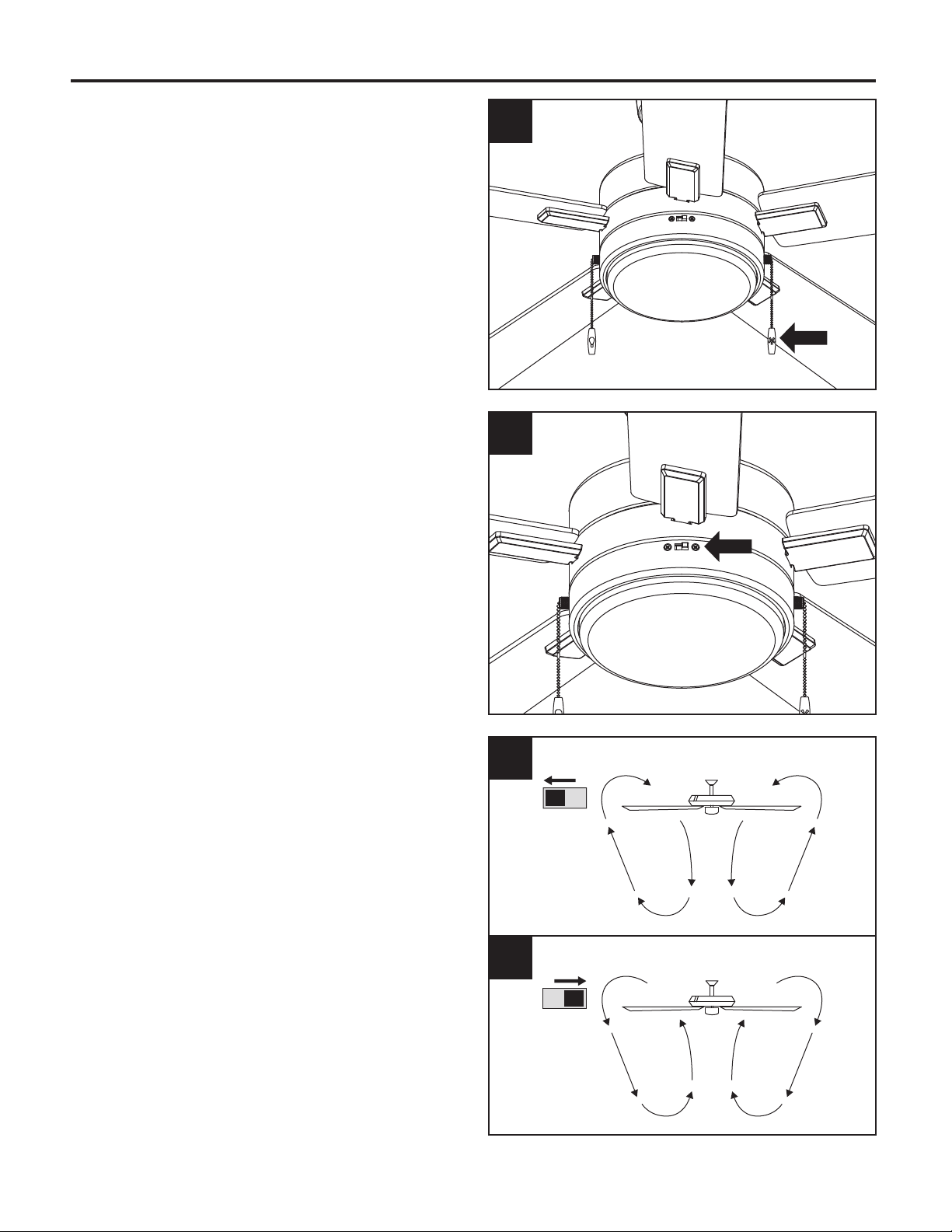

OPERATING INSTRUCTIONS
The pull chain controls the fan speed as
follows: 1 pull - High, 2 pulls - Medium,
3 pulls - Low, 4 pulls - Off.
The light pull chain controls the light kit:
"ON" and "OFF".
1
1.
The reverse switch is located on the surface
of the switch housing. Slide the switch to the
left for warm weather operation. Slide the
switch to the right for cool weather operation.
NOTE: Wait for the fan to stop before
reversing the direction of the blade rotation.
2
2A
2B
2.
2A. Warm weather - (Counterclockwise
Direction) A downward air flow creates a
cooling effect. This allows you to set your
air conditioner on a warmer setting without
affecting your comfort.
2B. Cool weather - (Clockwise Direction)
An upward air flow moves warm air off the
ceiling. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.

16
CARE AND MAINTENANCE
TROUBLESHOOTING
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean fan with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (J) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water
or a damp cloth to clean the ceiling fan.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
4. Check that male and female plugs
in switch housing are connected
properly according to instructions
on page 13.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing
yoke is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.

17
TROUBLESHOOTING
LIMITED LIFETIME WARRANTY
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan operates but
light fails. 1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
3. Plugs not connected properly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 10 and 11.
2. Make sure that wall switch to fan
is on.
3. Check that male and female plugs
in switch housing are connected
properly according to instructions
on page 13.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
The distributor warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for Lifetime limited from the date of purchase. This warranty
applies only to the original purchaser. The distributor agrees to correct any defect at no charge or,
at our option, replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by using parts not produced by the
manufacturer of this fan or affixing accessories not produced by the manufacturer of this fan, are
the purchaser's own responsibility. The distributor assumes no responsibility whatsoever for fan
installation during the limited lifetime warranty. Any service performed by an unauthorized person
will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected
from varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from
the date of purchase. For the balance of the warranty, call our customer service department (at
888-251-1003) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the
limited lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance
except as may otherwise be accorded by law. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties.

18
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m.,
EST, Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION PARTS #
Mounting BracketA
B
C
D
E
I
Canopy
Canopy Bottom Cover
Downrod
Coupling Cover
Glass Shade
5497070-A
5497070-B
5497070-C
5497070-D
5497070-E
5497070-I
J Blade 5497070-J
K Blade Arm 5497070-K
Printed in China
PWLI1410
D
BEI
AC
K
J

VENTILADOR DE TECHO
OLLINGTON PARA
INTERIORES
HARBOR BREEZE y el diseño del logotipo
son marcas comerciales o marcas registradas
de LF, LLC. Todos los derechos reservados. MODELO # AR09-52WHT AR09-52BLK
AR09-52BN
Fecha de la compra
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 888-251-1003, de lunes a domingo de 8 a.m. a 8
p.m., hora estándar del Este. También puede ponerse en contacto con nosotros a
través de [email protected].
1
ARTÍCULO # 5497070 5497071
5497072
AS23223

2
Información de seguridad ..........................................................................................
Contenido del paquete ..............................................................................................
2
5
6
6
7
9
10
12
15
16
16
17
18
Aditamentos ..............................................................................................................
Preparación ...............................................................................................................
Instalación inicial .......................................................................................................
Montaje del ventilador ...............................................................................................
Cableado ...................................................................................................................
Instalación final ..........................................................................................................
Instrucciones de funcionamiento ...............................................................................
Cuidado y mantenimiento ..........................................................................................
Solución de problemas .................................................................................................
Garantía limitada de por vida ....................................................................................
Lista de piezas de repuesto ......................................................................................
ÍNDICE
INFORMACIÓN DE SEGURIDAD
Las modificaciones que no estén aprobadas por la parte responsable del cumplimiento podrían
anular la autorización del usuario para utilizar el equipo.
*NOTA: este equipo se probó y se verificó que cumple con los límites para un dispositivo digital de
clase B, conforme a la Sección 15 de las reglas de la FCC. Estos límites están diseñados para
proporcionar una protección razonable contra interferencias perjudiciales en una instalación
residencial. Este equipo genera, utiliza y puede irradiar energía de radiofrecuencia y, si no se
instala ni se usa de acuerdo con las instrucciones, puede causar interferencias perjudiciales para
las comunicaciones de radio. Sin embargo, no se garantiza que no se producirán interferencias en
una instalación en especial. Si este equipo genera una interferencia perjudicial para la recepción
de radio o televisión, que se puede determinar al encender y apagar el equipo, se recomienda al
usuario que intente corregir la interferencia con una o más de las siguientes medidas:
* Reorientar o reubicar la antena de recepción.
* Aumentar la separación entre el equipo y el receptor.
* Conectar el equipo a un tomacorriente de un circuito distinto al que usa el receptor.
Solicitar ayuda al distribuidor o a un técnico con experiencia en radio/TV.
El dispositivo cumple con la Parte 15 de las reglas FCC. Su funcionamiento está sujeto a las
siguientes condiciones: (1) este dispositivo no debe causar interferencias perjudiciales; (2) debe
aceptar cualquier interferencia recibida, incluida la interferencia que pudiese causar un
funcionamiento no deseado.
NOTA: se puede regular al 10% con reguladores seleccionados. Consulte lowes.com para obtener
más información.
