Harbor Breeze URBANIA E-AR54BNK5C1 User manual

E206035
ITEM #0151279
URBANIA CEILING FAN
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Español p. 21
MODEL #E-AR54BNK5C1
1
Questions, problems, missing parts? Before returning to your retailer, call or contact our
customer service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Federal regulations require ceiling fans with light kits manufactured or imported after
January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,
this fan is equipped with a wattage limiting device.

2
Safety Information .....................................………………………………………………...…
….. 2 - 3
Product Overview ........................................................................................................................4
Package Contents .....……………………………………………………………..….
…. ......... ... 5
Hardware Contents ...................................................................................................................
... 6
Preparation ...............….…………………..……………………….…………….………………....6
Initial Installation ............….……………..……………………….……….
…..…. ..........................7 - 8
Fan Mounting .................................................................................................................
... ... 8 - 10
Wiring .................................……………………........................................…………........10 - 12
Final Installation ….…………….……………………….…………….……..........
.... . …... 13 - 16
Operation Instructions ............................................................……………………
…… …. ........ 16 - 17
Care and Maintenance …
….… …………………………………………………..…....... ..... .. .... 18
Troubleshooting .............………...………………………….……………..………....
….... 18 - 19
Warranty ……………………………….…………………………………………..…
…. ......... ..... 19
Replacement Parts List ...........................................................................................
......... ...... . ........ 20
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product. If you have any questions regarding the product, please call customer service at
1-800-527-1292, 8:30 a.m.- 5:00 p.m., CST, Monday - Friday.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook,
available at Lowe's, if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 20.37 lbs. (9.24 kg).
TABLE OF CONTENTS

CAUTIONS
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.

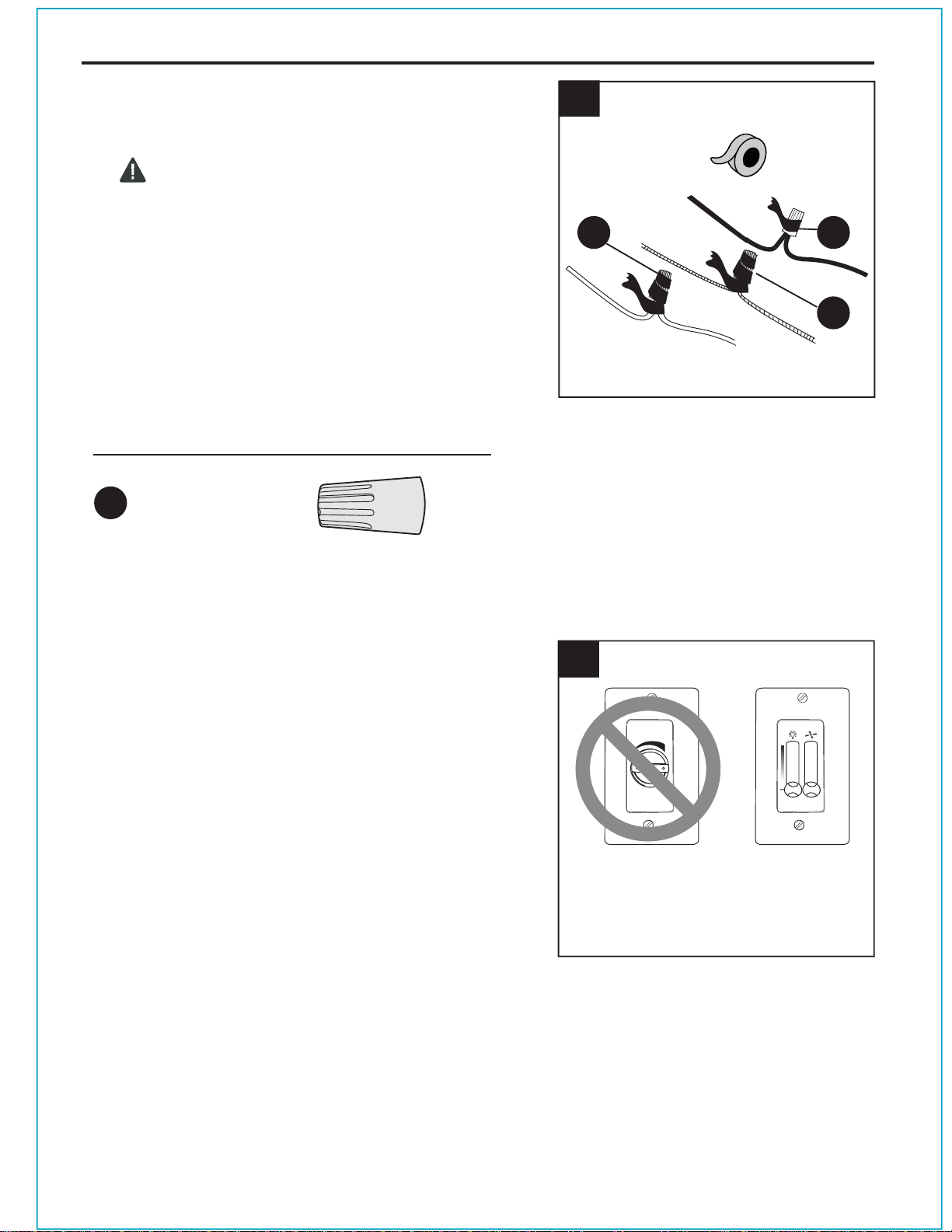

To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the two fan
lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNINGS
CAUTIONS
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.

Congratulations on your purchase of this Harbor Breeze®
Ceiling Fan! This product has been specifically designed to
give you all the performance you’ll ever need. Harbor Breeze®
is the perfect fusion of smart innovation and beautiful style.
Designed for more than just air movement, our products are
built to function flawlessly... day after day. Expect showroom
quality at an exceptional price with Harbor Breeze® - available
exclusively at Lowe’s.
Determining how you want your ceiling fan to look and operate is an important step prior to
installation. You can save installation time by deciding which options are best suited for your needs
before beginning the steps outlined in this manual.
Your fan can be installed on a normal or angled ceiling. Two points to remember before you hang
your ceiling fan:
• Downrod-style mounting is best suited for ceilings 8 ft. (2.44 m) high or higher. For taller ceillings
you may want to use a longer downrod (sold separately) than the one provided.
• Angle-stlye mounting is best suited for angled or vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance.

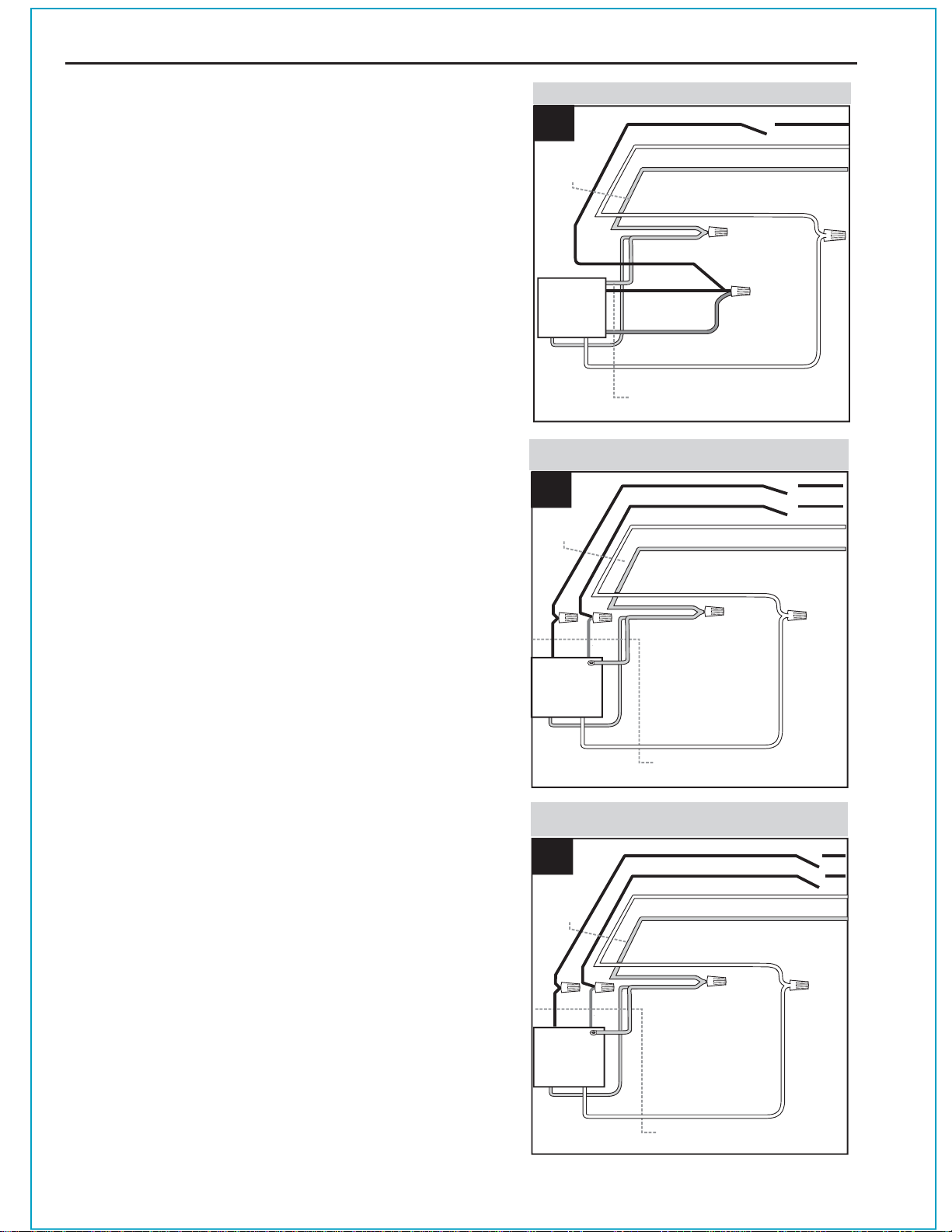

Your fan also has multiple wiring options available, including:
• Fan and light controlled by pull chain.
• Fan controlled by pull chain, light controlled by wall switch.
• Fan and light controlled by two separate wall switches.
Your fan is also remote control adaptable (remote control not included).
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
4
PRODUCT OVERVIEW

IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
5
PACKAGE CONTENTS
A
E
D
B
I
H
F
M
L
K
ON
J
G
P
R
Q
C
PART DESCRIPTION QUANTITY
K Canopy Cover 1
L Finial 1
M Finial Plate 1
N Pin (preassembled) 1
O Clip (preassembled) 1
P Canopy Mounting Screw
2
(preassembled)
Q Switch Housing Screw
6
(preassembled)
R Glass Shade 1
S Hex Nut (preassembled) 1
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Yoke Cover 1
E Motor Housing 1
F Switch Housing 1
G Blade 5
H Pull Chain Extension 2
I Light Kit Fitter 1
J Candelabra Base Bulb 3
Q
S

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook
(available at Lowe’s) and Wire Cutters
Bulbs Required (included): 3 candelabra-base 40-watt max. bulbs
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured.
PREPARATION
6
CC
Blade
Screw
Qty. 15
+ 1 extra
E3 Wire
Connector
Qty. 4
Fiber
Blade
Washer
Qty. 15
+ 1 extra
BB
AA

7

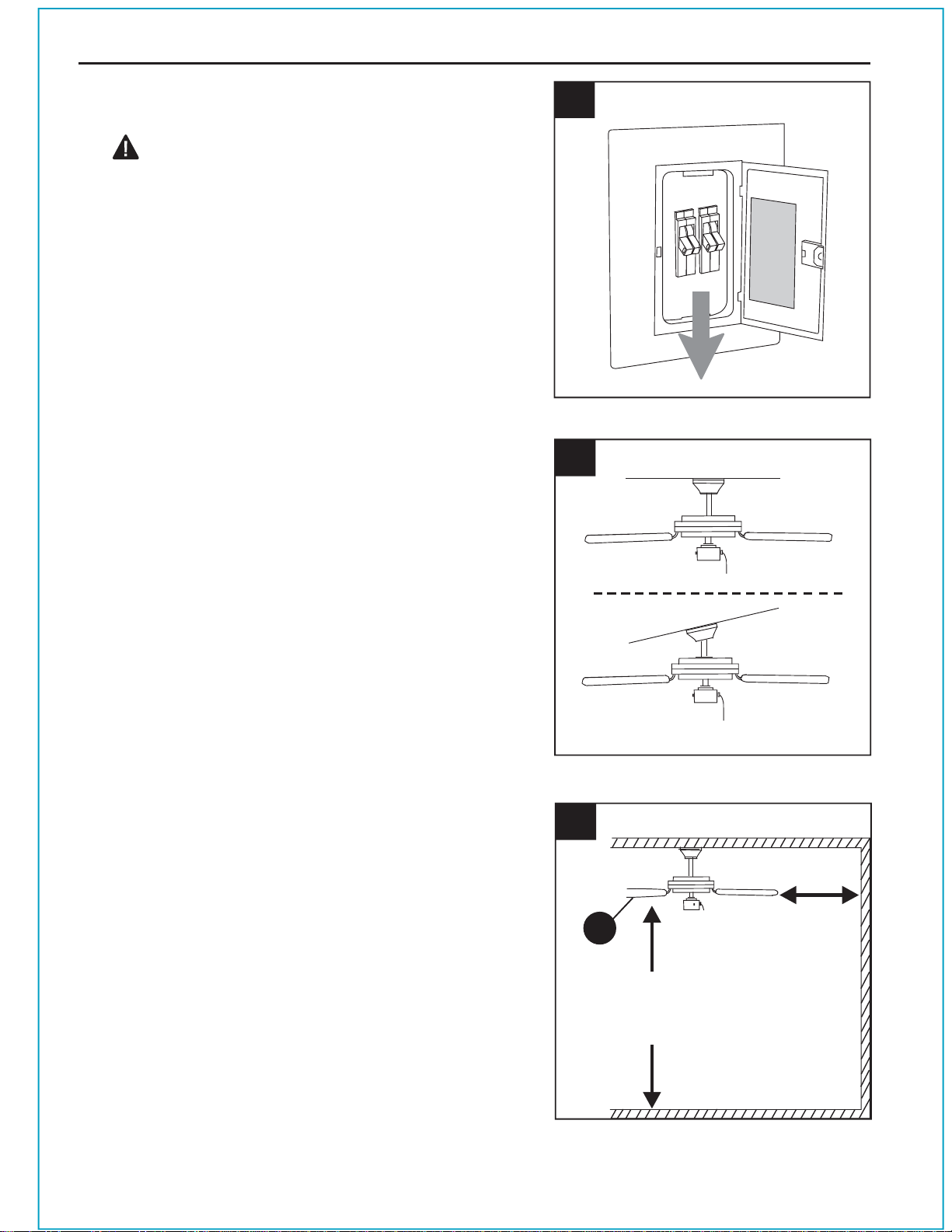

INITIAL INSTALLATION
Turn off circuit breakers and wall switch to the fan
supply line leads. (Fig. 1)
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Determine mounting method to use. (Fig. 2)
A. Normal mount
B. Angle mount
Important: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
2.
Check to make sure blades (G) are at least 30 in.
from any obstruction. Check downrod (A) length to
ensure blades (G) are at least 7 ft. above the floor.
(Fig. 3)
G
3.
7 ft.
min.
30 in.
min.
ON
OFF
ON
OFF
1
3
2
A
B

Secure mounting bracket (C) to outlet box using
screws, spring washers, and flat washers
provided with the outlet box. (Fig. 4)
*NOTE: It is very important that you use the
proper hardware when installing the mounting
bracket (C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling.
4.
FAN MOUNTING
8
Remove pin (N) and clip (O) from downrod (A).
(Fig. 1A)
Partially loosen set screws in motor housing
yoke at top of motor housing (E). (Fig. 1B)
*Helpful Hint: Downrod style mounting is best
suited for ceilings 8 ft. (2.44 m) high or higher.
For taller ceilings you may want to use a longer
downrod (not included) than the one provided.
Angle style mounting is best suited for angled
or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
Set
Screw
1.
INITIAL INSTALLATION
1A 1B
E
N
O
A
4
C

9
FAN MOUNTING
Depending on the length of downrod (A) you
use, you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested that you do so in the
following manner:
Take the lead wires and make sure that you
have pulled them all the way through the top of
the downrod (A). Start at the TOP of the ball on
the downrod (A) and measure 8 in. of lead wire,
and then cut the excess wire off with wire cutters
(not included). (Fig. 4)
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Ball
A
2.
B
D
K

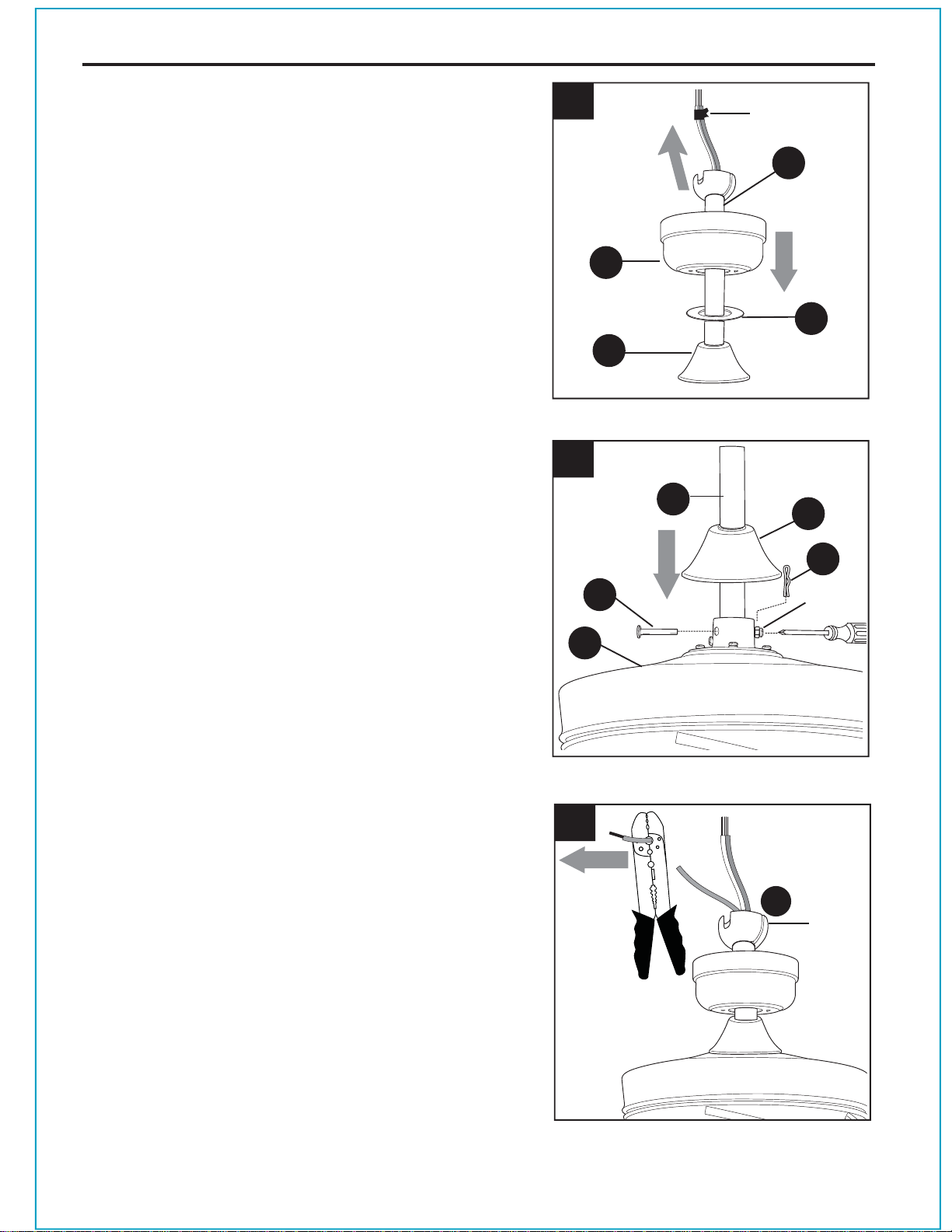

Insert downrod (A) through canopy (B), canopy
cover (K) and yoke cover (D). [Note: Canopy
cover (K) must be turned with the shiny side
toward the motor housing (E).] Thread wires
from motor housing (E) through downrod (A).
(Fig. 2)
Tip: Apply a small piece of electrical tape (not
included) to the ends of the wires before
threading them through the downrod (A).
A
2
Set
Screw
A
3.
D
O
N
E
Slip downrod (A) into housing yoke, align holes
and re-install pin (N) and clip (O). Tighten
downrod (A) set screws and then tighten nuts.
Slide yoke cover (D) down until it rests on top of
motor housing (E). (Fig. 3)
3
4
Electrical
Tape

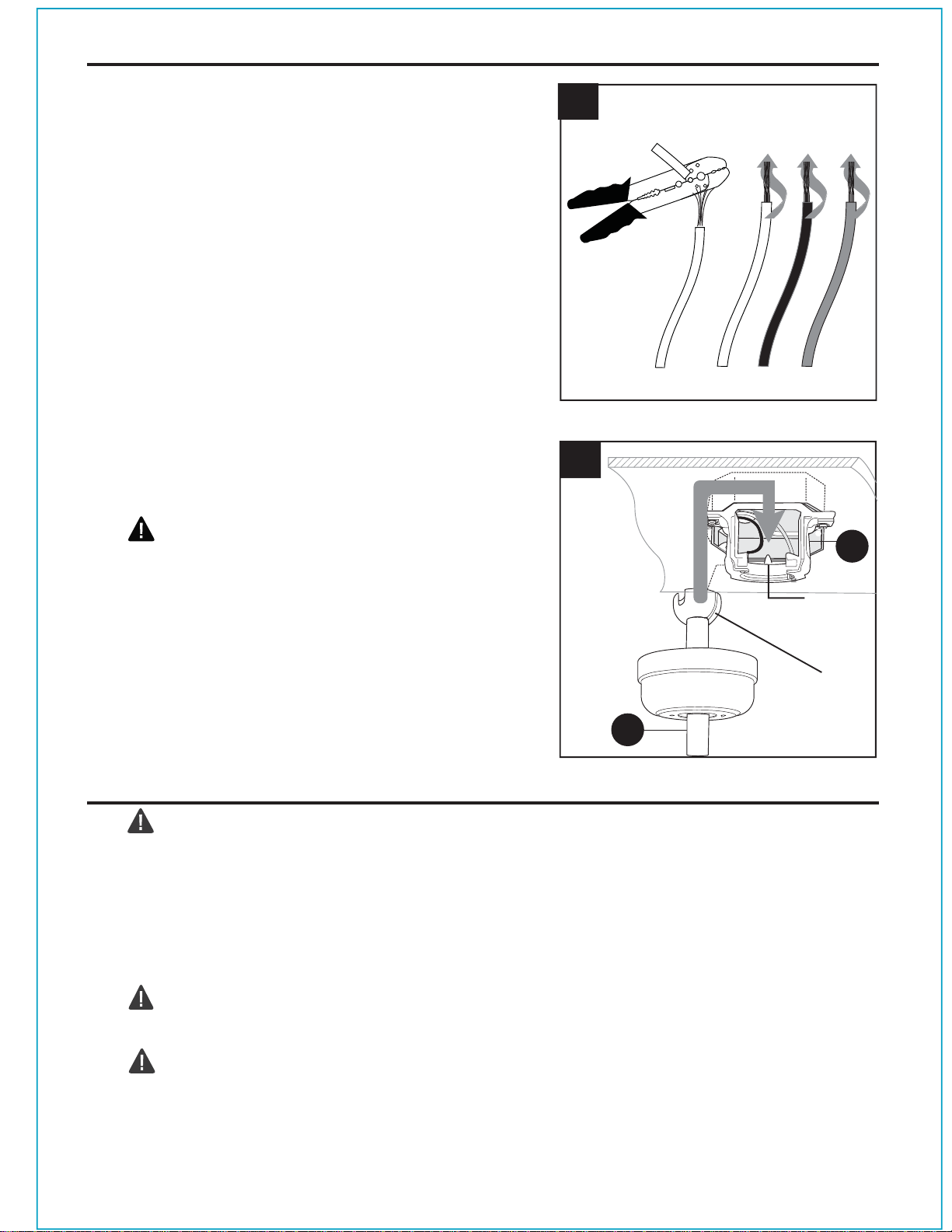

If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers (not included). (Fig. 5)
Repeat Step 5 for black, blue (if applicable) and
green wires.
5
5.
FAN MOUNTING
Install ball end of downrod (A) into mounting
bracket (C) opening. Align slot in ball with tab in
mounting bracket (C). (Fig. 6)
DANGER: Failure to align slot in ball with tab
may result in serious injury or death.
6.
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided with
this fan are designed to accept only one 12-gauge
house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more
than one house wire to connect to the two fan lead
wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded
and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than
referred to in the following steps, stop immediately. A
professional electrician is recommended to determine
wiring.
10
WIRING
6
Slot
Tab
C
A

NOTE: Black wire is hot power for fan. Blue wire
is hot power for light kit. White wire is common
for fan and light kit. Green or bare wire is ground.
WHITE
BLACK
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
FAN
120 V Power
FROM
CEILING
GREEN
WHITE
GREEN
1A
1B
1C
FAN CONTROLLED BY PULL CHAIN, LIGHT BY
WALL SWITCH
FAN AND LIGHT CONTROLLED BY TWO WALL
SWITCHES
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
BLUE
WHITE
FROM FAN
120 V Power
FROM
CEILING
FAN
GREEN
BLACK
GREEN
WHITE
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
FAN
120 V Power
FROM
CEILING
GREEN
WHITE
GREEN
Choose wiring diagram (Fig. 1A, Fig. 1B or Fig.
1C) that fits your situation and make
appropriate wiring connections as follows:
[NOTE: For each wire connection below, use
one of the wire connectors (CC) provided,
making sure to screw wire connector (CC) on
in a clockwise direction.]
1A. FAN AND LIGHT CONTROLLED BY
PULL CHAINS: Connect BLACK and BLUE
wire from fan to BLACK wire from ceiling.
Connect WHITE wire from fan to WHITE wire
from ceiling. Connect all GROUND (GREEN)
wires together from fan (on downrod (A) and
mounting bracket (C)) to BARE/GREEN wire
from ceiling. (Fig. 1A)
1.
1B. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall
switch, connect BLACK wire from fan to
BLACK wire from ceiling. Connect BLUE
wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from
ceiling. Connect all GROUND (GREEN)
wires together from fan (on downrod (A) and
mounting bracket (C)) to BARE/GREEN wire
from ceiling. (Fig. 1B)
WIRING
1C. FAN AND LIGHT CONTROLLED BY
TWO WALL SWITCHES: If you intend to
control the fan and light with separate wall
switches, connect BLACK wire from fan to
BLACK wire from the independent wall switch
for the fan. Connect BLUE wire from fan to the
BLACK wire from the other independent wall
switch for the light. Connect WHITE wire from
fan to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan
(on downrod (A) and mounting bracket (C)) to
BARE/GREEN wire from ceiling. (Fig. 1C)
11

WIRING
Wrap electrical tape around each individual
wire connector (CC) down to the wire as
shown in Fig. 2.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections. Place green and white
connections on opposite side of box from the
black and blue (if applicable) connections.
Turn spliced/taped wires upward and gently
push wires and wire connectors (CC) into
outlet box.
CC
CC
CC E3 Wire Connector x4
2.
Hardware Used
1
2
3
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
IMPORTANT: Using a full range dimmer
switch (not included) to control fan speed will
cause a loud humming noise from fan. To
reduce the risk of fire or electrical shock, do
NOT use a full range dimmer switch to control
fan speed. (Fig. 3)
3.
2
3
CC
12

13
FINAL INSTALLATION
B
P
K
A
1.
2.
Hardware Used

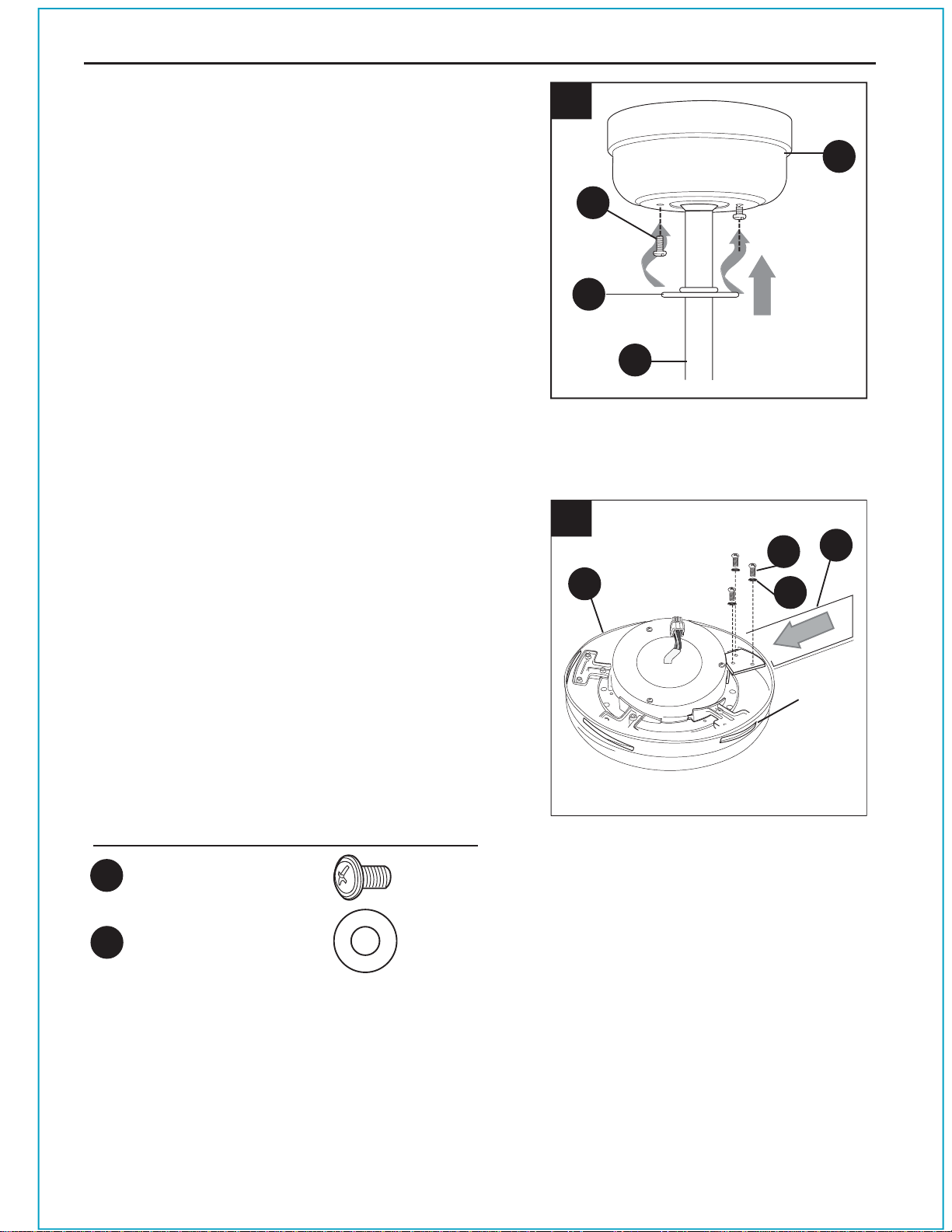

Locate two canopy mounting screws (P) on
underside of mounting bracket (C) and remove
canopy mounting screw (P) closest to the open
end of the mounting bracket (C). Partially
loosen the other canopy mounting screw (P).
Lift canopy (B) to mounting bracket (C). Place
rounded part of slotted hole in canopy (B) over
loosened canopy mounting screw (P) in
mounting bracket (C) and push up. Twist
canopy (B) to lock. Re-insert canopy mounting
screw (P) that was removed, and then tighten
both canopy mounting screws (P). Slide
canopy cover (K) up to canopy (B). Press up
gently but firmly on canopy cover (K) until you
hear it snap onto the bottom of the canopy (B).
(Fig. 1)
1
Insert the blade (G) through the slot on the band
on the motor housing (E). Align holes and attach
the blade (G) to the motor with blade screws
(AA) and fiber blade washers (BB) provided.
Then, tighten each blade screw (AA) starting
with the one in the middle. (Fig. 2) Repeat for
remaining blades (G).
Time Saver: Fiber blade washers (BB) can be
set on each blade screw (AA) prior to installing
blades (G).
AA Blade Screw x15
Fiber Blade Washer x15
BB
Slot
G
E
AA
BB
2

E
14
9-wire
Plug
9-wire
Plug
3. 3
Remove three switch housing screws (Q) from
fitter plate (on underside of motor). Connect 9-wire
plug from motor housing (E) to 9-wire plug from
switch housing (F), matching up the colors on the
9-wire plugs for correct fit. (Fig. 3) Make sure plugs
connect tightly.
Carefully arrange wires inside switch housing (F).
Align holes in switch housing (F) with holes in fitter
plate. Re-insert switch housing screws (Q) that
were previously removed. Tighten all three switch
housing screws (Q) securely. (Fig. 3)
FINAL INSTALLATION
F
4. Locate switch housing screws (Q) on underside of
switch housing (F) rim. Remove switch housing screw
(Q) with a red dot--save for later use. Partially loosen
the other two switch housing screws (Q). (Fig. 4)
Align slotted holes in light kit fitter (I) with loosened
screws in switch housing (F). Twist light kit fitter (I) to
lock. Re-insert switch housing screw (Q) that was just
removed, and then tighten all three switch housing
screws (Q) securely. (Fig. 4)
4
I
F
Q
Switch
Housing
Rim
5.
Fitter
Plate
Q
Q
E
5
J
Small
Female
Plug Small
Male
Plug
F
I
Connect small male plug from switch housing (F) to
small female plug from light kit fitter (I), (Fig. 5)
Make sure plugs connect tightly.
Install three candelabra-base 40-watt max. bulbs (J)
included. (Fig. 5)
CAUTION: When replacing bulbs, please allow
bulbs and glass shade to cool down before touching.

Set the reverse switch, located on the switch
housing (F), to the LEFT position for a downward
airflow to create a wind chill effect or to the RIGHT
position to create an upward airflow that will help
move hot air off the ceiling. (Fig. 6)
For further information on the reverse switch, please
see Step 3 on page 17 in “Operation Instructions.”
It is advisable to check that the wiring has been
done correctly before proceeding. Turn power back
on and test light and fan functions with pull chains
on switch housing (F).
If fan functions but lights do not, please turn power
off and check that male plug from switch housing
(F) and female plug from light kit fitter (I) are
connected properly. Turn power back on and re-test
light.
If fan does not function, please turn power off,
disconnect male and female plugs on light kit fitter
(I) and remove light kit fitter (I). Remove switch
housing (F) and check that 9-wire plugs inside
switch housing (F) are connected properly. Replace
switch housing per instructions in Step 3 and
continue with Steps 4 and 5. Turn power back on
and re-test fan.
Once fan and lights are functioning, please continue
with Step 7.
15
6. 6
F
Reverse
Switch
FINAL INSTALLATION
I
R
I
Threaded
Rod
Pull
Chain
7. Before proceeding, make sure electricity has
been shut off again.
Remove rubber bands and plastic bags from fan
pull chains. Remove hex nut (S) from threaded
rod.
Raise glass shade (R) in order to guide pull
chains through corresponding holes at the bottom
of the glass shade (R). Push up gently until
threaded rod comes through center hole of glass
shade (R). Secure glass shade (R) with hex nut
(S) that was previously removed. (Fig. 7) Note:
Do NOT overtighten hex nut (S) as glass may
crack or break.
Thread pull chains and threaded rod through
corresponding holes in finial plate (M) and center
pull chain through hole in finial (L). TIghten finial
(L) to secure. (Fig. 7)
7
M
L
S
Note: Do NOT overtighten finial (L)
as glass may crack or break.

OPERATION INSTRUCTIONS
1.
2
1
2.
16
Attach pull chain extensions (H) supplied in one
of the hardware packs or custom pull chain
extensions (not included) to fan and light pull
chains. (Fig. 8)
NOTE: This fan is remote control adaptable
(remote control not included).
8. 8
The pull chain labled FAN has four positions to
control fan speed. One pull is HIGH, two is
MEDIUM, three is LOW and four turns the fan
OFF. (Fig. 1)
The pull chain labeled LIGHT is used to turn the
light ON or OFF. (Fig. 2)
FINAL INSTALLATION
(For Fan) (For Light)
H

OPERATION INSTRUCTIONS
17
3A 3B
3C
3C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position (Fig. 3C), fan will not operate.
3A. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect. (Fig. 3A)
3B. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area. (Fig. 3B)
3. Use the fan reverse switch, located on the switch
housing (F) inside the glass shade (R), to optimize
your fan for seasonal performance.* (Fig. 3) A
ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat
setting in winter without feeling a difference in your
comfort.
Note: Wait for fan to stop before moving the
reverse switch.
*In order to access the reverse switch, you must
first remove the pull chain extensions (H), finial (L),
finial plate (M) and then, carefully, the glass shade
(R). After setting the reverse switch in the desired
position, see Steps 7 and 8 on pages 15 and 16 to
re-attach all parts that were just removed.
3
FReverse
Switch
I

18
TROUBLESHOOTING
If you have any questions regarding the product please call customer service at 1-800-527-1292,
8:30 a.m. - 5 p.m., CST, Monday - Friday.
Warning: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. 9-wire plugs not connected properly.
1. Push switch firmly either left or
right. (Refer to page 15.)
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
(B) and check all connections.
4. Check that 9-wire plugs in
switch housing (F) are connected
properly according to instructions
on page 14.
Noisy operation. 1. Blades (G) are loose.
2. Cracked blade (G).
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws (AA).
2. Replace blade (G).
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive wobbling. 1. Blades (G) are loose.
2. Unbalanced blades (G).
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws (AA).
2. Switch one blade (G) with a
blade (G) from the opposite side.
3. Turn power off. Carefully loosen
canopy (B) and verify that
mounting bracket (C) is secure.
4. Use a longer downrod (A) or
move fan to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower
canopy (B) and verify that set
screw on hanging ball is tightened
securely.
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching
the finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
Important: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
CARE AND MAINTENANCE

Note: A small amount of "wobble" is normal and should not be considered a defect.
WARRANTY
LIMITED LIFETIME WARRANTY: Litex Industries warrants this fan to be free from defects in
workmanship and materials present at time of shipment from the factory for Lifetime limited from the
date of purchase. This warranty applies only to the original purchaser. Litex Industries agrees to
correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior
model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. Litex Industries assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. Litex Industries disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. Litex Industries shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
TROUBLESHOOTING
19
Fan operates but
light fails. 1. Bulb(s) not installed correctly.
2. Wires in canopy (B) not wired
properly.
3. Wall switch to fan is off.
4. Male and female plugs not connected
properly.
5. Light kit is lamped with more than the
allowable 190W, causing the wattage
limiting device to interrupt the flow of
electricity to the light kit.
1. Re-install bulb(s).
2. Check wires in canopy (B) and,
if necessary, re-wire according to
instructions on pages 11 and 12.
3. Make sure that wall switch to fan
is on.
4. Check that male and female
plugs are connected properly
according to instructions on page
14.
5. Lamp light kit with bulbs that
total no more than 190W.

Printed in China
20
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-527-1292, 8:30 a.m. - 5:00
p.m., CST, Monday - Friday. When ordering parts, please have the Model # or Item # of the fan
available, which can be found on page 1.
A
D
B
F
C
K
G
H
LO
I
MP
QRBB
CC
AA
N
PART DESCRIPTION
ADownrod
BCanopy
CMounting Bracket
DYoke Cover
FSwitch Housing
GBlade
HPull Chain Extension
ILight Kit Fitter
KCanopy Cover
LFinial
MFinial Plate
NPin
OClip
PCanopy Mounting Screw
QSwitch Housing Screw
RGlass Shade
S Hex Nut
AA Blade Screw
BB Fiber Blade Washer
CC E3 Wire Connector
S
